Description

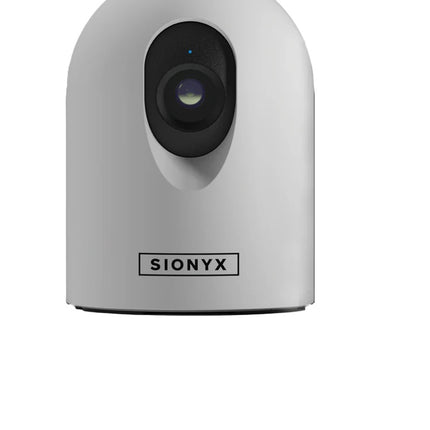

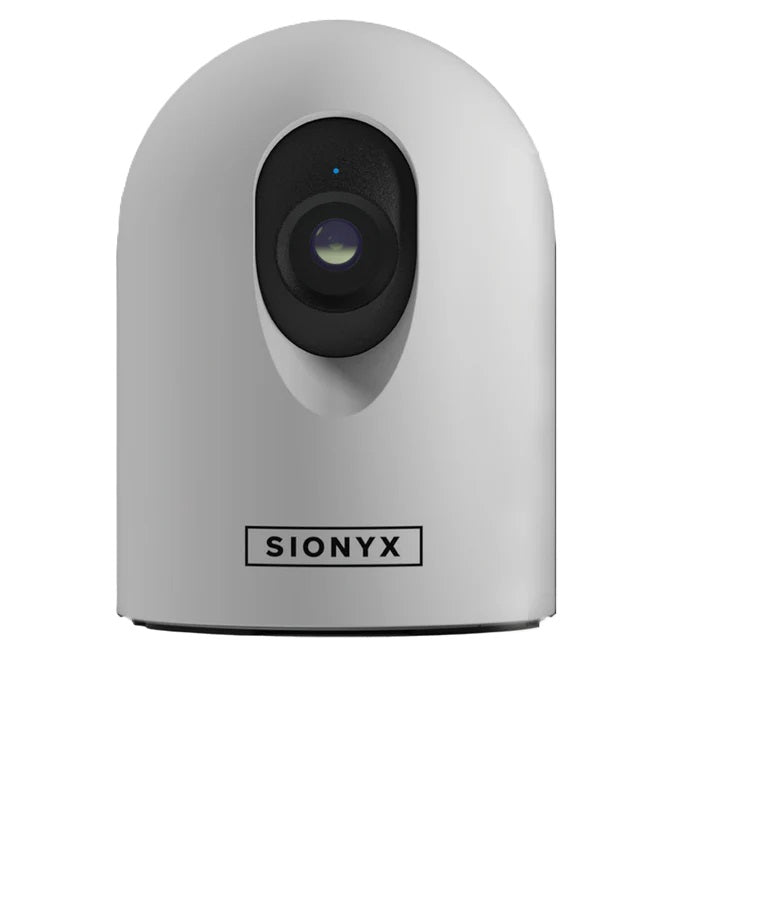

Sionyx Nightwave Digital High Resolution Low-Light marine Camera - White
Model: C018800
- Seamless inegration with all major brand MFDs
- Network (POE) compatibility
- Engineered for large screens (higher resolution)
- Connectivity with app control via Wi-Fi
- One camera to multiple MFDs or multiple cameras to one MFD
Meet the next generation of ultra-low-light marine imaging. Nightwave Digital delivers unmatched clarity - even in moonless starlight—thanks to the enhanced IP (PoE) digital connectivity and advanced Black Silicon CMOS sensor, outshining traditional thermal cameras.
Nightwave Digital offers higher resolution, greater reliability, and seamless integration with networked MFD systems. With flexible mounting options and an intuitive setup, it’s built for captains who want safety without complexity. Less guesswork, more peace of mind.
Whether cruising, fishing, or docking after dark, Nightwave Digital helps you stay safe—and enjoy every moment on the water.
Specifications
| IMAGE SENSOR |
COLOR XQE1350 BSI CMOS |
| RESOLUTION |
1280 X 1024 |
| FRAME RATE |
UP TO 30HZ |
| MIN ILLUMINATION |
MOONLESS STARLIGHT (<0.001 LUX) |
| FOCUS RANGE |
FIXED 10M TO INFINITY |
| HORIZONTAL FIELD OF VIEW |
44° |
| DAY & NIGHT |
AUTO DAY/NIGHT FILTER |
| VISIBLE SPECTRUM |
400-1200 NM |
| LENS |
LENS 16MM F/1.4 |
| PHYSICAL PROPERTIES |
| POWER POE |
[37—57 VDC / TYP 48 VDC] |
| CONSUMPTION |
5W NOMINAL |
| IMAGE SETTINGS |
BRIGHTNESS, CONTRAST,SHARPNESS, SATURATION,DAY & NIGHT, HDR, ORIENTATION, |
What's in the Box:
- Nightwave Digital - White
- Camera cable (10m)
- Network ethernet cable (2m)
- Power 2/16 cable (2m)
- RJ45 terminal x 2
- Cable zip tie
