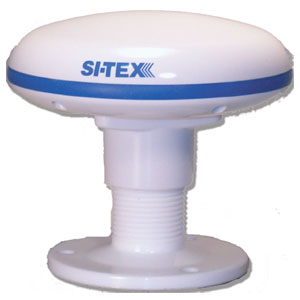

Smart SDGPS Sensor Antenna based on a 16 ch. GPS
Overal Dimensions| 97 x 32 mm (flush/pole/rail mounting) |
| Weight |
160 grams (without cable) |
| Cable |
15 meter 8 x 28AWG |
| Input Voltage |
10-35V DC |
| Power Consumption |
0.8W max |
| Electrical Interface |
TTL voltage levels, RS-232 polarity |
| Recieving Method/Frequency |
16 channels parallel (up to 3 for WAAS Satellites); 1575.42MhZ (LI, C/A code) |
| Time to First Fix (TTFF) |
Warm start: 33 seconds (typical); Cold Start: 40 seconds (typical) |
| Accuracy Position |
Less than 2.5m CEPI 5.0m SEP2; GPD: (SA=Off, HDOP<4); Less than 2.0mCEPI 3.0SEP2; DGPS: (SA=OFF, HDOP<4) |
| Dynamics Acceleration |
Strong Signals <=4g; Weak Signals typical 1g |
| Altitude/Velocity |
1800 m/1850 km/h (515 m/sec) |
| DGPS Format |
WAAS; EGNOS; MSAS |
| Output Format/NMEA |
0193 Baud rate 4800 N81; GGA, RMC, GSA, GSV |
| Output Messages |
TXT |
| Geodetic Datum |
WGS84 |
| Operating Temperature/Storage Temperature |
from 0 degto +60 degC / from 20 deg to +85 degC |
| Relative Humidity/Water Resistance |
95% non condensing/IPX7 |
