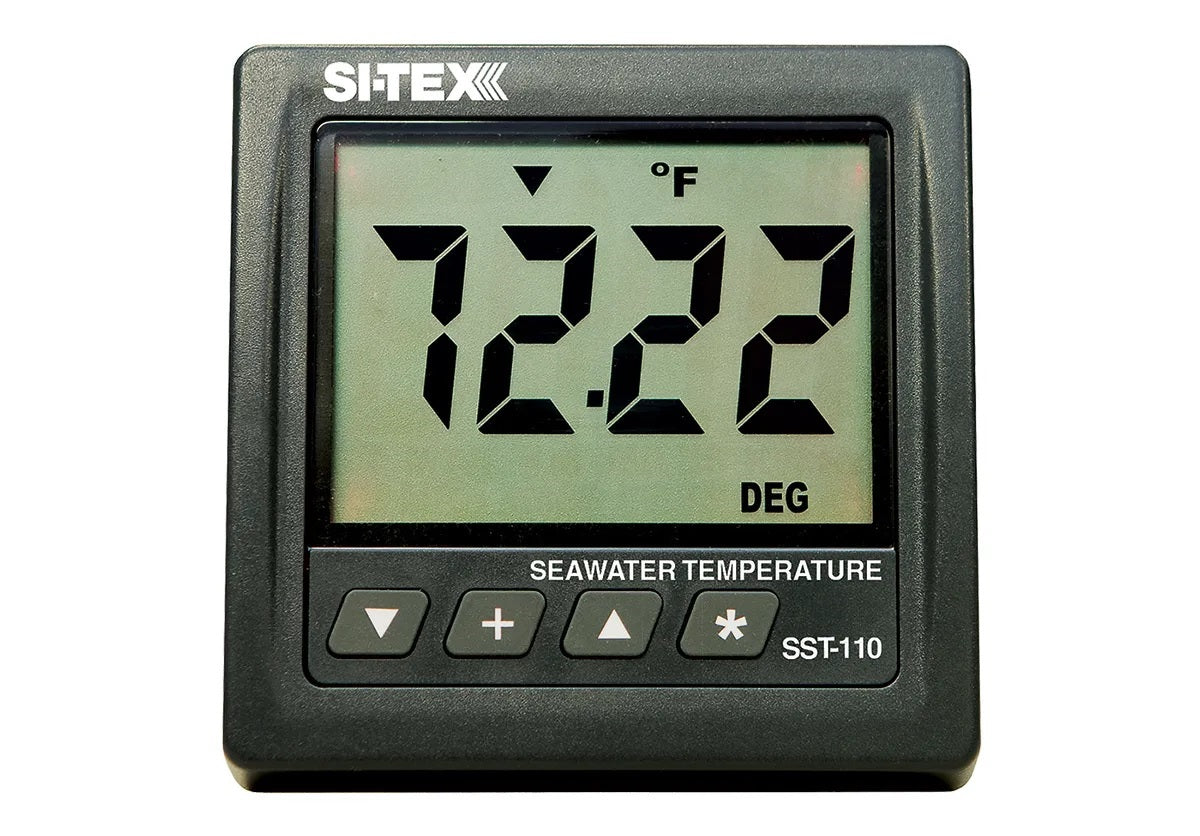

SI-TEX SST-10 - Specifications | Power Supply
| 9.50vdc to 33.00vdc (absolute maximum)
0.045 amps nominal current draw
Operation outside this range can cause erratic behavior or damage
|
| Operating Temperature
| 32F? deg to 122F deg ( 0 deg to 50 deg C) |
| Size
| 4.3 in x 4.3. x 3.5. deep (110 x 110 x 89 mm).
|
| Display Data
| Water Temperature, High and Low alarms,
temperature trend arrows, alarm symbol.
|
| Resolution
| 0.01 deg Fahrenheit or Celsius.
|
| Accuracy
| +-00.1 deg F deg
|
| Range
| 32.00 deg to 99.99 deg F (0.00 deg to 37.77 deg C)
|
| Transducers
| Transom and bronze thru-hull temperature probes available. |
| Display
| 4 digit LCD, 5 levels of backlighting.
|
| NMEA0183 Output Sentences
| Water temperature: (Degrees C) $VWMTW,xx.xx,C*CS
(Degrees F) $IIXDR,G,xx.xx*CS
|
