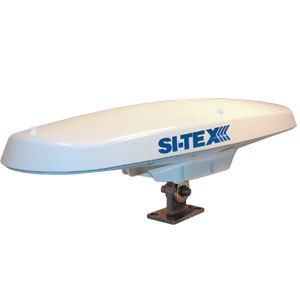

Experience superior navigation from the accurate heading and positioning performance available with the Vector Pro G2 Series GPS Compass.
Receiver
Type
| Twin
Receivers
w/
L1,
C/A
code,
with
carrier
phase
smoothing
|
| Channels |
Two
1?channel,
parallel
tracking,
(Two
10-?channel
when
tracking
WAAS)
|
| Update
Rate
|
Standard
20
Hz
Adjustable
(position
and
heading)
|
| Horizontal
Accuracy |
<
0.6
m
95%
confidence
(*
< 2.5m 95% confidence (aiutonomous, no SA)** |
| Heading accuracy |
<0.3 deg rms |
| Pitch/roll accuracy |
< 1 deg rms |
| Rate of turn |
90 deg/s max |
| Start up time |
< 60s typical |
| Heading fix |
< 20s |
| Satellite reacquisition |
< 1s |
| Beacon Sensor Specifications (G2B version) |
| Channels |
2-channel parallel tracking |
| Frequency range |
283.5 to 325 kHz |
| Operating modes |
Automatic (signal strength or range) and manual |
| Compliance |
IEC 611 08-4 beacon standard |
| Communications |
| Srial ports |
2 full duplex RS-232 and 2 half duplex RS-422 |
| Data I/O protocol |
NMEA 0183 |
| Enviromental |
| Operating temperature rage |
-30 degC to +70 degC |
| Humidity |
100% non condensing |
| Input voltage |
9-36vDC |
| Power consumption |
<5w |
| Isolation |
Power supply isolated fromserial ports |
| Mechanical |
| Dimensions |
23.6 x 6.3 in x 7.1 in |
