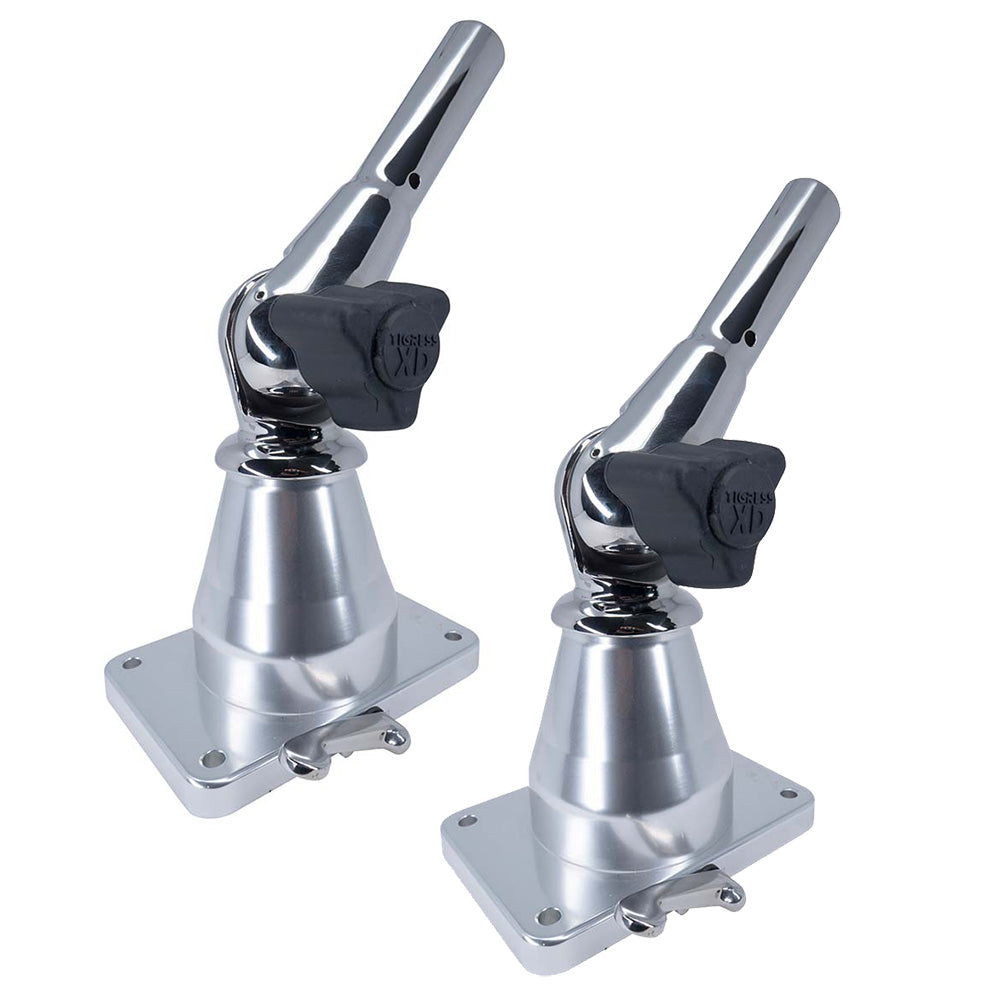

Tigress XD Bay Series Top Mount [88870]

Description

XD Bay Series Top Mount

Features:

  • For use on sport fishing boats up to 40 feet
  • Accepts all Tigress XD 1-1/8” butt diameter Outriggers
  • 19 upper-arm angle/locking (@10 deg.) using Tigress XD 316L Stainless Steel tooth locking design with horizontal stops for Trailering and bridges
  • Large 3-lobe UV ergonomic knob for changing and locking the outriggers’ elevation
  • 24 adjustable/locking system positions (15-degree increments) featuring Tigress XD 316L Stainless Steel locking design with HD Spring return
  • User-friendly Side Operating Lever
  • Large ‘XD’ Aluminum 14.5mm thick baseplate with four corner mounting
  • 5/16” through x 3.000” x 5.000” 4-bolt pattern
  • Fits Tigress and other industry-standard 4” x 6” mounting plates (four 5/16” diameter fasteners)
  • Extreme-duty 316L Stainless Steel and anodized aluminum and fully sealed construction with UV protection
  • Ambidextrous mounting option to accommodate the side that the tri-lobe knob is positioned on
  • 3-Year Limited Warranty

Tigress XD Bay Series Top Mount [88870]

Product form

$949.99

    Description

    XD Bay Series Top Mount

    Features:

    • For use on sport fishing boats up to 40 feet
    • Accepts all Tigress XD 1-1/8” butt diameter Outriggers
    • 19 upper-arm angle/locking (@10 deg.) using Tigress XD 316L Stainless Steel tooth locking design with horizontal stops for Trailering and bridges
    • Large 3-lobe UV ergonomic knob for changing and locking the outriggers’ elevation
    • 24 adjustable/locking system positions (15-degree increments) featuring Tigress XD 316L Stainless Steel locking design with HD Spring return
    • User-friendly Side Operating Lever
    • Large ‘XD’ Aluminum 14.5mm thick baseplate with four corner mounting
    • 5/16” through x 3.000” x 5.000” 4-bolt pattern
    • Fits Tigress and other industry-standard 4” x 6” mounting plates (four 5/16” diameter fasteners)
    • Extreme-duty 316L Stainless Steel and anodized aluminum and fully sealed construction with UV protection
    • Ambidextrous mounting option to accommodate the side that the tri-lobe knob is positioned on
    • 3-Year Limited Warranty
