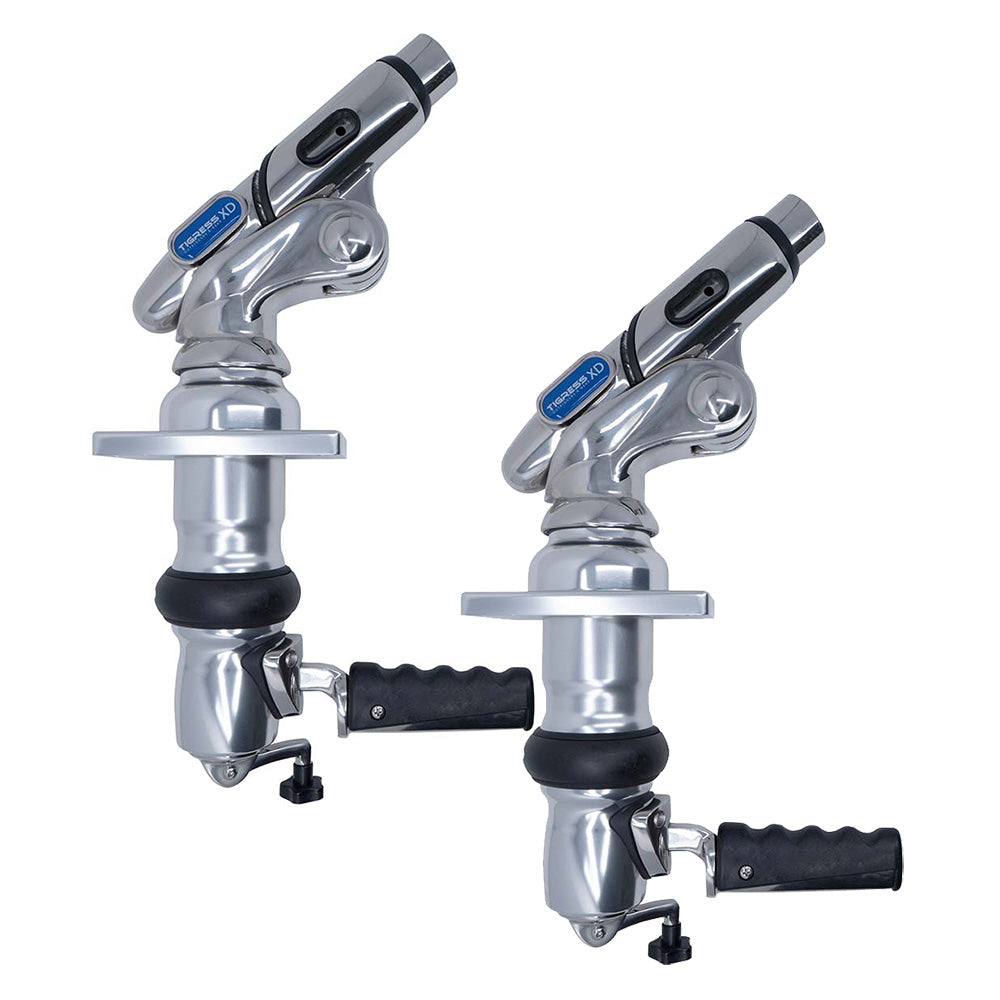

Tigress XD Crank Top Mount [88880]

Description

XD Crank Top Mount

Features:

  • For use on sport fishing boats up to 50 feet
  • Adjustable Upper Arm with ‘Run’ & ‘Laydown’ position Stops
  • User-friendly Folding Crank Handle with Integrated Drive Brake
  • Upper-Arm adjusting Ball-bearing drive system, with Integrated Balance Spring-assist
  • Extreme Duty Top Plate, Upper Arm, and Housings for Outriggers up to 22ft in length
  • Stainless-Steel & Bronze bushed Head pivot for Maximum trolling strength & durability
  • Unique invertible Tigress handle design for use on both soft and hard tops over 2” thick
  • Accepts all Tigress XD 1-1/2” butt diameter outriggers and XD 1-1/8” butts using an adapter
  • Fits Tigress and other industry-standard 4” x 6” mounting plates (four 5/16” diameter fasteners)
  • Extreme-duty 316L Stainless Steel and anodized aluminum and sealed construction with UV protection
  • 24 adjustable/locking system positions featuring Tigress XD 316L Stainless Steel design
  • Ergonomic 316 Stainless Steel mirror-polished lever design with inverting ability for extra hand clearance on the thickest tops
  • User-friendly underside lever actuation, with 8 optional indexable set-up positions
  • Fits through all standard 3” diameter mounting plates and hardtop holes
  • Sold as pair
  • 3-Year Limited Warranty

Tigress XD Crank Top Mount [88880]

Product form

$2,999.99

    Description

    XD Crank Top Mount

    Features:

    • For use on sport fishing boats up to 50 feet
    • Adjustable Upper Arm with ‘Run’ & ‘Laydown’ position Stops
    • User-friendly Folding Crank Handle with Integrated Drive Brake
    • Upper-Arm adjusting Ball-bearing drive system, with Integrated Balance Spring-assist
    • Extreme Duty Top Plate, Upper Arm, and Housings for Outriggers up to 22ft in length
    • Stainless-Steel & Bronze bushed Head pivot for Maximum trolling strength & durability
    • Unique invertible Tigress handle design for use on both soft and hard tops over 2” thick
    • Accepts all Tigress XD 1-1/2” butt diameter outriggers and XD 1-1/8” butts using an adapter
    • Fits Tigress and other industry-standard 4” x 6” mounting plates (four 5/16” diameter fasteners)
    • Extreme-duty 316L Stainless Steel and anodized aluminum and sealed construction with UV protection
    • 24 adjustable/locking system positions featuring Tigress XD 316L Stainless Steel design
    • Ergonomic 316 Stainless Steel mirror-polished lever design with inverting ability for extra hand clearance on the thickest tops
    • User-friendly underside lever actuation, with 8 optional indexable set-up positions
    • Fits through all standard 3” diameter mounting plates and hardtop holes
    • Sold as pair
    • 3-Year Limited Warranty
