Description

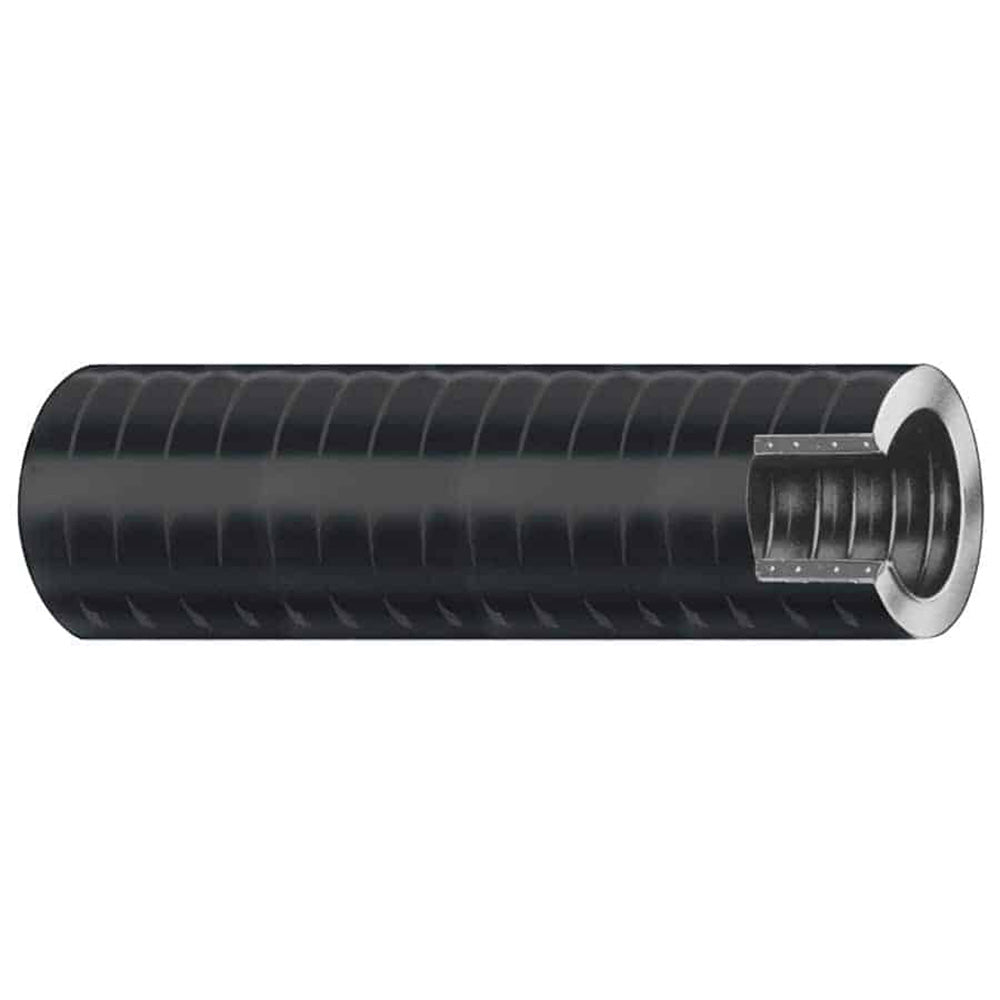

1-1/2" x 50' VAC XHD Bilge & Live Well Hose - Hard PVC Helix - Black
Trident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.
Features:
- 149 series of hoses is extra flexible
Application:
Specifications:
- Tube & Cover: Hard PVC helix
- Color: Black
- Reinforcement: PVC Helix
- Temperature Range: 10°F-120°F (-12°C-48°C)
- Boxed: 50ft. / (15.2m)
- Inner Diameter: (inch) 1-1/2" / (mm) 38.1
- Outer Diameter: (inch) 1.792" / (mm) 45.5
- Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93
- Weight: (Lb./ 50 ft.) 22 / (Kg/m) 9.98
- Bend Radius: (inch) 4" / (mm) 101.6
*Burst Pressure is 4 x Working Pressure
Specifications:
- ID Diameter (inches): 1-1/2"
- Box Dimensions: 8"H x 23"W x 23"L WT: 23.2 lbs
- UPC: 704917010472
Quick Guide (pdf)
