Description

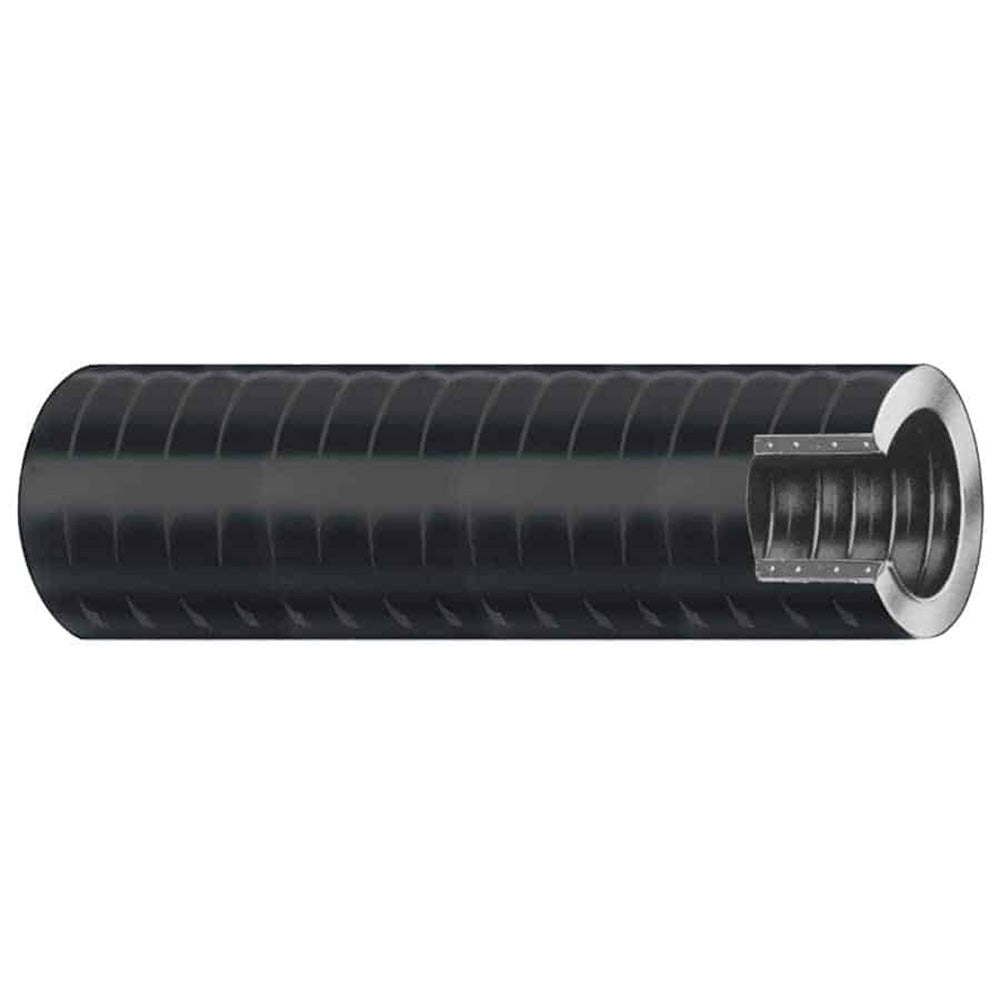

3/4" x 50' VAC XHD Bilge & Live Well Hose - Hard PVC Helix - Black
Trident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.
Features:
- 149 series of hoses is extra flexible
Application:
Specifications:
- Tube & Cover: Hard PVC helix
- Color: Black
- Reinforcement: PVC Helix
- Temperature Range: 10°F-120°F (-12°C-48°C)
- Boxed: 50ft. / (15.2m)
- Inner Diameter: (inch) 3/4" / (mm) 19.1
- Outer Diameter: (inch) .986" / (mm) 25
- Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93
- Weight: (Lb./ 50 ft.) 11 / (Kg/m) 4.99
- Bend Radius: (inch) 3" / (mm) 76.2
*Burst Pressure is 4 x Working Pressure
Specifications:
- Length (Feet): 50'
- ID Diameter (inches): 3/4"
- Box Dimensions: 5"H x 18"W x 18"L WT: 9.4 lbs
- UPC: 704917017822
Quick Guide (pdf)
