Description

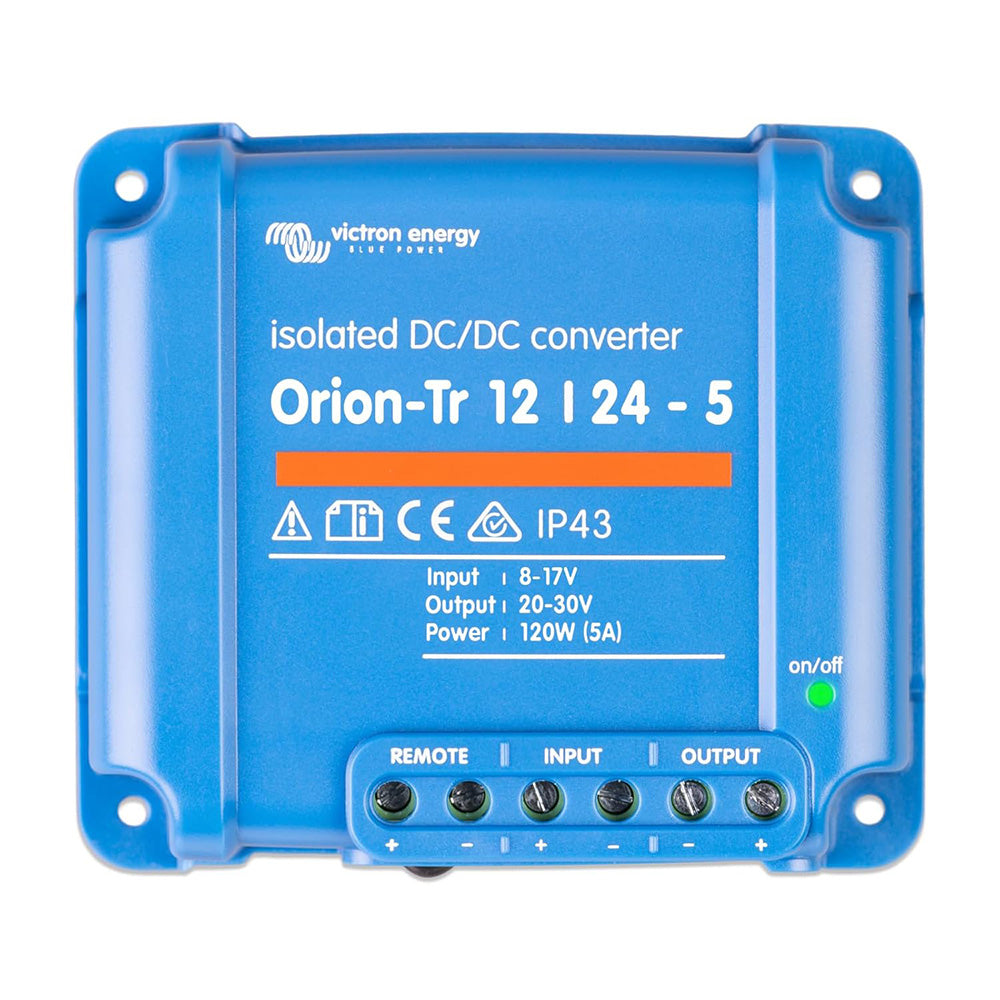

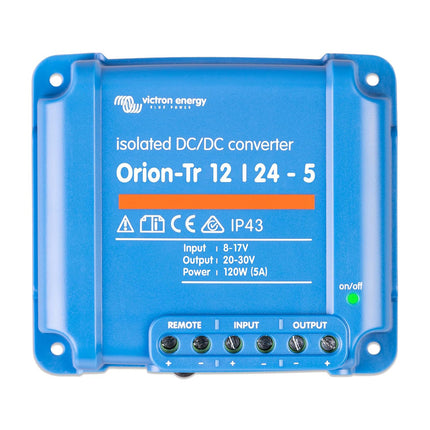

Orion-Tr 12/24-5A 120W Isolated DC-DC Converter
Remote on/off
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminalsĀ
No special tools needed for installation.
Input fuseĀ
On 12V and 24V input models only.
Please contact your dealer for any returns, repairs or support issues related to this product. Specifications:
- Charger Input - Voltage: 12VDC
- Charger Output - Amps: 5A
- Charger Output Voltage: 24VDC
- Box Dimensions: 3"H x 5"W x 6"L WT: 1.15 lbs
- UPC: 8719076016724
Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)
