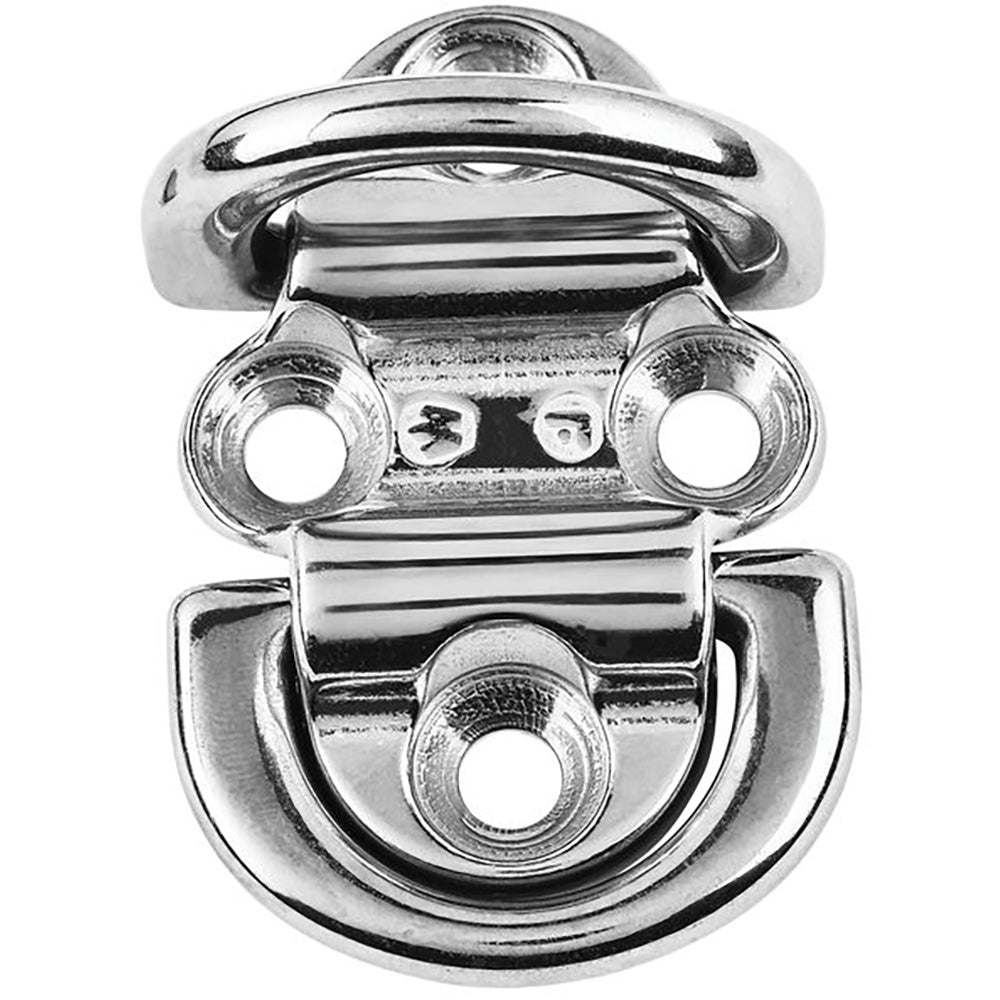

Wichard Double Folding Pad Eye - 6mm Diameter - 15/64" [6564W]

Description

Double Folding Pad Eye - 6mm Diameter - 15/64"

Features:

  • Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
  • Perfect solution attachment (stay, blocks, jib tack point)
  • Possibility to attach several stays
  • Modern and optimized design to suit the aesthetics of modern boats
  • They can be folded down to minimize the risk of injuries
  • The silicon pad eliminates noise and unpleasant vibrations

Applications:

  • For any fastening/attachment application
  • Allows to attach several shrouds

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 3170 / (kg) 1440
  • Breaking load; (lb) 5510 / (kg) 2500
  • Weight: (lb) 0.278 / (g) 126

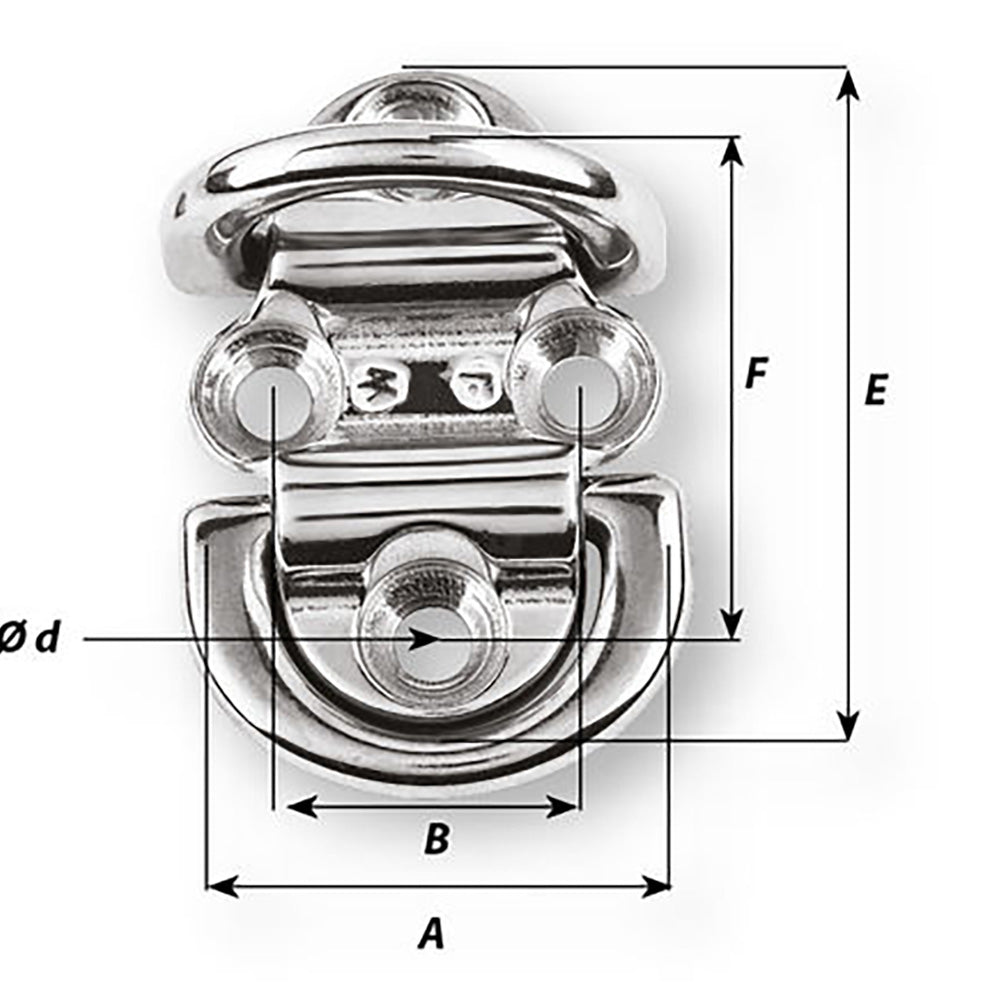

Dimensions:

  • A: (inch) 1 49/64" / (mm) 45
  • B: (inch) 1 1/16" / (mm) 27
  • C: (inch) 35/64" / (mm) 14
  • d diameter: (inch) 1/4" / (mm) 6.4
  • D diameter: (inch) 15/64" / (mm) 6
  • E: (inch) 2 61/64" / (mm) 75
  • F: (inch) 2 21/64" / mm) 59

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)

Wichard Double Folding Pad Eye - 6mm Diameter - 15/64" [6564W]

Product form

$152.90

    Description

    Double Folding Pad Eye - 6mm Diameter - 15/64"

    Features:

    • Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
    • Perfect solution attachment (stay, blocks, jib tack point)
    • Possibility to attach several stays
    • Modern and optimized design to suit the aesthetics of modern boats
    • They can be folded down to minimize the risk of injuries
    • The silicon pad eliminates noise and unpleasant vibrations

    Applications:

    • For any fastening/attachment application
    • Allows to attach several shrouds

    Specifications:

    • Materials: 316L stainless steel grade
    • Working load: (lb) 3170 / (kg) 1440
    • Breaking load; (lb) 5510 / (kg) 2500
    • Weight: (lb) 0.278 / (g) 126

    Dimensions:

    • A: (inch) 1 49/64" / (mm) 45
    • B: (inch) 1 1/16" / (mm) 27
    • C: (inch) 35/64" / (mm) 14
    • d diameter: (inch) 1/4" / (mm) 6.4
    • D diameter: (inch) 15/64" / (mm) 6
    • E: (inch) 2 61/64" / (mm) 75
    • F: (inch) 2 21/64" / mm) 59

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

    *Sold as an Individual


    Quick Guide (pdf)
