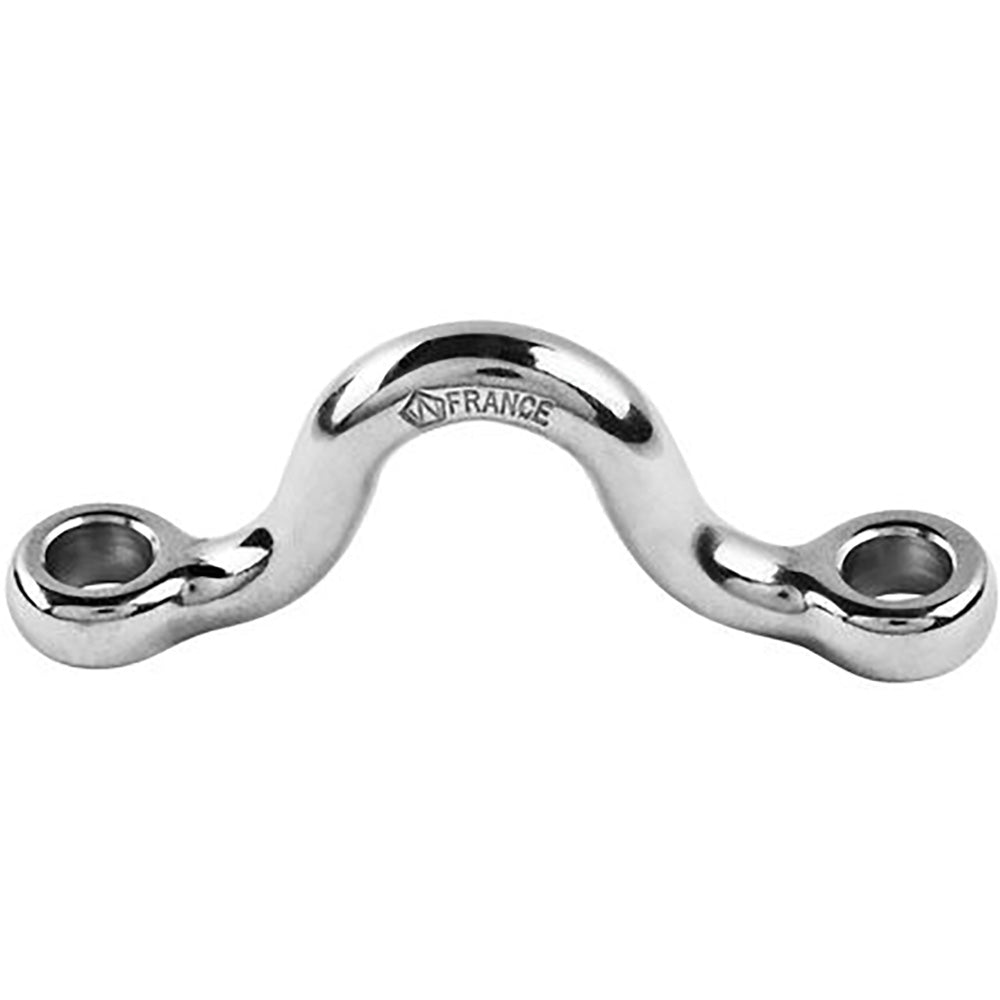

Wichard Eye Strap - 4mm Diameter - 5/32" - 30mm Spacing - 1-17/64 [09201]

Description

Eye Strap - 4mm Diameter - 5/32" - 30mm Spacing - 1-17/64"

Features:

  • Complete range of drop-forged saddles with high-quality stainless steel (316L)
  • Outstanding strength
  • The round shape reduces the wear of the components connected to them (straps, ropes...)

Applications:

  • Fastening applications
  • Attachment of straps & cordage

Specifications:

  • Materials: 316L stainless steel grade
  • Breaking load: (lb) 1430 / (kg) 650
  • Weight: (lb) 0.009 / (g) 4

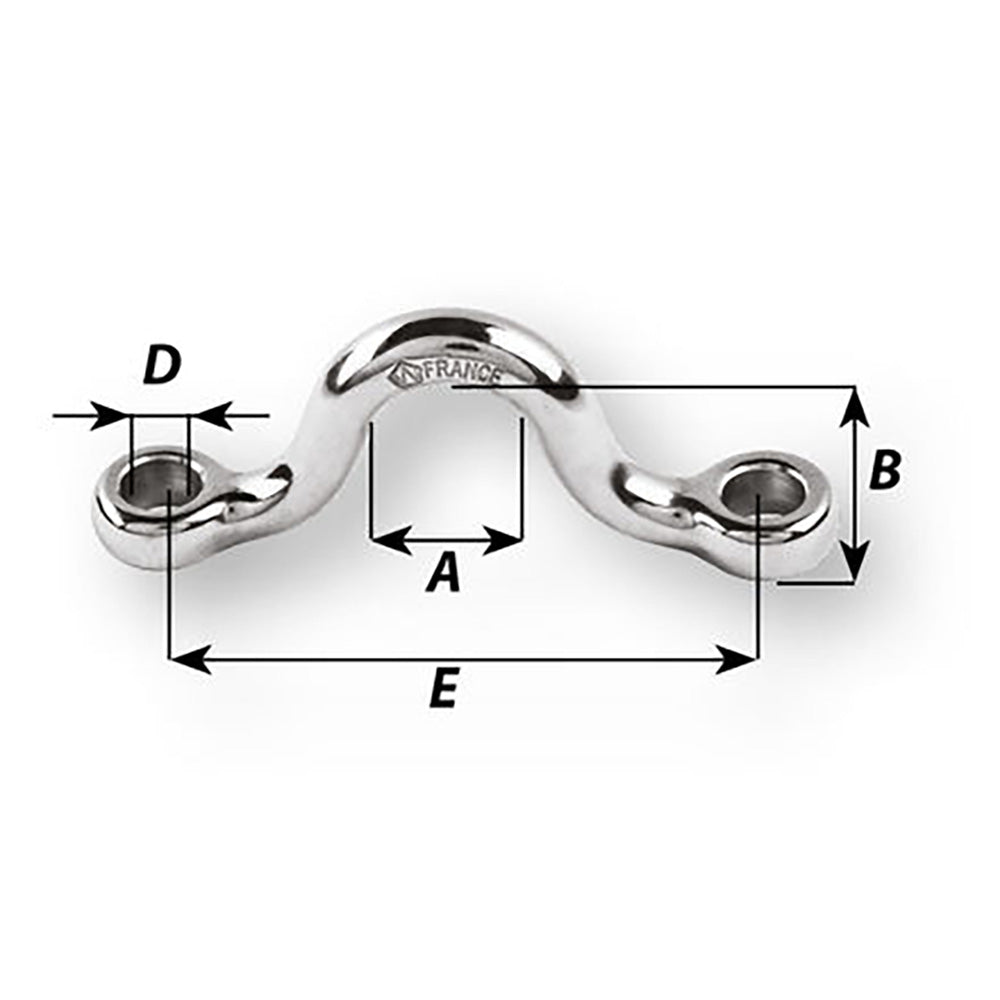

Dimensions:

  • A: (inch) 5/16" / (mm) 8
  • B: (inch) 7/16" / (mm) 11
  • D diameter: (inch) 5/32" / (mm) 4
  • E: (inch) 1 17/64" / (mm) 32

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
