Wichard FRX25 Friction Ring - 25mm (63/64") [FRX25 / 22517]

Description

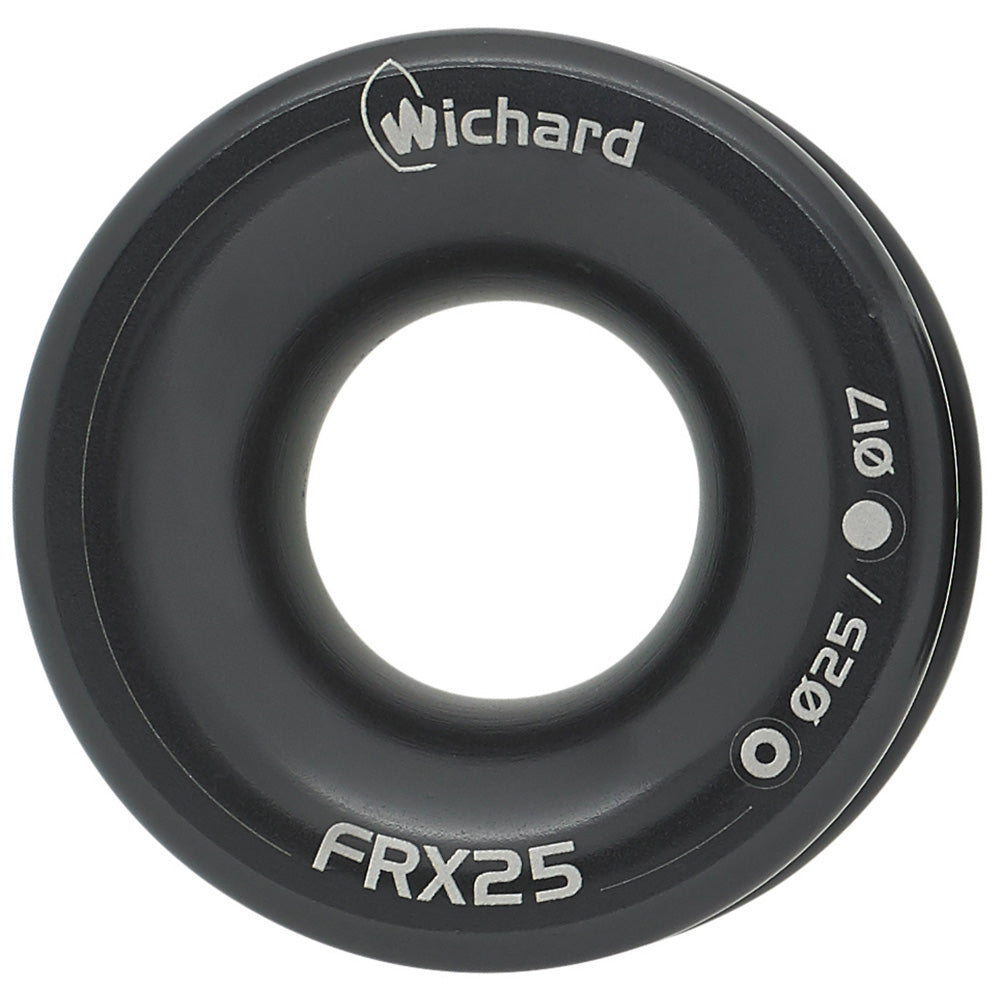

FRX25 Friction Ring - 25mm (63/64")

Features:

  • Efficient and light
  • FRX Wichard thimbles are efficient, light, and reliable
  • Very strong and can be used for heavy loads and semi-static lines
  • FRX thimbles are designed to make your lines run smoothly with minimum wear
  • They are hard anodized (50 microns) for a longer lifespan

Applications:

  • Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and more

Specifications:

  • Materials: Anodized aluminium
  • Working load: (lb) 11020 / (kg) 5000
  • Weight: (lb) 0.126 / (g) 57

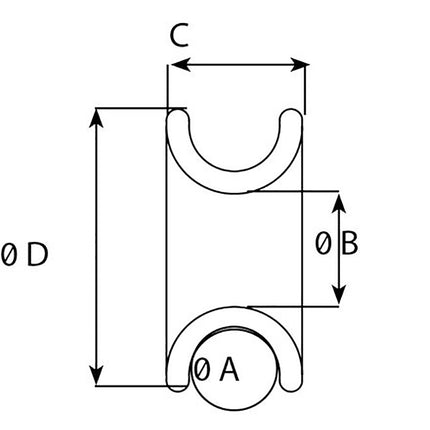

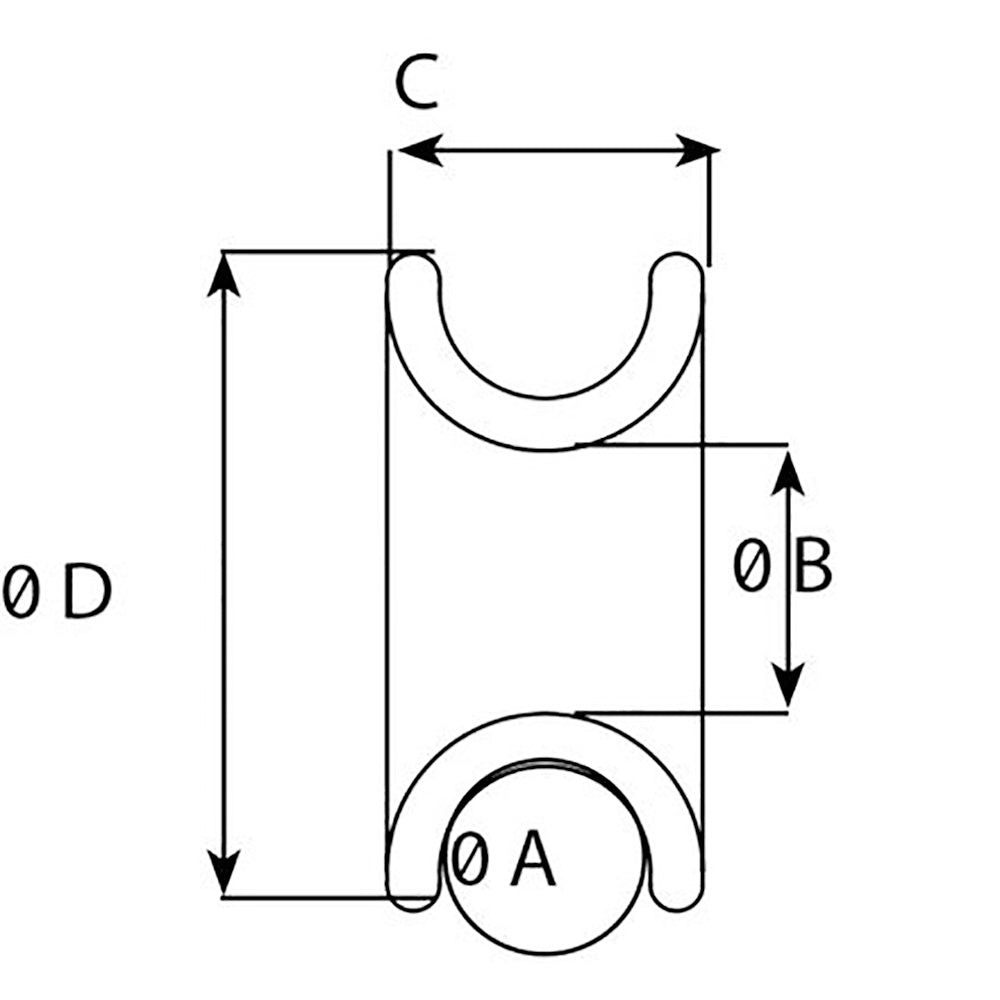

  • A: (inch) 43/64" / (mm) 17
  • B: (inch) 63/64" / (mm) 25
  • C: (inch) 63/64" / (mm) 25
  • D diameter: (inch) 2 23/64" / (mm) 60

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

Quick Guide (pdf)

Wichard FRX25 Friction Ring - 25mm (63/64") [FRX25 / 22517]

Product form

$45.35 $33.99

    Description

    FRX25 Friction Ring - 25mm (63/64")

    Features:

    • Efficient and light
    • FRX Wichard thimbles are efficient, light, and reliable
    • Very strong and can be used for heavy loads and semi-static lines
    • FRX thimbles are designed to make your lines run smoothly with minimum wear
    • They are hard anodized (50 microns) for a longer lifespan

    Applications:

    • Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and more

    Specifications:

    • Materials: Anodized aluminium
    • Working load: (lb) 11020 / (kg) 5000
    • Weight: (lb) 0.126 / (g) 57
    • A: (inch) 43/64" / (mm) 17
    • B: (inch) 63/64" / (mm) 25
    • C: (inch) 63/64" / (mm) 25
    • D diameter: (inch) 2 23/64" / (mm) 60

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

    Quick Guide (pdf)
