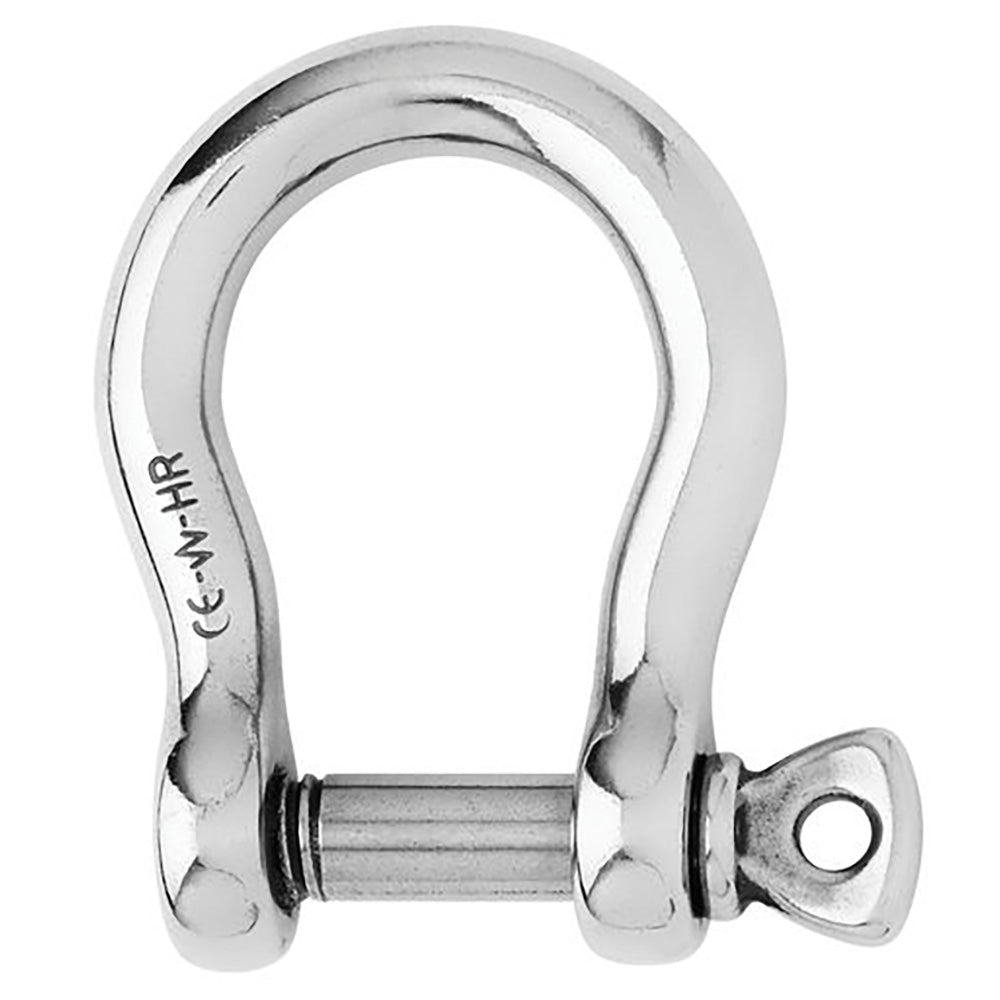

Wichard HR Bow Shackle - 14mm Diameter - 35/64" [11240W]

Description

HR Bow Shackle - 14mm Diameter - 35/64"

Features:

  • Forged bow shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • Applications requesting high loads
  • To be used when ample room is required
  • Possibility to attach several lines or cables
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 11280 / (kg) 5120
  • WLL: (lb) 5290 / (kg) 2400
  • Breaking load: (lb) 26450 / (kg) 12000
  • Weight: (lb) 0.802 / (g) 364

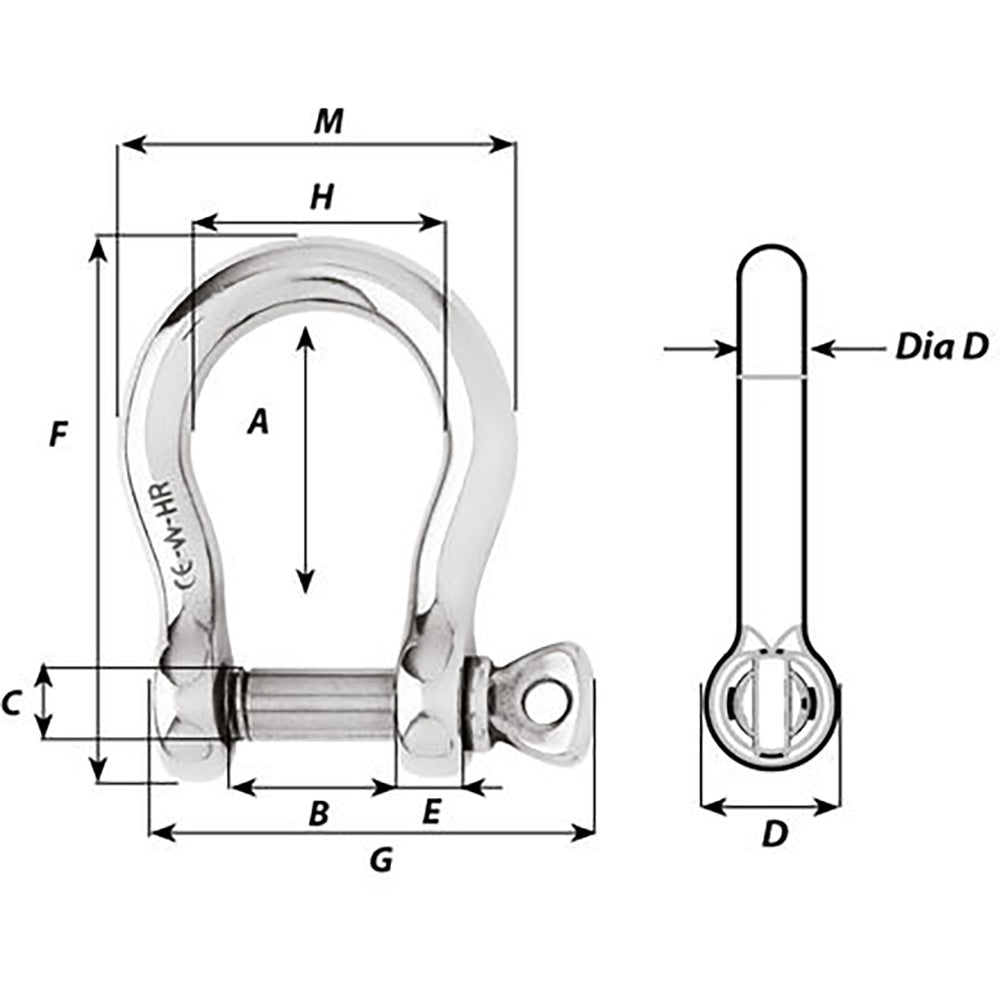

Dimensions:

  • A: (inch) 2 31/64" / (mm) 63
  • B: (inch) 1 7/64" / (mm) 28
  • C: (inch) 35/64" / (mm) 14
  • D: (inch) 1 7/64" / (mm) 28
  • D diameter: (inch) 35/64" / (mm) 14
  • E: (inch) 33/64" / (mm) 13
  • M: (inch) 2 53/64" / (mm) 72

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)

Wichard HR Bow Shackle - 14mm Diameter - 35/64" [11240W]

Product form

$387.86

    Description

    HR Bow Shackle - 14mm Diameter - 35/64"

    Features:

    • Forged bow shackle in HR stainless steel grade (17,4 PH)
    • Outstanding working and breaking load
    • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
    • WLL: only for industrial applications (lifting i.e…)
    • CE marking and batch number

    Applications:

    • Applications requesting high loads
    • To be used when ample room is required
    • Possibility to attach several lines or cables
    • Do not use it for mooring applications

    Specifications:

    • Materials: HR 17.4 PH stainless steel grade
    • Working load: (lb) 11280 / (kg) 5120
    • WLL: (lb) 5290 / (kg) 2400
    • Breaking load: (lb) 26450 / (kg) 12000
    • Weight: (lb) 0.802 / (g) 364

    Dimensions:

    • A: (inch) 2 31/64" / (mm) 63
    • B: (inch) 1 7/64" / (mm) 28
    • C: (inch) 35/64" / (mm) 14
    • D: (inch) 1 7/64" / (mm) 28
    • D diameter: (inch) 35/64" / (mm) 14
    • E: (inch) 33/64" / (mm) 13
    • M: (inch) 2 53/64" / (mm) 72

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
    • High Resistance (HR)

    *Sold as an Individual


    Quick Guide (pdf)
