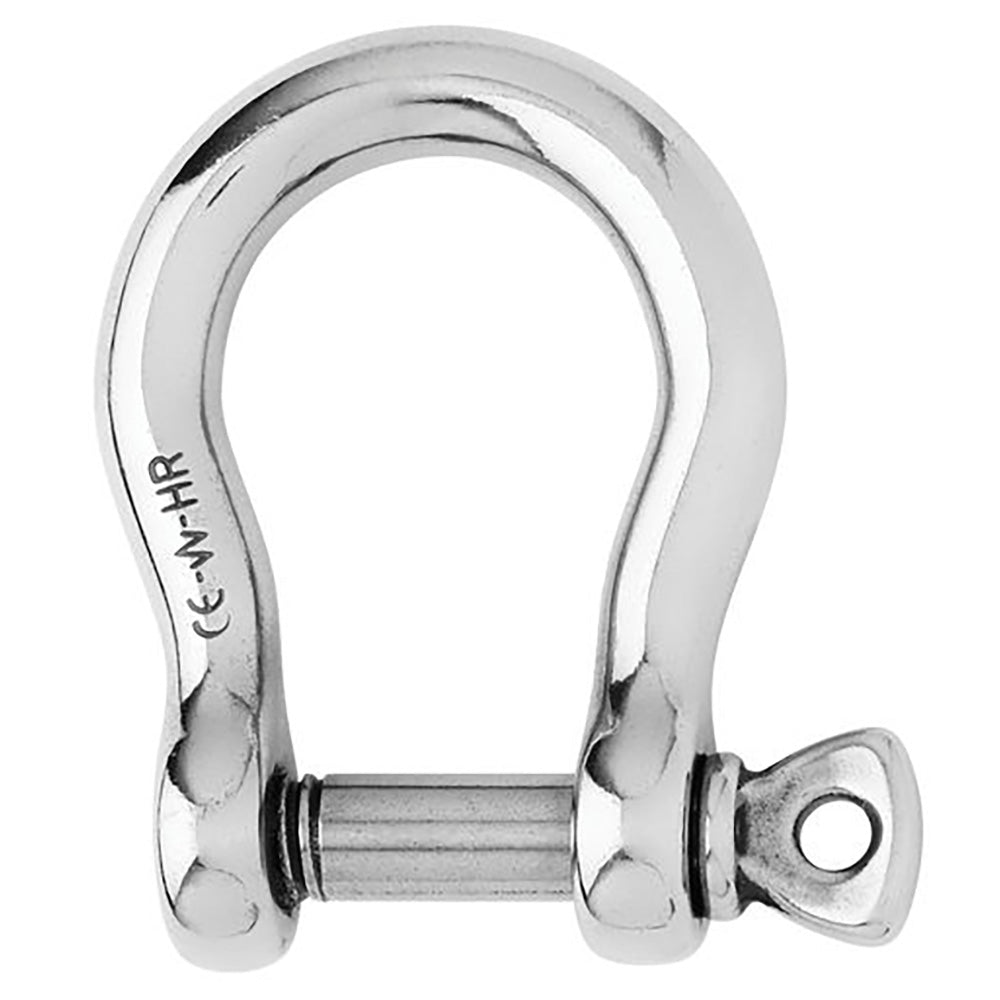

Wichard HR Bow Shackle - 8mm Pin Diameter [11244W]

Description

HR Bow Shackle - 8mm Pin Diameter

Features:

  • Forged bow shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • To be used when ample room is required
  • Possibility to attach several lines or cables
  • Do not use for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 3880 / (kg) 1760
  • WLL: (lb) 1800 / (kg) 820
  • Breaking load: (lb) 9030 / (kg) 4100
  • Weight: (lb) 0.15 / (g) 68

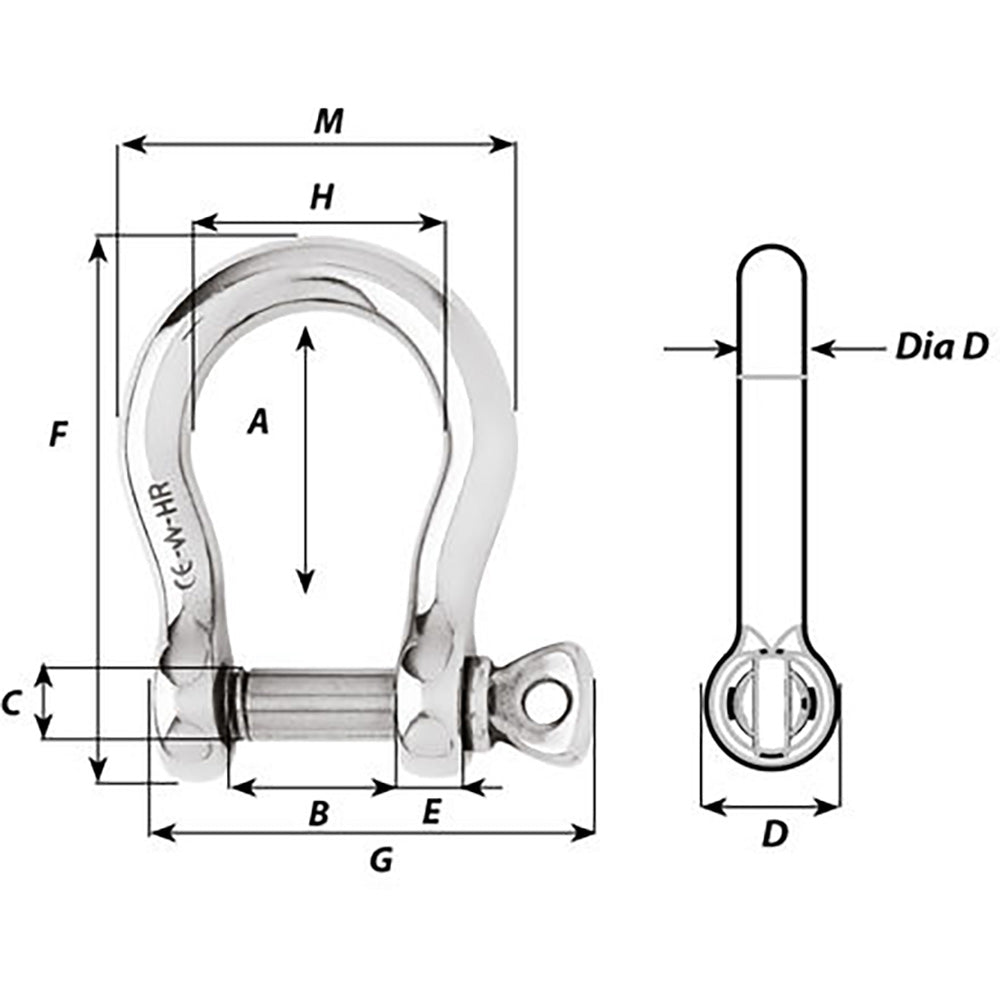

Dimensions:

  • A: (inch) 1 29/64" / (mm) 37
  • B: (inch) 5/8" / (mm) 16
  • C: (inch) 5/16" / (mm) 8
  • D: (inch) 5/8" / (mm) 16
  • D diameter: (inch) 25/64" / (mm) 10
  • E: (inch) 9/32" / (mm) 7
  • M: (inch) 1 21/32" / (mm) 42

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)

Wichard HR Bow Shackle - 8mm Pin Diameter [11244W]

Product form

$97.21

    Description

    HR Bow Shackle - 8mm Pin Diameter

    Features:

    • Forged bow shackle in HR stainless steel grade (17,4 PH)
    • Outstanding working and breaking load
    • A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
    • WLL: only for industrial applications (lifting i.e…)
    • CE marking

    Applications:

    • Applications requesting high loads
    • To be used when ample room is required
    • Possibility to attach several lines or cables
    • Do not use for mooring applications

    Specifications:

    • Materials: HR 17.4 PH stainless steel grade
    • Working load: (lb) 3880 / (kg) 1760
    • WLL: (lb) 1800 / (kg) 820
    • Breaking load: (lb) 9030 / (kg) 4100
    • Weight: (lb) 0.15 / (g) 68

    Dimensions:

    • A: (inch) 1 29/64" / (mm) 37
    • B: (inch) 5/8" / (mm) 16
    • C: (inch) 5/16" / (mm) 8
    • D: (inch) 5/8" / (mm) 16
    • D diameter: (inch) 25/64" / (mm) 10
    • E: (inch) 9/32" / (mm) 7
    • M: (inch) 1 21/32" / (mm) 42

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
    • High Resistance (HR)

    *Sold as an Individual


    Quick Guide (pdf)
