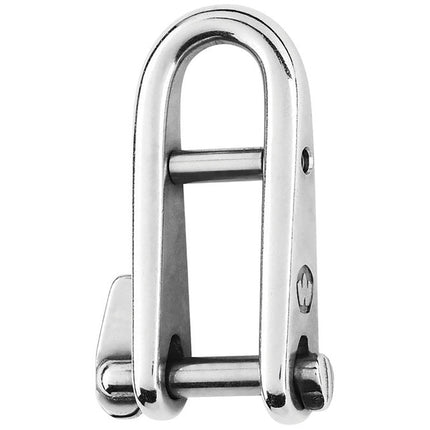

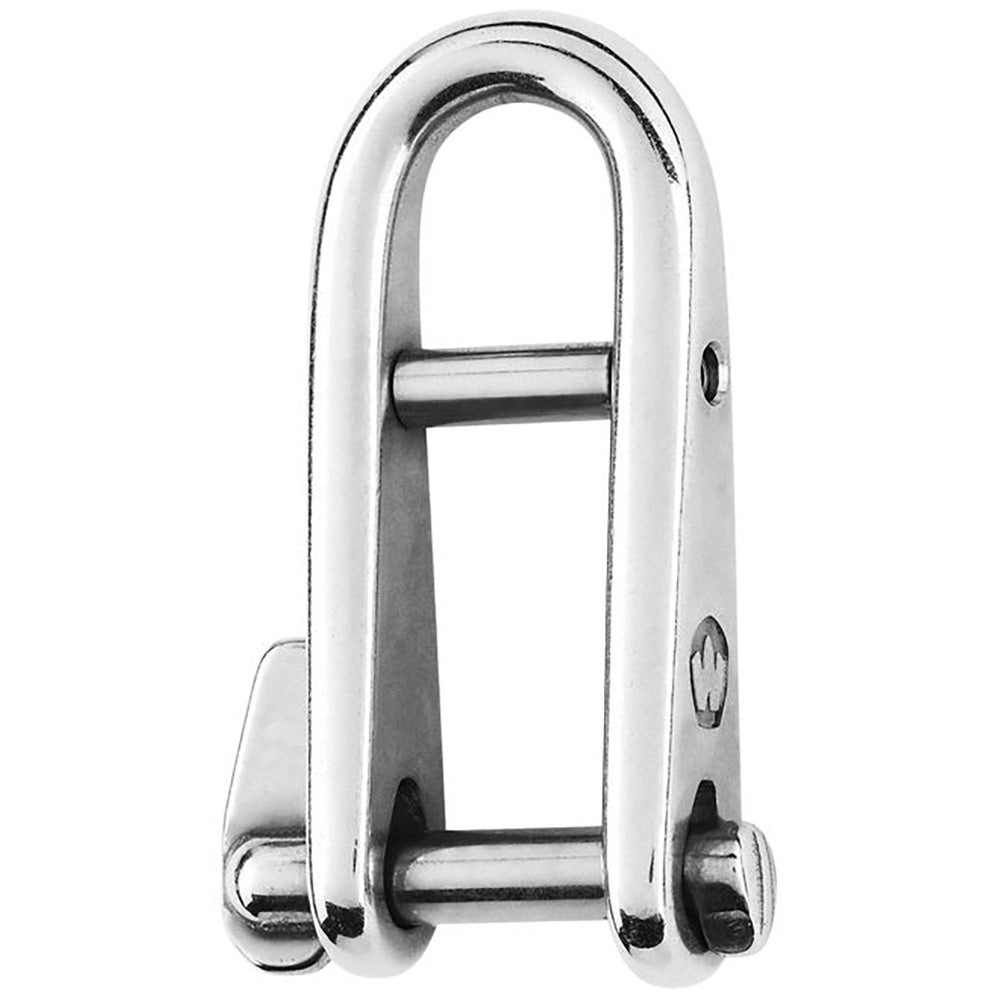

Wichard HR Key Pin Shackle With Bar - 6mm Pin Diameter [91433W]

Description

HR Key Pin Shackle With Bar - 6mm Pin Diameter

Features:

  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • Perfect product for halyards or applications requiring opening/closing the shackle often
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 1320 / (kg) 600
  • Breaking load: (lb) 4850 / (kg) 2200
  • Weight: (lb) 0.117 / (g) 53

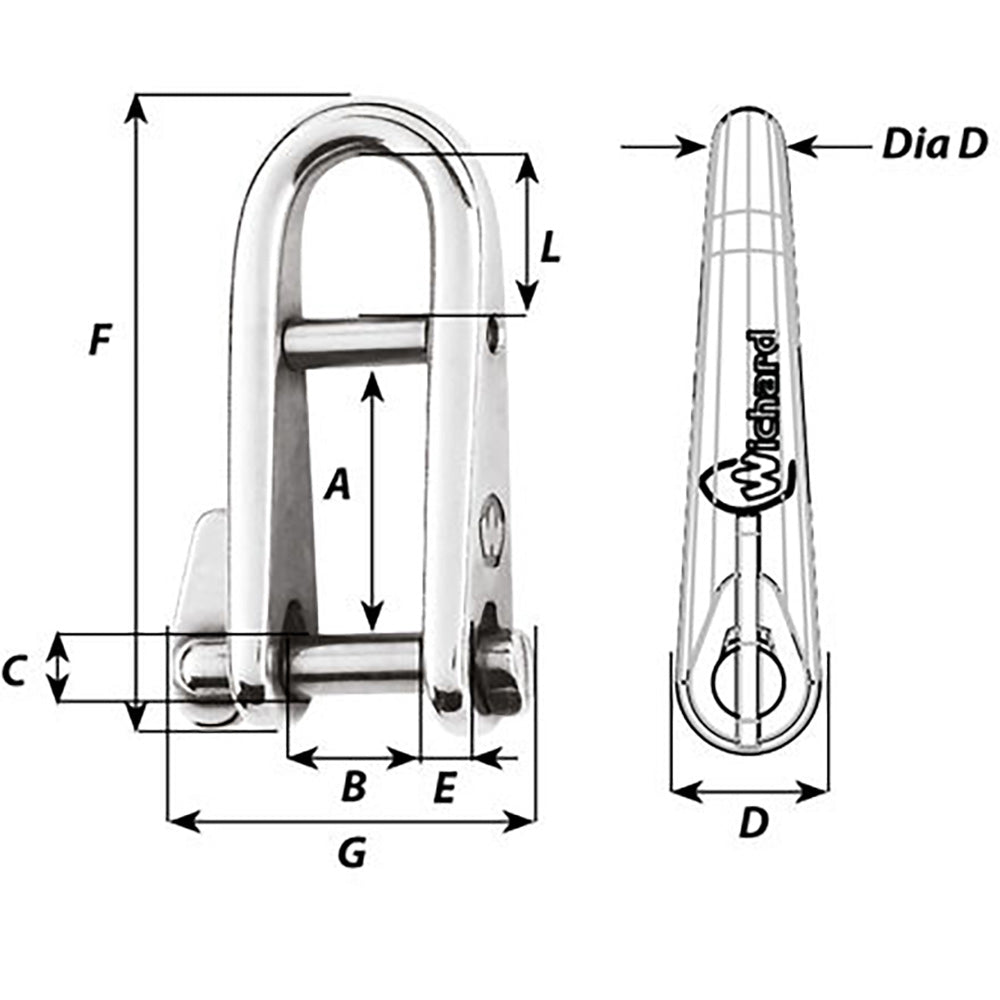

Dimensions:

  • A: (inch) 1 49/64" / (mm) 45
  • B: (inch) 5/8" / (mm) 16
  • C: (inch) 15/64" / (mm) 6
  • D: (inch) 33/64" / (mm) 13
  • E: (inch) 5/32" / (mm) 4
  • F: (inch) 2 23/64" / (mm) 60
  • G: (inch) 1 29/64" / (mm) 37
  • L: (inch) 19/32" / (mm) 15

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)

Wichard HR Key Pin Shackle With Bar - 6mm Pin Diameter [91433W]

Product form

$74.53

    Description

    HR Key Pin Shackle With Bar - 6mm Pin Diameter

    Features:

    • Forged D shackle in HR stainless steel grade (17,4 PH)
    • Outstanding working and breaking load
    • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
    • WLL: only for industrial applications (lifting i.e…)
    • CE marking

    Applications:

    • Applications requesting high loads
    • Perfect product for halyards or applications requiring opening/closing the shackle often
    • Do not use it for mooring applications

    Specifications:

    • Materials: HR 17.4 PH stainless steel grade
    • Working load: (lb) 1320 / (kg) 600
    • Breaking load: (lb) 4850 / (kg) 2200
    • Weight: (lb) 0.117 / (g) 53

    Dimensions:

    • A: (inch) 1 49/64" / (mm) 45
    • B: (inch) 5/8" / (mm) 16
    • C: (inch) 15/64" / (mm) 6
    • D: (inch) 33/64" / (mm) 13
    • E: (inch) 5/32" / (mm) 4
    • F: (inch) 2 23/64" / (mm) 60
    • G: (inch) 1 29/64" / (mm) 37
    • L: (inch) 19/32" / (mm) 15

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
    • High Resistance (HR)

    *Sold as an Individual


    Quick Guide (pdf)
