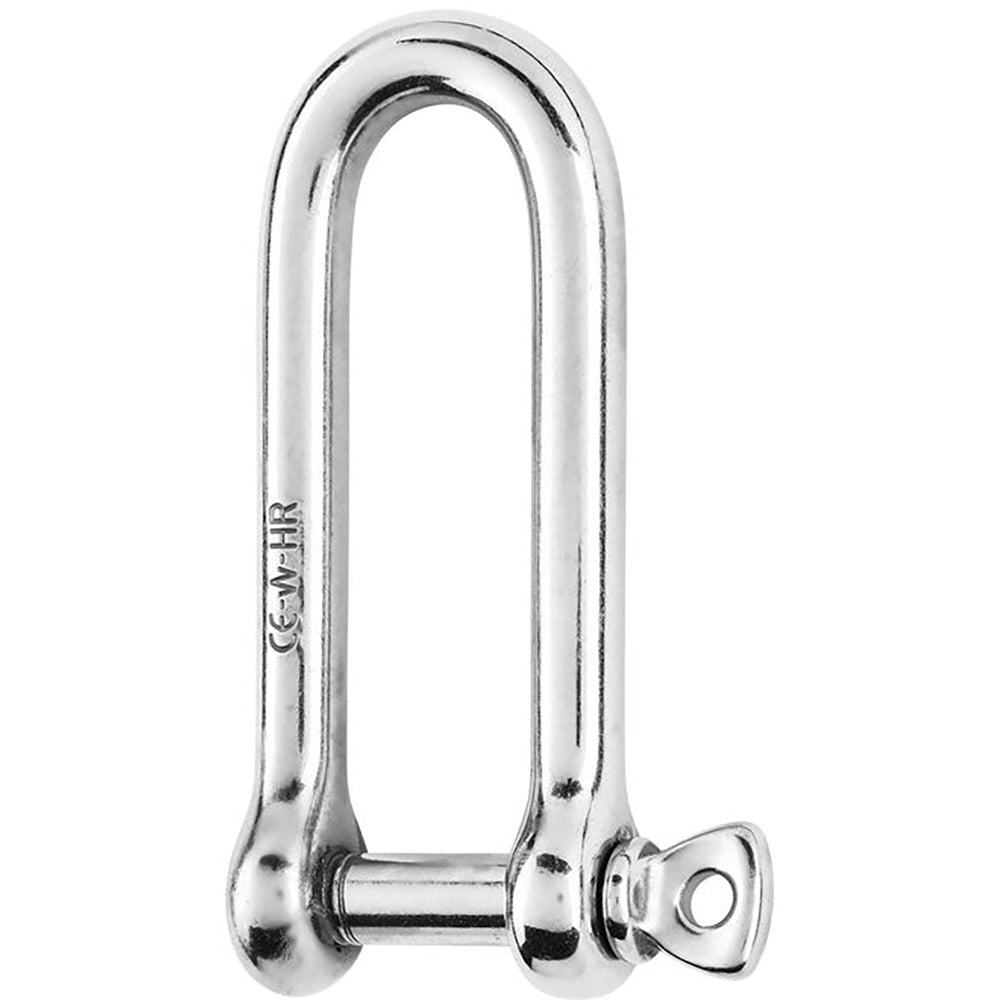

Wichard HR Long D Shackle - 10mm Diameter - 25/64" [11215W]

Description

HR Long D Shackle - 10mm Diameter - 25/64"

Features:

  • Forged long shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • Standard applications of the shackle
  • Attachment applications: blocks, head …
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 5820 / (kg) 2640
  • WLL: (lb) 2640 / (kg) 1200
  • Breaking load: (lb) 13220 / (kg) 6000
  • Weight: (lb) 0.362 / (g) 164

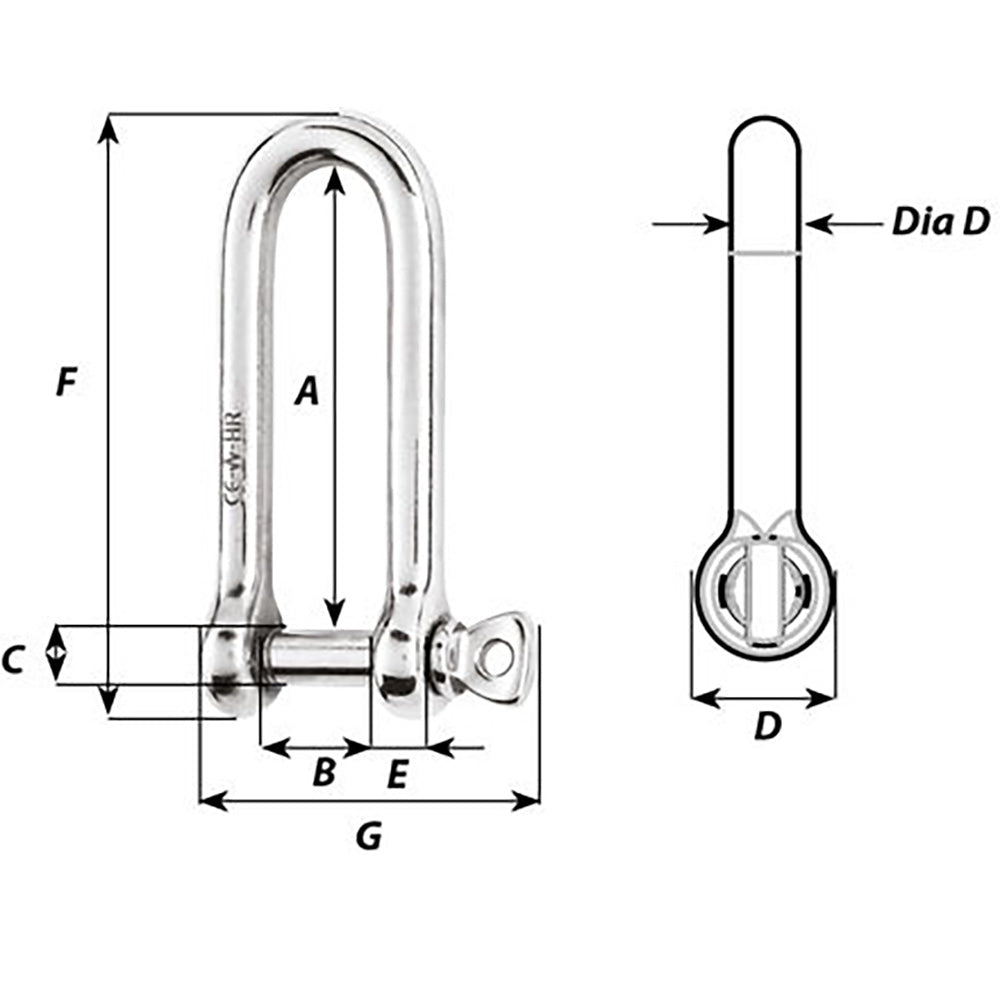

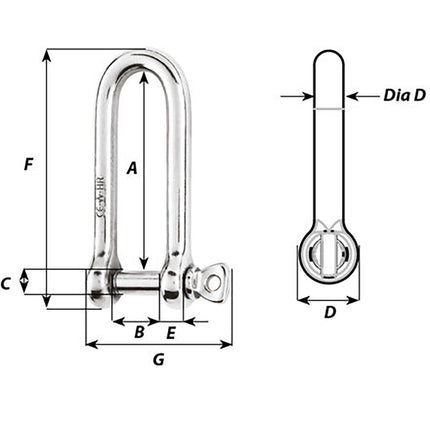

Dimensions:

  • A: (inch) 3 5/64" / (mm) 78
  • B: (inch) 25/32" / (mm) 20
  • D diameter: (inch) 25/64" / (mm) 10

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)

Wichard HR Long D Shackle - 10mm Diameter - 25/64" [11215W]

Product form

$153.85

    Description

    HR Long D Shackle - 10mm Diameter - 25/64"

    Features:

    • Forged long shackle in HR stainless steel grade (17,4 PH)
    • Outstanding working and breaking load
    • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
    • WLL: only for industrial applications (lifting i.e…)
    • CE marking

    Applications:

    • Applications requesting high loads
    • Standard applications of the shackle
    • Attachment applications: blocks, head …
    • Do not use it for mooring applications

    Specifications:

    • Materials: HR 17.4 PH stainless steel grade
    • Working load: (lb) 5820 / (kg) 2640
    • WLL: (lb) 2640 / (kg) 1200
    • Breaking load: (lb) 13220 / (kg) 6000
    • Weight: (lb) 0.362 / (g) 164

    Dimensions:

    • A: (inch) 3 5/64" / (mm) 78
    • B: (inch) 25/32" / (mm) 20
    • D diameter: (inch) 25/64" / (mm) 10

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
    • High Resistance (HR)

    *Sold as an Individual


    Quick Guide (pdf)
