Description

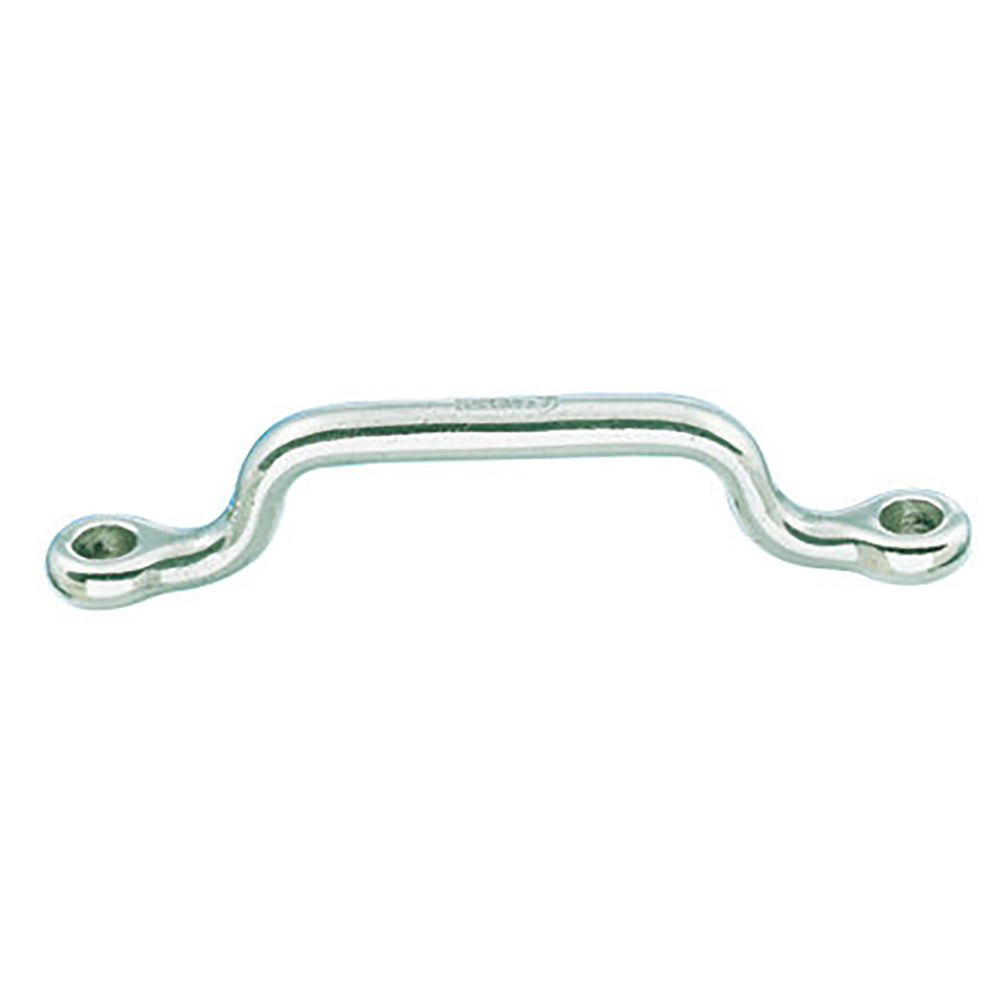

Webbing Eye Strap - 4mm Diameter - 5/32" - 56mm Spacing - 2-13/64"
Features:
- Drop-forged webbing eye straps with high-quality stainless steel (316L)
- Outstanding strength
- Specific use for webbing
Applications:
- The perfect solution to attach webbing
Specifications:
- Materials: 316L stainless steel grade
- Weight: (lb) 0.015 / (g) 7

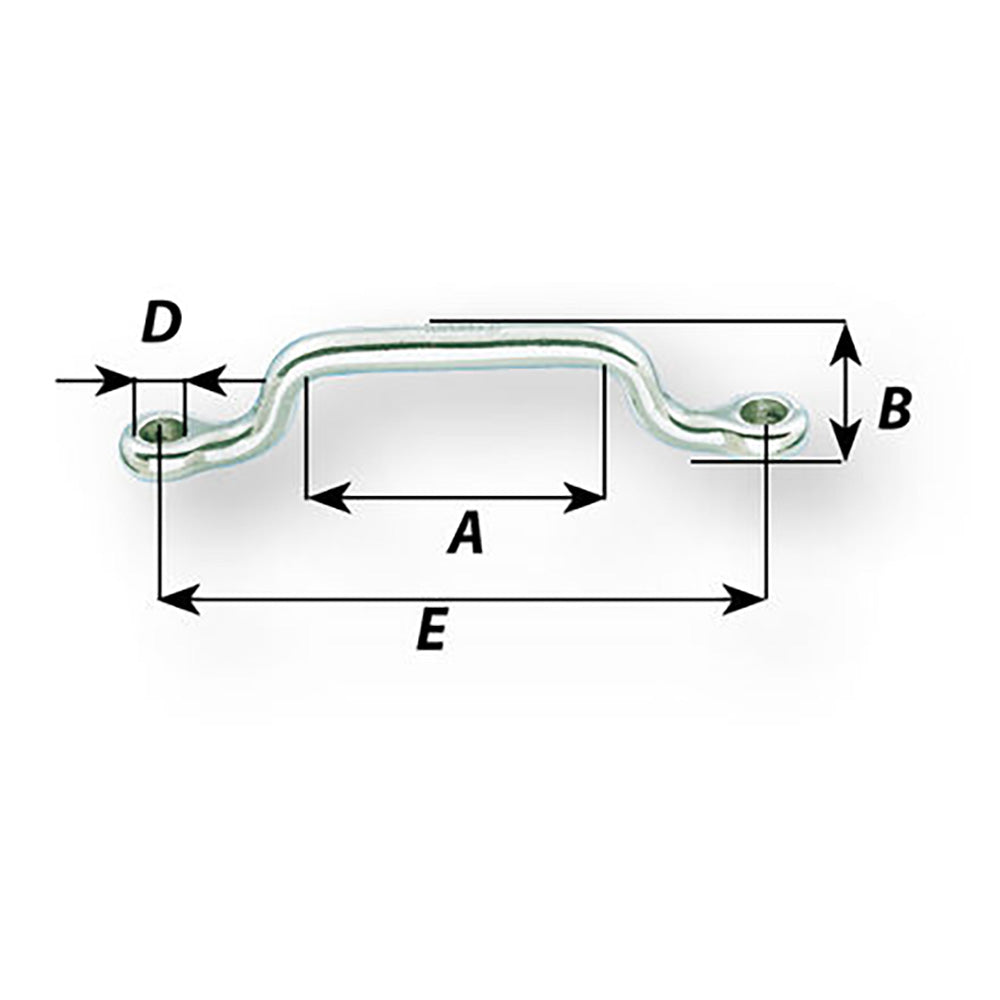

Dimensions:
- A: (inch) 1 7/64" / (mm) 28
- B: (inch) 13/64" / (mm) 5
- D diameter: (inch) 5/32" / (mm) 4
- E: (inch) 2 13/64" / (mm) 56
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Quick Guide (pdf)
