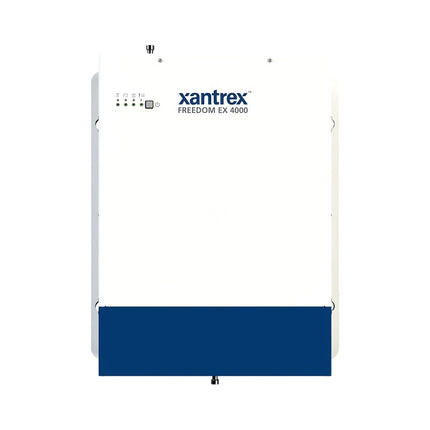

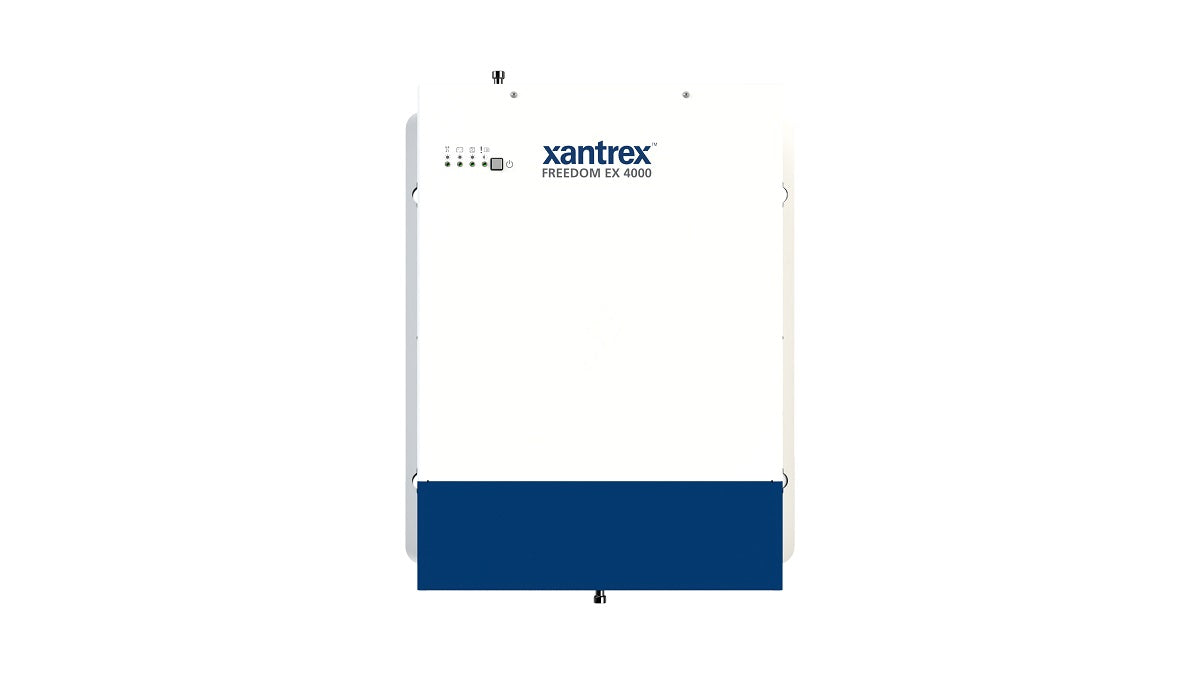

The new FREEDOM EX 4000 is a truly unique, true sine wave power solution packing a powerful 48VDC, 4000W (8000W [5s]) inverter, 80A 48VDC battery charger, 50A transfer relay and a 48VDC to 12VDC, 45A converter inside one box. Designed for mobile applications that utilize 48VDC battery systems, the FREEDOM EX 4000 is designed to work as a standalone AC and DC power solution or supplement an existing generator to create a hybrid system. The FREEDOM EX 4000 features the most widely used communication protocols — RV-C (RV), enabling it to be used in virtually any application that requires integration with 3rd party MFPs and software.
| ELECTRICAL SPECS - INVERTER |
| AC Output Operating Voltage Options |
105 - 130VAC |
| Continuous Output Power |
Continuous Power 4000 W @40 C True sine wave (TSW) at 120Vac |
| Continuous AC Output Current |
33A |
| Surge Power |
8000W(5 sec) |
| Frequency |
60Hz |
| ELECTRICAL SPECS - BATTERY CHARGER |
| Nominal DC Output Voltage |
48VDC |
| Charger Voltage Range |
40 - 64VDC |
| Maximum DC Output Current (user configurable down to 5 A) |
80A |
| Supported Battery Types |
Flooded, Gel, AGM, Lithium Ion, Custom |
| ELECTRICAL SPECS - PASS-THROUGH |
| AC Input Voltage: |
| Single-phase (L1 - N and L2 - N) |
80 - 138Vac |
| Split-phase* (L1 - L2) |
160 - 276Vac |
| Frequency (input/output) |
60Hz |
| Continuous AC current (input/output) |
40A |
| ELECTRICAL SPECS - 12 VDC POWER SUPPLY |
| Nominal DC Output Voltage (fully regulated) |
13.5VDC |
| Maximum DC Output Current |
45ADC continuous (at 77 F (25 C) ambient) |
| Typical Application* Powering |
12 VDC Loads |
| ELECTRICAL SPECS - COMMUNICATIONS SUPPORTED |
| Recreational Vehicles (RV) |
RV-C Protocol |
| Trucking Vehicles (future offering) |
J-1939 Protocol |
| Marine Vessels (future offering) |
NMEA-2000 Protocol |
| GENERAL SPECS |
| Operating Temperature Range |
14 to 140 F (-10 to 60 C), with output derated above 104 F (40°C) |
| Storage Temperature Range |
-40 to 158 F (-40 to 70 C) |
| Operating Humidity Range |
5 to 95% RH, non-condensing |
| Transfer Relay AC Current Rating |
50A (40A continuous) |
| L x W x H |
17.1in (434mm) x 14in (354mm) x 8.1in (205mm) |
| Net Weight |
79.4lbs (36.0kg) |
