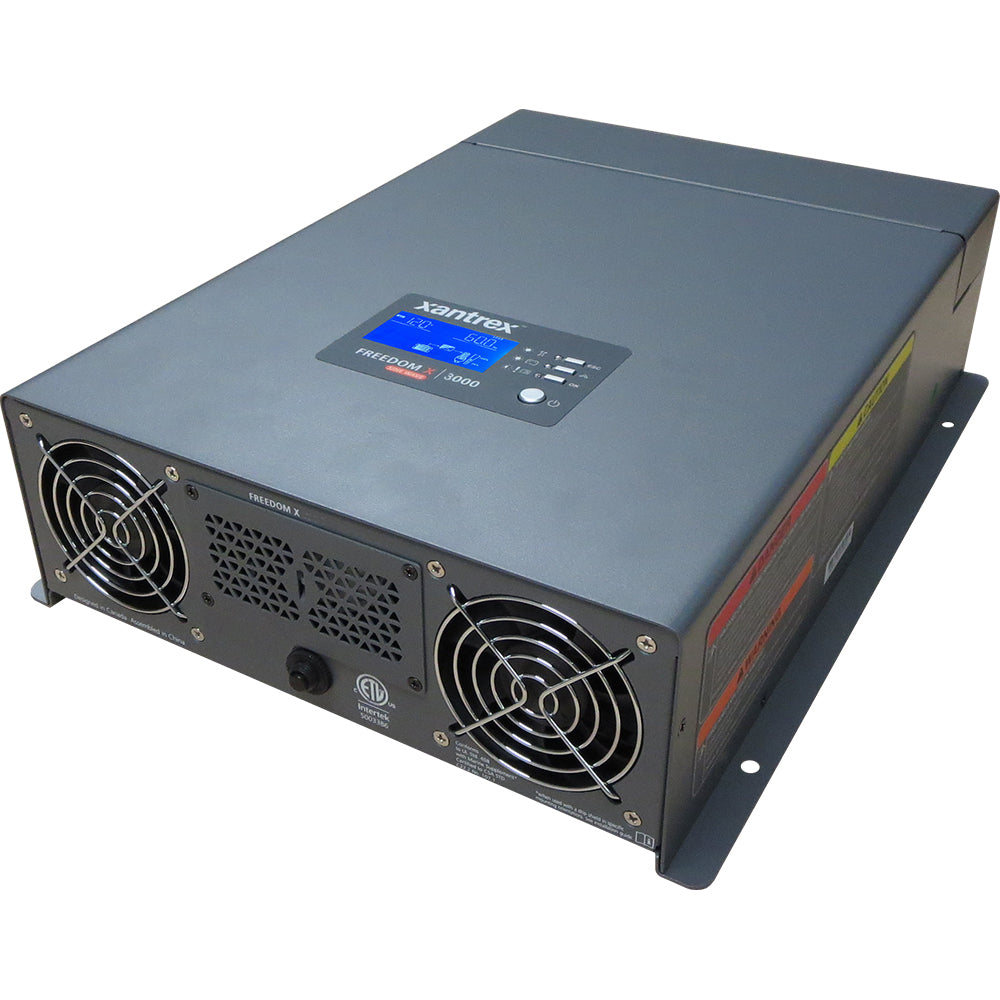

The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -4°F - 104°F for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.
| Electrical Specifications |
| Operating voltage |
120, 110, 108 VAC |
| Continuous power |
Continuous Power 3000 W @40 C True sine wave |
| Continuous current |
25 Amps |
| Surge power |
6000 watts |
| Frequency |
60 Hz |
| Peak efficiency |
91% |
| Full load efficiency |
Greather than or equal to 85% |
| Operating voltage range |
85-140 VAC |
| Safe Non-Operating voltage range |
Up to 240VAC |
| General Specifications |
| Operating temperature range |
-4 to 140 F (-20 to 60 C), with output derated above 104 F (40 °C) |
| Storage Temperature Range |
-40 to 158 F (-40 to 70 C) |
| Humidity |
5 to 95% RH, non-condensing |
| Transfer Relay Rating |
30Amp |
| Operating voltage range |
LBCO voltage - 18.0 VDC |
| Maximum Non-Operating Voltage |
24.0 VDC |
| Nominal Voltage (Inverting) |
12 VDC |
| Nominal Current at Full Load |
288ADC |
| Dimensions |
15.4"(390mm) x 10.8"(275mm) x 4.0"(102mm) |
