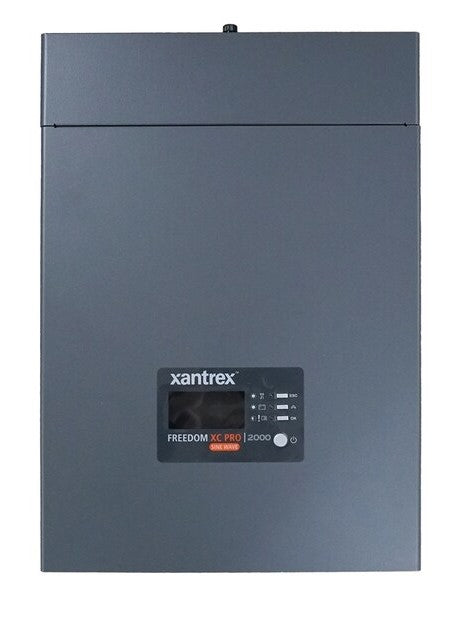

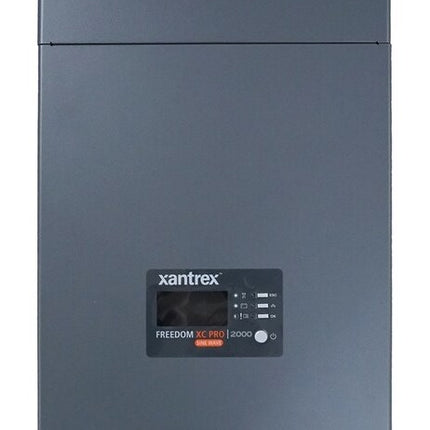

The Freedom XC PRO inverter/charger, supporting RV-C and J1939 protocols, is the most versatile and flexible AC power solution in the market today. It also features a 100 amp battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4 degF (-20 degC) - 104 degF (40 degC) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.
AC Output Operating Voltage Options| 120, 110, 108 Vac |
| Continuous Output Power |
Continuous Power 2000 W @40oC True sine wave (TSW) |
| Continuous AC Output Current |
16.7A |
| Surge Power |
4000 W ( ≤5 sec) |
| Frequency (Configurable) |
60 (or 50) Hz |
| Peak Efficiency |
91% |
| Full Load Efficiency |
≥ 86% |
| Operating Input AC Pass-Through Voltage Range |
85-140 Vac |
| Safe Non-Operating Input AC Voltage Range |
Up to 240 Vac RMS |
| Power Factor at Full Charge Rate |
> 98% |
| Battery Charger Specifications |
| Min Battery Voltage for Charging |
0.0 Vdc |
| Max DC Output Voltage |
18.0 Vdc (custom battery type) |
| Selectable DC Output Current |
User Selectable: 5 - 100 A |
| Full Load Max AC Input Current |
24 Arms |
| Max DC Charge Current |
10A |
| General Specifications |
| Operating Temperature Range |
4 to 140 oF (-20 to 60 oC), with output derated above 104 oF (40 degC) |
| Storage Temperature Range |
-40 to 158 oF (-40 to 70 oC) |
| Operating Humidity Range |
5 to 95% RH, non-condensing |
| Transfer Relay AC Current Rating |
30 A surge, 24 A continous |
| DC Input Operating voltage range |
10.1 - 18.0 VDC |
| DC Input Max Non-Operating Voltage |
25.2 Vdc |
| DC Input/Output Nominal Voltage (inverting/ Charging) |
12.0 Vdc |
| DC Nominal Current at Full Load |
192Adc |
| L x W x H (without flanges) |
5.4 in(390 mm) x 10.8 in(275 mm) x 4.9 in(125 mm) |
| L x W x H (with flanges) |
16.0 in(406 mm) x 12.0 in(305 mm) x 4.9 in(125 mm) |
