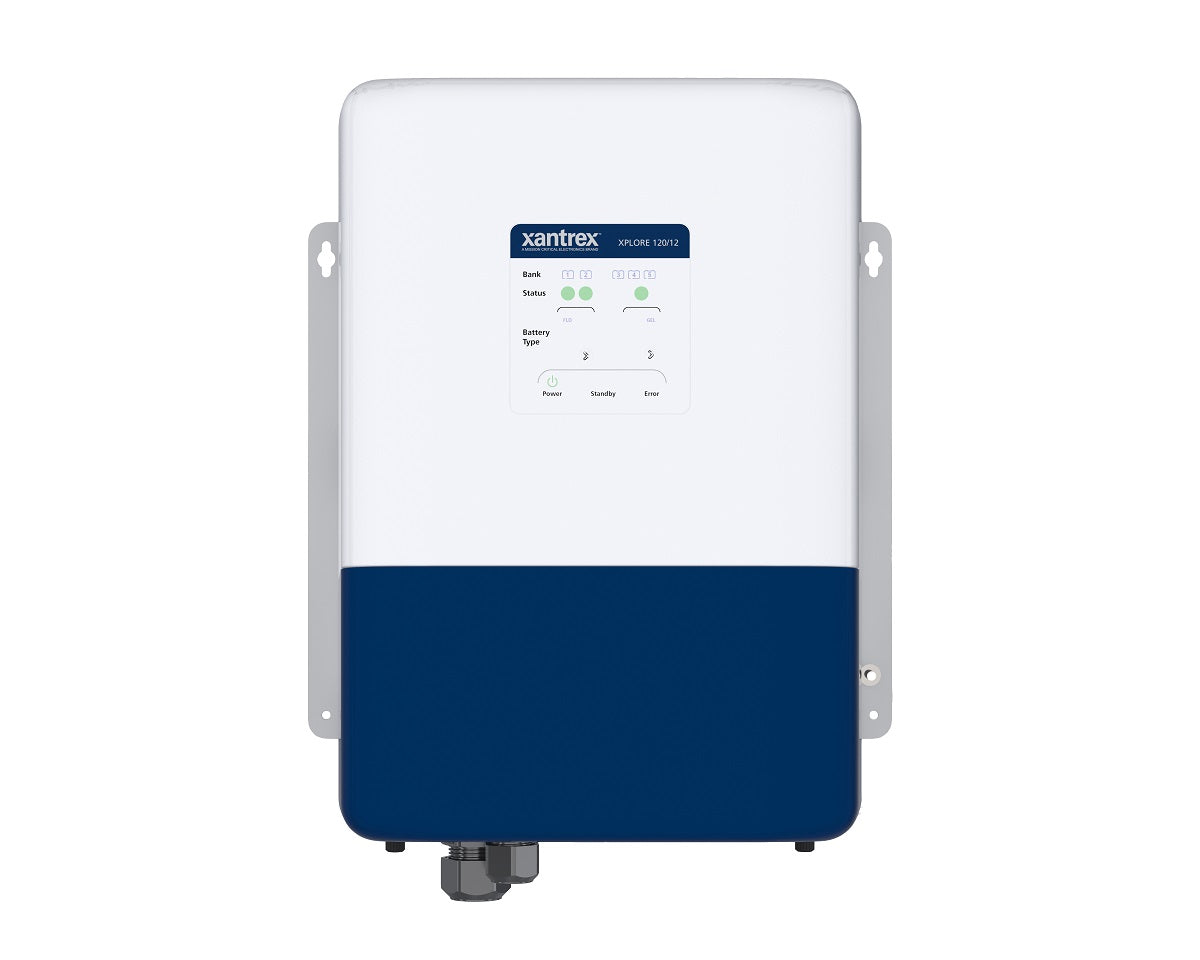

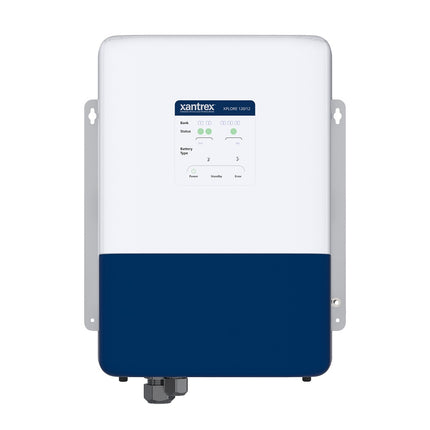

The XPLORE 120/12 battery charger is the largest and most powerful charger in the market today. The universal, auto-ranging AC input and 120 amps of output current ensures ultra-fast and reliable worldwide charging. With up to six output banks of simultaneous charging combined with the ability to charge two battery banks with differing chemistries, the XPLORE 120/12 eliminates the need to have separate single-chemistry chargers and minimizes installation and wiring costs for your house bank and engine bank.
It is also equipped with an easy-to-read front panel LED display for basic configuration and status information. Advanced monitoring and configuration is enabled by NMEA 2000 protocol or Xantrex app using the Xantrex BLE module.
| ELECTRICAL SPECIFICATIONS |
| Max Total BAT1-6 DC Output Current |
120A |
| Max Total BAT1-2 DC Output |
Current 5 to 120A (selectable) |
| Max Total BAT3-6 DC Output |
Current 5 to 40A (selectable) |
| DC Output Voltage |
12Vdc (nominal) |
| DC Output Connections |
6 |
| AC Input Voltage (Auto Ranging) |
120Vac / 230Vac (nominal), 80 to 265 Vac |
| Power Factor at Full Charge Rate |
> 98% |
| Charging Modes |
3-Stage, 2-Stage, Constant Voltage |
| Supported Battery Types |
AGM, FLD, GEL, Xantrex LFP, Custom |
| Equalization (FLD Battery Only) |
Yes |
| GENERAL SPECIFICATIONS |
| Operating Temperature |
4 to 140 F (-20 to 60 C), with output derated above 122 F (50°C) |
| Storage Temperature |
40 to 176 F (-40 to 80 C) |
| Operating Humidity |
5 to 95% RH, non-condensing |
| AC Input Terminal Connection |
3-position tool-free spring clamp terminal |
| DC Output Terminal Connection |
BAT1-2: Two M6 stud terminals |
| L x W x H Charger |
16.26in (413mm) x 12.34in (312mm) x 6.5in (165mm) |
| Ingress Protection (IP) Rating Charger: |
IP-32 (vertical) |
| REGULATORY APPROVALS |
| Safety |
ETL listed to CSA C22.2 No. 107.2, conforms to UL Std. UL1236 (with Marine Supplement) |
| EMC |
47 CFR (FCC) Part 15B, Class B and CAN ICES-3(B) / NMB-3(B) |
| Ignition Protection |
SAE J1171, ABYC C-1500 |
