Airmar SS175C-12-HW 12d TiltHigh Wide CHIRP with Garmin 12-PinModel: SS175C-12-HW Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 152 m (500 feet) High Frequency: 150 kHz to 250 kHz = Constant 25 deg beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth High frequency provides superior shallow water performance, bottom detail and fish target separation High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column Low-profile thru-hull housing provides good resolution at speed when installed properly Stainless steel housing for use on stepped, planing or displacement hulls made of fiberglass, wood or metal Recommended boat size: Up to 11 m (36 feet) Also available in transom-mount (TM185HW), in-hull (M285HW) and bronze housing (B175HW) models Exclusive Xducer ID(R) technology Get more coverage under your boat with Airmar's unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25 deg beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500 feet.Tilted element transducers have the element fixed at either a 20 deg, 12 deg or 0 deg angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.SpecificationsWeight 2.7 kg (6 lb) Hull Deadrise 8 deg to 15 deg hull deadrise Acoustic Window Urethane Hole Size 98 mm (3-7/8) One internal ceramic assembly "

Read more less

Airmar SS175C-12-HW 12d TiltHigh Wide CHIRP with Raymarine 11-PinModel: SS175C-12-HW Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 152 m (500 feet) High Frequency: 150 kHz to 250 kHz = Constant 25 deg beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth High frequency provides superior shallow water performance, bottom detail and fish target separation High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column Low-profile thru-hull housing provides good resolution at speed when installed properly Stainless steel housing for use on stepped, planing or displacement hulls made of fiberglass, wood or metal Recommended boat size: Up to 11 m (36 feet) Also available in transom-mount (TM185HW), in-hull (M285HW) and bronze housing (B175HW) models Exclusive Xducer ID(R) technology Get more coverage under your boat with Airmar's unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25 deg beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500 feet.Tilted element transducers have the element fixed at either a 20 deg, 12 deg or 0 deg angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.SpecificationsWeight 2.7 kg (6 lb) Hull Deadrise 8 deg to 15 deg hull deadrise Acoustic Window Urethane Hole Size 98 mm (3-7/8) One internal ceramic assembly "

Read more less

Airmar M265C Depth Only Low Medium In-Hull Transducer - Mix-N-Match ConnectorModel: M265C-LM-MM Depth only 1 kW of power for great, deep to mid-depth performance Low frequency: 42 kHz to 65 kHz Medium frequency: 85 kHz to 135 kHz 73 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths Plastic transducer housing and mounting tank Patented Xducer ID(R) technology The M265LM Chirp-ready in hull is a perfect mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.The low-frequency band of 42 to 65 kHz provides deep-water performance down to 914 m (3000 feet).It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band, operating between 85 and 135 kHz, is excellent for identifying targets suspended close to the bottom on structure and within the water column.The transducer is installed in the included tank which is cut to the boat's deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LM is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.SpecificationsAcoustic WindowUrethane Cable-Length 9 m (30 feet) Connector Airmar 12-Pin (MMC) Deadrise Range 0 deg to 22 deg Display Connector MMC Cable Required Frequency Band Low-Medium Housing Material Plastic Hull Material Solid fiberglass only Low Frequency 42-65 kHz Low Frequency Beamwidth 25 deg-16 deg Max Deadrise Accommodates a deadrise angle up to 30 deg with the longest side of the tank installed parallel to the centerline (keel) of the hull Max Depth Low frequency- 914 m (3000 feet), Medium frequency- 457 m (1500 feet) Max Vessel LOA 11 m (36 feet) and above Medium Frequency 85-135 kHz Medium Frequency Beamwidth 16 deg-11 deg Mounting Style In-Hull Power Rating 1 kW Single or Dual Frequency CHIRP-Ready Dual-Band Transducer Functions Depth Dimensions 8.19in H x 8.71in L x 6.02in W

Read more less

Airmar B175C-0-L Thru Hull 0 Deg Tilt Low CHIRPModel: B175C-0-L-MM Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth Available in 0 deg or 12 deg tilted versions only 35 kHz of total bandwidth from one transducer Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth Bronze transducer housing Boat Size: Up to 8 m (25 feet) Hull Type: Fiberglass or wood Exclusive Xducer ID(R) technology Depth & fast-response water-temperature sensor Hull Type: Wood, fiberglass and metal stepped, planing or displacement type hulls Fixed 0 deg tilted version for 0 deg to 7 deg hull deadrise Engine Type: Can be used with all propulsion types Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 20 kHz of total bandwidth in just one installation, saving customers time and money.A Tilted ElementTM model in the Chirp Thru-Hull product line, the B175L Chirps across the following bandwidths:L Model - Low Frequency 40-60 kHz Acoutis Window Urethane Weight 2.7 kg (6 lb)

Read more less

Airmar B175C-0-L Thru Hull 0 Deg Tilt Low CHIRP with Humminbird 9-Pin Mix-N-Match CableModel: B175C-0-L-HB Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth Available in 0 deg or 12 deg tilted versions only 35 kHz of total bandwidth from one transducer Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth Bronze transducer housing Boat Size: Up to 8 m (25 feet) Hull Type: Fiberglass or wood Exclusive Xducer ID(R) technology Depth & fast-response water-temperature sensor Hull Type: Wood, fiberglass and metal stepped, planing or displacement type hulls Fixed 0 deg tilted version for 0 deg to 7 deg hull deadrise Engine Type: Can be used with all propulsion types Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 20 kHz of total bandwidth in just one installation, saving customers time and money.A Tilted ElementTM model in the Chirp Thru-Hull product line, the B175L Chirps across the following bandwidths:L Model - Low Frequency 40-60 kHz Acoutis Window Urethane Weight 2.7 kg (6 lb) What's in the Box: B175 Low Chirp, 1kW, 0 deg Tilt, M&M Transducer, DT MMC-HB Humminbird 9-Pin Mix-N-Match Cable

Read more less

Airmar B175C-0-L Thru Hull 0 Deg Tilt Low CHIRP with Si-Tex 8-Pin Mix-N-Match CableModel: B175C-0-L-BB Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth Available in 0 deg or 12 deg tilted versions only 35 kHz of total bandwidth from one transducer Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth Bronze transducer housing Boat Size: Up to 8 m (25 feet) Hull Type: Fiberglass or wood Exclusive Xducer ID(R) technology Depth & fast-response water-temperature sensor Hull Type: Wood, fiberglass and metal stepped, planing or displacement type hulls Fixed 0 deg tilted version for 0 deg to 7 deg hull deadrise Engine Type: Can be used with all propulsion types Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 20 kHz of total bandwidth in just one installation, saving customers time and money.A Tilted ElementTM model in the Chirp Thru-Hull product line, the B175L Chirps across the following bandwidths:L Model - Low Frequency 40-60 kHz Acoutis Window Urethane Weight 2.7 kg (6 lb) What's in the Box: B175 Low Chirp, 1kW, 0 deg Tilt, M&M Transducer, DT MMC-BB Si-Tex 8-Pin Mix-N-Match Cable

Read more less

Airmar B175C-0-L Thru Hull 0 Deg Tilt Low CHIRP with Navico 9-Pin Mix-N-Match CableModel: B175C-0-L-9N Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth Available in 0 deg or 12 deg tilted versions only 35 kHz of total bandwidth from one transducer Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth Bronze transducer housing Boat Size: Up to 8 m (25 feet) Hull Type: Fiberglass or wood Exclusive Xducer ID(R) technology Depth & fast-response water-temperature sensor Hull Type: Wood, fiberglass and metal stepped, planing or displacement type hulls Fixed 0 deg tilted version for 0 deg to 7 deg hull deadrise Engine Type: Can be used with all propulsion types Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 20 kHz of total bandwidth in just one installation, saving customers time and money.A Tilted ElementTM model in the Chirp Thru-Hull product line, the B175L Chirps across the following bandwidths:L Model - Low Frequency 40-60 kHz Acoutis Window Urethane Weight 2.7 kg (6 lb) What's in the Box: B175 Low Chirp, 1kW, 0 deg Tilt, M&M Transducer, DT MMC-9NL Navico 9-Pin Mix-N-Match Cable

Read more less

Airmar B175C-0-L Thru Hull 0 Deg Tilt Low CHIRP with Garmin 8-Pin Mix-N-Match CableModel: B175C-0-L-8G Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth Available in 0 deg or 12 deg tilted versions only 35 kHz of total bandwidth from one transducer Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth Bronze transducer housing Boat Size: Up to 8 m (25 feet) Hull Type: Fiberglass or wood Exclusive Xducer ID(R) technology Depth & fast-response water-temperature sensor Hull Type: Wood, fiberglass and metal stepped, planing or displacement type hulls Fixed 0 deg tilted version for 0 deg to 7 deg hull deadrise Engine Type: Can be used with all propulsion types Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 20 kHz of total bandwidth in just one installation, saving customers time and money.A Tilted ElementTM model in the Chirp Thru-Hull product line, the B175L Chirps across the following bandwidths:L Model - Low Frequency 40-60 kHz Acoutis Window Urethane Weight 2.7 kg (6 lb) What's in the Box: B175 Low Chirp, 1kW, 0 deg Tilt, M&M Transducer, DT MMC-8G Garmin 8-Pin Mix-N-Match Cable

Read more less

Airmar B175C-0-L Thru Hull 0 Deg Tilt Low CHIRP with Humminbird 14-Pin Mix-N-Match CableModel: B175C-0-L-14HB Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth Available in 0 deg or 12 deg tilted versions only 35 kHz of total bandwidth from one transducer Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth Bronze transducer housing Boat Size: Up to 8 m (25 feet) Hull Type: Fiberglass or wood Exclusive Xducer ID(R) technology Depth & fast-response water-temperature sensor Hull Type: Wood, fiberglass and metal stepped, planing or displacement type hulls Fixed 0 deg tilted version for 0 deg to 7 deg hull deadrise Engine Type: Can be used with all propulsion types Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 20 kHz of total bandwidth in just one installation, saving customers time and money.A Tilted ElementTM model in the Chirp Thru-Hull product line, the B175L Chirps across the following bandwidths:L Model - Low Frequency 40-60 kHz Acoutis Window Urethane Weight 2.7 kg (6 lb) What's in the Box: B175 Low Chirp, 1kW, 0 deg Tilt, M&M Transducer, DT MMC-14HBLX Humminbird 14-Pin Mix-N-Match Cable

Read more less

Airmar B175C-0-L Thru Hull 0 Deg Tilt Low CHIRP with Garmin 12-Pin Mix-N-Match CableModel: B175C-0-L-12G Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth Available in 0 deg or 12 deg tilted versions only 35 kHz of total bandwidth from one transducer Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth Bronze transducer housing Boat Size: Up to 8 m (25 feet) Hull Type: Fiberglass or wood Exclusive Xducer ID(R) technology Depth & fast-response water-temperature sensor Hull Type: Wood, fiberglass and metal stepped, planing or displacement type hulls Fixed 0 deg tilted version for 0 deg to 7 deg hull deadrise Engine Type: Can be used with all propulsion types Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 20 kHz of total bandwidth in just one installation, saving customers time and money.A Tilted ElementTM model in the Chirp Thru-Hull product line, the B175L Chirps across the following bandwidths:L Model - Low Frequency 40-60 kHz Acoutis Window Urethane Weight 2.7 kg (6 lb) What's in the Box: B175 Low Chirp, 1kW, 0 deg Tilt, M&M Transducer, DT MMC-12G Garmin 12-Pin Mix-N-Match Cable

Read more less

Airmar B175C-12-L Thru Hull0 Deg Tilt Low CHIRPModel: B175C-12-L-MM Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth Available in 0 deg or 12 deg tilted versions only 35 kHz of total bandwidth from one transducer Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth Bronze transducer housing Boat Size: Up to 8 m (25 feet) Hull Type: Fiberglass or wood Exclusive Xducer ID(R) technology Depth & fast-response water-temperature sensor Hull Type: Wood, fiberglass and metal stepped, planing or displacement type hulls Hull Deadrise: Up to 24 deg Fixed 20 deg tilted version for Fixed 12 deg tilted version for 8 deg to 15 deg hull deadrise Engine Type: Can be used with all propulsion types Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 20 kHz of total bandwidth in just one installation, saving customers time and money.A Tilted ElementTM model in the Chirp Thru-Hull product line, the B175L Chirps across the following bandwidths:L Model - Low Frequency 40-60 kHzSpecificationsHull DeadriseUp to 24 deg Acoutis Window Urethane Weight 2.7 kg (6 lb)

Read more less

Airmar B175C-0-L Thru Hull 0 Deg Tilt Low CHIRP with Furuno 12-Pin Mix-N-Match CableModel: B175C-0-L-12F Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth Available in 0 deg or 12 deg tilted versions only 35 kHz of total bandwidth from one transducer Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth Bronze transducer housing Boat Size: Up to 8 m (25 feet) Hull Type: Fiberglass or wood Exclusive Xducer ID(R) technology Depth & fast-response water-temperature sensor Hull Type: Wood, fiberglass and metal stepped, planing or displacement type hulls Fixed 0 deg tilted version for 0 deg to 7 deg hull deadrise Engine Type: Can be used with all propulsion types Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 20 kHz of total bandwidth in just one installation, saving customers time and money.A Tilted ElementTM model in the Chirp Thru-Hull product line, the B175L Chirps across the following bandwidths:L Model - Low Frequency 40-60 kHz Acoutis Window Urethane Weight 2.7 kg (6 lb) What's in the Box: B175 Low Chirp, 1kW, 0 deg Tilt, M&M Transducer, DT MMC-12F Furuno 12-Pin Mix-N-Match Cable

Read more less

Airmar B175C-0-L Thru Hull 0 Deg Tilt Low CHIRP with Raymarine 11-Pin Mix-N-Match CableModel: B175C-0-L-11R Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth Available in 0 deg or 12 deg tilted versions only 35 kHz of total bandwidth from one transducer Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth Bronze transducer housing Boat Size: Up to 8 m (25 feet) Hull Type: Fiberglass or wood Exclusive Xducer ID(R) technology Depth & fast-response water-temperature sensor Hull Type: Wood, fiberglass and metal stepped, planing or displacement type hulls Fixed 0 deg tilted version for 0 deg to 7 deg hull deadrise Engine Type: Can be used with all propulsion types Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 20 kHz of total bandwidth in just one installation, saving customers time and money.A Tilted ElementTM model in the Chirp Thru-Hull product line, the B175L Chirps across the following bandwidths:L Model - Low Frequency 40-60 kHz Acoutis Window Urethane Weight 2.7 kg (6 lb) What's in the Box: B175 Low Chirp, 1kW, 0 deg Tilt, M&M Transducer, DT MMC-11R Raymarine 11-Pin Mix-N-Match Cable

Read more less

Airmar B175C-0-L Thru Hull 0 Deg Tilt Low CHIRP with Furuno 10-Pin Mix-N-Match CableModel: B175C-0-L-10F Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth Available in 0 deg or 12 deg tilted versions only 35 kHz of total bandwidth from one transducer Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth Bronze transducer housing Boat Size: Up to 8 m (25 feet) Hull Type: Fiberglass or wood Exclusive Xducer ID(R) technology Depth & fast-response water-temperature sensor Hull Type: Wood, fiberglass and metal stepped, planing or displacement type hulls Fixed 0 deg tilted version for 0 deg to 7 deg hull deadrise Engine Type: Can be used with all propulsion types Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 20 kHz of total bandwidth in just one installation, saving customers time and money.A Tilted ElementTM model in the Chirp Thru-Hull product line, the B175L Chirps across the following bandwidths:L Model - Low Frequency 40-60 kHz Acoutis Window Urethane Weight 2.7 kg (6 lb) What's in the Box: B175 Low Chirp, 1kW, 0 deg Tilt, M&M Transducer, DT MMC-10F Furuno 10-{Pin Mix-N-Match Cable

Read more less

Airmar B175C-0-L Thru Hull 0 Deg Tilt Low CHIRP with Bare Wire Mix-N-Match CableModel: B175C-0-L-0 Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth Available in 0 deg or 12 deg tilted versions only 35 kHz of total bandwidth from one transducer Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth Bronze transducer housing Boat Size: Up to 8 m (25 feet) Hull Type: Fiberglass or wood Exclusive Xducer ID(R) technology Depth & fast-response water-temperature sensor Hull Type: Wood, fiberglass and metal stepped, planing or displacement type hulls Fixed 0 deg tilted version for 0 deg to 7 deg hull deadrise Engine Type: Can be used with all propulsion types Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 20 kHz of total bandwidth in just one installation, saving customers time and money.A Tilted ElementTM model in the Chirp Thru-Hull product line, the B175L Chirps across the following bandwidths:L Model - Low Frequency 40-60 kHz Acoutis Window Urethane Weight 2.7 kg (6 lb) What's in the Box: B175 Low Chirp, 1kW, 0 deg Tilt, M&M Transducer, DT MMC-0 Bare wire Mix-N-Match Cable

Read more less

B175L Bronze 12 Degree Thru-Hull 1kW - Requires Mix & Match CableAirmar’s low-profile, Chirp-ready transducers are the perfect addition to smaller boats such as center consoles. The B175L transmits across low frequencies from 40 to 60 kHz, delivering excellent coverage and tracking. This transducer has up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.Tilted Element™ transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.Features: Requires Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power for great deep-water performance Low frequency: 40 to 60 kHz 32° to 21° beamwidth Maximum depth of 762 m (2500') Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Also available in a stainless steel housing (SS175L) for use with all hull materials Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 71 mm (2.80") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Fishing Low Frequency: 40-60 kHz Low Frequency Beamwidth: 32°-21° Max Deadrise: Up to 24° Max Depth: 762 m (2500') Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Airmar M265C-LH Low High CHIRP In-Hull TransducerModel: M265C-LH Depth only 1 kW of power for great deep-water performance Low frequency: 42 to 65 kHz, 25 deg to 16 deg beamwidth, Maximum depth of 914 m (3000 feet) High frequency: 130 to 210 kHz, 10 deg to 6 deg beamwidth, Maximum depth of 304 m (1000 feet) 103 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Plastic transducer housing and mounting tank Patented Xducer ID(R) technology We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna-60 kHz, squid-133 kHz, and cod-175 kHz. The M265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.Airmar's M265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10 deg to 6 deg, bandwidth-perfect for picking apart structure and pinpointing tight-holding fish in structure.The transducer is installed in the included tank which is cut to the boat's deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.SpecificationsCable-Length10 m (33 feet) Connector Bare Wire Deadrise Range 0 deg to 22 deg Frequency Band Low-High Housing Material Plastic Low Frequency 42-65 kHz Low Frequency Beamwidth 25 deg-16 deg Max Deadrise Accommodates a deadrise angle up to 30 deg with the longest side of the tank installed parallel to the centerline (keel) of the hull Max Depth Low frequency- 914 m (3000 feet), High frequency- 304 m (1000 feet) Mounting Style In-Hull Single or Dual Frequency CHIRP-Ready Dual-Band High Frequency 130-210 kHz High Frequency Beamwidth 10 deg-6 deg

Read more less

Airmar B175 Wide-Beam Chirp High Frequency 12d Tilted ElementModel: B175C-12-HW-MM Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 250 kHz 25 deg constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25 deg beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25 deg angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.SpecificationsDeadrise16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 150 to 250 kHz-A (Broadband)

Read more less

Airmar B175 Wide-Beam Chirp High Frequency 12d Tilted Element W, Humminbird 9-Pin Mix-N-Match CableModel: B175C-12-HW-HB Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 250 kHz 25 deg constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25 deg beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25 deg angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.SpecificationsDeadrise8 deg to 15 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 150 to 250 kHz-A (Broadband)

Read more less

Airmar B175 Wide-Beam Chirp High Frequency 12d Tilted Element W, Navico 7-Pin Mix-N-Match CableModel: B175C-12-HW-BL Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 250 kHz 25 deg constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25 deg beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25 deg angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.SpecificationsDeadrise8 deg to 15 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 150 to 250 kHz-A (Broadband)

Read more less

Airmar B175 Wide-Beam Chirp High Frequency 12d Tilted Element W, Navico 9-Pin Mix-N-Match CableModel: B175C-12-HW-9N Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 250 kHz 25 deg constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25 deg beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25 deg angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.SpecificationsDeadrise8 deg to 15 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 150 to 250 kHz-A (Broadband)

Read more less

Airmar B175 Wide-Beam Chirp High Frequency 12d Tilted Element W, Garmin 8-Pin Mix-N-Match CableModel: B175C-12-HW-8G Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 250 kHz 25 deg constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25 deg beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25 deg angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.SpecificationsDeadrise8 deg to 15 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 150 to 250 kHz-A (Broadband)

Read more less

Airmar B175 Wide-Beam Chirp High Frequency 12d Tilted Element W, Humminbird 14-Pin Mix-N-Match CableModel: B175C-12-HW-14HB Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 250 kHz 25 deg constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25 deg beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25 deg angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.SpecificationsDeadrise8 deg to 15 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 150 to 250 kHz-A (Broadband)

Read more less

Airmar B175 Wide-Beam Chirp High Frequency 12d Tilted Element W, Garmin 12-Pin Mix-N-Match CableModel: B175C-12-HW-12G Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 250 kHz 25 deg constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25 deg beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25 deg angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.SpecificationsDeadrise8 deg to 15 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 150 to 250 kHz-A (Broadband)

Read more less

Airmar B175 Wide-Beam Chirp High Frequency 20d Tilted ElementModel: B175C-20-HW-MM Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 250 kHz 25 deg constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25 deg beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25 deg angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.SpecificationsDeadrise16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 150 to 250 kHz-A (Broadband)

Read more less

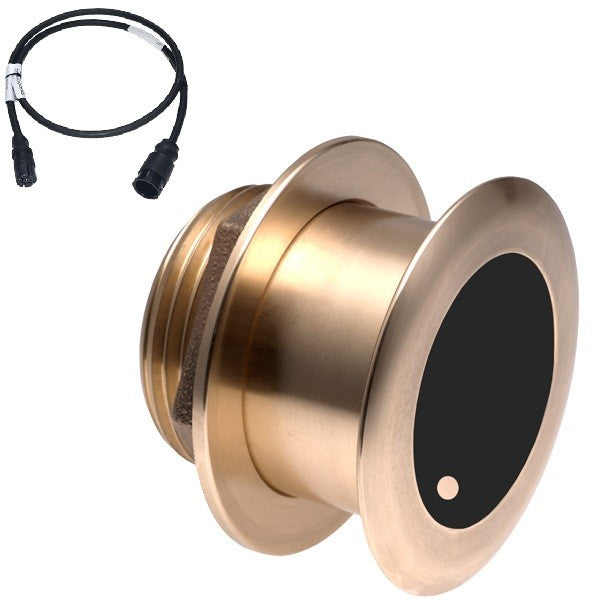

Airmar B175 Wide-Beam Chirp High Frequency 12d Tilted Element W, Raymarine 11-Pin Mix-N-Match CableModel: B175C-12-HW-11R Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 250 kHz 25 deg constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25 deg beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25 deg angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.Additional cables required, A80328 when used as single or A102146 when used as pair.SpecificationsDeadrise8 deg to 15 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 150 to 250 kHz-A (Broadband)

Read more less

Airmar B175 Wide-Beam Chirp High Frequency 12d Tilted Element W, Bare Wire Mix-N-Match CableModel: B175C-12-HW-0 Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 250 kHz 25 deg constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25 deg beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25 deg angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.SpecificationsDeadrise8 deg to 15 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 150 to 250 kHz-A (Broadband)

Read more less

Airmar B175 Wide-Beam Chirp High Frequency 20d Tilted Element with Humminbird 9-pin Mix and Match CableModel: B175C-20-HW-HB Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 250 kHz 25 deg constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25 deg beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25 deg angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.SpecificationsDeadrise16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 150 to 250 kHz-A (Broadband) What's in the Box: B175C-20-HW-MM Transducer MMC-HB Mix and Match Cable

Read more less

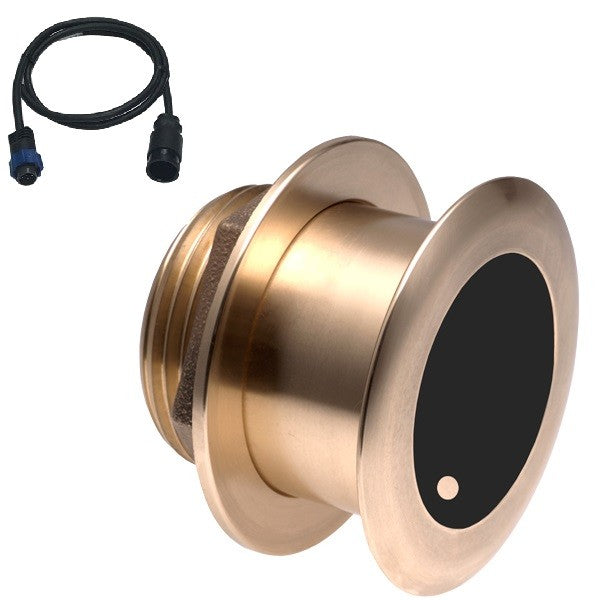

Airmar B175 Wide-Beam Chirp High Frequency 20d Tilted Element with Navico 7-pin Mix and Match CableModel: B175C-20-HW-BL Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 250 kHz 25 deg constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25 deg beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25 deg angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.SpecificationsDeadrise16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 150 to 250 kHz-A (Broadband) What's in the Box: B175C-20-HW-MM Transducer MMC-BL Mix and Match Cable

Read more less

Airmar B175 Wide-Beam Chirp High Frequency 20d Tilted Element with Navico 9-pin Mix and Match CableModel: B175C-20-HW-9N Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 250 kHz 25 deg constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25 deg beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25 deg angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.SpecificationsDeadrise16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 150 to 250 kHz-A (Broadband) What's in the Box: B175C-20-HW-MM Transducer MMC-9N Mix and Match Cable

Read more less

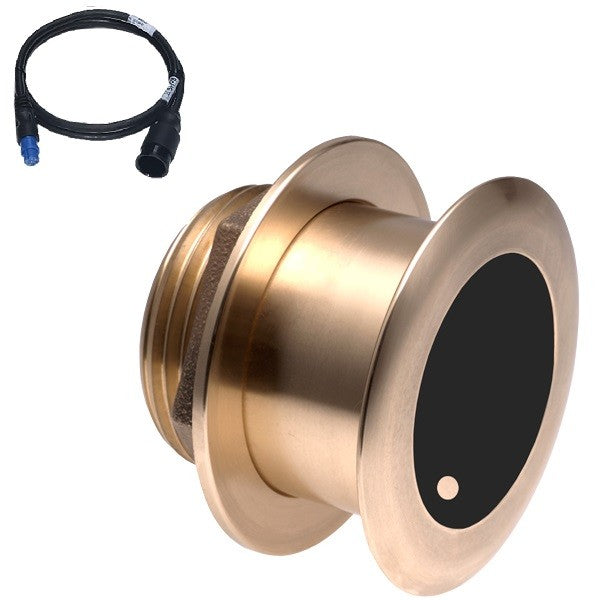

Airmar B175 Wide-Beam Chirp High Frequency 20d Tilted Element with Garmin 8-pin Mix and Match CableModel: B175C-20-HW-8G Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 250 kHz 25 deg constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25 deg beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25 deg angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.SpecificationsDeadrise16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 150 to 250 kHz-A (Broadband) What's in the Box: B175C-20-HW-MM Transducer MMC-8G Mix and Match Cable

Read more less

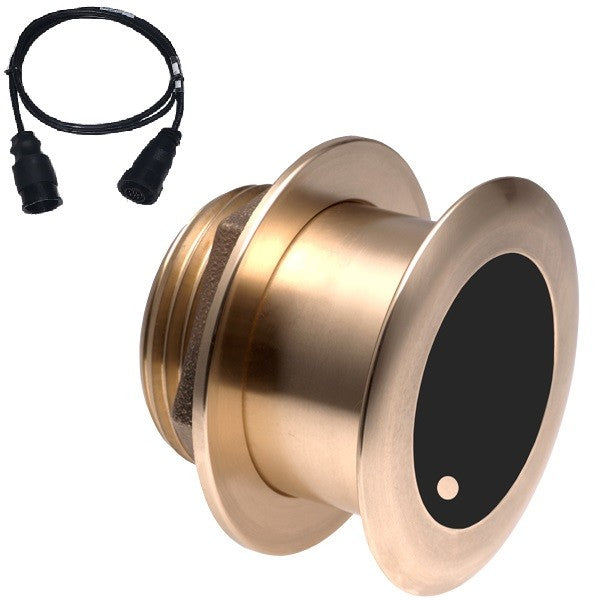

Airmar B175 Wide-Beam Chirp High Frequency 20d Tilted Element with Humminbird 14-pin Mix and Match CableModel: B175C-20-HW-14HB Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 250 kHz 25 deg constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25 deg beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25 deg angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.SpecificationsDeadrise16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 150 to 250 kHz-A (Broadband) What's in the Box: B175C-20-HW-MM Transducer MMC-14HB Mix and Match Cable

Read more less

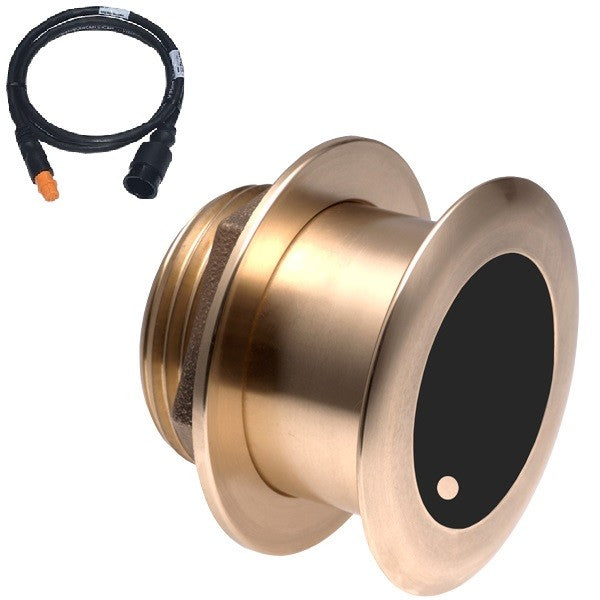

Airmar B175 Wide-Beam Chirp High Frequency 20d Tilted Element with Garmin 12-pin Mix and Match CableModel: B175C-20-HW-12G Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 250 kHz 25 deg constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25 deg beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25 deg angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.SpecificationsDeadrise16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 150 to 250 kHz-A (Broadband) What's in the Box: B175C-20-HW-MM Transducer MMC-12G Mix and Match Cable

Read more less

Airmar B175 Wide-Beam Chirp High Frequency 20d Tilted Element with Raymarine 11-poin Mix and Match CableModel: B175C-20-HW-11R Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 250 kHz 25 deg constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25 deg beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25 deg angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.Requires additional Cable A80328 when used as a single or A102146 as a pair.SpecificationsDeadrise16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 150 to 250 kHz-A (Broadband) What's in the Box: B175C-20-HW-MM Transducer MMC-11R Mix and Match Cable

Read more less

Airmar B175 Wide-Beam Chirp High Frequency 20d Tilted Element Bare WireModel: B175C-20-HW-0 Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 250 kHz 25 deg constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25 deg beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25 deg angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.SpecificationsDeadrise16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 150 to 250 kHz-A (Broadband) What's in the Box: B175C-20-HW-MM Transducer MMC-0 Mix and Match Cable

Read more less

B175HW Bronze 12 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorGet more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready B175HW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500').Tilted Element™ transducers have the element fixed at either a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features: Garmin 8-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power High frequency: 150 to 250 kHz Constant 25° beamwidth Maximum depth of 152 m (500') 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz, plus everything else in the bandwidth Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in fiberglass or wood hull Also available in a stainless steel housing (SS175HW) and as thru-hull with fairing (B285HW), transom (TM185HW), and in-hull (M285HW) mounts Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: 95 mm (3-3/4") Usable Shaft Length: 71 mm (2.80") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Fishing High Frequency: 150-250 kHz High-Wide Beamwidth: 25° Max Deadrise: Up to 24° Max Depth: 150 m (500') Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B175HW Bronze 0 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorGet more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready B175HW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500').Tilted Element™ transducers have the element fixed at either a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features: Garmin 8-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power High frequency: 150 to 250 kHz Constant 25° beamwidth Maximum depth of 152 m (500') 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz, plus everything else in the bandwidth Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in fiberglass or wood hull Also available in a stainless steel housing (SS175HW) and as thru-hull with fairing (B285HW), transom (TM185HW), and in-hull (M285HW) mounts Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: 95 mm (3-3/4") Usable Shaft Length: 71 mm (2.80") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Fishing High Frequency: 150-250 kHz High-Wide Beamwidth: 25° Max Deadrise: Up to 24° Max Depth: 150 m (500') Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B175HW Bronze Thru Hull 12° Tilt - 1kWRequires Mix and Match CableGet more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.Features: Depth & fast-response water-temperature sensor 12 degree tilted version, 1KW High—CHIRPS from 150 kHz to 250 kHz 25° constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Boat Size: 8 m (25’) and above Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: High Wide Box Dimensions: 8"H x 10"W x 12"L WT: 10.7 lbs UPC: 801769002072

Read more less

B175HW Bronze Thru Hull 0° Tilt - 1kW - Requires Mix and Match CableGet more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.Features: Depth & fast-response water-temperature sensor 0 degree tilted version, 1KW High—CHIRPS from 150 kHz to 250 kHz 25° constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Boat Size: 8 m (25’) and above Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

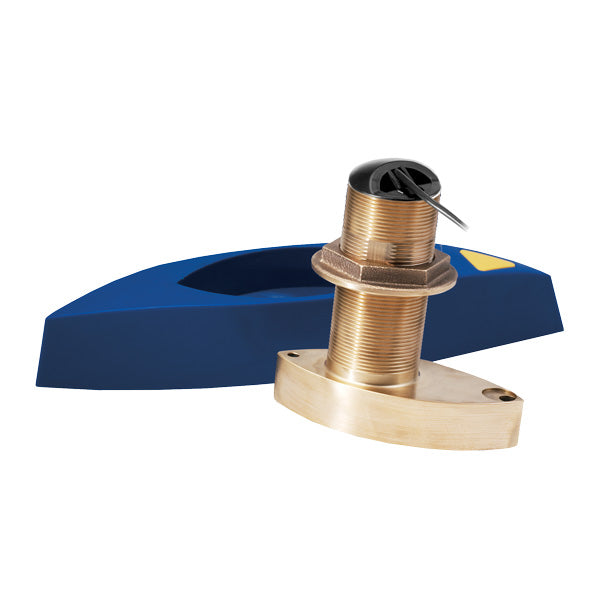

Airmar B765C TriducerLow Medium CHIRPModel: 41-474-2-01 Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth Medium-CHIRPS from 80 kHz to 130 kHz, 24 deg to 16 deg beamwidth 85 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidth All the advantages of the larger Thru-Hull Chirp transducers, suitable for smaller boats Bronze transducer housing with High-Performance Fairing Boat Size: Up to 9 m (30 feet) and above Hull Type: Fiberglass or wood Exclusive Xducer ID(R) technology Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 85 kHz of total bandwidth in just one installation, saving customers time and money.A Thru-Hull Chirp transducer perfectly suited for smaller fishing boats, the B765L/M Chirps across the following bandwidths:*L/M -Low Frequency 40-75 kHz, Medium Frequency 80-130 kHzSpecificationsHull DeadriseUp to 24 deg with a fairing Acoustic Window Urethane Weight 2.5 kg (5.5lb) What's in the Box:B75C-12-M-MM

Read more less

B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work with Simrad & LowranceRely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 85 kHz of total bandwidth in just one installation, saving customers time and money.A Thru-Hull Chirp transducer perfectly suited for smaller fishing boats, the B765L/M Chirps across the following bandwidths:*L/M -Low Frequency 40-75 kHz, Medium Frequency 80-130 kHz* Please Note: The low frequency operating band is 300 W. The medium frequency operating band is 600 W.Features Depth & fast-response water-temperature sensor Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth 85 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidth All the advantages of the larger Thru-Hull Chirp transducers, suitable for smaller boats Bronze transducer housing with High-Performance Fairing Boat Size: Up to 9 m (30’) and above Hull Type: Fiberglass or wood Exclusive Xducer ID® technology Hull Deadrise: Up to 24° with a fairing Acoustic Window: Urethane Weight: 2.5 kg (5.5 lb) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: Yes Speed Included: No Pins: Bare Wires Mounting Style: Thru-Hull Imaging: Standard Chirp: Low/Medium Cable Length (Feet): 40' Box Dimensions: 4"H x 12"W x 16"L WT: 7.7 lbs Brochure (pdf)

Read more less

Airmar SS175C-0-M 0d TiltMedium CHIRP with Humminbird 14-PinModel: SS175C-0-M Depth and water-temperature sensor 1 kW with a maximum depth of 457 m (1500 feet) Medium Frequency: 85 kHz to 135 kHz = 16 deg to 11 deg beamwidth 50 kHz of total bandwidth from one transducer Medium frequency provides excellent shallow to mid-depth performance, bottom detail and fish target separation Recommended boat size: Up to 11 m (36 feet) Stainless steel housing is compatible with all hull types and materials Also available in a bronze housing (B175H) model Exclusive Xducer ID(R) technology Medium frequency delivers the right combination between coverage under the boat, extended depth range and the ability to produce clean and accurate target and structure returns in the mid to deeper water depths. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths (up to 1500 feet) and delivers ultra-clear target resolution.Tilted element transducers have the element fixed at either a 20 deg, 12 deg or 0 deg angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.SpecificationsWeight2.7 kg (6 lb) Hull Deadrise 0 deg to 7 deg hull deadrise Acoustic Window Urethane Hole Size 98 mm (3-7/8) One internal ceramic assembly "

Read more less

Airmar SS175C-0-M 0d TiltMedium CHIRP with Garmin 12-PinModel: SS175C-0-M Depth and water-temperature sensor 1 kW with a maximum depth of 457 m (1500 feet) Medium Frequency: 85 kHz to 135 kHz = 16 deg to 11 deg beamwidth 50 kHz of total bandwidth from one transducer Medium frequency provides excellent shallow to mid-depth performance, bottom detail and fish target separation Recommended boat size: Up to 11 m (36 feet) Stainless steel housing is compatible with all hull types and materials Also available in a bronze housing (B175H) model Exclusive Xducer ID(R) technology Medium frequency delivers the right combination between coverage under the boat, extended depth range and the ability to produce clean and accurate target and structure returns in the mid to deeper water depths. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths (up to 1500 feet) and delivers ultra-clear target resolution.Tilted element transducers have the element fixed at either a 20 deg, 12 deg or 0 deg angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.SpecificationsWeight2.7 kg (6 lb) Hull Deadrise 0 deg to 7 deg hull deadrise Acoustic Window Urethane Hole Size 98 mm (3-7/8) One internal ceramic assembly "

Read more less

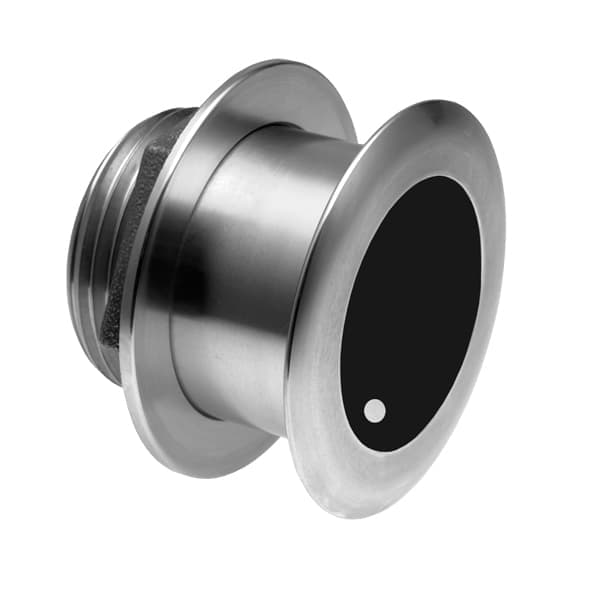

Airmar SS175C-0-M 0d TiltMedium CHIRP with Raymarine 11-PinModel: SS175C-0-M Depth and water-temperature sensor 1 kW with a maximum depth of 457 m (1500 feet) Medium Frequency: 85 kHz to 135 kHz = 16 deg to 11 deg beamwidth 50 kHz of total bandwidth from one transducer Medium frequency provides excellent shallow to mid-depth performance, bottom detail and fish target separation Recommended boat size: Up to 11 m (36 feet) Stainless steel housing is compatible with all hull types and materials Also available in a bronze housing (B175H) model Exclusive Xducer ID(R) technology Medium frequency delivers the right combination between coverage under the boat, extended depth range and the ability to produce clean and accurate target and structure returns in the mid to deeper water depths. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths (up to 1500 feet) and delivers ultra-clear target resolution.Tilted element transducers have the element fixed at either a 20 deg, 12 deg or 0 deg angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.SpecificationsWeight2.7 kg (6 lb) Hull Deadrise 0 deg to 7 deg hull deadrise Acoustic Window Urethane Hole Size 98 mm (3-7/8) One internal ceramic assembly "

Read more less

Airmar SS175C-0-M 0d TiltMedium CHIRP with No ConnectorModel: SS175C-0-M Depth and water-temperature sensor 1 kW with a maximum depth of 457 m (1500 feet) Medium Frequency: 85 kHz to 135 kHz = 16 deg to 11 deg beamwidth 50 kHz of total bandwidth from one transducer Medium frequency provides excellent shallow to mid-depth performance, bottom detail and fish target separation Recommended boat size: Up to 11 m (36 feet) Stainless steel housing is compatible with all hull types and materials Also available in a bronze housing (B175H) model Exclusive Xducer ID(R) technology Medium frequency delivers the right combination between coverage under the boat, extended depth range and the ability to produce clean and accurate target and structure returns in the mid to deeper water depths. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths (up to 1500 feet) and delivers ultra-clear target resolution.Tilted element transducers have the element fixed at either a 20 deg, 12 deg or 0 deg angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.SpecificationsWeight2.7 kg (6 lb) Hull Deadrise 0 deg to 7 deg hull deadrise Acoustic Window Urethane Hole Size 98 mm (3-7/8) One internal ceramic assembly "

Read more less

Airmar SS175C-12-M 12d TiltMedium CHIRP with Humminbird 14-PlanModel: SS175C-12-M Depth and water-temperature sensor 1 kW with a maximum depth of 457 m (1500 feet) Medium Frequency: 85 kHz to 135 kHz = 16 deg to 11 deg beamwidth 50 kHz of total bandwidth from one transducer Medium frequency provides excellent shallow to mid-depth performance, bottom detail and fish target separation Recommended boat size: Up to 11 m (36 feet) Stainless steel housing is compatible with all hull types and materials Also available in a bronze housing (B175M) Exclusive Xducer ID(R) technology Medium frequency delivers the right combination between coverage under the boat, extended depth range and the ability to produce clean and accurate target and structure returns in the mid to deeper water depths. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths (up to 1500 feet) and delivers ultra-clear target resolution.Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.SpecificationsWeight2.7 kg (6 lb) Hull Deadrise 8 deg to 15 deg hull deadrise Acoustic Window Urethane Hole Size 98 mm (3-7/8) One internal ceramic assembly "

Read more less
