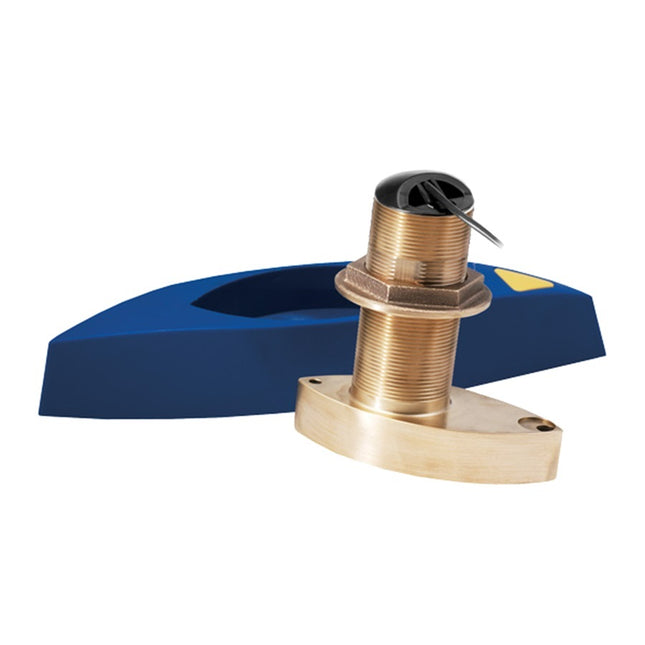

B785C-M CHIRP Bronze Thru-Hull w/Fairing Block - 600WFeatures: Thru-hull bronze model with fairing Same physical size as a B744V  600W power rating Depth and fast-response water temperature sensor Available only in the Medium frequency band (M : 80-130kHz) with bare wire cable This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: Medium Box Dimensions: 4"H x 12"W x 16"L WT: 7.2 lbs UPC: 801769002027 Owner's Manual (pdf)

Read more less

Airmar B785C Triducer Medium CHIRPModel: 41-681-3-01 Depth & fast-responDepth and fast-response water-temperature sensing 600 W of power Medium frequency: 80 to 130 kHz 24 deg to 16 deg beamwidth Maximum depth of 274 m (900 feet) 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Recommended for use on planing or displacement hull Bronze housing with High-performance Fairing for optimal performance at higher speeds Patented Xducer ID(R) technology The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900 feet) along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).SpecificationsCable-Length9 m (30ft) Acoustic Window Urethane Connector Airmar 12-Pin (MMC) Deadrise Range Up to 24 deg with fairing Display Connector Cable Required Frequency Band Medium 80-130 kHz Hole Size 51 mm (2in) Housing Material Bronze Max Depth 274 m (900ft) Medium Frequency Beamwidth 24 deg-16 deg Power Rating 600 W Single or Dual Frequency CHIRP-Ready Single-Band Usable Shaft Length 121 mm (4.75) What's in the Box: B785C-M-MM Triducer Fairing Block Anti-rotation Bolt"

Read more less

Airmar B785C Triducer Medium CHIRP with Humminbird 9-Pin Mix-N-Match CableModel: B785C-M-HB Depth & fast-responDepth and fast-response water-temperature sensing 600 W of power Medium frequency: 80 to 130 kHz 24 deg to 16 deg beamwidth Maximum depth of 274 m (900 feet) 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Recommended for use on planing or displacement hull Bronze housing with High-performance Fairing for optimal performance at higher speeds Patented Xducer ID(R) technology The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900 feet) along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).SpecificationsCable-Length9 m (30ft) Acoustic Window Urethane Connector Airmar 12-Pin (MMC) Deadrise Range Up to 24 deg with fairing Display Connector Humminbird 9-Pin Frequency Band Medium 80-130 kHz Hole Size 51 mm (2in) Housing Material Bronze Max Depth 274 m (900ft) Medium Frequency Beamwidth 24 deg-16 deg Power Rating 600 W Single or Dual Frequency CHIRP-Ready Single-Band Usable Shaft Length 121 mm (4.75) What's in the Box: B785C-M-MM Triducer Fairing Block Anti-rotation Bolt MMC-HB cable"

Read more less

Airmar B785C Triducer Medium CHIRP with Navico 7-Pin Mix-N-Match CableModel: B785C-M-BL Depth & fast-responDepth and fast-response water-temperature sensing 600 W of power Medium frequency: 80 to 130 kHz 24 deg to 16 deg beamwidth Maximum depth of 274 m (900 feet) 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Recommended for use on planing or displacement hull Bronze housing with High-performance Fairing for optimal performance at higher speeds Patented Xducer ID(R) technology The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900 feet) along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).SpecificationsCable-Length9 m (30ft) Acoustic Window Urethane Connector Airmar 12-Pin (MMC) Deadrise Range Up to 24 deg with fairing Display Connector Navico 7-Pin Frequency Band Medium 80-130 kHz Hole Size 51 mm (2in) Housing Material Bronze Max Depth 274 m (900ft) Medium Frequency Beamwidth 24 deg-16 deg Power Rating 600 W Single or Dual Frequency CHIRP-Ready Single-Band Usable Shaft Length 121 mm (4.75) What's in the Box: B785C-M-MM Triducer Fairing Block Anti-rotation Bolt MMC-BL cable"

Read more less

Airmar B785C Triducer Medium CHIRP with Si-Tex 8-Pin Mix-N-Match CableModel: B785C-M-BB Depth & fast-responDepth and fast-response water-temperature sensing 600 W of power Medium frequency: 80 to 130 kHz 24 deg to 16 deg beamwidth Maximum depth of 274 m (900 feet) 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Recommended for use on planing or displacement hull Bronze housing with High-performance Fairing for optimal performance at higher speeds Patented Xducer ID(R) technology The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900 feet) along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).SpecificationsCable-Length9 m (30ft) Acoustic Window Urethane Connector Airmar 12-Pin (MMC) Deadrise Range Up to 24 deg with fairing Display Connector Si-Tex 8-Pin Frequency Band Medium 80-130 kHz Hole Size 51 mm (2in) Housing Material Bronze Max Depth 274 m (900ft) Medium Frequency Beamwidth 24 deg-16 deg Power Rating 600 W Single or Dual Frequency CHIRP-Ready Single-Band Usable Shaft Length 121 mm (4.75) What's in the Box: B785C-M-MM Triducer Fairing Block Anti-rotation Bolt MMC-BB cable"

Read more less

Airmar B785C Triducer Medium CHIRP with Navico 9-Pin Mix-N-Match CableModel: B785C-M-9N Depth & fast-responDepth and fast-response water-temperature sensing 600 W of power Medium frequency: 80 to 130 kHz 24 deg to 16 deg beamwidth Maximum depth of 274 m (900 feet) 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Recommended for use on planing or displacement hull Bronze housing with High-performance Fairing for optimal performance at higher speeds Patented Xducer ID(R) technology The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900 feet) along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).SpecificationsCable-Length9 m (30ft) Acoustic Window Urethane Connector Airmar 12-Pin (MMC) Deadrise Range Up to 24 deg with fairing Display Connector Navico 9-Pin Frequency Band Medium 80-130 kHz Hole Size 51 mm (2in) Housing Material Bronze Max Depth 274 m (900ft) Medium Frequency Beamwidth 24 deg-16 deg Power Rating 600 W Single or Dual Frequency CHIRP-Ready Single-Band Usable Shaft Length 121 mm (4.75) What's in the Box: B785C-M-MM Triducer Fairing Block Anti-rotation Bolt MMC-9N cable"

Read more less

Airmar B785C Triducer Medium CHIRP with Garmin 8-Pin Mix-N-Match CableModel: B785C-M-8G Depth & fast-responDepth and fast-response water-temperature sensing 600 W of power Medium frequency: 80 to 130 kHz 24 deg to 16 deg beamwidth Maximum depth of 274 m (900 feet) 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Recommended for use on planing or displacement hull Bronze housing with High-performance Fairing for optimal performance at higher speeds Patented Xducer ID(R) technology The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900 feet) along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).SpecificationsCable-Length9 m (30ft) Acoustic Window Urethane Connector Airmar 12-Pin (MMC) Deadrise Range Up to 24 deg with fairing Display Connector Garmin 8-Pin Frequency Band Medium 80-130 kHz Hole Size 51 mm (2in) Housing Material Bronze Max Depth 274 m (900ft) Medium Frequency Beamwidth 24 deg-16 deg Power Rating 600 W Single or Dual Frequency CHIRP-Ready Single-Band Usable Shaft Length 121 mm (4.75) What's in the Box: B785C-M-MM Triducer Fairing Block Anti-rotation Bolt MMC-8G cable"

Read more less

Airmar B785C Triducer Medium CHIRP with Humminbird 14-Pin Mix-N-Match CableModel: B785C-M-14HB Depth & fast-responDepth and fast-response water-temperature sensing 600 W of power Medium frequency: 80 to 130 kHz 24 deg to 16 deg beamwidth Maximum depth of 274 m (900 feet) 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Recommended for use on planing or displacement hull Bronze housing with High-performance Fairing for optimal performance at higher speeds Patented Xducer ID(R) technology The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900 feet) along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).SpecificationsCable-Length9 m (30ft) Acoustic Window Urethane Connector Airmar 12-Pin (MMC) Deadrise Range Up to 24 deg with fairing Display Connector Humminbird 14-Pin Frequency Band Medium 80-130 kHz Hole Size 51 mm (2in) Housing Material Bronze Max Depth 274 m (900ft) Medium Frequency Beamwidth 24 deg-16 deg Power Rating 600 W Single or Dual Frequency CHIRP-Ready Single-Band Usable Shaft Length 121 mm (4.75) What's in the Box: B785C-M-MM Triducer Fairing Block Anti-rotation Bolt MMC-14HB cable"

Read more less

Airmar B785C Triducer Medium CHIRP with Garmin 12-Pin Mix-N-Match CableModel: B785C-M-12G Depth & fast-responDepth and fast-response water-temperature sensing 600 W of power Medium frequency: 80 to 130 kHz 24 deg to 16 deg beamwidth Maximum depth of 274 m (900 feet) 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Recommended for use on planing or displacement hull Bronze housing with High-performance Fairing for optimal performance at higher speeds Patented Xducer ID(R) technology The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900 feet) along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).SpecificationsCable-Length9 m (30ft) Acoustic Window Urethane Connector Airmar 12-Pin (MMC) Deadrise Range Up to 24 deg with fairing Display Connector Garmin 12-Pin Frequency Band Medium 80-130 kHz Hole Size 51 mm (2in) Housing Material Bronze Max Depth 274 m (900ft) Medium Frequency Beamwidth 24 deg-16 deg Power Rating 600 W Single or Dual Frequency CHIRP-Ready Single-Band Usable Shaft Length 121 mm (4.75) What's in the Box: B785C-M-MM Triducer Fairing Block Anti-rotation Bolt MMC-12G cable"

Read more less

Airmar B785C Triducer Medium CHIRP with Furuno 12-Pin Mix-N-Match CableModel: B785C-M-12F Depth & fast-responDepth and fast-response water-temperature sensing 600 W of power Medium frequency: 80 to 130 kHz 24 deg to 16 deg beamwidth Maximum depth of 274 m (900 feet) 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Recommended for use on planing or displacement hull Bronze housing with High-performance Fairing for optimal performance at higher speeds Patented Xducer ID(R) technology The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900 feet) along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).SpecificationsCable-Length9 m (30ft) Acoustic Window Urethane Connector Airmar 12-Pin (MMC) Deadrise Range Up to 24 deg with fairing Display Connector Furuno 12-Pin Frequency Band Medium 80-130 kHz Hole Size 51 mm (2in) Housing Material Bronze Max Depth 274 m (900ft) Medium Frequency Beamwidth 24 deg-16 deg Power Rating 600 W Single or Dual Frequency CHIRP-Ready Single-Band Usable Shaft Length 121 mm (4.75) What's in the Box: B785C-M-MM Triducer Fairing Block Anti-rotation Bolt MMC-12F cable"

Read more less

Airmar B785C Triducer Medium CHIRP with Raymarine 11-Pin Mix-N-Match CableModel: B785C-M-11R Depth & fast-responDepth and fast-response water-temperature sensing 600 W of power Medium frequency: 80 to 130 kHz 24 deg to 16 deg beamwidth Maximum depth of 274 m (900 feet) 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Recommended for use on planing or displacement hull Bronze housing with High-performance Fairing for optimal performance at higher speeds Patented Xducer ID(R) technology The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900 feet) along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).SpecificationsCable-Length9 m (30ft) Acoustic Window Urethane Connector Airmar 12-Pin (MMC) Deadrise Range Up to 24 deg with fairing Display Connector Raymarine 11-Pin Frequency Band Medium 80-130 kHz Hole Size 51 mm (2in) Housing Material Bronze Max Depth 274 m (900ft) Medium Frequency Beamwidth 24 deg-16 deg Power Rating 600 W Single or Dual Frequency CHIRP-Ready Single-Band Usable Shaft Length 121 mm (4.75) What's in the Box: B785C-M-MM Triducer Fairing Block Anti-rotation Bolt MMC-11RHM cable"

Read more less

Airmar B785C Triducer Medium CHIRP with bare Wire Mix-N-Match CableModel: B785C-M-0 Depth & fast-responDepth and fast-response water-temperature sensing 600 W of power Medium frequency: 80 to 130 kHz 24 deg to 16 deg beamwidth Maximum depth of 274 m (900 feet) 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Recommended for use on planing or displacement hull Bronze housing with High-performance Fairing for optimal performance at higher speeds Patented Xducer ID(R) technology The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900 feet) along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).SpecificationsCable-Length9 m (30ft) Acoustic Window Urethane Connector Airmar 12-Pin (MMC) Deadrise Range Up to 24 deg with fairing Display Connector Bare Wire Frequency Band Medium 80-130 kHz Hole Size 51 mm (2in) Housing Material Bronze Max Depth 274 m (900ft) Medium Frequency Beamwidth 24 deg-16 deg Power Rating 600 W Single or Dual Frequency CHIRP-Ready Single-Band Usable Shaft Length 121 mm (4.75) What's in the Box: B785C-M-MM Triducer Fairing Block Anti-rotation Bolt MMC-0 cable"

Read more less

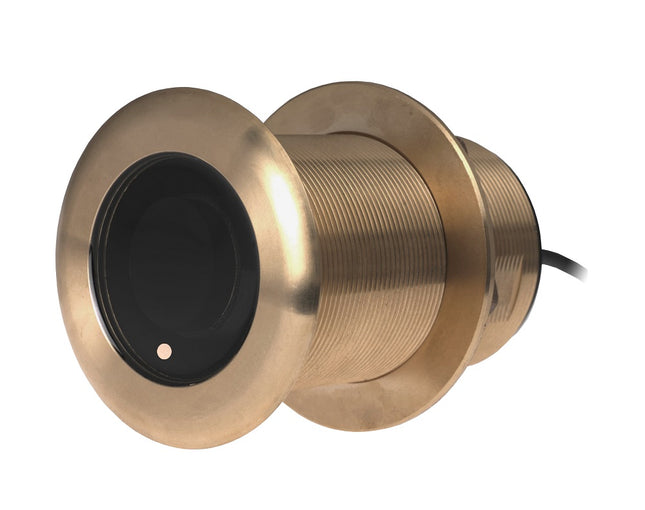

Airmar B75 High Wide Chirp, 600W, 0 deg Tilt, M&M Transducer, DTModel: B75C-0-HW-MM Fixed 12 deg tilted version for 8 deg to 15 deg hull deadrise Depth and fast-response water-temperature sensor 600 W with a maximum depth performance to 106 m (350 feet) High frequency: 150 to 250 kHz 30 deg beamwidth High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns Low-profile, thru-hull housing provides good resolution at speed when installed properly Bronze housing for use on stepped, planing or displacement hull Exclusive Xducer ID(R) technology Airmar's low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30 deg beamwidth for maximum coverage under the boat. The B75HW transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 m (350 feet).Tilted ElementTM transducers have the ceramic element fixed at a 20 deg, 12 deg or 0 deg angle within the housing. The transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.SpecificationsAcoustic WindowUrethane Cable-Length 9 m (30 feet) Connector Airmar 12-Pin (MMC) Deadrise Range 0 deg to 7 deg Display Connector Cable Required Freq Hi Wide 150-250 kHz Frequency Band High Wide Functions Depth, Temperature High-Wide Beamwidth 30 deg Hole Size 70 mm (2-13/16) "

Read more less

Airmar B75 High Wide Chirp, 600W, 12 deg Tilt, M&M Transducer, DTModel: B75C-12-HW-MM Fixed 12 deg tilted version for 8 deg to 15 deg hull deadrise Depth and fast-response water-temperature sensor 600 W with a maximum depth performance to 106 m (350 feet) High frequency: 150 to 250 kHz 30 deg beamwidth High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns Low-profile, thru-hull housing provides good resolution at speed when installed properly Bronze housing for use on stepped, planing or displacement hull Exclusive Xducer ID(R) technology Airmar's low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30 deg beamwidth for maximum coverage under the boat. The B75HW transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 m (350 feet).Tilted ElementTM transducers have the ceramic element fixed at a 20 deg, 12 deg or 0 deg angle within the housing. The transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.SpecificationsAcoustic WindowUrethane Cable-Length 9 m (30 feet) Connector Airmar 12-Pin (MMC) Deadrise Range 8 deg to 15 deg Display Connector Cable Required Freq Hi Wide 150-250 kHz Frequency Band High Wide Functions Depth, Temperature High-Wide Beamwidth 30 deg Hole Size 70 mm (2-13/16) "

Read more less

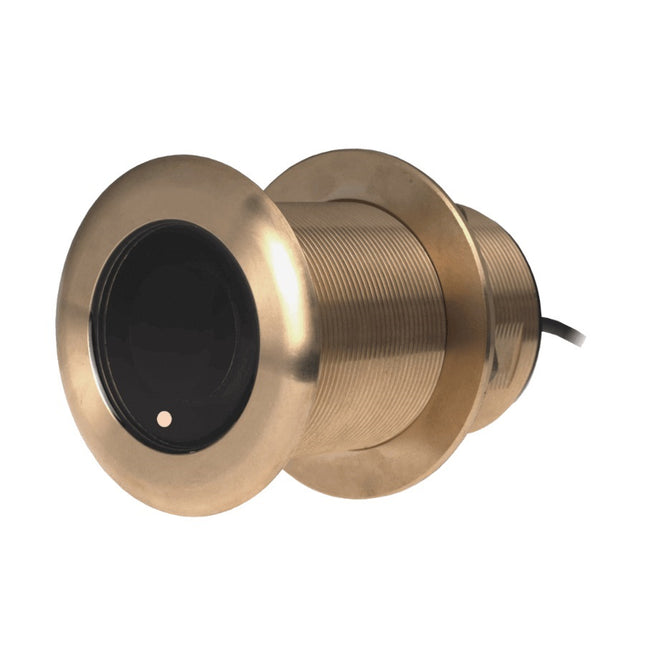

B75HW High Wide Tilted Element Chirp Transducer - 20 Degree Deadrise, 600W Thru HullRequires Mix and Match Cable for the appropriate Fishfinder it will be connected to.Airmar’s low-profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high-frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30° beamwidth for maximum coverage under the boat. The B75H transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 meters (350').B75HW transmits across the following bandwidth: High frequency 150 to 250 kHzThe transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. Fixed 20° tilted version for 16° to 24° hull deadriseFeatures:  Depth and fast-response water-temperature sensor 600 W with a maximum depth performance of 106 m (350') High frequency: 150 to 250 kHz 30° beamwidth High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns Low-profile, thru-hull housing provides good resolution at speed when installed properly Bronze housing for use on stepped, planing, or displacement hull Exclusive Xducer ID® technology Fixed 20° tilted version for 16° to 24° hull deadrise Hole Size: 70 mm (2-13/16") CHIRP-Ready Single-Band This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 30' Chirp: High Wide Imaging: Standard Mounting Style: Thru-Hull Pins: 12 Speed Included: No Temperature: Yes Box Dimensions: 5"H x 8"W x 12"L WT: 5.9 lbs UPC: 801769018141

Read more less

B75HW High Wide Tilted Element Chirp Transducer - 12 Degree Deadrise, 600W Thru HullRequires Mix and Match Cable for the appropriate Fishfinder it will be connected to.Airmar’s low-profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high-frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30° beamwidth for maximum coverage under the boat. The B75H transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 meters (350').B75HW transmits across the following bandwidth: High frequency 150 to 250 kHzThe transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. Fixed 12° tilted version for 8° to 15° hull deadrises.Features:  Depth and fast-response water-temperature sensor 600 W with a maximum depth performance of 106 m (350') High frequency: 150 to 250 kHz 30° beamwidth High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns Low-profile, thru-hull housing provides good resolution at speed when installed properly Bronze housing for use on stepped, planing, or displacement hull Exclusive Xducer ID® technology 12° tilted version for 8° to 15° hull deadrises Hole Size: 70 mm (2-13/16") CHIRP-Ready Single-Band This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 30' Chirp: High Wide Imaging: Standard Mounting Style: Thru-Hull Pins: 12 Speed Included: No Temperature: Yes Box Dimensions: 5"H x 8"W x 12"L WT: 5.8 lbs UPC: 801769018134

Read more less

Airmar M135C-M In-Hull Transducer Medium CHIRP with Bare Wire Mix-N-Match CableModel: M135C-M-0  Depth Only Chirp Ready Medium frequency (85-135kHz) for great offshore and inshore performance 16 deg to 11 deg beamwidth 1 kW Depth range: to 1500 feet (457 meters) Perfect for trailered or lifted boats Urethane Housing- liquid filled Exclusive Xducer ID(R) technology As Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The M135M, is a 1kW, economical Chirp transducer designed for offshore fishing and freshwater anglers. Operating at the medium frequency range of 85-135 kHz, these transducers reveal ultra-clear target resolution in shallow, murky waters at medium depths (up to 1,500 feet*).The transducer includes a plastic housing which is secured inside the hull of the boat and is filled with Eco-friendly anti-freeze. The transducer is inserted into the housing and adjusted for the proper dead rise offset, insuring the beam is shooting straight down. The liquid provides the best medium to transmit through the fiberglass and into the surrounding water. The benefits to the in-hull transducer are that there are no protruding features on the exterior of the hull making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25 feet with solid core, fiberglass hulls.SpecificationsWeight 9.17 lb (4.16 kg)   Hull Deadrise adjustable 2 deg to 20 deg Acoustic Window Urethane Medium frequency 85 to 135 kHz beamwidth 16 deg to 11 deg Maximum depth of 457 m (1500 feet) Transducer Element One broadband ceramic assembly What's in the Box: M135C transducer M135-Flange MMC-0 Cable

Read more less

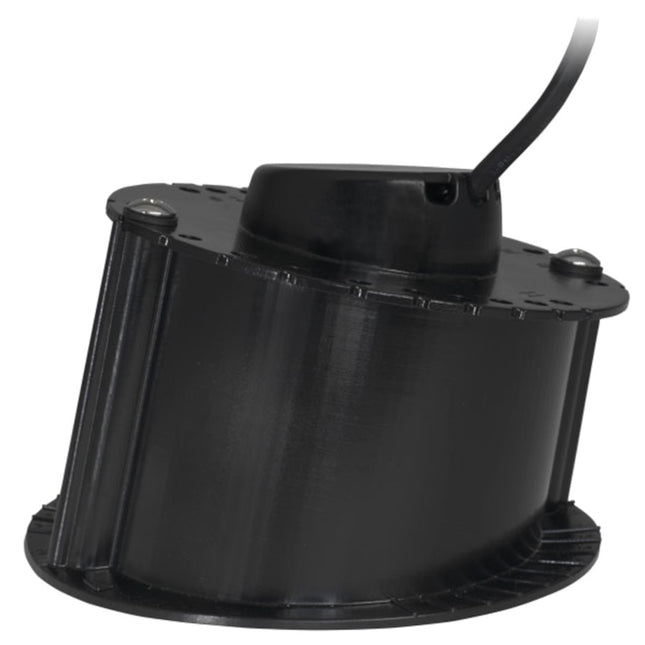

Airmar M135C-M TransducerMedium CHIRPModel: 41-817-1-01 Depth Only Chirp Ready Medium frequency (85-135kHz) for great offshore and inshore performance 24 deg to 16 deg beamwidth 1 kW Depth range: to 1200 feet (365 meters) Perfect for trailered or lifted boats Urethane Housing- liquid filled Exclusive Xducer ID(R) technology As Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The M135M, is a 1kW, economical Chirp transducer designed for offshore fishing and freshwater anglers. Operating at the medium frequency range of 85-135 kHz, these transducers reveal ultra-clear target resolution in shallow, murky waters at medium depths (up to 1,500 feet*).The transducer includes a plastic housing which is secured inside the hull of the boat and is filled with Eco-friendly anti-freeze. The transducer is inserted into the housing and adjusted for the proper dead rise offset, insuring the beam is shooting straight down. The liquid provides the best medium to transmit through the fiberglass and into the surrounding water. The benefits to the in-hull transducer are that there are no protruding features on the exterior of the hull making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25 feet with solid core, fiberglass hulls.SpecificationsWeight9.17 lb (4.16 kg) Hull Deadrise adjustable 2 deg to 20 deg Acoustic Window Urethane Medium frequency 85 to 135 kHz beamwidth 16 deg to 11 deg Maximum depth of 457 m (1500 feet) Transducer Element One broadband ceramic assembly What's in the Box: M135C transducer M135-Flange

Read more less

Airmar M135C-M In-Hull Transducer Medium CHIRP with Humminbird 9-Pin Mix-N-Match CableModel: M135C-M-Hb  Depth Only Chirp Ready Medium frequency (85-135kHz) for great offshore and inshore performance 16 deg to 11 deg beamwidth 1 kW Depth range: to 1500 feet (457 meters) Perfect for trailered or lifted boats Urethane Housing- liquid filled Exclusive Xducer ID(R) technology As Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The M135M, is a 1kW, economical Chirp transducer designed for offshore fishing and freshwater anglers. Operating at the medium frequency range of 85-135 kHz, these transducers reveal ultra-clear target resolution in shallow, murky waters at medium depths (up to 1,500 feet*).The transducer includes a plastic housing which is secured inside the hull of the boat and is filled with Eco-friendly anti-freeze. The transducer is inserted into the housing and adjusted for the proper dead rise offset, insuring the beam is shooting straight down. The liquid provides the best medium to transmit through the fiberglass and into the surrounding water. The benefits to the in-hull transducer are that there are no protruding features on the exterior of the hull making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25 feet with solid core, fiberglass hulls.SpecificationsWeight 9.17 lb (4.16 kg)   Hull Deadrise adjustable 2 deg to 20 deg Acoustic Window Urethane Medium frequency 85 to 135 kHz beamwidth 16 deg to 11 deg Maximum depth of 457 m (1500 feet) Transducer Element One broadband ceramic assembly What's in the Box: M135C transducer M135-Flange MMC-HB Cable

Read more less

Airmar M135C-M In-Hull Transducer Medium CHIRP with Navico Blue 7-Pin Mix-N-Match CableModel: M135C-M-BL Depth Only Chirp Ready Medium frequency (85-135kHz) for great offshore and inshore performance 24 deg to 16 deg beamwidth 1 kW Depth range: to 1200 feet (365 meters) Perfect for trailered or lifted boats Urethane Housing- liquid filled Exclusive Xducer ID(R) technology As Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The M135M, is a 1kW, economical Chirp transducer designed for offshore fishing and freshwater anglers. Operating at the medium frequency range of 85-135 kHz, these transducers reveal ultra-clear target resolution in shallow, murky waters at medium depths (up to 1,500 feet*).The transducer includes a plastic housing which is secured inside the hull of the boat and is filled with Eco-friendly anti-freeze. The transducer is inserted into the housing and adjusted for the proper dead rise offset, insuring the beam is shooting straight down. The liquid provides the best medium to transmit through the fiberglass and into the surrounding water. The benefits to the in-hull transducer are that there are no protruding features on the exterior of the hull making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25 feet with solid core, fiberglass hulls.SpecificationsWeight9.17 lb (4.16 kg) Hull Deadrise adjustable 2 deg to 20 deg Acoustic Window Urethane Medium frequency 85 to 135 kHz beamwidth 16 deg to 11 deg Maximum depth of 457 m (1500 feet) Transducer Element One broadband ceramic assembly What's in the Box: M135C transducer M135-Flange MMC-BL Cable

Read more less

Airmar M135C-M Transducer Medium CHIRP Si-Tex 8-Pin CableModel: M135C-MBB Depth Only Chirp Ready Medium frequency (85-135kHz) for great offshore and inshore performance 16 deg to 11 deg beamwidth 1 kW Depth range: to 1500 feet (457 meters) Perfect for trailered or lifted boats Urethane Housing- liquid filled Exclusive Xducer ID(R) technology As Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The M135M, is a 1kW, economical Chirp transducer designed for offshore fishing and freshwater anglers. Operating at the medium frequency range of 85-135 kHz, these transducers reveal ultra-clear target resolution in shallow, murky waters at medium depths (up to 1,500 feet*).The transducer includes a plastic housing which is secured inside the hull of the boat and is filled with Eco-friendly anti-freeze. The transducer is inserted into the housing and adjusted for the proper dead rise offset, insuring the beam is shooting straight down. The liquid provides the best medium to transmit through the fiberglass and into the surrounding water. The benefits to the in-hull transducer are that there are no protruding features on the exterior of the hull making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25 feet with solid core, fiberglass hulls.Specifications Weight 9.17 lb (4.16 kg) Hull Deadrise adjustable 2 deg to 20 deg Acoustic Window Urethane Medium frequency 85 to 135 kHz beamwidth 16 deg to 11 deg Maximum depth 457 m (1500 feet) Transducer Element One broadband ceramic assembly What's in the Box: M135C transducer M135-Flange MMC-HB Cable

Read more less

Airmar M135C-M In-Hull Transducer Medium CHIRP with Navico 9-Pin Mix-N-Match CableModel: M135C-M-9N  Depth Only Chirp Ready Medium frequency (85-135kHz) for great offshore and inshore performance 16 deg to 11 deg beamwidth 1 kW Depth range: to 1500 feet (457 meters) Perfect for trailered or lifted boats Urethane Housing- liquid filled Exclusive Xducer ID(R) technology As Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The M135M, is a 1kW, economical Chirp transducer designed for offshore fishing and freshwater anglers. Operating at the medium frequency range of 85-135 kHz, these transducers reveal ultra-clear target resolution in shallow, murky waters at medium depths (up to 1,500 feet*).The transducer includes a plastic housing which is secured inside the hull of the boat and is filled with Eco-friendly anti-freeze. The transducer is inserted into the housing and adjusted for the proper dead rise offset, insuring the beam is shooting straight down. The liquid provides the best medium to transmit through the fiberglass and into the surrounding water. The benefits to the in-hull transducer are that there are no protruding features on the exterior of the hull making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25 feet with solid core, fiberglass hulls.SpecificationsWeight 9.17 lb (4.16 kg)   Hull Deadrise adjustable 2 deg to 20 deg Acoustic Window Urethane Medium frequency 85 to 135 kHz beamwidth 16 deg to 11 deg Maximum depth of 457 m (1500 feet) Transducer Element One broadband ceramic assembly What's in the Box: M135C transducer M135-Flange MMC-9N Cable

Read more less

Airmar M135C-M In-Hull Transducer Medium CHIRP with Garmin 8-Pin Mix-N-Match CableModel: M135C-M-8G  Depth Only Chirp Ready Medium frequency (85-135kHz) for great offshore and inshore performance 16 deg to 11 deg beamwidth 1 kW Depth range: to 1500 feet (457 meters) Perfect for trailered or lifted boats Urethane Housing- liquid filled Exclusive Xducer ID(R) technology As Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The M135M, is a 1kW, economical Chirp transducer designed for offshore fishing and freshwater anglers. Operating at the medium frequency range of 85-135 kHz, these transducers reveal ultra-clear target resolution in shallow, murky waters at medium depths (up to 1,500 feet*).The transducer includes a plastic housing which is secured inside the hull of the boat and is filled with Eco-friendly anti-freeze. The transducer is inserted into the housing and adjusted for the proper dead rise offset, insuring the beam is shooting straight down. The liquid provides the best medium to transmit through the fiberglass and into the surrounding water. The benefits to the in-hull transducer are that there are no protruding features on the exterior of the hull making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25 feet with solid core, fiberglass hulls.SpecificationsWeight 9.17 lb (4.16 kg)   Hull Deadrise adjustable 2 deg to 20 deg Acoustic Window Urethane Medium frequency 85 to 135 kHz beamwidth 16 deg to 11 deg Maximum depth of 457 m (1500 feet) Transducer Element One broadband ceramic assembly What's in the Box: M135C transducer M135-Flange MMC-8G Cable

Read more less

Airmar M135C-M In-Hull Transducer Medium CHIRP with Garmin 12-Pin Mix-N-Match CableModel: M135C-M-12G  Depth Only Chirp Ready Medium frequency (85-135kHz) for great offshore and inshore performance 16 deg to 11 deg beamwidth 1 kW Depth range: to 1500 feet (457 meters) Perfect for trailered or lifted boats Urethane Housing- liquid filled Exclusive Xducer ID(R) technology As Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The M135M, is a 1kW, economical Chirp transducer designed for offshore fishing and freshwater anglers. Operating at the medium frequency range of 85-135 kHz, these transducers reveal ultra-clear target resolution in shallow, murky waters at medium depths (up to 1,500 feet*).The transducer includes a plastic housing which is secured inside the hull of the boat and is filled with Eco-friendly anti-freeze. The transducer is inserted into the housing and adjusted for the proper dead rise offset, insuring the beam is shooting straight down. The liquid provides the best medium to transmit through the fiberglass and into the surrounding water. The benefits to the in-hull transducer are that there are no protruding features on the exterior of the hull making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25 feet with solid core, fiberglass hulls.SpecificationsWeight 9.17 lb (4.16 kg)   Hull Deadrise adjustable 2 deg to 20 deg Acoustic Window Urethane Medium frequency 85 to 135 kHz beamwidth 16 deg to 11 deg Maximum depth of 457 m (1500 feet) Transducer Element One broadband ceramic assembly What's in the Box: M135C transducer M135-Flange MMC-12G Cable

Read more less

Airmar M135C-M In-Hull Transducer Medium CHIRP with Raymarine 11-Pin Mix-N-Match CableModel: M135C-M-11R  Depth Only Chirp Ready Medium frequency (85-135kHz) for great offshore and inshore performance 16 deg to 11 deg beamwidth 1 kW Depth range: to 1500 feet (457 meters) Perfect for trailered or lifted boats Urethane Housing- liquid filled Exclusive Xducer ID(R) technology As Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The M135M, is a 1kW, economical Chirp transducer designed for offshore fishing and freshwater anglers. Operating at the medium frequency range of 85-135 kHz, these transducers reveal ultra-clear target resolution in shallow, murky waters at medium depths (up to 1,500 feet*).The transducer includes a plastic housing which is secured inside the hull of the boat and is filled with Eco-friendly anti-freeze. The transducer is inserted into the housing and adjusted for the proper dead rise offset, insuring the beam is shooting straight down. The liquid provides the best medium to transmit through the fiberglass and into the surrounding water. The benefits to the in-hull transducer are that there are no protruding features on the exterior of the hull making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25 feet with solid core, fiberglass hulls.SpecificationsWeight 9.17 lb (4.16 kg)   Hull Deadrise adjustable 2 deg to 20 deg Acoustic Window Urethane Medium frequency 85 to 135 kHz beamwidth 16 deg to 11 deg Maximum depth of 457 m (1500 feet) Transducer Element One broadband ceramic assembly What's in the Box: M135C transducer M135-Flange MMC-11RHM Cable

Read more less

Airmar B75C-12-L 12d TiltLow CHIRPModel: B75C-12-L-MM Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth 300 W of power with a maximum depth of 353 m (1200 feet) Great deep-water performance Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Airmar's low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.Provides greater depth range, wider beamwidth, and ultimately more coverage under the boatChirp signal processing technology used with AIRMAR broadband, Chirp-ready transducers provides more detail at greater depths and is less susceptible to noiseGreat for operating at high boat speedsSpecificationsCable-Length9 m (30 feet) Deadrise Range 8 to 16 deg Frequency Band Low Low Frequency 40-75 kHz Low Frequency Beamwidth 32 deg-21 deg Max Depth 366 m (1200 feet) Power Rating 300 W Retractable housing No Single or Dual Frequency CHIRP-Ready Single-Band Transducer Functions Depth, Temperature What's in the Box:B75C-12-L-MM

Read more less

Airmar B75C-12-L 12d Tilt Low CHIRP with Humminbird 9-Pin Mix-N-Match CableModel: B75C-12-L-HB Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth 300 W of power with a maximum depth of 353 m (1200 feet) Great deep-water performance Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Airmar's low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.Provides greater depth range, wider beamwidth, and ultimately more coverage under the boatChirp signal processing technology used with AIRMAR broadband, Chirp-ready transducers provides more detail at greater depths and is less susceptible to noiseGreat for operating at high boat speedsSpecificationsCable-Length9 m (30 feet) Deadrise Range 8 to 16 deg Frequency Band Low Low Frequency 40-75 kHz Low Frequency Beamwidth 32 deg-21 deg Max Depth 366 m (1200 feet) Power Rating 300 W Retractable housing No Single or Dual Frequency CHIRP-Ready Single-Band Transducer Functions Depth, Temperature What's in the Box: B75C-12-L-MM MMC-HB Cable

Read more less

Airmar B75C-12-L 12d Tilt Low CHIRP with Si-Tex 8-Pin Mix-N-Match CableModel: B75C-12-L-BB Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth 300 W of power with a maximum depth of 353 m (1200 feet) Great deep-water performance Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Airmar's low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.Provides greater depth range, wider beamwidth, and ultimately more coverage under the boatChirp signal processing technology used with AIRMAR broadband, Chirp-ready transducers provides more detail at greater depths and is less susceptible to noiseGreat for operating at high boat speedsSpecificationsCable-Length9 m (30 feet) Deadrise Range 8 to 16 deg Frequency Band Low Low Frequency 40-75 kHz Low Frequency Beamwidth 32 deg-21 deg Max Depth 366 m (1200 feet) Power Rating 300 W Retractable housing No Single or Dual Frequency CHIRP-Ready Single-Band Transducer Functions Depth, Temperature What's in the Box: B75C-12-L-MM MMC-BB Cable

Read more less

Airmar B75C-12-L 12d Tilt Low CHIRP with Garmin 8-Pin Mix-N-Match CableModel: B75C-12-L-8G Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth 300 W of power with a maximum depth of 353 m (1200 feet) Great deep-water performance Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Airmar's low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.Provides greater depth range, wider beamwidth, and ultimately more coverage under the boatChirp signal processing technology used with AIRMAR broadband, Chirp-ready transducers provides more detail at greater depths and is less susceptible to noiseGreat for operating at high boat speedsSpecificationsCable-Length9 m (30 feet) Deadrise Range 8 to 16 deg Frequency Band Low Low Frequency 40-75 kHz Low Frequency Beamwidth 32 deg-21 deg Max Depth 366 m (1200 feet) Power Rating 300 W Retractable housing No Single or Dual Frequency CHIRP-Ready Single-Band Transducer Functions Depth, Temperature What's in the Box: B75C-12-L-MM MMC-8G Cable

Read more less

Airmar B75C-12-L 12d Tilt Low CHIRP with Humminbird 14-Pin Mix-N-Match CableModel: B75C-12-L-14HB Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth 300 W of power with a maximum depth of 353 m (1200 feet) Great deep-water performance Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Airmar's low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.Provides greater depth range, wider beamwidth, and ultimately more coverage under the boatChirp signal processing technology used with AIRMAR broadband, Chirp-ready transducers provides more detail at greater depths and is less susceptible to noiseGreat for operating at high boat speedsSpecificationsCable-Length9 m (30 feet) Deadrise Range 8 to 16 deg Frequency Band Low Low Frequency 40-75 kHz Low Frequency Beamwidth 32 deg-21 deg Max Depth 366 m (1200 feet) Power Rating 300 W Retractable housing No Single or Dual Frequency CHIRP-Ready Single-Band Transducer Functions Depth, Temperature What's in the Box: B75C-12-L-MM MMC-14HB Cable

Read more less

Airmar B75C-12-L 12d Tilt Low CHIRP with Garmin 12-Pin Mix-N-Match CableModel: B75C-12-L-12G Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth 300 W of power with a maximum depth of 353 m (1200 feet) Great deep-water performance Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Airmar's low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.Provides greater depth range, wider beamwidth, and ultimately more coverage under the boatChirp signal processing technology used with AIRMAR broadband, Chirp-ready transducers provides more detail at greater depths and is less susceptible to noiseGreat for operating at high boat speedsSpecificationsCable-Length9 m (30 feet) Deadrise Range 8 to 16 deg Frequency Band Low Low Frequency 40-75 kHz Low Frequency Beamwidth 32 deg-21 deg Max Depth 366 m (1200 feet) Power Rating 300 W Retractable housing No Single or Dual Frequency CHIRP-Ready Single-Band Transducer Functions Depth, Temperature What's in the Box: B75C-12-L-MM MMC-12G Cable

Read more less

Airmar B75C-12-L 12d Tilt Low CHIRP with Furuno 12-Pin Mix-N-Match CableModel: B75C-12-L-12F Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth 300 W of power with a maximum depth of 353 m (1200 feet) Great deep-water performance Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Airmar's low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.Provides greater depth range, wider beamwidth, and ultimately more coverage under the boatChirp signal processing technology used with AIRMAR broadband, Chirp-ready transducers provides more detail at greater depths and is less susceptible to noiseGreat for operating at high boat speedsSpecificationsCable-Length9 m (30 feet) Deadrise Range 8 to 16 deg Frequency Band Low Low Frequency 40-75 kHz Low Frequency Beamwidth 32 deg-21 deg Max Depth 366 m (1200 feet) Power Rating 300 W Retractable housing No Single or Dual Frequency CHIRP-Ready Single-Band Transducer Functions Depth, Temperature What's in the Box: B75C-12-L-MM MMC-12F Cable

Read more less

Airmar B75C-12-L 12d Tilt Low CHIRP with Raymarine 11-Pin Mix-N-Match CableModel: B75C-12-L-11R Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth 300 W of power with a maximum depth of 353 m (1200 feet) Great deep-water performance Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Airmar's low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.Provides greater depth range, wider beamwidth, and ultimately more coverage under the boatChirp signal processing technology used with AIRMAR broadband, Chirp-ready transducers provides more detail at greater depths and is less susceptible to noiseGreat for operating at high boat speedsSpecificationsCable-Length9 m (30 feet) Deadrise Range 8 to 16 deg Frequency Band Low Low Frequency 40-75 kHz Low Frequency Beamwidth 32 deg-21 deg Max Depth 366 m (1200 feet) Power Rating 300 W Retractable housing No Single or Dual Frequency CHIRP-Ready Single-Band Transducer Functions Depth, Temperature What's in the Box: B75C-12-L-MM MMC-11RLDB Cable

Read more less

Airmar B75C-12-L 12d Tilt Low CHIRP with Furuno 10-Pin Mix-N-Match CableModel: B75C-12-L-10F Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth 300 W of power with a maximum depth of 353 m (1200 feet) Great deep-water performance Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Airmar's low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.Provides greater depth range, wider beamwidth, and ultimately more coverage under the boatChirp signal processing technology used with AIRMAR broadband, Chirp-ready transducers provides more detail at greater depths and is less susceptible to noiseGreat for operating at high boat speedsSpecificationsCable-Length9 m (30 feet) Deadrise Range 8 to 16 deg Frequency Band Low Low Frequency 40-75 kHz Low Frequency Beamwidth 32 deg-21 deg Max Depth 366 m (1200 feet) Power Rating 300 W Retractable housing No Single or Dual Frequency CHIRP-Ready Single-Band Transducer Functions Depth, Temperature What's in the Box: B75C-12-L-MM MMC-10FL Cable
