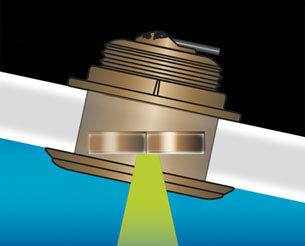

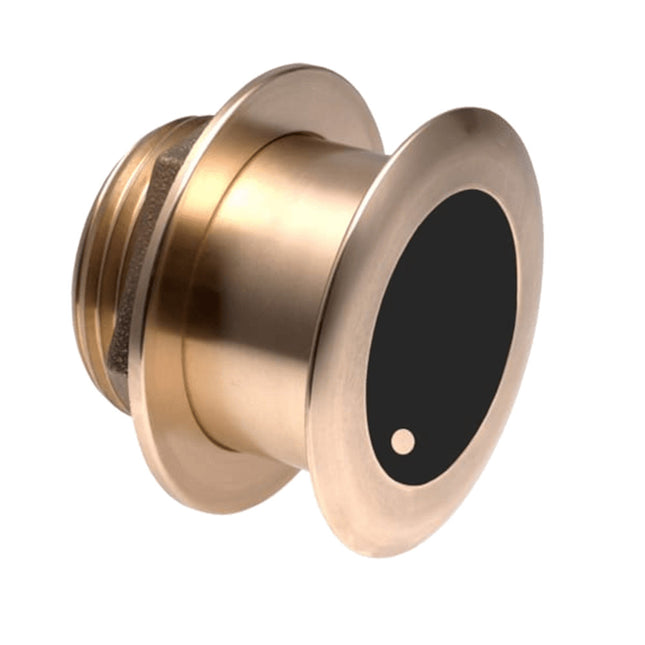

B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12° Tilted Element - Requires Mix & Match Cable12° tilted version for 8 to 15° hull deadrise angles. Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull so that it can sit on trailer rollers and bunks. The ceramic arrays are tilted within the housing, providing a perfectly vertical beam with maximum energy at the point directly below the boat.Features: Depth and fast-response water-temperature sensing 1 kW of power Dual-frequency elements: 50 kHz with a wide 22° beamwidth for depth performance to 549 m (1800') 200 kHz with a 6° beamwidth for depth performance to 244 m (800') Interfaces to any 600 W or 1 kW echo sounder Engineered for center-console and trailered boats Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull No effect on the boat’s running performance Available in a stainless steel housing (SS164) for use in all hull materials Patented Xducer ID® technology Specifications: Acoustic Window: Urethane Cable-Length: 2 M (6.5') Common Use: Leisure/Yachting, Fishing Connector: Airmar 9-Pin (MM1) Conventional Beam: 22°x20°/6° Country of Origin: USA Deadrise Range: 8° to 15° Frequency Band: 50/200 kHz Material: Bronze Max Deadrise: Up to 15° Max Depth: Low frequency- 549 m (1800'), High frequency- 244 m (800') Mix and Match Series: 9-Pin 1000 Watt Mounting Style: Tilted Element Thru-Hull Retractable housing: No Sensor Connector: MM1 Single or Dual Frequency: Conventional Dual Frequency Tilt Angle: 12° Tilted Element: Yes Weight: 2.7 kg (6 lbs) Power Rating: 1 kW Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: 95 mm (3-3/4") Usable Shaft Length: 71 mm (2.80") Display Connector: Cable Required Specifications: Cable Length (Feet): 6.5' Chirp: No Imaging: Standard Mounting Style: Thru-Hull Speed Included: No Temperature: Yes Box Dimensions: 8"H x 11"W x 12"L WT: 9.6 lbs Brochure (pdf)

Read more less

Step up to a 1kW-Without a Fairing! Airmar has taken our innovative Tilted ElementTM technology to a higher power. The new 1kW, flush-mount, tilted element transducers are perfect for fast, trailered tournament sport fishing vessels who cannot have a high-performance fairing. The flush mounted, bronze housing protrudes less than 6.35 mm (0.25 in) outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with Airmar's 1kW tilted element transducers. With Lowrance Blue connector

Read more less

Description Step up to a 1kW_Without a Fairing! Airmar has taken our innovative Tilted ElementTM technology to a higher power. The 1kW, flush-mount, Tilted Element transducer is perfect for fast, trailered, tournament sportfishing vessels that cannot have a High-Performance Fairing. The flush-mounted, bronze housing protrudes less than 6.35 mm (0.25 in) outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with this 1kW, Tilted Element transducer. Features Depth & Temperature 50/200 kHz 1 kW RMS High-Performance 0 deg tilt to element Bronze

Read more less

Step up to a 1kW-Without a Fairing! Airmar has taken our innovative Tilted ElementTM technology to a higher power. The new 1kW, flush-mount, tilted element transducers are perfect for fast, trailered tournament sport fishing vessels who cannot have a high-performance fairing. The flush mounted, bronze housing protrudes less than 6.35 mm (0.25 in) outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with Airmar's 1kW tilted element transducers. With Furuno 10 pin connector

Read more less

Step up to a 1kW-Without a Fairing! Airmar has taken our innovative Tilted ElementTM technology to a higher power. The new 1kW, flush-mount, tilted element transducers are perfect for fast, trailered tournament sport fishing vessels who cannot have a high-performance fairing. The flush mounted, bronze housing protrudes less than 6.35 mm (0.25 in) outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with Airmar's 1kW tilted element transducers. With Furuno 10 pin connector

Read more less

Airmar B175 Chirp Medium Frequency 0d Tilted Element with Navico 9-Pin Mix-N-Match CableModel: B175C-0-M-9N Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-0-MM MMC-9N

Read more less

Airmar B175 Chirp Medium Frequency 0d Tilted Element with Garmin 8-Pin Mix-N-Match CableModel: B175C-0-M-8G Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-0-MM MMC-8G

Read more less

Airmar B175 Chirp Medium Frequency 0d Tilted Element with Humminbird 14-Pin Mix-N-Match CableModel: B175C-0-M-14HB Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-0-MM MMC-14HB

Read more less

Airmar B175 Chirp Medium Frequency 0d Tilted Element with Garmin 12-Pin Mix-N-Match CableModel: B175C-0-M-12G Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-0-MM MMC-12G

Read more less

Airmar B175 Chirp Medium Frequency 0d Tilted Element with Raymarine 11-Pin Mix-N-Match CableModel: B175C-0-M-11R Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.Requires additional cable. A80328 - if used in single transducer application A102146 - when used in transducer pair application.SpecificationsDeadrise0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-0-MM MMC-11R-HM

Read more less

Airmar B175 Chirp Medium Frequency 0d Tilted Element with Bare Wire Mix-N-Match CableModel: B175C-0-M-0 Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-0-MM MMC-0

Read more less

Airmar B175 Chirp Medium Frequency 12d Tilted ElementModel: B175C-12-M-MM Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise8 deg to 15 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box:B175C-12-MM

Read more less

Airmar B175 Chirp Medium Frequency 12d Tilted Element with Humminbird 9-Pin Mix-N-Match CableModel: B175C-12-M-HB Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise8 deg to 15 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-12-M-MM MMC-HB

Read more less

Airmar B175 Chirp Medium Frequency 12d Tilted Element with Navico 7-Pin Mix-N-Match CableModel: B175C-12-M-BL Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise8 deg to 15 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-12-M-MM MMC-BL

Read more less

Airmar B175 Chirp Medium Frequency 12d Tilted Element with Navico 9-Pin Mix-N-Match CableModel: B175C-12-M-9N Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise8 deg to 15 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-12-M-MM MMC-9N

Read more less

Airmar B175 Chirp Medium Frequency 12d Tilted Element with Garmin 8-Pin Mix-N-Match CableModel: B175C-12-M-8G Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise8 deg to 15 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-12-MM MMC-8G

Read more less

Airmar B175 Chirp Medium Frequency 12d Tilted Element with Humminbird 14-Pin Mix-N-Match CableModel: B175C-12-M-14HB Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise8 deg to 15 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-12-MM MMC-14HB

Read more less

Airmar B175 Chirp Medium Frequency 12d Tilted Element with Garmin 12-Pin Mix-N-Match CableModel: B175C-12-M-12G Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise8 deg to 15 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-12-MM MMC-12G

Read more less

Airmar B175 Chirp Medium Frequency 12d Tilted Element with Raymarine 11-Pin Mix-N-Match CableModel: B175C-12-M-11R Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.Requires additional cable. A80328 - if used in single transducer application A102146 - when used in transducer pair application.SpecificationsDeadrise8 deg to 15 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-12-MM MMC-11R-HM

Read more less

Airmar B175 Chirp Medium Frequency 12d Tilted Element with Bare Wire Mix-N-Match CableModel: B175C-12-M-0 Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise8 deg to 15 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-12-MM MMC-0

Read more less

Airmar B175C Medium Frequency CHIRP Transducer with 20d Tilted ElementModel: B175-C-20-M-MM Medium-CHIRPS from 85 kHz to 135 kHz, 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36 feet) Hull Type: Fiberglass or wood Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.Thjis transducer terminates with Airmars Mix and Max connector, you can cut it off to connect to a sounder that does not require a connector.SpecificationsHull Deadriseup to 28 deg Acoustic window Urethane Boat size Up to 11 m (36 feet) Hull type Fiberglass or wood Frequency 85 kHz to 135 kHz, 24 deg to 16 deg beamwidth

Read more less

Airmar B175 Chirp Medium Frequency 20d Tilted Element with Humminbird 9-Pin Mix-N-Match CableModel: B175C-20-M-HB Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-20-M-MM MMC-HB

Read more less

Airmar B175 Chirp Medium Frequency 20d Tilted Element with Navico 7-Pin Mix-N-Match CableModel: B175C-20-M-BL Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-20-M-MM MMC-BL

Read more less

Airmar B175 Chirp Medium Frequency 20d Tilted Element with Navico 9-Pin Mix-N-Match CableModel: B175C-20-M-9N Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-20-M-MM MMC-9N

Read more less

Airmar B175 Chirp Medium Frequency 20d Tilted Element with Humminbird 14-Pin Mix-N-Match CableModel: B175C-20-M-14HB Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-20-MM MMC-14HB

Read more less

Airmar B175 Chirp Medium Frequency 20d Tilted Element with Garmin 12-Pin Mix-N-Match CableModel: B175C-20-M-12G Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-20-MM MMC-12G

Read more less

Airmar B175 Chirp Medium Frequency 20d Tilted Element with Raymarine 11-Pin Mix-N-Match CableModel: B175C-20-M-11R Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.Requires additional cable. A80328 - if used in single transducer application A102146 - when used in transducer pair application.SpecificationsDeadrise16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-20-MM MMC-11R-HM

Read more less

Airmar B175 Chirp Medium Frequency 20d Tilted Element with Bare Wire Mix-N-Match CableModel: B175C-20-M-0 Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-20-MM MMC-0

Read more less

Airmar B175 Chirp Medium Frequency 0d Tilted ElementModel: B175C-0-M-MM Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise0 deg to 6 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box:B175C-0-MM

Read more less

Airmar B175 Chirp Medium Frequency 0d Tilted Element with Humminbird 9-Pin Mix-N-Match CableModel: B175C-0-M-HB Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-0-M-MM MMC-HB

Read more less

Airmar B175 Chirp Medium Frequency 0d Tilted Element with Navico 7-Pin Mix-N-Match CableModel: B175C-0-M-BL Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.SpecificationsDeadrise0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-0-M-MM MMC-BL

Read more less

B175M Bronze 0 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorThe B175M’s medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1500') and gives ultra-clear target resolution.Airmar’s Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features:Garmin 8-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power Medium frequency: 85 to 135 kHz 16° to 11° beamwidth Maximum depth of 457 m (1500') 50 kHz of total bandwidth from one transducer Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Also available in a stainless steel housing (SS175M) and a thru-hull (B285M) or in-hull (M135M) mount Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 55 mm (2.18") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Fishing Max Deadrise: Up to 24° Max Depth: 457 m (1500') Medium Frequency: 85-135 kHz Medium Frequency Beamwidth: 16°-11° Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

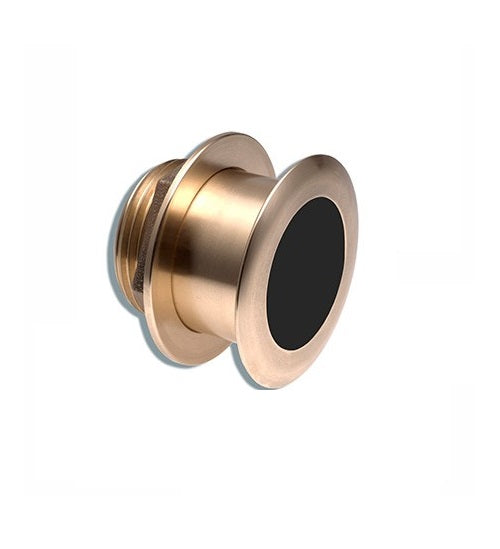

B175M Bronze 12 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorThe B175M’s medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1500') and gives ultra-clear target resolution.Airmar’s Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features:Garmin 8-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power Medium frequency: 85 to 135 kHz 16° to 11° beamwidth Maximum depth of 457 m (1500') 50 kHz of total bandwidth from one transducer Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Also available in a stainless steel housing (SS175M) and a thru-hull (B285M) or in-hull (M135M) mount Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 55 mm (2.18") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Fishing Max Deadrise: Up to 24° Max Depth: 457 m (1500') Medium Frequency: 85-135 kHz Medium Frequency Beamwidth: 16°-11° Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B175M Bronze Thru Hull 0° Tilt - 1kWRequires Mix and Match CableRely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Features: Medium—CHIRPS from 85 kHz to 135 kHz, 24° to 16° beamwidth 0° tilted version, 1KW 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: Medium Box Dimensions: 8"H x 10"W x 12"L WT: 11.2 lbs UPC: 801769001877

Read more less

B175M Bronze Thru Hull 12° Tilt - 1kWRequires Mix and Match CableRely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Features: Medium—CHIRPS from 85 kHz to 135 kHz, 24° to 16° beamwidth 12° tilted version 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: Medium Box Dimensions: 8"H x 10"W x 12"L WT: 11.3 lbs UPC: 801769001884

Read more less
