Airmar B175 CHIRP High Frequency 20d Tilted Element With Garmin 12-Pin Mix-N-Match CableModel: B175C-20-H-12G Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecifications Deadrise 16-25 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-20-H-MM Transducer MMC-12G Mix-N-Match Cable

Read more less

Airmar B175 CHIRP High Frequency 20d Tilted Element With Bare Wire Mix-N-Match CableModel: B175C-20-H-0 Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecifications Deadrise 16-25 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-20-H-MM Transducer MMC-0 Mix-N-Match Cable

Read more less

Airmar SS175C-0-M 0d TiltMedium CHIRP with Humminbird 9-PinModel: SS175C-0-M Depth and water-temperature sensor 1 kW with a maximum depth of 457 m (1500 feet) Medium Frequency: 85 kHz to 135 kHz = 16 deg to 11 deg beamwidth 50 kHz of total bandwidth from one transducer Medium frequency provides excellent shallow to mid-depth performance, bottom detail and fish target separation Recommended boat size: Up to 11 m (36 feet) Stainless steel housing is compatible with all hull types and materials Also available in a bronze housing (B175H) model Exclusive Xducer ID(R) technology Medium frequency delivers the right combination between coverage under the boat, extended depth range and the ability to produce clean and accurate target and structure returns in the mid to deeper water depths. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths (up to 1500 feet) and delivers ultra-clear target resolution.Tilted element transducers have the element fixed at either a 20 deg, 12 deg or 0 deg angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.Specifications Weight 2.7 kg (6 lb) Hull Deadrise 0 deg to 7 deg hull deadrise Acoustic Window Urethane Hole Size 98 mm (3-7/8) One internal ceramic assembly "

Read more less

Airmar SS175C-0-M 0d TiltMedium CHIRP with Navico BLModel: SS175C-0-M Depth and water-temperature sensor 1 kW with a maximum depth of 457 m (1500 feet) Medium Frequency: 85 kHz to 135 kHz = 16 deg to 11 deg beamwidth 50 kHz of total bandwidth from one transducer Medium frequency provides excellent shallow to mid-depth performance, bottom detail and fish target separation Recommended boat size: Up to 11 m (36 feet) Stainless steel housing is compatible with all hull types and materials Also available in a bronze housing (B175H) model Exclusive Xducer ID(R) technology Medium frequency delivers the right combination between coverage under the boat, extended depth range and the ability to produce clean and accurate target and structure returns in the mid to deeper water depths. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths (up to 1500 feet) and delivers ultra-clear target resolution.Tilted element transducers have the element fixed at either a 20 deg, 12 deg or 0 deg angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.Specifications Weight 2.7 kg (6 lb) Hull Deadrise 0 deg to 7 deg hull deadrise Acoustic Window Urethane Hole Size 98 mm (3-7/8) One internal ceramic assembly "

Read more less

Airmar SS175C-0-M 0d TiltMedium CHIRP with Si-Tex 8- PINModel: SS175C-0-M Depth and water-temperature sensor 1 kW with a maximum depth of 457 m (1500 feet) Medium Frequency: 85 kHz to 135 kHz = 16 deg to 11 deg beamwidth 50 kHz of total bandwidth from one transducer Medium frequency provides excellent shallow to mid-depth performance, bottom detail and fish target separation Recommended boat size: Up to 11 m (36 feet) Stainless steel housing is compatible with all hull types and materials Also available in a bronze housing (B175H) model Exclusive Xducer ID(R) technology Medium frequency delivers the right combination between coverage under the boat, extended depth range and the ability to produce clean and accurate target and structure returns in the mid to deeper water depths. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths (up to 1500 feet) and delivers ultra-clear target resolution.Tilted element transducers have the element fixed at either a 20 deg, 12 deg or 0 deg angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.Specifications Weight 2.7 kg (6 lb) Hull Deadrise 0 deg to 7 deg hull deadrise Acoustic Window Urethane Hole Size 98 mm (3-7/8) One internal ceramic assembly "

Read more less

Airmar SS175C-0-M 0d TiltMedium CHIRP with Navico 9-PinModel: SS175C-0-M Depth and water-temperature sensor 1 kW with a maximum depth of 457 m (1500 feet) Medium Frequency: 85 kHz to 135 kHz = 16 deg to 11 deg beamwidth 50 kHz of total bandwidth from one transducer Medium frequency provides excellent shallow to mid-depth performance, bottom detail and fish target separation Recommended boat size: Up to 11 m (36 feet) Stainless steel housing is compatible with all hull types and materials Also available in a bronze housing (B175H) model Exclusive Xducer ID(R) technology Medium frequency delivers the right combination between coverage under the boat, extended depth range and the ability to produce clean and accurate target and structure returns in the mid to deeper water depths. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths (up to 1500 feet) and delivers ultra-clear target resolution.Tilted element transducers have the element fixed at either a 20 deg, 12 deg or 0 deg angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.Specifications Weight 2.7 kg (6 lb) Hull Deadrise 0 deg to 7 deg hull deadrise Acoustic Window Urethane Hole Size 98 mm (3-7/8) One internal ceramic assembly "

Read more less

Airmar SS175C-0-M 0d TiltMedium CHIRP with with Garmin 8-PinModel: SS175C-0-M Depth and water-temperature sensor 1 kW with a maximum depth of 457 m (1500 feet) Medium Frequency: 85 kHz to 135 kHz = 16 deg to 11 deg beamwidth 50 kHz of total bandwidth from one transducer Medium frequency provides excellent shallow to mid-depth performance, bottom detail and fish target separation Recommended boat size: Up to 11 m (36 feet) Stainless steel housing is compatible with all hull types and materials Also available in a bronze housing (B175H) model Exclusive Xducer ID(R) technology Medium frequency delivers the right combination between coverage under the boat, extended depth range and the ability to produce clean and accurate target and structure returns in the mid to deeper water depths. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths (up to 1500 feet) and delivers ultra-clear target resolution.Tilted element transducers have the element fixed at either a 20 deg, 12 deg or 0 deg angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.Specifications Weight 2.7 kg (6 lb) Hull Deadrise 0 deg to 7 deg hull deadrise Acoustic Window Urethane Hole Size 98 mm (3-7/8) One internal ceramic assembly "

Read more less

B175H Bronze 20 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorAirmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidth, which is excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features: Garmin 8-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power with a maximum depth of 304 m (1000') High frequency: 130 to 210 kHz 10° to 6° beamwidth 80 kHz of total bandwidth from one transducer High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation Low-profile, thru-hull housing yields good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Also available in a stainless steel housing (SS175H) for use in all hull materials Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 71 mm (2.80") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing High Frequency: 130-210 kHz High Frequency Beamwidth: 15°-9° Max Deadrise: Up to 24° Max Depth: 304 m (1000') Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Airmar B175H  Bronze Thru Hull with 12° Tilt 8 Pin ConnectorAirmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidth, excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features Fixed 12° tilted version for 8 to 15° hull deadrise angles Depth and fast-response water-temperature sensing 1 kW of power with a maximum depth of 304 m (1000') High frequency: 130 to 210 kHz 10° to 6° beamwidth 80 kHz of total bandwidth from one transducer High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation Low-profile, thru-hull housing yields good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Patented Xducer ID® technology Specifications Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 71 mm (2.80") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing High Frequency: 130-210 kHz High Frequency Beamwidth: 15°-9° Max Deadrise: Up to 24° Max Depth: 304 m (1000') Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 39' Chirp: High Imaging: Standard Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 1"H x 6"W x 6"L WT: 11 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

Airmar B175 CHIRP High Frequency 0d Tilted Element With Humminbird 9-Pin Mix-N-Match CableModel: B175C-0-H-HB Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecifications Deadrise 0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-0-H-MM Transducer MMC-HB Mix and Match Cable

Read more less

Airmar B175 CHIRP High Frequency 0d Tilted Element With Navico 7-Pin Mix-N-Match CableModel: B175C-0-H-BL Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecifications Deadrise 0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-0-H-MM Transducer MMC-BL Mix and Match Cable

Read more less

Airmar B175 CHIRP High Frequency 0d Tilted Element With Navico 9-Pin Mix-N-Match CableModel: B175C-0-H-9N Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecifications Deadrise 0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-0-H-MM Transducer MMC-9N Mix and Match Cable

Read more less

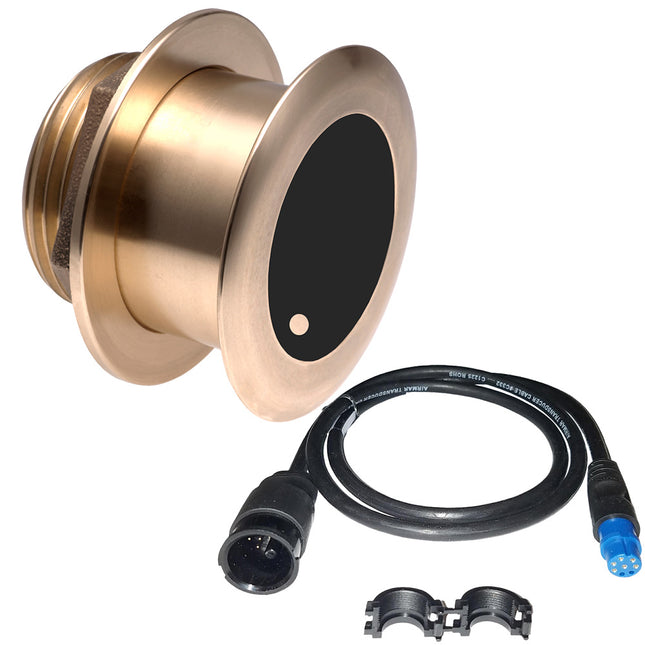

Airmar B175 CHIRP High Frequency 0d Tilted Element With Garmin 8-Pin Mix-N-Match CableModel: B175C-0-H-8G Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecifications Deadrise 0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-0-H-MM Transducer MMC-8G Mix and Match Cable

Read more less

Airmar B175 CHIRP High Frequency 0d Tilted Element With Humminbird 14-Pin Mix-N-Match CableModel: B175C-0-H-14HB Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecifications Deadrise 0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-0-H-MM Transducer MMC-14HB Mix and Match Cable

Read more less

Airmar B175 CHIRP High Frequency 0d Tilted Element With Garmin 12-Pin Mix-N-Match CableModel: B175C-0-H-12G Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecifications Deadrise 0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-0-H-MM Transducer MMC-12G Mix and Match Cable

Read more less

Airmar B175 CHIRP High Frequency 0d Tilted Element With Raymarine 11-Pin Mix-N-Match CableModel: B175C-0-H-11R Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetAdditional cable required, use A80328 in single transducer applications and A102146 when using a transducer pair.Specifications Deadrise 0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-0-H-MM Transducer MMC-11R-HM Mix and Match Cable

Read more less

Airmar B175 CHIRP High Frequency 0d Tilted Element With Bare Wire Mix-N-Match CableModel: B175C-0-H-0 Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecifications Deadrise 0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-0-H-MM Transducer MMC-0 Mix and Match Cable

Read more less

Features: Depth/Temp 50/200 kHz 1 kW RMS High-performance Bronze Step up to a 1kW-Without a Fairing! Airmar has taken our innovative Tilted ElementTM technology to a higher power. The new 1kW, flush-mount, tilted element transducers are perfect for fast, trailered tournament sport fishing vessels who cannot have a high-performance fairing. The flush mounted, bronze housing protrudes less than 6.35 mm (0.25 in) outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with Airmar's 1kW tilted element transducers. With Raymarine connector.

Read more less

Step up to a 1kW-Without a Fairing! Airmar has taken our innovative Tilted ElementTM technology to a higher power. The new 1kW, flush-mount, tilted element transducers are perfect for fast, trailered tournament sport fishing vessels who cannot have a high-performance fairing. The flush mounted, bronze housing protrudes less than 6.35 mm (0.25 in) outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with Airmar's 1kW tilted element transducers. With Lowrance Blue connector

Read more less

Step up to a 1kW-Without a Fairing! Airmar has taken our innovative Tilted ElementTM technology to a higher power. The new 1kW, flush-mount, tilted element transducers are perfect for fast, trailered tournament sport fishing vessels who cannot have a high-performance fairing. The flush mounted, bronze housing protrudes less than 6.35 mm (0.25 in) outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with Airmar's 1kW tilted element transducers. With Furuno 10 pin connector

Read more less

Step up to a 1kW-Without a Fairing! Airmar has taken our innovative Tilted ElementTM technology to a higher power. The new 1kW, flush-mount, tilted element transducers are perfect for fast, trailered tournament sport fishing vessels who cannot have a high-performance fairing. The flush mounted, bronze housing protrudes less than 6.35 mm (0.25 in) outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with Airmar's 1kW tilted element transducers. With Furuno 10 pin connector

Read more less

Airmar SS175C-12-H 12d TiltHigh CHIRPModel: 41-843-1-01 High-CHIRPS from 130 kHz to 210 kHz, 15 deg to 9 deg beamwidth Available in 0 deg, 12 deg, or 20 deg tilted versions 80 kHz of total bandwidth from one transducer Depth & fast-response water-temperature sensor Steel transducer housing Boat Size: Up to 11 m (36 feet) Hull Type: Steel or aluminum Exclusive Xducer ID(R) technology Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.This transducer is designed for smaller boats up to 36 feet (11 m).A tilted element model in the Chirp Thru-Hull product line, the SS175H Chirps across the following bandwidth: H Model - High Frequency 130-210 kHzSpecifications Hull deadrise 8 deg to 15 deg hull deadrise Acoustic window Urethane Weight 2.7 kg (6 lb)

Read more less

Airmar SS175C-0-H 0d TiltHigh CHIRPModel: 41-842-1-01 High-CHIRPS from 130 kHz to 210 kHz, 15 deg to 9 deg beamwidth Available in 0 deg, 12 deg, or 20 deg tilted versions 80 kHz of total bandwidth from one transducer Depth & fast-response water-temperature sensor Steel transducer housing Boat Size: Up to 11 m (36 feet) Hull Type: Steel or aluminum Exclusive Xducer ID(R) technology Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.This transducer is designed for smaller boats up to 36 feet (11 m).A tilted element model in the Chirp Thru-Hull product line, the SS175H Chirps across the following bandwidth:H Model - High Frequency 130-210 kHzSpecifications Hull deadrise 0 deg to 7 deg hull deadrise Acoustic window Urethane Weight 2.7 kg (6 lb)

Read more less

Airmar SS175C-20-H 20d Tilt High CHIRPModel: SS175C-20-H High-CHIRPS from 130 kHz to 210 kHz, 15 deg to 9 deg beamwidth Available in 0 deg, 12 deg, or 20 deg tilted versions 80 kHz of total bandwidth from one transducer Depth & fast-response water-temperature sensor Steel transducer housing Boat Size: Up to 11 m (36 feet) Hull Type: Steel or aluminum Exclusive Xducer ID(R) technology Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.Specifications Hull Deadrise 16 deg to 24 deg hull deadrise Acoustic Window Urethane Weight 2.7 kg (6 lb)
