TH3 Relay 160A - 24VFeatures: Replaces Manual Battery Switches: Reduces battery cable run lengths and resulting voltage drop Connect to the Ignition Signal for simple battery charge management between two batteries or for simple auxiliary load disconnection. Connect to TH Series Automatic Charging Relays or Time Delay Relays to provide an additional isolated/switched output or to extend current-carrying capability Simple & Robust Installation: Sealed MX-150 plug/harness with 2ft control wires included. Reduces install time/costs. The optional output bus bar provides a simple, compact connection to the RT or CT fuse block product families. Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Stainless steel self-locking hardware Single or Dual Split Output Options provide flexibility for different electrical system requirements Integral Diode Suppression reduces voltage spikes on control lines during switching Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 7"L WT: 0.8 lbs UPC: 850035199930 Brochure (pdf)

Read more less

TH3 Dual Relay 2 x 80A - 12VFeatures: Replaces Manual Battery Switches: Reduces battery cable run lengths and resulting voltage drop Connect to the Ignition Signal for simple battery charge management between two batteries or for simple auxiliary load disconnection. Connect to TH Series Automatic Charging Relays or Time Delay Relays to provide an additional isolated/switched output or to extend current-carrying capability Simple & Robust Installation: Sealed MX-150 plug/harness with 2ft control wires included. Reduces install time/costs. The optional output bus bar provides a simple, compact connection to the RT or CT fuse block product families. Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Stainless steel self-locking hardware Single or Dual Split Output Options provide flexibility for different electrical system requirements Integral Diode Suppression reduces voltage spikes on control lines during switching Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 6"L WT: 0.8 lbs UPC: 850035199909 Brochure (pdf)

Read more less

30A Panel Mount 87 Series Circuit BreakerThis 30A Egis Mobile 187 Series Circuit Breaker protects electrical circuits from short circuits and thermal overloads while providing robust manual circuit switching for reliable live load switching. A weatherproof case keeps the circuit protection safe from the environment, and it has high-voltage circuit interrupt current capability that protects circuits connected to large series or parallel-connected battery banks. Convenient round cutout style mounting ensures easy installation into the panels chosen.Applications: Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation  High voltage (48 Vdc) rating - easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc  High electrical and manual switching endurance delivers 2,000 cycles at full current High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power 4-year warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 30 Max Voltage: 48 Cycling Endurance: 2,000 Interrupt Current @14 VDC (Amps): 5,000 Interrupt Current @28 VDC (Amps): 3,000 Ingress Protection Rating: IP66 Focal FeaturesON/OFF High Visibility ControlsSealed against dust and moisture penetration. The high-temperature rating for all installation locations.Circular DesignCompatible with circular cutout enables easy panel installation.Stainless Steel Hardware / Serrated Flange NutsCorrosion and vibration resistance for harsh environment applications.Proudly Made in the USAMade in the USA of high-quality components.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 3"H x 3"W x 5"L WT: 0.45 lbs UPC: 850053879012 Quick Guide (pdf)

Read more less

200A Surface Mount 87 Series Circuit BreakerThis 200A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. Applications: Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: IP66 sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation   High voltage (48 Vdc) rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC High electrical/manual switching endurance delivers 2,000 cycles at full current High interrupt current safely protects circuits connected to large paralleled battery banks with significant available power 4-year warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 200 Max Voltage: 48 Cycling Endurance: 2,000 Interrupt Current @14 VDC (Amps): 5,000 Interrupt Current @28 VDC (Amps): 3,000 Ingress Protection Rating: IP66 Focal FeaturesON/OFF High Visibility ControlsSealed against dust and moisture penetration. The high-temperature rating for all installation locations.Reinforced Mounting Ensures long-term structural reliability with reinforced mounting tabs built to withstand the stress of vibration. Stainless Steel Hardware / Serrated Flange NutsCorrosion and vibration resistance for harsh environment applications.Proudly Made in the USAMade in the USA of high-quality components.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 200a Box Dimensions: 3"H x 3"W x 4"L WT: 0.6 lbs UPC: 850035199381 Quick Guide (pdf)

Read more less

150A Surface Mount 87 Series Circuit BreakerThis 150A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. Applications: Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: IP66 sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation   High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC High Electrical/Manual Switching Endurance delivers 2,000 cycles at full current High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 150 Max Voltage: 48 Cycling Endurance: 2,000 Interrupt Current @14 VDC (Amps): 5,000 Interrupt Current @28 VDC (Amps): 3,000 Ingress Protection Rating: IP66 Focal FeaturesON/OFF High Visibility ControlsSealed against dust and moisture penetration. The high-temperature rating for all installation locations.Reinforced Mounting Ensures long-term structural reliability with reinforced mounting tabs built to withstand the stress of vibration. Stainless Steel Hardware / Serrated Flange NutsCorrosion and vibration resistance for harsh environment applications.Proudly Made in the USAMade in the USA of high-quality components.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 150a Box Dimensions: 3"H x 3"W x 4"L WT: 0.6 lbs UPC: 850035199374 Quick Guide (pdf)

Read more less

TH3 Relay 160A - 12VFeatures: Replaces Manual Battery Switches: Reduces battery cable run lengths and resulting voltage drop Connect to the Ignition Signal for simple battery charge management between two batteries or for simple auxiliary load disconnection. Connect to TH Series Automatic Charging Relays or Time Delay Relays to provide an additional isolated/switched output or to extend current-carrying capability Simple & Robust Installation: Sealed MX-150 plug/harness with 2ft control wires included. Reduces install time/costs. The optional output bus bar provides a simple, compact connection to the RT or CT fuse block product families. Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Stainless steel self-locking hardware Single or Dual Split Output Options provide flexibility for different electrical system requirements Integral Diode Suppression reduces voltage spikes on control lines during switching Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 7"L WT: 0.75 lbs UPC: 850035199893 Brochure (pdf)

Read more less

Class T Fuse Block 450-600A SealedFeatures: Ignition Protected to support installation in potentially hazardous gasous environments. Height is compatible with other Flex System Components. Includes Protective Transparent Cover with break-away tabs for easy inspection. Specifications: Fuse Type: Class T Type: Fuse Blocks Box Dimensions: 3"H x 6"W x 8"L WT: 1.3 lbs UPC: 850067590736

Read more less

8 + 2 Fuse BlockApplications: Compact Solution Combines Low Amp and High Amp Fuse Protection in One Product.  Reduce Install Space and Total Installed Time/Cost, Two MX-150 Connectors for Low-Amp Outputs Two (2) High-Amp (20-50A) Outputs Support All Necessary Circuit Protection Needs in One Product Features: Two (2) High-Amp (20-50A) Outputs Support All Necessary Circuit Protection Needs in One Product Protects Add-On Circuits from accidental short circuits to frame ground or battery negative, or from overload events.  4 Year Industry Leading Warranty Specifications: Total Continuous Current (AMPS): 200 AMPS Max Current Per ATO Fuse (AMPS): 22 AMPS Voltage Range (V DC): 8-36V DC Max Current Per LP J Case Fuse (AMPS): 50 AMPS Max Current Per 4 Pos MX-150 (AMPS): 50 AMPS Max Wire Gauge, MX-150 Connector: 14 AWG Quick Guide (pdf)

Read more less

RT Fuse Block 12 Position with Ground & LED IndicationThis 12-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has a ground and LED indication.Applications: Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues. Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options. Features: Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps Supports SAE circuit protection standards for thermal/short circuit events Specifications: Maximum Current (Entire Block) Amps: 10 Maximum Current (Per Circuit) Amps: 30 Max Output Wire Size: #10 AWG Voltage Range VDC: 0-36 Number of Fuse Positions: 12 Compatible Fuse Types: ATO / ATC / ATF Focal Features:Spare Fuse LocationsTwo locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.Stainless Steel Self-Locking Hardware100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.LED Fuse DiagnosticsBlown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.Cover/ Label RecessesProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.Ground Block IncludedIncludes a 12-position ground return block with multi-level low amp terminal screws for improved mounting.Ground Block SeparatesThe ground block section optionally separates from the fuse block section, affording increased deployment options for challenging installations.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100a Fuse Type: ATO/ATC/ATF Type: Fuse Blocks Box Dimensions: 3"H x 4"W x 8"L WT: 1 lbs UPC: 850035199725 Quick Guide (pdf)

Read more less

200A Circuit Breaker - 85 Series - Surface MountFeatures: Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.  Up to 30 Volt-rated easily supports 12 Vdc (200 & 250 A) and 24 Vdc (200 A) applications.  High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Ignition-protected safe for installation in closed compartments with potential explosive gases. Harsh Environment design with stainless steel hardware, serrated flange nuts, and silicone terminal covers. Specifications: Amperage: 250a Box Dimensions: 3"H x 5"W x 6"L WT: 0.45 lbs UPC: 850035199701 Brochure (pdf)

Read more less

M-Series 300A Dual Circuit Battery Switch with Combine Battery SwitchSealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.Ignition Protected - Safe for installation in closed compartments with potential explosive gases.Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.Specifications: Maximum Voltage (Single Circuit): 48 Vdc Maximum Voltage (Selector / Dual Circuit): 32 Vdc Stud Size And Thread: 3/8”-16 Terminal Stud Torque: 120 in-lbs (13.6 N-m) Ring Terminal Size Acceptance: 3/8” (M10) Mounting Holes: #10 Screw Live Switching Rating: 25 Amps Ignition Protection Rating: SAE J1171 / ISO 8846 Bulkhead / Panel - Mounting Hole Size: 2-5/8" / 2-5/16" Cable Size to Meet Rating: 4/0 AWG Quick Guide (pdf)

Read more less

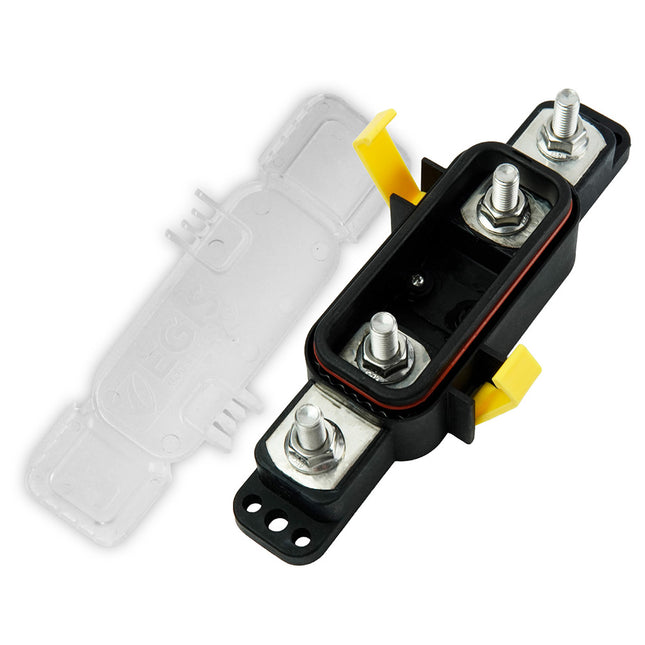

Class T Fuse Block 110-200A SealedFeatures: Ignition Protected to support installation in potentially hazardous gasous environments. Height is compatible with other Flex System Components. Includes Protective Transparent Cover with break-away tabs for easy inspection. Specifications: Fuse Type: Class T Type: Fuse Blocks Box Dimensions: 3"H x 6"W x 8"L WT: 1.05 lbs UPC: 850067590712

Read more less

Class T Fuse Block 225-400 A - SealedApplications/Problems This Solves: Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, which would otherwise land on the fuse tab itself. Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats. Features: Tin-plated copper busbar delivers superior electrical performance with minimal voltage drop. Stainless Steel Self-Locking Hardware ensures robust connections & long-term connection reliability. Bulletproof construction from glass-filled nylon delivers the highest longevity in demanding environments.  4 Year Warranty Specifications: Maximum Amperage: 225-400A Max Voltage: 80 VDC Ingress Protection Ratings: IP66, IP67, IP6K9K Mounting Holes: 4x #10 (M5) & 2x 1/4" (M6) Mounting Screw Max Torque: 50 in-lbs (5.5 N-m) Busbar Material: Tin-Plated Copper

Read more less

Relay 24V, 150A with ResistorThis is a 24V automotive-rated relay/industry standard drop-in replacement for Tyco/Amp. The relay switch carries high-amp electrical currents in high ambient temperatures/wet environments.Applications: Resistor circuit protection ensures flyback voltage does not affect control signal circuitry. A great option for sensitive electrical systems. High intermittent amp rating of 300 amps for up to 3 seconds, making this relay great for temporary high-equipment start-up amp draw applications. Automotive-grade connectors ensure moisture and dust intrusion are kept from the control circuitry. The high-temperature rating of 125C/257F makes this a great relay for high-temperature installation environments like engine bays and other low-ventilation spaces. Features: Bullet-proof Construction - Robust automotive grade relay with IP54 ingress protection and reinforced mounting tabs ensure secure mounting Dual mounting holes on either side for easy mounting with ¼-20”/M6 1.25 bolts or screws up to #14 screw Incorporate the highest quality materials for superior performance and have a high 100,000 electrical switching cycle capacity Enhanced vibration and shock protection ensures enhanced reliability, a long service life, and the operational readiness of the electrical system Specifications: Intermittent Current @ 3 SEC (Amps): 300 Ambient Temp. Rating (Low/High) (Celsius): -40/125 C Max Continuous Current (Amps): 180 @23 degrees C Electrical Endurance Rating (Cycles): 1,000,000 On State Current Draw @ 24 VDC: 163 mA Operating Voltage Range: 17.6-32VDC Focal Features:Sealed HousingIP67-rated housing keeps out moisture and ensures long-term reliability.Reinforced MountingRobust mounting tabs with strengthening gussets ensure the relay stays mounted securely, even through vibration, heat, and wire tension.Terminal ProtectionShielded dual M6x1.0 terminals ensure protection from accidental contact shorts.Delphi Metripak ConnectorAutomotive-grade sealed control wire connectors keep moisture out of the control circuit.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Relay 12V 150A with ResistorThis is an automotive-rated relay/industry standard drop-in replacement for Tyco/Amp. The relay switch carries high-amp electrical currents in high ambient temperatures/wet environments.Features:Delphi Metripak connector built-in to the enclosure (sealed enclosure)Specifications: Continuous Current @85C (Amps): 180 Intermittent Current @85C (Amps): 240 Minimum Operate Voltage (VDC): 7.2 On-State Current Draw @12V (mA): 325 Release Voltage (VDC): 2.2 Switching Current @13.5 VDC (Amps): 300 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

200A Circuit Breaker - 85 Series - Surface MountFeatures: Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.  Up to 30 Volt-rated easily supports 12 Vdc (200 & 250 A) and 24 Vdc (200 A) applications.  High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Ignition-protected safe for installation in closed compartments with potential explosive gases. Harsh Environment design with stainless steel hardware, serrated flange nuts, and silicone terminal covers. Specifications: Amperage: 200a Box Dimensions: 3"H x 5"W x 6"L WT: 0.45 lbs UPC: 850035199695 Brochure (pdf)

Read more less

175A Circuit Breaker - 85 Series - Surface MountFeatures: Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.  Up to 30 Volt-rated easily supports 12 Vdc (200 & 250 A) and 24 Vdc (200 A) applications.  High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Ignition-protected safe for installation in closed compartments with potential explosive gases. Harsh Environment design with stainless steel hardware, serrated flange nuts, and silicone terminal covers. Specifications: Amperage: 175a Box Dimensions: 3"H x 5"W x 6"L WT: 0.45 lbs UPC: 850035199688 Brochure (pdf)

Read more less

Mini Selector Battery Switch 701-SFeatures: Surface & Panel Mounting variations allow for flexible installations. Harsh Environment Design with stainless-steel hardware, serrated flange nuts, and high-temperature materials. Ignition Protect is safe for installation in closed compartments with potential explosive gases.

Read more less

E-Series 350A Battery Switch Off/OnSealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.Ignition Protected - Safe for installation in closed compartments with potential explosive gases.Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.Specifications: Maximum Voltage (Single Circuit): 48 Vdc Maximum Voltage (Selector / Dual Circuit): 32 Vdc Stud Size And Thread: 3/8”-16 Terminal Stud Torque: 140 in-lbs (15.8 N-m) Ring Terminal Size Acceptance: 3/8” (M10) Mounting Holes: #1/4" (M6) Screw Live Switching Rating: 25 Amps Ignition Protection Rating: SAE J1171 / ISO 8846 Bulkhead / Panel - Mounting Hole Size: 3-5/8" Diameter Cable Size to Meet Rating: 4/0 AWG Quick Guide (pdf)

Read more less

ANL Fuse Block up to 4/0 Cable 35-750A SealedFeatures: Ignition Protected to support installation in potentially hazardous gasous environments. Height Compatible with other Flex System Components. Includes Protective Transparent Cover with break-away tabs for easy inspection. Specifications: Fuse Type: ANL Type: Fuse Blocks Box Dimensions: 3"H x 6"W x 8"L WT: 1.03 lbs UPC: 850067590682

Read more less

AMG/Mega Fuse Block SealedFeatures: Ignition Protected to support installation in potentially hazardous gasous environments. Height is compatible with other Flex System Components. Includes Protective Transparent Cover with break-away tabs for easy inspection. Specifications: Fuse Type: MEGA/AMG Type: Fuse Blocks Box Dimensions: 3"H x 6"W x 8"L WT: 1.1 lbs UPC: 850067590668

Read more less

RT Fuse Block - 8 Circuit with CoverThe Egis RT Fuse Block is designed for optimal organization and protection of your electrical circuits. This 8-circuit fuse block comes with a durable cover, ensuring safety and reliability for your electrical systems. Ideal for automotive, marine, and various other applications, it simplifies the management of your fuses, making maintenance easier than ever.Each circuit is marked, allowing for quick identification and troubleshooting. The robust construction of the EGIS MOBILE RT Fuse Block ensures it can withstand the rigors of daily use while providing secure connections. Whether you're an enthusiast or a professional, this fuse block is an essential addition to your toolkit, offering peace of mind and superior performance.Features: 8 Circuits: Provides ample space for managing multiple electrical connections. Durable Cover: Offers protection against dust and accidental contact. Clear Markings: Facilitates easy identification and maintenance of circuits. Robust Construction: Built to withstand rigorous use in various environments. Specifications: Amps: 40 Circuit Positions: 8 Cover Included

Read more less

Mini On/Off Battery Switch 701Features: Surface & Panel Mounting variations allow for flexible installations. Harsh Environment Design with stainless-steel hardware, serrated flange nuts, and high-temperature materials. Ignition Protect is safe for installation in closed compartments with potential explosive gases.

Read more less

RT Fuse Block 12 Position with LED IndicationThis 12-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has an LED indication.Applications: Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues. Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options. Features: Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware, allows mounting anywhere on the vehicle Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps Supports SAE circuit protection standards for thermal/short circuit events Specifications: Maximum Current (Entire Block) Amps: 100 Maximum Current (Per Circuit) Amps: 30 Max Output Wire Size: #10 AWG Voltage Range VDC: 12-24 Number of Fuse Positions: 12 Compatible Fuse Types: ATO / ATC / ATF Focal Features:Spare Fuse LocationsTwo locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.Stainless Steel Self-Locking Hardware100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.LED Fuse DiagnosticsBlown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.Cover/ Label RecessesProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100a Fuse Type: ATO/ATC/ATF Type: Fuse Blocks Box Dimensions: 3"H x 4"W x 8"L WT: 0.9 lbs UPC: 850035199749 Quick Guide (pdf)

Read more less

150A Circuit Breaker - 85 Series - Panel MountFeatures: Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Ignition-protected safe for installation in closed compartments with potential explosive gases. Harsh Environment design with stainless-steel hardware, serrated flange nuts, and silicone terminal covers. Specifications: Amperage: 150a Box Dimensions: 3"H x 5"W x 6"L WT: 0.35 lbs UPC: 850035199091 Brochure (pdf)

Read more less

120A Circuit Breaker - 85 Series - Panel MountFeatures: Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Ignition-protected safe for installation in closed compartments with potential explosive gases. Harsh Environment design with stainless-steel hardware, serrated flange nuts, and silicone terminal covers. Specifications: Amperage: 120a Box Dimensions: 3"H x 5"W x 6"L WT: 0.35 lbs UPC: 850035199084 Brochure (pdf)

Read more less

80A Circuit Breaker - 85 Series - Panel MountFeatures: Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Ignition-protected safe for installation in closed compartments with potential explosive gases. Harsh Environment design with stainless-steel hardware, serrated flange nuts, and silicone terminal covers. Specifications: Amperage: 80a Box Dimensions: 3"H x 5"W x 6"L WT: 0.35 lbs UPC: 850035199060 Brochure (pdf)

Read more less

70A Circuit Breaker - 85 Series - Panel MountFeatures: Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Ignition-protected safe for installation in closed compartments with potential explosive gases. Harsh Environment design with stainless-steel hardware, serrated flange nuts, and silicone terminal covers. Specifications: Amperage: 70a Box Dimensions: 3"H x 5"W x 6"L WT: 0.35 lbs UPC: 850035199053 Brochure (pdf)

Read more less

25A Circuit Breaker - 85 Series - Panel MountFeatures: Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Ignition-protected safe for installation in closed compartments with potential explosive gases. Harsh Environment design with stainless-steel hardware, serrated flange nuts, and silicone terminal covers. Specifications: Amperage: 25a Box Dimensions: 3"H x 5"W x 6"L WT: 0.35 lbs UPC: 850035199008 Brochure (pdf)

Read more less

30A Circuit Breaker - 85 Series - Panel MountFeatures: Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Ignition-protected safe for installation in closed compartments with potential explosive gases. Harsh Environment design with stainless-steel hardware, serrated flange nuts, and silicone terminal covers. Specifications: Amperage: 30a Box Dimensions: 3"H x 5"W x 6"L WT: 0.35 lbs UPC: 850035199015 Brochure (pdf)

Read more less

70A Circuit Breaker - 85 Series - Surface MountFeatures: Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Ignition-protected safe for installation in closed compartments with potential explosive gases. Harsh Environment design with stainless-steel hardware, serrated flange nuts, and silicone terminal covers. Specifications: Amperage: 70a Box Dimensions: 3"H x 5"W x 6"L WT: 0.4 lbs UPC: 850035199152 Brochure (pdf)

Read more less

100A Panel Mount Circuit Breaker - 285 SeriesThis 100A Egis panel mount circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.Applications: Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation  High Voltage (48 Vdc) Rating - easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 100 Max Voltage: 48 Cycling Endurance: 6,000 Interrupt Current @16 VDC (Amps): 5,000 Interrupt Current @28 VDC (Amps): 3,000 Ingress Protection Rating: IP67 Focal Features:ON/OFF High Visibility ControlsSealed against dust and moisture penetration. The high-temperature rating for all installation locations.Panel Mount FlangeProvides rear/front panel installation options.Stainless Steel Hardware / KEPS Locking NutsCorrosion and vibration resistance for harsh environment applications.Proudly Made in the USAMade in the USA of high-quality components.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100a Box Dimensions: 3"H x 3"W x 4"L WT: 0.2 lbs UPC: 850035199077 Quick Guide (pdf)

Read more less

60A Panel Mount Circuit Breaker - 285 SeriesThis 60A Egis panel mount circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.Applications: Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation  High Voltage (48 Vdc) Rating - easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 60 Max Voltage: 48 Cycling Endurance: 6,000 Interrupt Current @16 VDC (Amps): 5,000 Interrupt Current @28 VDC (Amps): 3,000 Ingress Protection Rating: IP67 Focal Features:ON/OFF High Visibility ControlsSealed against dust and moisture penetration. The high-temperature rating for all installation locations.Panel Mount FlangeProvides rear/front panel installation options.Stainless Steel Hardware / KEPS Locking NutsCorrosion and vibration resistance for harsh environment applications.Proudly Made in the USAMade in the USA of high-quality components.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 60a Box Dimensions: 3"H x 3"W x 4"L WT: 0.2 lbs UPC: 850035199046 Quick Guide (pdf)

Read more less

50A Panel Mount Circuit Breaker - 285 SeriesThis 50A Egis panel mount circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.Applications: Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation  High Voltage (48 Vdc) Rating - easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power 4 Year Warranty - Egis stands behind their product's ability to meet the user's needs Specifications: Continuous Current Amps: 50 Max Voltage: 48 Cycling Endurance: 6,000 Interrupt Current @16 VDC (Amps): 5,000 Interrupt Current @28 VDC (Amps): 3,000 Ingress Protection Rating: IP67 Focal Features:ON/OFF High Visibility ControlsSealed against dust and moisture penetration. High temperature rating for all installation locations.Panel Mount FlangeProvides rear / front panel installation options.Stainless Steel Hardware / KEPS Locking NutsCorrosion and vibration resistant for harsh environment applications.Proudly Made in the USAMade in the USA of high quality components.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 3"H x 3"W x 5"L WT: 0.3 lbs UPC: 850035199039

Read more less

40A Panel Mount Circuit Breaker - 285 SeriesThis 40A Egis panel mount circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.Applications: Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation  High Voltage (48 Vdc) Rating - easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 40 Max Voltage: 48 Cycling Endurance: 6,000 Interrupt Current @16 VDC (Amps): 5,000 Interrupt Current @28 VDC (Amps): 3,000 Ingress Protection Rating: IP67 Focal Features:ON/OFF High Visibility ControlsSealed against dust and moisture penetration. The high temperature rating for all installation locations.Panel Mount FlangeProvides rear/front panel installation options.Stainless Steel Hardware / KEPS Locking NutsCorrosion and vibration resistance for harsh environment applications.Proudly Made in the USAMade in the USA of high-quality components.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 40a Box Dimensions: 3"H x 3"W x 5"L WT: 0.3 lbs UPC: 850035199022 Quick Guide (pdf)

Read more less

100A Surface Mount Circuit Breaker - 285 SeriesThis 100A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.Applications: Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation  High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 100 Max Voltage: 48 Cycling Endurance: 6,000 Interrupt Current @16 VDC (Amps): 5,000 Interrupt Current @28 VDC (Amps): 3,000 Ingress Protection Rating: IP67 Focal Features:ON/OFF High Visibility ControlsSealed against dust and moisture penetration. The high temperature rating for all installation locations.Integrated Terminal InsulatorsProtects against inadvertent shorts from positive terminals to adjacent grounded surfaces.Stainless Steel Hardware / Serrated Flange NutsCorrosion and vibration resistance for harsh environment applications.Proudly Made in the USAMade in the USA of high-quality components.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100a Box Dimensions: 3"H x 3"W x 5"L WT: 0.2 lbs UPC: 850035199176 Quick Guide (pdf)

Read more less

RT Fuse Block with 6 Independent Circuits with CoverFeatures: Ignition Protected when the latching cover is secure for use in engine bay / combustible environments Harsh Environment Design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options Includes Latching Protective Cover with integrated label recesses Specifications: Type: Fuse Blocks Box Dimensions: 3"H x 4"W x 10"L WT: 0.5 lbs UPC: 850067590019

Read more less

150A Surface Mount Circuit Breaker - 285 SeriesThis 150A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.Applications: Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation  High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 150 Max Voltage: 48 Cycling Endurance: 100 Interrupt Current @16 VDC (Amps): 5,000 Interrupt Current @28 VDC (Amps): 3,000 Ingress Protection Rating: IP67 Focal Features:ON/OFF High Visibility ControlsSealed against dust and moisture penetration. The high-temperature rating for all installation locations.Integrated Terminal InsulatorsProtects against inadvertent shorts from positive terminals to adjacent grounded surfaces.Stainless Steel Hardware / Serrated Flange NutsCorrosion and vibration resistance for harsh environment applications.Proudly Made in the USAMade in the USA of high-quality components. Specifications: Amperage: 150a Box Dimensions: 3"H x 3"W x 5"L WT: 0.35 lbs UPC: 850035199190

Read more less

25A Surface Mount Circuit Breaker - 285 SeriesThis 25A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.Applications: Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation  High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 25 Max Voltage: 48 Cycling Endurance: 100 Interrupt Current @16 VDC (Amps): 3,000 Interrupt Current @28 VDC (Amps): 1,500 Ingress Protection Rating: IP67 Focal Features:ON/OFF High Visibility ControlsSealed against dust and moisture penetration. The high-temperature rating for all installation locations.Integrated Terminal InsulatorsProtects against inadvertent shorts from positive terminals to adjacent grounded surfaces.Stainless Steel Hardware / Serrated Flange NutsCorrosion and vibration resistance for harsh environment applications.Proudly Made in the USAMade in the USA of high-quality components. Specifications: Amperage: 25a Box Dimensions: 3"H x 3"W x 5"L WT: 0.35 lbs UPC: 850035199107 Brochure (pdf)

Read more less

40A Panel Mount Mini Circuit BreakerThis 40A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for.Applications: Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation  42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications High electrical and manual switching endurance delivers 2,000 cycles at full current High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power 4-year warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 40 Max Voltage: 42 CE Marked: Yes Interrupt Current @14 VDC (Amps): 3,000 Cycle Switching Endurance: 4,000 Ingress Protection Rating: IP66 Focal FeaturesEasy ON/OFF Rotary SwitchEasy to operate and visually recognize switch position.Stainless Steel Self- Locking Hardware Corrosion and vibration resistance for harsh environment applications.Weatherproof ConstructionSealed against dust and moisture penetration. High temp rated for all installation locations.Compact SizeFit more circuit switching/protection on a smaller panel!Proudly Made in the USAMade in the USA of high-quality components.Ignition ProtectedProtects against inadvertent shorts from positive terminals to adjacent grounded surfacesWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 40a Box Dimensions: 3"H x 3"W x 5"L WT: 0.3 lbs UPC: 850053879364 Quick Guide (pdf)

Read more less

20A Panel Mount Mini Circuit BreakerThis 20A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for.Applications: Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation  42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications High electrical and manual switching endurance delivers 2,000 cycles at full current High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power 4-year warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 20 Max Voltage: 42 CE Marked: Yes Interrupt Current @14 VDC (Amps): 3,000 Cycle Switching Endurance: 5,000 Ingress Protection Rating: IP66 Focal FeaturesEasy ON/OFF Rotary SwitchEasy to operate and visually recognize switch position.Stainless Steel Self- Locking Hardware Corrosion and vibration resistance for harsh environment applications.Weatherproof ConstructionSealed against dust and moisture penetration. High temp rated for all installation locations.Compact SizeFit more circuit switching/protection on a smaller panel!Proudly Made in the USAMade in the USA of high-quality components.Ignition ProtectedProtects against inadvertent shorts from positive terminals to adjacent grounded surfacesWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 20a Box Dimensions: 3"H x 3"W x 5"L WT: 0.4 lbs UPC: 850053879340 Quick Guide (pdf)

Read more less
