Garmin Cortex V1 VHF Radio with SOTDMA SmartAIS and Remote Vessel MonitoringModel: 010-02814-20 With up to 85 dBA of crystal-clear audio power, the Cortex V1 system delivers superior sound quality. The included Cortex H1 handset offers easy one-hand operation with touchscreen, click-wheel and select keys. A built-in SOTDMA AIS transponder proactively warns you of certain collision threats with voiced alerts. Quickly initiate DSC direct calls by tapping the AIS boat symbol on the handset's touchscreen. Cortex apps let you monitor boat systems, receive alerts and remotely control devices from your compatible smartphone. NMEA 2000(R) networking allows you to view Cortex data on your connected MFDs and chartplotters. Cortex V1 is an advanced multi-station VHF radio with remote monitoring and control. The Cortex V1 system includes a Cortex M1 hub and Cortex H1 tethered handset. Connect additional Cortex handsets (sold separately) for even more freedom and control on board.Cortex smartAIS continuously monitors AIS information from other boats and calculates crossing situations, generates collision alarms and provides easy-to-understand avoidance cues. Data from its built-in heading sensor is also broadcast, so other vessels can clearly identify which direction your boat is moving.Both portable and power-tethered style Cortex handsets connect wirelessly via Wi-Fi(R) link to the Cortex M1 hub. Keep a portable handset with you for continual VHF communications access from anywhere on your boat.Cortex lets you initiate DSC direct calls with other vessels by simply tapping the vessel icon on your handset. Initiate VHF calls to friends or quickly hail another vessel when every second counts.Whether you're onboard or ashore, you can know for sure your boat is securely anchored. Cortex smartAIS accurately tracks boat movement, heading and bow position, alerting you if your anchor drags.The Cortex VHF radio puts out up to 85 dBA of powerful, crystal-clear audio, so you won't miss critical communications.Need to catch someone's attention? Easily sound preset horn signals or speak through your loudspeaker with any Cortex handset or the Cortex Onboard smart-device app.Multiple Cortex H1 and Cortex H1P handsets can be connected to each hub. Up to 5 can connect directly to the Cortex Network, with an additional 5 through an existing boat network for increased range on larger vessels.Designed for simplicity with easy-to-understand screens and step-by-step data flows during critical situations, Cortex makes advanced features easy to use.Instead of ambiguous bells or tones, you'll hear a voice prompt to tell you what the alert is for. In case of a potential collision, you'll also be told the direction of the threat, so you'll quickly know where to look.Man overboard (MOB) can be manually activated using the dedicated MOB button on the Cortex handset, Cortex Onboard smart device app or automatically from an AIS MOB beacon - which launches a trackback mode for quick retrieval.Wet hands? Wearing gloves? Cortex handsets are designed to be glove friendly, and they're built to operate in all types of saltwater or freshwater marine environments.Cortex handsets are equipped with a click-wheel, ergonomic design and grip enhancing exterior, so you can use the device while keeping one hand on the helm wheel or tiller.Cortex touchscreen handsets provide responsive multi-touch, pinch-to-zoom and panning control, ensuring fast, smooth navigation and intuitive operation.SpecificationsUNIT SIZEM1: 168 x 168 x 58.7 mm (6 5/8 in x 6 5/8 in x 2 5/16 in )H1/H1P: 164.8 x 71.8 x 21.4 mm (6 1/2 in x 2 13/16 in x 7/8 in) WEIGHT M1: 770 g (1.7 lbs) H1: 285 g (0.63 lb) H1P: 235 g (0.52 lb) WATER RATING IPX7 OPERATING VOLTAGE H1/H1P: 12-24V compatible CURRENT DRAW 12V: 6A max, 700mA nom OPERATING TEMPERATURE -25 degC to +55 degC (-13 degF to 131 degF) VHF VOICE Yes ATIS Yes TRANSMITTER FREQUENCY ERROR Less than 300 Hz ANT CONNECTOR SO239 SPLITTER Max input power 25 W Insertion loss RX 0dB, TX < 2dB SPLITTER CONNECTOR BNC VHF Voice VHF FREQUENCY RANGE TX 156.025-161.600 MHz VHF FREQUENCY RANGE RX 156.050-163.275 MHz DEDICATED RX VHF CHANNELS 3 VHF POWER OUTPUT 25 W, 1 W (high, low) REGION U.S., Canada, International SENSITIVITY (12 DB SINAD) -116 dBm ADJACENT VHF CHANNEL SELECTIVITY 80 dB SPURIOUS RESPONSE 70 dB VHF INTERMODULATION 70 dB SPURIOUS EMISSIONS Less than -80 dBc (at 25 W) MAX AUDIO OUTPUT POWER 10 W, < 1% THD MAX ANTENNA GAIN 6 dBi Class D DSC CLASS Class D DEDICATED RX DSC CHANNELS 1 AIS CLASS SOTDMA Class B DEDICATED RX AIS CHANNELS 2 Networking NMEA 2000(R) GATEWAY 1 isolated micro-C male port, AIS, GPS & MOB PGN output, gateway translations to/from NMEA 0183 NMEA 2000(R) LEN 2 NMEA 0183 DETAIL 1 isolated NMEA 0183 port, AIS & GPS sentences, gateway translations to/from NMEA 2000(R), 4800/38400 baud WIRELESS SECURITY WPA2 Personal CLOUD CONNECTIVITY LTE-Cat1 with 3G fallback (U.S., Canada), 3G (Europe, Asia), integrated SIM, integrated antenna, SMA-RP external antenna port CONTROL OUTPUTS 2; low side driven (max 150mA) Display SCREEN LCD TFT Si, 640 x 800, 24-bit color TOUCH capacitive, optically-bonded to LCD TOUCH FEATURE glove and salt water operable CABLE LENGTH 6 ft CHANNEL 16 SHORTCUT Yes Connections CONNECTIONS WIRELESS CONNECTIVITY access point for up to 5 handsets (max 10 devices total), simultaneous client mode, 2.4 GHz, 802.11b/g/n, integrated antenna, SMA-RP external antenna port (optional) What's in the Box: M1 Hub H1 tethered handset H1 handset cradle H1 bulkhead fitting kit GPS antenna Power cable Audio cable External sensors cable External Wi-Fi(R) antenna

Read more less

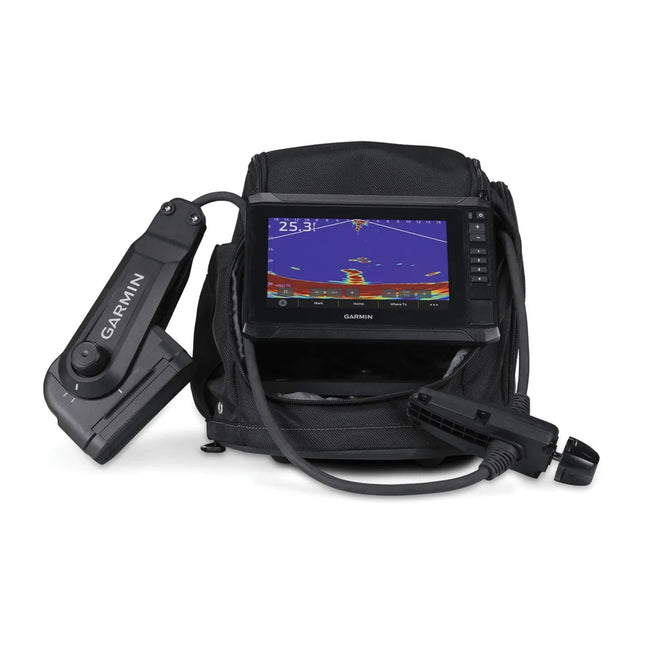

Garmin ECHOMAP UHD2 73sv PanoptixTM PS22-IF Ice Fishing BundleModel: 010-02684-30 ECHOMAPTM UHD2 7 in TOUCHSCREEN WITH KEYED ASSIST PANOPTIX SONAR WITH TWO MODES POLE MOUNT-FREE DESIGN GARMIN NAVIONICS+TM U.S. INLAND MAPPING ON 23,000+ LAKES GLOVE-FRIENDLY PORTABLE BAG The ultraportable Panoptix PS22-IF ice fishing kit provides two live sonar modes and a pole mount-free design, so you can move faster between holes to find more fish.The bundle includes a 7 in ECHOMAP UHD2 chartplotter with touchscreen, keyed assist and two types of sonar: LiveVüTM Forward and LiveVüTM Down modes.The Panoptix PS22-IF transducer doesn't require a pole mount. The bracket design allows for easy Forward and Down mode adjustments, while the rotator controls direction and depth.Get exceptional detail on more than 23,000 U.S. lakes with an included 1-year subscription to access daily map updates.Easily create custom pages that combine sonar and mapping on your display.Easily change between wide and narrow beams to focus on areas of interest with the removable transducer lens.The rugged, glove-friendly carrying case lets you easily transport your entire bundle from hole to hole.SpecificationsDimension10.5 × 9.5 in × 10.5 in (26.7 × 22.9 × 26.7 cm) Weight 12.2 lbs (5.5 kg) Water rating IPX7 Touchscreen Yes Display Type WVGA

Read more less

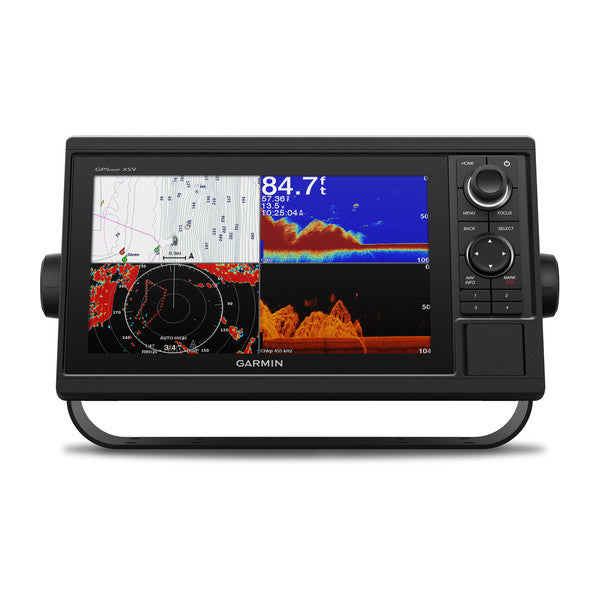

Garmin GPSMAP(R) 1042xsv 10-inch 10-inch Chartplotter/Sonar Combo Is All-in-1 Solution with Garmin Navionics+ coastal and inland water charts for the U.S. and Canada and GT52-TM transducerModel: 010-01740-60 Large, bright 10 in screen with keypad interface and multifunction control knob Includes GT52-TM transducer for Garmin CHIRP sonar and CHIRP ClearVüTM and CHIRP SideVüTM scanning sonars Supports PanoptixTM and LiveScopeTM sonar products (transducers sold separately) Preloaded Garmin Navionics+TM coastal charts and inland mapping feature Auto Guidance+TM technology Auto Guidance+ is for planning purposes only and does not replace safe navigation operations; plus, there's support for optional Garmin Navionics Vision+TM premium map content. Built-in wireless capabilities for Garmin mobile apps See RPMs, fuel flow, temperature, trim and more for up to four compatible Mercury(R) engines by using the SmartCraft(R) Connect gateway Supports the Garmin Marine Network; allows sharing of sonar, radar, maps, user data, and NMEA 2000(R) and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS and other sensors Includes Quickdraw Contours map drawing software Built-in Garmin SailAssistTM features include laylines, race features, set and drift, wind data and more Integrated ANT(R) connectivity support for use with compatible quatix(R) smartwatches, the gWindTM Wireless 2 transducer, GNXTM Wind marine instrument and remote controls (sold separately) Experience an advanced all-in-one solution with our 10 in GPSMAP(R) 1042xsv keyed combo. It features a large, bright screen coupled with a keypad interface and multifunction control knob. A GT52-TM transducer is included for Garmin CHIRP sonar along with CHIRP ClearVüTM and CHIRP SideVüTM scanning sonars. There's also support for PanoptixTM and LiveScopeTM sonar products and a wide range of other transducers (sold separately). Preloaded Garmin Navionics+TM coastal charts and inland mapping feature Auto Guidance+TM technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations). Plus, there's support for optional Garmin Navionics Vision+TM premium map content. The combo also includes Quickdraw Contours software and the Quickdraw Community on our Garmin ConnectTM online network. Use built-in Wi-Fi(R) technology to pair with the free ActiveCaptain(R) smartphone app for access to the OneChartTM feature, smart notifications, Garmin QuickdrawTM Community data and more. Garmin Marine Network support allows sharing of sonar, maps, user data, radar, IP cameras and live sonar among multiple units. Plus, there's NMEA 2000(R) and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS and other sensors. These units also include integrated ANT(R) connectivity support for use with compatible quatix(R) smartwatches, the gWindTM Wireless 2 transducer, GNXTM Wind marine instrument and remote controls (sold separately). See RPMs, fuel flow, temperature, trim and more for up to four compatible Mercury(R) engines by using the SmartCraft(R) Connect gateway.SpecificationsDimensions12.5 x 7.3 in x 2.7 in (318 x 185 x 69 cm) Display size 8.8 in x 4.9 in (224 x 125 cm) Display resolution 1024 x 600 Display type WSVGA display Weight 4.1lbs Water rating IPX7 Antenna Internal or external over NMEA 2000 NMEA 2000(R) compatible Yes NMEA 0183 compatible Yes SiriusXMTM Weather & Radio compatible Yes Power consumption Max power usage at 10 Vdc: 32.4 W

Read more less

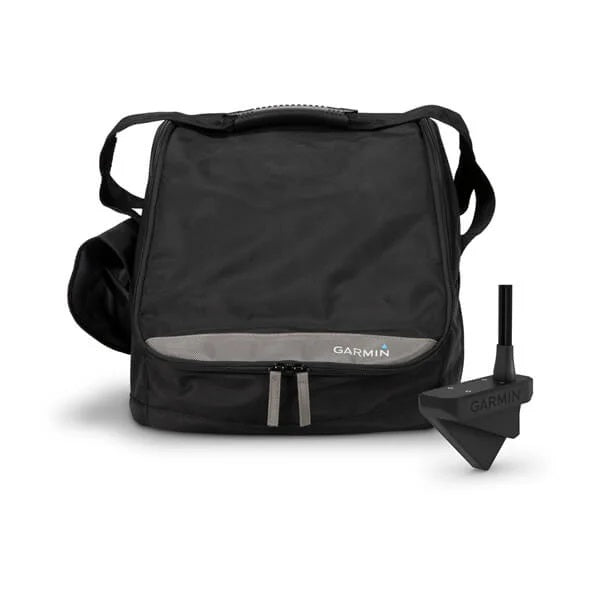

Garmin PanoptixTM LiveScope Ice Fishing KitModel: 010-12676-50 Hit your limit with the power of PanoptixTM sonar. Just add your ECHOMAP or GPSMAP unit and water. Only drill where there's fish when you use LiveScopeTM Forward sonar. Keep an eye on your jig and what it attracts with LiveScopeTM Down sonar. Everything goes where you go. All accessories fit in the rugged, portable carrying case. Adapt your fishing technique with the Panoptix LiveScope transducer with live, real-time scanning sonar that lets you see up to 200 feet in any direction.LiveScope Forward sonar shows up to 200 feet all around you and below the ice, so you can locate schools of fish and know where to drill the next hole.LiveScope Down sonar shows moving sonar images of what is below the ice, so you can watch fish respond to your jig.The rugged, portable carrying case fits your ECHOMAP or GPSMAP 7 in and 9 in units plus all the included parts, so you can easily transport it from hole to hole and season to season.Kit accessories include a swivel pole mount for the PanoptixTM transducer, foam float and cable grommet, 12Ah battery, charger, power cable and transducer adapter cable.What's in the Box: PanoptixTM LiveScope System Panoptix ice fishing mount Power cable Documentation Bag with handle Rechargeable battery Battery charger

Read more less

Airmar B175Lw/20° Tilt1kWFlush-mounted bronze housing protrudes less than 1/4" outside hull and can sit on trailer rollers/bunks without damage. Tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.Max Depth - 3,000'Suppoarted Deadrise/Transom Angles - 16-24° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Mounting Style: Thru-Hull Imaging: Standard Chirp: Low Cable Length (Feet): 39' Pins: 8 Box Dimensions: 8"H x 10"W x 12"L WT: 12 lbs UPC: 753759995737 Owner's Manual (pdf)Brochure (pdf)

Read more less

The Class A Drive Unit works with the GHP 12 Marine Autopilot System to control your sailboat's steering system. This device is designed for use with larger sailboats with up to 28,500 lbs (12,927 kg) of displacement. Drive Unit Type: Hydraulic linearStroke Length: 12 in (303 mm) Maximum Thrust: 800 lb (400 kg) Dimensions (centered), WxHxD: 32.3 in x 6.5 in x 6.1 in (820 x 165 x 155 mm) Supply Voltage: 10V to 30V Average Clutch Current at 12V: 0.5 Amps Average Motor Current at 12V: 1-2 Amps Operating Temperature: -15 deg C to 60 deg C (5 deg F to 140 deg F)

Read more less

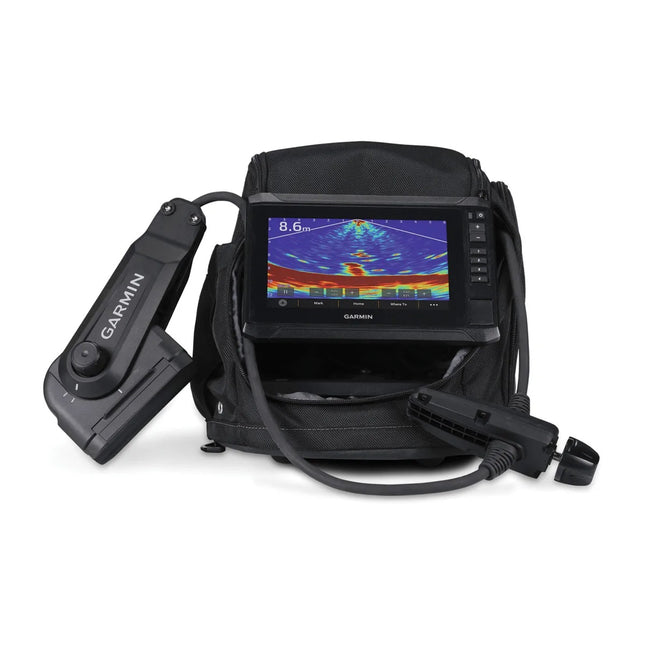

Garmin ECHOMAP UHD2 75sv PanoptixTM PS22-IF Ice Fishing BundleModel: 010-02686-30 ECHOMAPTM UHD2 7 in TOUCHSCREEN WITH KEYED ASSIST PANOPTIX SONAR WITH TWO MODES POLE MOUNT-FREE DESIGN CANADA INLAND AND COASTAL CARTOGRAPHY GLOVE-FRIENDLY PORTABLE BAG The ultraportable Panoptix PS22-IF ice fishing kit provides two live sonar modes and a pole mount-free design, so you can move faster between holes to find more fish.The bundle includes a 7 in ECHOMAP UHD2 chartplotter with touchscreen, keyed assist and two types of sonar: LiveVüTM Forward and LiveVüTM Down modes.The Panoptix PS22-IF transducer doesn't require a pole mount. The bracket design allows for easy Forward and Down mode adjustments, while the rotator controls direction and depth.The rugged, glove-friendly carrying case lets you easily transport your entire bundle from hole to hole.Easily create custom pages that combine sonar and mapping on your display.Easily change between wide and narrow beams to focus on areas of interest with the removable transducer lens.SpecificationsDimension10.5 × 9.5 in × 10.5 in (26.7 × 22.9 × 26.7 cm) Weight 12.2 lbs (5.5 kg) Water rating IPX7 Touchscreen Yes Display Type WVGA

Read more less

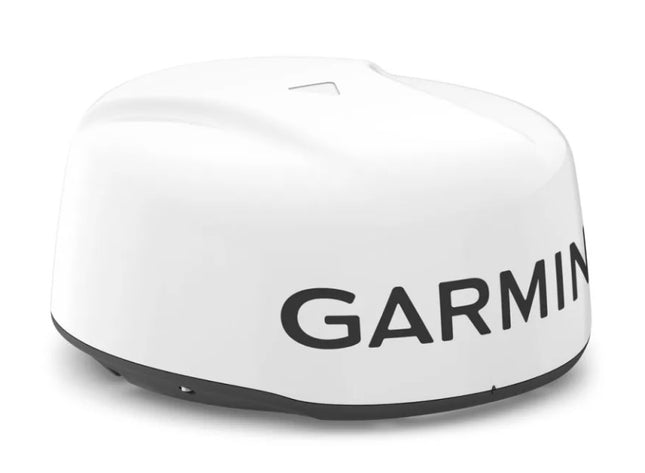

Garmin GMRTM 18 HD3 18 4kw Radar DomeModel: 010-02843-00 18 in magnetron dome radar features improved target detection on your compatible Garmin chartplotter/MFD Dual radar support allows each of your compatible chartplotters on your boat to pull data from one of two different radar sources to provide redundancy Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions Dynamic Sea Filter automatically adjusts sea clutter based on sea conditions MARPA technology tracks selected targets

Read more less

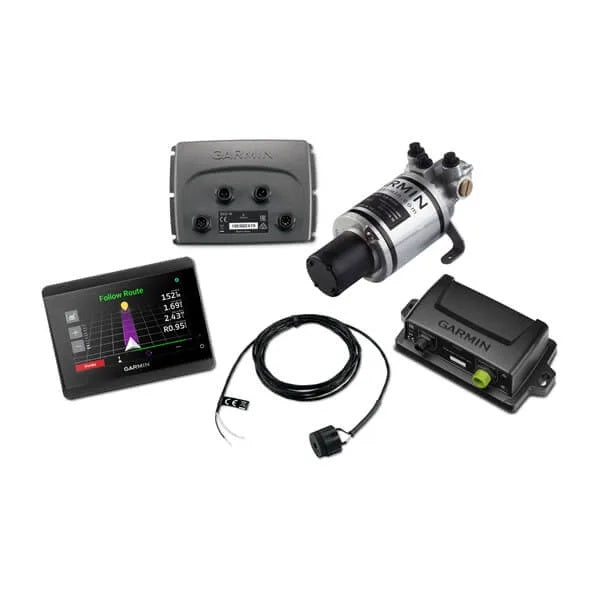

Garmin Compact ReactorTM 40 Hydraulic Autopilot with GHCTM 50 Instrument Pack With GHCTM 50Model: 010-02794-07 This Reactor 40 hydraulic autopilot is the perfect companion for your hydraulically steered system. Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere.c Even when you're pitching or rolling, this autopilot reacts to sea conditions to keep you on course. You just want to get on the water, so we made calibration fast and easy. That's the power of simple. Combine with your compatible Garmin chartplotter, and control your autopilot - from anywhere on your boat. The GHCTM 50 autopilot instrument enhances your autopilot experien Designed for boats less than 25 feet long, this entry-level, Compact Reactor 40 hydraulic autopilot gives you the extra hand you need, so you can explore paradise worry-free.This corepack is an ideal autopilot solution for single-engine outboard boats that are less than 25 feet long1. It provides relief from manually holding the wheel to maintain course, especially when cruising at moderate to high speeds2.With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimizes heading error and more.Hold your course on the sea - this autopilot reacts to conditions, so you can remain confident even when you're pitching or rolling.All autopilots require commissioning and calibration. Reactor 40 makes it quick and easy. This autopilot is easy to install with flexible mounting options.Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix(R) marine smartwatches and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).Gain more freedom when maneuvering your boat. This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel.When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns - plus wind hold and tack/jibe when paired with a wind sensor (sold separately). You can even gain additional benefits such as the follow route and Auto Guidance+TM features3.1 Auto Guidance is for planning purposes only and does not replace safe navigation operationsSpecificationsUnit dimensions, WxHxD4.3 x 4.4 in x 1.9 in (10.9 x 11.2 x 4.8 cm) Pump dimensions

Read more less

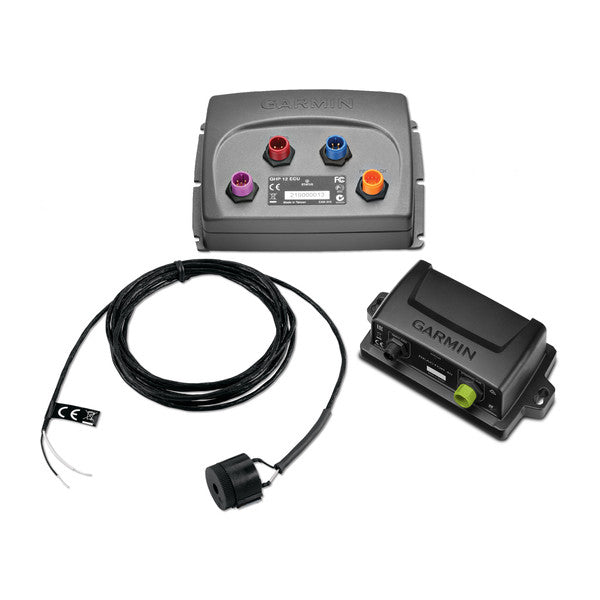

Garmiin ReactorTM 40 Mechanical/Retrofit/Solenoid Corepack Without GHC ControlModel: 010-00705-48 Solid-state 9-axis Attitude Heading Reference System (AHRS) Minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride Minimal commissioning and calibration Supports heading hold, wind hold, step turns and tack/jibe modes With a complete package designed for powerboats and sailboats, Garmin brings an advanced marine technology to the boating public that was once only available for commercial boats. The Reactor 40 autopilot series is simply the most responsive autopilot system we have ever offered.Reactor 40 autopilots are very versatile. Both powerboat and sailing features are available in all corepacks, including heading hold, wind hold, tack/jibe, step turns and more; simply pick the autopilot that's compatible with your existing steering system. If you don't see a compatible Reactor 40, you'll find the Reactor 40 mechanical/retrofit/solenoid is compatible with a wide variety of steering systems, whether hydraulic, cable drive, mechanical and solenoid. Just pair GRFTM 10 with your drive system already on board.The Reactor 40 mechanical/retrofit/solenoid autopilot corepack is ideal for sailboats and powerboats with direct or cable-actuated steering systems. This Reactor 40 below-deck autopilot system gives captains that "extra set of hands" they need so you can safely attend to your sails, lines, winches and radios, without worry. With its solid-state 9-axis AHRS, Reactor 40 mounts anywhere, in any orientation and requires minimal commissioning.With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. In addition, this new system greatly minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride for all on board.This amazing autopilot actually reacts to the sea to hold your course. Even when the boat is pitching and rolling, you can remain confident that the Reactor 40 autopilot will keep you on your desired course.All autopilots require commissioning and calibration - all of them. We know you just want to get on the water, so we made this process as fast and easy as possible. That's the power of simple.Combined with a compatible Garmin networked chartplotter, you can have full control of Reactor 40 from wherever you are on the boat. In addition to holding its course in virtually all weather and wind conditions, the system can smoothly perform a variety of preprogrammed trolling and search procedures. Plus, with a compatible Garmin networked chartplotter and BlueChart(R) g2 Vision(R) charts (sold separately), you gain optional features such as Auto Guidance1, which automatically steers GPS paths.On hydraulic installations, the Reactor 40 mechanical/retrofit/solenoid autopilot corepack can add optional patented Shadow Drive technology. This gives you the security of knowing you maintain control, even when the autopilot is engaged. The Shadow Drive system automatically disengages the autopilot if the helm is turned, giving you the freedom to maneuver the boat. The autopilot automatically re-engages when you hold a steady course.Reactor 40 is available with 3 linear drives (sold separately) capable of driving many different steering systems on most midsize to large vessels (depending on the particular installation). All Garmin linear drives include built in rudder feedback sensing. Class A Drive Unit - up to 28,500 lbs of displacement Class B Compact Drive Unit - up to 48,400 lbs of displacement Class B Drive Unit - up to 79,000 lbs of displacementAdd an optional GRF 10 rudder feedback sensor, and you can further enhance the performance of your Reactor 40 autopilot.1Auto Guidance is for planning purposes only and does not replace safe navigation operations.SpecificationsCCU dimensions4.3 x 4.4 in x 1.9 in (10.9 x 11.2 x 4.8 cm) ECU dimensions 6.6 in x 4.6 in x 2.1 in (16.8 x 11.7 x 5.3 cm) Supply voltage 10 V to 30 V Operating temperature -15 deg C to 60 C deg (5 deg F to 140 deg F) Maximum sustained motor current 15A Maximum instantaneous motor current 40A Maximum clutch current 2.5A (for drives requiring higher current than 2.5A

Read more less

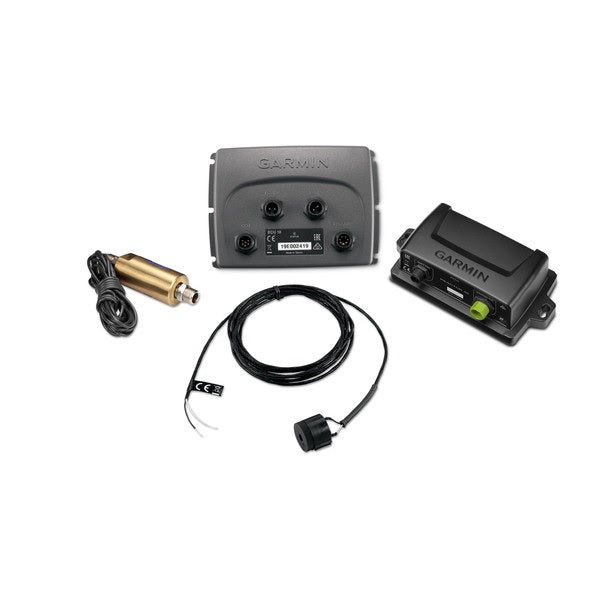

Garmin Reactor 40 Hydraulic Autopilot Corepack Without GHCModel: 010-00705-21 Solid-state 9-axis Attitude Heading Reference System (AHRS) Minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride Minimal commissioning and calibration Patented Shadow DriveTM technology keeps you in control, even when autopilot is engaged With a complete package designed for powerboats and sailboats, Garmin brings an advanced marine technology to the boating public that was once only available for commercial boats. The Reactor 40 autopilot series is simply the most responsive autopilot system we have ever offered.Reactor 40 autopilots are very versatile. Both powerboat and sailing features are available in all corepacks, including heading hold, wind hold, tack/jibe, step turns and more; simply pick the autopilot that's compatible with your existing steering system.The Reactor 40 hydraulic autopilot corepack is ideal for all types of hydraulically steered powerboats - inboards, outboards, stern drives and diesels - or hydraulically steered sailboats. This robust unit gives powerboat users an easy-to-use autopilot system to rely upon for navigation. With its solid-state 9-axis AHRS, Reactor 40 mounts nearly anywhere, in any orientation and requires minimal commissioning. Our patented Shadow Drive technology gives boaters the security of knowing they maintain control, even when relying upon the autopilot.With its advanced solid-state 9-axis solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. In addition, this new system greatly minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride for all on board.This amazing autopilot actually reacts to the sea to hold your course. Even when the boat is pitching and rolling, you can remain confident that the Reactor 40 autopilot will keep you on your desired course.All autopilots require commissioning and calibration - all of them. We know you just want to get on the water, so we made this process as fast and easy as possible. That's the power of simple.Combined with a compatible Garmin networked chartplotter, you can have full control of Reactor 40 from wherever you are on the boat. In addition to holding its course in virtually all weather and wind conditions, the system can smoothly perform a variety of preprogrammed trolling and search procedures. Plus, with a compatible Garmin networked chartplotter and BlueChart(R) g2 Vision(R) charts (sold separately), you gain optional features such as Auto Guidance1, which automatically steers GPS paths.The Reactor 40 autopilot features patented Shadow Drive technology. This gives you the security of knowing you maintain control, even when the autopilot is engaged. The Shadow Drive system automatically disengages the autopilot if the helm is turned, giving you the freedom to maneuver the boat. The autopilot automatically re-engages when you hold a steady course.1Auto Guidance is for planning purposes only and does not replace safe navigation operationsWhat's in the Box: Reactor 40 CCU (Course Computer Unit) ECU (Electronic Control Unit) ECU power cable Interconnect cable Shadow Drive Buzzer NMEA 2000(R) drop cables (2 meters) NMEA 2000 power cable NMEA 2000 T-connectors Male and female terminators Documentation

Read more less

Garmin Bronze Thru-hull Mount Transducer with Depth & Temperature (12-pin) Airmar B265LH 42 to 65 kHz and 130 to 210 kHz Model: 010-12379-20 UPC: 753759142414 Depth & Temperature Low-CHIRPS from 42 kHz to 65 kHz 25 deg to 16 deg port-starboard beamwidth High-CHIRPS from 130 kHz to 210 kHz 10 deg to 6 deg beamwidth Thru-Hull CHIRP Technology Bronze 1kW Imagine knowing what exact frequencies work the best at detecting specific fish species: Bluefin Tuna-60 kHz, Squid-133 kHz, and Cod-175 kHz. Now imagine tuning your fishfinder to these frequencies, marking the fish precisely on the screen, then catching them! With the B265 transducer connected to a tunable fish finder, you too can have a log book like a commercial fisherman. This powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game fi sh separation at all depths. The B265LH is packed with a seven-element, low-frequency array that operates at anywhere between 42 kHz and 65 kHz. It has a wide, 25 deg beam that will adjust by several degrees as the frequency is tuned up or down the band. The single, high-frequency ceramic operates at any frequency between 130 kHz and 210 kHz and has a narrow, 6 deg beam that is adjustable by several degrees. The included High-Performance Fairing will give you broadband performance at speeds over 30 knots (34 MPH). We will leave it up to you to discover the rest of the secrets that can be unlocked with tunable, CHIRP Broadband Transducer Technology. What's in the Box: Bronze Thru hull Fairing block Installation instructions

Read more less

Bronze Thru-hull Wide Beam Transducer w/Depth & Temp - 20° Tilt, 8-Pin - Airmar B175HWStep up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, high, and high wide versions provide maximum flexibility for the choice of frequencies.An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 600'; an operating frequency of 150-250 kHz; a beamwidth of 25°; and a 16 to 24° deadrise.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Cable Length (Feet): 39' Chirp: High Wide Imaging: Standard Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 8"H x 10"W x 12"L WT: 10.7 lbs UPC: 753759123550

Read more less

Bronze Thru-hull Wide Beam Transducer w/Depth & Temp - 0° Tilt, 8-Pin - Airmar B175HWStep up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, high, and high wide versions provide maximum flexibility for the choice of frequencies.An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 600'; an operating frequency of 150-250 kHz; a beamwidth of 25°; and a 0 to 7° deadrise.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Pins: 8 Mounting Style: Thru-Hull Chirp: High Wide Cable Length (Feet): 39' Imaging: Standard Speed Included: No Box Dimensions: 8"H x 10"W x 12"L WT: 11 lbs UPC: 753759123536

Read more less

Garmin GPSMAP(R) 1042xsv 10-inch 10-inch Chartplotter/Sonar Combo Is All-in-1 SolutionModel: 010-01740-50UPC: 753759168322 Large, bright 10 in screen with keypad interface and multifunction control knob Built-in support for Garmin CHIRP sonar plus CHIRP ClearVüTM and CHIRP SideVüTM scanning sonars (transducers sold separately) Supports PanoptixTM and LiveScopeTM sonar products (transducers sold separately) Preloaded Garmin Navionics+TM coastal charts and inland mapping feature Auto Guidance+TM technology Auto Guidance+ is for planning purposes only and does not replace safe navigation operations; plus, there's support for optional Garmin Navionics Vision+TM premium map content. Built-in Wi-Fi(R) technology capabilities for the ActiveCaptain(R) app See RPMs, fuel flow, temperature, trim and more for up to four compatible Mercury(R) engines by using the SmartCraft(R) Connect gateway Supports the Garmin Marine Network; allows sharing of sonar, radar, maps, user data, and NMEA 2000(R) and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS and other sensors Includes Quickdraw Contours map drawing software Built-in Garmin SailAssistTM features include laylines, race features, set and drift, wind data and more Integrated ANT(R) connectivity support for use with compatible quatix(R) smartwatches, the gWindTM Wireless 2 transducer, GNXTM Wind marine instrument and remote controls (sold separately) Experience an advanced all-in-one solution with our 10 in GPSMAP(R) 1042xsv keyed combo. It features a large, bright screen coupled with a keypad interface and multifunction control knob. It comes with built-in support for Garmin CHIRP sonar along with CHIRP ClearVüTM and CHIRP SideVüTM scanning sonars. The combo also supports PanoptixTM and LiveScopeTM sonar products and a wide range of other transducers (sold separately). Use built-in Wi-Fi(R) technology to pair with the free ActiveCaptain(R) smartphone app for access to the OneChartTM feature, smart notifications, software updates and more. Garmin QuickdrawTM Community data and more. Garmin Marine Network support allows sharing of sonar, maps, user data, radar, IP cameras and live sonar among multiple units. Plus, there's NMEA 2000(R) and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS and other sensors. These units also include integrated ANT(R) connectivity support for use with compatible quatix(R) smartwatches, the gWindTM Wireless 2 transducer, GNXTM Wind marine instrument and wireless remote controls (sold separately). Preloaded Garmin Navionics+TM coastal charts and inland mapping feature Auto Guidance+TM technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations.) Plus, there's support for optional Garmin Navionics Vision+TM premium map content. The combo also includes Quickdraw Contours software and the Quickdraw Community on our Garmin ConnectTM online network. See RPMs, fuel flow, temperature, trim and more for up to four compatible Mercury(R) engines by using the SmartCraft(R) Connect gateway.SpecificationsDimensions12.5 x 7.3 in x 2.7 in (318 x 185 x 69 cm) Display size 8.8 in x 4.9 in (224 x 125 cm) Display resolution 1024 x 600 Display type WSVGA display Weight 4.1lbs Water rating IPX7 Power consumption Max power usage at 10 Vdc: 32.4 W Antenna Internal or external over NMEA 2000 Mounting options Bail or flush Receiver 10 Hz high-sensitivity Garmin Marine NetworkTM ports 2 Preloaded maps Garmin Navionics+ coastal and inland water charts for the U.S. and Canada Accepts data cards 2 SDTM cards Waypoints 5

Read more less

Garmin 6 feet Fantom Antenna - BlackModel: 010-01366-106 feet Array only for Fantom open array radars.

Read more less

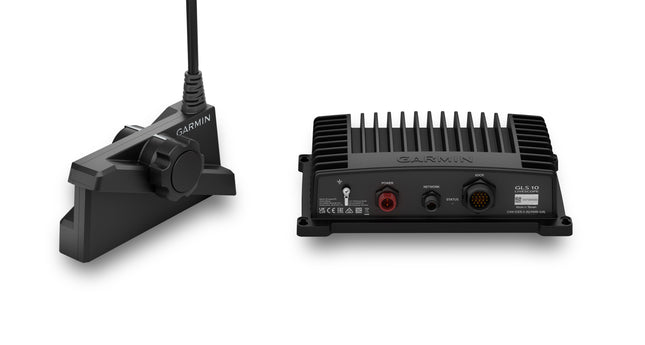

LiveScope™ Plus System with GLS 10™ & LVS34 TransducerTHE BEST OF THE BEST JUST GOT BETTERThe latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images, and better target separation.Features: See images clearly with improved screen clarity, transducer sensitivity, and target separation.  Scan surroundings with sharper images, reduced noise, and fewer sonar artifacts. Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.   Get maximum contrast and clarity in your images with vivid color palettes.  Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount. Real-Time ImagesReal-time sonar ensures that your live images are as accurate as possible. Clear VisionSee exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure. Image StabilizationA built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions. Vivid Color PalettesChoose from seven vivid color options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity. Forward ModeScout ahead of your boat to see what’s happening in real-time. Down ModeExplore live views of the activity directly beneath your boat. Perspective ModeSee under the water with a view from your perspective above the water.In The Box: LiveScope GLS 10 sonar black box Panoptix LVS34 transducer Perspective mount Trolling motor barrel mount Shaft mount Power cable 2 meter Garmin Marine Network cable (small connector) Network adapter cable Documentation Brochure (pdf)

Read more less

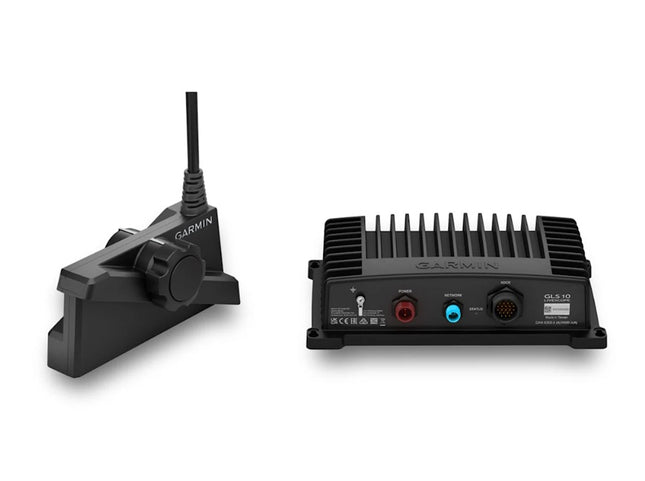

Garmin LiveScope Plus Ice Fishing SystemModel: 010-02706-40 CATCH YOUR LIMIT WITH THE POWER OF LIVESCOPE SONAR JUST ADD YOUR COMPATIBLE CHARTPLOTTER, A BATTERY AND ... ICE USE LIVESCOPETM FORWARD MODE TO LOCATE FISH AND DRILL WHERE YOU FIND 'EM SEE HOW FISH REACT TO YOUR JIG WITH LIVESCOPETM DOWN MODE LOCATE FISH AT A DISTANCE OF UP TO 200 feet IN ANY DIRECTION SCAN WITH SHARPER IMAGES AND REDUCED NOISE UPGRADE YOUR ICE FISHING EXPERIENCE WITH LIVESCOPE PLUS SONAR: When paired with your Garmin chartplotter, this versatile LiveScope Plus package - with LVS34-IF ice fishing transducer, flexible cold-weather transducer cable and all-in-one power cable - provides the essentials to help you find the best spots to drill and fish.TWO MODES, ONE TRANSDUCER: Adapt your fishing technique with the LiveScope Plus transducer with live, real-time scanning sonar that lets you see under the ice - up to 200 feet in any direction.LIVESCOPE FORWARD: LiveScope Forward mode shows up to 200 feet all around you, so you can locate schools of fish and know where to drill the next hole.LIVESCOPE DOWN: LiveScope Down mode homes in on targets, so you can watch how fish respond to your jig.SEE FISH IN REAL TIME: Easy-to-interpret live-scanning sonar lets you clearly see images of fish and structure. See your jig as it moves, and even distinguish between species of fish swimming around and below you.CLEAR VISION: See exactly what you need with reduced noise and fewer artifacts that impede your picture of fish and structure.CUSTOMIZE YOUR VIEW: Switch up the view on your chartplotter with layout options such as range, gain, color limit and color brightness. Choose from vivid color palettes to see fish and structure in maximum contrast and clarity.SpecificationsTransducer beamwidth20 deg x 135 deg Transducer cable length 20 ft Transducer number of pins 21 Dimension GLS 10 sonar black box: 9.7 in x 5.9 in x 2.6 in (24.5 x 14.9 x 6.5 cm); LiveScope Plus LVS34-IF transducer: 6.4 in x 3.1 in x 1.9 in (16.2 x 7.8 x 4.8 cm) Weight GLS 10 sonar black box: 4.3 lbs (2.0 kg); LiveScope Plus LVS34-IF transducer: 2.25 lbs (1.02 kg) Water rating IPX7 Temperature range GLS 10 black box: Operating: -15 deg C to 70 deg C; LiveScope Plus LVS34-IF transducer: Operating: 0 deg C to 40 deg C Electrical Features Power input 10-32 V Power usage 21 W typical, 58 W max Fuse 10 A Compass-safe distance 4 (0.1 m) Sonar Features Frequency 530 - 1

Read more less

Garmin Panoptics Livescope PlusModel: 010-02706-00 See images clearly with improved screen clarity, transducer sensitivity and target separation. Scan surroundings with sharper images, reduced noise and fewer sonar artifacts. Upgrade your current LiveScope System black box (GLSTM 10 sonar module) with just a new transducer. Get maximum contrast and clarity in your images with vivid color palettes. Don't miss a thing with supported Forward, Down and Perspective modes and necessary mount. The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.Real-time sonar ensures that your live images are as accurate as possible.See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.Choose from seven vivid color options - including Aqua, Caribbean, Lava and more - to see fish and structure in maximum contrast and clarity.Scout ahead of your boat to see what's happening in real time.Explore live views of the activity directly beneath your boat.See under the water with a view from your perspective above the water.SpecificationsDIMENSIONGLS 10 sonar black box: 9.7 in x 5.9 in x 2.6 in (24.5 x 14.9 x 6.5 cm);LVS34 transducer: 6.4 in x 3.1 in x 1.9 in (16.2 x 7.8 x 4.8 cm) WEIGHT GLS 10 sonar black box: 4.3 lbs (2.0 kg);LVS34 transducer: 2.25 lbs (1.02 kg) WATERPROOF IPX7 TEMPERATURE RANGE GLS 10 Black Box: Operating: -15 C to 70 CPanoptix LiveScope LVS34 Transducer: Operating: 0 C to 40 C Sonar Features & Specifications FREQUENCY 530 - 1,100 kHz MAXDEPTH Down and Forward: 200 feet (61.0 m) Connections CONNECTIONS GARMIN MARINE NETWORK PORTS 1 (small connector) Electrical Features POWER INPUT 10-32 V POWER USAGE 21 W typical, 58 W max TRANSMIT POWER 500 W FUSE 7.5 A COMPASS-SAFE DISTANCE 4 (0.1 m) Additional Minimum depth 3 feet (0.91 m) Sonar type Live Beamwidth 20 deg x 135 deg Transducer cable length 20 ft Transducer number of pins 21 What's in the Box: LiveScope GLS 10 sonar black box Panoptix LVS34 transducer Perspective mount Trolling motor barrel mount Shaft mount Power cable 2 meter Garmin Marine Network cable (small connector) Network adapter cable Documentation"

Read more less

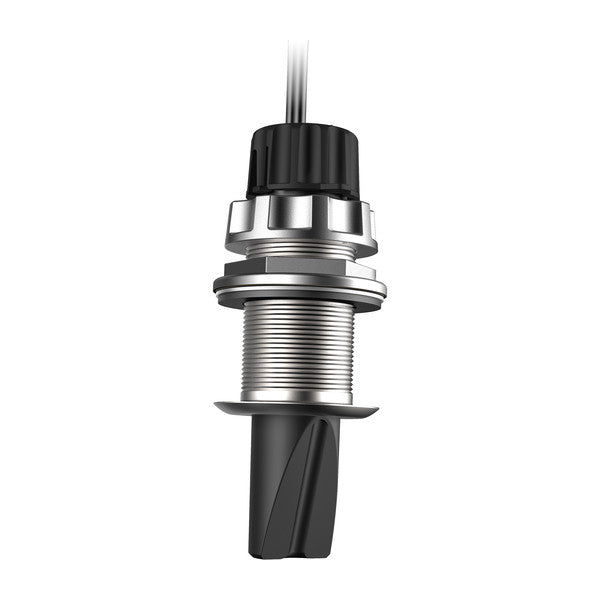

Garmin PanoptixTM PS51-TH Premium FrontVü Forward-looking Sonar Model: 010-01753-00 UPC: 753759170912 Premium FrontVü forward-looking sonar helps you avoid running aground1 Narrow beam, forward-looking sonar that focuses on the bottom in front of your boat Displays the bottom ahead of your boat in real time Displays bottom up to 300 feet ahead Delivers nearly instant feedback to give you more time to react The Panoptix multibeam thru-hull transducer with premium FrontVü forward-looking sonar helps you avoid running aground1 by displaying the bottom ahead of your boat in real time on your chartplotter. Panoptix FrontVü sonar displays bottom up to 300 feet ahead of the boat (at 8 to 10 times the current depth) and delivers nearly instant feedback to give you more time to react. You can be more confident when navigating unfamiliar water because Panoptix FrontVü has a narrow beam, forward-looking sonar (20 degrees). This allows you to focus on the bottom in front of your boat and not be confused with what is off to each side. It also includes an AHRS sensor for motion stabilization that allows you to see what is in front of your boat even in rough water conditions. And all the FrontVü forward-looking sonar image data can be easily shared with other chartplotters across the Garmin Marine Network. Panoptix PS51-TH features a standard 50.88 mm (2-inch) stainless steel thru-hull mount. Displays depth and temperature data, and is compatible with all Panoptix capable Garmin chartplotters. 1The ability to effectively avoid running aground with FrontVü sonar decreases as speed rises above 8 knots. SpecificationsMounting optionsThru-hull Power consumption Power consumption: <1.2A @ 12V Voltage range 10-35vDC Frequencies supported 417 kHz Maximum range 8-10x the current depth, up to 300 ft Beam shape LiveVü Forward 20 deg x 90 deg FrontVü 20 deg x 90 deg What's in the Box: Panoptix PS51-TH forward thru-hull transducer Mounting hardware Fairing block Blanking plug Documenatation

Read more less

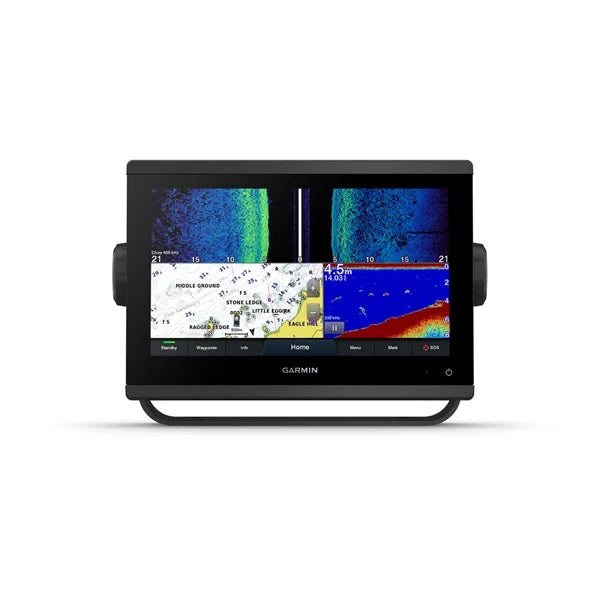

Garmin GPSMAP(R) 923xsv SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide BasemapModel: 010-02366-02 Easily integrate with more engines. Connect to compatible third-party devices with OneHelmTM digital switching. Easily build your marine system using the best of network connectivity. Compatible with premium maps and charts for the best in Garmin navigation. See below your boat with built-in sonar capabilities. Manage your marine experience from nearly anywhere2. With 50% more touchscreen pixels and nearly double the processing power of previous-generation 9 in GPSMAP devices, this crisp chartplotter/sonar combo with high-resolution IPS display integrates seamlessly into your Garmin marine system.Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 923xsv also supports 1 kW CHIRP traditional sonar capabilities.Pair with Panoptix or Panoptix LiveScopeTM easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it's easy to retrofit this 9 in plotter in a wider range of dash configurations.New higher-resolution 9 in IPS displays offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9 in GPSMAP devices.These optional charts offer the best of Garmin and Navionics(R) data, Auto Guidance3 technology and other premium navigation features.To help you avoid weather and traffic on the water, the compact 4 kW GMRTM 18 HD+ dome radar is available as a bundled option with your GPSMAP chartplotter/sonar package.If you have multiple compatible Garmin devices on your boat, you can share information - such as maps, user data, radar and IP camera video - among them.Connect to compatible autopilots, digital switching, weather, Fusion-LinkTM audio system, media, VHF, AIS and more from one screen.Built-in Wi-Fi(R) connectivity pairs with the free all-in-one mobile app for access to the OneChartTM feature, smart notifications, software updates, Garmin HelmTM digital switching, Garmin QuickdrawTM Community data and more4.Connect with some of your favorite devices, such as quatix(R) marine watches, gWindTM Wireless 2 transducers, GNXTM Wind marine instruments and wireless remote controls.Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBusTM digital switching, on one screen.SpecificationsPHYSICAL DIMENSIONS9.2 x 6.4 in x 3 in (23.3 x 16.2 x 7.6 cm) DISPLAY SIZE 7.8 in x 4.4 in; 9.0 in diagonal DISPLAY RESOLUTION 1280 x 720 pixels DISPLAY TYPE WXGA display WEIGHT 3.6 lbs (1.6 kg) WATER RATING IPX7 POLARIZED SUPPORT Yes POWER CONSUMPTION Max power usage at 10 Vdc: 22 W

Read more less

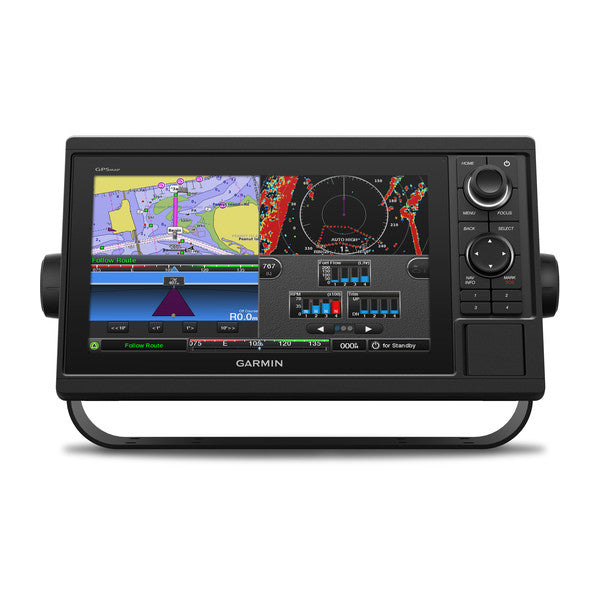

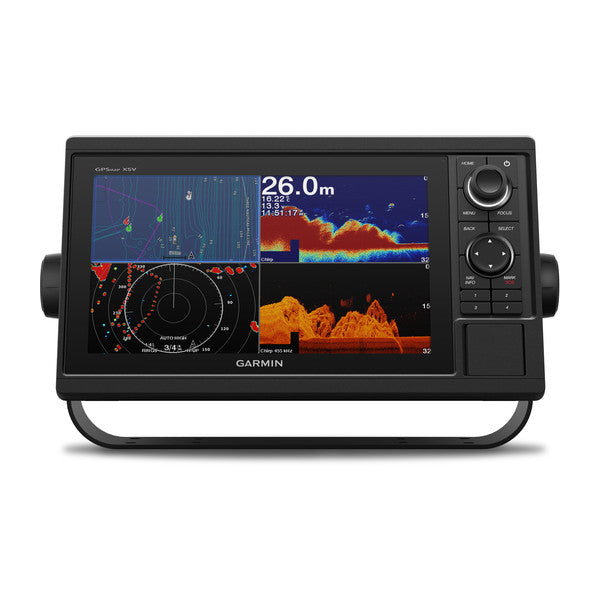

Garmin GPSMAP(R) 1022xsv 10-inch 10-inch Chartplotter/Sonar Combo Is All-in-1 SolutionModel: 010-01740-02UPC: 753759168315 10-inch color display with keypad interface and multifunction control knob High-sensitivity internal 10 Hz GPS and GLONASS receiver Built-in single channel CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar and PanoptixTM support (transducers sold separately) Fully network capable for Garmin Marine Network and NMEA 2000(R) plus NMEA 0183 support Supports optional BlueChart(R) g3 Vision(R) premium charts Experience an advanced all-in-1 solution with our 10-inch GPSMAP 1022xsv keyed combo. comes with or without a transducer for Garmin CHIRP sonar, CHIRP ClearVü and CHIRP SideVü. It also has built-in support for Panoptix all-seeing sonar and premium Garmin sonar modules (transducers sold separately). Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and PanoptixTM sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.Enjoy built-in ANT wireless connectivity directly to quatix(R) marine watch, Garmin NautixTM in-view display, gWindTM Wireless 2 transducer, GNXTM Wind marine instrument and wireless remote controls.Built in Wi-Fi gives you access to the free all-in-one ActiveCaptainTM app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you'll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin QuickdrawTM Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.Right out of the box, you have access to some amazing sonar capabilities; all you have to add are transducers. Comes with built-in Garmin 1 kW CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar. It even supports Panoptix all-seeing sonar, premium Garmin sonar modules and a wide range of transducers (sold separately).Networked combos can share their internal sonar with any other device on the network. You can also choose what information is overlaid on the sonar screen; for example, radar, time of day or GPS speed.Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints - and finding your way back to them - quick and easy.Upgrade to optional premium BlueChart g3 Vision charts and LakeVü g3 Ultra maps. These add features such as high-resolution relief shading of bottom structure - which provides more 3-D relief than contours alone - satellite imagery and more.Instantly create personalized HD fishing maps on screen with 1-foot contours. Tailor them to fit your needs. These are your maps - you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin ConnectTM.To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.If you have waypoints, tracks or frequently used routes stored on another manufacturer's GPS product - or on a Garmin handheld device - it's easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.SpecificationsDimensions12.5 x 7.3 in x 2.7 in (318 x 185 x 69 cm) Display size 8.8 in x 4.9 in (224 x 125 cm) Display resolution 1024 x 600 Display type WSVGA display Weight 4.1lbs Water rating IPX7 Power consumption Max power usage at 10 Vdc: 32.4 W Antenna Internal or external over NMEA 2000 Mounting options Bail or flush Receiver 10 Hz high-sensitivity Garmin Marine NetworkTM ports 2 Preloaded maps None Accepts data cards 2 SDTM cards Waypoints 5

Read more less

Garmin 6FT GMR Fantom Antenna OnlyModel: 010-01366-00 6ft Antenna Replacement Works with Garmin Fantom Pedestal 40W, GMR Fantom 4 & 6 The Garmin 010-01366-00 is replacement GMR fantom series 6ft antenna

Read more less

Garmin Panoptix PS30 Down Looking TransducerModel: 010-01284-00UPC: 753759132392With the Panoptix Down transducer, you can actually see fish and bait swimming around under your boat - in real time; even while stationary. You get 3 remarkable views: LiveVü Down, RealVü 3-D Down and RealVü 3-D Historical.LIVEVü DOWN Provides real-time moving sonar images. You can see fish swimming toward or away from the boat. You can see small baitfish and large target fish swimming around, even your lure.,b>REALVü 3-D DOWN Allows your boat to be stationary and still see things in 3-D around your boat. It shows history of only 1 sweep.REALVü 3-D HISTORICAL Used for finding fish while your boat is moving. This shows the entire water column you have passed over in 3-D, from the bottom of the surface and all of the fish in between.All-seeing is Believing Garmin is the first to bring Panoptix sonar imaging to your boat. Panoptix all-seeing sonar is unlike anything you've ever seen on the water. It gives you the ability to see all around your boat in real-time. You can see fish in the water column in 3-D. You can also see your bait cast into the water and watch it as you reel it in. You can see fish swimming in front of or below your boat. You can even see them chase your lure. But to truly appreciate Panoptix, you have to see it. Transducer transom mounting kit included.SpecificationsMounting optionsTransom Frequency 417kHz Maximum range 300 feet Input Voltage 10-35Vdc Input Draw <0.8 A @ 12 Vdc What's in the Box: PS30 down looking transducer (integrated 30 ft network cable, 15 ft power cable) Transom mount Split ring RJ45 connector Documentation

Read more less

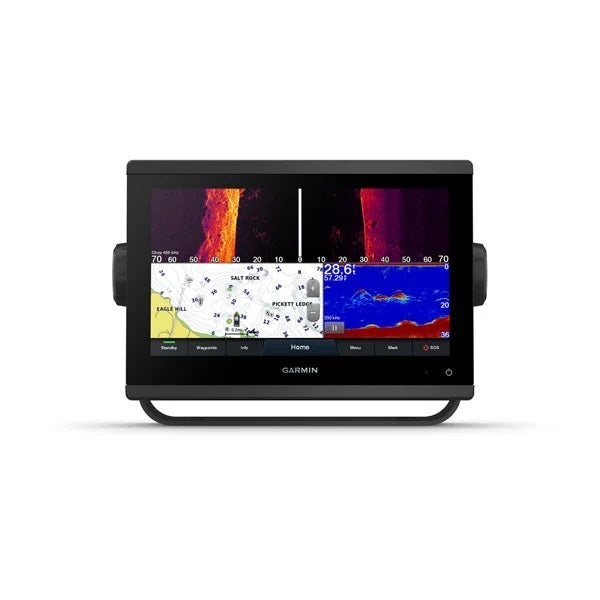

Garmin GPSMAP(R) 943xsv SideVü, ClearVü and Traditional CHIRP Sonar with US and Canada Garmin Navionics+Model: 010-02366-61 New higher-resolution in-plane switching touchscreen display offers improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9 in units Fast and responsive, with nearly twice the processing power of previous-generation GPSMAP(R) devices, this system references 10 Hz GNSS (GPS, GLONASS and Galileo) for accurate positioning and smooth speed as well as COG data Slimline display borders, edge-to-edge glass and reduced unit footprint make for easy retrofit in a wider range of dash configurations Preloaded Garmin Navionics+TM coastal charts and inland mapping feature Auto Guidance+TM technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) ; plus, there's support for optional Garmin Navionics Vision+TM premium map content. J1939 engine connectivity for easy integration with engines and our exclusive OneHelmTM feature for connecting to your compatible third-party devices, such as EmpirBusTM digital switching Easily build your marine system - from compatible sonar and autopilots to compatible radar, cameras and multimedia - by using NMEA 2000(R) and NMEA 0183 networking and the Garmin Marine Network Use built-in Wi-Fi(R) networking to pair with the free ActiveCaptain(R) smartphone app for access to the OneChartTM feature, smart notifications, software updates and more. Integrated ANT(R) connectivity support for use with your compatible quatix(R) marine smartwatches, gWindTM Wireless 2 transducer, GNXTM Wind marine instrument and wireless remote controls Built-in Ultra High-Definition SideVüTM and ClearVüTM scanning sonars with high-contrast vivid color palettes to help distinguish fish from structure Supports live sonar devices, 1 kW CHIRP traditional sonar and more Get a sharper view from your connected helm with the GPSMAP(R) 943xsv chartplotter. Its higher-resolution 9 in in-plane switching display has 50% more pixels than previous-generation chartplotters. And with its compact footprint

Read more less

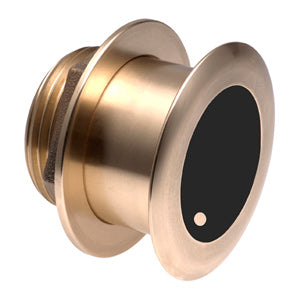

Freq. Khz Power Beam Width ( deg) LF//HF (-3dB) Max Depth (ft) Septh,Speed,Temp # of Pins Supported Deadrise / Transom Angles 40-60 1KW 16-25 3000 Depth,Temp 8 16-24 deg Deadrise

Read more less

Freq. Khz Power Beam Width ( deg) LF//HF (-3dB) Max Depth (ft) Septh,Speed,Temp # of Pins Supported Deadrise / Transom Angles 40-60 1KW 16-25 3000 Depth,Temp 8 8-15 deg Deadrise

Read more less

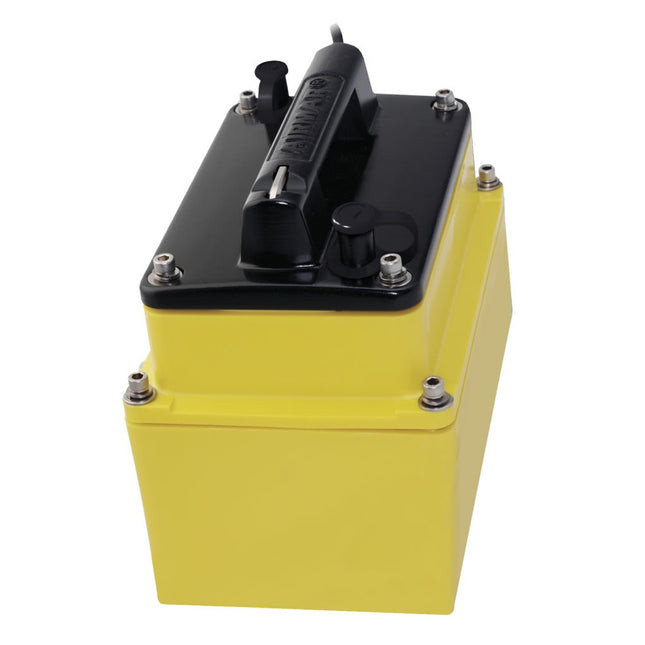

Airmar M265C-LH Low High CHIRP In-Hull Transducer with Garmin 12-PinModel: 010-12380-20 Depth only 1 kW of power for great deep-water performance Low frequency: 42 to 65 kHz, 25 deg to 16 deg beamwidth, Maximum depth of 914 m (3000 feet) High frequency: 130 to 210 kHz, 10 deg to 6 deg beamwidth, Maximum depth of 304 m (1000 feet) 103 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Plastic transducer housing and mounting tank Patented Xducer ID(R) technology We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna-60 kHz, squid-133 kHz, and cod-175 kHz. The M265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.Airmar's M265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10 deg to 6 deg, bandwidth-perfect for picking apart structure and pinpointing tight-holding fish in structure.The transducer is installed in the included tank which is cut to the boat's deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.SpecificationsCable-Length10 m (33 feet) Connector Garmin 12-Pin Deadrise Range 0 deg to 22 deg Frequency Band Low-High Housing Material Plastic Low Frequency 42-65 kHz Low Frequency Beamwidth 25 deg-16 deg Max Deadrise Accommodates a deadrise angle up to 30 deg with the longest side of the tank installed parallel to the centerline (keel) of the hull Max Depth Low frequency- 914 m (3000 feet), High frequency- 304 m (1000 feet) Mounting Style In-Hull Single or Dual Frequency CHIRP-Ready Dual-Band High Frequency 130-210 kHz High Frequency Beamwidth 10 deg-6 deg

Read more less

Garmin GMR xHD3 6 feet Antenna OnlyModel: 010-02780-10This is a 6 feet replacement xHD3 AntennaSpecificationsDIMENSION6 feet array: 1938 x 122 x 170 mm (76.5 x 4.8 in x 6.7 in) ANTENNA LENGTH 6 feet array: 72 in (183 cm) BEAM WIDTH 6 feet array: 1.1 deg horizontal

Read more less

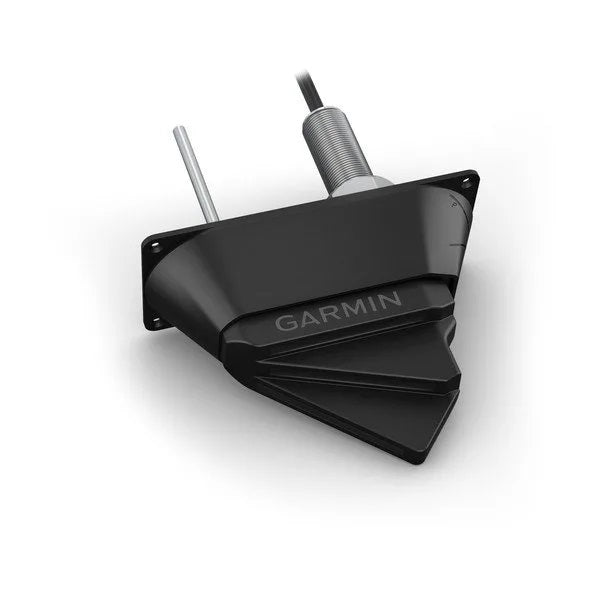

Garmin PanoptixTM LVS32-TH Transducer Thru-hull MountModel: 010-12928-01This transducer is part of the Pantopix LiveScope system and requires the GLS 10 sonar black box to function. This thru-hull version transducer features LiveScope Forward to see detailed, easy-to-interpret live scanning sonar images of structure, bait and fish swimming up to 200 feet around your boat in real-time, even when your boat is stationary. Attitude Heading Reference System (AHRS) stabilization keeps your sonar view steady, even in rough conditions.SpecificationsTRANSDUCER FREQUENCY530 - 1,100 kHz TRANSDUCER POWER 500w TRANSDUCER BEAMWIDTH 20 deg x 135 deg TRANSDUCER MAXIMUM DEPTH Forward: 200 feet (61.0 m) TRANSDUCER CABLE LENGTH 20 ft. TRANSDUCER DEPTH/SPEED/TEMPERATURE Depth TRANSDUCER NUMBER OF PINS 21 What's in the Box: Panoptix LVS32-TH transducer Thru-hull mounting hardware Mounting hardware Documentation

Read more less

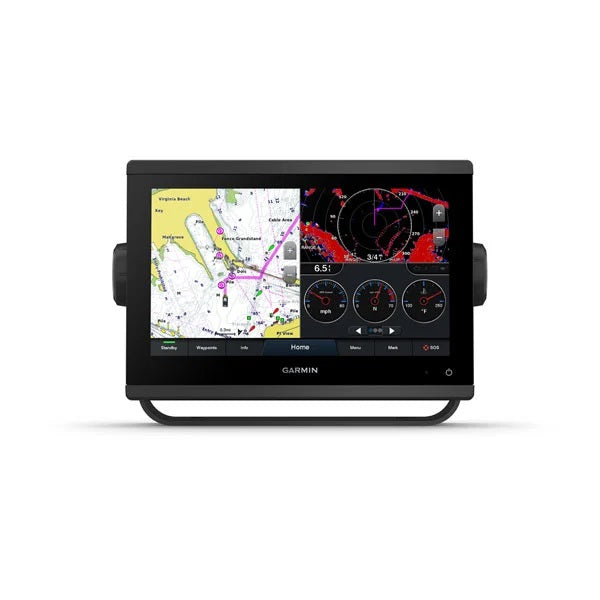

Garmin GPSMAP 943 Chartplotter with U.S. and Canada Garmin Navionics+Model: 010-02366-60 New higher-resolution in-plane switching touchscreen display offers improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9 in units Fast and responsive, with nearly twice the processing power of previous-generation GPSMAP(R) devices, this system references 10 Hz GNSS (GPS, GLONASS and Galileo) for accurate positioning and smooth speed as well as COG data Slimline display borders, edge-to-edge glass and reduced unit footprint make for easy retrofit in a wider range of dash configurations Preloaded Garmin Navionics+TM coastal charts and inland mapping feature Auto Guidance+TM technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) ; plus, there's support for optional Garmin Navionics Vision+TM premium map content. Built-in Garmin SailAssistTM features, including laylines, race features, set and drift, wind data and more. Requires compatible wind transducer (sold separately) J1939 engine connectivity for easy integration with engines and our exclusive OneHelmTM feature for connecting to your compatible third-party devices, such as EmpirBusTM digital switching Easily build your marine system - from compatible sonar and autopilots to compatible radar, cameras and multimedia - by using NMEA 2000(R) and NMEA 0183 networking and the Garmin Marine Network Use built-in Wi-Fi(R) networking to pair with the free ActiveCaptain(R) smartphone app for access to the OneChartTM feature, smart notifications, software updates and more. Integrated ANT(R) connectivity support for use with compatible quatix(R) smartwatches, the gWindTM Wireless 2 transducer, GNXTM Wind marine instrument and wireless remote controls With 50% more display pixels and nearly double the processing power of previous-generation 9 in GPSMAP devices

Read more less

Garmin GPSMAP 923 Chartplotter with Worldwide BasemapModel: 010-02366-00 Easily integrate with more engines. Connect to compatible third-party devices with OneHelmTM digital switching. Easily build your marine system using the best of network connectivity. Compatible with premium maps and charts for the best in Garmin navigation. Take the guesswork out of sailing with clear laylines and more - right on the screen. Manage your marine experience from nearly anywhere2. With 50% more display pixels and nearly double the processing power of previous-generation 9 in GPSMAP devices, this crisp touchscreen chartplotter with high-resolution IPS display integrates seamlessly into your Garmin marine system.With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it's easy to retrofit this 9 in plotter in a wider range of dash configurations.New higher-resolution 9 in displays offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9 in GPSMAP devices.View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more3.These optional charts offer the best of Garmin and Navionics(R) data, Auto Guidance4 technology and other premium navigation features.If you have multiple compatible Garmin devices on your boat, you can share information - such as maps, user data, radar and IP camera video - among them.Connect to compatible autopilots, digital switching, weather, Fusion-LinkTM audio system, media, VHF, AIS and more from one screen.Built-in Wi-Fi(R) connectivity pairs with the free all-in-one mobile app for access to the OneChartTM feature, smart notifications, software updates, Garmin HelmTM digital switching, Garmin QuickdrawTM Community data and more5.Connect with some of your favorite devices, such as quatix(R) marine watches, gWindTM Wireless 2 transducers, GNXTM Wind marine instruments and wireless remote controls.Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBusTM digital switching, on one screen.Pair with Panoptix PS51 (transducer sold separately) with FrontVü scanning sonar6 to help you see and avoid submerged obstacles in real time as you approach within a 300 feet range.SpecificationsPHYSICAL DIMENSIONS9.2 x 6.4 in x 3 in (23.3 x 16.2 x 7.6 cm) DISPLAY SIZE 7.8 in x 4.4 in; 9.0 in diagonal DISPLAY RESOLUTION 1280 x 720 pixels DISPLAY TYPE WXGA display WEIGHT 3.6 lbs (1.6 kg) WATER RATING IPX7 POLARIZED SUPPORT Yes POWER CONSUMPTION Max power usage at 10 Vdc: 22 W

Read more less

GT51M-THP - Stainless Steel Thru-Hull Pair DownVü/SideVü 500 W (CHIRP 260/455 kHz) Traditional 600 W (Mid-band CHIRP 80-160 kHz) Transducers with Temp (12-Pin)This thru-hull transducer pair provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. These traditional CHIRP sonar and CHIRP DownVü/SideVü transducers are optimized for depth performance and rough conditions.The CHIRP DownVü/ SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees.GT51M-THP includes a 12-pin port/starboard transducers with stainless steel stems, fairing blocks, Y-cable, bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.Compatible Devices: GPSMAP® 7607xsv GPSMAP® 7608xsv GPSMAP® 7610xsv GPSMAP® 7612xsv GSD™ 25 Premium Sonar Module WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Imaging: Standard/Down/Side Chirp: Medium/Non Traditional Cable Length (Feet): 5' + 30' y-extension Temperature: Yes Speed Included: No Pins: 12 Mounting Style: Thru-Hull Box Dimensions: 6"H x 13"W x 17"L WT: 15 lbs UPC: 753759152932 Owner's Manual (pdf)

Read more less

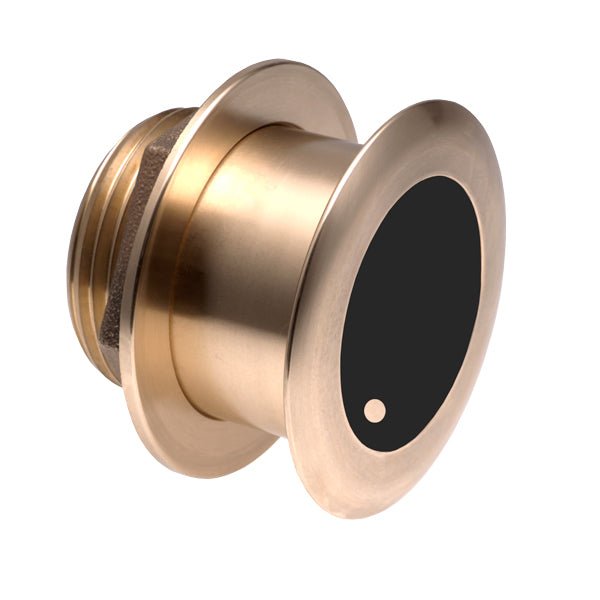

Garmin B175CHW 20Deg Tlilted Element Bronze Thru-Hull with 8-PinModel: 010-12181-22Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, high, and high wide versions provide maximum flexibility for the choice of frequencies.An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 600 feet; an operating frequency of 150-250 kHz; a beamwidth of 25 degrees; and a 16 to 24 degree deadrise.SpecificationsCable length39 ft Depth/Temperature Yes Power 1kW Frequency 150-250 kHz Supported deadrise/Transom angles 16 deg-24 deg degree deadrise Maximum depth 600 ft. Number of pins 8-pin Beamwidth 25 deg

Read more less

GT56UHD-THP Thru-Hull Mount Transducer - PairThis all-in-one transducer offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars, high wide CHIRP traditional sonar, and more, so you can spend more time catching fish.Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element. See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has a 20% greater range at 1,000 kHz, so you can see even farther than before.Features: See everything below and around your boat with Ultra High-Definition scanning sonar High wide CHIRP traditional sonar delivers target separation like no other Multiple sonar frequencies have you covered — no matter what depth you’re fishing See targets and structure in bright, vivid color Mount this transducer your way — transom, trolling motor or thru-hull Specifications: Cable Length (Feet): 25' Chirp: High Wide Imaging: Standard/Down/Side Mounting Style: Thru-Hull Pins: 12 Speed Included: No Temperature: Yes Box Dimensions: 4"H x 7"W x 18"L WT: 15 lbs UPC: 753759294236

Read more less

Garmin Cortex(R) M1 SOTDMA SmartAIS Transponder with Remote Vessel MonitoringModel: 010-02815-20 A high-speed smartAIS transponder transmits your boat's location and heading and proactively warns of certain collision threats. In addition to collision alerts, smartAIS will trigger alarms for anchor drag or man overboard situations. This hub comes VHF-ready. Simply add a Cortex handset (sold separately) for full VHF radio capability. Cortex apps let you monitor boat systems, receive alerts and remotely control devices from your compatible smartphone. A GPIO port and supplied cable allow you to monitor bilge pumps, security sensors, shore power and more. NMEA 2000(R) networking allows you to view Cortex data on your connected MFDs and chartplotters. Cortex M1 is a full Class B SOTDMA transceiver combining GPS, AIS and heading data with smart logic to proactively warn you of certain collision risks with alarms or voice-annunciated alerts that escalate until acknowledged. AIS vessel information (name, bearing and relative position) is continuously provided using AIS information broadcast from other boats.Using actual anchor position from the bow and the Cortex built-in heading sensor, smartAIS tracks boat movement and sounds an alarm if the anchor drags or if there is a change in wind speed, direction or water depth. While on your boat, get alerts on your compatible mobile device via the Cortex Onboard app - or via the Cortex Monitor app when you're ashore.Cortex smartAIS continuously watches for man overboard (MOB) activations, sounding an alarm when it detects one. MOB can be manually activated via the Cortex Onboard smart device app or automatically from an AIS MOB beacon - which launches a track-back mode for quicker retrieval.In the event of a collision alarm, Cortex will announce the direction of a collision threat, such as "collision alert, starboard bow." Instead of an ambiguous beep that other AIS systems provide, Cortex tells users what the alert is for and the direction of the threat.Check boat status, receive alerts and control devices with Cortex remote monitoring access using Cortex handsets (sold separately) or Cortex smartphone apps. Directly connect up to 5 external sensors to your system for added monitoring capability.Subscribe to a premium Cortex Monitor plan to receive alerts, see real-time information about your boat and remotely control devices such as air conditioning, lighting, refrigeration or ice makers using the Cortex Monitor app on your compatible smartphone.While you're on your boat, the Cortex Onboard app can serve as your primary interface with your Cortex M1 hub, allowing you to monitor boat stats, receive alerts, view instrument data and display AIS screens on your compatible smart device.Broadcast built-in heading via AIS transmissions to other vessels so they can more accurately track their closest point of approach and alter course to avoid you.Cortex can receive and broadcast information over NMEA 0183 and NMEA 2000 networks, making it compatible with the majority of modern chartplotters and multi-function displays.SpecificationsUNIT SIZE168 x 168 x 58.7 mm (6 5/8 in x 6 5/8 in x 2 5/16 in ) WEIGHT 770 g (1.7 lbs) WATER RATING IPX8 (water submersion rating to 10 feet) OPERATING VOLTAGE 9-33V CURRENT DRAW 12V: 6A max, 700mA nom ANT CONNECTOR SO239 SPLITTER Max input power 25 W Insertion loss RX 0dB, TX < 2dB SPLITTER CONNECTOR BNC VHF Voice DEDICATED RX VHF CHANNELS 3 VHF POWER OUTPUT 25 W, 1 W (high, low) REGION U.S., Canada, International Class D DSC CLASS Class D DEDICATED RX DSC CHANNELS 1 AIS CLASS SOTDMA Class B DEDICATED RX AIS CHANNELS 2 AIS POWER OUTPUT 5W Networking NMEA 2000(R) GATEWAY 1 isolated micro-C male port, AIS, GPS & MOB PGN output, gateway translations to/from NMEA 0183 NMEA 2000(R) LEN 2 NMEA 0183 DETAIL 1 isolated NMEA 0183 port, AIS & GPS sentences, gateway translations to/from NMEA 2000(R), 4800/38400 baud WIRELESS SECURITY WPA2 Personal CLOUD CONNECTIVITY LTE-Cat1 with 3G fallback (U.S., Canada), 3G (Europe, Asia), integrated SIM, integrated antenna, SMA-RP external antenna port CONTROL OUTPUTS 2; low side driven (max 150mA) Connections CONNECTIONS WIRELESS CONNECTIVITY access point for up to 5 handsets (max 10 devices total), simultaneous client mode, 2.4 GHz, 802.11b/g/n, integrated antenna, SMA-RP external antenna port (optional) What's in the Box: M1 Hub GPS antenna Power cable Audio cable External sensors cable External Wi-Fi(R) cable VHF patch cable

Read more less

Garmin GT51M-THP TransducerTHRU-HULL Pair 12-PinModel: 010-01966-11Perfect for the coastal and offshore fisherman who want CHIRP traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar with stainless steel stems, this pair of thru-hull mounted transducers consistently displays clear and crisp fish arches with superior target separation as well as clear pictures of objects, structure and fish that pass below and to each side of your boat and is optimized for rough sea conditions.The CHIRP ClearVü/ SideVü elements have a power rating of 500 W per element and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees.GT51M-THP includes a 12-pin port/starboard transducers with stainless steel stems, fairing blocks, Y-cable, bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.SpecificationsCHIRP Mid-band(80-160 kHz) ClearVü/SideVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz) Power CHIRP Traditional 600 W ClearVü/SideVü 500 W Beamwidth Traditional 24 deg-13 deg ClearVü/SideVü 2.0 degx51 deg @ 260 kHz and 1.4 degx29 deg @ 455 kHz Maximum depth Traditional 1,800 ft ClearVü 1,000 ft SideVü 750 ft. Depth/Speed/Temperature Depth and Temperature Number of pins 12-pin Cable length 5 ft. + 30 ft. y-extension cable Supported deadrise/Transom angles Up to 25 deg deadrise What's in the Box: Port Transducer Starboard transducer Fair Block x 2 Isolation plate and busing x 2 Mounting Hardware Documentation Y-Cable

Read more less

Garmin GT56UHD-THP Thru-Hull Transducer PairModel: 010-02732-11 See everything below and around your boat with Ultra High-Definition scanning sonar. High wide CHIRP traditional sonar delivers target separation like no other. Multiple sonar frequencies have you covered - no matter what depth you're fishing. See targets and structure in bright, vivid color. Mount this transducer your way - transom, trolling motor or thru-hull. This all-in-one transducer offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars, high wide CHIRP traditional sonar and more, so you can spend more time catching fish.Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element.See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has 20% greater range at 1,000 kHz, so you can see even farther than before.Experience remarkably clear target separation and definition up to 800 feet below your boat.Experience remarkably clear target separation and definition up to 800 feet below your boat.High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Everyone's setup is different. That's why we've included transom, trolling motor and thru-hull mounting hardware.SpecificationsTRANSDUCER CABLE LENGTH25 ft TRANSDUCER FREQUENCY Traditional High-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) TRANSDUCER POWER Traditional 350 W; ClearVü/SideVü 500 W TRANSDUCER BEAMWIDTH Traditional CHIRP: 24-16; ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz TRANSDUCER MAXIMUM DEPTH Traditional: 800 ft freshwater; ClearVü: 400 ft; SideVü: 500 ft TRANSDUCER DEPTH/SPEED/TEMPERATURE Depth and temperature TRANSDUCER NUMBER OF PINS 12 TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES 0 deg-70 deg degree transom (GT56UHD-TM) Dimensions (without mount): 218.5 mm x 51.8 mm x 27.7 mm Each What's in the Box: GT56UHD-TH transducer x 2 Stainless steel stem x 2 Fairing block x 2 Isolation plate and bushing x 2 Y-Cable Mounting hardware Documentation

Read more less

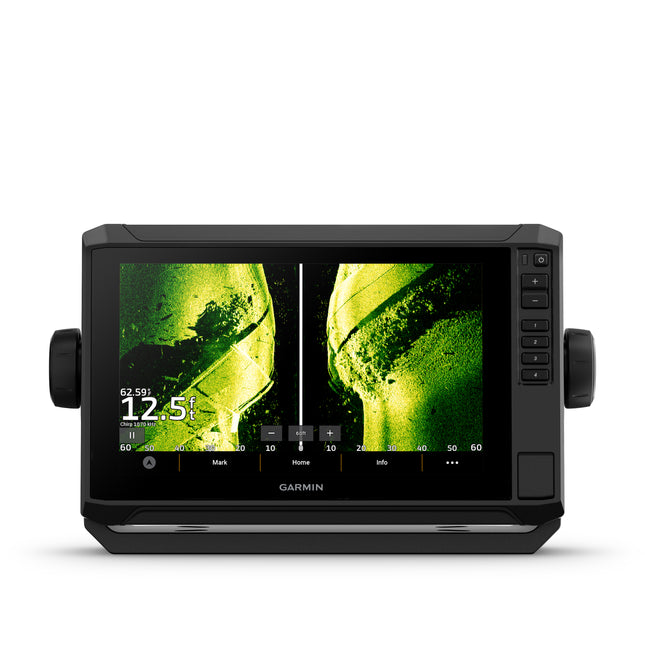

Garmin ECHOMAP UHD2 94sv, U.S. coastal with GT56 transducerModel: 010-02689-01 Easy-to-use 9 in chartplotter with a bright, sunlight-readable touchscreen display with improved detail, clarity and viewing angle Built-in Garmin Navionics+TM coastal charts with integrated Navionics(R) data Built-in Wi-Fi(R) connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter Wirelessly connects to your Force(R) trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more Included GT56-TM transducer for Garmin traditional

Read more less

Garmin GPSMAP(R) 1022 10-inch Chartplotter Is All-in-1 SolutionModel: 010-01740-00UPC: 753759168308 10-inch color display with keypad interface and multifunction control knob High-sensitivity internal 10 Hz GPS and GLONASS receiver Fully network capable for Garmin Marine Network and NMEA 2000(R) plus NMEA 0183 support Supports optional BlueChart(R) g3 Vision(R) premium charts GPSMAP 1022 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and PanoptixTM sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.Built in Wi-Fi gives you access to the free all-in-one ActiveCaptainTM app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you'll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin QuickdrawTM Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints - and finding your way back to them - quick and easy.Upgrade to optional premium BlueChart g3 Vision charts and LakeVü g3 Ultra maps. These add features such as high-resolution relief shading of bottom structure - which provides more 3-D relief than contours alone - satellite imagery and more.To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.If you have waypoints, tracks or frequently used routes stored on another manufacturer's GPS product - or on a Garmin handheld device - it's easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.SpecificationsDimensions12.5 x 7.3 in x 2.7 in (318 x 185 x 69 cm) Display size 8.8 in x 4.9 in (224 x 125 cm) Display resolution 1024 x 600 Display type WSVGA display Weight 4.1lbs Water rating IPX7 Power consumption Max power usage at 10 Vdc: 32.4 W Antenna Internal or external over NMEA 2000 Mounting options Bail or flush Receiver 10 Hz high-sensitivity Garmin Marine NetworkTM ports 2 Preloaded maps None Accepts data cards 2 SDTM cards Waypoints 5

Read more less

Airmar B175Hw/20° Tilt1kWFlush-mounted bronze housing protrudes less than 1/4" outside hull and can sit on trailer rollers/bunks without damage. Tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.Max Depth - 3,000'Suppoarted Deadrise/Transom Angles - 16-24° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Thru-Hull Imaging: Standard Chirp: High Cable Length (Feet): 39' Temperature: Yes Pins: 8 Speed Included: No Box Dimensions: 8"H x 10"W x 12"L WT: 11.2 lbs UPC: 753759995706 Owner's Manual (pdf)Brochure (pdf)

Read more less

Designed for racing sailboats 3.3 feet (1 meter) straight pole raises the wind transducer above the mast to remove turbulence errors from the sail wash Three-bladed propeller for more accurate True Wind Speed (TWS) in lighter air twin-fin design gives a more stable True Wind Angle (TWA) Optic reading technique provides superior performance at low wind speeds and excellent linearity GNDTM 10 black box bridges NMEA 2000(R) data to Nexus Network and enables Garmin compatible chartplotters integrate with Nexus sail equipment and vice versa Designed for racing sailboats, the gWind Race features a 3.3 feet (1 meter) straight pole to raise the transducer above the mast to remove turbulence errors. Features twin-fin technology with 3-bladed propeller for more accurate TWS in lighter air while the twin-fin design gives a more stable TWA. The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity. And it's all connected using our lightest cable. The included GND 10 black box bridge enables the Nexus Network and Garmin compatible chartplotters to share critical NMEA 2000 data. Easy plug-and-play installation between Nexus, Garmin chartplotters and NMEA 2000. Specifications Unit Dimension, H: 117.2 cm Weight: 320g Cable Length: 25m Waterproof: Yes (IPX7) Temp Range: From 5 degF to 158 degF (-15 degC to 70 degC) Voltage Range: 9-16V Power Usage: 0.33W Compass Safe Distance: N/A Accuracy Angle: Better than ±1.5 deg Speed: Better than ±3% NMEA 2000(R) Load Equivalency Number (LEN): N/A Wireless Connectivity: No In the Box gWind Race transducer GNDTM 10 USB Mini-B cable NMEA 2000(R) drop cable (2 m) NMEA 2000 T-connector Mast cable with female connector (25 m) Nexus network cable (5 m; straight connector) Nexus female field installable connector Mast bracket Mounting hardware Documentation

Read more less

B164 1kW Tilted Element 20° - 8-PinGarmin's bronze, thru-hull mount transducer with 20° tilt provides depth and temperature data. Garmin's transducer has an operating frequency of 50 or 200 kHz and mounts on a 16-24° deadrise angle.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imaging: Standard Cable Length (Feet): 39' Chirp: No Box Dimensions: 8"H x 10"W x 12"L WT: 11 lbs UPC: 753759971908 Owner's Manual (pdf)Brochure (pdf)

Read more less

Garmin ECHOMAP UHD2 94sv, U.S. coastal without transducerModel: 010-02689-00 Easy-to-use 9 in chartplotter with a bright, sunlight-readable touchscreen display with improved detail, clarity and viewing angle Built-in Garmin Navionics+TM coastal charts with integrated Navionics(R) data Built-in Wi-Fi(R) connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter Wirelessly connects to your Force(R) trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more The 9 in ECHOMAPTM UHD2 touchscreen with keyed-assist chartplotter knows the water better than a local. Its high-resolution display offers improved detail

Read more less

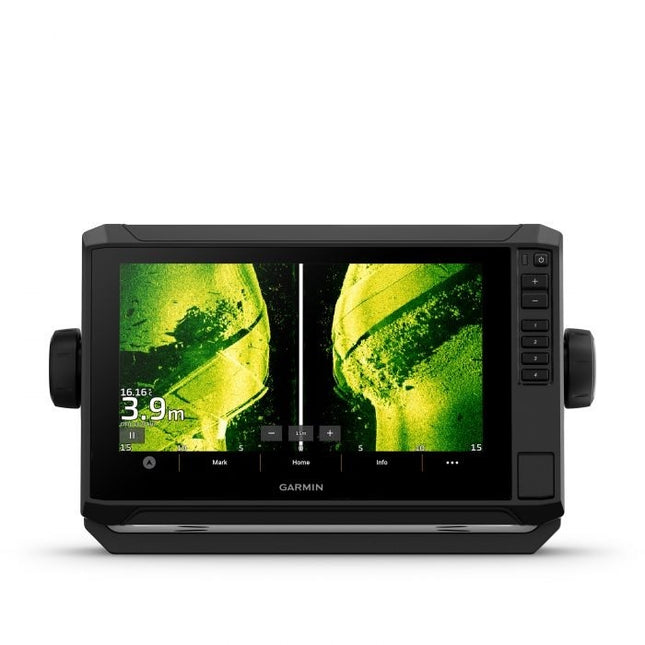

Garmin ECHOMAP UHD2 95sv, Canada inland and coastal with GT56 transducerModel: 010-02690-00 Easy-to-use 9 in chartplotter with a bright, sunlight-readable touchscreen display with improved detail, clarity and viewing angle Built-in Canada Garmin Navionics+TM inland and coastal maps with integrated Navionics(R) data cover more than 8,100 lakes with up to 1 feet contours Built-in Wi-Fi(R) connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter Wirelessly connects to your Force(R) trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more Included GT56-TM transducer for Garmin traditional

Read more less

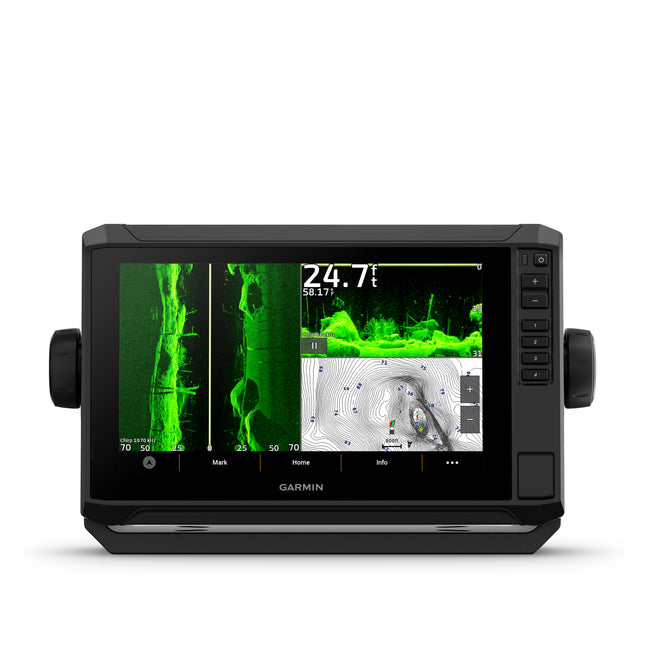

Garmin ECHOMAP UHD2 93sv, U.S. inland with GT56 transducerModel: 010-02688-01 Easy-to-use 9 in chartplotter with a bright, sunlight-readable touchscreen display with improved detail, clarity and viewing angle Built-in Garmin Navionics+TM inland maps with integrated Navionics(R) data cover more than 18,000 lakes with up to 1 feet contours Built-in Wi-Fi(R) connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter Wirelessly connects to your Force(R) trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more Included GT56-TM transducer for Garmin traditional

Read more less

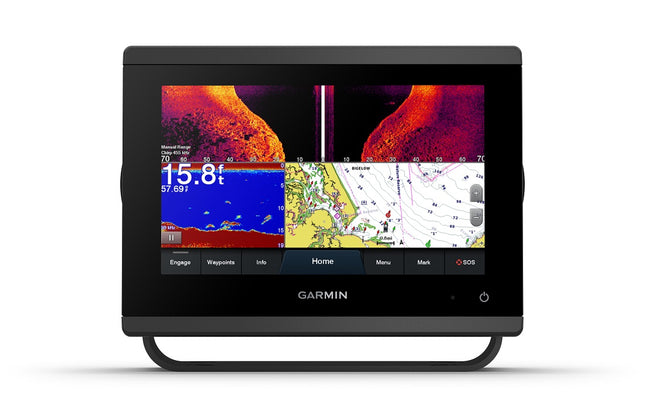

Garmin GPSMAP(R) 743xsv SideVü, ClearVü and Traditional CHIRP Sonar with MappingModel: 010-02365-61 Easily integrate with more engines. Connect to compatible third-party devices with OneHelmTM digital switching. Easily build your marine system using the best of network connectivity. Navigate any waters with preloaded Garmin Navionics+TM charts and mapping. See below your boat with built-in sonar capabilities. Manage your marine experience from nearly anywhere. Get built-in Ultra High-Definition SideVü and ClearVüTM scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP(R) X3 series also supports 1 kW CHIRP traditional sonar capabilities.Pair with Panoptix or LiveScopeTM easy-to-interpret live sonar (transducer required, sold separately) to see all around your boat in real time.With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it's easy to retrofit this plotter in a wider range of dash configurations.New higher-resolution IPS displays for 9 in and 12 in plotters offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9 in GPSMAP devices.Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping that includes Auto Guidance+TM technology3 and a 1-year subscription for downloadable daily updates and more on select chartplotters.Bring a fresh new look and feel to your chartplotter with optional upgrade to Garmin Navionics Vision+TM premium chart subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery and more.View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more3.Use the polar table to see key data, including how fast you should go at a certain wind angle and speed - so you know whether you need to adjust sail trim.If you have multiple compatible Garmin devices on your boat, you can share information - such as maps, user data, radar and IP camera video - among them.Connect to compatible autopilots, digital switching, weather, Fusion-LinkTM audio system, media, VHF, AIS and more from one screen.Built-in Wi-Fi(R) connectivity pairs with the free all-in-one mobile app for access to the OneChartTM feature, smart notifications, software updates, Helm, Garmin QuickdrawTM Community data and more4.Connect with some of your favorite devices, such as quatix(R) marine watches, gWindTM Wireless 2 transducers, GNXTM Wind marine instruments and wireless remote controls.Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.This feature brings together all the operations and capabilities of select third-party devices, such as EmpirBusTM digital switching, on one screen.SpecificationsDIMENSION7.6 x 5.5 in x 2.9 in (19.2 x 14.0 x 7.4 cm) DISPLAY SIZE 6.1 in x 3.5 in; 7.0 in diagonal (15.4 x 9.1 cm; 17.8 cm diagonal) DISPLAY RESOLUTION 1024 x 600 pixels DISPLAY TYPE WSVGA WEIGHT 2.8 lbs (1.3 kg) WATER RATING IPX7 Maps & Memory ACCEPTS DATA CARDS 2 microSD cards (back of unit) WAYPOINTS 5000 TRACK POINTS 50

Read more less

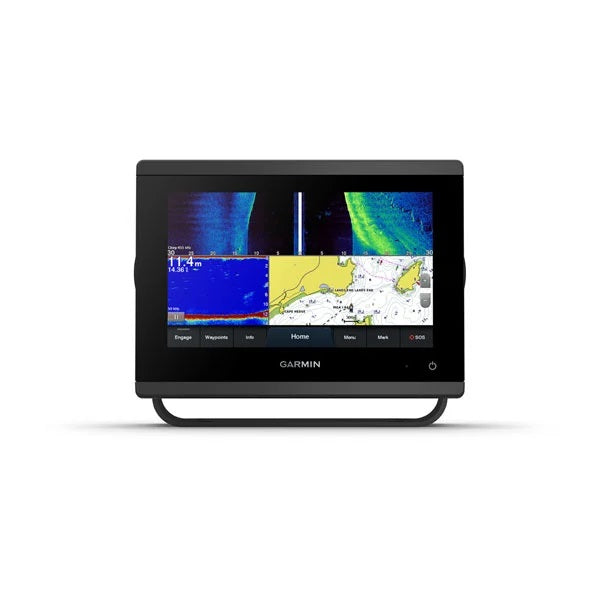

Garmin GPSMAP 723xsv SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide BasemapModel: 010-02365-02 Easily integrate with more engines. Connect to compatible third-party devices with OneHelmTM digital switching. Easily build your marine system using the best of network connectivity. Compatible with premium maps and charts1 for the best in Garmin navigation. See below your boat with built-in sonar capabilities. Manage your marine experience from nearly anywhere1. With 60% more display pixels and nearly double the processing power of previous-generation 7 in GPSMAP devices, this crisp high-resolution chartplotter/sonar combo integrates seamlessly into your Garmin marine system.Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 723xsv also supports 1 kW CHIRP traditional sonar capabilities.Pair with Panoptix or Panoptix LiveScopeTM easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it's easy to retrofit this 7 in plotter in a wider range of dash configurations.New higher-resolution 7 in displays offer improved sunlight readability with 60% more pixels than previous-generation 7 in GPSMAP devices.These optional charts offer the best of Garmin and Navionics(R) data, Auto Guidance3 technology and other premium navigation features.If you have multiple compatible Garmin devices on your boat, you can share information - such as maps, user data, radar and IP camera video - among them.Connect to compatible autopilots, digital switching, weather, Fusion-LinkTM audio system, media, VHF, AIS and more from one screen.Built-in Wi-Fi(R) connectivity pairs with the free all-in-one mobile app for access to the OneChartTM feature, smart notifications, software updates, Garmin HelmTM digital switching, Garmin QuickdrawTM Community data and more4.Connect with some of your favorite devices, such as quatix(R) marine watches, gWindTM Wireless 2 transducers, GNXTM Wind marine instruments and wireless remote controls.Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBusTM digital switching, on one screen.SpecificationsPHYSICAL DIMENSIONS7.6 x 5.5 in x 2.9 in (19.2 x 14.0 x 7.4 cm) DISPLAY SIZE 6.1 in x 3.5 in; 7.0 in diagonal
