GT34UHD-THP Ultra HD Thru-Hull Transducer - PairUltra High-Definition Sonar System Thru-hull TransducerAdd stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCV™ 20 sonar module. It includes 3 arrays, including a downward-facing element element — with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) — and it’s recommended for hulls with up to a 5-degree deadrise angle.Ultra High-Definition ClearVü ScanningThis mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.Ultra High-Definition SideVü ScanningThis mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.Specifications:Frequency: Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz Power: 500W Beamwidth: Ultra High-Defintion ClearVü: 0.74° x 46° Ultra High-Defintion SideVü: 0.44° x 55° Maximum depth: Ultra High-Defintion ClearVü: 200' down Ultra High-Defintion SideVü: 125' sides, 250' total Depth/Speed/Temperature: Depth and Temperature Number of pins: 12-pin Cable length: 20' Supported deadrise/Transom angles: Up to 25° deadrise WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Chirp: Non Traditional Cable Length (Feet): 20' Imaging: Down/Side Speed Included: No Pins: 12 Mounting Style: Thru-Hull Temperature: Yes Box Dimensions: 5"H x 13"W x 14"L WT: 9.45 lbs UPC: 753759206369

Read more less

Airmar's 8-pin B260 bronze, thru-hull mount transducer with fairing provides depth and temperature data. This transducer has an operating frequency of 50 or 200 kHz and mounts on a 0-22 deg deadrise angle.

Read more less

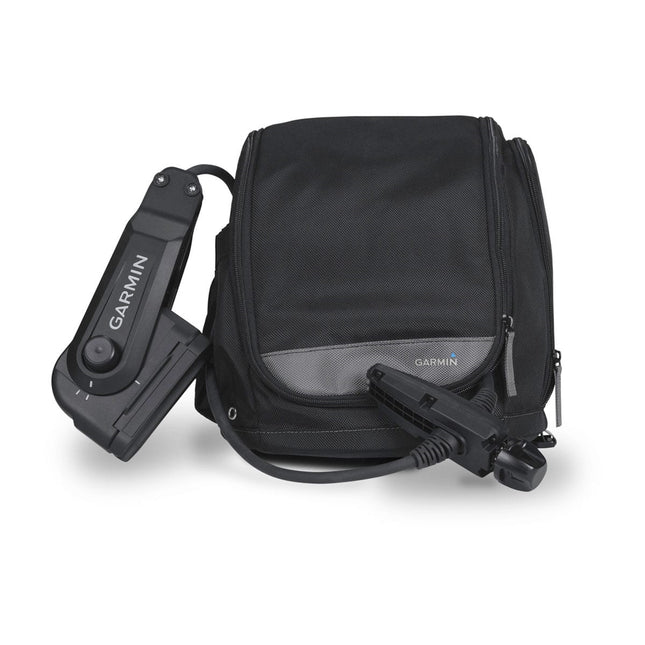

Garmin PanoptixTM PS22-IF Portable Ice Fishing KitModel: 010-12676-60 PANOPTIX SONAR LIVEVüTM FORWARD AND LIVEVü DOWN MODES POLE MOUNT-FREE DESIGN REMOVABLE TRANSDUCER LENS GLOVE-FRIENDLY PORTABLE BAG The ultraportable Panoptix PS22-IF ice fishing kit provides two live sonar modes and a pole mount-free design, so you can move faster between holes to find more fish.LiveVü Forward scan mode shows up to 100 feet all around you, so you can locate schools of fish and know where to drill. LiveVü Down mode homes in on targets, so you can watch fish respond to your jig.The Panoptix PS22-IF transducer has an all-new bracket and rotator - which eliminates the need for a pole mount and increases portability.The bracket attaches directly to the transducer for Forward and Down mode adjustments.The transducer rotator attaches directly to the transducer cable, allowing for quick depth and direction adjustments with easy-to-read directional indicators.Easily change between wide and narrow beams to focus on areas of interest with the removable transducer lens.The rugged, glove-friendly carrying case lets you easily transport your entire bundle from hole to hole.What's in the Box: Panoptix PS22-IF transducer Transducer bracket Transducer rotator Removable lens Power cable Documentation Small bag, base and handle Rechargeable battery Battery charger

Read more less

Freq. Khz Power Beam Width ( deg) LF//HF (-3dB) Max Depth (ft) Septh,Speed,Temp # of Pins Supported Deadrise / Transom Angles 85-135 1KW 11-16 3000 Depth,Temp 8 8-15 deg Deadrise

Read more less

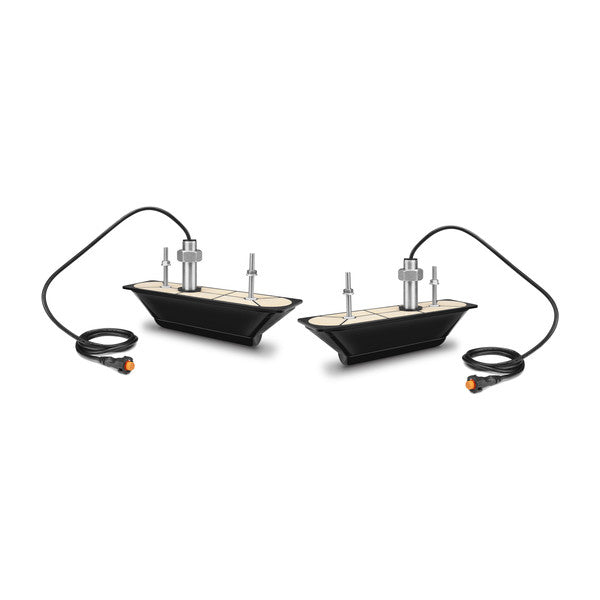

Garmin Garmin GT34UHD-THPModel: 010-12776-11Garmin GT34UHD-THPSpecificationsFrequencyUltra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz Power 500 W Beamwidth Ultra High-Defintion ClearVü: 0.74 deg x 46 deg Ultra High-Defintion SideVü: 0.44 deg x 55 deg Maximum depth 200 feet Ultra High-Definition ClearVü 125 feet to each side Ultra High-Definition SideVü, 250 feet total, at a maximum depth of 30 feet Depth/Speed/Temperature Depth and Temperature Number of pins 12-pin Cable length 20 ft. Supported deadrise/Transom angles Up to 25 deg deadrise

Read more less

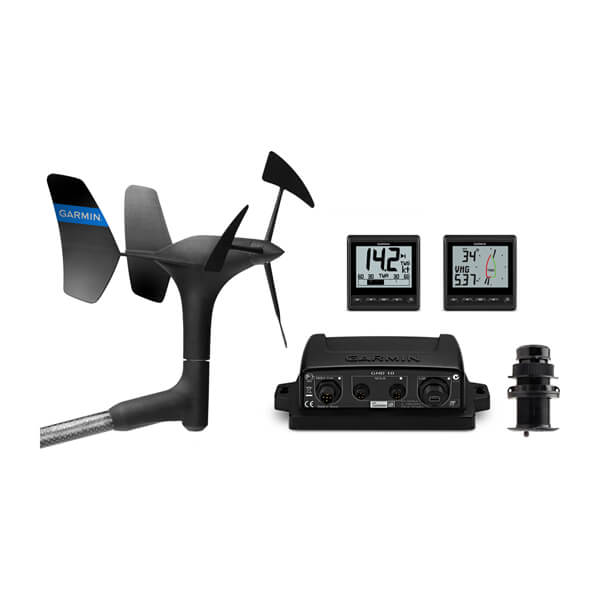

Garmin GNXTM Wired Sail Pack 52 GNXTM Wind, GNXTM 20, gWindTM Wired and DST810 transducersModel: 010-01248-70 Includes GNX Wind, gWindTM Wired, GNXTM 20 and Airmar DST810 transducer GNX Wind and GNX 20 instruments have highly visible monochrome LCD displays gWind Wired transducer features 3-bladed propeller and twin-fin design DST810 thru-hull smart transducer provides water depth, water speed and water temperature data - plus attitude sensing for heel/trim and pitch/roll inputs Wireless connectivity to devices with BLUETOOTH(R) technology enables DST810 calibration directly through Airmar's Cast app Easy plug-and-play installation between Nexus(R), Garmin chartplotters, NMEA 2000(R) and USB With a GNX Wind Wired Sail Pack, you will have all the equipment you need to know what's going on with the wind and the water.GNX Wind gives you the wind data necessary to make confident decisions. Features high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors. It also interfaces through the NMEA 2000 network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, steering guidance, boat speed and more. Low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats. Fully customizable user profiles allow you to configure the screen layout to your preferred setting. Display configurations include more than 15 important marine parameters for wind, speed and navigation. It can even wirelessly connect to a quatix(R) 3 GPS marine smartwatch via ANT technology to stream wind data directly to your wrist.gWind transducer features twin-fin technology with 3-bladed propeller for more accurate True Wind Speed (TWS) in lighter air while the twin-fin design gives a more stable True Wind Angle (TWA). The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity.The easy-to-read GNX 20 marine instrument display with black digits on a white or color background clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm.DST810 combines precise depth, speed and temperature data with altitude sensing for heel/trim and pitch/roll inputs - which it provides to the NMEA 2000(R) network and GNX 20 instrument. This multisensor transducer can read depths to 330 feet, offers fast 5 Hz water speed signal output and has an operating frequency of 235 kHz with a fan-shaped beamwidth of 10x44 degrees. Additionally, wireless connectivity to devices with BLUETOOTH(R) technology enables DST810 calibration directly through Airmar's Cast app. Advanced speed calibration allows for calibration at multiple heel angles and speeds.What's in the Box: gWindTM transducer GNXTM 20 marine instrument GNXTM Wind marine instrument GND 10 black box bridge Airmar DST810 thru-hull smart transducer NMEA 2000(R) drop cable (2 meters) x 3 NMEA 2000 T-connectors x 5 NMEA 2000 terminators Mast cable with female connector (25 meters) Nexus female field installable connector Mast bracket Mounting hardware Documentation

Read more less

LiveScope™ with LVS34 Transducer OnlyTHE BEST OF THE BEST JUST GOT BETTERThe latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images, and better target separation.Features: See images clearly with improved screen clarity, transducer sensitivity, and target separation.  Scan surroundings with sharper images, reduced noise, and fewer sonar artifacts. Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.   Get maximum contrast and clarity in your images with vivid color palettes.  Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount. Real-Time ImagesReal-time sonar ensures that your live images are as accurate as possible. Clear VisionSee exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure. Image StabilizationA built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions. Vivid Color PalettesChoose from seven vivid color options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity. Forward ModeScout ahead of your boat to see what’s happening in real time. Down ModeExplore live views of the activity directly beneath your boat. Perspective ModeSee under the water with a view from your perspective above the water.In The Box: Panoptix LVS34 transducer Perspective mount Trolling motor barrel mount Shaft mount Documentation

Read more less

LiveScope™ Plus LVS34-IF Ice Fishing TransducerThe best of the best just broke new ice with the LiveScope Plus LVS34-IF ice fishing transducer. Pair it with your compatible Garmin chartplotter via your GLS™ 10 sonar black box to get improved resolution, reduced noise, clearer images, and better target separation in LiveScope™ Forward and LiveScope™ Down modes. With a durable, flexible cold-weather transducer cable, you’re set for a day on the ice.In the Box: LiveScope Plus LVS34-IF 0-degree LiveScope pole mount Documentation Specifications:Sonar Type: LiveScope™ Plus

Read more less

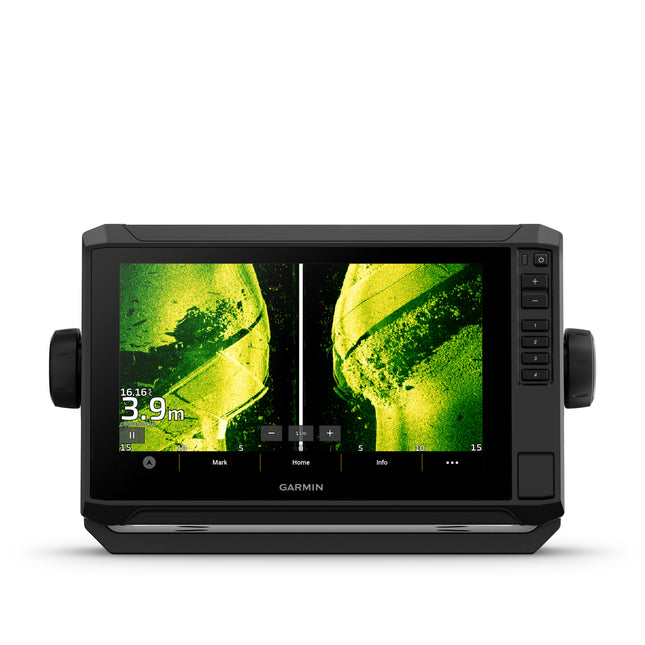

Garmin ECHOMAP UHD2 95sv, Canada inland and coastal without transducerModel: 010-02690-01 Easy-to-use 9" chartplotter with a bright, sunlight-readable touchscreen display with improved detail, clarity and viewing angle Built-in Canada Garmin Navionics+™ inland and coastal maps with integrated Navionics® data cover more than 8,100 lakes with up to 1’ contours Built-in Wi-Fi® connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter Wirelessly connects to your Force® trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more" The 9" ECHOMAP™ UHD2 touchscreen with keyed-assist chartplotter knows the water better than a local. Its high-resolution display offers improved detail, clarity and viewing angle. See clear, sharp fish arches with Garmin traditional sonar. ClearVü™ and SideVü™ scanning sonars feature vivid color palettes for clear, high-contrast views all around your boat. ECHOMAP UDH2 also supports LiveScope™ sonar systems. Navigate the waters with built-in Garmin Navionics+™ cartography. Built-in Wi-Fi® connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter. Wherever you drop your line, get improved position accuracy, particularly in areas where signals are reflected or weak, with multi-band GPS. You can also pair with the free all-in-one ActiveCaptain® app on your compatible smartphone for access to the OneChart™ feature, software updates and more. The chartplotter supports NMEA 2000® networks to connect your compatible autopilots, digital switching, music, and more to view all on one screen.What's in the Box: ECHOMAP UHD2 95sv 12-pin sounder to 8-pin transducer cable Power/data cable tilt mount flush mount hardware documentation

Read more less

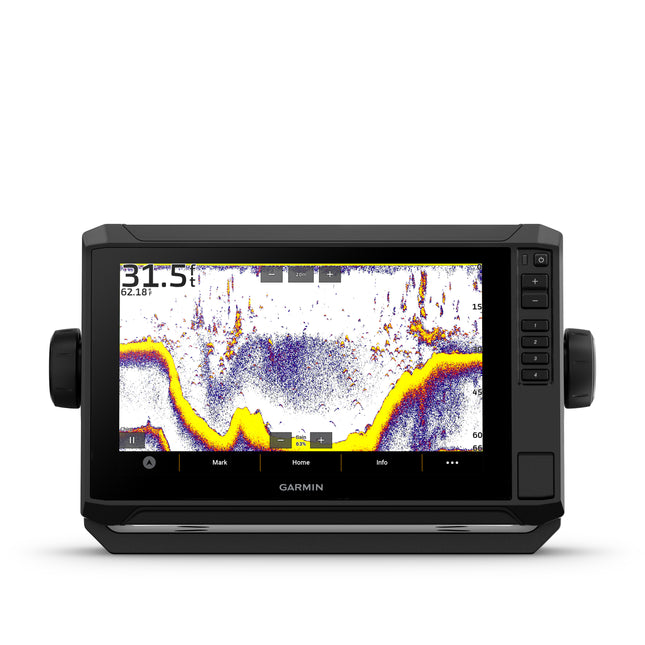

Garmin ECHOMAP UHD2 93sv, U.S. inland without transducerModel: 010-02688-00 Easy-to-use 9 in chartplotter with a bright, sunlight-readable touchscreen display with improved detail, clarity and viewing angle Built-in Garmin Navionics+TM inland maps with integrated Navionics(R) data cover more than 18,000 lakes with up to 1 feet contours Built-in Wi-Fi(R) connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter Wirelessly connects to your Force(R) trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more The 9 in ECHOMAPTM UHD2 touchscreen with keyed-assist chartplotter knows the water better than a local. Its high-resolution display offers improved detail

Read more less

Garmin ECHOMAP UHD2 92sv, basemap without transducerModel: 010-02687-00 Easy-to-use 9 in chartplotter with a bright, sunlight-readable touchscreen display with improved detail, clarity and viewing angle Built-in worldwide basemaps with support for Garmin Navionics+TM and Garmin Navionics Vision+TM cartography, BlueChart(R) g3 coastal charts and LakeVüTM g3 inland maps Built-in Wi-Fi(R) connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter The 9 in ECHOMAPTM UHD2 touchscreen with keyed-assist chartplotter knows the water better than a local. Its high-resolution display offers improved detail

Read more less

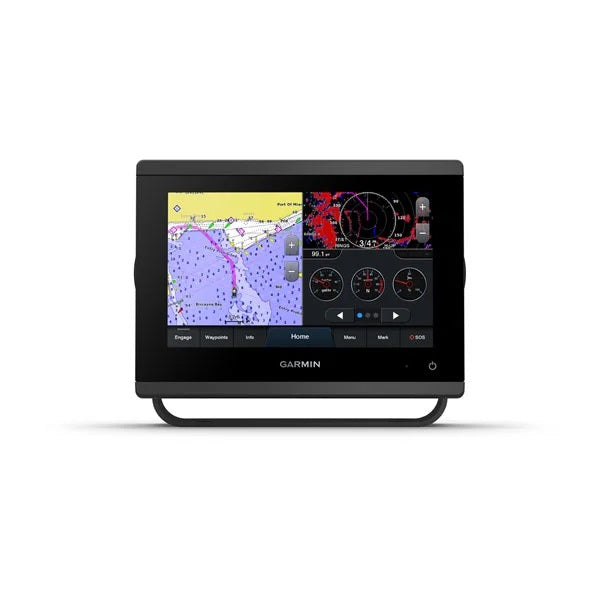

Garmin GPSMAP 743 Chartplotter with US and Canada Garmin Navionics PlusModel: 010-02365-00 New higher-resolution touchscreen display offers improved sunlight readability with 60% more pixels than previous-generation 7 in units Fast and responsive, with nearly twice the processing power of previous-generation GPSMAP(R) devices, this system references 10 Hz GNSS (GPS, GLONASS and Galileo) for accurate positioning and smooth speed as well as COG data Slimline display borders, edge-to-edge glass and reduced unit footprint make for easy retrofit in a wider range of dash configurations Preloaded Garmin Navionics+TM coastal charts and inland mapping feature Auto Guidance+TM technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) ; plus, there's support for optional Garmin Navionics Vision+TM premium map content. Built-in Garmin SailAssistTM features, including laylines, race features, set and drift, wind data and more. Requires compatible wind transducer (sold separately) J1939 engine connectivity for easy integration with engines and our exclusive OneHelmTM feature for connecting to compatible third-party devices, such as EmpirBusTM digital switching Easily build your marine system - from compatible sonar and autopilots to compatible radar, cameras and multimedia - by using NMEA 2000(R) and NMEA 0183 networking and the Garmin Marine Network Use built-in Wi-Fi(R) networking to pair with the free ActiveCaptain(R)smartphone app for access to the OneChartTM feature, smart notifications, software updates and more. Integrated ANT(R) connectivity support for use with compatible quatix(R) smartwatches, the gWindTM Wireless 2 transducer, GNXTM Wind marine instrument and wireless remote controls (sold separately) Get a sharper view from your connected helm with the GPSMAP(R) 743 chartplotter. Its higher-resolution 7 in display has 60% more pixels than previous-generation chartplotters. The ultrasleek design with nearly double the processing power of previous-generation GPSMAP devices offers seamless integration into your Garmin marine system. Preloaded Garmin Navionics+TM coastal charts and inland mapping feature Auto Guidance+TM technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations. ) for confidence in helping you get where you need to go. Plus

Read more less

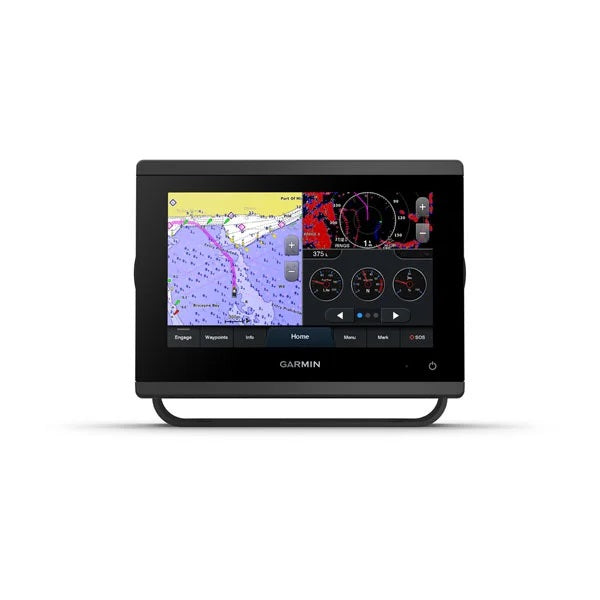

Garmin GPSMAP 723 Chartplotter with Worldwide BasemapModel: 010-02365-00 Easily integrate with more engines. Connect to compatible third-party devices with OneHelmTM digital switching. Easily build your marine system using the best of network connectivity. Compatible with premium maps and charts1 for the best in Garmin navigation. Take the guesswork out of sailing with clear laylines and more - right on the screen. Manage your marine experience from nearly anywhere1. With 60% more display pixels and nearly double the processing power of previous-generation 7 in GPSMAP devices, this crisp high-resolution chartplotter integrates seamlessly into your Garmin marine system.With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it's easy to retrofit this 7 in plotter in a wider range of dash configurations.New higher-resolution 7 in displays offer improved sunlight readability with 60% more pixels than previous-generation 7 in GPSMAP devices.View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more3.These optional charts offer the best of Garmin and Navionics(R) data, Auto Guidance4 technology and other premium navigation features.Connect to compatible autopilots, digital switching, weather, Fusion-LinkTM audio system, media, VHF, AIS and more from one screen.If you have multiple compatible Garmin devices on your boat, you can share information - such as maps, user data, radar and IP camera video - among them.Built-in Wi-Fi(R) connectivity pairs with the free all-in-one mobile app for access to the OneChartTM feature, smart notifications, software updates, Garmin HelmTM digital switching, Garmin QuickdrawTM Community data and more5.Connect with some of your favorite devices, such as quatix(R) marine watches, gWindTM Wireless 2 transducers, GNXTM Wind marine instruments and wireless remote controls.Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBusTM digital switching, on one screen.SpecificationsPHYSICAL DIMENSIONS7.6 x 5.5 in x 2.9 in (19.2 x 14.0 x 7.4 cm) DISPLAY SIZE 6.1 in x 3.5 in; 7.0 in diagonal

Read more less

Garmin 4 feet Fantom Antenna - BlackModel: 010-01365-104 feet Array only for Fantom open array radars.

Read more less

Garmin GT30-THP Thru Hull PairScanning TransducerModel: 010-01961-11Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar with stainless steel stems, this pair of 12-pin thru-hull transducers consistently displays clear definition of objects, structure and fish below and to each side of the boat.These transducers with built-in fast response temperature sensors have a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of CHIRP 455/800 kHz1; for hull deadrises from 5 degrees to 25 degrees. Pair them with your GCVTM 10 scanning sonar module.Includes 12-pin port and starboard transducers with stainless steel stems, isolation bushings, fairing blocks, Y-cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.SpecificationsClearVü/SideVü CHIRP455 kHz (425-485 kHz) & 800 kHz (790-850 kHz) Power ClearVü/SideVü 500 W Beamwidth ClearVü 1.4 degx53 deg @ 455 kHz and 0.8 degx30 deg @ 800 kHz SideVü 1.1 degx53 deg @ 455 kHZ and 0.7 degx30 deg @ 800 kHz Maximum depth ClearVü 750 ft SideVü 500 ft. Depth/Speed/Temperature Depth and Temperature Number of pins 12-pin Cable length 5 ft. + 30 ft. y-extension cable Supported deadrise/Transom angles Up to 25 deg deadrise

Read more less

Freq. Khz Power Beam Width ( deg) LF//HF (-3dB) Max Depth (ft) Septh,Speed,Temp # of Pins Supported Deadrise / Transom Angles 130-210 1KW 6-10 3000 Depth,Temp 8 16-24 deg Deadrise

Read more less

Freq. Khz Power Beam Width ( deg) LF//HF (-3dB) Max Depth (ft) Septh,Speed,Temp # of Pins Supported Deadrise / Transom Angles 130-210 1KW 6-10 3000 Depth,Temp 8 8-15 deg Deadrise

Read more less

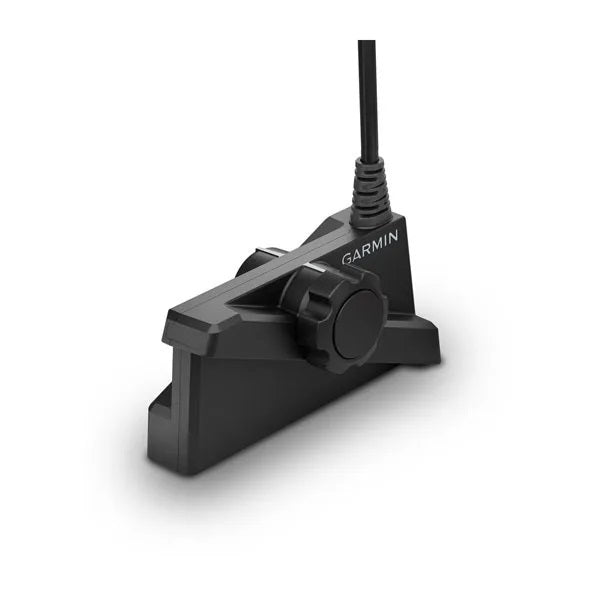

Garmin LVS34-IF TransducerModel: 010-02706-20The best of the best just broke new ice with the LiveScope Plus LVS34-IF ice fishing transducer. Pair it with your compatible Garmin chartplotter via your GLSTM 10 sonar black box to get improved resolution, reduced noise, clearer images and better target separation in LiveScopeTM Forward and LiveScopeTM Down modes. With a durable, flexible cold-weather transducer cable, you're set for a day on the ice.What's in the Box: LiveScope Plus LVS34-IF 0 degree LiveScope pole mount Documentation

Read more less

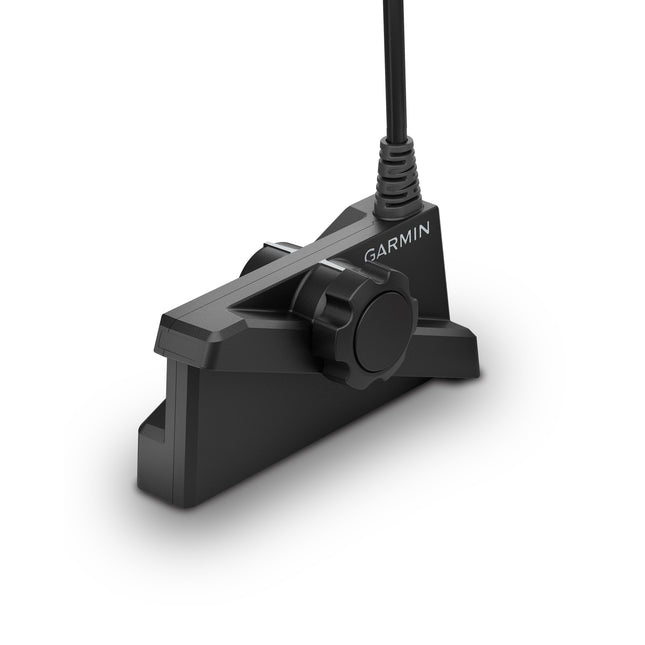

Garmin LVS34 Transducer for Panoptix Livescop PlusModel: 010-02706-10 See images clearly with improved screen clarity, transducer sensitivity and target separation. Scan surroundings with sharper images, reduced noise and fewer sonar artifacts. Upgrade your current LiveScope System black box (GLSTM 10 sonar module) with just a new transducer. Get maximum contrast and clarity in your images with vivid color palettes. Don't miss a thing with supported Forward, Down and Perspective modes and necessary mount. The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.REAL-TIME IMAGES - Real-time sonar ensures that your live images are as accurate as possibleCLEAR VISION - See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.IMAGE STABILIZATION - A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.VIVID COLOR PALETTES - Choose from seven vivid color options - including Aqua, Caribbean, Lava and more - to see fish and structure in maximum contrast and clarity.SpecificationsDIMENSION6.4 in x 3.1 in x 1.9 in (16.2 x 3.1 x 4.8 cm) WEIGHT 2.25 lbs (1.02 kg) WATERPROOF WATERPROOF WATERPROOF Operating: 0 C to 40 C Sonar Features & Specifications FREQUENCY 530 - 1,100 kHz MAXDEPTH Down and Forward: 200 feet (61.0 m) Connections CONNECTIONS GARMIN MARINE NETWORK PORTS 1 (small connector) Electrical Features POWER INPUT 10-32 V POWER USAGE 21 W typical, 58 W max TRANSMIT POWER 500 W FUSE 7.5 A COMPASS-SAFE DISTANCE 4 (0.1 m) Additional Minimum depth 3 feet (0.91 m) Sonar type Live Beamwidth 20 deg x 135 deg Transducer cable length 20 ft Transducer number of pins 21 What's in the Box: Panoptix LVS34 transducer Perspective mount Trolling motor barrel mount Trolling motor barrel mount Documentation"

Read more less

TM265LH Plastic Transom Mount Transducer w/Depth & Temp - 12-PinGarmin's plastic transom mount performs well in deep water and provides exceptional bottom and water column detail.The best performing 1 kW transom mount, this transducer has a maximum depth of 3,000 feet; an operating frequency of 42 to 65 kHz and 130 to 210 kHz; a beamwidth of 16 to 25 degrees or 6 to 10 degrees; and mounts on a 3 to 21 degree transom.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.Compatible Devices: GPSMAP® 7607xsv, 7608xsv, 7610xsv, 7612xsv, 7616xsv GSD™ 25 Premium Sonar Module WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 12 Mounting Style: Transom Imaging: Standard Chirp: Low/High Cable Length (Feet): 33' Box Dimensions: 8"H x 11"W x 12"L WT: 11.5 lbs UPC: 753759142407 Owner's Manual (pdf)Brochure (pdf)

Read more less

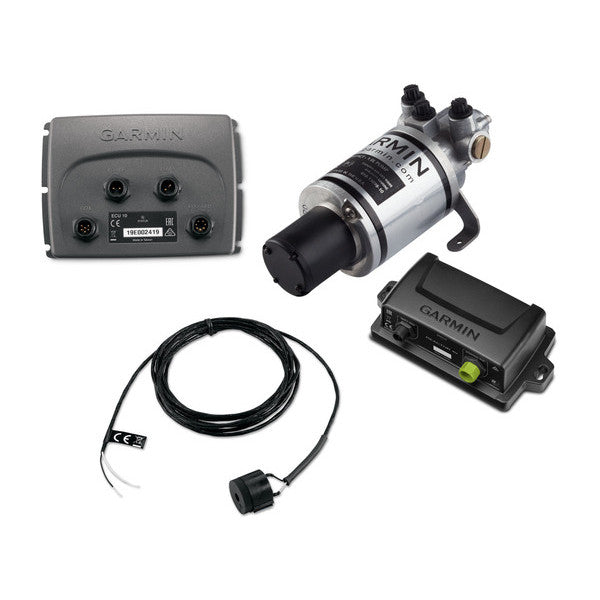

Garmin Compact Reactor 40 Hydraulic Autopilot Starter PackModel: 010-00705-06 Includes Compact Reactor 40 CCU, ECU, pump and other autopilot components needed to add to your compatible chartplotter Recommended only for single-engine outboard boats less than 30 feet long1 Solid-state 9-axis Attitude Heading Reference System (AHRS) Minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride Minimal commissioning and calibration Designed for boats less than 30 feet long, the Compact Reactor 40 hydraulic autopilot provides relief from manually holding the wheel to maintain course, especially when cruising at moderate to high speeds1. Sit back at the helm, and enjoy your time on the water as the solid-state 9-axis AHRS technology delivers a comfortable ride.The autopilot is easy to install with flexible mounting options and quick, easy commissioning. Choose a corepack with our patented Shadow Drive technology, and simply turn the wheel to take control of the helm; hold a constant course to re-engage. It integrates with compatible Garmin electronics to control the autopilot from the chartplotter display. And it can be engaged to follow an Auto Guidance path3 (requires LakeVü HD Ultra maps or BlueChart(R) g2 Vision(R) HD charts).With its advanced solid-state 9-axis AHRS, Compact Reactor 40 provides you with more flexible mounting options. In addition, this new system greatly minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride for all on board.This amazing autopilot actually reacts to the sea to hold your course. Even when the boat is pitching and rolling, you can remain confident that the Compact Reactor 40 autopilot will keep you on your desired course.All autopilots require commissioning and calibration to work properly. We know you just want to get on the water, so we made this process as fast and easy as possible. That's the power of simple.Combined with our compatible networked electronics, you can have full control of Compact Reactor 40 from wherever you are on the boat. In addition to holding its course in virtually all weather and wind conditions, the system can smoothly perform a variety of preprogrammed trolling and search procedures. Plus, with BlueChart g2 Vision HD charts (sold separately), you gain optional features such as Auto Guidance3, which automatically steers GPS paths.The Compact Reactor 40 autopilot supports optional patented Shadow Drive technology. This gives you the security of knowing you maintain control, even when the autopilot is engaged. The Shadow Drive system automatically disengages the autopilot if the helm is turned, giving you the freedom to maneuver the boat. The autopilot automatically re-engages when you hold a steady course.Compact Reactor 40 can be operated directly from your compatible Garmin chartplotter1 screen or by using up to 3 GHC helm control units. GHC communicates with the autopilot system via your NMEA 2000(R) network, so autopilot heading data can be shared easily with other devices. This enables MARPA and chart overlay when connected to a Garmin radar and chartplotter. An optional handheld wireless remote control is also available.1Not recommended for fishing or applications that require holding heading while trolling or at low speeds. For applications that require precise heading control while trolling or at low speeds, our higher-performance Reactor 40 models are recommended.2Requires echoMAPTM CHIRP 5x/7x/9x chartplotter/sonar combos; ECHOMAP Plus 6x/7x/9x chartplotter/sonar combo; GPSMAP(R) chartplotter series 7200/7400/7600/8000/8200/8400/8500/8600; or GPSMAP chartplotter/sonar combo series 7x2/9x2/10x2/12x23Auto Guidance is for planning purposes only and does not replace safe navigation operations.SpecificationsUnit dimensions, WxHxD4.3 x 4.4 in x 1.9 in (10.9 x 11.2 x 4.8 cm) Pump dimensions

Read more less

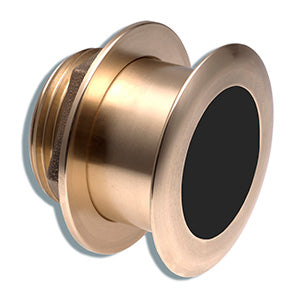

Airmar's B164 8-pin bronze, thru-hull mount transducer with 20 deg tilt provides depth and temperature. This transducer has an operating frequency of 50 or 200 kHz and mounts on a 16-24 deg deadrise angle.

Read more less

Freq. Khz Power Beam Width ( deg) LF//HF (-3dB) Max Depth (ft) Septh,Speed,Temp # of Pins Supported Deadrise / Transom Angles 130-210 1KW 6-10 3000 Depth,Temp 8 0-7 deg Deadrise

Read more less

GMI™ Wired Start Pack 52 A Perfect Start to Your New Instrument Network On Board  Includes GMI 20 marine instrument, gWind™ transducer and AIRMAR® DST810 transducer GMI 20 instrument has a highly visible bright 4” color glass-bonded lens display with anti-glare finish gWind transducer features 3-bladed propeller and twin-fin design DST810 thru-hull smart transducer provides water depth, water speed and water temperature data — plus attitude sensing for heel/trim and pitch/roll inputs Wireless connectivity to devices with BLUETOOTH® technology enables DST810 calibration directly through the CAST™ app from AIRMAR Easy plug-and-play installation and integration with Garmin chartplotters via the NMEA 2000® network A Good Start or Complete PackWith a GMI Wired Start Pack 52, you’ll have all the equipment you need to know what’s going on with the wind and the water. If you’re looking to install more than just one instrument in your network, this is the perfect start pack to use. By using the NMEA 2000 network, it’s easy to expand with the number of instruments you want.GMI 20 Marine InstrumentThe GMI 20 digital marine instrument display is perfectly designed for both power and sail vessels. Designed to clearly show depth, speed, wind and 100-plus marine and vessel parameters, its large, bright 4” color display with extra-large digits is easy to read at a distance and 170 degree viewing angle.A glass-bonded finish lens on GMI 20 prevents fogging and increases contrast. Daylight readability is enhanced with a high-contrast color scheme. For enhanced night visibility, you have a choice of red/black, green/black or the normal night mode color scheme along with a dimmer control. Screens can be set to auto-scroll — cycling between pages automatically without you having to do a thing. This is especially advantageous for sailors as it allows you to install the unit(s) in a greater variety of locations on the vessel. Default profiles can be customized for powerboat, sailboat, fishing, engine/fuel plus several other user-specified profiles. Power is supplied by the NMEA 2000 network.gWind TransducergWind transducer features twin-fin technology with 3-bladed propeller for more accurate True Wind Speed (TWS) in lighter air while the twin-fin design gives a more stable True Wind Angle (TWA). The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity.AIRMAR DST810 Thru-hull Smart TransducerDST810 combines precise depth, speed and temperature data with attitude sensing for heel/trim and pitch/roll inputs — which it provides to the NMEA 2000 network and GNX™ 20 instrument. This multisensor transducer can read depths to 330’, offers fast 5 Hz water speed signal output and has an operating frequency of 235 kHz with a fan-shaped beamwidth of 10 x 44 degrees. Additionally, wireless connectivity to devices with BLUETOOTH technology enables DST810 calibration directly through the CAST app from AIRMAR. Advanced speed calibration allows for calibration at multiple heel angles and speeds.In The Box: gWind™ transducer GMI™ 20 marine instrument GND™10 black box bridge Airmar DST810 thru-hull smart transducer 2 NMEA 2000® drop cable (2 meters) NMEA 2000 power cable 4 NMEA 2000 T-connectors NMEA 2000 terminators Mast cable with female connector (25 meters) Nexus network cable (5 m; straight connector) Nexus female field installable connector Mast bracket Mounting hardware Documentation The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

Read more less

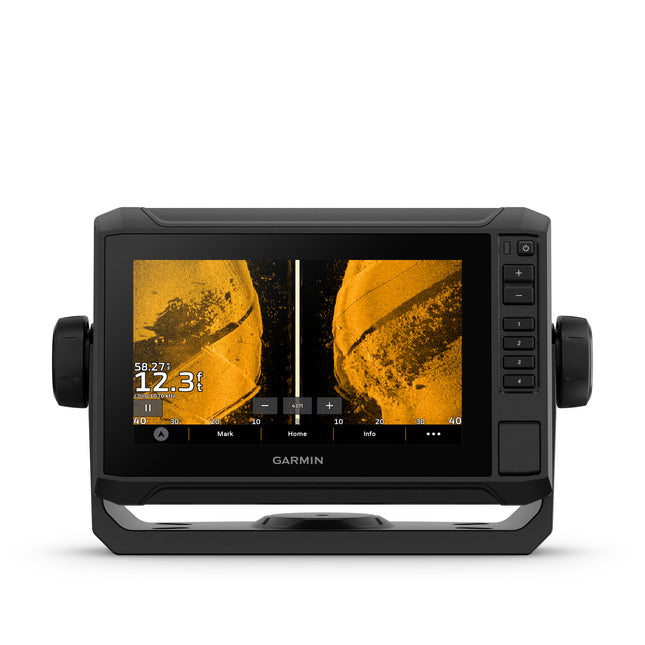

Garmin ECHOMAP UHD2 74sv, U.S. coastal with GT54 transducerModel: 010-02685-01 Easy-to-use 7 in chartplotter with a bright, sunlight-readable touchscreen display Built-in Garmin Navionics+TM coastal charts with integrated Navionics(R) data Built-in Wi-Fi(R) connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter Wirelessly connects to your Force(R) trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more Included GT54-TM transducer for Garmin traditional

Read more less

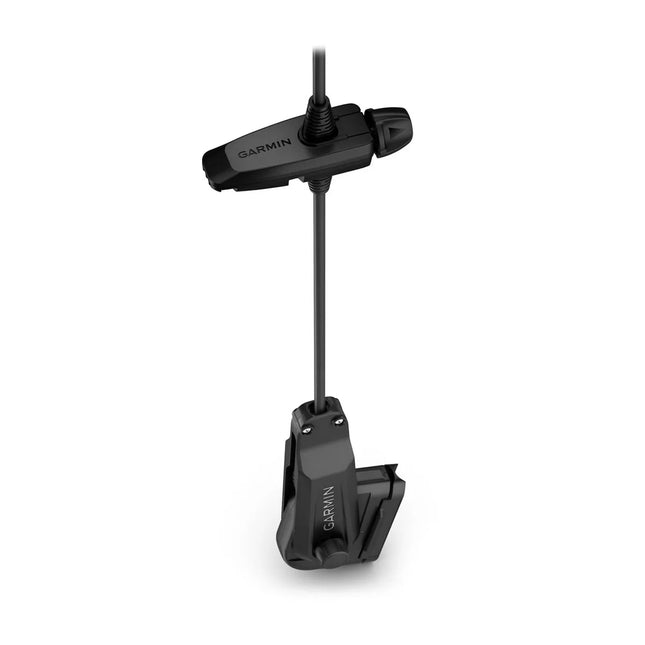

Garmin PanoptixTM PS22-IF Portable Live SonarModel: 010-01945-10Hop faster between holes with the ultraportable Panoptix PS22-IF transducer. This live sonar transducer has an all-new bracket and rotator - which eliminates the need for a bulky pole mount - as well as a removable lens so you can optimize the sonar beam angle for the water below. Locate schools of fish in real time with two types of Panoptix sonar: LiveVüTM Forward and LiveVüTM Down scan modes.SpecificationsTransducer beamwidthWith lens: 12 deg x 120 deg Without lens: 57 deg x 120 deg Transducer cable length 9.8 feet (3 m) Dimension 9.1 in x 4.1 in x 2.5 in (23.1 x 10.4 x 6.4 cm) Weight 2.60 lbs (1.18 kg) Temperature range Operating: 0 deg C to 40 deg C Electrical Features Power input 10-32 V Fuse 4A Sonar Features Frequency 417 kHz Transmit power 48 W Maximum depth 300 feet Connections Garmin Marine Network Ports 1 (standard connector) Sonar Modes LiveVü Down Yes LiveVü Forward Yes Traditional sonar source Yes What's in the Box: Panoptix PS22-IF transducer Transducer rotator and bracket Removable lens Hardware Documentation

Read more less

Garmin 4 feet Fantom AntennaModel: 010-01365-004 feet Array only for Fantom open array radars.

Read more less

1.2-Liter Pump KitUse Garmin's 1.2 Liter per minute (0.32 gallon per minute) pump kit with your Reactor™ 40 system to pump hydraulic fluid to the steering cylinders and steer the boat. Improved with ORB hydraulic ports and threaded cable collars for increased durability.In The Box Pump assumbly Installation instructions Installation mounting hardware 3 pcs of ORB-5 to 3/8" compression marine tube fitting Note: all other hydraulic fittings, tees and hoses must be sourced separately WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Pumps/Drives Box Dimensions: 5"H x 6"W x 15"L WT: 9.1 lbs UPC: 753759194666

Read more less

Airmar's B258 8-pin bronze, thru-hull mount transducer with fairing provides depth and temperature data. This transducer has an operating frequency of 50 or 200 kHz and mounts on a 0-25 deg deadrise angle.

Read more less

GT17M-THF SS Mid Band Chirp Transducer - 20° - 1kW - 8-PinDesigned for reduced drag and optimum sonar performance on fishing and cruising boats, this flush-mounted 1 kW mid-band CHIRP (80–165 kHz) transducer clearly defines fish arches, structure, and bottom depth returns on the display.Features: See maximum depth performance to 2,400’ in freshwater Access CHIRP sonar frequency range from 80–165 kHz Search with beamwidths of 9–18 degrees Count on fast-response water temperature sensing The thru-hull design offers flush installation with a 20-degree tilt Auto-ID enables simple plug-and-play operation Midband Chirp Traditional SonarThis 8-pin 1 kW stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,800’ in saltwater and 2,400’ in freshwater.Broad Frequency RangeUse the perfect frequency for the waters in which users are fishing. Covering the medium frequency range, this transducer pulses from 80–165 kHz, displaying a wide coverage area, clear fish arches, and accurate depth readings.Optimum Ping SensitivityOffering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on the compatible chartplotter display.Thru-Hull InstallationA durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.Auto-ID TechnologyEnjoy simple plug-and-play operation with Garmin auto-identification technology, which enables the sonar to automatically configure itself to the transducer being used.Fits Various Hull TypesConfigurable for a wide variety of boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–24 degrees without a fairing block.In the Box: GT17M-THF transducer Jam nut Spacer 2 washers 2 set screws Thread isolator Hull isolator Documentation Specifications: Transducer Frequency: Medium band CHIRP (80-165 kHz) Transducer Power: 1 kW Transducer Beamwidth: 9°-18° Transducer Maximum Depth: 1800 ft saltwater; 2400 ft freshwater RapidReturn™ Sonar Compatible: Yes     Transducer Cable Length: 50 ft Transducer Depth/Speed/Temperature: Depth, temperature Transducer Number of PINs: 8-pin Transducer Supported Deadrise/Transom Angles: 20° supports hull deadrise angles from 16° to 24° Housing Material: Stainless steel Specifications: Cable Length (Feet): 50' Chirp: Medium Imaging: Standard Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 7"H x 8"W x 13"L WT: 10.9 lbs UPC: 753759338473

Read more less

GT17M-THF SS Mid Band Chirp Transducer - 12° - 1kW - 8-PinDesigned for reduced drag and optimum sonar performance on fishing and cruising boats, this flush-mounted 1 kW mid-band CHIRP (80–165 kHz) transducer clearly defines fish arches, structure, and bottom depth returns on the display.Features: See maximum depth performance to 2,400’ in freshwater Access CHIRP sonar frequency range from 80–165 kHz Search with beamwidths of 9–18 degrees Count on fast-response water temperature sensing The thru-hull design offers flush installation with a 12-degree tilt Auto-ID enables simple plug-and-play operation Midband Chirp Traditional SonarThis 8-pin 1 kW stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,800’ in saltwater and 2,400’ in freshwater.Broad Frequency RangeUse the perfect frequency for the waters in which users are fishing. Covering the medium frequency range, this transducer pulses from 80–165 kHz, displaying a wide coverage area, clear fish arches, and accurate depth readings.Optimum Ping SensitivityOffering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on the compatible chartplotter display.Thru-Hull InstallationA durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.Auto-ID TechnologyEnjoy simple plug-and-play operation with Garmin auto-identification technology, which enables the sonar to automatically configure itself to the transducer being used.Fits Various Hull TypesConfigurable for a wide variety of boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–24 degrees without a fairing block.In the Box: GT17M-THF transducer Jam nut Spacer 2 washers 2 set screws Thread isolator Hull isolator Documentation Specifications: Transducer Frequency: Medium band CHIRP (80-165 kHz) Transducer Power: 1 kW Transducer Beamwidth: 9°-18° Transducer Maximum Depth: 1800 ft saltwater; 2400 ft freshwater RapidReturn™ Sonar Compatible: Yes     Transducer Cable Length: 50 ft Transducer Depth/Speed/Temperature: Depth, temperature Transducer Number of PINs: 8-pin Transducer Supported Deadrise/Transom Angles: 12° supports hull deadrise angles from 8° to 15° Housing Material: Stainless steel Specifications: Cable Length (Feet): 50' Chirp: Medium Imaging: Standard Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 7"H x 8"W x 13"L WT: 10.95 lbs UPC: 753759338466

Read more less

GT17M-THF SS Mid Band Chirp Transducer - 0° - 1kW - 8-PinDesigned for reduced drag and optimum sonar performance on fishing and cruising boats, this flush-mounted 1 kW mid-band CHIRP (80–165 kHz) transducer clearly defines fish arches, structure, and bottom depth returns on the display.Features: See maximum depth performance to 2,400’ in freshwater Access CHIRP sonar frequency range from 80–165 kHz Search with beamwidths of 9–18 degrees Count on fast-response water temperature sensing The thru-hull design offers flush installation with a 0-degree tilt Auto-ID enables simple plug-and-play operation Midband Chirp Traditional SonarThis 8-pin 1 kW stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,800’ in saltwater and 2,400’ in freshwater.Broad Frequency RangeUse the perfect frequency for the waters in which users are fishing. Covering the medium frequency range, this transducer pulses from 80–165 kHz, displaying a wide coverage area, clear fish arches, and accurate depth readings.Optimum Ping SensitivityOffering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on the compatible chartplotter display.Thru-Hull InstallationA durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.Auto-ID TechnologyEnjoy simple plug-and-play operation with Garmin auto-identification technology, which enables the sonar to automatically configure itself to the transducer being used.Fits Various Hull TypesConfigurable for a wide variety of boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–24 degrees without a fairing block.In the Box: GT17M-THF transducer Jam nut Spacer 2 washers 2 set screws Thread isolator Hull isolator Documentation Specifications: Transducer Frequency: Medium band CHIRP (80-165 kHz) Transducer Power: 1 kW Transducer Beamwidth: 9°-18° Transducer Maximum Depth: 1800 ft saltwater; 2400 ft freshwater RapidReturn™ Sonar Compatible: Yes     Transducer Cable Length: 50 ft Transducer Depth/Speed/Temperature: Depth, temperature Transducer Number of PINs: 8-pin Transducer Supported Deadrise/Transom Angles: 0° supports hull deadrise angles from 0° to 7° Housing Material: Stainless steel Specifications: Cable Length (Feet): 50' Chirp: Medium Imaging: Standard Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 7"H x 8"W x 13"L WT: 11 lbs UPC: 753759338459

Read more less

Course Computer Unit - Reactor™ 40Garmin's CCU is the brain of the Reactor 40 autopilot system, containing sensory equipment used to determine heading and rate of turn. Connect the CCU to the NMEA 2000® network to communicate with your GHC™ 20 and an optional NMEA 2000-compatible devices.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

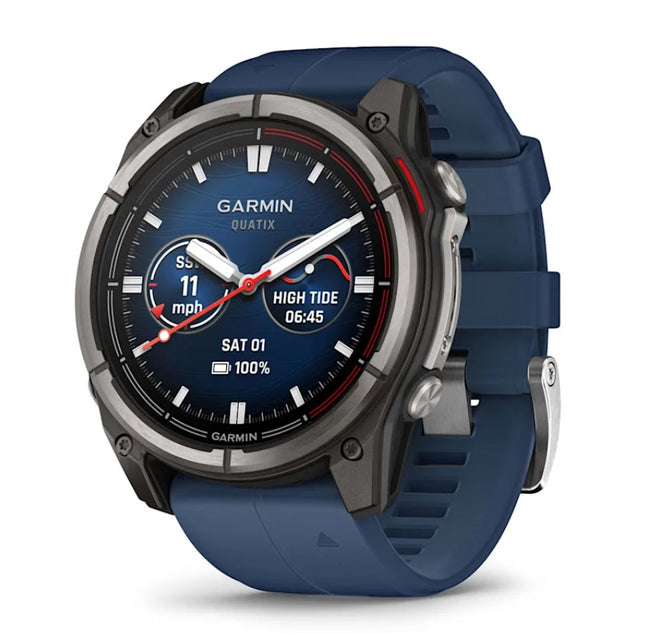

Garmin Quatix 8 51mm AMOLED Smartwatch Titanium Bezel Captain Blue Silicone BandModel: 010-02905-90  MARINIZED DESIGN: Built for life at the helm, this premium design is dive-rated and features leakproof buttons, a metal sensor guard and bright 1.4-inch AMOLED display with a scratch-resistant lens and durable titanium bezel. COMPREHENSIVE HELM CONTROL: Use the built-in speaker and mic on your quatix 8 to control your compatible chartplotter with voice commands via BLUETOOTH technology. Enjoy remote control capabilities with select compatible Garmin chartplotters, autopilots, Force trolling motors, Fusion stereos and more. BUILT-IN SPEAKER AND MICROPHONE: Make and take phone calls from your watch when it's paired to your smartphone. Plus, control watch functions with off-grid voice commands - or use your smartphone's voice assistant to respond to text messages and more. DEDICATED MARINE FEATURES: Boating and sailing apps provide data to track your time on the water. Stay aware and get alarms for imminent tide changes or anchor drag. Take the podium with sail-specific features such as tack assist, race start guidance and regatta timer. BUILT-IN LED FLASHLIGHT: A true integrated flashlight with variable light intensities and a red safety light can give you greater awareness at sea or at home, providing convenient illumination when you need it. KNOWLEDGE IS POWER: Begin each day with a customizable morning report offering a summary of health and wellness information. Use the training readiness feature - which looks at a variety of health metrics - to help maximize your training efficiency and recovery to help prevent burnout. CHARTPLOTTER VOICE CONTROL: Keep your focus on the water, and control your compatible chartplotter with voice commands via BLUETOOTH technology. AUTOPILOT CONTROL: Access the autopilot app to change heading, engage pattern steering and follow a GPS route when connected to your compatible chartplotter or GHCTM 50 autopilot instrument. FUSION AUDIO SYSTEM: Control your onboard entertainment system from your watch with the built-in Fusion-LinkTM audio app. BOAT DATA STREAMING: View data, including water depth, engine RPM, wind, custom data and more, from your chartplotter - directly on your wrist. ALERTS AND ALARMS: Get alerts for imminent tide changes and anchor drag. WAYPOINT MARKING: Use your watch to place chartplotter waypoints from anywhere on the boat. BLUECHART(R) G3 CHARTS: Get support for premier coastal charts featuring integrated Navionics data (sold separately). LAKEVü G3 MAPS: Get support for freshwater maps of the U.S. featuring integrated Navionics data (sold separately). RECREATIONAL DIVING: A 40-meter dive rating and leakproof metal buttons let you reach new depths with support for scuba and apnea dive activities. SAIL EXPEDITION: Record a multiday sailing activity with a reduced need to charge. The quatix 8 nautical smartwatch includes a bright 1.4-inch AMOLED display and LED flashlight, so you'll get features you need at the helm and ones you want off it.BRIGHT, CRISP AMOLED DISPLAYEXTEND YOUR ADVENTURE WITH UP TO 29 DAYS OF BATTERY LIFEBOAT DATA STREAMING AND CHARTPLOTTER VOICE CONTROLDIMMABLE BUILT-IN LED FLASHLIGHT24/7 HEALTH AND WELLNESS FEATURESSpecificationsBattery life (smartwatch mode) Up to 29 days (13 days always-on)   Battery type Lithium ion Strap material silicone Lens Material Sapphire Crystal Bezel Material titanium Case material fiber-reinforced polymer with metal rear cover QuickFit(R) watch band compatible included (26 mm) Physical size 51 x 51 x 14.7 mm / Silicone Band: 127-210 mm Weight 92 g (64 g, case only) Built-in speaker/microphone Yes Charging method Garmin proprietary plug charger Memory/History 32 GB Boating Features Anchor Alarm Yes Autopilot Control Yes Boat Data Streaming Yes Virtual starting line Yes Countdown timer Yes Tack assist mode Yes Built-in barometer and tide tables Yes (downloadable tides) Wearable trolling motor remote Yes What's in the Box: quatix 8 - 51 mm, AMOLED smartwatch Charging/data cable Documentation

Read more less

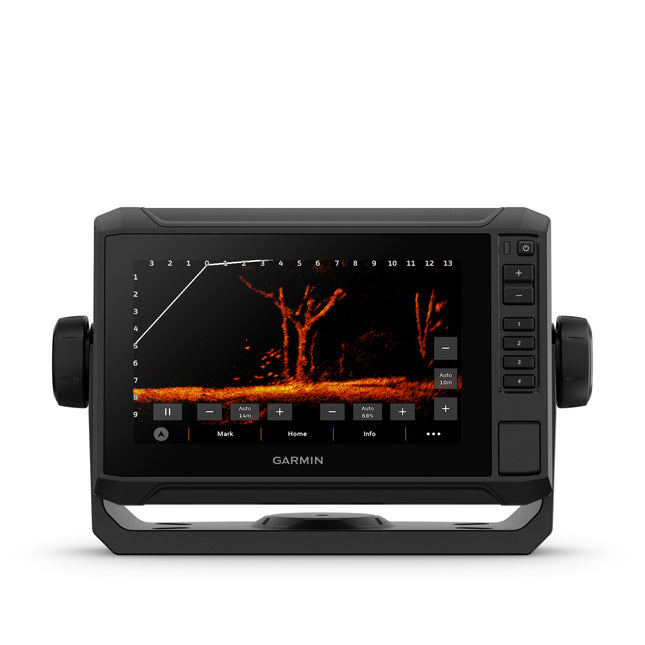

Garmin ECHOMAP UHD2 75sv, Canada inland and coastal with GT54 transducerModel: 010-02686-00 Easy-to-use 7 in chartplotter with a bright, sunlight-readable touchscreen display Included GT54-TM transducer for Garmin traditional, ClearVüTM and SideVüTM scanning sonars Built-in Canada Garmin Navionics+TM inland and coastal maps with integrated Navionics(R) data cover more than 8,100 lakes with up to 1 feet contours Built-in Wi-Fi(R) connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter Wirelessly connects to your Force(R) trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more The 7 in ECHOMAPTM UHD2 touchscreen with keyed-assist chartplotter knows the water better than a local. See clear

Read more less

Garmin GT17M-THF 1kW Medium CHIRP Stainless Steel 12 Degree Tilted Element 8-Pin Thru Hull TransducerModel: 010-02930-01 See maximum depth performance to 2,400 feet in freshwater. Access CHIRP sonar frequency range from 80-165 kHz. Search with beamwidths of 9-18 degrees. Count on fast-response water temperature sensing. Auto-ID enables simple plug-and-play operation. Designed for reduced drag and optimum sonar performance on fishing and cruising boats, this flush-mounted 1 kW midband CHIRP (80-165 kHz) transducer clearly defines fish arches, structure and bottom depth returns on your display.This 8-pin 1 kW stainless steel thru-hull transducer features high-definition midband CHIRP sonar that clearly defines fish targets and structure down to 1,800 feet in saltwater and 2,400 feet in freshwater.Use the perfect frequency for the waters you're fishing. Covering the medium frequency range, this transducer pulses from 80-165 kHz, displaying a wide coverage area, clear fish arches and accurate depth readings.Offering excellent sonar sensitivity, low noise, high resolution and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on your compatible chartplotter display.A durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.Enjoy simple plug-and-play operation with Garmin auto-identification technology - which enables the sonar to automatically configure itself to the transducer being used.SpecificationsTRANSDUCER FREQUENCYmedium band CHIRP (80-165 kHz) TRANSDUCER POWER 1 kW TRANSDUCER BEAMWIDTH 9 deg-18 deg TRANSDUCER MAXIMUM DEPTH 1800 ft saltwater; 2400 ft freshwater RAPIDRETURNTM SONAR COMPATIBLE Yes TRANSDUCER CABLE LENGTH 50 ft TRANSDUCER DEPTH/SPEED/TEMPERATURE depth, temperature TRANSDUCER NUMBER OF PINS 8-pin TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES 12 deg supports hull deadrise angles from 8 deg to 15 deg HOUSING MATERIAL stainless steel What's in the Box: GT17M-THF transducer Jam nut Spacer 2 washers 2 set screws Thread isolator Hull isolator Documentation

Read more less

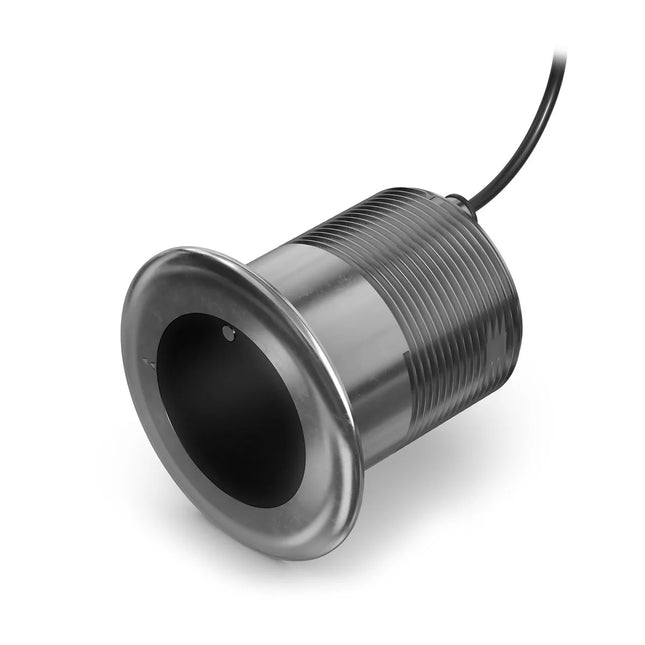

Garmin GT17M-THF 1kW Medium CHIRP Stainless Steel 0 Degree Tilted Element 8-Pin Thru Hull TransducerModel: 010-02930-00 See maximum depth performance to 2,400 feet in freshwater. Access CHIRP sonar frequency range from 80-165 kHz. Search with beamwidths of 9-18 degrees. Count on fast-response water temperature sensing. Auto-ID enables simple plug-and-play operation. Designed for reduced drag and optimum sonar performance on fishing and cruising boats, this flush-mounted 1 kW midband CHIRP (80-165 kHz) transducer clearly defines fish arches, structure and bottom depth returns on your display.This 8-pin 1 kW stainless steel thru-hull transducer features high-definition midband CHIRP sonar that clearly defines fish targets and structure down to 1,800 feet in saltwater and 2,400 feet in freshwater.Use the perfect frequency for the waters you're fishing. Covering the medium frequency range, this transducer pulses from 80-165 kHz, displaying a wide coverage area, clear fish arches and accurate depth readings.Offering excellent sonar sensitivity, low noise, high resolution and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on your compatible chartplotter display.A durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.Enjoy simple plug-and-play operation with Garmin auto-identification technology - which enables the sonar to automatically configure itself to the transducer being used.SpecificationsTRANSDUCER FREQUENCYmedium band CHIRP (80-165 kHz) TRANSDUCER POWER 1 kW TRANSDUCER BEAMWIDTH 9 deg-18 deg TRANSDUCER MAXIMUM DEPTH 1800 ft saltwater; 2400 ft freshwater RAPIDRETURNTM SONAR COMPATIBLE Yes TRANSDUCER CABLE LENGTH 50 ft TRANSDUCER DEPTH/SPEED/TEMPERATURE depth, temperature TRANSDUCER NUMBER OF PINS 8-pin TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES 0 deg supports hull deadrise angles from 0 deg to 7 deg HOUSING MATERIAL stainless steel What's in the Box: GT17M-THF transducer Jam nut Spacer 2 washers 2 set screws Thread isolator Hull isolator Documentation

Read more less

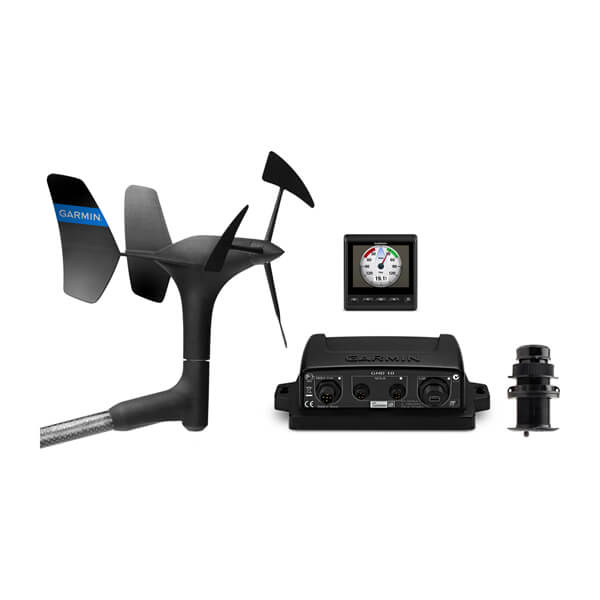

Garmin GMITM Wired Start Pack 52 GMITM 20, gWindTM Wired and DST810 TransducersModel: 010-01248-80 Includes GMI 20 marine instrument, gWindTM transducer and AIRMAR(R) DST810 transducer GMI 20 instrument has a highly visible bright 4 in color glass-bonded lens display with anti-glare finish gWind transducer features 3-bladed propeller and twin-fin design DST810 thru-hull smart transducer provides water depth, water speed and water temperature data - plus attitude sensing for heel/trim and pitch/roll inputs Wireless connectivity to devices with BLUETOOTH(R) technology enables DST810 calibration directly through the CASTTM app from AIRMAR Easy plug-and-play installation and integration with Garmin chartplotters via the NMEA 2000(R) network With a GMI Wired Start Pack 52, you'll have all the equipment you need to know what's going on with the wind and the water. If you're looking to install more than just one instrument in your network, this is the perfect start pack to use. By using the NMEA 2000 network, it's easy to expand with the number of instruments you want.The GMI 20 digital marine instrument display is perfectly designed for both power and sail vessels. Designed to clearly show depth, speed, wind and 100-plus marine and vessel parameters, its large, bright 4 in color display with extra-large digits is easy to read at a distance and 170 degree viewing angle.A glass-bonded finish lens on GMI 20 prevents fogging and increases contrast. Daylight readability is enhanced with a high-contrast color scheme. For enhanced night visibility, you have a choice of red/black, green/black or the normal night mode color scheme along with a dimmer control. Screens can be set to auto-scroll - cycling between pages automatically without you having to do a thing. This is especially advantageous for sailors as it allows you to install the unit(s) in a greater variety of locations on the vessel. Default profiles can be customized for powerboat, sailboat, fishing, engine/fuel plus several other user-specified profiles. Power is supplied by the NMEA 2000 network.gWind transducer features twin-fin technology with 3-bladed propeller for more accurate True Wind Speed (TWS) in lighter air while the twin-fin design gives a more stable True Wind Angle (TWA). The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity.DST810 combines precise depth, speed and temperature data with attitude sensing for heel/trim and pitch/roll inputs - which it provides to the NMEA 2000 network and GNXTM 20 instrument. This multisensor transducer can read depths to 330 feet, offers fast 5 Hz water speed signal output and has an operating frequency of 235 kHz with a fan-shaped beamwidth of 10 x 44 degrees. Additionally, wireless connectivity to devices with BLUETOOTH technology enables DST810 calibration directly through the CAST app from AIRMAR. Advanced speed calibration allows for calibration at multiple heel angles and speeds.What's in the Box: gWindTM transducer GMITM 20 marine instrument GNDTM10 black box bridge Airmar DST810 thru-hull smart transducer NMEA 2000(R) drop cable (2 meters) x 2 4 NMEA 2000 T-connectors NMEA 2000 terminators Mast cable with female connector (25 meters) Nexus network cable (5 m; straight connector) Nexus female field installable connector Mast bracket Mounting hardware Documentation

Read more less

MSC™ 10 Marine Satellite Compass - BlackKNOW EXACTLY WHERE YOU'RE HEADEDGet reliable, accurate heading information with the easy-to-install GPS-based MSC 10 marine satellite compass.Features: Accuracy comes easy when you’ve got a multi-band GNSS receiver on board. Faster updates. More detailed tracking. Rough waters got you worried? MSC 10 delivers pitch, roll, and heave info, too. If other onboard systems need a heading sensor, we’ve got you covered. MULTI-BAND GNSS AND MULTI-CONSTELLATIONThe multi-band GNSS (L1 and L5 GPS) and multi-constellation (GPS, Galileo1, GLONASS, and BeiDou1) receiver deliver precise positioning2.BOAT HEAVE AND MOREGet reliable, accurate boat heave, pitch, and roll information — even in rough waters.BUILT-IN ATTITUDE HEADING REFERENCE SYSTEM (AHRS)With a fully integrated attitude and heading reference system for better GPS heading at all speeds, including pitching in rough seas, taking sharp turns, or standing still.ACCURATE HEADING DATAMultiple receivers deliver heading accuracy within 2 degrees. Because it uses satellite signals, you don’t have to worry about magnetic interference.PRIMARY SENSOR ACROSS MULTIPLE SYSTEMSYou can use MSC 10 as the primary sensor for autopilots and other onboard systems that need accurate heading information.NMEA 2000® NETWORK COMPATIBLEGet heading, pitch, roll, and heave information delivered straight to your compatible Garmin chartplotter via the NMEA 2000 network.EASY TO INSTALLThis compact device is simple to install and easily integrates into your Garmin marine ecosystem.10 HZ UPDATE RATEGet better, more detailed tracking information, thanks to the 10 Hz position update rate.BACKUP HEADING SENSORIn the extremely rare case that you lose a satellite signal, MSC 10 will seamlessly transition from GPS-based to magnetometer-based heading3.What's In The Box? MSC-10 Marine Satellite Compass Pole mount Mounting hardware NMEA 2000® backbone/drop cable (6 meters) NMEA 2000 T-connector Documentation 1 Supported when available2 < 1 meter CEP, < 3 meters 95%3 Magnetometer calibration required for backup magnetic heading support

Read more less

GNX™ Wired Sail Pack 43 Update Your Sailboat’s Electronics with 43 mm Transducers Includes GNX™ Wind and GNX 20 marine instruments, gWind™ Wired transducer plus GDT™ 43 and GST™ 43 transducers with 43 mm fittings and adapters for NMEA 2000® network sharing GNX Wind and GNX 20 instruments have highly visible glass-bonded monochrome LCD displays gWind transducer features twin-fin technology for True Wind Angle (TWA); 3-bladed propeller provides accurate wind speed in lighter air Accurate water depth, water speed, water temperature data and more Easy plug-and-play installation with NMEA 2000 network Update your sailboat’s electronics with the GNX Wired Sail Pack 43, which contains everything you need, including 43 mm transducer fittings for depth, temperature and water speed.GNX Wind InstrumentGNX Wind gives you the wind data necessary to make confident decisions. Featuring high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors, GNX Wind interfaces through the NMEA 2000 network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, steering guidance, boat speed and more. Low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats. Customizable user settings allow you to configure the screen layout to your preferred setting. Display configurations include more than 15 important marine parameters for wind, speed and navigation. Using ANT® technology, GNX Wind connects with the gWind Wired transducer and to a compatible quatix® GPS marine smartwatch or a Garmin Nautix™ in-view display to stream wind data directly.gWind TransducergWind transducer offers an easy-to-install solution. Accurate wind signals are sent wirelessly via an ANT connection directly to a GNX Wind instrument or to a compatible GPSMAP® chartplotter. The transducer features renowned Nexus twin-fin technology with a 3-bladed propeller, providing accurate wind speed and stable wind angle in lighter wind conditions.GNX 20 Marine InstrumentThe easy-to-read GNX 20 display with black digits on a white or color background clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters through the NMEA 2000 network. Customizable user settings allow you to choose from 5 available display configurations for sailboat or powerboat user profiles, including single, dual and triple function plus gauge and graph modes to display wind, depth and speed data. Or you can customize the pages to display the marine and boat data most important to you. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm. Uses only 25 mA with 350 mW daytime usage requiring no backlight and just 400 mW with a mid-level backlight setting at night.GDT 43 and GST 43 Transducers with 43 mm FittingsIf you already have 43 mm fittings for your thru-hull transducers, there’s no need to drill new holes. The bundle includes 43 mm thru-hull transducers, which can retrofit boats with existing Nexus® or Silva TH43 transducers. GST 43 is a speed and temperature transducer, and GDT 43 is a depth transducer. Addition of an NMEA 2000 adapter allows each GDT 43 transducer to share its data over the NMEA 2000 network to a compatible Garmin chartplotter or instrument display.In The Box gWind Wired transducer GNX™ 20 GNX Wind marine instrument GDT™ 43 with NMEA 2000® adapter GST™ 43 with GST 10 GND 10 NMEA 2000 drop cable (2 meters) NMEA 2000 T-connector Nexus female field installable connector Mast bracket Mounting hardware Documentation WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Instrument Function: Multifunction Box Dimensions: 8"H x 10"W x 27"L WT: 13.5 lbs UPC: 753759188177

Read more less

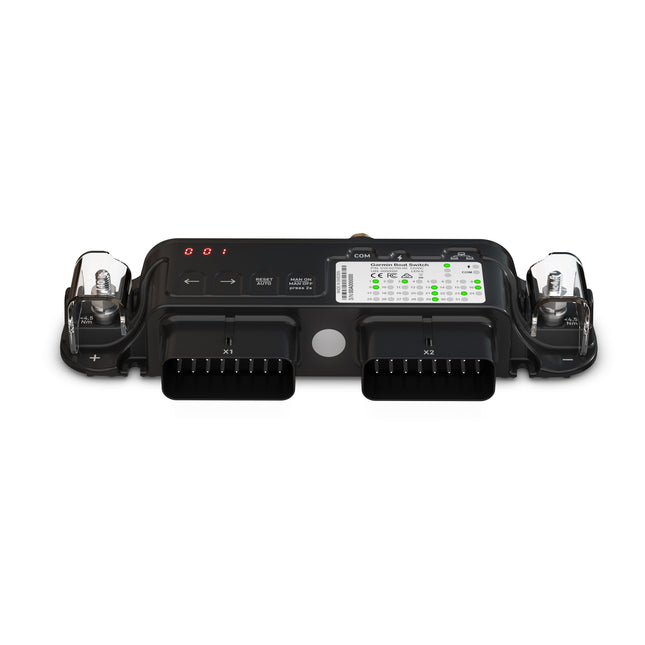

Garmin Boat Switch Digital Switching ModuleModel: 010-02735-00 Reduce reliance on traditional switches and fuses. Add digital control and software current monitoring. Operate lights, pumps, horn and more. Just tap your compatible chartplotter. Fill up or empty out? See levels in four tanks - such as fuel, freshwater, graywater, blackwater and livewell. See system status. Monitor battery voltage, bilge pump operation and more. Set it up your way. Position and name switches with the easy-to-use interface. Retrofit into your boat. It requires no special tools or configuration. Get the integrated boat experience with Garmin Boat Switch. This all-in-one digital switching solution lets you operate up to 20 circuits right from your compatible GPSMAP(R) or ECHOMAPTM chartplotter instead of using physical buttons or switches. It offers four different switch types, including on/off for bilge pumps and nav lights, press-and-hold dimmers for cabin lights, momentary outputs for horns and timers to circulate your livewell pumps. Plus, it provides built-in tank sender detection and calibration for as many as four tanks - including fuel, water and graywater. It installs without special tools and allows you to easily add and name switches on your chartplotter display.Get control and protection of up to 20 circuits via your chartplotter rather than a physical button or switch.The toggle outputs operate bilge pump and nondimmable lights, such as nav lights and courtesy lights.Press-and-hold dimmers let you set your preferred brightness on board.Control horns and more. Simply press and release for desired length of horn beep.A built-in timer turns the pump to cycle the water to keep fish alive - and keep pumps functioning longer.Experience built-in tank sender detection and calibration for as many as four tanks, such as fuel, freshwater, graywater, blackwater and livewell.See analog voltages on house and start battery, monitor bilge pump operation, and connect optional physical switches.Retrofit into existing boats without special tools or configuration by using the included 18 in flying leads and color-coded channel wires.Replace existing two-element systems - fuse box and switches - for easier control and operation of onboard functions.SpecificationsDimensions(WxHxD) (unit only)9.1 x 4.2 in x 1.5 in (230 x 106 x 38 mm) Weight (unit only) 14.1 oz (400 g) Ambient temperature -20 deg C to +55 deg C Enclosure water rating IP65 Communication CAN-bus NMEA 2000(R) network

Read more less

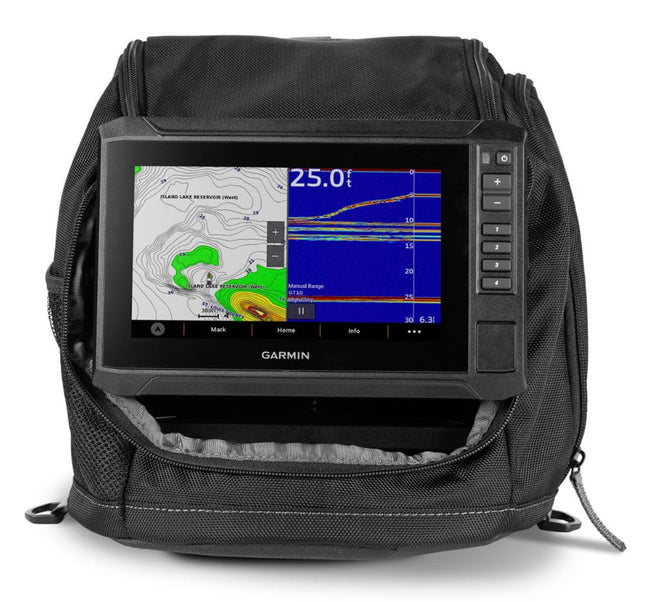

Garmin ECHOMAP UHD2 73sv Ice Bundle With GT10HN-IF GN+ US InlandModel: 010-02684-35 BUILT WITH BRIGHT 7 in TOUCHSCREEN DISPLAY AND KEYED ASSIST INCLUDED TRANSDUCER SO YOU SEE WHAT'S BELOW INCLUDES A BUILT-IN FLASHER FEATURES GARMIN NAVIONICS+TM MAPS WITH 23,000+ LAKES COMES WITH A RUGGED, PORTABLE CARRYING CASE Designed for the passionate angler, the ECHOMAP UHD2 73sv Ice Fishing Bundle provides detailed maps and sonar, so you can transform your fishing experience.The 7 in ECHOMAP UHD2 73sv chartplotter with touchscreen and keyed assist is perfect on the ice or on your boat (additional accessory purchase required).This bundle includes the GT10HN-IF, a high narrow CHIRP ice fishing transducer with selectable beamwidth (7 to 16 degrees), and it provides crisp, clear fish arches with excellent target separation.Get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.You can create custom pages that combine sonar, flasher and map on your display.ECHOMAP UHD2 73sv also supports ClearVüTM and SideVüTM scanning sonars for nearly photographic images of what's below the boat (transducer sold separately).Where you take your bundle is up to you. But the rugged, glove-friendly portable carrying case lets you easily transport it from hole to hole and season to season.SpecificationsTOUCHSCREENYes INPUT Touchscreen with Keyed Assist DISPLAY SIZE 6.1 x 3.4 in

Read more less

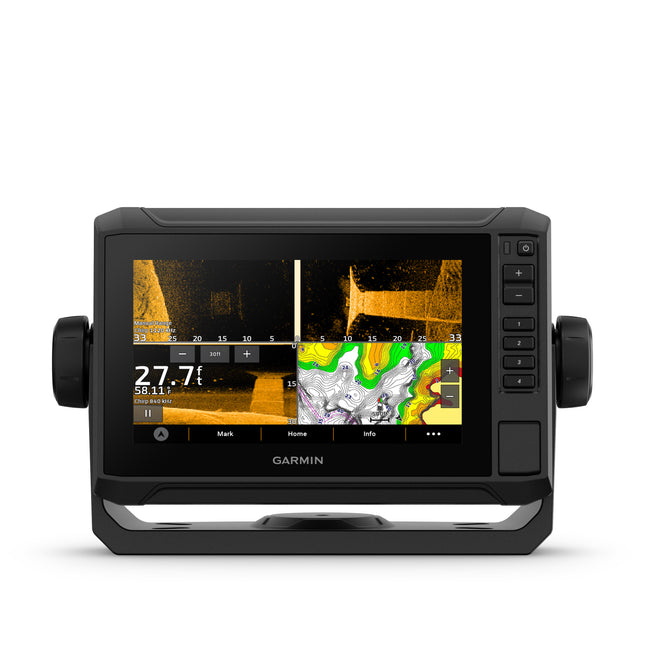

Garmin ECHOMAP UHD2 74sv, U.S. coastal without transducerModel: 010-02685-00 Easy-to-use 7 in chartplotter with a bright, sunlight-readable touchscreen display Built-in Garmin Navionics+TM coastal charts with integrated Navionics(R) data Built-in Wi-Fi(R) connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter Wirelessly connects to your Force(R) trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more The 7 in ECHOMAPTM UHD2 touchscreen with keyed-assist chartplotter knows the water better than a local. See clear

Read more less

AIS™ 800 Blackbox Transceiver**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form. **Click here to download form.Help Avoid Running into Trouble on the Water Easy-to-use, reliable communication transmits your vessel information to other AIS receivers in your area while receiving AIS target data 5 watts of transmit power with Class B/SO provides faster positioning reporting than ever before¹ Built-in GPS with connector for optional external antenna NMEA 2000® connectivity for easy integration with compatible chartplotters and multifunction displays Internal VHF antenna splitter allows VHF and AIS to share a single antenna Increase your situational awareness and confidence on the water with the Garmin AIS 800 transceiver. It has 5 watts of transmit power and provides faster position reporting than ever before¹. It transmits your vessel information to other AIS receivers in your area while it receives their AIS target data. Garmin AIS 800 has an internal VHF antenna splitter, which allows the VHF and AIS to share a single antenna. It includes a built-in GPS (with connector for optional external antenna) and integrates seamlessly into the Garmin onboard system. The transceiver features NMEA 2000 connectivity for easy integration with compatible chartplotters and multifunction displays. And it’s all packed into an easy-to-install black box unit with a small footprint.In The Box AIS 800 NMEA 2000® T-connector NMEA 2000 drop cable (2 meters) VHF antenna extension (1.2 meters) USB adapter cable Power cable Mounting hardware Documentation ¹When cruising above 14 knotsWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Display Included: No GPS Included: Yes Function: Receive/Transmit Antenna Included: No AIS Class: B Box Dimensions: 6"H x 8"W x 10"L WT: 5.6 lbs UPC: 753759209919 Brochure (pdf)

Read more less

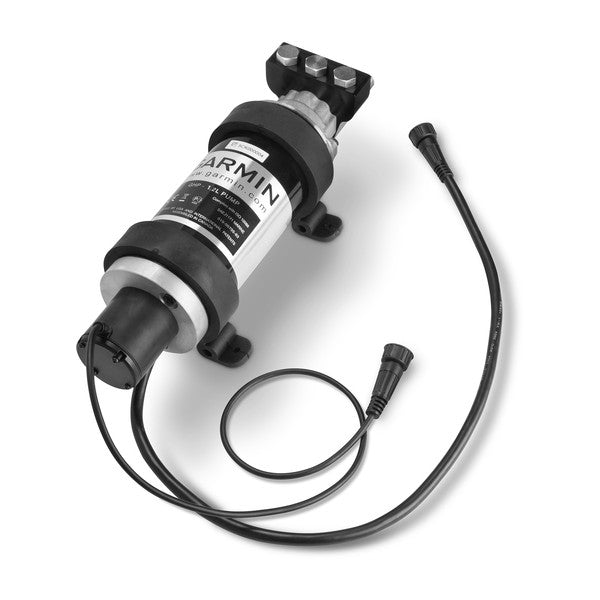

Garmin 1.2-Liter Pump KitModel: 010-00705-64Use Garmins 1.2 Liter per minute (0.32 gallon per minute) pump kit with your Reactor 40 system to pump hydraulic fluid to the steering cylinders and steer the boat. New and improved with ORB hydraulic ports and threaded cable collars for increased durability.Note: all other hydraulic fittings, tees and hoses must be sourced separately Dimensions 4.3 x 4.4 in x 1.9 in (10.9 x 11.2 x 4.8 cm) What's in the Box: Pump assumbly Installation instructions Installation mounting hardware 3 pcs of ORB-5 to 3/8 in compression marine tube fitting"

Read more less

Garmin 2.0-Liter Pump KitModel: 010-00705-63Use Garmins 2.0 Liter per minute (0.53 gallon per minute) pump kit with your Reactor 40 system to pump hydraulic fluid to the steering cylinders and steer the boat. New and improved with ORB hydraulic ports and threaded cable collars for increased durability.Note: all other hydraulic fittings, tees and hoses must be sourced separately Dimensions 4.3 x 4.4 in x 1.9 in (10.9 x 11.2 x 4.8 cm) What's in the Box: Pump assembly Installation instructions Installation mounting hardware 3 pcs of ORB-5 to 3/8 in compression marine tube fitting"

Read more less

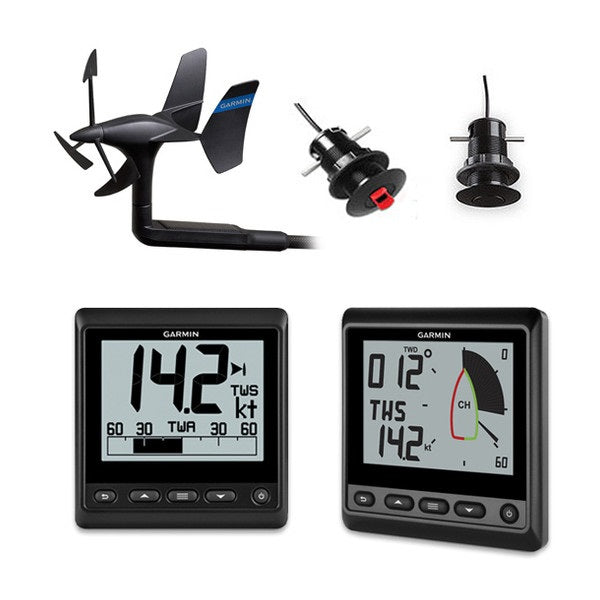

garmin GNX Wireless Sail Pack 43 Model: 010-01616-30 UPC: 753759171742 Includes Garmin GNXTM Wind and GNX 20 marine instruments, gWindTM Wireless 2 transducer, plus GDT 43 and GST 43 with 43 mm fittings and adapters for NMEA 2000(R) network sharing GNX Wind and GNX 20 instruments have highly visible monochrome LCD displays gWind Wireless 2 transducer eliminates running wires through masts up to 50 feet Accurate water depth, water speed and water temperature data and more Easy plug-and-play installation with NMEA 2000 network Update your sailboat's electronics with the GNX Wireless Sail Pack 43 that includes everything you need with 43 mm transducer fittings for depth, temperature and water speed. GNX Wind gives you the wind data necessary to make confident decisions. Featuring high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors, GNX Wind interfaces through the NMEA 2000 network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, steering guidance, boat speed and more. Low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats. Customizable user settings allow you to configure the screen layout to your preferred setting. Display configurations include more than 15 important marine parameters for wind, speed and navigation. The GNX Wind connects wirelessly with the gWind Wireless 2 and also to a quatix(R) 3 GPS marine smartwatch via ANT(R) technology to stream wind data directly to your wrist. gWind Wireless 2 offers an easy-to-install solution that eliminates running wires through masts up to 50 feet. Accurate wind signals are sent wirelessly via an ANT connection directly to a GNX Wind instrument or to a compatible Garmin GPSMAP(R) chartplotter. The transducer features renowned Nexus twin-fin technology with a 3-bladed propeller, providing accurate wind speed and stable wind angle in lighter wind conditions. The easy-to-read GNX 20 display with black digits on a white or color background clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters through the NMEA 2000 network. Customizable user settings allow you to choose from 5 available display configurations for sailboat or powerboat user profiles: single, dual and triple function plus gauge and graph mode to display wind, depth and speed data, or customize the pages to display the marine and boat data most important to you. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm. Uses only 25 mA with 350 mW daytime usage requiring no backlight and just 400 mW with a mid-level backlight setting at night. If you already have 43 mm fittings for your thru-hull transducers, there's no need to drill new holes. The bundle includes 43 mm thru-hull transducers, which can retrofit boats with existing Nexus TH43 transducers. The GST 43 is a speed and temperature transducer and the GDT43 is a depth transducer. Each transducer comes with an adapter that allows data to be shared over the NMEA 2000 network to a compatible Garmin chartplotter or instrument display. What's in the Box: gWind Wireless 2 transducer with mast bracket GNXTM Wind GNXTM 20 GSTTM 43 thru-hull speed and temperature transducer GST 10 adapter cable GDTTM 43 thru-hull depth sensor NMEA 2000(R) adapter NMEA 2000 power cable NMEA 2000 terminators NMEA 2000 drop cable (2 meters) 3 NMEA 2000 T-connectors Mounting hardware NiMH battery Documentation

Read more less

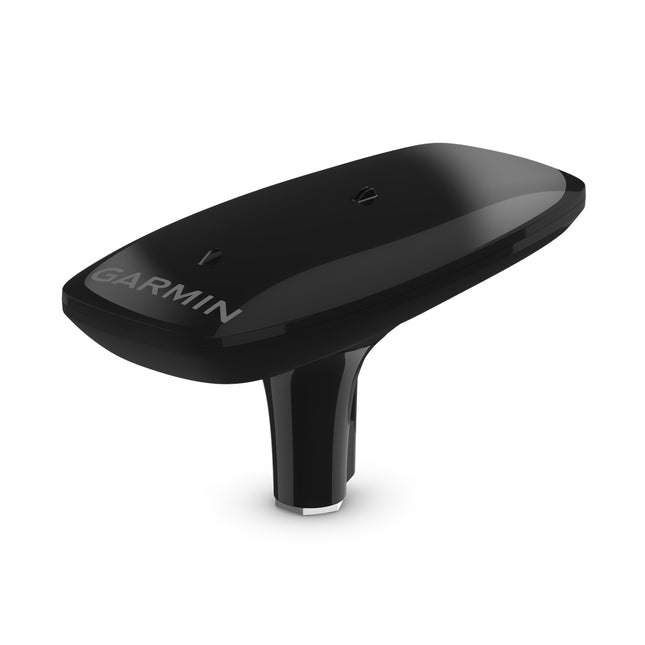

Garmin MSCTM 10 Marine Satellite Compass - BlackModel: 010-02407-10 Built-in attitude and heading reference system to filter and smooth GPS-derived heading Seamlessly transition from GPS-based to magnetometer-based heading if you lose satellite signal (magnetometer calibration required for backup magnetic heading support) Get accurate heave information right on your chartplotter through the NMEA 2000(R) network Multi-band GNSS (L1 and L5 GPS) receiver delivers accurate positioning within 1 meter; heading accuracy of 2-degree RMS in dynamic situations Use as the primary sensor for autopilots and other onboard systems Works with multiple satellite constellations for faster, more reliable positioning Compact device is simple to install with no calibration required, unless using magnetometer-based heading Easily integrates into your Garmin marine ecosystem 10 Hz position update rates for high-sensitivity tracking Know exactly where you're headed with the MSCTM 10 marine satellite compass. Easily install this GPS-based heading sensor with a fully integrated attitude and heading reference system for better GPS heading at high speeds. The multi-band GNSS (L1 and L5 GPS) receiver enables position accuracy to within 1 meter. Plus, the GPS-based compass won't be impacted by magnetic interference. It can even deliver boat heave information to your chartplotter via the NMEA 2000(R) network. You can also use MSCTM 10 as the primary sensor for autopilots and all your onboard systems that need accurate heading information.What's in the Box: MSCTM 10 Marine Satellite Compass - Black Pole mount Mounting hardware NMEA 2000(R) backbone/drop cable (6 meters) NMEA 2000 T-connector Documentation
