Maretron M-Power CBMD12 Bypass Module 12 Circuit N2K without Fuse Pack and Jumper WireModel: CBMD12 75 Amps maximum current capacity Outputs: 12A Max (two outputs), 10A Max (six outputs), 5A Max (four outputs) 12V and 24V DC power systems Carling Technologies Curvette(R) Rocker Switches Overcurrent protection via ATC standard fuses For manual control of the loads, an optional MPower(R) 12-Channel Bypass Module (CBMD12) can be installed in conjunction with the 12-Channel DC Load Controller Module (CLMD12). The maximum current capacity for the CBMD12 is 75 amps in 12V DC and 24V DC power systems.The Bypass Module provides a manual method (ON/OFF switch) to control loads by providing power to each load in case of a CLMD12 malfunction or a NMEA 2000(R) network failure. The CBMD12 utilizes standard fuses for overcurrent protection and 12 Carling Curvette(R) Rocker Switches for manual control of each load. With the use of the Curvette rocker switches, there is no arcing that occurs while manually overriding a load. Furthermore, unlike other digital switching products, MPower does not require moving a fuse which can cause electrical connections to degrade, or the possibility for ignition.It's important to ensure that the current rating of the fuse for each load is appropriate to protect the load and the wiring for that load. Please note that the bypass module does not support paralleled outputs, since each circuit is controlled by a separate switch. Additionally, the bypass module does not support dimming of circuits.

Read more less

12 Circuit Bypass Module NMEA 2K without Fuse Pack & Jumper WireFor manual control of the loads, an optional MPower® 12-Channel Bypass Module (CBMD12) can be installed in conjunction with the 12-Channel DC Load Controller Module (CLMD12). The maximum current capacity for the CBMD12 is 75 amps in 12V DC and 24V DC power systems.The Bypass Module provides a manual method (ON/OFF switch) to control loads by providing power to each load in case of a CLMD12 malfunction or a NMEA 2000® network failure. The CBMD12 utilizes standard fuses for overcurrent protection and 12 Carling Curvette® Rocker Switches for manual control of each load. With the use of the Curvette rocker switches, there is no arcing that occurs while manually overriding a load. Furthermore, unlike other digital switching products, MPower does not require moving a fuse, which can cause electrical connections to degrade or the possibility of ignition.It’s important to ensure that the current rating of the fuse for each load is appropriate to protect the load and the wiring for that load. Please note that the bypass module does not support paralleled outputs, since each circuit is controlled by a separate switch. Additionally, the bypass module does not support dimming of circuits.Features: 75 Amps maximum current capacity Outputs 12A Max (two outputs) 10A Max (six outputs) 5A Max (four outputs) 12V and 24V DC power systems Carling Technologies Curvette® Rocker Switches Overcurrent protection via ATC standard fuses This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

NMEA 2000 Starter Kit 1Maretron's deluxe starter kit provides all the necessary cables and connectors necessary to connect two products together on an NMEA 2000® network.   Contacts are gold-plated brass and couplings are nickel-plated brass for durability and reliability.Included in the Box: (1) 5-Meter Micro Powertap Cable (CF-SPWR05-CF) (1) 10-Meter Micro Trunk/Backbone Cable (CM-CG1-CF-10.0) (1) Micro Tees (CM-CF-CF) (1) 2-Meter Micro Drop Cables (CM-CG1-CF-02.0) (2) Micro Male Terminators (TR-CM) *Sold as a Kit

Read more less

Exhuast Gas Temperature Probe (0°C to 900°C or 32° to 1652°F)WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

Maretron Micro Cable Starter Kit1Model: CABLESTARTER1What's in the Box: Micro Powertap Micro Male terminators x 2 Micro Tee Micro 2m Cable Micro 6m Cable

Read more less

Contura V Position #6 IS 3 Position (NAV/ANC) with VMM Series Adapter 2MThe VMM-Series is a sealed multiplexed, digital switch module featuring the Carling V-Series Contura® rocker switches. Well known for their cutting-edge design, high quality, maximum performance, and unmatched reliability, the VMM-Series reduces the complexity and cost of traditional wiring harnesses, increases product life and reliability, and reduces installation time. Available in six simple configurations, VMM6 is a plug-and-play solution that delivers switching technology at a very attractive price point.Available in four simple configurations, the VMM6 is an out-of-the-box plug-and-play solution that delivers switching technology at a very attractive price point. In addition, for customers who want the option to source aftermarket actuators, we offer two configurations of the VMM6 without actuators (Part numbers A3801-5, A3801-6).The VMM6 is sold off-the-shelf in the following configurations. Each configuration includes one 0.2m VMM to NMEA 2000® adapter cable.Features: NMEA 2000® CAN Protocol IP68 Sealing Protection with plug installed in unused connector Configurable Horizontal or Vertical Mounting Options Aftermarket Actuators are readily available with a wide selection of Legends LED feedback of circuit state Low Current Switching Tactile and Audible Feedback Specifications:Contura V Actuators with right switch, 3-position, and blue LEDsThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

Contura V All Position Momentary ON with VMM Series Adapter 2MThe VMM-Series is a sealed multiplexed, digital switch module featuring the Carling V-Series Contura® rocker switches. Well known for their cutting-edge design, high quality, maximum performance, and unmatched reliability, the VMM-Series reduces the complexity and cost of traditional wiring harnesses, increases product life and reliability, and reduces installation time. Available in six simple configurations, VMM6 is a plug-and-play solution that delivers switching technology at a very attractive price point.Available in four simple configurations, the VMM6 is an out-of-the-box plug-and-play solution that delivers switching technology at a very attractive price point. In addition, for customers who want the option to source aftermarket actuators, we offer two configurations of the VMM6 without actuators (Part numbers A3801-5, A3801-6).The VMM6 is sold off-the-shelf in the following configurations. Each configuration includes one 0.2m VMM to NMEA 2000® adapter cable.Features: NMEA 2000® CAN Protocol IP68 Sealing Protection with plug installed in unused connector Configurable Horizontal or Vertical Mounting Options Aftermarket Actuators are readily available with a wide selection of Legends LED feedback of circuit state Low Current Switching Tactile and Audible Feedback Specifications:Contura V Actuators with all positions momentary ON and blue LEDsThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

Contura II Position #6 IS 3 Position (NAV/ANC) with VMM Series Adapter 2MThe VMM-Series is a sealed multiplexed, digital switch module featuring the Carling V-Series Contura® rocker switches. Well known for their cutting-edge design, high quality, maximum performance, and unmatched reliability, the VMM-Series reduces the complexity and cost of traditional wiring harnesses, increases product life and reliability, and reduces installation time. Available in six simple configurations, VMM6 is a plug-and-play solution that delivers switching technology at a very attractive price point.Available in four simple configurations, the VMM6 is an out-of-the-box plug-and-play solution that delivers switching technology at a very attractive price point. In addition, for customers who want the option to source aftermarket actuators, we offer two configurations of the VMM6 without actuators (Part numbers A3801-5, A3801-6).The VMM6 is sold off-the-shelf in the following configurations. Each configuration includes one 0.2m VMM to NMEA 2000® adapter cable.Features: NMEA 2000® CAN Protocol IP68 Sealing Protection with plug installed in unused connector Configurable Horizontal or Vertical Mounting Options Aftermarket Actuators are readily available with a wide selection of Legends LED feedback of circuit state Low Current Switching Tactile and Audible Feedback Specifications:Contura II Actuators with right switch, 3-position, and blue LEDsThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

Contura II All Position Momentary ON with VMM Series Adapter 2MThe VMM-Series is a sealed multiplexed, digital switch module featuring the Carling V-Series Contura® rocker switches. Well known for their cutting-edge design, high quality, maximum performance, and unmatched reliability, the VMM-Series reduces the complexity and cost of traditional wiring harnesses, increases product life and reliability, and reduces installation time. Available in six simple configurations, VMM6 is a plug-and-play solution that delivers switching technology at a very attractive price point.Available in four simple configurations, the VMM6 is an out-of-the-box plug-and-play solution that delivers switching technology at a very attractive price point. In addition, for customers who want the option to source aftermarket actuators, we offer two configurations of the VMM6 without actuators (Part numbers A3801-5, A3801-6).The VMM6 is sold off-the-shelf in the following configurations. Each configuration includes one 0.2m VMM to NMEA 2000® adapter cable.Features: NMEA 2000® CAN Protocol IP68 Sealing Protection with plug installed in unused connector Configurable Horizontal or Vertical Mounting Options Aftermarket Actuators are readily available with a wide selection of Legends LED feedback of circuit state Low Current Switching Tactile and Audible Feedback Specifications:Contura II Actuators with all positions momentary ON and blue LEDsThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

VMM6 Contura® Series Digital Switch Module, 6 Rocker - No Actuators w/Right Switch 3-Position & Blue LEDsThe VMM-Series is a sealed multiplexed, digital switch module featuring the Carling V-Series Contura® rocker switches. Well known for their cutting-edge design, high quality, maximum performance, and unmatched reliability, the VMM-Series reduces the complexity and cost of traditional wiring harnesses, increases product life and reliability, and reduces installation time. Available in six simple configurations, VMM6 is a plug-and-play solution that delivers switching technology at a very attractive price point.Available in four simple configurations, the VMM6 is an out-of-the-box plug-and-play solution that delivers switching technology at a very attractive price point. In addition, for customers who want the option to source aftermarket actuators, we offer two configurations of the VMM6 without actuators (Part numbers A3801-5, A3801-6).The VMM6 is sold off-the-shelf in the following configurations. Each configuration includes one 0.2m VMM to NMEA 2000® adapter cable.Features: NMEA 2000® CAN Protocol IP68 Sealing Protection with plug installed in unused connector Configurable Horizontal or Vertical Mounting Options Aftermarket Actuators are readily available with a wide selection of Legends LED feedback of circuit state Low Current Switching Tactile and Audible Feedback Applications: Control of navigation lights Control of boarding lights Control of area lights This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

J2K100 Adapter Micro Female - Deutsche 12 Pin 2TUse a Maretron J2K100 Adapter Micro Female Deutsche Cordset to attach the J2k100 directly into J1939 networks of compatible engines, transmissions, and gensets. Specifications: Connection Gender: Female Box Dimensions: 1"H x 7"W x 9"L WT: 0.55 lbs UPC: 873804001463

Read more less

Multiport boxes allow several drop cables to be consolidated and connected back to the trunk, which eliminates the need to have numerous tees connected near a single point. Multiport boxes connect back to the trunk through a double-ended cordset and Tee. Ideal for consolidating many connections; for example behind dashboards Requires the purchase of an additional double-ended cordset for connection back to the trunkWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Read more less

Multiport boxes allow several drop cables to be consolidated and connected back to the trunk, which eliminates the need to have numerous tees connected near a single point. Multiport boxes connect back to the trunk through a double-ended cordset and Tee. Ideal for consolidating many connections; for example behind dashboards Requires the purchase of an additional double-ended cordset for connection back to the trunk

Read more less

Maretron M-Power A3710 J3 I/O Matting Connector KitModel: A3710J3 (I/O Gen Purpose) Harness Kit with 1m Flying Leads

Read more less

1.25" BSM Non-Displac Hull Focus TubeThe Maretron TFT-1.25BSP is a 1.25in BSM Non-Displacement Hull Focus Tube.WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Read more less

CLMD16-J3 I/O Mating Connector KitJ3 (I/O Gen Purpose) Harness Kit with 1m Flying Leads.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Current Transducer with CableMaretron's Current Transducer is specifically used with Maretron's ACM100 Alternating Current Monitor.Features:Includes CableWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Read more less

The Maretron PT-SNUB-01 Pressure Snubber is used in combination with the Maretron FPM100 Fluid Pressure Monitor and a pressure transducer FPM100 accessory. The PT-SNUB-01 dampens pressure variations between a pressure source and the pressure transducer, both smoothing the changes due to pressure spikes and surges and protecting the pressure transducer from these changes. Please follow these instructions to install the PT-SNUB-01 Pressure Snubber between a Maretron FPM100 pressure transducer accessory and a tank or pressure source being monitored. Pressure Snubber Specifications Specification Value Housing Material 303 Stainless Steel Filter Disc 316 Stainless Steel Max Pressure Rating 15,000 PSI (1,034 bar) Max Pore Opening 0.0025 in Flow at 1 PSI (69 mbar) Differential Pressure 3.0 ft<font FACE="Arial,Arial" SIZE="1 in>3/hr (0.085m/hr)

Read more less

J2K100 Adapter Micro Female - Deutsche 4 Pin 2 MeterUse a Maretron J2K100 Adapter Micro Female Deutsche Cordset to attach the J2k100 directly into J1939 networks of compatible engines, transmissions, and gensets. Specifications: Connection Gender: Female Cable Length (Meters): 2m Box Dimensions: 1"H x 6"W x 7"L WT: 0.35 lbs UPC: 873804001449

Read more less

Mechanical Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59"Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: HDPE (data pair), SRPVC (power pair) Number of Conductors: 4X22 AWG, 22 AWG Drain Wire Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)Environmental Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)Approvals (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,AWM I/II A/B 80C 300V FT4 NMEA: NMEA 2000 Approved Specifications: Data Interface: NMEA 2000 Connection Gender: Male-Female Cable Length (Meters): 10m Box Dimensions: 3"H x 7"W x 7"L WT: 1.5 lbs UPC: 873804001609

Read more less

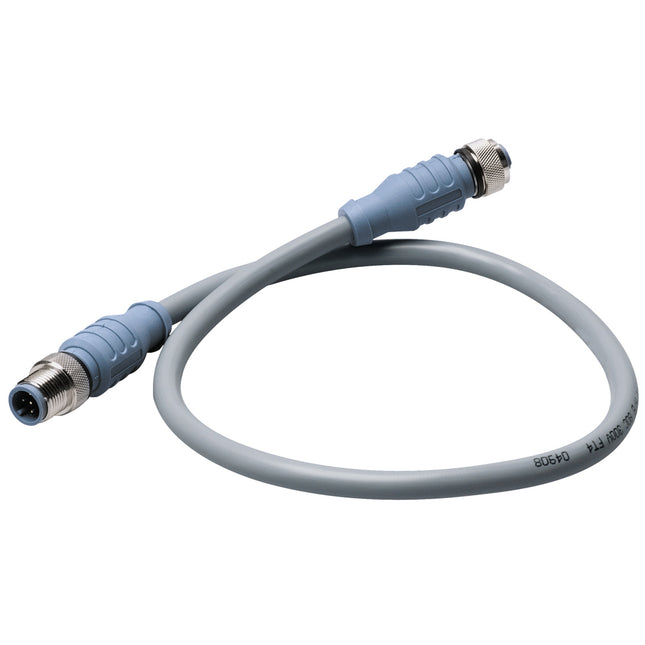

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and they are waterproof for continued operation even while submerged in the bilge. Rugged, IP68 rated connectors for continued connection integrity in marine environments Various cable lengths to match installation requirements

Read more less

Maretron Mid Double-Ended Cordset - 6 M BlueMechanical:Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59"Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: PE (data pair), PVC (power pair) Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)ENVIRONMENTAL Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)APPROVALS (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 Approved IEC: IEC 61162-3 Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 6m Box Dimensions: 1"H x 6"W x 6"L WT: 1.4 lbs UPC: 873804001951

Read more less

Bilge High Water DetectorPart #: BHW100Used with SIM100 Switch Indicator Module to detect high bilge water.WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

1.5" NPT Displacement Hull Tank AdapterAdapter from Maretron for displacement hull tanks.WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Read more less

Mechanical Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59?Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: HDPE (data pair), SRPVC (power pair) Number of Conductors: 4X22 AWG, 22 AWG Drain Wire Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)Environmental Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)Approvals (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4 NMEA: NMEA 2000 Approved Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 8m Box Dimensions: 1"H x 7"W x 8"L WT: 1.1 lbs UPC: 873804001586

Read more less

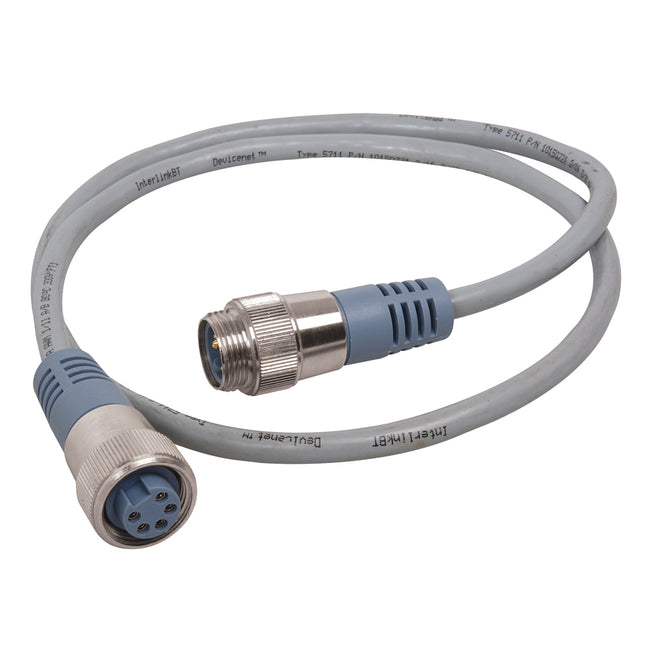

Maretron Blue Mid 6 Meter Cable Model: DM-DB1-DF-06.0 UPC: 873804001951 Rugged, IP68 rated connectors for continued connection integrity in marine environments Various cable lengths to match installation requirements Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge. SpecificationsContact Carrier Mat/ColorThermoplastic PUR/Blue Molded Body Mat/Color Thermoplastic PUR/Blue Contact Mat/Plating Brass/Gold Coupling Nut Mat/Plating Brass/Nickel Connector Outside Diameter 0.59 in Electrical Current rating 4.0 Amps Voltage rating1 250v Cable Outer Jacket Mat/Color PVC/Blue Conductor Insulation Material PE (data pair), PVC (power pair) Number of Conductors 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire Shielding (3 Levels) Foil (Overall), Foil (Power Pair), Foil (Data Pair) Enviromental Protection class IEC IP68, NEMA 1,3,4,6P Temperature rating -40 degC to 80 degC to (-40 degF to 176 degF) Approvals (Cable) UL PLTC 75 degC Sunlight Resistant E90625, AWM 80 degC 300V (Cable) CSA CMX-OUTDOOR-CMG LL54185 75 degC, AWM I/II A/B 80C 300V FT4 NMEA NMEA 2000(R) Approved IEC IEC 61162-3

Read more less

Maretron M-Power A3708 J2 Output Mating Connector with 1m LeadsModel: A3708Output (J2) Mating Connector with 1m Flying Leads

Read more less

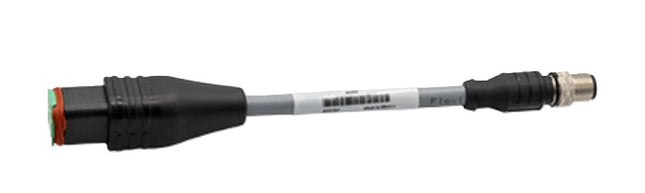

Maretron M-Power A3703 CKM N2K Adapter Cable 0.2mModel: A3703NMEA 2000(R) Pigtail (0.2m)

Read more less

CLMD16-J2 Output Mating Connector with 1M LeadsOutput (J2) Mating Connector with 1m Flying Leads.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 3 Box Dimensions: 1"H x 6"W x 7"L WT: 0.8 lbs UPC: 873804004303

Read more less

Maretron Mid Double-Ended Cordset - 5 M BlueMechanical:Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59"Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: PE (data pair), PVC (power pair) Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)ENVIRONMENTAL Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)APPROVALS (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 Approved IEC: IEC 61162-3 Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 5m Box Dimensions: 1"H x 9"W x 10"L WT: 1.2 lbs UPC: 873804001944

Read more less

Non-Displacement Hull Focus Tube SAE 5-BoltSAE 5-Bolt non-displacement hull focus tube from Maretron.WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Read more less
