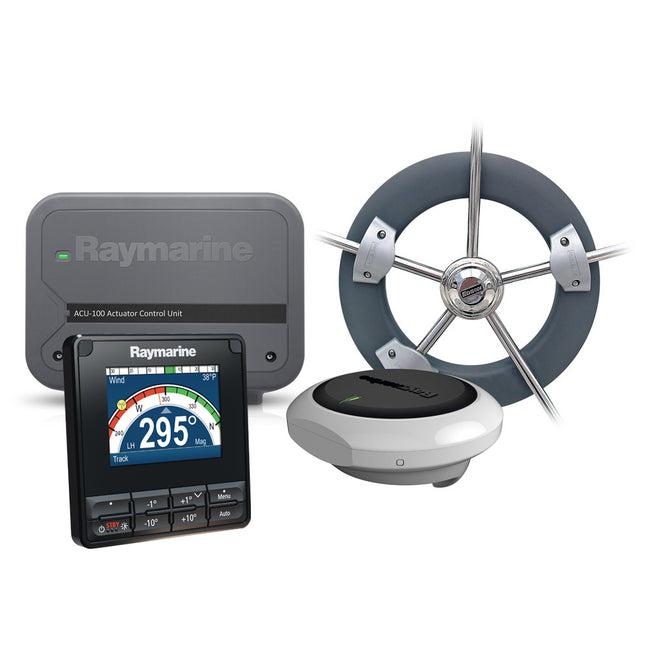

EV-100 Wheel Evolution AutopilotFeatures: A complete autopilot-in-a-box Evolution Ai for superior performance No calibration required Quick and easy installation Fits most types of sailboat wheels Simple, robust clutch engagement For boats up to 16,500 lbs (7,500 kg) For 12V DC power systems Includes p70s Autopilot Controller Includes: EV-1 Sensor Core p70s Autopilot Control Head ACU-100 Actuator Control Unit Wheel Drive Evolution Cabling Kit EV Unit O-Ring Pack (set of 2) Wall Mounting Bracket The EV Sensor CoreAt the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.Features: Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change Flexible installation options. Mount above or below deck Simple SeaTalkng connectivity to the control head and ACU Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays p70s Autopilot Control HeadThe p70s is a push-button operation controller designed primarily for sailboats.Features: LightHouse user interface is simple and quick to use Wide 160° viewing angles Start up wizard helps you configure the pilot quickly and easily Anti-reflective coating for improved visibility in bright sunlight Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer Simple system and group dimming/illumination Support for multiple data sources SeaTalkng/NMEA2000 and SeaTalk1 connectivity (no bridging required) ACU-100 Autopilot Control Unit (ACU)The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.Evolution Cabling Kit 1 x SeaTalkng Power Cable (0.4m) 1 x SeaTalkng Backbone Cable (5m) 1 x SeaTalkng Spur Cable (0.4m) 1 x SeaTalkng 5-way Connector Block 2 x SeaTalkng T-piece Connector 2 x SeaTalkng Terminator Specifications: Steering Type: Wheel Pilot Box Dimensions: 15"H x 16"W x 27"L WT: 15 lbs UPC: 723193854211 Quick Guide (pdf)Brochure (pdf)

Read more less

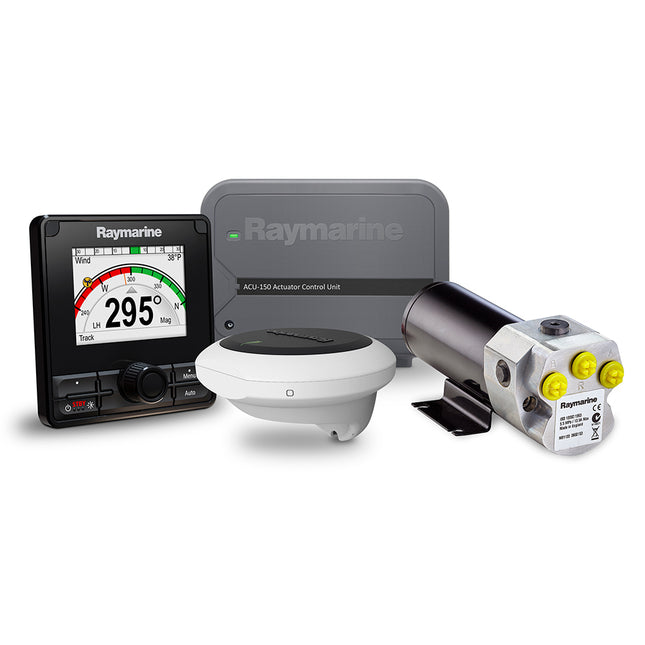

Evolution EV-150 Hydraulic Autopilot System PackThe Evolution EV-150 Hydraulic Autopilot System Pack is a complete autopilot-in-a-box kit that is ready to install on many popular fishing and cruising powerboats with hydraulic steering. The system comes complete with our p70Rs autopilot controller, EV1 Sensor Core, ACU150 Actuator Control Unit, Type 1 Hydraulic Pump, and an Evolution autopilot cabling kit.Engineered for simplicity, Raymarine's award-winning Evolution autopilots eliminate the need for complicated set up and calibration. Thanks to the intelligent 9-axis EV sensor core, the autopilot automatically evolves and adapts to your vessel's steering characteristics without any user adjustments. The result is precise and confident course keeping, regardless of vessel speed or sea conditions.The Evolution EV-150 system also employs Raymarine's patented Hydro-Balance™ technology which delivers superior autopilot performance for hydraulically steered boats, particularly those with outboard motors and rudder-reference less systems. Hydro-Balance automatically compensates for hydraulic system elasticity, steering system asymmetry, and torque steer to keep your boat on-course at trolling speed, cruising speed, and all-out running. Anglers will also love the Evolution Autopilot's built-in trolling patterns. Let the autopilot work the boat while you prep bait, set your lines and adjust your spread. The system is also equipped with Raymarine latest Evolution TrackIQ™ algorithms which deliver tighter track-keeping and faster track acquisition. It also uses information on vessel pitch, roll, yaw and heave to stabilize GPS navigation data like course over ground, speed over ground and cross track error for the best possible tracking to waypoints and routes. The Raymarine EV-150 Hydraulic Autopilot System Pack is the ideal autopilot for small to medium sized hydraulically steered vessels with a steering ram capacity between 4.9 cu. in. (80cc) and 14.0 cu in. (230cc). The system is for 12-volt DC electrical systems only.Includes E70329 p70Rs Control Head E70096 EV-1 Sensor Core R70160 Evolution Cable Kit E70430 ACU-150 Actuator Control Unit M81120 Type 1 12v Hydraulic Pump Specifications: Steering Type: Hydraulic Box Dimensions: 8"H x 17"W x 20"L WT: 15.45 lbs UPC: 723193853719

Read more less

NavPilot 711C f/OutboardsIncludes: NavPilot 711C Control Unit FAP7002 Processor Unit PG700 Heading Sensor, NMEA 2000 Kick back, relax and let NavPilot steer you to your destination!FURUNO's NavPilot is a revolutionary autopilot with a sunlight viewable display designed for a variety of vessels. It utilizes a self-learning and adaptive software algorithm, and plays the ultimate role in course-keeping capability. NavPilot dynamically adjusts essential parameters during navigation, such as vessel speed, trim, draught, tide and wind effects, dead band, weather and more. These parameters are stored in system memory and continuously optimized to make the NavPilot more versatile.The new NavPilot 711C features a color day/night graphic display, offering much better sunlight viewability during the day while not affecting your night vision when the sun goes down.Self-learning and adaptive softwareFrom the first dock-side setup through the last voyage you made, NavPilot continues to learn your vessel's steering characteristics, allowing for real-time, dynamic adjustments to make the boat's steering more accurate.SAFE HELM and POWER ASSIST features provide Efficient and Effective Helm Steering ControlThe optional SAFE HELM and POWER ASSIST features provide a unique interface to the vessel's hydraulic hand steering system, providing unrivaled comfort and control of steering directly from any manual helm on the vessel. These two modes greatly reduce steering effort and enhance the safety of your autopilot.The POWER ASSIST mode incorporates the SAFE HELM concept and provides speed-based, power assisted steering, which greatly reduces manual helm effort in maneuvering situations. POWER ASSIST is a unique helm-activated assisted steering feature that can augment or replace separate electric and power-robbing, engine-driven power steering systems on many vessels. POWER ASSIST reduces steering system complexity and costs while increasing economy.SAFE HELM and POWER ASSIST modes will require the optional FPS8 Power Steering Module and an appropriate HRP Pumpset.If you are interested in utilizing the SAFE HELM and POWER ASSIST features, it is highly recommend that, when installing the NavPilot 700 Series Autopilot, the optional FPS8 Power Steering Module is purchased and installed at the same time. This will eliminate the need to re-plumb the hydraulic system and run additional connection cables in the future.FishHunter modeFishHunter mode is a unique feature of FURUNO's NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).Furuno's new NavPilot series is designed to match the NavNet 3D, FI-50 Instrument series and other navigation equipment. The Plug and Play CAN bus interface allows for easy installation and exceptional interface ability.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Steering Type: Hydraulic Box Dimensions: 14"H x 14"W x 28"L WT: 18.75 lbs UPC: 611679355126 Owner's Manual (pdf)Brochure (pdf)

Read more less

Type H for Boats with Hydraulic SteeringFeatures: Connects to any hydraulic steering system Rugged Octopus hydraulic pump Adds pushbutton steering to your hydraulic steering Current 3-6A Typical, 15A Peak Includes all hoses and fittings Wireless control module plus handheld pendant - steering in the palm of your hand Steer, fish and cruise from anywhere on the boat Easy DIY installation - no need for professional installer 2 Year limited warranty - purchase with confidence Specifications:Wireless Controller & Receiver Meets FCC standards Additional Handheld and receiver can be paired in field Pendant and receiver auto-off in 30 minutes if no usage Over 1 Million control codes provide enhanced security Handheld Pendant Water proof Supplied with 2xAAA batteries Includes lanyard Wireless Receiver & Motor Controller Waterproof Motor drive capability up to 25A Overload protection Reverse polarity protection 12V DC nominal (9V min - 16V max operating range) Offers pass-through capability for Autopilot motor and clutch control circuits Specifications: Type: Parts Box Dimensions: 6"H x 14"W x 14"L WT: 9 lbs UPC: 628309263362 Brochure (pdf)

Read more less

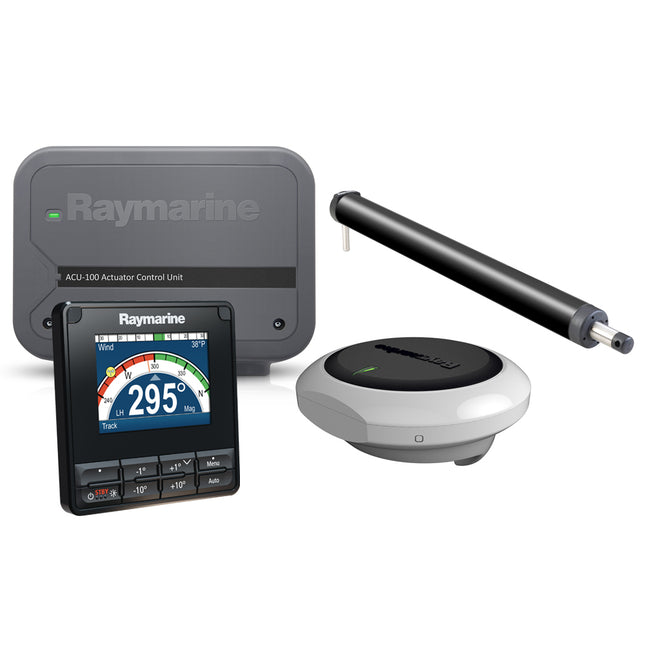

EV-100 Tiller Evolution AutopilotFeatures: A complete autopilot-in-a-box Evolution Ai for superior performance No calibration required Quick and easy installation Powerful tiller drive is compact and unobtrusive Used by the world's top single-handed sailors For tiller steered boats up to 13,200 lbs (6,000 kg) For 12V DC power systems Includes p70s Autopilot Controller Includes: EV-1 Sensor Core p70s Autopilot Control Head ACU-100 Actuator Control Unit Tiller Drive Tiller Pin (sold in packages of 5) Mounting Socket (sold in packages of 5) Evolution Cabling Kit EV Unit O-Ring Pack (set of 2) Wall Mounting Bracket The EV Sensor CoreAt the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.Features: Precision monitoring of heading, pitch, roll, and yaw allowing the =autopilot to evolve instantly as sea conditions and vessel dynamics change Flexible installation options Mount above or below deck Simple SeaTalkng connectivity to the control head and ACU Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays p70 Autopilot Control HeadThe p70 is a push-button operation controller designed primarily for sailboats.Features: LightHouse user interface is simple and quick to use Wide 160° viewing angles Start up wizard helps you configure the pilot quickly and easily Anti-reflective coating for improved visibility in bright sunlight Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer Simple system and group dimming/illumination Support for multiple data sources SeaTalkng/NMEA2000 and SeaTalk1 connectivity (no bridging required) ACU-100 Autopilot Control Unit (ACU)The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.Evolution Cabling Kit 1 x SeaTalkng Power Cable (0.4m) 1 x SeaTalkng Backbone Cable (5m) 1 x SeaTalkng Spur Cable (0.4m) 1 x SeaTalkng 5-way Connector Block 2 x SeaTalkng T-piece Connector 2 x SeaTalkng Terminator Specifications: Steering Type: Tiller Box Dimensions: 12"H x 13"W x 31"L WT: 12.05 lbs UPC: 723193854204 Quick Guide (pdf)Brochure (pdf)

Read more less
