SmartSolar MPPT 150/100-TR VE.CanThe MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges battery banks.The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulfated or otherwise damaged.MPPT: Ultra Fast Maximum Power Point TrackingThe MPPT VE.Can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model.The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium, and others.Control Your Charger RemotelyThe MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.Daisy Chain Additional UnitsThe VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply "daisy-chained" to each other with a single RJ45 cable between the individual units.When connected to each other, all individual VE.Can SmartSolar chargers, will synchronize their charge stages. They can also send their data, via a single cable, to a GX monitoring device.Remote Monitoring and ControlIf the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).SmartSolar Control DisplayThe VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single-unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live data, setup, and management, straight from the face of the device.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Centaur Charger - 50AMP, 12/50(3), 120-240VThe Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world.Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations.The range spans 12V and 24V models from 16A through to 100A.Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charging Banks: 3 Charger Output Voltage: 12v Charger Output - Amps: 50a Charger Input - Voltage: 120/240v Portable: No Box Dimensions: 8"H x 13"W x 22"L WT: 15.95 lbs UPC: 8719076021506 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

SmartSolar MPPT 250/70-TR VE.CanThe SmartSolar MPPT is packed with advanced technology to get the most out of your solar panels whilst protecting your batteries. It operates at 98% efficiency with natural cooling and is engineered to withstand the toughest conditions.The lightning-fast maximum power point tracking converts all available sunlight into useful energy. Its charge algorithms enhance power output and extend battery life by intelligently managing charging cycles. Built-in SafetyShield+ features such as over-temperature, short-circuit, and reverse polarity protection safeguard your batteries from potential issues.Simply put: the SmartSolar MPPT is the smartest solar charge controller under the sun.Features: Lightning-fast maximum power point tracking Remote Management optional Intelligent charge algorithm VictronConnect App Wireless charging synchronisation SafetyShield+ Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 250V Charger Output - Amps: 70A Charger Output Voltage: 12V, 24V 36V, 48V Charging Banks: 1 Continuous Amperage: 35A/MC 4 conn Box Dimensions: 6"H x 10"W x 11"L WT: 8.3 lbs UPC: 8719076051213 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

BMV-710H Smart High Voltage Battery Monitor (60-385VDC)The BMV-710H Smart has Bluetooth built-in and can connect wirelessly to your phone (or tablet) via the VictronConnect App to conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.This battery monitor can calculate the state of charge of a battery and keep track of the ampere hours consumed from the battery by integrating the current flowing in or out of the battery.The monitor comes with a round head unit, a square bezel overlay, a screw ring for mounting, a 10m UTP RJ12 cable, a fused power supply cable, and a 500 A/50 mV shunt. Because of the high voltage application, the shunt is housed in a special enclosure.Battery ‘fuel gauge’, time-to-go indicator, and much more The remaining battery capacity depends on the ampere-hours consumed, discharge current, and temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account.Next to the basic display options, such as voltage, current, and ampere-hours consumed, the BMV-700 series also displays the state of charge, time to go, and power consumption in Watts.Bluetooth SmartUse the Bluetooth Smart dongle to monitor your batteries on Apple or Android smartphones, tablets, Macbooks and other devices.Easy to InstallAll electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ12 cable (10m) and battery cable with fuse (2m); No other components are needed.Also included are a separate front bezel for a square or round display appearance and a securing ring for the rear mounting and screws for the front mounting.Easy to Program (with your smartphone!)A quick install menu and a detailed setup menu with scrolling texts assist the user when going through the various settings.Alternatively, choose the fast and easy solution: Download the smartphone app (Bluetooth Smart Dongle needed)Features: Battery voltage, current, power, ampere-hours consumed, and state of charge Remaining time at the current rate of discharge Programmable visual and audible alarm Programmable relay, to turn off non critical loads or run a generator when needed 500 Amp quick connect shunt and connection kit Shunt selection capability up to 10,000 amps VE.Direct communication port Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health Wide input voltage range: 6.5 – 95V High current measurement resolution: 10 mA (0.01A) Low current consumption: 2.9Ah per month (4mA) @12V and 2.2Ah per month (3mA) @ 24V BMV-710H Specifications: Supply Voltage Range: 60 – 385 VDC Current Draw, Back Light Off: < 4mA Input Voltage Range, Auxiliary Battery:  n. a. Battery Capacity (Ah): 1 - 9999 Ah Operating Temperature Range: -40 +50°C (-40 - 120°F) Measures Voltage of Second Battery, or Temperature, or Midpoint: No Temperature Measurement Range: n. a. VE.Direct Communication Port: Yes Relay: 60V / 1A normally open (function can be inverted) Resolution & Accuracy (with a 500 A shunt): Current: ± 0.01A Voltage: ± 0.01V Amp Hours: ± 0.1 Ah State of Charge: (0 – 100%) ± 0.1% Time to Go: ± 1 min Temperature: n. a. Accuracy of Current Measurement: ± 0.4% Accuracy of Voltage Measurement: ± 0.3% Installations & Dimensions:  Installation: Flush mount Front: 63mm diameter Front Bezel: 69 x 69 mm (2.7 x 2.7 inch) Shunt Connection Bolts: M10 (0.3937 inch) Body Diameter and Depth: 52 mm (2.0 inch) and 31 mm (1.2 inch) Protection Category: IP55 (not intended for outdoor use) Standards: Safety: EN 60335-1 Emission / Immunity: EN 55014-1 / EN 55014-2 Automotive: ECE R10-4 / EN 50498 Accessories: Shunt (included): 500A / 50mV Cables (included): 10 meter 6 core UTP with RJ12 connectors, and cable with 1Amp slow blow fuse for ‘+’ connection Temperature Sensor: Optional (ASS000100000) Please contact your dealer for any returns, repairs or support issues related to this product. Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Brochure (pdf)

Read more less

Centaur Charger - 12 VDC - 40AMP - 3-Bank - 120-240 VACFeatures: Quality without compromise -  Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions. Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.  The chargers also accept a 90-400 V DC supply.  Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.  Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 120/240v Portable: No Charging Banks: 3 Charger Output Voltage: 12v Charger Output - Amps: 40a Box Dimensions: 8"H x 13"W x 22"L WT: 15.95 lbs UPC: 8719076021490 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Autotransformer 120/240V - 100AAn Autotransformer can be used for step-up, step-down, and split-phase output balancing purposes.While the step-up and step-down functions are fairly straightforward, split-phase output balancing may require some more attention.Please contact your dealer for any returns, repairs or support issues related to this product. Owner's Manual (pdf)Brochure (pdf)

Read more less

Autotransformer - Split Phase 120/240V - 100AMPThe Autotransformer: for step up, step down and split phase balancing An autotransformer can be used for step up, step down and split phase output balancing purposes. While the step up and step down functions are fairly straightforward, split phase output balancing may require some more attention. Consider for example a 30A 120/240V split phase supply. The supply could be the grid, a generator or two stacked inverters. Some of the loads connected are 240V, others are 120V. On each 120V leg the load should not exceed 30A. The problem is that as soon as 120V loads are connected, the two legs will show a different current. This is because the 120V loads on the two legs will never be balanced. A 120V 1200W hairdryer, for example, will draw 10A from one leg. A 120V washing machine could even draw in excess of 20A from one leg. Between the two legs the difference in current, or current unbalance, will therefore often be 20A or more. This means that the 30A supply will not be used up to its full potential. By the time one leg draws 30A, the other leg may be drawing no more than 10A, and increasing the 240V load, for example, will result in an overload of one leg while the other leg still has spare capacity. Theoretically, the total power that can be drawn from a 30A 120/240V supply is 30 x 240 = 7,2 kVA. In case of 20A unbalance, the practical maximum will be 30 x 120 + 10 x120 = 4,8kVA, or 67% of the theoretical maximum. The solution is an Autotransformer. By leaving the neutral of the split phase supply unused, and connecting an Autotransformer to create a new neutral, as shown in figure 1, any load unbalance is ‘absorbed’ by the Autotransformer. In case of a 30A supply, the load can be increased to 7,2kVA, and a 20A load unbalance will result in one leg supplying 40A, and the other leg 20A. The 20A difference will flow through the neutral and the windings of the Autotransformer. The current through both 120V wires of the split phase supply will be 30A. Temperature protected In case of overheating, the Autotransformer is disconnected from the supply. Reset is manual. Ground relay for use with Multi or Quattro Inverter/Chargers included When operating in inverter mode, the neutral output of the inverter/charger must be connected to ground to guarantee proper functioning of a GFCI. In case of a split phase supply the neutral must be grounded. For this purpose a grounding relay is built in the autotransformer’s enclosure. The relay is controlled by the 230/240V Multi or Quattro. (The internal grounding relay in the 230/240V Multi or Quattro must be disabled) An alternative to stacked inverters The alternative to stacking two 120V inverters to provide a 120/240V split phase supply is a 240V inverter with an additional Autotransformer.Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Amperage: 100a Box Dimensions: 8"H x 13"W x 20"L WT: 30.55 lbs UPC: 8719076022428 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Phoenix Smart IP43 Charger 24/25 (3) 120-240VAC Requires 5-15P Mains CordWith boat owners in mind, this adaptive 5-step charger can provide either 30A or 50A of charge to each of the three battery banks. Or the Phoenix 1+1 model provides 3A to the starter battery, the rest to the ‘house’ bank. 24V models are available with a 16A/25A charge. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone.Features: Bluetooth Smart built-in: The wireless solution to set up, monitor, update and synchronize Phoenix Smart IP43 Chargers. Phoenix Smart (1+1): two outputs to charge 2 battery banks: The second output, limited to approximately 4A and with a slightly lower output voltage, is intended to top up a starter battery. Phoenix Smart (3): three full current outputs to charge 3 battery banks: Each output can supply the full rated output current. But the total of the 3 outputs combined can never exceed the current rating of the charger. Automatic voltage compensation: The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases.  Adaptive 6-stage charge algorithm: bulk– absorption – recondition – float – storage – refresh: The Phoenix Smart Charger features our well-known ‘adaptive’ battery management system that can be preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimize the charging process relative to the way the battery is being used. The right amount of charge: variable absorption time: When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery will be fully charged. Preventing damage due to excessive gassing: the BatterySafe mode: If in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached. Less maintenance and aging when the battery is not in use: the Storage Mode: The Storage Mode kicks in whenever the battery has not been subjected to discharge for 24 hours. In the Storage Mode, float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure. Also charges Li-ion (LiFePO4) batteries: Charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-ion BMS to the remote on-off port. Alternatively, full control of voltage and current can be achieved with Bluetooth. Fully programmable charge algorithm: The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface. Three preprogrammed algorithms can be selected with the mode button. Optional external battery voltage and temperature sensing via Bluetooth: A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more Phoenix Smart IP43 Chargers. Remote on-off: The remote on/off consists of two terminals: Remote H and Remote L. A remote on/off switch or relay contact can be connected between H and L. Alternatively, terminal H can be pulled high, or terminal L can be pulled low.  VE.Direct interface: For a wired data connection to a Color Control panel, PC, or other devices. Programmable relay: Can be programmed using the VE.Direct interface or a Bluetooth-enabled device to trip on an alarm or other events. Synchronized charging: Pairing two or more Phoenix Smart IP43 Chargers in a VE.Smart Network, enables synchronized charging. This improves the charge efficiency and battery life. Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 120/240v Charger Output - Amps: 25a Charger Output Voltage: 24v Charging Banks: 3 Portable: No Box Dimensions: 6"H x 10"W x 11"L WT: 7 lbs UPC: 8719076053552 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

MultiPlus 12/1200 - 50-16 - 120V - VE. BusThe MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology, and a high-speed AC transfer switch in a single compact enclosure. Next to these primary functions, the MultiPlus has several advanced features, as outlined below.Parallel Operation and Three-Phase CapabilityUp to six Multis can operate in parallel to achieve higher power output.  In addition to parallel connection, three units can be configured for three-phase output.  PowerControl - Dealing with Limited Generator, Shore Side or Grid PowerWith the Multi Control Panel, a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.  PowerAssist - Boosting the Capacity of Shore or Generator PowerThis feature takes the principle of PowerControl to a further dimension. It allows MultiPlus to supplement the capacity of the alternative source. Where peak power is often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load is reduced, the spare power is used to recharge the battery.  Four Stage Adaptive Charger and Dual-Bank Battery ChargingThe main output provides a powerful charge to the battery system using advanced ‘adaptive charge’ software. The software fine-tunes the three-stage automatic process to suit the condition of the battery and adds a fourth stage for long periods of float charging. The adaptive charge process is described in more detail on the Charger datasheet and Victron's website under Technical Information. In addition to this, the MultiPlus will charge a second battery using an independent trickle charge output intended for a main engine or generator starter battery.  High Start-Up PowerIt is needed to start high-inrush loads such as power converters for LED lamps, halogen lamps, or electric tools.  Search ModeWhen Search Mode is ‘on’, the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode, the Multi, when operating in inverter mode, is switched off in case of no load or very low load and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.Programmable RelayBy default, the programmable relay is set as an alarm relay, i.e. the relay will de-energize in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).  Remote On/Off/Charger OnThree pole connector.  On-Site System Configuring, Monitoring, and ControlAfter installation, the MultiPlus is ready to go. Some settings can be changed with DIP switches. 500/800/1200VA models: remote switch/battery charge voltage/inverter frequency/search mode. 1600/2000VA models:  battery charge voltage/search mode. For more settings use VE-Config or the VE. Bus Smart dongle.  Remote Configuring and MonitoringInstall a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on Victron's VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed. Specifications: PowerControl: Yes PowerAssist: Yes Transfer Switch (A): 16 Inverter Specifications: Input Voltage Range (V DC): 9,5 – 17 V Output voltage: 120 VAC, ± 2%  Continuous Output Power at 25°C (VA): 1200 Continuous Output Power at 25°C (W): 1000 Continuous Output Power at 40°C (W): 900 Continuous Output Power at 65°C (W): 600 Peak Power (W): 2400 Maximum Efficiency (%): 93 Zero Load Power (W): 13 Zero Load Power in Search Mode (W): 4 Charger Specifications: AC Input voltage range 95 - 140 V AC Input Frequency range: 55-66Hz Charge Voltage Absorption (V DC): 14,4  Charge Voltage Float (V DC): 13,8  Storage Mode (V DC): 13,2 Charge Current House Battery (A): 50  Charge Current Starter Battery (A): 1 Battery Temperature Sensor: Yes General Specifications: Programmable Relay: Yes (1x) Protection: a - g VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring and system integration  (RJ45-splitter ASS030065510 needed for 500 / 800 / 1200 VA models) Remote On-Off: On/off/charger only DIP Switches: Yes Internal DC Fuse: 200A Operating Temperature Range: -40 - +65°C / -40 to 150°F (fan-assisted cooling), Humidity (non-condensing) max 95% Enclosure Specifications: Common Characteristics: Material & Color: aluminum (blue RAL 5012) / Protection category: IP 21 Battery-Connection: 35 mm² AC-Connection: G-ST18i connector Weight: 8.2 kg (18.1 lbs) Dimensions (H x W x D): 406 x 250 x 100 mm / 15.98 x 9.84 x 3.94 in. Standards: Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1 Emission, Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3  Automotive Directive: ECE R10-5 Protection: Output short circuit, Overload, Battery voltage too high, Battery voltage too low, Temperature too high, 230VAC on inverter output, Input voltage ripple too high Non-linear load, crest factor 3:1                                                                               Up to 25°C ambient                                                                                                                          Programmable relay which can be set for: general alarm, DC under voltage or generator start/stop        signal function. AC rating: 4 A at 120 V DC rating: 4 A up to 35 V, 1 A up to 60 V For parallel and three-phase operation an RJ45-splitter ASS030065510 is needed. Select remote behaviour, battery charge voltages and/or search mode Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Smart Solar MPPT 150/85-TR VE.CanA solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximizes this energy harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulfated or otherwise damaged.MPPT: Ultra Fast Maximum Power Point TrackingBy constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.Remote Monitoring & ControlRemotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or another device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the  GlobalLink 520.Load OutputThe intelligent Load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which SmartSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: SmartSolar will attempt a 100% recharge every day. If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains health, and extends the life of your battery.Please contact your dealer for any returns, repairs or support issues related to this product. Brochure (pdf)

Read more less

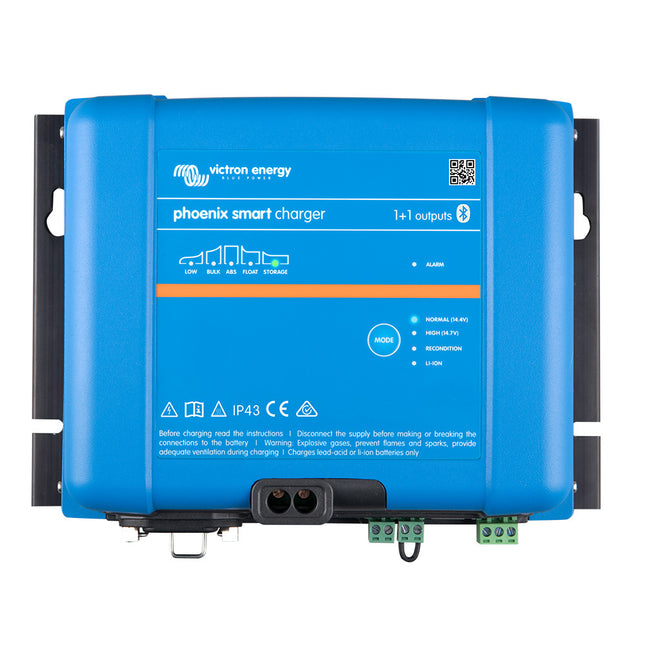

Phoenix Smart IP43 Charger 24/25 (1+1) 120-240VAC Requires 5-15P Mains CordWith boat owners in mind, this adaptive 5-step charger can provide either 30A or 50A of charge to each of the three battery banks. Or the Phoenix 1+1 model provides 3A to the starter battery, the rest to the ‘house’ bank. 24V models are available with a 16A/25A charge. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone.Features: Bluetooth Smart built-in: The wireless solution to set up, monitor, update and synchronize Phoenix Smart IP43 Chargers. Phoenix Smart (1+1): two outputs to charge 2 battery banks: The second output, limited to approximately 4A and with a slightly lower output voltage, is intended to top up a starter battery. Phoenix Smart (3): three full current outputs to charge 3 battery banks: Each output can supply the full rated output current. But the total of the 3 outputs combined can never exceed the current rating of the charger. Automatic voltage compensation: The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases.  Adaptive 6-stage charge algorithm: bulk– absorption – recondition – float – storage – refresh: The Phoenix Smart Charger features our well-known ‘adaptive’ battery management system that can be preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimize the charging process relative to the way the battery is being used. The right amount of charge: variable absorption time: When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery will be fully charged. Preventing damage due to excessive gassing: the BatterySafe mode: If in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached. Less maintenance and aging when the battery is not in use: the Storage Mode: The Storage Mode kicks in whenever the battery has not been subjected to discharge for 24 hours. In the Storage Mode, float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure. Also charges Li-ion (LiFePO4) batteries: Charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-ion BMS to the remote on-off port. Alternatively, full control of voltage and current can be achieved with Bluetooth. Fully programmable charge algorithm: The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface. Three preprogrammed algorithms can be selected with the mode button. Optional external battery voltage and temperature sensing via Bluetooth: A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more Phoenix Smart IP43 Chargers. Remote on-off: The remote on/off consists of two terminals: Remote H and Remote L. A remote on/off switch or relay contact can be connected between H and L. Alternatively, terminal H can be pulled high, or terminal L can be pulled low.  VE.Direct interface: For a wired data connection to a Color Control panel, PC, or other devices. Programmable relay: Can be programmed using the VE.Direct interface or a Bluetooth-enabled device to trip on an alarm or other events. Synchronized charging: Pairing two or more Phoenix Smart IP43 Chargers in a VE.Smart Network, enables synchronized charging. This improves the charge efficiency and battery life. Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 120/240v Charger Output - Amps: 25a Charger Output Voltage: 24v Charging Banks: 1+(1) Portable: No Box Dimensions: 6"H x 10"W x 11"L WT: 7 lbs UPC: 8719076053545 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

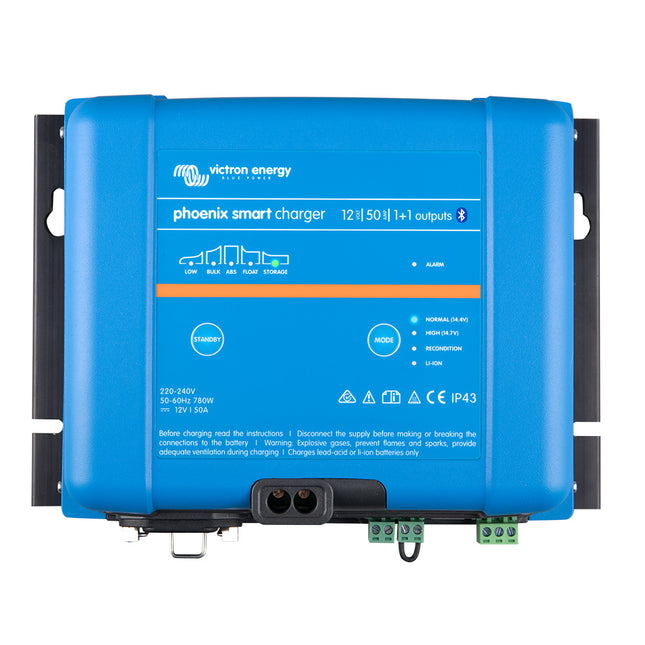

Phoenix Smart IP43 Charger 12/50 (1+1) 120-240VAC Requires 5-15P Mains CordWith boat owners in mind, this adaptive 5-step charger can provide either 30A or 50A of charge to each of the three battery banks. Or the Phoenix 1+1 model provides 3A to the starter battery, the rest to the ‘house’ bank. 24V models are available with a 16A/25A charge. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 120/240v Charger Output - Amps: 50a Charger Output Voltage: 12v Charging Banks: 1+(1) Portable: No Box Dimensions: 6"H x 10"W x 11"L WT: 7 lbs UPC: 8719076053507 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

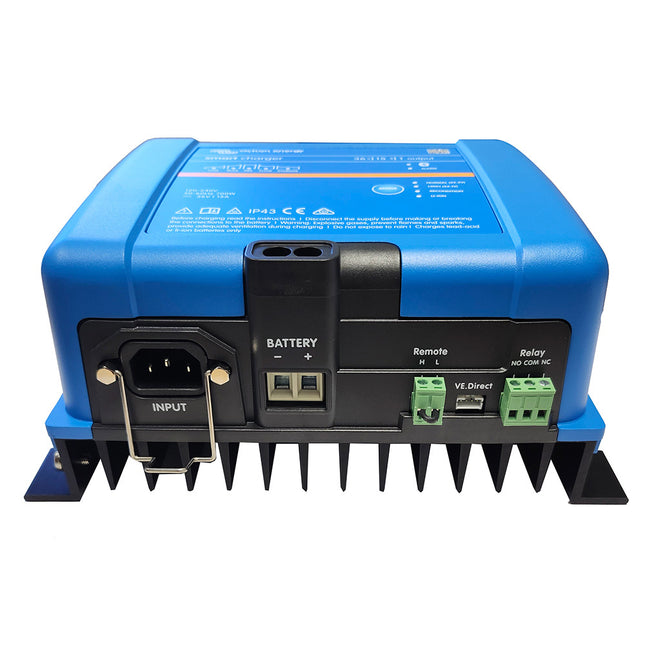

Smart IP43 Charger 48V 13 (1) 120-240VThe Smart IP43 Charger is an adaptive, intelligent charger available across all four common battery voltages: 12V, 24V, 36V, and 48V, making it suitable for a wide range of applications, including marine, eMobility, leisure, off-grid, and industrial.With built-in Bluetooth, monitor, configure, and set alarms directly from your phone using the VictronConnect app, or connect via VE.Direct to a GX device for full system integration and remote monitoring via the VRM Portal.The adaptive 6-stage charging algorithm, VE.Smart Networking, LiFePO4 compatibility, and fully programmable charge algorithm make the Smart IP43 a versatile and future-proof choice for any system from 12V to 48V.Please contact your dealer for any returns, repairs or support issues related to this product. Owner's Manual (pdf)Brochure (pdf)

Read more less

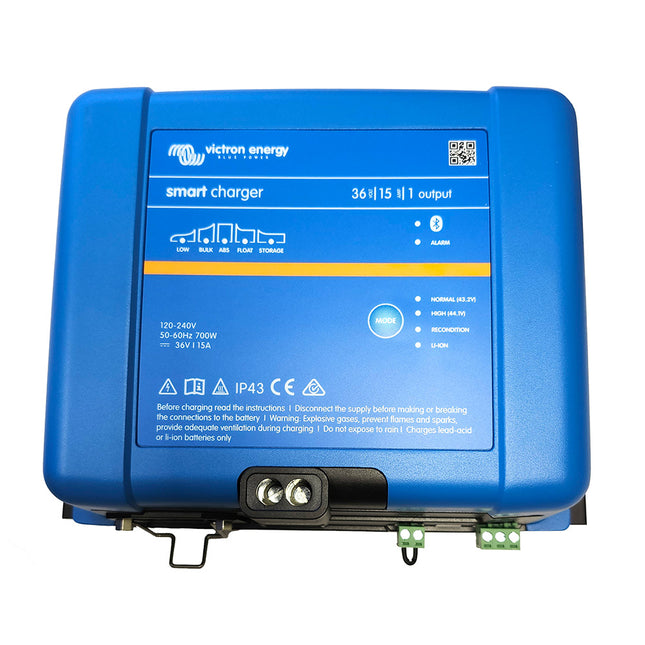

Smart IP43 Charger 36V 15 (1) 120-240VThe Smart IP43 Charger is an adaptive, intelligent charger available across all four common battery voltages: 12V, 24V, 36V, and 48V, making it suitable for a wide range of applications, including marine, eMobility, leisure, off-grid, and industrial.With built-in Bluetooth, monitor, configure, and set alarms directly from your phone using the VictronConnect app, or connect via VE.Direct to a GX device for full system integration and remote monitoring via the VRM Portal.The adaptive 6-stage charging algorithm, VE.Smart Networking, LiFePO4 compatibility, and fully programmable charge algorithm make the Smart IP43 a versatile and future-proof choice for any system from 12V to 48V.Please contact your dealer for any returns, repairs or support issues related to this product. Owner's Manual (pdf)Brochure (pdf)

Read more less

Autotransformer 120/240 VAC 50AAn Autotransformer can be used for step-up, step-down, and split-phase output balancing purposes. While the step-up and step-down functions are fairly straightforward, split-phase output balancing may require some more attention.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 120/240 Charger Output - Amps: 50A Charger Output Voltage: 120/240 Box Dimensions: 8"H x 13"W x 20"L WT: 27.8 lbs UPC: 8719076066071 Owner's Manual (pdf)Brochure (pdf)

Read more less

SmartSolar MPPT 250/60-TR Solar Charge ControllerA solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximizes this energy harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulfated or otherwise damaged.MPPT: Ultra Fast Maximum Power Point TrackingBy constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.Remote Monitoring & ControlRemotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or another device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the  GlobalLink 520.Load OutputThe intelligent Load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which SmartSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: SmartSolar will attempt a 100% recharge every day. If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

SmartSolar MPPT 150/70-TR VE.CAN - TR VE.CAN Solar Charge Control 150/70-TR VE.CAN ControllerSolar Charge ControllerThe MPPT VE.Can SmartSolar charger use the latest and fastest technology to convert energy from a solar array into energy that optimally charges battery banks?The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulfated or otherwise damaged.MPPT: Ultra Fast Maximum Power Point TrackingThe MPPT VE.Can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model.The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium, and others.Control Your Charger RemotelyThe MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.Daisy Chain Additional UnitsThe VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply "daisy chained" to each other with a single RJ45 cable between the individual units.When connected to each other, all individual VE.Can SmartSolar chargers, will synchronise their charge stages. They can also send their data, via a single cable, to a GX monitoring device.Remote Monitoring and ControlIf the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).SmartSolar Control DisplayThe VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device. Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

Centaur Charger - 30AMP, 12/30(3), 120-240VThe Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world.Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations.The range spans 12V and 24V models from 16A through to 100A.Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Portable: No Charging Banks: 3 Charger Output Voltage: 12v Charger Output - Amps: 30a Charger Input - Voltage: 120/240v Box Dimensions: 8"H x 12"W x 17"L WT: 10.65 lbs UPC: 8719076021483 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

SmartSolar MPPT 150/70 - TR Solar Charge ControllerFeatures: Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.  Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.  Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.  Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98%.  Flexible charge algorithm Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).  Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.  Internal temperature sensor Compensates absorption and float charge voltage for temperature.  Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.  VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices  Remote on-off To connect for example to a VE.BUS BMS.  Programmable relay Can be programmed to trip on an alarm, or other events Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

MultiPlus 12/800/35 16 120V VE.BusThe MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.Unique PowerAssist featureThe MultiPlus will prevent the overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shoreside supply with power taken from the battery.Uninterrupted AC power (UPS function)In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.Virtually unlimited power thanks to parallel operationUp to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.Remote Monitoring and ControlWhen coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

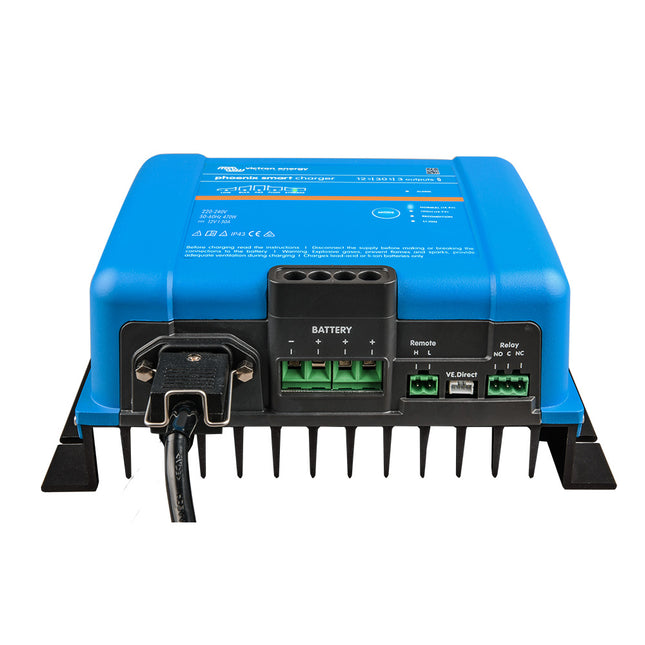

Phoenix Smart IP43 Charger 12/30 (3) 120-240VAC Requires 5-15P Mains CordWith boat owners in mind, this adaptive 5-step charger can provide either 30A or 50A of charge to each of the three battery banks. Or the Phoenix 1+1 model provides 3A to the starter battery, the rest to the ‘house’ bank. 24V models are available with a 16A/25A charge. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 120/240v Charger Output - Amps: 30a Charger Output Voltage: 12v Charging Banks: 3 Portable: No Box Dimensions: 7"H x 10"W x 11"L WT: 7 lbs UPC: 8719076053491 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

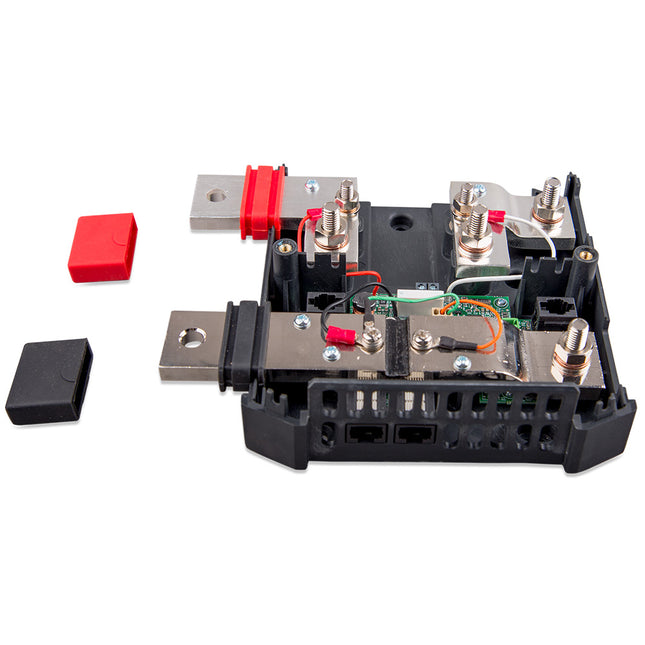

Lynx Shunt VE.Can (M10)Busbar Integrated Battery Monitoring The Lynx Shunt VE.Can contain a positive and negative busbar, a battery monitor, and a fuse holder for the main system fuse. It is part of the Lynx Distribution system. The Lynx Distributor has a power LED. The Lynx Shunt VE.Can can communicate via VE.Can with a GX device. The Lynx Shunt VE.Can ship with two RJ45 VE.Can terminators, be used when connecting to a GX device.  The Lynx Shunt VE.Can is designed to hold a CNN fuse. The fuse needs to be purchased separately. The Lynx Distribution System The Lynx Distribution System is a modular busbar system incorporating DC connections, distribution, fusing, battery monitoring, and Lithium battery management. The Lynx Distribution System Consists of the Following Parts:  Lynx Power In - A positive and negative busbar with 4 batteries or DC equipment connections. Lynx Distributor - A positive and negative busbar with 4 fused connections for batteries or DC equipment together with fuse monitoring Lynx Shunt VE.Can - A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device Lynx Smart BMS - For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor that is driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal Specifications:Power: Supply Voltage Range: 9 - 70 Vdc Supported System Voltages: 12, 24 or 48V  Reverse Polarity Protection: No  Current Rating: 1000Adc continuous  Power Consumption: 60mA @ 12V, 33mA @ 24V, 20mA @ 48V  Potential Free Alarm Contact 3A, 30Vdc, 250Vac Connections: Busbar: M8 Fuse: M8  VE.Can: RJ45 and RJ45 terminator  Power Supply Connection to Lynx Distributor: RJ10 (an RJ10 cable ships with each Lynx Distributor) Temperature Sensor: Screw terminal  Relay: Screw terminal  Physical: Enclosure Material: ABS Enclosure Dimensions (H x W x D): 190 x 180 x 80 mm  Unit Weight: 1.4 kg  Busbar Material: Tinned copper  Busbar Dimensions (H x W): 8 x 30 mm Environmental Operating Temperature Range: -40°C to +60°  Storage Temperature Range: -40°C to +60°  Humidity: Max. 95% (non-condensing)  Protection Class: IP22 Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Inverter 24/1600 120v VE.Direct Nema GFCI (UL 458)The VE.Direct port can be connected to: A computer (VE.Direct to USB interface cable needed) Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed) Fully configurable: Low battery voltage alarm trip and reset levels Low battery voltage cut -off and restart levels Dynamic cut -off: load-dependent cut-off level Output voltage 2 10 - 245V Frequency 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Monitoring:In- and output voltage, % load and alarmsProven ReliabilityThe full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against o verheating, whether due to over load or high ambient temperature.High start-up powerNeeded to start loads such as power co nverters for LED lamps, halogen lamps or electric tools.ECO modeWhen in ECO mode , the inverter will switch to stan dby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds) . If the load exceeds a preset level, the inverter will remain on.Remote on/offA remote on/off switch can be connected to a two-pole connecto r, or between battery plus and the left-hand contact of the two-pole connector.To transfer the load to another AC source: the automatic transfer switchFor our low power inverters , we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.DC connection with screw terminalsNo special tools needed for installationOutput SocketsGFCIPlease contact your dealer for any returns, repairs or support issues related to this product. Specifications: AC Connection Type: Outlet DC Connection Type: Hardwire GFCI: Optional Inverter Cont. Output Wattage: 1500w Inverter Input Voltage: 120VAC Inverter Output Voltage: 24VDC Inverter Surge Rating: 2100W Outlet Qty: 1 NEMA 5-15R Box Dimensions: 8"H x 12"W x 18"L WT: 19 lbs UPC: 8719076071952 Owner's Manual (pdf)Brochure (pdf)

Read more less

Phoenix Smart IP43 Charger 24/16 (1+1) 120-240VAC Requires 5-15P Mains Cord (cord not included)With boat owners in mind, this adaptive 5-step charger can provide either 30A or 50A of charge to each of the three battery banks. Or the Phoenix 1+1 model provides 3A to the starter battery, the rest to the ‘house’ bank. 24V models are available with a 16A/25A charge. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone.Features: Bluetooth Smart built-in: The wireless solution to set up, monitor, update and synchronize Phoenix Smart IP43 Chargers. Phoenix Smart (1+1): two outputs to charge 2 battery banks: The second output, limited to approximately 4A and with a slightly lower output voltage, is intended to top up a starter battery. Phoenix Smart (3): three full current outputs to charge 3 battery banks: Each output can supply the full rated output current. But the total of the 3 outputs combined can never exceed the current rating of the charger. Automatic voltage compensation: The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases.  Adaptive 6-stage charge algorithm: bulk– absorption – recondition – float – storage – refresh: The Phoenix Smart Charger features our well-known ‘adaptive’ battery management system that can be preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimize the charging process relative to the way the battery is being used. The right amount of charge: variable absorption time: When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery will be fully charged. Preventing damage due to excessive gassing: the BatterySafe mode: If in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached. Less maintenance and aging when the battery is not in use: the Storage Mode: The Storage Mode kicks in whenever the battery has not been subjected to discharge for 24 hours. In the Storage Mode, float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure. Also charges Li-ion (LiFePO4) batteries: Charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-ion BMS to the remote on-off port. Alternatively, full control of voltage and current can be achieved with Bluetooth. Fully programmable charge algorithm: The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface. Three preprogrammed algorithms can be selected with the mode button. Optional external battery voltage and temperature sensing via Bluetooth: A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more Phoenix Smart IP43 Chargers. Remote on-off: The remote on/off consists of two terminals: Remote H and Remote L. A remote on/off switch or relay contact can be connected between H and L. Alternatively, terminal H can be pulled high, or terminal L can be pulled low.  VE.Direct interface: For a wired data connection to a Color Control panel, PC, or other devices. Programmable relay: Can be programmed using the VE.Direct interface or a Bluetooth-enabled device to trip on an alarm or other events. Synchronized charging: Pairing two or more Phoenix Smart IP43 Chargers in a VE.Smart Network, enables synchronized charging. This improves the charge efficiency and battery life. Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 120/240v Charger Output - Amps: 16a Charger Output Voltage: 24v Charging Banks: 1+(1) Portable: No Box Dimensions: 6"H x 10"W x 11"L WT: 7 lbs UPC: 8719076053521 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

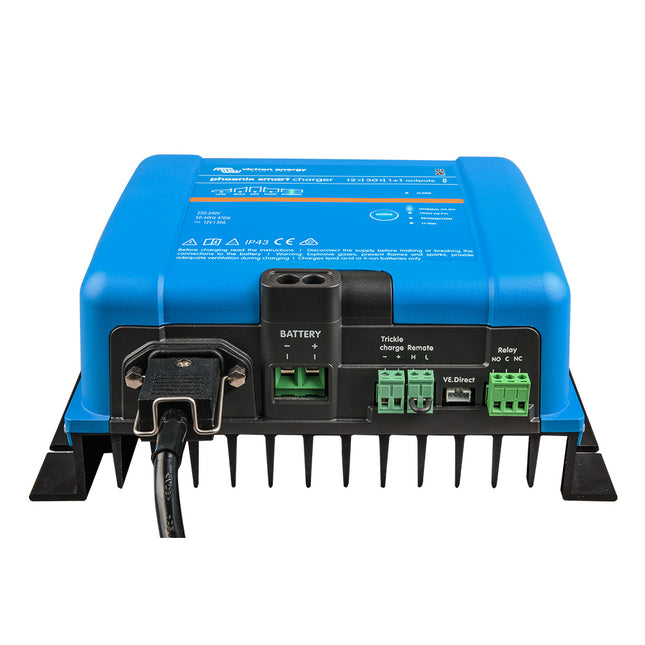

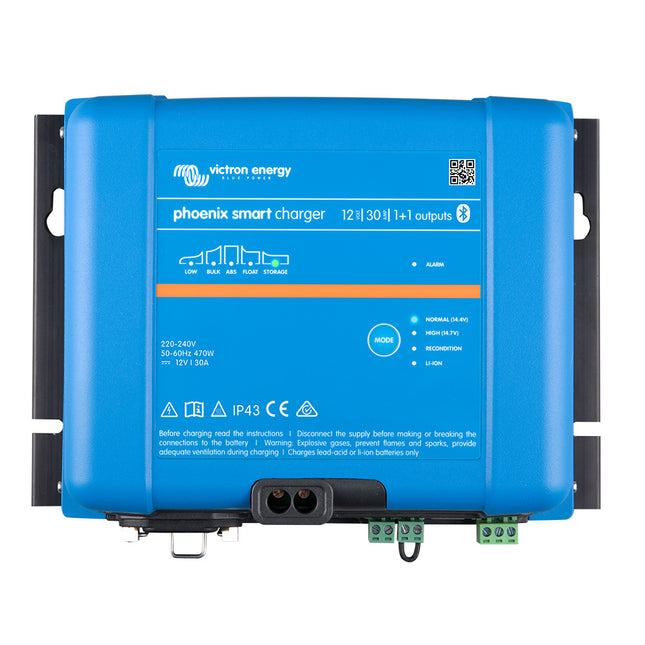

Phoenix Smart IP43 Charger 12/30 (1+1) 120-240VAC Requires 5-15P Mains CordWith boat owners in mind, this adaptive 5-step charger can provide either 30A or 50A of charge to each of the three battery banks. Or the Phoenix 1+1 model provides 3A to the starter battery, the rest to the ‘house’ bank. 24V models are available with a 16A/25A charge. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 120/240v Charger Output - Amps: 30a Charger Output Voltage: 12v Charging Banks: 1+(1) Portable: No Box Dimensions: 8"H x 10"W x 11"L WT: 7 lbs UPC: 8719076053484 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

SmartSolar MPPT 150/60-TRThe Victron SmartSolar MPPT 150/60 Solar Charge Controller is Bluetooth accessible via either built-in Bluetooth or the Victron Energy Bluetooth dongle. The VictronConnect app is available for free on both iOS and Android. This app allows you to view plenty of parameters: battery voltage, solar history, load output, flexible battery charge algorithms, plus day/night timing and light dimming options. These solar charge controllers will gather energy from your solar panels fast and efficiently. Ultra-fast Maximum Power Point Tracking (MPPT) Especially in the case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control is connected to the load output. A special interface cable may be needed, please see the manual Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. MPPT: Ultra Fast Maximum Power Point TrackingBy constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Inverter 24/1600 120V VE.Direct NEMA 5-15RThe Phoenix Inverter Smart is an efficient and reliable inverter. Built on our proven and field-tested Phoenix inverter platform, it now comes with a slimmer design and a full metal casing. Models are available in 1600VA, 2000VA, 3000VA and 5000VA for 12, 24 or 48V systems.It's powerful enough to supply most common plug-in appliances in your car, boat, caravan, or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency, and a high-quality sinewave.Installation is simpler than ever before, with terminals now more accessible for the installer, enabling a more professional finish.Bluetooth is built in and makes setting up your high-power inverter easier than ever before. Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode, and more, all from within VictronConnect.Features: 1600 VA continuous output at 25 Deg C 1200 Watts continuous output at 25 Deg C Peak Power 2200 Watts Max efficiency 87% Zero load power 12 Watts Weight 20 lbs  Can accept up to 1 awg DC Power Wire Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: AC Connection Type: Outlet DC Connection Type: Hardwire GFCI: Optional Inverter Cont. Output Wattage: 1200W Inverter Input Voltage: 24VDC Inverter Output Voltage: 120VAC Inverter Surge Rating: 2200W Outlet Qty: 1 NEMA 5-15R Waveform: True Sine Wave Box Dimensions: 8"H x 12"W x 17"L WT: 19 lbs UPC: 8719076071945 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Phoenix Inverter 24/1200 120V Ve.Direct GFCI NEMA Plug UL45824 Volts DC input, 120 Volts 60 Hz pure sine wave output. This has a single NEMA5-R receptacle as its output. This is the standard GFCI receptacle outlet used in the US. For use in marine applications, this GFCI version is required to comply with ABYC Standard.Features: 1200 VA continuous output at 25 Deg C 1000 Watts continuous output at 25 Deg C Peak Power 2200 Watts Max efficiency 91% Zero load power 8 Watts Weight 16.3 Lbs Dimensions 4.6" x 9.1" x 12.9"     Can accept up to 4 AWG battery cable Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: AC Connection Type: GFCI Outlet DC Connection Type: Hardwire GFCI: Yes Inverter Cont. Output Wattage: 850W Inverter Input Voltage: 24VDC Inverter Output Voltage: 120VAC Inverter Surge Rating: 2200W Outlet Qty: 1 Waveform: True Sine Wave Box Dimensions: 8"H x 12"W x 17"L WT: 19 lbs UPC: 8719076054221 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

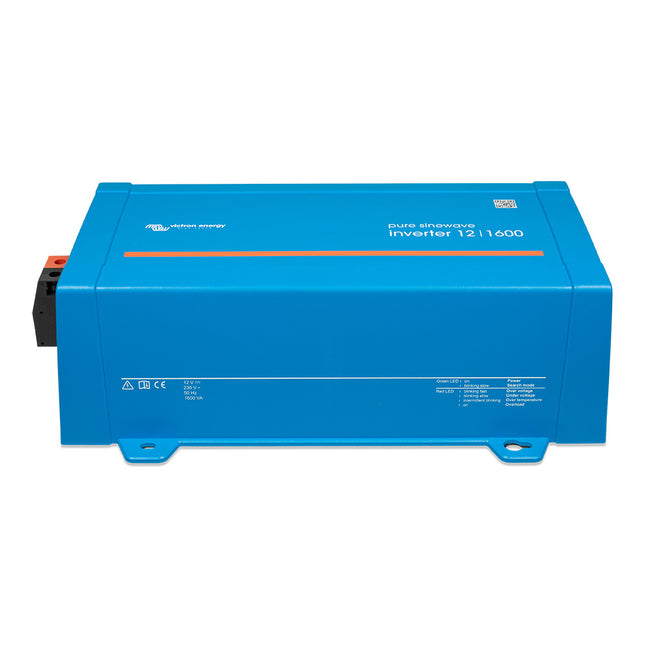

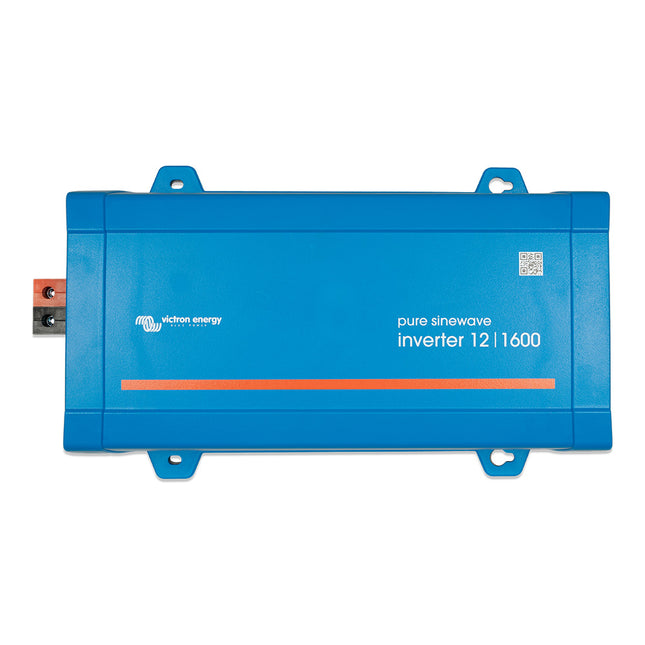

Phoenix Inverter 12/1600 120V VE.Direct NEMA 5-15RInverters allow users to power domestic equipment, requiring 230V/120V AC, using 'leisure' or 'automotive' batteries rated at 12V, 24V, or 48V DC.VE.Direct Communication PortThe VE.Direct port can be connected to: A computer (VE.Direct to USB interface cable needed) Apple and Android smartphones, tablets, MacBooks, and other devices (VE.Direct Bluetooth Smart dongle needed) Fully Configurable: Low battery voltage alarm trip and reset levels Low battery voltage cut-off and restart levels Dynamic cut-off: load-dependent cut-off level Output voltage 210 - 245V Frequency 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Monitoring:In and output voltage, % load, and alarmsProven ReliabilityThe full bridge plus toroidal transformer topology has proven its reliability over many years.The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.High Start-Up PowerNeeded to start loads such as power converters for LED lamps, halogen lamps, or electric tools.ECO ModeWhen in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once on standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.Remote On/OffA remote on/off switch can be connected to a two-pole connector, or between the battery plus and the left-hand contact of the two-pole connector.LED DiagnosisTo Transfer the Load to Another AC Source: The Automatic Transfer SwitchFor Victron’s low-power inverters, they recommend the Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Inverter Specifications: Cont. Power at 25 degrees C: (1) 250VA  Cont. Power at 25 degrees C / 40 degrees C: 200 / 175W  Peak Power: 400W  Output AC Voltage / Frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1% Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V Dynamic (load dependent) DC Low Shut Down (fully configurable): Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff DC Low Restart & Alarm (adjustable): 10,9 / 21,8 / 43,6V Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V Max. Efficiency: 87 / 88 / 88%  Zero-Load Power: 4,2 / 5,2 / 7,9W  Default Zero-Load Power in ECO Mode (default retry interval: 2,5 s, adjustable): 0,8 / 1,3 / 2,5W  ECO Mode Stop & Start Power Setting: Adjustable Protection (2): a - f Operating Temperature Range -40 to +65 degrees C (fan-assisted cooling)  Enclosure Specifications: Material & Color: Steel chassis and plastic cover (blue Ral 5012) Battery-Connection: Screw terminals Maximum Cable Cross-Section: 10mm² / AWG8  Standard AC Outlets: 120V: NEMA 5-15R Protection Category: IP 21 Weight: 2,4kg / 5.3 lbs  Dimensions (H x W x D, mm); (H x W x D, inch): 86 x 165 x 260; 3.4 x 6.5 x 10.2 Accessories: Remote On-off: Yes Automatic Transfer Switch: Filax Standards: Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3) EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3 Automotive Directive ECE R10-4: 1) Nonlinear load, crest factor 3:1; 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: AC Connection Type: Outlet DC Connection Type: Hardwire GFCI: No Inverter Cont. Output Wattage: 1280W Inverter Input Voltage: 12VDC Inverter Output Voltage: 120VAC Inverter Surge Rating: 1600 Outlet Qty: Hardwire Waveform: True Sine Wave Box Dimensions: 8"H x 11"W x 17"L WT: 19.75 lbs UPC: 8719076071921 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

GX Touch 70 Flush Mount Display - 120 x 184 x 13 mmThe GX Touch is optimized to more than meet the standards of installer professionals. The screen is simply bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the Color Control GX).  It can also be mounted flush or even embossed with the underlying surface and connected through just one cable, taking away the hassle of having to bring many wires to a dashboard.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Orion XS 1400 DC-DC Battery ChargerThe Orion XS has been engineered from the ground up to redefine DC-DC, battery-to-battery charging. Ideal for dual-battery setups connected to an intelligent alternator, it ensures top-tier performance and optimal system safety in 12V, 24V, or mixed-voltage systems.Using engine power to charge your house battery or operate as a stable energy supply, the Orion XS can run at full capacity up to 40°C. It allows you to stay in charge with configurable input and output currents, while the 98,5% efficient aluminium circuit board technology keeps things cool without needing fans.As an integral part of your Victron system, the Orion XS offers full (remote) monitoring and control capabilities, giving you complete command of your device and system.Features: Configurable voltage Configurable current Engine running detection Efficient cooling Works with VictronConnect Remote monitoring optional 5-Year warranty Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 9-35VAC Charger Output - Amps: 1-50A Charger Output Voltage: 10-35VDC Box Dimensions: 3"H x 6"W x 7"L WT: 1.7 lbs UPC: 8719076064848 Owner's Manual (pdf)Brochure (pdf)

Read more less

Lynx Shunt VE. Can The Lynx Shunt VE.Can is an intelligent 1000A shunt with location for a fuse (not included), the built in battery monitor accurately monitors the state of charge of your battery.  The Lynx shunt contains a positive bus-bar with space to mount a CNN fuse and a negative bus-bar with a shunt. It also contains battery monitoring electronics. The Lynx shunt can send via the VE.CAN bus battery monitoring information to a CCGX or VGX or to a third party CANbus monitoring system, such as a NMEA2000. The CCGX, VGX or third party display acts as battery monitor display and is also used to set up the built-in battery monitor.The Lynx shunt is available with a VE.Can connection.  Fuse CIP140325000 - Fuse CNN 325A/80V for Lynx shunt, or alternatively a CNN fuses by Littlefuse can be used.Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Type: Lugs Box Dimensions: 4"H x 7"W x 12"L WT: 3.4 lbs UPC: 8719076022602 Quick Guide (pdf)

Read more less

Inverter 24/1200 120V VE.Direct Nema 5-15RThe VE.Direct port can be connected to: A computer (VE.Direct to USB interface cable needed) Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed) Fully configurable: Low battery voltage alarm trip and reset levels Low battery voltage cut -off and restart levels Dynamic cut -off: load-dependent cut-off level Output voltage 2 10 - 245V Frequency 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Monitoring - In- and output voltage, % load and alarmsProven reliability - The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against o verheating, whether due to over load or high ambient temperature.High start-up power - Needed to start loads such as power co nverters for LED lamps, halogen lamps or electric tools.ECO mode - When in ECO mode , the inverter will switch to stan dby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds) . If the load exceeds a preset level, the inverter will remain on.Remote on/off - A remote on/off switch can be connected to a two-pole connecto r, or between battery plus and the left-hand contact of the two-pole connector.To transfer the load to another AC source: the automatic transfer switch - For our low power inverters , we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.DC connection with screw terminals - No special tools needed for installationOutput Sockets - Nema 5-15RPlease contact your dealer for any returns, repairs or support issues related to this product.

Read more less

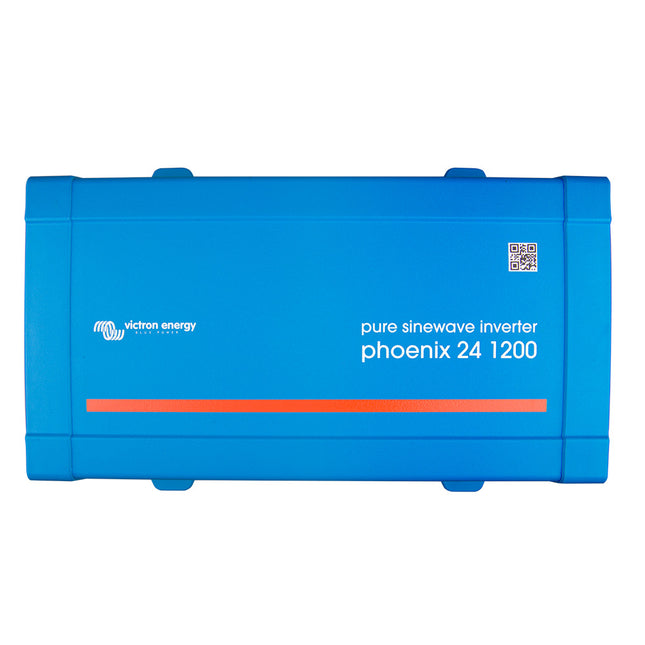

Phoenix Inverter 24VDC - 1200VA - 120VAC - VE.Direct - NEMA 5-15RPhoenix Inverter 24 VDC - 1200W - 120 VAC - 50/60Hz. Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V, or 48VDC.The VE.Direct port can be connected to: A computer (VE.Direct to USB interface cable needed) Apple and Android smartphones, tablets, MacBook, and other devices (VE.Direct Bluetooth Smart dongle needed) Fully configurable: Low battery voltage alarm trip and reset levels Low battery voltage cut-off and restart levels Dynamic cut-off: load-dependent cut-off level Output voltage 210 - 245V Frequency 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Monitoring:In- and output voltage, % load, and alarmsPlease contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

Orion XS 12/12-50A DC-DC Battery Charger (for marine applications with VHF interference fixed)The Orion XS, engineered from the ground up, redefines DC-DC battery-to-battery charging. Ideal for dual battery systems charged by an intelligent alternator.This device not only ensures top-tier performance but also guarantees the safety of your system.Stay in charge with configurable input and output currents and rest assured that your Orion XS will run at full capacity up to 40°C. The 98,5% efficient aluminum circuit board technology means less heat, without the need for fans.As an integral part of your Victron system, the Orion XS offers full (remote) monitoring and control capabilities, giving you complete command of your device and system.Parallel to increasing output currentAn unlimited number of Orion XS devices can be connected in parallel, for easy output current scaling to meet system requirements.Smart alternator compatibilityWith its built-in engine running detection, the Orion XS guarantees the charger only draws power when the engine is running. It also helps retrieve a proper charge current from intelligent alternators as found in Euro 5 & Euro 6 engines.Adaptive charge algorithmThe Orion XS features customizable and preset charging algorithms for lithium and lead-acid batteries, ensuring optimal recharging, for both shallow and deep discharges.Complete electronic protectionThe Orion XS comes equipped with comprehensive electronic protection against overload, short circuits, and excessive temperatures. It will automatically reduce the output power when the maximum product temperature is reached.Low-temperature shutdown & under voltage protectionTo prevent damage to lithium batteries, the charger will turn off automatically at low temperatures and when the input voltage drops below a user-configurable lockout value, protecting the starter battery from deep discharge.Dust & waterproofThe Orion XS is designed to withstand dust and water pollution and has an IP65 classification.Safely combine any alternator with any batteryWhen the engine is off, the Orion XS isolates the service battery, so no power is drawn from the starter battery. Turn the engine on.Smart has never looked so simpleWith multiple automated safety and efficiency features, the Orion XS is truly a smart addition to any vehicle or marine system with dual batteries. That doesn’t mean that it should be a complicated one. We made sure integrating and controlling are as simple as can be.Features: Fully configurable Efficient cooling Engine running detection Works with VictronConnect Intelligent charge algorithms Remote monitoring optional Specifications:5 Year WarrantyApplications: Professional Vehicles - As the world market leader in power supplies for ambulances, our decades of know-how translate into robust, professional systems for on the road. Marine - Coming from the world of marine power systems, customer feedback, and innovation has led us to offer the most complete range of onboard energy solutions. Please contact your dealer for any returns, repairs or support issues related to this product. Owner's Manual (pdf)Brochure (pdf)

Read more less

GX Touch 70 Surface Mount Display - 7"The GX Touch 70 is a display accessory for our Cerbo GX. The seven-inch touch screen display gives an instant overview of your system and allows you to adjust settings in the blink of an eye. Simply connected to the Cerbo GX with one cable, their super slim waterproof design, top-mountable setup, and simple installation bring a lot of flexibility when creating a crisp and clean dashboard.Simply MountedThe GX Touch is optimized to more than meet the standards of installer professionals. The screen is simply bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the ColorControl GX) and is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard. CompanionsThe GX Touch is a companion to the Cerbo GX, the all-new communication center allows you to always have perfect control over your system from wherever you are and maximizes its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the GX Touch, an MFD, or our VictronConnect App thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

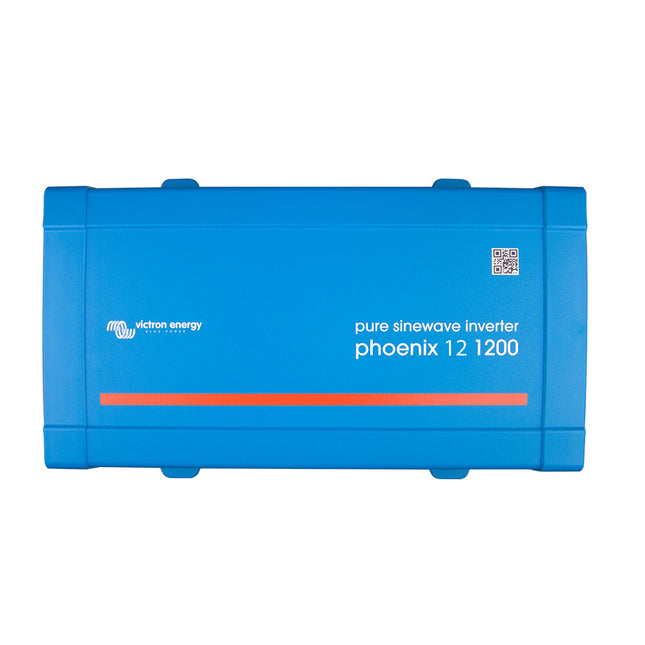

Phoenix Inverter 12/1200 - 120V - VE.Direct NEMA GFCI (UL 458)Inverters allow users to power domestic equipment, requiring 230V/120V AC, using 'leisure' or 'automotive' batteries rated at 12V, 24V, or 48V DC.*This inverter has a GFCI Duplex Outlet.VE.Direct Communication PortThe VE.Direct port can be connected to: A computer (VE.Direct to USB interface cable needed) Apple and Android smartphones, tablets, MacBook, and other devices (VE.Direct Bluetooth Smart dongle needed) Fully Configurable: Low battery voltage alarm trip and reset levels Low battery voltage cut-off and restart levels Dynamic cut-off: load-dependent cut-off level Output voltage 210 - 245V Frequency 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Monitoring:In and output voltage, % load, and alarmsProven ReliabilityThe full bridge plus toroidal transformer topology has proven its reliability over many years.The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.High Start-Up PowerNeeded to start loads such as power converters for LED lamps, halogen lamps, or electric tools.ECO ModeWhen in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once on standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.Remote On/OffA remote on/off switch can be connected to a two-pole connector, or between the battery plus and the left-hand contact of the two-pole connector.LED DiagnosisTo Transfer the Load to Another AC Source: The Automatic Transfer SwitchFor Victron’s low-power inverters, they recommend the Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Inverter Specifications: Cont. Power at 25 degrees C: (1) 250VA  Cont. Power at 25 degrees C / 40 degrees C: 200 / 175W  Peak Power: 400W  Output AC Voltage / Frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1% Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V Dynamic (load dependent) DC Low Shut Down (fully configurable): Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff DC Low Restart & Alarm (adjustable): 10,9 / 21,8 / 43,6V Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V Max. Efficiency: 87 / 88 / 88%  Zero-Load Power: 4,2 / 5,2 / 7,9W  Default Zero-Load Power in ECO Mode (default retry interval: 2,5 s, adjustable): 0,8 / 1,3 / 2,5W  ECO Mode Stop & Start Power Setting: Adjustable Protection (2): a - f Operating Temperature Range -40 to +65 degrees C (fan-assisted cooling)  Enclosure Specifications: Material & Color: Steel chassis and plastic cover (blue Ral 5012) Battery-Connection: Screw terminals Maximum Cable Cross-Section: 10mm² / AWG8  Standard AC Outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included); UK (BS 1363), AU/NZ (AS/NZS 3112); 120V: Nema 5-15R, GFCI Protection Category: IP 21 Weight: 2,4kg / 5.3 lbs  Dimensions (H x W x D, mm); (H x W x D, inch): 86 x 165 x 260; 3.4 x 6.5 x 10.2 Accessories: Remote On-off: Yes Automatic Transfer Switch: Filax Standards: Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3) EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3 Automotive Directive ECE R10-4: 1) Nonlinear load, crest factor 3:1; 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: DC Connection Type: Hardwire GFCI: Optional Inverter Cont. Output Wattage: 1200VA/ 960W Inverter Input Voltage: 12V Inverter Output Voltage: 120VAC Inverter Surge Rating: 2200W Outlet Qty: Optional Waveform: Pure Sine Wave Box Dimensions: 8"H x 12"W x 17"L WT: 19.75 lbs UPC: 8719076054207 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

MultiPlus 12/500 - 20-16 - 120V - VE. Bus UL ApprovedThe MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology, and a high-speed AC transfer switch in a single compact enclosure. Next to these primary functions, the MultiPlus has several advanced features, as outlined below.Parallel Operation and Three-Phase CapabilityUp to six Multis can operate in parallel to achieve higher power output.  In addition to parallel connection, three units can be configured for three-phase output.  PowerControl - Dealing with Limited Generator, Shore Side or Grid PowerWith the Multi Control Panel, a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.  PowerAssist - Boosting the Capacity of Shore or Generator PowerThis feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load is reduced, the spare power is used to recharge the battery.  Four Stage Adaptive Charger and Dual-Bank Battery ChargingThe main output provides a powerful charge to the battery system using advanced ‘adaptive charge’ software. The software fine-tunes the three-stage automatic process to suit the condition of the battery and adds a fourth stage for long periods of float charging. The adaptive charge process is described in more detail on the Charger datasheet and Victron's website under Technical Information. In addition to this, the MultiPlus will charge a second battery using an independent trickle charge output intended for a main engine or generator starter battery.  High Start-Up PowerIt is needed to start high-inrush loads such as power converters for LED lamps, halogen lamps, or electric tools.  Search ModeWhen Search Mode is ‘on’, the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode, the Multi, when operating in inverter mode, is switched off in case of no load or very low load and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.Programmable RelayBy default, the programmable relay is set as an alarm relay, i.e. the relay will de-energize in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).  Remote On/Off/Charger OnThree pole connector.  On-Site System Configuring, Monitoring, and ControlAfter installation, the MultiPlus is ready to go. Some settings can be changed with DIP switches. 500/800/1200VA models: remote switch/battery charge voltage/inverter frequency/search mode. 1600/2000VA models:  battery charge voltage/search mode. For more settings use VE-Config or the VE. Bus Smart dongle.  Remote Configuring and MonitoringInstall a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on Victron's VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed. Specifications: PowerControl: Yes PowerAssist: Yes Transfer Switch (A): 16 Inverter Specifications: Input Voltage Range (V DC): 9,5 – 17 V Output voltage: 120 VAC, ± 2% / Frequency 60 Hz ± 0,1% Continuous Output Power at 25°C (VA): 500 Continuous Output Power at 25°C (W): 430 Continuous Output Power at 40°C (W): 400 Continuous Output Power at 65°C (W): 300 Peak Power (W): 900 Maximum Efficiency (%): 90 / 91 / 92% Zero Load Power (W): 6 / 6 / 7W Zero Load Power in Search Mode (W): 2 / 2 / 3W Charger Specifications: AC Input: Input voltage range: 120VAC / Input frequency: 55 – 65 Hz Charge Voltage Absorption (V DC): 14,4  Charge Voltage Float (V DC): 13,8 Storage Mode (V DC): 13,8  Charge Current House Battery (A): 20  Charge Current Starter Battery (A): 1A (12 V and 24 V models only) Battery Temperature Sensor: Yes General Specifications: Programmable Relay: Yes (1x) Protection: a - g VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring and system integration  (RJ45-splitter ASS030065510 needed for 500 / 800 / 1200 VA models) Remote On-Off: On/off/charger only DIP Switches: Yes Internal DC Fuse: 125 / 60 /30 A Operating Temperature Range: -40 - +65°C / -40 to 150°F (fan-assisted cooling), Humidity (non-condensing) max 95% Enclosure Specifications: Common Characteristics: Material & Color: aluminum (blue RAL 5012) / Protection category: IP 21 Battery-Connection: 16 / 10 / 10 mm² 120 V AC-Connection: G-ST18i connector Weight: 4,4 kg Dimensions (H x W x D): 311 x 182 x 100 mm / 12.2 x 7.2 x 3.9 in. Standards: Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1 Emission, Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3  Automotive Directive: ECE R10-5 Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Inverter 12/1200 VE Direct NEMA 5-15R Output SocketThe VE.Direct port can be connected to: A computer (VE.Direct to USB interface cable needed) Apple and Android smartphones, tablets , MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed) Fully configurable: Low battery voltage alarm trip and reset levels Low battery voltage cut -off and restart levels Dynamic cut -off: load dependent cut -off level Output voltage 2 10 - 245V Frequency 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Monitoring: In- and output voltage , % load and alarmsProven reliability: The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against o verheating, whether due to over load or high ambient temperature.High start-up power: Needed to start loads such as power co nverters for LED lamps, halogen lamps or electric tools.ECO mode: When in ECO mode , the inverter will switch to stan dby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds) . If the load exceeds a preset level the inverter will remain on.Remote on/off: A remote on/off switch can be connected to a two-pole connecto r, or between battery plus and the left-hand contact of the two-pole connector.To transfer the load to another AC source: the automatic transfer switch: For our low power inverters , we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.Please contact your dealer for any returns, repairs or support issues related to this product. Brochure (pdf)

Read more less

Phoenix Inverter VE.Direct 12VDC - 1200VA - 120VInverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V, or 48VDC.The VE.Direct port can be connected to: A computer (VE.Direct to USB interface cable needed) Apple and Android smartphones, tablets, MacBooks, and other devices (VE.Direct Bluetooth Smart dongle needed) Fully Configurable: Low battery voltage alarm trip and reset levels Low battery voltage cut-off and restart levels Dynamic cut-off: load dependent cut-off level Output voltage 210 - 245V Frequency 50 Hz or 60 Hz Proven reliabilityThe full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.High start-up powerNeeded to start loads such as power converters for LED lamps, halogen lamps, or electric tools.ECO modeWhen in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.Remote on/offA remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.To transfer the load to another AC source: the automatic transfer switchFor our low power inverters, we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.ECO mode on/off and ECO mode sense levelMonitoringIn- and output voltage, % load, and alarmsDC connection with screw terminals No special tools needed for installationPlease contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Brochure (pdf)

Read more less

Galvanic Isolator VDI-64A 64A Max Waterproof (Potted)The galvanic isolator prevents electrolytic corrosion. It blocks low voltage DC currents that enter your boat via the shore power earth wire. These currents can cause corrosion to the boat’s underwater metals, like the hull, propeller, shaft and so on.The galvanic isolator consists internally of two diodes which are connected in anti-parallel fashion. When they are connected in this way, the diodes allow current in both directions but only above a certain threshold voltage. The voltage at which diodes conduct is about 1.4 Vdc.The isolator is installed directly behind your boat's 120V - 230V connection. The forward voltage from the galvanic isolator is higher than the potential difference between metals. As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current. However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit.Terminal posts are 6MM (1/4")This item is not ABYC A-28 approvedPlease contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Orion IP67 DC-DC Converter - 24 VDC to 12 VDC - 100AMP Features: Completely encapsulated: waterproof, shockproof and ignition protected Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.  Extra-long input and output cables Thanks to the cables of 1.8 meters in length, intermediate cable interconnections to increase length even more will in most cases not be needed. This is an important reliability increasing feature in an area were IP67 protection grade is needed.  Wide input voltage range With 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to same battery.  Protected against overheating It can be used in a hot environment such as a machine room. Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Brochure (pdf)

Read more less

Filax 2 Transfer Switch 110V/50Hz-120V/60HzFilax: the ultra-fast transfer switch. The Filax has been designed to switch sensitive loads, such as computers or modern entertainment equipment from one AC source to another. The priority source typically is the mains, a generator, or shore power. The alternate source typically is an inverter. With its switching time of less than 20 milliseconds, sensitive loads will continue to operate without disruption. The Filax is not intended to supply high-power household equipment like washing machines or electric motors.Please contact your dealer for any returns, repairs or support issues related to this product.

Read more less
