Cerbo GX MK2Victron's Cerbo GX MK2 is the most commonly used GX product. This communications center has hardware revision 2 with two VE.Can ports, 3 USB host ports, and digital input pulse counting.The Cerbo GX MK2 Is Different from the Cerbo Gx since It Has: Two fully functional CAN bus ports- VE.Can 1 and VE.Can 2. Instead of one VE.Can and one BMS-Can port VE.Can 1 is isolated (on previous models, there was no isolated CAN-bus port) RJ-45 sockets have been rotated 180 degrees, so it's easier to take the cables out All three USB ports are fully functional (instead of two functional and one for power (to a GX Touch) only) Digital inputs can do pulse counting This communication center allows users to always have perfect control over the system from wherever they are and maximizes its performance. Connect through the Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch 50, an MFD, or Victron's VictronConnect app thanks to its added Bluetooth capability. This latest addition to the GX range combines all the best of connectivity, redefining smart power solutions in every way.Perfect Monitoring & ControlInstantly monitor the battery state of charge, power consumption, and power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s), or change any setting to optimize the system. Follow up on alerts, perform diagnostic checks, and resolve challenges remotely. The Cerbo GX MK2 turns any power challenge into an effortless experience.Maximize Your System PerformanceThe Cerbo GX MK2 maximizes the performance of a system's components in real time and keeps them in perfect tune. This enclosure has two fully functional CAN bus ports, called VE.Can 1 and VE.Can 2. Instead of one VE.Can and one BMS-Can port. VE.Can 1 is isolated. In the previous models, there was no isolated canbus port. This can be useful where a Lynx Smart BMS (VE.Can connection) as well as an RV-C port are required.Expand Your ViewThe (optional) GX MK2 Touch 50 display gives users an instant overview of their system and adjust settings in the blink of an eye. Its super slim 5-inch waterproof design, top-mountable setup, and simple installation bring a lot of flexibility when creating a crisp and clean dashboard.Simple Mounting & ConfigurationThe Cerbo GX MK2 is now optimized to more than meet the standards of installer professionals. The device is easily mountable on a DIN-Rail (with DIN35 adapter small, not included), and its separate touchscreen can now be bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the Color Control GX MK2). It is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard. Its new Bluetooth feature enables a quick connection and configuration via the VictronConnect app.Outsmart Any Power ChallengeThe Cerbo GX MK2 serves endless purposes, extending perfect control to the most diverse applications. For solutions including generators, such as marine, or backup & off-grid, it will auto-start/stop the generator, or delay ignition until the end of ‘quiet’ periods. It keeps backup batteries at 100% for energy storage systems, kicks in during power cuts, and diverts excess (solar) power to self-consumption, saving users money. For RVs and emergency vehicles, it keeps vital systems functioning flawlessly. But that’s just to name a few...Specifications: Remote Console: Yes Buzzer: Yes VE.Direct ports (always isolated): 3 VE.Bus (always isolated): 2 paralleled RJ45 sockets VE.Can: Yes, VE.Can 1 isolated & VE.Can 2 non-isolated USB: 3 USB Host ports Ethernet: 10/100 RJ45 socket - isolated except for shield WiFi: Built-in Bluetooth Smart: Yes Micro SDcard slot: SDHC cards up to max. of 32GB (5) Second CAN-bus port (BMS-Can): Yes - see VE.Can BMS-Can port: No Built-in RS485: No Programmable Relay: 2 x NO/NC (8), DC up to 30VDC: 6A, DC up to 70VDC: 1A, AC: 6A, 125VAC Resistive Tank Level Inputs: 4 Temperature Sense Inputs: 4 Same as part# BPP900450110 other than Country of Origin Digital Inputs: 4 Performance Specifications: CPU: Dual-core RAM: 1GB Max. VE.Direct Devices: 15 Other Specifications:  Supply Voltage: 8 - 70 VDC Power Draw: 2,5 to 5 W Mounting: Wall or DIN rail (35mm) Outer Dimensions  (H x W x D): 478 x 154 x 48 mm Operating Temperature: -20 to +50 degrees C Battery Backup Clock: Yes 5V Output: No Standards: Safety: IEC 62368-1 EMC: EN 301489-1, EN301489-17 Automotive: ECE R10-6 Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Type: Chargers Box Dimensions: 2"H x 5"W x 8"L WT: 0.9 lbs UPC: 8719076062257 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Phoenix Inverter 12/800 - 120V - VE.Direct GFCI Duplex Outlet - 650WInverters allow users to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC. *This inverter has a GFCI Duplex Outlet.E.Direct Communication PortThe VE.Direct port can be connected to: A computer (VE.Direct to USB interface cable needed) Apple and Android smartphones, tablets, MacBook, and other devices (VE.Direct Bluetooth Smart dongle needed) Fully Configurable: Low battery voltage alarm trip and reset levels Low battery voltage cut-off and restart levels Dynamic cut-off: load-dependent cut-off level Output voltage 210 - 245V Frequency 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Monitoring:In- and output voltage, % load, and alarmsProven ReliabilityThe full bridge plus toroidal transformer topology has proven its reliability over many years.The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.High Start-Up PowerNeeded to start loads such as power converters for LED lamps, halogen lamps, or electric tools.ECO ModeWhen in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once on standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.Remote On/OffA remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.LED DiagnosisPlease see the manual for a description.To Transfer the Load to Another AC Source: The Automatic Transfer SwitchFor Victron’s low-power inverters, they recommend the Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Inverter Specifications: Cont. Power at 25 degrees C: (1) 800VA  Cont. Power at 25 degrees C / 40 degrees C: 650 / 560W Peak Power: 1500W  Output AC Voltage / Frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1% Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V Dynamic (load dependent) DC Low Shut Down (fully configurable): Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff DC Low Restart & Alarm (adjustable): 10,9 / 21,8 / 43,6V Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V Max. Efficiency: 90 / 90 / 91% Zero-Load Power: 6,5 / 7 / 9,5W Default Zero-Load Power in ECO Mode (default retry interval: 1 / 1,5 / 3,0W ECO Mode Stop & Start Power Setting: Adjustable Protection (2): a - f Operating Temperature Range -40 to +65 degrees C (fan-assisted cooling)  Enclosure Specifications: Material & Color: Steel chassis and plastic cover (blue Ral 5012) Battery-Connection: Screw terminals Maximum Cable Cross-Section: 25 / 10 / 10mm² /  AWG4 / 8 / 8 Standard AC Outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included); UK (BS 1363), AU/NZ (AS/NZS 3112); 120V: Nema 5-15R, GFCI Protection Category: IP 21 Weight: 5,5kg / 12lbs Dimensions (H x W x D, mm): 105 x 230 x 325 Accessories: Remote On-off: Yes Automatic Transfer Switch: Filax Standards: Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3) EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3 Automotive Directive ECE R10-4: 1) Nonlinear load, crest factor 3:1; 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: GFCI: Yes Box Dimensions: 8"H x 11"W x 14"L WT: 15.69 lbs UPC: 8719076049432 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Phoenix Inverter 12 VDC - 800W - 120 VAC - 50/60HzInverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: DC Connection Type: Hardwire AC Connection Type: Hardwire Inverter Input Voltage: 9-17v Inverter Cont. Output Wattage: 800w Outlet Qty: 1 Duplex GFCI Inverter Surge Rating: 800w Waveform: Pure Sine Wave GFCI: No Inverter Output Voltage: 120v1 Box Dimensions: 8"H x 11"W x 14"L WT: 15.15 lbs UPC: 8719076038412 Quick Guide (pdf)

Read more less

Galvonic Isolator VDI-32A 32A Max Waterproof (Potted)The galvanic isolator prevents electrolytic corrosion. It blocks low voltage DC currents that enter your boat via the shore power earth wire. These currents can cause corrosion to the boat’s underwater metals, like the hull, propeller, shaft and so on.The galvanic isolator consists internally of two diodes which are connected in anti-parallel fashion. When they are connected in this way, the diodes allow current in both directions but only above a certain threshold voltage. The voltage at which diodes conduct is about 1.4 Vdc.The isolator is installed directly behind your boat's 120V - 230V connection. The forward voltage from the galvanic isolator is higher than the potential difference between metals. As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current. However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit.Terminal posts are 6mm (1.4")This item is not ABYC A-28 approvedPlease contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

GX Touch 50 Flush Mount Display 94 x 136 x 12mmThe GX Touch is optimized to more than meet the standards of installer professionals. The screen is simply bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the Color Control GX).  It can also be mounted flush or even embossed with the unlaying surface and connected through just one cable, taking away the hassle of having to bring many wires to a dashboard.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Orion-Tr Smart 48/24-16A (380W) Isolated DC-DC Charger The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.The Orion-Tr Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.Suitable for high temperatures up to 55°C with a full rated output up to 40°C.Bluetooth Smart enabled Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available. Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged. For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines)The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery.Remote on/offA remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.High temperature protectedThe output current will reduce at high ambient temperatures.IP43 protectionWhen installed with the screw terminals oriented downward.Screw terminalsNo special tools are needed for installation.Input fuse (not replaceable)Please contact your dealer for any returns, repairs or support issues related to this product. Brochure (pdf)

Read more less

Orion-Tr Smart 48/12-30A (360W) Isolated DC-DC Charger The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.The Orion-Tr Smart charger can be used in 48V systems and is suitable for both lead acid and lithium batteries. Unlimited multiple units can be connected in parallel to increase output power.Suitable for high temperatures up to 55°C with a full rated output up to 40°C.Bluetooth Smart enabled Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available. Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged. For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines)The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery.Remote on/offA remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.High temperature protectedThe output current will reduce at high ambient temperatures.IP43 protectionWhen installed with the screw terminals oriented downward.Screw terminalsNo special tools are needed for installation.Input fuse (not replaceable)Please contact your dealer for any returns, repairs or support issues related to this product. Brochure (pdf)

Read more less

Orion-Tr Smart 48/48-8A (380W) Isolated DC-DC Charger The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.The Orion-Tr Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.Suitable for high temperatures up to 55°C with a full rated output up to 40°C.Bluetooth Smart enabled Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available. Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged. For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines)The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery.Remote on/offA remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.High temperature protectedThe output current will reduce at high ambient temperatures.IP43 protectionWhen installed with the screw terminals oriented downward.Screw terminalsNo special tools are needed for installation.Input fuse (not replaceable)Please contact your dealer for any returns, repairs or support issues related to this product. Brochure (pdf)

Read more less

Orion-Tr Smart 12/48-8A (380W) Isolated DC-DC Charger The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.The Orion-Tr Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.Suitable for high temperatures up to 55°C with a full rated output up to 40°C.Bluetooth Smart enabled Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available. Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged. For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines)The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery.Remote on/offA remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.High temperature protectedThe output current will reduce at high ambient temperatures.IP43 protectionWhen installed with the screw terminals oriented downward.Screw terminalsNo special tools are needed for installation.Input fuse (not replaceable)Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Orion-TR Smart 24/48 8.5A (400W) Isolated DC-DC ChargerThe Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.This is for use in dual battery systems in vehicles or on boats, the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.Suitable for high temperatures up to 55°C with a full rated output up to 40°C.VictronConnectVictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Orion-TR Smart Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMPThe Orion-Tr Smart DC-DC charger is a professional DC-to-DC adaptive 3-stage charger with built-in Bluetooth.Bluetooth Smart Enabled: Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available. Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product.   Fully Programmable: Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism.   Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float: For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged. For lithium batteries, the absorption time is fixed (the default is 2 hours). Alternatively, a fixed output voltage can be chosen.   Suitable for Use in Vehicles with a Smart Alternator (Euro 5 and Euro 6 Engines):The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents the unwanted discharge of the starter battery (see manual for details).  Remote On/Off:A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).  All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current:An unlimited number of units can be connected in parallel.High Temperature Protected:The output current will reduce at high ambient temperatures.  IP43 Protection:When installed with the screw terminals oriented downward.  Screw Terminals:No special tools are needed for installation.  Input fuse (not replaceable) Specifications: Input Voltage Range: 20-35 V Under Voltage Shut Down: 14 V Under Voltage Restart: 15 V Nominal Output Voltage: 24.2 V Output Voltage Adjust Range: 20-30 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 17 A Maximum Output Current (10 S) at Nominal Output Voltage: 25 A Short Circuit Output Current: 40A Cont. Output Power at 25 Degrees C: 480 W Cont. Output Power at 40 Degrees C: 400 W Efficiency: 89% No Load Input Current (2): < 80 mA  Standby Current: Less than 1 mA Galvanic Isolation: 200 VDC between input, output, and case Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C) Humidity: Max. 95 % non-condensing DC Connection: Screw terminals Maximum Cable Cross-Section: 16 mm² AWG6 Weight: 1,6 kg (3.5 lb) Dimensions (h x w x d) 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch) Protection Category: IP43 (electronic components), IP22 (connection area) Safety Standards: EN 60950 Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Orion-TR Smart 12/24-15A (360W) Isolated DC-DC Charger or Power SupplyThe Orion-Tr Smart isolated DC-DC charger serves as a DC-DC battery charger or a power supply (also designed for use as a constant voltage source), offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge.Bluetooth Smart Enabled Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product Fully programmable Battery charge algorithm (configurable) or fixed output.  Smart Alternator Compatibility: engine running detection mechanism Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged For lithium batteries, the absorption time is fixed; the default is 2 hours Alternatively, a fixed output voltage can be chosen Suitable for Use in Vehicles with a Smart Alternator (Euro 5 and Euro 6 Engines)The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery (see manual for details).Remote On/OffA remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output CurrentAn unlimited number of units can be connected in parallel.High Temperature ProtectedThe output current will reduce at high ambient temperatures.IP43 ProtectionWhen installed with the screw terminals oriented downward.Screw TerminalsNo special tools are needed for installation. Input fuse (not replaceable) *Input fuse (not replaceable) Specifications: Input Voltage Range: 10-17 V Under Voltage Shut Down: 7 V Under Voltage Restart: 7.5 V Nominal Output Voltage: 24.2 V Output Voltage Adjust Range: 20-36 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 15 A Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 25 A Short Circuit Output Current: 40 A Cont. Output Power at 25 Degrees C: 430 W Cont. Output Power at 40 Degrees C: 360 W Efficiency: 88 % No Load Input Current (2): < 100 mA  Standby Current: Less than 1A Can Be Used as Power Supply: Yes, output voltage can be set with Bluetooth  Galvanic Isolation: 200 VDC between input, output, and case  Operating Temperature Range -20 to +55 °C (derate 3 % per °C above 40 °C)  Humidity: Max. 95 % non-condensing  DC Connection: Screw terminals  Maximum Cable Cross-Section: 16 mm²  AWG6  Weight: 1,8 kg (3 lb)  Dimensions (H x W x D):130 x 186 x 70 mm  (5.1 x 7.3 x 2.8 inch)  Protection Category IP43 (electronic components), IP22 (connection area)  Safety Standards: EN 60950 Emission/Immunity Standards: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Portable: No Charging Banks: 1 Charger Output Voltage: 24v Charger Output - Amps: 15a Charger Input - Voltage: 12v Box Dimensions: 4"H x 5"W x 8"L WT: 4.4 lbs UPC: 8719076047704 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Orion-TR Smart 24/12-30A (360W) Isolated DC-DC Charger or Power SupplyThe Orion-Tr Smart isolated DC-DC charger serves as a DC-DC battery charger or a power supply (also designed for use as a constant voltage source), offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge.Bluetooth Smart Enabled Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product Fully programmable Battery charge algorithm (configurable) or fixed output.  Smart Alternator Compatibility: engine running detection mechanism Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged For lithium batteries, the absorption time is fixed; the default is 2 hours Alternatively, a fixed output voltage can be chosen Suitable for Use in Vehicles with a Smart Alternator (Euro 5 and Euro 6 Engines)The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery (see manual for details).Remote On/OffA remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output CurrentAn unlimited number of units can be connected in parallel.High Temperature ProtectedThe output current will reduce at high ambient temperatures.IP43 ProtectionWhen installed with the screw terminals oriented downward.Screw TerminalsNo special tools are needed for installation. Input fuse (not replaceable) *Input fuse (not replaceable) Specifications: Input Voltage Range: 20-35 V Under Voltage Shut Down: 14 V Under Voltage Restart: 15 V Nominal Output Voltage: 12.2 V Output Voltage Adjust Range: 10-15 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 45 A Short Circuit Output Current: 60 A Cont. Output Power at 25 Degrees C: 430 W Cont. Output Power at 40 Degrees C: 360 W Efficiency: 88 % No Load Input Current (2): < 100 mA  Standby Current: Less than 1A Can Be Used as Power Supply: Yes, output voltage can be set with Bluetooth  Galvanic Isolation: 200 VDC between input, output, and case  Operating Temperature Range -20 to +55 °C (derate 3 % per °C above 40 °C)  Humidity: Max. 95 % non-condensing  DC Connection: Screw terminals  Maximum Cable Cross-Section: 16 mm²  AWG6  Weight: 1,6 kg (3.5 lb)  Dimensions (H x W x D):130 x 186 x 70 mm  (5.1 x 7.3 x 2.8 inch)  Protection Category IP43 (electronic components), IP22 (connection area)  Safety Standards: EN 60950 Emission/Immunity Standards: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 24v Charger Output - Amps: 30a Charger Output Voltage: 12v Box Dimensions: 4"H x 6"W x 9"L WT: 4.4 lbs UPC: 8719076047711 Quick Guide (pdf)

Read more less

Orion-TR Smart 12/12-30A (360W) Isolated DC-DC Charger or Power SupplyThe Orion-Tr Smart isolated DC-DC charger serves as a DC-DC battery charger or a power supply (also designed for use as a constant voltage source), offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge.Bluetooth Smart Enabled Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product Fully programmable Battery charge algorithm (configurable) or fixed output.  Smart Alternator Compatibility: engine running detection mechanism Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged For lithium batteries, the absorption time is fixed; the default is 2 hours Alternatively, a fixed output voltage can be chosen Suitable for Use in Vehicles with a Smart Alternator (Euro 5 and Euro 6 Engines)The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery (see manual for details).Remote On/OffA remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output CurrentAn unlimited number of units can be connected in parallel.High Temperature ProtectedThe output current will reduce at high ambient temperatures.IP43 ProtectionWhen installed with the screw terminals oriented downward.Screw TerminalsNo special tools are needed for installation. Input fuse (not replaceable) *Input fuse (not replaceable) Specifications: Input Voltage Range: 10-17 V Under Voltage Shut Down: 7 V Under Voltage Restart: 7.5 V Nominal Output Voltage: 12.2 V Output Voltage Adjust Range: 10-15 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 40 A Short Circuit Output Current: 60 A Cont. Output Power at 25 Degrees C: 430 W Cont. Output Power at 40 Degrees C: 360 W Efficiency: 87 % No Load Input Current (2): < 80 mA  Standby Current: Less than 1A Can Be Used as Power Supply: Yes, output voltage can be set with Bluetooth  Galvanic Isolation: 200 VDC between input, output, and case  Operating Temperature Range -20 to +55 °C (derate 3 % per °C above 40 °C)  Humidity: Max. 95 % non-condensing  DC Connection: Screw terminals  Maximum Cable Cross-Section: 16 mm²  AWG6  Weight: 1,8 kg (3 lb)  Dimensions (H x W x D):130 x 186 x 70 mm  (5.1 x 7.3 x 2.8 inch)  Protection Category IP43 (electronic components), IP22 (connection area)  Safety Standards: EN 60950 Emission/Immunity Standards: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Output - Amps: 30a Charger Input - Voltage: 12v Portable: No Charging Banks: 1 Charger Output Voltage: 12v Box Dimensions: 4"H x 6"W x 9"L WT: 4.45 lbs UPC: 8719076047698 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Phoenix Inverter 24 VDC - 800W - 120 VAC - 50/60HzInverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Outlet Qty: 1 Duplex GFCI Inverter Surge Rating: 1600w Waveform: Pure Sine Wave Inverter Output Voltage: 110v Inverter Input Voltage: 9-17v Inverter Cont. Output Wattage: 800w GFCI: No DC Connection Type: Hardwire AC Connection Type: Hardwire Box Dimensions: 8"H x 11"W x 14"L WT: 14.7 lbs UPC: 8719076038450 Quick Guide (pdf)Brochure (pdf)

Read more less

BlueSmart IP65 Charger 24/13 (1) 120V NEMA 1-15P UL 1236The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in the workshop and on motor vehicles, such as classic cars, motorbikes, boats, and campervans. The Battery Is Charged, Smartly... To Perfect ConditionThe seven-step charging algorithm gets the most out of a battery. The charger gives the battery the power it needs, maintains its health, ensures better performance... and gives it a longer life.Recovery of Deeply-Discharged ‘Dead’ BatteriesUnlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.Connect the Battery with EaseThe charger comes with both crocodile clips and M8 eyelets, making it easy to connect to the battery. If users wish, they can leave it permanently connected.Check the Status of the Battery RemotelyThe Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet, or laptop. All settings of the charger can be configured with the VictronConnect app.Specifications: Input Voltage: 120 VAC Efficiency: 95% Standby Power Consumption: 95% 0.5W  Minimum Battery Voltage: Starts charging from down to 0V Charge Voltage 'Absorption': Normal: 28,8V High: 29,4V Li-ion: 28,4V Charge Voltage 'Float': Normal: 27,6V High: 27,6V Li-ion: 27,0V  Charge Voltage 'Storage': Normal: 26,4V High: 26,4V Li-ion: 27,0V  Charge Current: 5/8A Charge Current in Low Current Mode: 2 / 3A  Temperature Compensation (Lead-Acid Batteries Only): 32 mV/degrees C (18mV/degrees F Can Be Used as Power Supply: Yes Back Currency Drain: 0.7Ah/month  (1mA)  Protection: Reverse polarity; Output short circuit; Over temperature  Operating Temp. Range: -40 to +60 degrees C (full rated output up to 30 degrees C) -40  to +140 degrees F (full rated output up to 90 degrees F)  Humidity (non-condensing): Max 95% Enclosure Specifications: Battery-Connection: Black and red cable of 1.5 meters (4.9 feet) 120 V Ac-Connection: Cable of 1.8 meters (5.9 feet) with US NEMA 1-15 plug Protection Category: P65 (splash and dust proof, and ignition protected) Weight: 0,9kg (2lbs) Dimensions (H x W x D): 24/8: 60 x 105 x190mm 2.3 x 4.1x 7.5 inches Standards: Safety: UL 1236, CSA C22.2, EN 60335-1, 60335-2-29 Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2 Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 120v Charger Output - Amps: 13a Charger Output Voltage: 24v Charging Banks: 1 Portable: Yes Box Dimensions: 4"H x 8"W x 16"L WT: 4.82 lbs UPC: 8719076060888 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

BlueSmart IP65 Charger 12/25 (1) 120V NEMA 1-15P UL 1236The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in the workshop and on motor vehicles, such as classic cars, motorbikes, boats, and campervans. The Battery Is Charged, Smartly... To Perfect ConditionThe seven-step charging algorithm gets the most out of a battery. The charger gives the battery the power it needs, maintains its health, ensures better performance... and gives it a longer life.Recovery of Deeply-Discharged ‘Dead’ BatteriesUnlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.Connect the Battery with EaseThe charger comes with both crocodile clips and M8 eyelets, making it easy to connect to the battery. If users wish, they can leave it permanently connected.Check the Status of the Battery RemotelyThe Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet, or laptop. All settings of the charger can be configured with the VictronConnect app.Specifications: Input Voltage: 120 VAC Efficiency: 94% Standby Power Consumption: 0.5W  Minimum Battery Voltage: Starts charging from down to 0V Charge Voltage 'Absorption': Normal: 14.4V High: 14.7V Li-ion: 12.4V Charge Voltage 'Float': Normal: 13.8V High: 13.8V Li-ion: 13.5V  Charge Voltage 'Storage': Normal: 13.2V High: 13.2V Li-ion: 13.5V  Charge Current: 25A Temperature Compensation (Lead-Acid Batteries Only): 16 mV/degrees C (18mV/degrees F Can Be Used as Power Supply: Yes Back Curreny Drain: 0.7Ah/month  (1mA)  Protection: Reverse polarity; Output short circuit; Over temperature  Operating Temp. Range: -40 to +60 degrees C (full rated output up to 30 degrees C) -40  to +140 degrees F (full rated output up to 90 degrees F)  Humidity (non-condensing): Max 95% Enclosure Specifications: Battery-Connection: Black and red cable of 1.5 meters (4.9 feet) 120 V Ac-Connection: Cable of 1.8 meters (5.9 feet) with US NEMA 1-15 plug Protection Category: IP65 (splash and dust proof, and ignition protected) Weight: 0,9kg (2lbs) Dimensions (H x W x D): 12/25: 60 x 105 x190mm 2.3 x 4.1x 7.5 inches Standards: Safety: UL 1236, CSA C22.2, EN 60335-1, 60335-2-29 Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2 Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 120v Charger Output - Amps: 25a Charger Output Voltage: 12v Charging Banks: 1 Portable: Yes Box Dimensions: 4"H x 9"W x 17"L WT: 5.18 lbs UPC: 8719076060871 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Lynx Distributor with M10 TerminalsThe Lynx Distributor contains a positive and a negative busbar. The positive busbar has four fuse-protected connections with fuse monitoring. The negative busbar has four connections and a ground connection. This model is part of the Lynx distribution and is a M10 busbar model. Note that M10 refers to the busbar connection joints where the modules are connected. The fuse and cable connections are always M8.The Lynx Distributor has a power LED and four fuse status indication LEDs. If connected to a Lynx Smart BMS, up to 4 Lynx Distributors can send fuse status information to the Lynx Smart BMS. This feature is not available when connected to a Lynx Shunt VE.Can.Features: 1000A model with M10 busbars The Lynx Distributor ships together with a 40cm RJ10 cable, which provides power to the Lynx Distributor and is also used to transmit data if connected to a Lynx Smart BMS The Lynx Distributor is designed to hold MEGA fuses If the Lynx Distributor is connected to a Lynx Smart BMS, it can be monitored and set up with the VictronConnect App Up to 4 connected Lynx distributors can be monitored with a GX device if connected to a Lynx Smart BMS The Lynx Distribution SystemThe Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, and battery monitoring and/or lithium battery management.The Lynx Distribution System Consists of the Following PartsLynx Power InA positive and negative busbar with four batteries or DC equipment connections.Lynx DistributorA positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring, is available in two versions.Lynx Shunt VE.CanA positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device.Lynx Smart BMSFor use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring.It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal. Available as a 1000A model with M10 busbars.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

SmartSolar MPPT 150/45 Solar Charge ControllerA solar charger gathers energy from your solar panels, and stores it in your batteries.  Using the latest, fastest technology, SmartSolar maximizes this energy harvest, driving it intelligently to achieve full charge in the shortest possible time.  SmartSolar maintains battery health, extending its life.The SmartSolar charge controller will even recharge a severely depleted battery.  It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulfated or otherwise damaged.Features: MPPT - Ultra Fast Maximum Power Point Tracking - By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage.  The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing. Remote Monitoring and Control - Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or another device via VictronConnect. Advanced Maximum Power Point Detection in case of partial shading conditions.  Outstanding conversion efficiency.  Natural convection cooling.  Automatic battery voltage recognition.  Flexible charge algorithm.  Over-temperature protection and power derating when the temperature is high.  Technical Specifications: Dimensions (L x W x H) - 7.3" x  5.2" x  2.8" (186 x 132 x 71mm)  Battery Voltage - 12/24/36/48V  Rated Charge Current - 45A Max. PV Short Circuit Current - 50A Maximum Efficiency - 98% Data Communication Port - VE. Direct In the Box: 150/45 Solar Charge Controller Instruction Manual  *Sold as an IndividualPlease contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

SmartShunt 2000A/50MV IP65 Bluetooth Battery MonitorThe Smart Battery ShuntThe SmartShunt is an all-in-one battery monitor, only without a display. Your phone acts as a display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information, and much more.Alternatively, the SmartShunt can be connected and read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter are wanted.The SmartShunt is equipped with Bluetooth and a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring, or a temperature sensor.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

SmartShunt 2000AMP/50MV Bluetooth Smart Battery ShuntThe SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.VictronConnectVictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle. Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Busbar 600A 8P & Cover 8X 3/8" Plus 8X M8 TerminalsBusbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protective cover.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

Blue Smart IP22 24VDC 16A 3 Bank 120V Charger - Dry MountThe Blue Smart IP22 Charger is the professional battery charger with built-in bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans. Bluetooth SmartThe Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.High efficiencyWith up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.Adaptive 6-stage charge algorithm: test - bulk – absorption - recondition – float – storageThe Blue Smart Charger features a microprocessor-controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.Storage Mode: less maintenance and aging when the battery is not in useThe storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.Also charges Li-ion batteriesLi-ion batteries are charged with a simple bulk – absorption – float algorithm.Fully discharged battery recovery functionWill initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with internal disconnect function.NIGHT and LOW settingWhen in NIGHT or LOW mode, the output current is reduced to max. 50% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.Protected against overheatingOutput current will reduce as the temperature increases up to 50°C, but the Blue Smart Charger will not fail.Eleven LEDs for status indicationCharge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14,4V) / HIGH (14,7V) / RECONDITION / LI-ION.Specifications: Input Voltage Range: 100 - 130 VAC Charge Current, Normal Mode: 8/12/16 A Charge Current, NIGHT or LOW: 4 / 6 / 8 A Efficiency: 94% No Load Power Consumption: 0.5 W Frequency: 45 – 65 Hz Number of Outputs: 1 Charge Voltage 'Absorption': Normal: 28,8V High: 29,4V Li-ion: 28,4V Charge Voltage 'Float': Normal: 27,6V High: 27,6V Li-ion: 27,0V Charge Voltage 'Storage': Normal: 26,4V High: 26,4V Li-ion: 27,0V Charge Algorithm: 6-stage adaptive Can Be Used as Power Supply: Yes Protection: Battery reverse polarity (fuse). Output short circuit, Over temperature Operating Temp. Range: -20 to +50°C Humidity (non-condensing): Max 98% Bluetooth: Frequency: - 2402-2480MHz / Power: -4dBm Enclosure Specifications: Material & Color: Aluminium (blue RAL 5012) Battery Connection: Screw terminals 13 mm^2 / AWG6 230 V AC Connection: Cable of 1,5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ) Protection Category: IP22 Weight: 1,3 kg Dimensions (h x w x d): 235 x 108 x 65 mm Standards: Safety: EN 60335-1, EN 60335-2-29 Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2 Immunity: EN 55014-2, EN 61000-6-1, EN 61000 Automotive E4-10R Please contact your dealer for any returns, repairs or support issues related to this product.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 120v Charger Output - Amps: 16a Charger Output Voltage: 24v Charging Banks: 3 Portable: No Box Dimensions: 3"H x 7"W x 11"L WT: 3.35 lbs UPC: 8719076052548 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

GX Touch 50 Surface Mount Display - 5"Panels & System MonitoringThe GX Touch 50 is the display accessory for our Cerbo GX. The five inch a touch screen display gives an instant overview of your system and allows you to adjust settings in the blink of an eye. Simply connected to the Cerbo GX with one cable, its super slim, waterproof design, top-mountable setup, and its simple installation bring a lot of flexibility when creating a crisp and clean dashboard. Simply MountedThe GX Touch is optimised to more than meet the standards of installer professionals. The screen is simply bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the ColorControl GX) and is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard. The GX Touch 50 is a companion to the Cerbo GX, the all-new communication-centre allows you to always have perfect control over your system from wherever you are and maximises its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the GX Touch 50, a MFD or our VictronConnect app thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

Nucleo GXThe Nucleo GX is a compact, high-performance GX device that offers Ekrano GX-level speed at a lower cost.Powered by a quad-core processor, it connects up to 25 devices via VE.Direct and USB, plus more via VE.Can, and provides real-time monitoring of battery status, power consumption, and PV, generator, or mains input, along with automated generator start/stop and alerts. Where needed, the I/Os can be extended with the following optional USB accessories: the MK3-USB interface, GX I/O Extender 150, or GX Tank 140.The system can be managed from anywhere through Remote Console on the VRM Portal, the VictronConnect app, or a web browser. For local display and control, an Android GX WiFi Display can be added.With its focused feature set, the Nucleo GX is an ideal choice for ESS and off grid installations built around the Multi RS.Please contact your dealer for any returns, repairs or support issues related to this product. Owner's Manual (pdf)Brochure (pdf)

Read more less

GlobalLink 530Off-grid should not mean disconnected. Having insight into your system is key to maintaining and operating your installation, whether on the road or at sea. That is why we created the GlobalLink range: the GlobalLink 520, equipped with LTE-M, and the latest GlobalLink 530, equipped with a 4G modem with 2G fallback, providing reliable coverage in many parts of the world. Both models provide plug-and-play connectivity to all VE.Can Direct-enabled devices without monthly fees or subscriptions for five years, with the option to extend afterwards.Global ConnectivityThe GlobalLink 520 and 530 both offer built-in global connectivity with a 5-year prepaid SIM card, which can be extended after expiry. This ensures continuous, hassle-free remote monitoring through the VRM Portal, without the need for extra contracts or SIM cards.The difference between the GlobalLink 520 and GlobalLink 530 is their cellular connectivity. The GlobalLink 520 uses LTE-M, a low-power cellular technology designed specifically for IoT applications. While LTE-M is an excellent fit in supported regions, its availability is limited in many parts of the world. The GlobalLink 530 uses standard 4G LTE connectivity—the same network technology used by smartphones—and also supports 2G as a fallback where available. This provides broader global coverage and greater deployment flexibility.Monitoring & ControlThe GlobalLink 520 and 530 each come with two communication ports, allowing you to connect up to two VE.Direct devices such as a BMV Battery Monitor and/or an MPPT Solar Charge Controller directly to VRM. Compatible Victron Smart products can also be connected via BLE. With two digital inputs that act as pulse counters and a remote-controllable relay, they offer a practical solution to monitor and control your installation.Built-in AntennaBoth the GlobalLink 520 and 530 support RuuviTag temperature sensors. These battery-powered sensors connect via Bluetooth and are easy to set up with the VictronConnect app. Data such as temperature, humidity, and air pressure from the RuuviTag sensors is directly mirrored to the VRM portal.RuuviTag SupportThe GlobalLink now supports the RuuviTag temperature sensors. These battery powered sensors connect via BLE and are easy to setup via VictronConnect. All the data, like temperature, humidity and air pressure from the RuuviTag sensors, will directly be available in VRM.Please contact your dealer for any returns, repairs or support issues related to this product. Owner's Manual (pdf)Brochure (pdf)

Read more less

GlobalLink 520 4G LTE-M Remote Monitoring Device with 5-Year Pre-Paid SIM Card Uses AT & T & T-MobileWe believe that having insight into your installation is a key factor in maintaining and operating your off-grid energy solutions. Off-grid should not mean off-line, so we have created the GlobalLink 520. This device will bring 4G LTE-M connectivity to all VE.Direct enabled devices without any monthly fees or subscriptions, for the first five years. Global Connectivity with 4G LTE-MLTE-M is the abbreviation for LTE Cat-M1 or Long Term Evolution (4G), category M1. This cellular technology is designed to connect Internet of Things devices to existing 4G towers while using low energy. LTE-M does support handovers and roaming so it is possible to use this device in a moving vehicle like a campervan. Check the list in our GlobalLink 520 manual to see if LTE-M is officially confirmed to be available in your area. Coverage is increasing every week as local providers roll out support. Your purchase includes 5 years of connectivity, so there is no need to worry about purchasing a separate data bundle and SIM-card.System Monitoring & ControlThe GlobalLink 520 comes with two communication ports, which allows connecting up to two VE.Direct devices such as a BMV Battery Monitor and/or a MPPT Solar Charge Controller directly to VRM.Antenna Built-InThe GlobalLink 520 comes with a built-in antenna that is designed to work all around the globe. However if you require better reception or want to install your module in a utility van for example, it is also possible to mount an external antenna.Victron Remote ManagementThe online Victron Remote Management (VRM) portal provides you with access to your installation, from anywhere, at any time. In VRM you can check the status of your connected products, view detailed history graphs of your energy, generate detailed analytical reports, and even configure automatic alarms in case something goes wrong.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

Blue Smart IP22 12VDC 30A 3 Bank 120V Charger - Dry MountThe Blue Smart IP22 Charger is the professional battery charger with built-in bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans. Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Portable: No Charging Banks: 3 Charger Output Voltage: 12v Charger Output - Amps: 30a Charger Input - Voltage: 120v Box Dimensions: 3"H x 7"W x 11"L WT: 3.3 lbs UPC: 8719076052432 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Orion-TR Smart Non-Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMPThe Orion-Tr Smart DC-DC charger is a professional DC-to-DC adaptive 3-stage charger with built-in Bluetooth.Bluetooth Smart Enabled: Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available. Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product.   Fully Programmable: Battery charge algorithm (configurable) or fixed output.  Smart alternator compatibility: engine running detection mechanism.   Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float: For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged. For lithium batteries, the absorption time is fixed (the default is 2 hours). Alternatively, a fixed output voltage can be chosen.   Remote On/Off:A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).  All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current:An unlimited number of units can be connected in parallel.High Temperature Protected:The output current will reduce at high ambient temperatures.  IP43 Protection:When installed with the screw terminals oriented downward.  Screw Terminals:No special tools are needed for installation.  Input fuse (not replaceable) Specifications: Input Voltage Range: 20-35 V Under Voltage Shut Down: 14 V Under Voltage Restart: 15 V Nominal Output Voltage: 24.2 V Output Voltage Adjust Range: 20-30 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 17 A Maximum Output Current (10 S) at Nominal Output Voltage: 25 A Short Circuit Output Current: 40A Cont. Output Power at 25 Degrees C: 480 W Cont. Output Power at 40 Degrees C: 400 W Efficiency: 89% No Load Input Current (2): < 80 mA  Standby Current: Less than 1 mA Galvanic Isolation: 200 VDC between input, output, and case Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C) Humidity: Max. 95 % non-condensing DC Connection: Screw terminals Maximum Cable Cross-Section: 16 mm² AWG6 Weight: 1,6 kg (3.5 lb) Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch) Protection Category: IP43 (electronic components), IP22 (connection area) Safety Standards: EN 60950 Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 24v Charger Output - Amps: 17a Charger Output Voltage: 24v Charging Banks: 1 Portable: No Box Dimensions: 4"H x 5"W x 8"L WT: 3.5 lbs UPC: 8719076048985 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Blue Smart IP22 24VDC 16A 1 Bank 120V Charger - Dry MountThe Blue Smart IP22 Charger is the professional battery charger with built-in bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans. Bluetooth SmartThe Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.High efficiencyWith up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.Adaptive 6-stage charge algorithm: test - bulk – absorption - recondition – float – storageThe Blue Smart Charger features a microprocessor-controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.Storage Mode: less maintenance and aging when the battery is not in useThe storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.Also charges Li-ion batteriesLi-ion batteries are charged with a simple bulk – absorption – float algorithm.Fully discharged battery recovery functionWill initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with internal disconnect function.NIGHT and LOW settingWhen in NIGHT or LOW mode, the output current is reduced to max. 50% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.Protected against overheatingOutput current will reduce as the temperature increases up to 50°C, but the Blue Smart Charger will not fail.Eleven LEDs for status indicationCharge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14,4V) / HIGH (14,7V) / RECONDITION / LI-ION.Specifications: Input Voltage Range: 100 - 130 VAC Charge Current, Normal Mode: 8/12/16 A Charge Current, NIGHT or LOW: 4 / 6 / 8 A Efficiency: 94% No Load Power Consumption: 0.5 W Frequency: 45 – 65 Hz Number of Outputs: 1 Charge Voltage 'Absorption': Normal: 28,8V High: 29,4V Li-ion: 28,4V Charge Voltage 'Float': Normal: 27,6V High: 27,6V Li-ion: 27,0V Charge Voltage 'Storage': Normal: 26,4V High: 26,4V Li-ion: 27,0V Charge Algorithm: 6-stage adaptive Can Be Used as Power Supply: Yes Protection: Battery reverse polarity (fuse). Output short circuit, Over temperature Operating Temp. Range: -20 to +50°C Humidity (non-condensing): Max 98% Bluetooth: Frequency: - 2402-2480MHz / Power: -4dBm Enclosure Specifications: Material & Color: Aluminium (blue RAL 5012) Battery Connection: Screw terminals 13 mm^2 / AWG6 230 V AC Connection: Cable of 1,5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ) Protection Category: IP22 Weight: 1,3 kg Dimensions (h x w x d): 235 x 108 x 65 mm Standards: Safety: EN 60335-1, EN 60335-2-29 Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2 Immunity: EN 55014-2, EN 61000-6-1, EN 61000 Automotive E4-10R Please contact your dealer for any returns, repairs or support issues related to this product.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 120v Charger Output - Amps: 16a Charger Output Voltage: 24v Charging Banks: 1 Portable: No Box Dimensions: 3"H x 7"W x 11"L WT: 3.3 lbs UPC: 8719076052500 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Orion-TR Smart 12/24-15 15A (360W) Non-Isolated DC-DC or Power SupplyThe Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.Suitable for high temperatures up to 55°C with a full rated output up to 40°C.VictronConnectVictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle. Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 12v Charger Output - Amps: 15a Charger Output Voltage: 24v Charging Banks: 1 Portable: No Box Dimensions: 4"H x 5"W x 8"L WT: 4.3 lbs UPC: 8719076048961 Quick Guide (pdf)

Read more less

Orion-TR Smart 24/12-30 30A (360W) Non-Isolated DC-DC or Power SupplyThe Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.Suitable for high temperatures up to 55°C with a full rated output up to 40°C.VictronConnectVictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle. Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 24v Charger Output - Amps: 30a Charger Output Voltage: 12v Box Dimensions: 4"H x 5"W x 8"L WT: 4.25 lbs UPC: 8719076048978 Quick Guide (pdf)Brochure (pdf)

Read more less

Orion-TR Smart 12/12-30 30A (360W) Non-Isolated DC-DC or Power SupplyThe Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.Suitable for high temperatures up to 55°C with a full rated output up to 40°C.VictronConnectVictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Portable: No Charging Banks: 1 Charger Output Voltage: 12v Charger Output - Amps: 30a Charger Input - Voltage: 12v Box Dimensions: 4"H x 6"W x 8"L WT: 4.25 lbs UPC: 8719076048954 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Smart BMS 12/200 for Victron LIFEPO4 Batteries 12VDC OnlyThe Smart BMS 12/200 is an all-in-one Battery Management system for Victron Lithium-Iron-Phosphate (LiFePO4) Smart Batteries. It has been specifically designed for 12V systems with a 12V alternator such as in vehicles and boats.It combines a Current Limiter, Battery Combiner, and Battery Protector in a robust and compact solution and lets you safely connect any size 12V alternator (and starter battery), loads, and chargers to Smart Lithium batteries.The Smart BMS 12/200 monitors and protects each individual battery cell within the battery (or battery bank) and will disconnect the alternator, charge sources, or DC loads in case of low battery cell voltage, high battery cell voltage, or over temperature.The dedicated alternator connection provides current limiting and one-way traffic from the alternator into the battery, so any size alternator (and starter battery) can be safely connected to the Smart Lithium battery (or battery bank) and the starter battery is protected from excessive discharge.The BMS is equipped with Bluetooth for monitoring and configuration, a remote on/off the connector, to turn the BMS (and the system) off via a remote switch, and a pre-alarm contact, to give a warning signal before the BMS will disconnect the batteries from the system.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

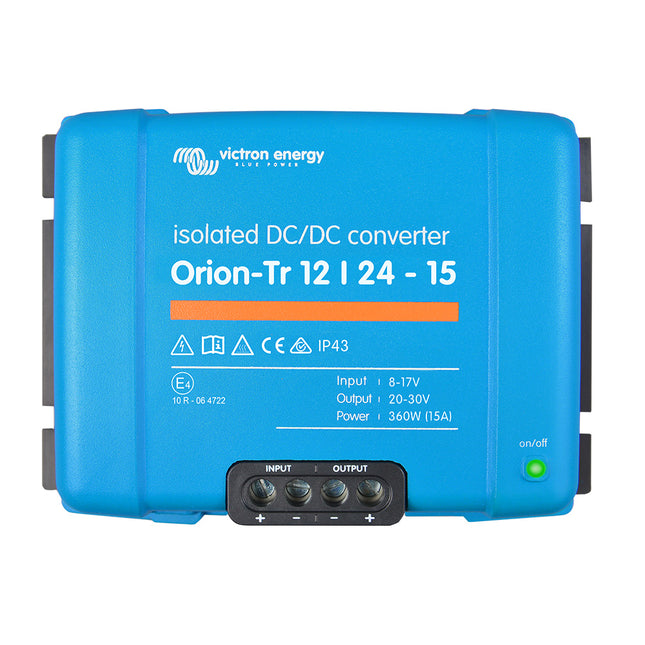

Orion-Tr 12/24-15A (360W) Isolated DC-DC ConverterFeatures: Remote on/off terminal - The remote on/off terminal eliminates the need for a high-current switch in the input wiring. The remote on/off can be operated with a low power switch or by, for example, the engine run/stop switch (see manual). All models are short-circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel. High temperature protected - The output current will reduce at high ambient temperature. IP43 protection - When installed with the screw terminals oriented downwards. Screw terminals - No special tools needed for installation. Input fuse (not replaceable) - On 12 V and 24 V input models only. Adjustable output voltage - Not intended for battery charging. Please consider using an Orion-Tr Smart for battery charging. Brochure (pdf)

Read more less

Orion-TR 12/48-8A (380W) Isolated DC-DC ConverterRemote On/Off TerminalThe remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch. All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output CurrentAn unlimited number of units can be connected in parallel.  High Temperature Protected The output current will reduce at high ambient temperatures.  IP43 Protection When installed with the screw terminals oriented downward.  Screw Terminals No special tools are needed for installation.  Input Fuse (not replaceable) On 12 V and 24 V input models only.  Adjustable Output Voltage Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).Specifications: Input Voltage Range: 10-17 V Under Voltage Shut Down: 7 V Under Voltage Restart: 7.5 V Nominal Output Voltage: 48.2 V Output Voltage Adjust Range: 40-60 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 8 A Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 15 A Short Circuit Output Current: 25 A Cont. Output Power at 25 Degrees C: 430 W Cont. Output Power at 40 Degrees C: 380 W Efficiency: 89 % No Load Input Current (2): < 220 mA  Current Consumption: < 200uA when disabled via its remote port Galvanic Isolation: 200 VDC between input, output, and case Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C) Humidity: Max. 95 % non-condensing DC Connection: Screw terminals Maximum Cable Cross-Section: 16 mm² AWG6 Weight: 1.8 kg (4 lb) Dimensions (H x W x D): 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch) Safety Standards: EN 60950 Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 12v Charger Output - Amps: 8a Charger Output Voltage: 48v Box Dimensions: 4"H x 5"W x 8"L WT: 3.5 lbs UPC: 8719076063650 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Orion-TR 24/24-17A (400W) Isolated DC-DC ConverterIsolated Model - separate in and out (-) leads Remote On/Off TerminalThe remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch. All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output CurrentAn unlimited number of units can be connected in parallel.  High Temperature Protected The output current will reduce at high ambient temperatures.  IP43 Protection When installed with the screw terminals oriented downward.  Screw Terminals No special tools are needed for installation.  Input Fuse (not replaceable) On 12 V and 24 V input models only.  Adjustable Output Voltage Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).Specifications: Input Voltage Range: 20-35 V Under Voltage Shut Down: 14 V Under Voltage Restart: 15 V Nominal Output Voltage: 24.2 V Output Voltage Adjust Range: 20-30 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 17 A Maximum Output Current (10 S) at Nominal Output Voltage: 25 A Short Circuit Output Current: 40 A Cont. Output Power at 25 Degrees C: 480 W Cont. Output Power at 40 Degrees C: 400 W Efficiency: 89 % No Load Input Current (2): < 80 mA  Galvanic Isolation: 200 VDC between input, output, and case Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C) Humidity: Max. 95 % non-condensing DC Connection: Screw terminals Maximum Cable Cross-Section: 16 mm² AWG6 Weight: 1.6 kg (3.5 lb) Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch) Safety Standards: EN 60950 Emission Standards: EN 61000-6-3, EN 55014-1 Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 Specifications: Charger Input - Voltage: 24v Charger Output - Amps: 17a Charger Output Voltage: 24v Box Dimensions: 3"H x 5"W x 9"L WT: 2.9 lbs UPC: 8719076038856 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Orion-TR 48/24-16A (380W) Isolated DC-DC ConverterIsolated Model - separate in and out (-) leads Remote On/Off TerminalThe remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch. All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output CurrentAn unlimited number of units can be connected in parallel.  High Temperature Protected The output current will reduce at high ambient temperatures.  IP43 Protection When installed with the screw terminals oriented downward.  Screw Terminals No special tools are needed for installation.  Input Fuse (not replaceable) On 12 V and 24 V input models only.  Adjustable Output Voltage Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).Specifications: Input Voltage Range: 40-70 V Under Voltage Shut Down: 28 V Under Voltage Restart: 30 V Nominal Output Voltage: 24.2 V Output Voltage Adjust Range: 20-30 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 16 A Maximum Output Current (10 S) at Nominal Output Voltage: 25 A Short Circuit Output Current: 40 A Cont. Output Power at 25 Degrees C: 430 W Cont. Output Power at 40 Degrees C: 380 W Efficiency: 89 % No Load Input Current (2): < 80 mA  Galvanic Isolation: 200 VDC between input, output, and case Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C) Humidity: Max. 95 % non-condensing DC Connection: Screw terminals Maximum Cable Cross-Section: 16 mm² AWG6 Weight: 1.6 kg (3.5 lb) Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch) Safety Standards: EN 60950 Emission Standard: EN 61000-6-3, EN 55014-1 Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 48v Charger Output - Amps: 16a Charger Output Voltage: 24v Box Dimensions: 4"H x 6"W x 9"L WT: 3.45 lbs UPC: 8719076038887 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Orion-TR 48/12-30A (360W) Isolated DC-DC ConverterIsolated Model - separate in and out (-) leads Remote On/Off TerminalThe remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch. All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output CurrentAn unlimited number of units can be connected in parallel.  High Temperature Protected The output current will reduce at high ambient temperatures.  IP43 Protection When installed with the screw terminals oriented downward.  Screw Terminals No special tools are needed for installation.  Input Fuse (not replaceable) On 12 V and 24 V input models only.  Adjustable Output Voltage Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).Specifications: Input Voltage Range: 40-70 V Under Voltage Shut Down: 28 V Under Voltage Restart: 30 V Nominal Output Voltage: 12.2 V Output Voltage Adjust Range: 10-15 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A Maximum Output Current (10 S) at Nominal Output Voltage: 40 A Short Circuit Output Current: 60 A Cont. Output Power at 25 Degrees C: 430 W Cont. Output Power at 40 Degrees C: 360 W Efficiency: 87 % No Load Input Current (2): < 80 mA  Galvanic Isolation: 200 VDC between input, output, and case Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C) Humidity: Max. 95 % non-condensing DC Connection: Screw terminals Maximum Cable Cross-Section: 16 mm² AWG6 Weight: 1.6 kg (3.5 lb) Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch) Safety Standards: EN 60950 Immunity Standards: EN 61000-6-3, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Orion-TR 24/12-30A (360W) Isolated DC-DC ConverterIsolated Model - separate in and out (-) leads Remote On/Off TerminalThe remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch. All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output CurrentAn unlimited number of units can be connected in parallel.  High Temperature Protected The output current will reduce at high ambient temperatures.  IP43 Protection When installed with the screw terminals oriented downward.  Screw Terminals No special tools are needed for installation.  Input Fuse (not replaceable) On 12 V and 24 V input models only.  Adjustable Output Voltage Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).Specifications: Input Voltage Range: 20-35 V Under Voltage Shut Down: 14 V Under Voltage Restart: 15 V Nominal Output Voltage: 12.2 V Output Voltage Adjust Range: 10-15 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A Maximum Output Current (10 S) at Nominal Output Voltage: 45 A Short Circuit Output Current: 60 A Cont. Output Power at 25 Degrees C: 430 W Cont. Output Power at 40 Degrees C: 360 W Efficiency: 88 % No Load Input Current (2): < 100 mA  Current Consumption: < 200uA when disabled via its remote port Galvanic Isolation: 200 VDC between input, output, and case Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C) Humidity: Max. 95 % non-condensing DC Connection: Screw terminals Maximum Cable Cross-Section: 16 mm² AWG6 Weight: 1.3 kg (3 lb) Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch) Safety Standards: EN 60950 Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 24v Charger Output - Amps: 30a Charger Output Voltage: 12v Box Dimensions: 4"H x 5"W x 8"L WT: 4.1 lbs UPC: 8719076038849 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Orion-TR 12/12-30A (360W) Isolated DC-DC ConverterRemote On/Off TerminalThe remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch. All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output CurrentAn unlimited number of units can be connected in parallel.  High Temperature Protected The output current will reduce at high ambient temperatures.  IP43 Protection When installed with the screw terminals oriented downward.  Screw Terminals No special tools are needed for installation.  Input Fuse (not replaceable) On 12 V and 24 V input models only.  Adjustable Output Voltage Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).Specifications: Input Voltage Range: 10-17 V Under Voltage Shut Down: 7 V Under Voltage Restart: 7.5 V Nominal Output Voltage: 12.2 V Output Voltage Adjust Range: 10-15 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A Maximum output current (10 s) at nominal output voltage minus 20%: 40 A Short Circuit Output Current: 60 A Cont. Output Power at 25 Degrees C: 430 W Cont. Output Power at 40 Degrees C: 360 W Efficiency: 87 % No Load Input Current (2): < 80 mA  Current Consumption: < 200uA when disabled via its remote port Galvanic Isolation: 200 VDC between input, output, and case Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C) Humidity: Max. 95 % non-condensing DC Connection: Screw terminals Maximum Cable Cross-Section: 16 mm² AWG6 Weight: 1.8 kg (4 lb) Dimensions (H x W x D): 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch) Safety Standards: EN 60950 Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 12v Charger Output - Amps: 30a Charger Output Voltage: 12v Box Dimensions: 4"H x 5"W x 8"L WT: 4.2 lbs UPC: 8719076038825 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

GX LTE 4G-A Cellular Modem for GX Devices - North America OnlyThe GX LTE 4G is an accessory for GX devices. It is a cellular modem that supports 2G, 3G, and 4G technologies. It provides mobile internet for the system and a connection to the Victron Remote Management (VRM) portal.Built-in GPS ReceiverThe GX LTE 4G includes a built-in GPS receiver. When the optional active GPS antenna is installed, the system can be tracked as well as geo-fenced on the VRM Portal.The required accessory part number is GSM900200100 - Active GPS Antenna for GX GSM.GX CompatibilityThe GX LTE 4G can be used with any of the GX devices and requires Venus OS v2.60 or newer to be installed on the GX device.SIM CardIt requires a SIM card in the Mini-SIM format.When to Use a Mobile Router InsteadThe GX LTE 4G provides an internet connection for the GX device only. There is no option to share the internet with laptops, phones, or other devices. For installations where more devices need internet, such as a yacht or RV, consider installing a mobile router instead.Antennas and AccessoriesA small indoor LTE antenna is included. Optionally, Victron sells an outdoor LTE antenna, which increases the range.Part number GSM900100400 - Outdoor 4G GSM Antenna.Specifications: Region: For North America Used Module: SIMCom, SIM7600A Supported LTE Bands: 2, 4, 12 Supply Voltage Range: 8 - 70VDC Power Draw: 2.5W while 2G/3G/4G data transfer / <1.0W in idle mode / +0.4W if GPS is enabled Operating Temperature Range: -40 +50°C (-40 - 120°F) Power Cable (Included): 1.4m cable with inline fuse holder, terminal block, and 10mm ring terminals Inline Fuse (included): T3.15A250V Communication Specifications: USB Communication Port: Fixed 1.0m cable with USB-A connector (connects to the GX device) LTE Antenna Connector: Type SMA Female (optional 4G outdoor antenna GSM900100400) GPS Antenna Connector: Type SMA Female (optional GPS antenna GSM900200100) GNSS: GPS/Beidou/GLONASS/GALILEO/QZSS SIM Card: Regular Mini SIM (supports both 1.8V and 3V) Data Transmission (max. Download/Upload) LTE Cat-1: 10 Mbps / 5 Mbps Data Transmission (max. Download/Upload) 3G (HSPA+): 42 Mbps / 5.76 Mbps Data Transmission (max. Download/Upload) 2G (EDGE): 236.8 Kbps / 236.8 Kbps Data Transmission (max. Download/Upload) 2G (GPRS): 85.6 Kbps / 85.6 Kbps Status Indicator: Blue LED Installation & Dimensions: Dimensions (l x w x h): 106 × 42.5 × 22mm Weight: 0.08kg (0.177lbs) Wire Gauge (power cable): 0.5..1.5mm2 / AWG 28..16 or use supplied power cable Recommended Fuse Size: 500mA @ 12V / 250mA @ 24V / 100mA @ 48V or use supplied inline fuse In the Box: GX LTE 4G (with integrated USB cable) GSM 2G/3G/4G mini-rod antenna (for indoor use) DC power cable (with inline fuse and terminal block) Standrads: Safety: EN 60335-1 / EN 60335-2-29 / EN 62368-1 Emission / Immunity: ECE R10-5 QM: EN 9001:2015 Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Blue Smart IP22 12VDC 20A 3 Bank 120V Charger - Dry MountThe Blue Smart IP22 Charger is the professional battery charger with built-in bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans. Bluetooth SmartThe Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.High efficiencyWith up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.Adaptive 6-stage charge algorithm: test - bulk – absorption - recondition – float – storageThe Blue Smart Charger features a microprocessor-controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.Storage Mode: less maintenance and aging when the battery is not in useThe storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.Also charges Li-ion batteriesLi-ion batteries are charged with a simple bulk – absorption – float algorithm.Fully discharged battery recovery functionWill initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with internal disconnect function.NIGHT and LOW settingWhen in NIGHT or LOW mode, the output current is reduced to max. 50% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.Protected against overheatingOutput current will reduce as the temperature increases up to 50°C, but the Blue Smart Charger will not fail.Eleven LEDs for status indicationCharge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14,4V) / HIGH (14,7V) / RECONDITION / LI-ION.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charging Banks: 3 Portable: No Charger Output - Amps: 20a Charger Input - Voltage: 120v Charger Output Voltage: 12v Box Dimensions: 3"H x 7"W x 11"L WT: 3.3 lbs UPC: 8719076050612 Quick Guide (pdf)

Read more less

Blue Smart IP67 Charger Waterproof - 24/12 (1), 120V NEMA 5-15 UL 1236The Blue Smart IP67 Waterproof Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP67 Waterproof Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats, and camper-vans.The battery is charged, smartly... to perfect conditionThe seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, ensures better performance... and longer life.Recovery of deeply-discharged 'dead' batteriesUnlike other brands, the Blue Smart IP67 Charger Waterproof will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals. Check the status of your battery remotelyBlue Smart IP67 Charger Waterproof is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet, or laptop. All settings of the charger can be configured with the VictronConnect app.VictronConnectVictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in or are connected to a VE.Direct Bluetooth Smart Dongle.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

BlueSmart IP67 Charger - 12/25(1) 120V  UL 1236Features: Bluetooth Smart enabled The Blue Smart IP67 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when features become available. With Bluetooth, the functionality of the IP67 charger is enhanced and is similar to that of our IP22 and IP65 chargers.  Completely encapsulated: waterproof, shockproof and ignition protected Water, oil or dirt will not damage the Blue Smart IP67 Charger. The casing is made of cast aluminum and the electronics are molded in resin.  The highest efficiency ever! Setting a new industry standard: with 92% efficiency or better, these chargers waste three to four times less heat. And once the battery is fully charged, power consumption reduces to less than a Watt, some five to ten times better than the industry standard.  Adaptive 5-stage charge algorithm: bulk – absorption – recondition – float – storage The Blue Smart Charger features a microprocessor controlled ‘adaptive’ battery management. The ‘adaptive’ feature will automatically optimize the charging process relative to the way the battery is being used.  Storage Mode: Less maintenance and aging when the battery is not in use The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.  Also charges Li-ion (LiFePO4) batteries LiFePO4 batteries are charged with a simple bulk – absorption – float algorithm.  Protected against overheating Can be used in a hot environment such as a machine room. Output current will reduce as temperature increases up to 60°C, but the charger will not fail.  Two LEDs for status indication Yellow LED: bulk charge (blinking fast), absorption (blinking slow), float (solid), storage (off) Green LED: power on Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

SmartSolar MPPT 150/35 - 150V - 35AA solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.MPPT: Ultra Fast Maximum Power Point TrackingBy constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.Remote Monitoring and ControlRemotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.VictronConnectVictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Brochure (pdf)

Read more less

SmartSolar MPPT Charge Controller - 100V - 50AMPFeatures: Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.  VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices  Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.  Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay). Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof.  Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.  Programmable battery charge algorithm See the software section on our website for details  Day/night timing and light dimming option See the software section on our website for details  Internal temperature sensor Compensates absorption and float charge voltage for temperature.  Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 18-100v Charger Output - Amps: 50a Charger Output Voltage: 12v/24v Charging Banks: 1 Portable: No Box Dimensions: 4"H x 6"W x 8"L WT: 3.95 lbs UPC: 8719076040194 Quick Guide (pdf)Brochure (pdf)

Read more less

Blue Smart IP22 12VDC 30A 1 Bank 120V Charger - Dry MountThe Blue Smart IP22 Charger is the professional battery charger with built-in bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans. Bluetooth SmartThe Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.High efficiencyWith up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.Adaptive 6-stage charge algorithm: test - bulk – absorption - recondition – float – storageThe Blue Smart Charger features a microprocessor-controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.Storage Mode: less maintenance and aging when the battery is not in useThe storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.Also charges Li-ion batteriesLi-ion batteries are charged with a simple bulk – absorption – float algorithm.Fully discharged battery recovery functionWill initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with internal disconnect function.NIGHT and LOW settingWhen in NIGHT or LOW mode, the output current is reduced to max. 50% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.Protected against overheatingOutput current will reduce as the temperature increases up to 50°C, but the Blue Smart Charger will not fail.Eleven LEDs for status indicationCharge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14,4V) / HIGH (14,7V) / RECONDITION / LI-ION.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Output - Amps: 30a Charger Input - Voltage: 120v Portable: No Charging Banks: 1 Charger Output Voltage: 12v Box Dimensions: 3"H x 7"W x 11"L WT: 3.25 lbs UPC: 8719076052395 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less
