Xantrex SW3024 24v 3000W Inverter ChargerModel: 815-3024 Pure sine wave output in two 24-volt Parallel stacking capability to double the inverter power output Series stacking capability enables operation of 240 Vac applications Advanced configuration options for customized applications* Built-in transfer switch automatically transfers between inverter power and incoming AC power Power factor corrected, multi-stage charger for fast, efficient charging Temperature compensated charging for a vareity of climate conditions Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power** Wide operating temperature range Conformal coated circuit boards for humid environments Dual input / Dual output AC interface (3000W model) Compatible with the Xantrex Automatic Generator Start*** (Part# 809-0915) Meets CSA, UL458 (with marine supplement), ABYC and FCC Part 15, Class B requirements The NEW Freedom SW 24 Vdc inverter/charger is packed with features and it is one of the most advanced inverter/chargers in the market today. The Freedom SW features premium sine wave output with high surge capability and temperature compensated, power factor corrected, multi-stage charging to meet power needs of demanding loads including inductive motor loads.The Freedom SW inverter/charger provides utility grade AC power to operate commonly used AC-powered electronics such as plasma television sets, microwaves, entertainment systems, computers, printers, power tools, refrigerators and much more.The Freedom SW offers SERIES and PARALLEL stacking capability to enable twice-the-rated output and operation of 240 Vac applications respectively. Both models are compatible with optional accessories such as the System Control Panel and the Automatic Generator Start.*A System Control Panel is required for all system configuration and setup **When used with the remote panel ***Sold separatelySpecifications Electrical Specifications Inverter Output power (continuous at 40°C) 3000 W Surge rating (5 seconds) 6000 W Peak output current 75 A Output frequency 60 Hz +/- 0.2 Hz Output voltage 120 Vac Output wave form Pure sine wave Optimal efficiency 94% No-load power draw (inverting) < 1.5 Adc Input DC voltage range 20 - 32 Vdc AC connections Split phase in / dual out Electrical specifications charger Output current (continuous at 25°C) 75 A Output voltage 24 Vdc Output voltage range 12 - 32 Vdc Charge Control 3 stage with manual equalize Charge temperature compensation Remote battery sensor (included) Efficiency > 85% AC input power factor (maximum charge) 0.95 typical Input current (for maximum charging) 22 A rms nominal Input AC voltage 120 Vac Input AC voltage range 85 - 140 Vac Dead battery charge > 12 Vdc General Specifications Compatible battery types Flooded / Gel / AGM Transfer relay rating 2 legs at 30 A each Transfer time (AC to inverter and inverter to AC) < 20 ms Operating temperature range (full power) - 4°F to 104°F (- 20°C to 40°C) Storage ambient temperature range - 40°F to 185°F (- 40°C to 85°C) Unit dimensions (H x W x L) 7.75 x 13.5 x 15.25" (197 x 343 x 387 mm) What's in the Box: SW3024 Documentation battery Temperature sensor DC terminal covers (one red, one black) with two sets of #6-32 screw Xanbus network terminator x 2 5/16"-18 nuts and washers for the DC terminals x 2

Read more less

Xantrex FREEDOM SW 3012 — 12V Inverter ChargerModel: 815-3012 Stackable in parallel or series 200% surge for 5s for motor loads True sine wave to support sensitive electronics Generator support mode Xanbus Enabled True sine wave Inverter. 200% power surge for 5s to support motor loads. Generator support mode to supplement generator when AC loads exceed generator’s capacity. Stackable in parallel and series. Xanbus EnabledTM to work with Freedom SW Combox accessory to provide data logs and system control, accessible from your smartphone or tablet. Freedom SW series from Xantrex are the most advanced and capable inverter chargers in the mobile market. Available in 3000 W with 150 A charger and 2000 W with 100 A charger, these units are packed with features like "Generator Support Mode" which enables the Freedom SW to assist a generator when AC loads exceed the generator’s capacity. They are also stackable for extra power and with the ComBox accessory, data logs and system control can be pushed to your tablet or phone! If you are looking for a unit for your air conditioning, this is the one! With a powerful long duration 2x surge and other industry leading features, the Freedom SW series will handle demanding power requirements.Specifications Electrical Specifications — Inverter Output power (continuous at 40°C) 3000 W 3000 W 6000 W Peak output current 75 A Output frequency 60 Hz +/- 0.2 Hz Output voltage 120 Vac 120 Vac True sine wave Optimal efficiency 94% No-load power draw (inverting) <1.5 Adc Input DC voltage range Input DC voltage range AC connections Split phase in / Dual out Electrical Specifications — Battery Charger Output current (continuous at 25°C) 150 A Output voltage 12 Vdc Output voltage range 5 — 16 Vdc Charge control 3 stage with manual equalize Charge temperature compensation Remote battery sensor (included) Optmial Efficiency > 85% AC input power factor (maximum charge) 0.98 typical Input current (for maximum charging) 24 A rms nominal Input AC voltage 120 Vac Input AC voltage range 85 — 140 Vac Dead battery charge > 5 Vdc General Specifications Compatible battery types LiFePO4 / Flooded / gel / AGM* Transfer relay rating 2 legs at 30 A each Transfer time (AC to inverter and inverter to AC) < 20 ms Optimal operating temperature range — 4°F to 140°F (- 20°C to 60°C) Storage ambient temperature range — 40°F to 185°F (- 40°C to 85°C) L x W x H 7.75 x 13.5 x 15.25" (197 x 343 x 387 mm) d What's in the Box: Freedom SW 3000 Battery Temperature Sensor (BTS) DC terminal covers (one red, one black) with two sets of #6-32 screws Two Xanbus network terminators Two sets of 5/16"-18 nuts and washers for the DC terminals Owner’s and Installation Guides

Read more less

Powerful. Configurable. Versatile... The NEW GENERATION Freedom SW series represents highly sophisticated and advanced inverter/ chargers available in 3000 W with 150 A charger and 2000 W with 100 A charger models. The second generation 2000 watt model has been completely redesigned to include many of the same great features found in its high power counterpart.A key feature enhancement is ?Generator Support Mode? which enables the Freedom SW to supplement a generator when AC loads exceed the generator?s capacity. The new generation models also feature improved AC transfer/AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Both models are approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements. NEW - PARALLEL AND SERIES STACKING Parallel stacking enables the Freedom SW inverter/chargers to double the AC output in inverter mode. Series stacking enables the Freedom SW inverter/chargers to generate 120/240 V split phase output AC source must be split phase, requires Stacking Cable (part# 808-9005) ApplicationDesigned for a variety of mobile applications such as commercial, emergency and recreational vehicles, marine vessels, construction and military equipment. Pure sine wave output to operate sensitive electronics Advanced configuration options for customized applications Parallel and series stacking capability Built-in transfer switch automatically transfers between inverter power and incoming AC power Power factor corrected, multi-stage charger for fast, efficient charging Temperature compensated charging for a vareity of climate conditions Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power* Wide operating temperature range: -4 F to 140 F (-20 C to 60 C) Conformal coated circuit boards for humid environments Dual input / Dual output AC interface for 3000 W model Ability to charge batteries drained to extremely low voltage Compatible with the Xantrex Automatic Generator Start** (Part# 809-0915) *When used with the remote panel **Sold separately Protection Features Battery over-voltage and under-voltage protection Over-temperature shutdown Automatic overload protection Short-circuit protection Integrated, resettable AC breakers Specifications Inverter Specifications Freedom SW 2012 - 815-2012 Freedom SW 3012 - 815-3012 Output power (continuous @ 40 C) 2000W 3000W Surge rating (5 seconds) 4000W 6000W Peak output current 55A 80A Output frequency 60Hz +/- 0.2hz 60Hz +/- 0.2hz Output voltage 120 Vac 120 Vac Output wave form Pure sine wave Pure sine wave Optimal efficiency 90% 90% No-load power draw (inverting) 3Adc 3Adc Input DC voltage range 10 - 16Vdc 10 - 16Vdc AC connections Single phase in/out Split phase in/dual out, Dual in / dual out Charger Specifications output current (continuous @ 25 C) 100A 150A output voltage 12Vdc 12Vdc Output voltage range 3 - 16Vdc 3 - 16Vdc Charge control 3 stage with manual equalize 3 stage with manual equalize Charge temperature compensation Remote battery sensor (included) Remote battery sensor (included) Optimal efficiency >85% >85% AC input power factor (maximum charge) 0.98 typical 0.98 typical Input current (for maximum charging) 16A rms nominal 24A rms nominal Input AC voltage 120vac 120vac Input AC voltage range 85-140Vac 85-140 Vac Dead battery charge >3Vdc >3Vdc General Specifications Compatible battery types Flooded/Gel/AGM Flooded/Gel/AGM Tranfer relay rating 1 leg 30A 2 legs 30A each Transfer time ( AC to inverter and Inverter to AC) < 20ms < 20ms Optimal operating temperature range -4°F to 140°F -4°F to 140°F Storage ambient temperature range -40°F to 185°F -40°F to 185°F Unit Dimension 7.75" x 13.5" x 15.25" 7.75" x 13.5" x 15.25" Unit Weight 60.5lbs 73.7lbs Warranty 2 years 2 years

Read more less

Mobile Power for Trucks, RVs and Boats XPower Inverters connect easily to 12 volt batteries to provide AC power for a variety of medium to heavy duty applications. Designed for easy installation and operation, the XPower inverters provide a reliable source of power onboard trucks, RVs and boats to run home appliances, consumer electronics, entertainiment systems, power tools, office equipment and much more. They are also suitable for small contractors who need to operate handheld power tools from their van or pick-up truck. The powerful 5000-watt model has four GFCI oulets for multiple loads and an easy-to-read digital display for instant system information. All models meet the stringent UL458 regulatory requirements. Product Features Portable power for AC products: 1000, 1500, 3000 and 5000 watt models available Two GFCI AC receptacles for connecting multiple loads 5000-watt model: Four GFCI AC receptacles, each equipped with a 20-amp breaker High surge capacity for products that require more power to start High efficiency - converts virtually all the battery?s available power to AC Mounting brackets for convenient installation Heavy duty stud connectors Remote on/off switch included Protection Features Overload and over temperature shutdown Over voltage protection (15.0 VDC) Low voltage alarm (11.0 VDC) Low voltage cut-out (10.5 VDC) Product Applications Household Appliances: compact microwave ovens, bread makers, food processors, small bar refrigerators, small vacuum cleaners, fluorescent and incandescent lights, sewing machines and fans Handheld Power Tools: drills, jigsaws, sanders and buffers Entertainment Electronics: televisions, VCRs, video games, stereos, musical instruments and satellite equipment Office Equipment: computers with 17? monitors, facsimile machines Electrical Specifications Inverter 1000 Inverter 1500 Inverter 3000 Inverter 5000 Surge capacity (peak) 2000 watts 3000 watts 5000 watts 10000 watts Max. continuous power 1000 watts 1500 watts 3000 watts 5000 watts AC output voltage 115VAC +/- 5% 115VAC +/- 5% 115VAC +/- 5% 115VAC +/- 5% AC output Frequency 60Hz +/- 1Hz 60Hz +/- 1Hz 60Hz +/- 1Hz 60Hz +/- 1Hz AC output waveform Modified sine wave Modified sine wave Modified sine wave Modified sine wave Optimum efficiency 90% 90% 90% 90% No load current drive < 0.3 A DC < 0.3 A DC < 0.6 A DC < 0.6 A DC Input voltage range 10.5 - 15.5 VDC 10.5 - 15.5 VDC 10.5 - 15.5 VDC 10.5 - 15.5 VDC General Specifications Operating temperature range 32°F − 104°F / 0°C − 40 °C AC receptacles 2 2 2 4 Dimensions(HxWxL) 2.8 x 5.9 x 12.3" 3 x 5.9 x 15" 4.3 x 9.5 x 18.5" 6.25 x 8 x 19.5" Weight 4.4Lbs 5.9Lbs 12.9lbs 24.1 Lbs Warranty 1 year 1 year 1 year 1 year Part Number 813-1000-UL 813-1500-UL 813-3000-UL 813-5000

Read more less

Mobile Power for Trucks, RVs and Boats XPower Inverters connect easily to 12 volt batteries to provide AC power for a variety of medium to heavy duty applications. Designed for easy installation and operation, the XPower inverters provide a reliable source of power onboard trucks, RVs and boats to run home appliances, consumer electronics, entertainiment systems, power tools, office equipment and much more. They are also suitable for small contractors who need to operate handheld power tools from their van or pick-up truck. The powerful 5000-watt model has four GFCI oulets for multiple loads and an easy-to-read digital display for instant system information. All models except for the 5000 meet the stringent UL458 regulatory requirements. Product Features Portable power for AC products: 1000, 1500, 3000 and 5000 watt models available Two GFCI AC receptacles for connecting multiple loads 5000-watt model: Four GFCI AC receptacles, each equipped with a 20-amp breaker High surge capacity for products that require more power to start High efficiency - converts virtually all the battery?s available power to AC Mounting brackets for convenient installation Heavy duty stud connectors Remote on/off switch included Protection Features Overload and over temperature shutdown Over voltage protection (15.0 VDC) Low voltage alarm (11.0 VDC) Low voltage cut-out (10.5 VDC) Product Applications Household Appliances: compact microwave ovens, bread makers, food processors, small bar refrigerators, small vacuum cleaners, fluorescent and incandescent lights, sewing machines and fans Handheld Power Tools: drills, jigsaws, sanders and buffers Entertainment Electronics: televisions, VCRs, video games, stereos, musical instruments and satellite equipment Office Equipment: computers with 17? monitors, facsimile machines Electrical Specifications Inverter 1000 Inverter 1500 Inverter 3000 Inverter 5000 Surge capacity (peak) 2000 watts 3000 watts 5000 watts 10000 watts Max. continuous power 1000 watts 1500 watts 3000 watts 5000 watts AC output voltage 115VAC +/- 5% 115VAC +/- 5% 115VAC +/- 5% 115VAC +/- 5% AC output Frequency 60Hz +/- 1Hz 60Hz +/- 1Hz 60Hz +/- 1Hz 60Hz +/- 1Hz AC output waveform Modified sine wave Modified sine wave Modified sine wave Modified sine wave Optimum efficiency 90% 90% 90% 90% No load current drive < 0.3 A DC < 0.3 A DC < 0.6 A DC < 0.6 A DC Input voltage range 10.5 - 15.5 VDC 10.5 - 15.5 VDC 10.5 - 15.5 VDC 10.5 - 15.5 VDC General Specifications Operating temperature range 32 F − 104 F / 0 C − 40 C AC receptacles 2 2 2 4 Dimensions(HxWxL) 2.8 x 5.9 x 12.3" 3 x 5.9 x 15" 4.3 x 9.5 x 18.5" 6.25 x 8 x 19.5" Weight 4.4Lbs 5.9Lbs 12.9lbs 24.1 Lbs Warranty 1 year 1 year 1 year 1 year Part Number 813-1000-UL 813-1500-UL 813-3000-UL 813-5000

Read more less

Mobile Power for Trucks, RVs and Boats XPower Inverters connect easily to 12 volt batteries to provide AC power for a variety of medium to heavy duty applications. Designed for easy installation and operation, the XPower inverters provide a reliable source of power onboard trucks, RVs and boats to run home appliances, consumer electronics, entertainiment systems, power tools, office equipment and much more. They are also suitable for small contractors who need to operate handheld power tools from their van or pick-up truck. The powerful 5000-watt model has four GFCI oulets for multiple loads and an easy-to-read digital display for instant system information. All models except for the 5000 meet the stringent UL458 regulatory requirements. Product Features Portable power for AC products: 1000, 1500, 3000 and 5000 watt models available Two GFCI AC receptacles for connecting multiple loads 5000-watt model: Four GFCI AC receptacles, each equipped with a 20-amp breaker High surge capacity for products that require more power to start High efficiency - converts virtually all the battery?s available power to AC Mounting brackets for convenient installation Heavy duty stud connectors Remote on/off switch included Protection Features Overload and over temperature shutdown Over voltage protection (15.0 VDC) Low voltage alarm (11.0 VDC) Low voltage cut-out (10.5 VDC) Product Applications Household Appliances: compact microwave ovens, bread makers, food processors, small bar refrigerators, small vacuum cleaners, fluorescent and incandescent lights, sewing machines and fans Handheld Power Tools: drills, jigsaws, sanders and buffers Entertainment Electronics: televisions, VCRs, video games, stereos, musical instruments and satellite equipment Office Equipment: computers with 17? monitors, facsimile machines Electrical Specifications Inverter 1000 Inverter 1500 Inverter 3000 Inverter 5000 Surge capacity (peak) 2000 watts 3000 watts 5000 watts 10000 watts Max. continuous power 1000 watts 1500 watts 3000 watts 5000 watts AC output voltage 115VAC +/- 5% 115VAC +/- 5% 115VAC +/- 5% 115VAC +/- 5% AC output Frequency 60Hz +/- 1Hz 60Hz +/- 1Hz 60Hz +/- 1Hz 60Hz +/- 1Hz AC output waveform Modified sine wave Modified sine wave Modified sine wave Modified sine wave Optimum efficiency 90% 90% 90% 90% No load current drive < 0.3 A DC < 0.3 A DC < 0.6 A DC < 0.6 A DC Input voltage range 10.5 - 15.5 VDC 10.5 - 15.5 VDC 10.5 - 15.5 VDC 10.5 - 15.5 VDC General Specifications Operating temperature range 32 F − 104 F / 0 C − 40 C AC receptacles 2 2 2 4 Dimensions(HxWxL) 2.8 x 5.9 x 12.3" 3 x 5.9 x 15" 4.3 x 9.5 x 18.5" 6.25 x 8 x 19.5" Weight 4.4Lbs 5.9Lbs 12.9lbs 24.1 Lbs Warranty 1 year 1 year 1 year 1 year Part Number 813-1000-UL 813-1500-UL 813-3000-UL 813-5000

Read more less

Mobile Power for Trucks, RVs and Boats XPower Inverters connect easily to 12 volt batteries to provide AC power for a variety of medium to heavy duty applications. Designed for easy installation and operation, the XPower inverters provide a reliable source of power onboard trucks, RVs and boats to run home appliances, consumer electronics, entertainiment systems, power tools, office equipment and much more. They are also suitable for small contractors who need to operate handheld power tools from their van or pick-up truck. The powerful 5000-watt model has four GFCI oulets for multiple loads and an easy-to-read digital display for instant system information. All models except for the 5000 meet the stringent UL458 regulatory requirements. Product Features Portable power for AC products: 1000, 1500, 3000 and 5000 watt models available Two GFCI AC receptacles for connecting multiple loads 5000-watt model: Four GFCI AC receptacles, each equipped with a 20-amp breaker High surge capacity for products that require more power to start High efficiency - converts virtually all the battery?s available power to AC Mounting brackets for convenient installation Heavy duty stud connectors Remote on/off switch included Protection Features Overload and over temperature shutdown Over voltage protection (15.0 VDC) Low voltage alarm (11.0 VDC) Low voltage cut-out (10.5 VDC) Product Applications Household Appliances: compact microwave ovens, bread makers, food processors, small bar refrigerators, small vacuum cleaners, fluorescent and incandescent lights, sewing machines and fans Handheld Power Tools: drills, jigsaws, sanders and buffers Entertainment Electronics: televisions, VCRs, video games, stereos, musical instruments and satellite equipment Office Equipment: computers with 17? monitors, facsimile machines Electrical Specifications Inverter 1000 Inverter 1500 Inverter 3000 Inverter 5000 Surge capacity (peak) 2000 watts 3000 watts 5000 watts 10000 watts Max. continuous power 1000 watts 1500 watts 3000 watts 5000 watts AC output voltage 115VAC +/- 5% 115VAC +/- 5% 115VAC +/- 5% 115VAC +/- 5% AC output Frequency 60Hz +/- 1Hz 60Hz +/- 1Hz 60Hz +/- 1Hz 60Hz +/- 1Hz AC output waveform Modified sine wave Modified sine wave Modified sine wave Modified sine wave Optimum efficiency 90% 90% 90% 90% No load current drive < 0.3 A DC < 0.3 A DC < 0.6 A DC < 0.6 A DC Input voltage range 10.5 - 15.5 VDC 10.5 - 15.5 VDC 10.5 - 15.5 VDC 10.5 - 15.5 VDC General Specifications Operating temperature range 32 F − 104 F / 0 C − 40 C AC receptacles 2 2 2 4 Dimensions(HxWxL) 2.8 x 5.9 x 12.3" 3 x 5.9 x 15" 4.3 x 9.5 x 18.5" 6.25 x 8 x 19.5" Weight 4.4Lbs 5.9Lbs 12.9lbs 24.1 Lbs Warranty 1 year 1 year 1 year 1 year Part Number 813-1000-UL 813-1500-UL 813-3000-UL 813-5000

Read more less

400 & 800 Watts - 120 Vac / 60 Hz Designed to power electronics while on the go, our new compact digital power inverters combine innovative industrial design with an advanced interactive LED display. Product Description Portable electric power for mobile offices Designed to power electronics while on the go, our new compact digital power inverters combine innovative industrial design with an advanced interactive LED display. This provides the user with instant feedback on input current and output voltage and valuable troubleshooting guidance through Fault Codes. These new digital inverters provide a convenient and powerful way to access AC power. Key Features Inverter 400: 320 watts continuous power with 640 watts surge Inverter 800: 640 watts continuous power with 1280 watts surge Two AC receptacles for connecting multiple loads Small Profile for easy storage Digital LED instantly provides information on: the amount of wattage an application is drawing the amount of voltage remaining in the battery fault codes making troubleshooting easier Protection Features Overload and over temperature shutdown Over voltage protection Low voltage alarm Low voltage shutdown

Read more less

Specifically designed to operate with the NEW Generation Freedom SW Inverter/Chargers (part# 815-2012 & 815-3012). Use the System Control Panel for quick and comprehensive control of the Freedom SW Inverter/Charger. The Xanbus System Control Panel (SCP) features a graphical, backlit LCD screen that displays system configuration and diagnostic information in one central location. Large keypad buttons, an intuitive onscreen menu system, and plain text status messages make it easy to configure and operate. By providing basic controls for other devices connected to the network, the SCP reduces the complexity of separate control panels for each device. The SCP is Xanbus Enabled and easily connects to Freedom SW Inverter/Charger and other devices with off-the-shelf network cables, making installation quick and easy. Built-in flash memory makes the SCP?s software upgradeable to take advantage of new features and system enhancements. Product Features Graphical 128x64 pixel LCD display Large, tactile keys Meets UL458 regulatory standards Control and display of multiple networked devices Xanbus Enabled

Read more less

Description Xantrex system components expand power system functionality The Automatic Generator Start (AGS) is a Xanbus Enabled device that can automatically activate a generator to provide an MS or RS Inverter/Charger with power to recharge depleted batteries or assist with heavy loads. Compatible with popular generators, the AGS adds intelligence to power management and eliminates time spent monitoring batteries and inverter loads. The AGS can be customized to suit each user?s preferences. A user can define whether the generator should be activated by low battery voltage, battery state of charge, thermostat operation, or load size on the inverter. A Quiet Time setting prevents the generator from starting at inconvenient times like nightfall. LED lights display the status of the AGS, while all user defined settings are programmed through the System Control Panel. Product Features Designed for use with the System Control Panel and MS and RS Inverter/Chargers Comprehensive triggers User programmable quite times and generator start & stop settings Built-in emergency shutdown Compatible with Onan, Kohler, Westerbeke, Northern Lights, Generac, and Powertech generators Meets UL458 Marine and RV standards Xanbus Enabled

Read more less

The Prowatt SW remote provides the convenience of a simple on/off remote function to the user. It also has an automatic ignition lockout feature to shut down the inverter's output when the vehicle?s ignition or a 12 VDC enable is not engaged. A 25" remote cable is included with the remote panel.

Read more less

Xantrex Remote Panel for TrueCharge™2 Advanced Remote for Monitoring and Full Control of Battery Charger Performance. Model: 808-8040-01 UPC: 715535897598 Gives the user flexibility to set maximum charger output current Can be used to operate two chargers in parallel to increase output capacity Allows the charger to be powered on or placed into standby while AC power is connected Programs the charger for battery type and temperature Displays faults and warnings, basic battery level and settings Displays the current status of each battery or each battery bank Simple push buttons to set charger mode Allows for activation and termination of equalization The TRUECHARGE 2 Remote Panel is designed for use with TRUECHARGE 2 Battery Chargers. This full-function remote allows you to monitor and control battery charger performance from a remote location, including features not accessible from the charger?s onboard display. The TRUECHARGE 2 Remote Panel reads like a fuel gauge and displays critical information on charging of battery banks. It is very easy to install, read and operate, connecting with the battery charger through the included telephone cable. This remote panel (part# 808-8040-01) is compatible with the following part numbers: 804-1220-02, 804-1240-02, 804-1260-02, 804-2410, 804-2420 and 804-2430. What's in the Box: TRUECharge2 remote panel Two 7.6 m (25') communication cable Mounting template and 1 1/2" NPT locknut for mounting

Read more less

Xantrex Battery Temperature Sensor TRUECharge™2 Battery Temperature Sensor (BTS) is designed for use with TRUECharge2 battery chargersModel: 808-0232-01The BTS mounts on a terminal post of a battery in a bank or on the side of a battery and measures its temperature. It sends precise information to the charger or charge controller, which automatically adjusts voltage to help ensure full battery charge depending on the ambient temperature of your battery installation.Compatible with 804-1220-02, 804-1240-02, 804-1260-02, 804-2410, 804-2420, 804-2430

Read more less

Xantrex PROsine 1800 Inverter24V 1800 Watts GFCIModel: 806-1850 1000 and 1800 watt inverters (1500 and 2900 watt surge capability) True sine wave AC output (crystal controlled) Total Harmonic Distortion (THD) of 1% (typical), PROsine 1000 and 1800 inverters deliver true sine wave output that is identical to AC power supplied by your utility. This clean output makes PROsine inverters ideal for handling sensitive loads and improves AC equipment performance. Expect troublefree true sine wave electricity for televisions, audio systems, variable speed tools, and more Removable LCD display can be mounted remotely for control and monitoring Unique DC terminals offer 180-degree connections for easy installation in tight places Powersave mode draws only 1.5 watts under no load PROsine inverters are lighter and more compact than other inverters with similar power ratings because they use high-frequency switching technology in the power conversion process Two year warranty Available in 12 and 24 volt models Models available with GFCI AC outlet or AC hardwire terminal strip for permanent installation into an electrical system (optional 15 A transfer switch available with hardwire option) Remote interface kit for remote mounting of display module Over temperature shutdown and automatic overload protection Over voltage and under voltage protection Short circuit and AC backfeed protection Offering superior quality true sine wave output, the PROsineTM 1000 and 1800 stand-alone inverters are ideally suited for electrical systems that already have a quality multistage battery charger. Designed for recreational and industrial applications, their 120-volt, 60 Hz AC power output is capable of handling both heavy duty and smaller, multiple AC loads. PROsine inverters include a backlit LCD display panel, which can be mounted remotely.

Read more less

FREEDOM HF REDEFINED. No Messy Wiring. Quick Installation. Minimal Battery Drain.The new generation Freedom HF is equipped with quick-connect AC terminals and ignition lockout capability. The quick-connect AC terminals enable quick installation eliminating the need for strain relief clamps. The ignition lockout feature helps to minimize battery drain by disabling the inverter when the ignition is turned off. The Freedom HF Inverter/Charger is one of the smallest, lightest, and most affordable inverter/chargers in the market today. The Freedom HF Inverter/Charger features modified sine wave output and is designed to operate entertainment systems and small appliances in boats, RV?s and trucks. The Freedom HF is available in three models: 1000 watts with a 20-amp charger, 1000 watts with a 55-amp charger and 1800 watts with a 40-amp charger. Some of the key feature enhancements include quick-connect AC terminal block on both AC input and output for incredibly easy installation. The ignition lockout feature minimizes battery drain by disabling the inverter when the ignition is turned off. Product Features Designed to power demanding loads such as microwave ovens, TVs, DVD players, small appliances and other electronic equipment Removable digital display pre-attached with 25? extension cable for remote system monitoring Ignition lockout feature helps to minimize battery drain Automatic three-stage battery charger Designed to be hardwired using quick-connect AC terminal blocks or by connecting AC through GFCI receptacles (included) Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power Protection Features Battery over-voltage and under-voltage protection Over-temperature shutdown Automatic overload protection Short-circuit protection Ground-fault protection ETL certified to UL458 for use in mobile RV and commercial applications Models HF 1000 HF 1055 HF 1800 Output Power 1000w 1000w 1800w Surge Power 2000w 2000w 3600w Output Frequency regulation 60 hz 60 Hz 60Hz Inverter Voltage Regulation 115 +/- 10 Vrms 115 +/- 10 Vrms 115 +/- 10 Vrms Output Wave Form Modified Sine Wave Modified Sine Wave Modified Sine Wave Efficiency ( Full Load) > 80% > 80% > 80% Peak Efficiency > 87% > 87% > 87% No-load input power (producing output voltage) < 10 W < 10 W < 10 W Off mode current draw (Display Off ) < 1 mA < 1 mA < 1 mA Electrical Specifications Charge Rate 20A 55A 40A AC Input Voltage Range 90-130Vac 90-130Vac 90-130Vac AC Transfer Relay 30A 30A 30A Battery Voltage ( Nominal) 12vdc 12vdc 12vdc Operating Voltage Range 10.5-15.5Vdc 10.5-15.5Vdc 10.5-15.5Vdc Low battery Cut-out (Low Limit / High Limit) 10.5Vdc/11.8Vdc 10.5Vdc/11.8Vdc 10.5Vdc/11.8Vdc AC Input ( Max Charge) 5Aac 10Aac 7.5Aac Default Bulk Charge Voltage Setting 14.2Vdc 14.2Vdc 14.2Vdc Default Float Charge Voltage Setting 13.5Vdc 13.5Vdc 13.5Vdc Battery Charge Outputs One One One Charge Control Three-stage Three-stage Three-stage Battery Type Settings Flooded/Gel/AGM/Fixed 13.5Vdc Flooded/Gel/AGM/Fixed 13.5Vdc Flooded/Gel/AGM/Fixed 13.5Vdc Equalization No No No Internal Temperature-sensitive Charging Yes Yes Yes General Specifications Optimal Operating Temperature Range 32° - 104° F 32° - 104° F 32° - 104° F Optional Remotes Detachable Display Detachable Display Detachable Display Unit Weight 10lb 10lb 12.8lb Unit Dimensions 4.2 x 9.5 xx 15.5" 4.2 x 9.5 xx 15.5" 4.2x9.5x18.0" Part Number 806-1020 806-1055 806-1840

Read more less

The Xantrex PRO Series Inverters are the perfect complement to generators when shore power is unavailable, to quietly and efficiently provide household power when needed. The PRO Series design is both user friendly and versatile. These inverters feature a detachable, digital remote control to display precise inverter, AC source and battery status information from one convenient location. A built-in transfer switch automatically detects when generator or shore power status changes to ensure power is always available. Both 1000 and 1800W models are designed for demanding RV and marine conditions. They meet FCC Class B regulations to eliminate interference potential with other electronics, while UL 458certification means they meet strict RV and marine safety standards. Versatile enough to be mounted either horizontally or vertically, these inverters can be easily installed to fit into any compartment. Conformal coated boards also minimize the chance of problems from moist operating conditions. Performance Features 1000/1800W inverter easily powers TVs, small appliances, and other electronics Built-in 15A circuit breaker to protect GFCI connected loads Up to 25A pass through for hardwired loads Digital remote control displays power output, AC source and battery voltage Detachable remote control can be mounted wherever convenient Conformal coated electronics provide moisture resistance Designed to be hard-wired using a terminal strip or by connecting AC through a GFCI receptacle (included) Protection Features Battery over-voltage and under-voltage protection Over temperature shutdown Automatic overload protection Short-circuit protection Ground fault protection Specifications Electrical Specifications Models XM1000 XM1800 Maximum continuous power 1000 W 1800 W Surge rating 2000 W 3600 W Output current (continuous) 8.3 A 15 A Output voltage (at no load) 115 V +/- 10 V 115 V +/- 10 V Output frequency 60 Hz +/- 1 Hz 60 Hz +/- 1Hz Output waveform Modified sine wave Modified sine wave Peak efficiency 88% 88% No load power draw < 6 W < 6 W Power draw in standby mode < 2 W < 2 W Input operating voltage range 11.0-15.5 VDC 11.0-15.5 VDC Transfer relay rating 25 A 25 A Transfer time <35 milliseconds <35 milliseconds General Specifications Operating temperature range 0°C - 40°C 0°C - 40°C Storage temperature range -20°C - 60°C -20°C - 60°C AC receptacles 2 2 Recommended DC fuse 150 A 250 A Dimensions (H x W x D) 4 x 8.3 x 13" (103 x 211 x 329mm) 4 x 8.3 x 15.5" (103 x 211 x 393mm) Weight (lbs) 7.5 9.5 Part numbers 806-1010 806-1810 Warranty 1 year 1 year Regulatory Approval FCC Class ?B?, UL 458 Note: Specifications subject to change without notice.

Read more less

The compact, easy-to-use and easy-to-install design of the PROwatt SW Series makes it ideal for use in commercial truck, RV and marine applications. With True Sine-Wave output, the PROwatt SW Series can provide power for all types of electrical loads including, variable speed power tools, advanced electrical appliances, microwaves and much more. Product DescriptionThe PROwatt SW Series feature True Sine-Wave AC output with 600, 1000 and 2000 watts respectively. With high surge capability, the PROwatt SW Series provides the necessary current to startup demanding electrical loads. In addition to dual GFCI AC receptacles, the PROwatt SW Series include an innovative USB connection for providing power to most USB chargeable devices. The PROwatt SW Series offers many safety features not found in similar inverters. When equipped with a remote control, the PROwatt SW Series has the ability to provide automatic ignition lockout shutting down the inverter?s output when the vehicle?s ignition is not engaged. Power inverter providing AC power anywhere you need it. The compact, easy-to-use and easy-to-install design of the PROwatt SW Series makes it ideal for use in commercial truck, RV and marine applications. With True Sine-Wave output, the PROwatt SW Series can provide power for all types of electrical loads including, variable speed power tools, advanced electrical appliances, microwaves and much more. The PROwatt SW provides household AC power anywhere. Product Features 600 / 1000 / 2000 watts maximum, 1200 / 2000 / 3000 watt surge capability Built-in digital display for DC volts and output power Built-in USB port Dual GFCI AC receptacles for safe operation Heavy duty terminals for trouble-free battery connection Available ON/OFF remote switch (with ignition lockout) Two year warranty Protection Features Low voltage shutdown (10.5 Vdc) Low voltage alarm (11.0 Vdc) Over voltage protection (15.5 Vdc) Over load shutdown Over temperature shutdown GFCI protection

Read more less

The compact, easy-to-use and easy-to-install design of the PROwatt SW Series makes it ideal for use in commercial truck, RV and marine applications. With True Sine-Wave output, the PROwatt SW Series can provide power for all types of electrical loads including, variable speed power tools, advanced electrical appliances, microwaves and much more. Product DescriptionThe PROwatt SW Series feature True Sine-Wave AC output with 600, 1000 and 2000 watts respectively. With high surge capability, the PROwatt SW Series provides the necessary current to startup demanding electrical loads. In addition to dual GFCI AC receptacles, the PROwatt SW Series include an innovative USB connection for providing power to most USB chargeable devices. The PROwatt SW Series offers many safety features not found in similar inverters. When equipped with a remote control, the PROwatt SW Series has the ability to provide automatic ignition lockout shutting down the inverter?s output when the vehicle?s ignition is not engaged. Power inverter providing AC power anywhere you need it. The compact, easy-to-use and easy-to-install design of the PROwatt SW Series makes it ideal for use in commercial truck, RV and marine applications. With True Sine-Wave output, the PROwatt SW Series can provide power for all types of electrical loads including, variable speed power tools, advanced electrical appliances, microwaves and much more. The PROwatt SW provides household AC power anywhere. Product Features 600 / 1000 / 2000 watts maximum, 1200 / 2000 / 3000 watt surge capability Built-in digital display for DC volts and output power Built-in USB port Dual GFCI AC receptacles for safe operation Heavy duty terminals for trouble-free battery connection Available ON/OFF remote switch (with ignition lockout) Two year warranty Protection Features Low voltage shutdown (10.5 Vdc) Low voltage alarm (11.0 Vdc) Over voltage protection (15.5 Vdc) Over load shutdown Over temperature shutdown GFCI protection

Read more less

The compact, easy-to-use and easy-to-install design of the PROwatt SW Series makes it ideal for use in commercial truck, RV and marine applications. With True Sine-Wave output, the PROwatt SW Series can provide power for all types of electrical loads including, variable speed power tools, advanced electrical appliances, microwaves and much more. Product DescriptionThe PROwatt SW Series feature True Sine-Wave AC output with 600, 1000 and 2000 watts respectively. With high surge capability, the PROwatt SW Series provides the necessary current to startup demanding electrical loads. In addition to dual GFCI AC receptacles, the PROwatt SW Series include an innovative USB connection for providing power to most USB chargeable devices. The PROwatt SW Series offers many safety features not found in similar inverters. When equipped with a remote control, the PROwatt SW Series has the ability to provide automatic ignition lockout shutting down the inverter?s output when the vehicle?s ignition is not engaged. Power inverter providing AC power anywhere you need it. The compact, easy-to-use and easy-to-install design of the PROwatt SW Series makes it ideal for use in commercial truck, RV and marine applications. With True Sine-Wave output, the PROwatt SW Series can provide power for all types of electrical loads including, variable speed power tools, advanced electrical appliances, microwaves and much more. The PROwatt SW provides household AC power anywhere. Product Features 600 / 1000 / 2000 watts maximum, 1200 / 2000 / 3000 watt surge capability Built-in digital display for DC volts and output power Built-in USB port Dual GFCI AC receptacles for safe operation Heavy duty terminals for trouble-free battery connection Available ON/OFF remote switch (with ignition lockout) Two year warranty Protection Features Low voltage shutdown (10.5 Vdc) Low voltage alarm (11.0 Vdc) Over voltage protection (15.5 Vdc) Over load shutdown Over temperature shutdown GFCI protection

Read more less

FREEDOM HF REDEFINED. No Messy Wiring. Quick Installation. Minimal Battery Drain.The new generation Freedom HF is equipped with quick-connect AC terminals and ignition lockout capability. The quick-connect AC terminals enable quick installation eliminating the need for strain relief clamps. The ignition lockout feature helps to minimize battery drain by disabling the inverter when the ignition is turned off. The Freedom HF Inverter/Charger is one of the smallest, lightest, and most affordable inverter/chargers in the market today. The Freedom HF Inverter/Charger features modified sine wave output and is designed to operate entertainment systems and small appliances in boats, RV?s and trucks. The Freedom HF is available in three models: 1000 watts with a 20-amp charger, 1000 watts with a 55-amp charger and 1800 watts with a 40-amp charger. Some of the key feature enhancements include quick-connect AC terminal block on both AC input and output for incredibly easy installation. The ignition lockout feature minimizes battery drain by disabling the inverter when the ignition is turned off. Product Features Designed to power demanding loads such as microwave ovens, TVs, DVD players, small appliances and other electronic equipment Removable digital display pre-attached with 25? extension cable for remote system monitoring Ignition lockout feature helps to minimize battery drain Automatic three-stage battery charger Designed to be hardwired using quick-connect AC terminal blocks or by connecting AC through GFCI receptacles (included) Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power Protection Features Battery over-voltage and under-voltage protection Over-temperature shutdown Automatic overload protection Short-circuit protection Ground-fault protection ETL certified to UL458 for use in mobile RV and commercial applications Models HF 1000 HF 1055 HF 1800 Output Power 1000w 1000w 1800w Surge Power 2000w 2000w 3600w Output Frequency regulation 60 hz 60 Hz 60Hz Inverter Voltage Regulation 115 +/- 10 Vrms 115 +/- 10 Vrms 115 +/- 10 Vrms Output Wave Form Modified Sine Wave Modified Sine Wave Modified Sine Wave Efficiency ( Full Load) > 80% > 80% > 80% Peak Efficiency > 87% > 87% > 87% No-load input power (producing output voltage) < 10 W < 10 W < 10 W Off mode current draw (Display Off ) < 1 mA < 1 mA < 1 mA Electrical Specifications Charge Rate 20A 55A 40A AC Input Voltage Range 90-130Vac 90-130Vac 90-130Vac AC Transfer Relay 30A 30A 30A Battery Voltage ( Nominal) 12vdc 12vdc 12vdc Operating Voltage Range 10.5-15.5Vdc 10.5-15.5Vdc 10.5-15.5Vdc Low battery Cut-out (Low Limit / High Limit) 10.5Vdc/11.8Vdc 10.5Vdc/11.8Vdc 10.5Vdc/11.8Vdc AC Input ( Max Charge) 5Aac 10Aac 7.5Aac Default Bulk Charge Voltage Setting 14.2Vdc 14.2Vdc 14.2Vdc Default Float Charge Voltage Setting 13.5Vdc 13.5Vdc 13.5Vdc Battery Charge Outputs One One One Charge Control Three-stage Three-stage Three-stage Battery Type Settings Flooded/Gel/AGM/Fixed 13.5Vdc Flooded/Gel/AGM/Fixed 13.5Vdc Flooded/Gel/AGM/Fixed 13.5Vdc Equalization No No No Internal Temperature-sensitive Charging Yes Yes Yes General Specifications Optimal Operating Temperature Range 32° - 104° F 32° - 104° F 32° - 104° F Optional Remotes Detachable Display Detachable Display Detachable Display Unit Weight 10lb 10lb 12.8lb Unit Dimensions 4.2 x 9.5 xx 15.5" 4.2 x 9.5 xx 15.5" 4.2x9.5x18.0" Part Number 806-1020 806-1055 806-1840

Read more less

FREEDOM HF REDEFINED. No Messy Wiring. Quick Installation. Minimal Battery Drain.The new generation Freedom HF is equipped with quick-connect AC terminals and ignition lockout capability. The quick-connect AC terminals enable quick installation eliminating the need for strain relief clamps. The ignition lockout feature helps to minimize battery drain by disabling the inverter when the ignition is turned off. The Freedom HF Inverter/Charger is one of the smallest, lightest, and most affordable inverter/chargers in the market today. The Freedom HF Inverter/Charger features modified sine wave output and is designed to operate entertainment systems and small appliances in boats, RV?s and trucks. The Freedom HF is available in three models: 1000 watts with a 20-amp charger, 1000 watts with a 55-amp charger and 1800 watts with a 40-amp charger. Some of the key feature enhancements include quick-connect AC terminal block on both AC input and output for incredibly easy installation. The ignition lockout feature minimizes battery drain by disabling the inverter when the ignition is turned off. Product Features Designed to power demanding loads such as microwave ovens, TVs, DVD players, small appliances and other electronic equipment Removable digital display pre-attached with 25? extension cable for remote system monitoring Ignition lockout feature helps to minimize battery drain Automatic three-stage battery charger Designed to be hardwired using quick-connect AC terminal blocks or by connecting AC through GFCI receptacles (included) Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power Protection Features Battery over-voltage and under-voltage protection Over-temperature shutdown Automatic overload protection Short-circuit protection Ground-fault protection ETL certified to UL458 for use in mobile RV and commercial applications Models HF 1000 HF 1055 HF 1800 Output Power 1000w 1000w 1800w Surge Power 2000w 2000w 3600w Output Frequency regulation 60 hz 60 Hz 60Hz Inverter Voltage Regulation 115 +/- 10 Vrms 115 +/- 10 Vrms 115 +/- 10 Vrms Output Wave Form Modified Sine Wave Modified Sine Wave Modified Sine Wave Efficiency ( Full Load) > 80% > 80% > 80% Peak Efficiency > 87% > 87% > 87% No-load input power (producing output voltage) < 10 W < 10 W < 10 W Off mode current draw (Display Off ) < 1 mA < 1 mA < 1 mA Electrical Specifications Charge Rate 20A 55A 40A AC Input Voltage Range 90-130Vac 90-130Vac 90-130Vac AC Transfer Relay 30A 30A 30A Battery Voltage ( Nominal) 12vdc 12vdc 12vdc Operating Voltage Range 10.5-15.5Vdc 10.5-15.5Vdc 10.5-15.5Vdc Low battery Cut-out (Low Limit / High Limit) 10.5Vdc/11.8Vdc 10.5Vdc/11.8Vdc 10.5Vdc/11.8Vdc AC Input ( Max Charge) 5Aac 10Aac 7.5Aac Default Bulk Charge Voltage Setting 14.2Vdc 14.2Vdc 14.2Vdc Default Float Charge Voltage Setting 13.5Vdc 13.5Vdc 13.5Vdc Battery Charge Outputs One One One Charge Control Three-stage Three-stage Three-stage Battery Type Settings Flooded/Gel/AGM/Fixed 13.5Vdc Flooded/Gel/AGM/Fixed 13.5Vdc Flooded/Gel/AGM/Fixed 13.5Vdc Equalization No No No Internal Temperature-sensitive Charging Yes Yes Yes General Specifications Optimal Operating Temperature Range 32° - 104° F 32° - 104° F 32° - 104° F Optional Remotes Detachable Display Detachable Display Detachable Display Unit Weight 10lb 10lb 12.8lb Unit Dimensions 4.2 x 9.5 xx 15.5" 4.2 x 9.5 xx 15.5" 4.2x9.5x18.0" Part Number 806-1020 806-1055 806-1840

Read more less

The Xantrex PRO Series Inverters are the perfect complement to generators when shore power is unavailable, to quietly and efficiently provide household power when needed. The PRO Series design is both user friendly and versatile. These inverters feature a detachable, digital remote control to display precise inverter, AC source and battery status information from one convenient location. A built-in transfer switch automatically detects when generator or shore power status changes to ensure power is always available. Both 1000 and 1800W models are designed for demanding RV and marine conditions. They meet FCC Class B regulations to eliminate interference potential with other electronics, while UL 458certification means they meet strict RV and marine safety standards. Versatile enough to be mounted either horizontally or vertically, these inverters can be easily installed to fit into any compartment. Conformal coated boards also minimize the chance of problems from moist operating conditions. Performance Features 1000/1800W inverter easily powers TVs, small appliances, and other electronics Built-in 15A circuit breaker to protect GFCI connected loads Up to 25A pass through for hardwired loads Digital remote control displays power output, AC source and battery voltage Detachable remote control can be mounted wherever convenient Conformal coated electronics provide moisture resistance Designed to be hard-wired using a terminal strip or by connecting AC through a GFCI receptacle (included) Protection Features Battery over-voltage and under-voltage protection Over temperature shutdown Automatic overload protection Short-circuit protection Ground fault protection Specifications Electrical Specifications Models XM1000 XM1800 Maximum continuous power 1000 W 1800 W Surge rating 2000 W 3600 W Output current (continuous) 8.3 A 15 A Output voltage (at no load) 115 V +/- 10 V 115 V +/- 10 V Output frequency 60 Hz +/- 1 Hz 60 Hz +/- 1Hz Output waveform Modified sine wave Modified sine wave Peak efficiency 88% 88% No load power draw < 6 W < 6 W Power draw in standby mode < 2 W < 2 W Input operating voltage range 11.0-15.5 VDC 11.0-15.5 VDC Transfer relay rating 25 A 25 A Transfer time <35 milliseconds <35 milliseconds General Specifications Operating temperature range 0°C - 40°C 0°C - 40°C Storage temperature range -20°C - 60°C -20°C - 60°C AC receptacles 2 2 Recommended DC fuse 150 A 250 A Dimensions (H x W x D) 4 x 8.3 x 13" (103 x 211 x 329mm) 4 x 8.3 x 15.5" (103 x 211 x 393mm) Weight (lbs) 7.5 9.5 Part numbers 806-1010 806-1810 Warranty 1 year 1 year Regulatory Approval FCC Class ?B?, UL 458 Note: Specifications subject to change without notice.

Read more less

TRUEcharge3 Remote PanelAdvanced Remote for Monitoring and Full Control of Battery Charger PerformanceThis full-function remote allows you to monitor and control battery charger performance from a remote location, including features not accessible from the charger’s onboard display. The Remote Panel reads like a fuel gauge and displays critical information on the charging of battery banks. It is very easy to install, read, and operate, connecting with the battery charger through the included telephone cable. The TRUECharge3 Remote Panel is designed for use with TRUECharge3 Battery Chargers.Compatible with: TRUEcharge3 12V (20/40/60A) and TRUEcharge3 24V (10/20/30A)Features: Full function compatibility with TRUEcharge3 battery chargers Provides additional features inaccessible via the charger’s onboard display Allows charger to be powered on or placed on standby while AC power is connected Adjust maximum charger output current Displays individual battery bank status Connects two TRUEcharge3 chargers in parallel for up to 2x the output current FCC Class B compliant

Read more less

TRUEcharge™3 20A 3 Bank Battery Charger - 24VTRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, they feature low electrical interference and efficient power factor-corrected multistage charging. The TRUEcharge3 Chargers can be mounted in multiple positions thanks to their inherent drip-proof design characteristics. Unlike its predecessors, TRUEcharge3 is lithium-ion battery compatible.Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90–265 Vac, and 47–63 Hz, which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 24 V models can be enhanced with an optional remote panel. Each model has built-in protection against surges and spikes on the AC power line.Features: Microprocessor-controlled, multistage charging algorithms Settings for two and three-stage charging Battery-equalization feature Settings for flooded, gel, AGM, or lithium-ion batteries Equipped with parallel stacking (remote panel required) Ability to charge batteries drained to extremely low voltage Added quiet mode Protection Features: Reverse-battery polarity protection Drip-proof design DC over-voltage protection Over-temperature protection Circuit breaker protection Three-Stage ChargingMultistage charging ensures batteries receive optimum charging, but with minimal wear and tear, regulating the voltage and current delivered to the batteries in three automatic stages: Bulk: Replaces 70–80% of the battery’s state-of-charge at the fastest possible rate Absorption: Replenishes the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate Float: Voltage is reduced and held constant to prevent damage and maintain batteries at a full charge for the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate Power Factor Corrected (PFC) ChargingLess shore power is required for charging batteries, freeing up more usable AC power for running electrical devices and appliances and reducing the likelihood of tripping shore power breakers.Electrical Specifications (@ 25 degrees C unless otherwise noted): Output Current (nominal): 20 A  Output Voltage (nominal, depending on settings): Charge 28.4–31.0 Vdc; Float 26.8–27.6 Vdc; 32 Vdc DC Output Connections: Three AC Input Voltage: 90–265 Vac; 47–63 Hz 120 Vac, 230 Vac, 240 Vac nominal Temperature Compensation: Three settings  Charger Efficiency: > 80% Battery Type: Gel, Flooded, AGM, LiFePO4  Minimum Recommended Battery Bank Size: 40 Ah  General Specifications: Operating Temperature Range: 0–60°C (32–140°F)  Storage Temperature -40–80°C (-40–176°F) Battery Connection: Three positive terminals and one negative terminal Dimensions (H x W x L): 70 x 170 x 250 mm (2.8 x 6.7 x 9.8”) Weight 2.2 kg (4.8 lb) Regulatory Approvals Meets CSA 60335-2-29, UL1564, IEC 60335-2-29, IP32 per EN.IEC 60529, FCC Part 158, Canada ICES-003 Class B emissions limits, ABYC A-31, and DOE/CEC energy efficiency compliant.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charger Output - Amps: 20a Charger Output Voltage: 24v Charging Banks: 3 Portable: No Box Dimensions: 6"H x 11"W x 13"L WT: 6.15 lbs UPC: 715535920937 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

TRUEcharge™3 10A 3 Bank Battery Charger - 24VTRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, they feature low electrical interference and efficient power factor-corrected multistage charging. The TRUEcharge3 Chargers can be mounted in multiple positions thanks to their inherent drip-proof design characteristics. Unlike its predecessors, TRUEcharge3 is lithium-ion battery compatible.Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90–265 Vac, and 47–63 Hz, which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 24 V models can be enhanced with an optional remote panel. Each model has built-in protection against surges and spikes on the AC power line.Features: Microprocessor-controlled, multistage charging algorithms Settings for two and three-stage charging Battery-equalization feature Settings for flooded, gel, AGM, or lithium-ion batteries Equipped with parallel stacking (remote panel required) Ability to charge batteries drained to extremely low voltage Added quiet mode Protection Features: Reverse-battery polarity protection Drip-proof design DC over-voltage protection Over-temperature protection Circuit breaker protection Three-Stage ChargingMultistage charging ensures batteries receive optimum charging, but with minimal wear and tear, regulating the voltage and current delivered to the batteries in three automatic stages: Bulk: Replaces 70–80% of the battery’s state-of-charge at the fastest possible rate Absorption: Replenishes the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate Float: Voltage is reduced and held constant to prevent damage and maintain batteries at a full charge for the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate Power Factor Corrected (PFC) ChargingLess shore power is required for charging batteries, freeing up more usable AC power for running electrical devices and appliances and reducing the likelihood of tripping shore power breakers.Electrical Specifications (@ 25 degrees C unless otherwise noted): Output Current (nominal): 10 A  Output Voltage (nominal, depending on settings): Charge 28.4–31.0 Vdc; Float 26.8–27.6 Vdc; 32 Vdc DC Output Connections: Three AC Input Voltage: 90–265 Vac; 47–63 Hz 120 Vac, 230 Vac, 240 Vac nominal Temperature Compensation: Three settings  Charger Efficiency: > 80% Battery Type: Gel, Flooded, AGM, LiFePO4  Minimum Recommended Battery Bank Size: 20 Ah General Specifications: Operating Temperature Range: 0–60°C (32–140°F)  Storage Temperature -40–80°C (-40–176°F) Battery Connection: Three positive terminals and one negative terminal Dimensions (H x W x L): 70 x 170 x 250 mm (2.8 x 6.7 x 9.8”) Weight 2.2 kg (4.8 lb) Regulatory Approvals Meets CSA 60335-2-29, UL1564, IEC 60335-2-29, IP32 per EN.IEC 60529, FCC Part 158, Canada ICES-003 Class B emissions limits, ABYC A-31, and DOE/CEC energy efficiency compliant.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charger Output - Amps: 10a Charger Output Voltage: 24v Charging Banks: 3 Portable: No Box Dimensions: 6"H x 11"W x 14"L WT: 5.95 lbs UPC: 715535920890 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

TRUEcharge™3 60A 3 Bank Battery Charger - 12VTRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, they feature low electrical interference and efficient power factor-corrected multistage charging. The TRUEcharge3 Chargers can be mounted in multiple positions thanks to their inherent drip-proof design characteristics. Unlike its predecessors, TRUEcharge3 is lithium-ion battery compatible.Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90–265 Vac, and 47–63 Hz, which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 12 V models can be enhanced with an optional remote panel. Each model has built-in protection against surges and spikes on the AC power line.Features: Microprocessor-controlled, multistage charging algorithms Settings for two and three-stage charging Battery-equalization feature Settings for flooded, gel, AGM, or lithium-ion batteries Equipped with parallel stacking (remote panel required) Ability to charge batteries drained to extremely low voltage Added quiet mode Protection Features: Reverse-battery polarity protection Drip-proof design DC over-voltage protection Over-temperature protection Circuit breaker protection Three-Stage ChargingMultistage charging ensures batteries receive optimum charging, but with minimal wear and tear, regulating the voltage and current delivered to the batteries in three automatic stages: Bulk: Replaces 70–80% of the battery’s state-of-charge at the fastest possible rate Absorption: Replenishes the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate Float: Voltage is reduced and held constant to prevent damage and maintain batteries at a full charge for the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate Power Factor Corrected (PFC) ChargingLess shore power is required for charging batteries, freeing up more usable AC power for running electrical devices and appliances and reducing the likelihood of tripping shore power breakers.Electrical Specifications (@ 25 degrees C unless otherwise noted): Output Current (nominal): 60 A  Output Voltage (nominal, depending on settings): Charge 14.2–15.5; Float 13.4–13.8 Vdc; 16 V DC Output Connections: Three AC Input Voltage: 90–265 Vac; 47–63 Hz 120 Vac, 230 Vac, 240 Vac nominal Temperature Compensation: Three settings  Charger Efficiency: > 80% Battery Type: Gel, Flooded, AGM, LiFePO4  Minimum Recommended Battery Bank Size: 120 Ah  General Specifications: Operating Temperature Range: 0–60°C (32–140°F)  Storage Temperature -40–80°C (-40–176°F) Battery Connection: Three positive terminals and one negative terminal Dimensions (H x W x L): 90 x 170 x 340 mm (3.5 x 6.7 x 13.4”) Weight 4.5 kg (9.9 lb) Regulatory Approvals Meets CSA 60335-2-29, CE Marked for the Low Voltage Directive (safety) and the EMC Directive, UL1564, IEC 60335-2-29, IP32 per EN.IEC 60529, FCC Part 158, Canada ICES-003 Class B emissions limits, ABYC A-31, and DOE/CEC energy efficiency compliant.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charger Output - Amps: 60a Charger Output Voltage: 12v Charging Banks: 3 Portable: No Box Dimensions: 7"H x 11"W x 17"L WT: 8.95 lbs UPC: 715535920852 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

TRUEcharge™3 20A 3 Bank Battery Charger - 12VTRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, they feature low electrical interference and efficient power factor-corrected multistage charging. The TRUEcharge3 Chargers can be mounted in multiple positions thanks to their inherent drip-proof design characteristics. Unlike its predecessors, TRUEcharge3 is lithium-ion battery compatible.Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90–265 Vac, and 47–63 Hz, which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 12 V models can be enhanced with an optional remote panel. Each model has built-in protection against surges and spikes on the AC power line.Features: Microprocessor-controlled, multistage charging algorithms Settings for two and three-stage charging Battery-equalization feature Settings for flooded, gel, AGM, or lithium-ion batteries Equipped with parallel stacking (remote panel required) Ability to charge batteries drained to extremely low voltage Added quiet mode Protection Features: Reverse-battery polarity protection Drip-proof design DC over-voltage protection Over-temperature protection Circuit breaker protection Three-Stage ChargingMultistage charging ensures batteries receive optimum charging, but with minimal wear and tear, regulating the voltage and current delivered to the batteries in three automatic stages: Bulk: Replaces 70–80% of the battery’s state-of-charge at the fastest possible rate Absorption: Replenishes the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate Float: Voltage is reduced and held constant to prevent damage and maintain batteries at a full charge for the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate Power Factor Corrected (PFC) ChargingLess shore power is required for charging batteries, freeing up more usable AC power for running electrical devices and appliances and reducing the likelihood of tripping shore power breakers.Electrical Specifications (@ 25 degrees C unless otherwise noted): Output Current (nominal): 20 A  Output Voltage (nominal, depending on settings): Charge 14.2–15.5; Float 13.4–13.8 Vdc; 16 V DC Output Connections: Three AC Input Voltage: 90–265 Vac; 47–63 Hz 120 Vac, 230 Vac, 240 Vac nominal Temperature Compensation: Three settings  Charger Efficiency: > 80% Battery Type: Gel, Flooded, AGM, LiFePO4  Minimum Recommended Battery Bank Size: 40 Ah General Specifications: Operating Temperature Range: 0–60°C (32–140°F)  Storage Temperature -40–80°C (-40–176°F) Battery Connection: Three positive terminals and one negative terminal Dimensions (H x W x L): 70 x 170 x 250 mm (2.8 x 6.7 x 9.8”) Weight 2.2 kg (4.8 lb)  Regulatory Approvals Meets CSA 60335-2-29, CE Marked for the Low Voltage Directive (safety) and the EMC Directive, UL1564, IEC 60335-2-29, IP32 per EN.IEC 60529, FCC Part 158, Canada ICES-003 Class B emissions limits, ABYC A-31, and DOE/CEC energy efficiency compliant.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charger Input - Voltage: 120v Charger Output - Amps: 20a Charger Output Voltage: 12v Charging Banks: 3 Portable: No Box Dimensions: 6"H x 11"W x 14"L WT: 5.95 lbs UPC: 715535920777 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

60 AMP MPPT Charge ControllerEnhanced Energy Optimization & SmartSolar Performance.The Xantrex Solar Charger Controller MPPT60 delivers superior efficiency and performance, supporting up to 150V and 60A for optimal power harvesting and seamless scalability in your solar system. Featuring advanced Maximum Power Point Tracking (MPPT) technology, it offers up to 30% more power compared to PWM charge controllers, enhancing overall energy efficiency. Compatible with 12V, 24V, 36V, and 48V battery systems, the MPPT60 optimizes performance across various energy requirements. This controller provides real-time energy monitoring and comprehensive historical data, empowering informed decisions for improved system performance, energy savings, and reliability.Features: Ultra-fast tracking speed including multiple power point peaks with a 99.5% efficiency rating Xantrex MPPT control algorithm maximizes solar system efficiency and energy harvesting effectiveness Manages and optimizes power output from a diverse array of solar panels under varying environmental conditions Regulates power and current flow to protect and prolong battery lifespan The battery’s status is monitored, and the charging current is adjusted to prevent overcharging when fully charged Protection against short-circuiting enhances safety, while protection against input overloading enhances system reliability and longevity Battery temperature compensation boosts both system performance and charging efficiency Real-time monitoring provides data on energy usage and solar power system efficiency Dynamic power reduction prevents overheating and improves battery performance and safety Specifications: LED indicators display PV charging, charger stage, and event status Remote panel for monitoring and setting (requires the Solar MPPT Remote Panel) 30% Higher than the PWM load RV short-circuit protection, charge over-current protection RV-C, Modbus, and Bluetooth built-in 12/24/36/48V System Voltage MPPT tracking efficiently is up to 99.5% Lead-acid, AGM (Sealed), Gel, Flooded, Lithium batteries and custom Current-limiting charging mode Xantrex App for ultimate control Compliance: UL1741CSA C22.2#107.1

Read more less

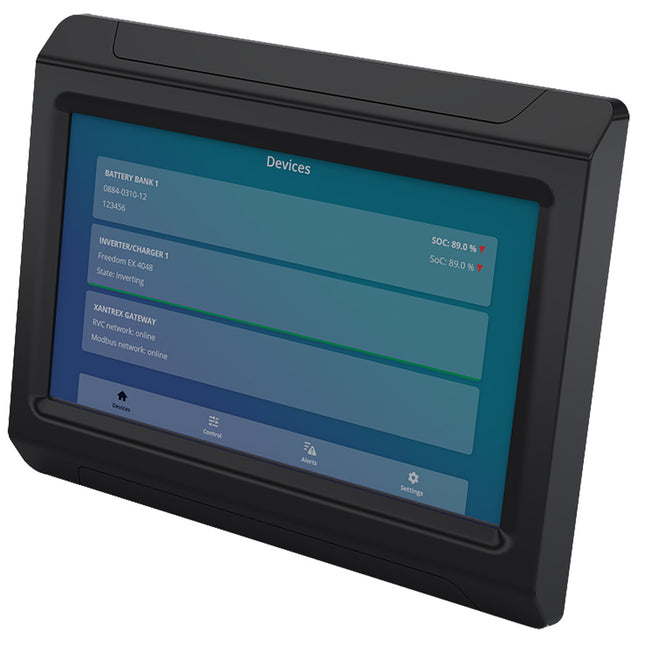

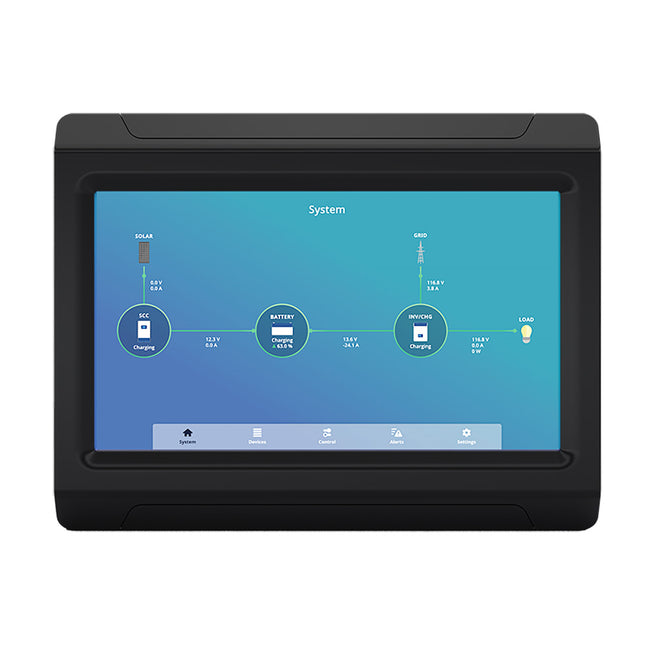

Gateway Touchscreen DisplayNo more compatibility issues or complex setups. Xantrex Gateway gives you power at your fingertips to integrate, monitor, and control all your essential components — batteries, inverter/charger, and solar controller into one seamless system for effortless operation.Xantrex offers a complete energy system that includes easy-to-use connectivity. The Xantrex gateway provides a coordinated view and easy drill-down access to control and monitor your system as a whole rather than single separate components. Remote monitoring with WiFi and Bluetooth capabilities makes your life easier than ever before.Features: Replace multiple displays with one Error alerts to monitor performance Coordinated system control What's Included?Xantrex Gateway Touchscreen PanelHDMI and USB 39" (1.0M Cables)Specifications: Housing/Mounting System: ABS Plastic, Wall Mount 4 screws IP Rating: Indoor IP42 front; IP21 back Display Resolution: 1024 x 600 Weight: 0.8lb (360g) Dimensions: 7.2 x 5.5 x 0.975in (183 x 140 x 25mm)

Read more less

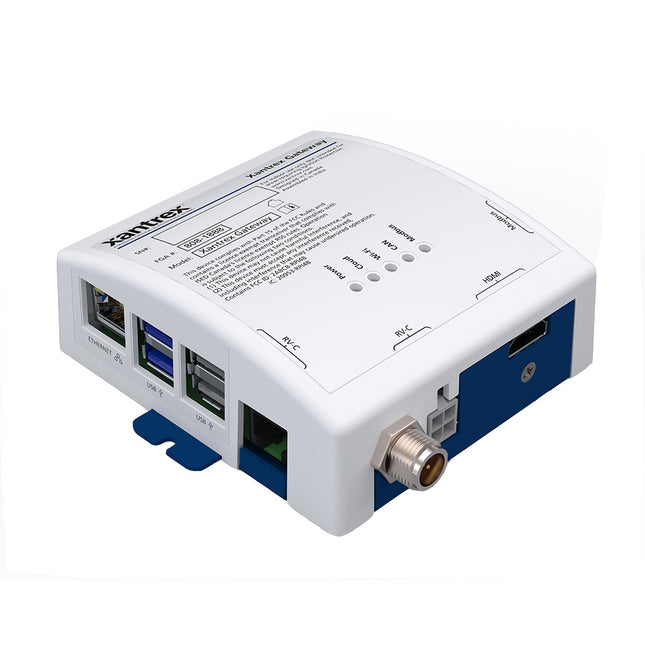

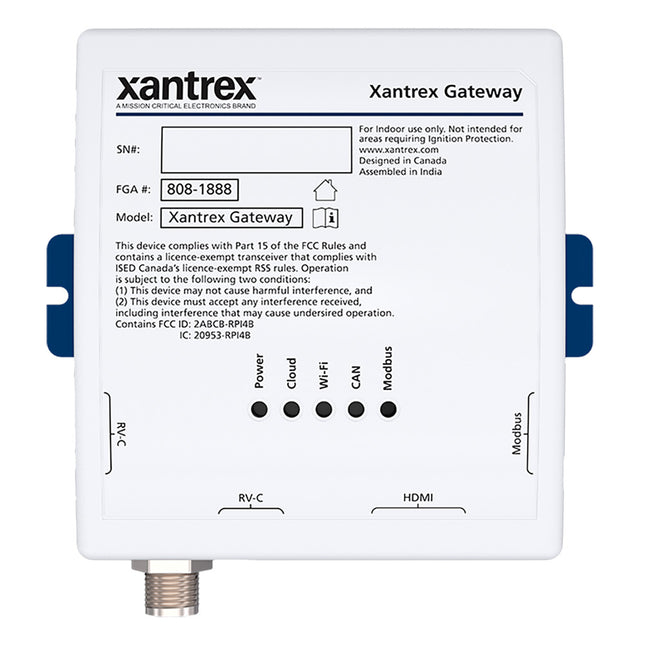

Gateway Communication DeviceXantrex Gateway allows you to conveniently monitor and control all your favorite Xantrex products via wireless Wi-Fi connection using your smartphone, tablet, PC, or the Xantrex Gateway Touchscreen Panel 808-0890. Whether it is configuring the transfer relay on your inverter, troubleshooting your inverter/charger, checking your battery status, or turning your inverter off to save power, Gateway helps you do it all. Monitoring and configuring settings on your Xantrex devices has never been this easy.Features: Save dashboard real estate in your RV or boat by monitoring and controlling all your Xantrex products on one device Connect to your Xantrex devices via smartphone/tablet/PC wirelessly with Xantrex Gateway Monitor the status of your devices, including current, voltage, and battery state of charge Configure settings such as the transfer relay, or enable/disable your inverter to save power

Read more less

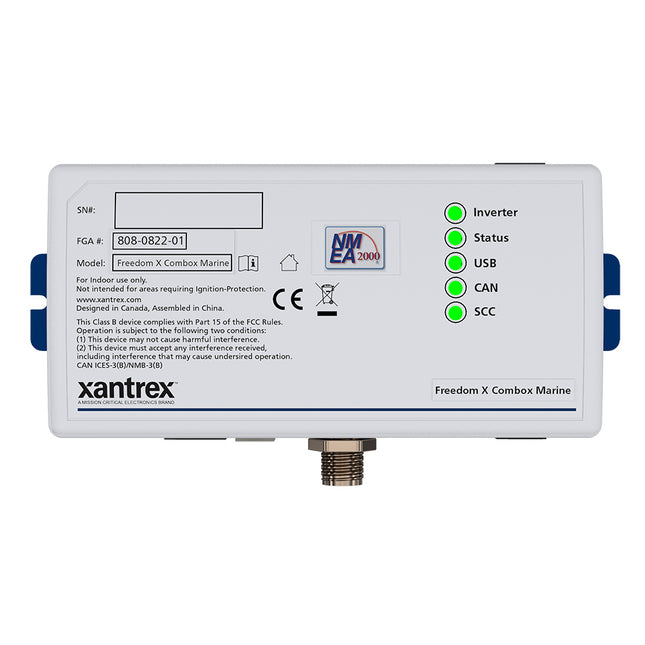

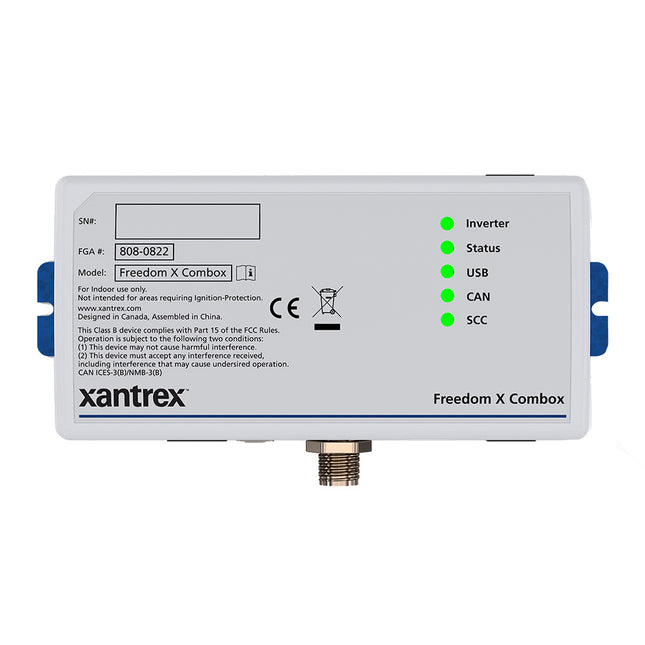

FREEDOM X Combox NMEA2K Communication Device for BoatsThe FREEDOM X Combox connects the FREEDOM X and XC families of inverter/chargers to an RV-C or NMEA2000 bus to support seamless integration with third-party monitoring and control systems.Features: Configure connectable products via RV-C or NMEA2000 Compatible with the Freedom X Bluetooth Remote Panel USB port for firmware upgrade and configuration Applications: Recreational Vehicles Marine Compatible with: FREEDOM X - 817-1000, 817-2000, 817-2000-21, 817-3000 FREEDOM XC - 817-1050, 817-2080

Read more less

FREEDOM X Combox RV-C Communication Device for RVs CaravanThe FREEDOM X Combox connects the FREEDOM X and XC families of inverter/chargers to an RV-C or NMEA2000 bus to support seamless integration with third-party monitoring and control systems.Features: Configure connectable products via RV-C or NMEA2000 Compatible with the Freedom X Bluetooth Remote Panel USB port for firmware upgrade and configuration Applications: Recreational Vehicles Marine Compatible with: FREEDOM X - 817-1000, 817-2000, 817-2000-21, 817-3000 FREEDOM XC - 817-1050, 817-2080

Read more less

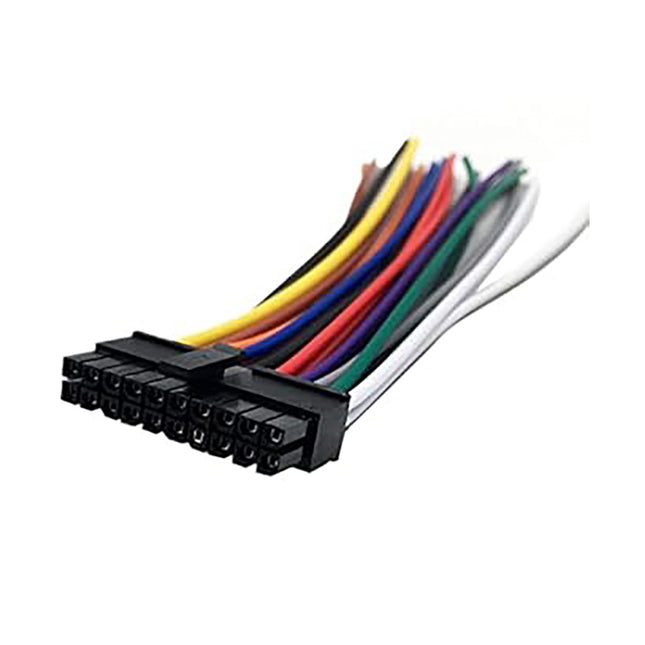

Freedom Communication Card Mating Connector Assembly with 10" LeadThe Xantrex 808-0820 20-Pin Communications Harness connects to the 20-pin CC port of Freedom XC PRO Series Inverter/Chargers, enabling the unit to control the vehicle’s ignition control system (commonly referred to as ACC) via one control wire and to connect to a vehicle’s onboard display via three wires using the CANbus/RV-C, J1939 protocol.

Read more less

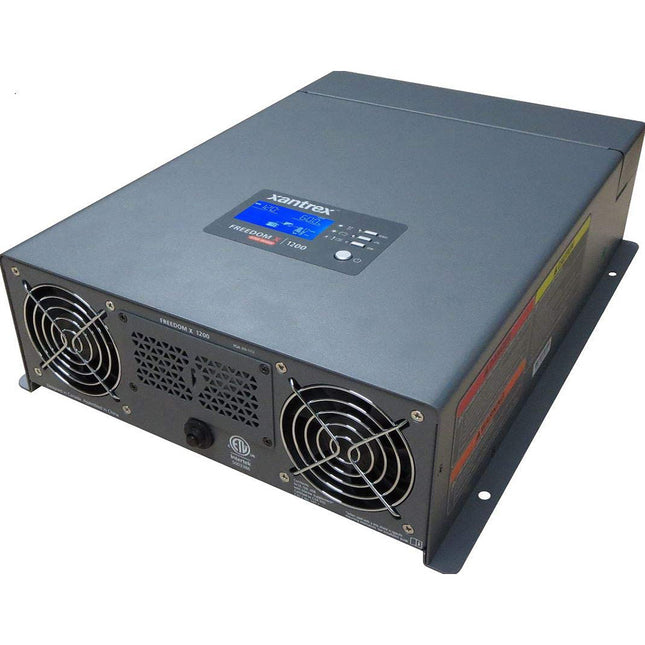

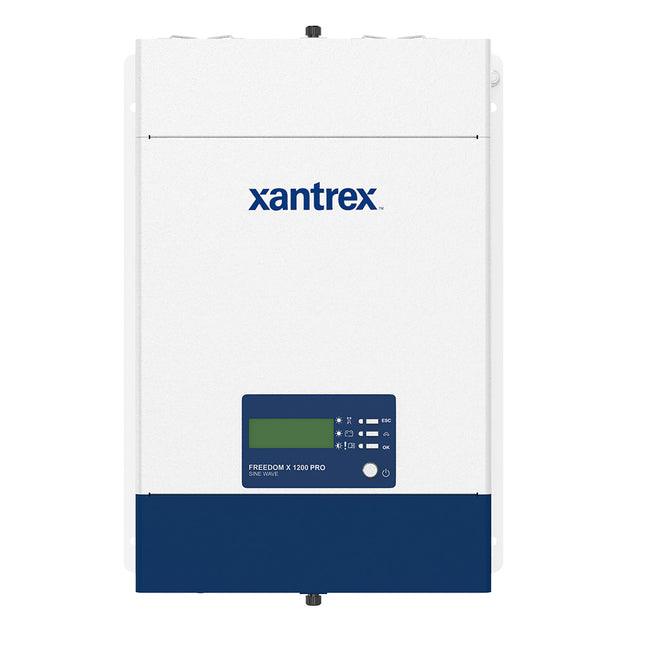

FREEDOM X 1200 PRO Inverter Truesine 1000W 120AC/12VDC Hardwire TransferEngineered specifically to meet the needs of heavy-duty trucks, the FREEDOM X 1200 offers a perfect blend of performance and cost. The FREEDOM X 1200 is ideal for installation in all types of commercial vehicles.Robust. Durable. Flexible.Its rugged, industrial design ensures optimum performance in all conditions. Quick-connect terminals at AC input & output and pre-wired pigtail cables enable fast and easy installation on the assembly line. Conformal-coated circuit boards and heavy-duty metal casing make the FREEDOM X 1200 ideal for mobile applications. It also features true sine wave output, 2x continuous power surge rating, a built-in transfer switch, and low battery voltage shutdown among other features. The FREEDOM X 1200 Pro has a built-in communication card for integration with third-party monitoring and control display panels through RV-C connectivity.Certifications: H.A.L.T ETL listed to CSA Standard C22.2 No. 107.1 FCC Part 15, Class B UL458* for marine supplement compliance drip shield in specific mounting orientations when required Applications: Recreational vehicles Heavy-duty truck Work truck Specifications:Power Output Continuous: 1200WThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Freedom X 1200 Inverter Truesine 1000W 120AC 12VDC Hardwire, TransferThe Xantrex Freedom X 1200 is engineered specifically to meet the needs of heavy-duty trucks and is ideal for installation in all types of commercial and recreational vehicles. This inverter provides up to 1200 watts of continuous utility grade, sine wave power from a battery bank and is designed to handle loads such as microwave ovens, TVs, DVD/Blu-ray players, and power tools. In addition, the Freedom X 1200's high-surge capability lets you handle many hard-to-start loads, including full-size residential refrigerators.The Freedom X 1200 has a built-in 30 Amp transfer switch that automatically transfers between inverter power and shore power from recreational facilities such as boat docks or campsites to ensure power is always available. If incoming shore power is interrupted by external events like brownouts, the Freedom X 1200 automatically becomes an independent power source that supplies utility-grade AC power to your loads.The Freedom X 1200 offers comprehensive built-in protection features to safeguard your batteries from the unnecessary drain while protecting your equipment. Features include selectable low battery shutdown voltage, low voltage shutdown delay timer, power save mode, low battery voltage alarm, and shutdown. The Freedom X 1200 also features configurable AC transfer speed, output frequency, and voltage, making it extremely versatile and the perfect blend of performance and cost.Features: Input: 12 VDC Output voltage: 120 VAC, 60 Hz Continuous Power: 1200W (10.0 A) Surge Power: 2400W (20.0 A) Output waveform: Pure sine wave Transfer relay: 30A Dimensions: 14.8 x 10.4 x 3.5 in (376 x 263 x 91 mm) Inverter weight: 10.4 lbs (4.7 kg) Shipping weight: 13.0 lbs (5.9 kg) Warranty: 2 years

Read more less

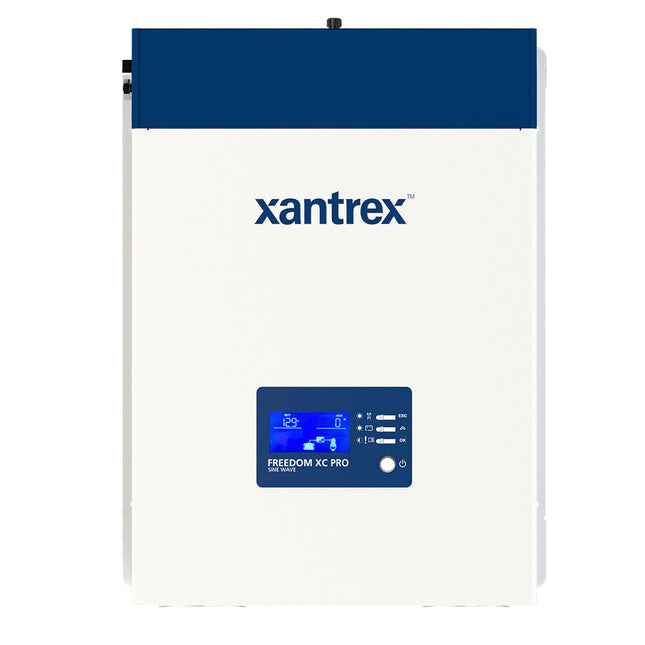

Freedom XC PRO Marine 3000W Inverter/Charger - 12VA true sine wave inverter with a built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02). Seamless integration with Micro-C NMEA 2000 Connector.The Freedom XC PRO Marine inverter/charger, supporting CANbus NMEA 2000 protocol, is the most versatile and flexible AC power solution in the market today. It supports seamless integration with third-party monitoring and control systems. It also features a 100 amp (2000W model) / 150 amp (3000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, lightweight package. It cranks out full output in invert or charge mode from -4°F (-20°C) - 104°F (40°C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.Features: Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads True Sine Wave AC Power: For the operation of sensitive and motor loads Ignition Control: Feature to turn the inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input Built-in 50A AC Transfer Relay (3KW model): Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power Built-In Charger Features: Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V Battery Equalization: Maximizes flooded battery life Dead Battery Charging Down to 0 Vdc Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting Easily configurable settings to charge any lithium-ion battery This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

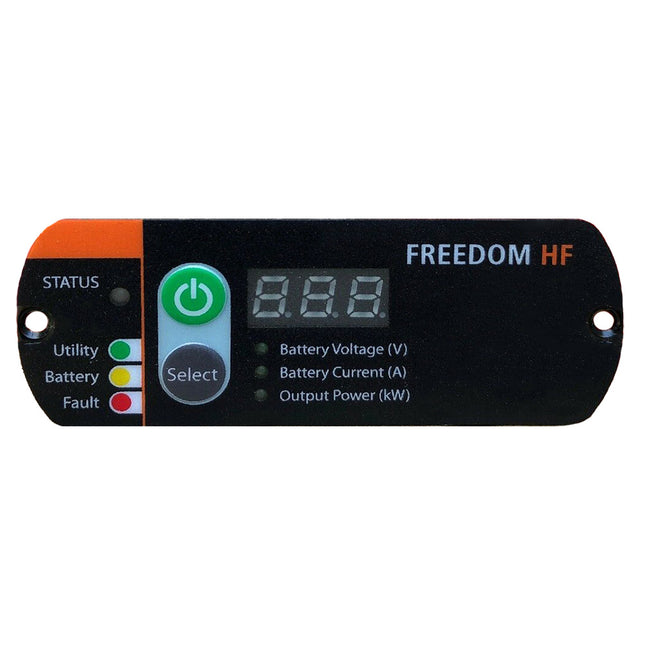

Remote for Freedom HF Series Inverter/ChargersReplacement panel for Freedom HF Series inverter/chargers.*Does not include connection cable.Compatible With:Freedom HF Series inverter/chargersFeatures: View key system information Configure and monitor important parameters and settings Conveniently view fault and error codes Technical Specifications: Input Voltage: 12V AC Output: GFCI and/or Hardwire In the Box: Remote panel Instruction manual *Sold as an Individual

Read more less

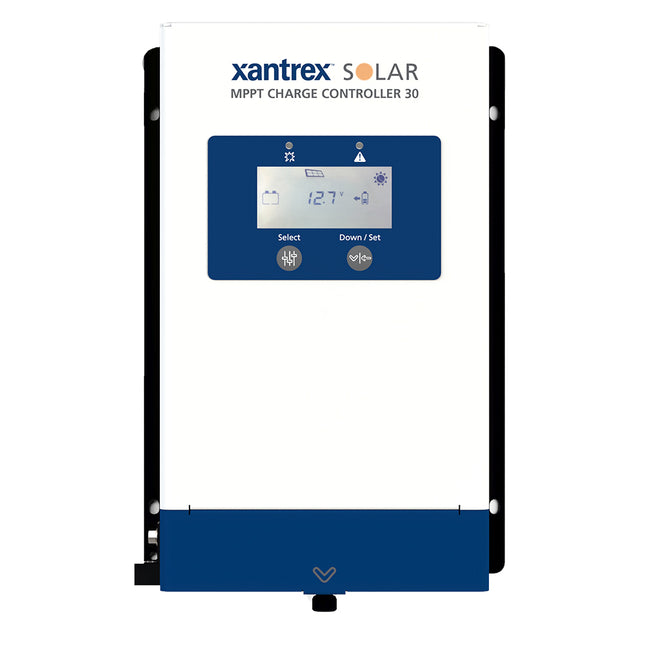

30A MPPT Charge ControllerDesigned to charge lithium-ion batteries including LIFePO4, the 30 A MPPT (Maximum Power Point Tracking) charge controller features an industry-leading 98% charging efficiency and dual bank output to charge and maintain house and starter batteries. The Xantrex Solar MPPT Charge Controller 30 features advanced Maximum Power Point Tracking (MPPT) technology, providing an instant upgrade to your solar system with up to 30% more power compared to PWM charge controllers. Offering greater flexibility, simplicity, and efficiency in PV array designs, higher voltage PV arrays can be used up to 72V (nominal). Equipped with dual-battery bank charging ports ideal for simultaneously charging and maintaining 12V house and starter batteries, best-in-class PV array and battery protection, and a built-in LCD display providing real-time system data. Optional accessories include a remote battery temperature sensor and remote panel. The Xantrex Solar Charge Controllers are compatible with all types and makes of solar panels from all manufacturers. Below is a list of available Xantrex Solar Panel Kits and Expansion Kits. Consider pairing this MPPT charge controller with Xantrex Solar Panels. Features: Advanced Maximum Power Point Tracking (MPPT) technology increasing daily energy harvest by 20-30% compared to PWM technology Dual-battery bank charging to simultaneously charge house and starter batteries Best-in-class PV array and battery protections House battery types supported: Sealed (AGM), Gel, Flooded, Lithium Iron Phosphate(LiFePO4) 5-year warranty

Read more less

Freedom XC PRO Marine 2000W Inverter/Charger - 12VA true sine wave inverter with a built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02). Seamless integration with Micro-C NMEA 2000 Connector.The Freedom XC PRO Marine inverter/charger, supporting CANbus NMEA 2000 protocol, is the most versatile and flexible AC power solution in the market today. It supports seamless integration with third-party monitoring and control systems. It also features a 100 amp (2000W model) / 150 amp (3000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, lightweight package. It cranks out full output in invert or charge mode from -4°F (-20°C) - 104°F (40°C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.Features: Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads True Sine Wave AC Power: For the operation of sensitive and motor loads Ignition Control: Feature to turn the inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input Built-in 50A AC Transfer Relay (3KW model): Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power Built-In Charger Features: Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V Battery Equalization: Maximizes flooded battery life Dead Battery Charging Down to 0 Vdc Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting Easily configurable settings to charge any lithium-ion battery This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

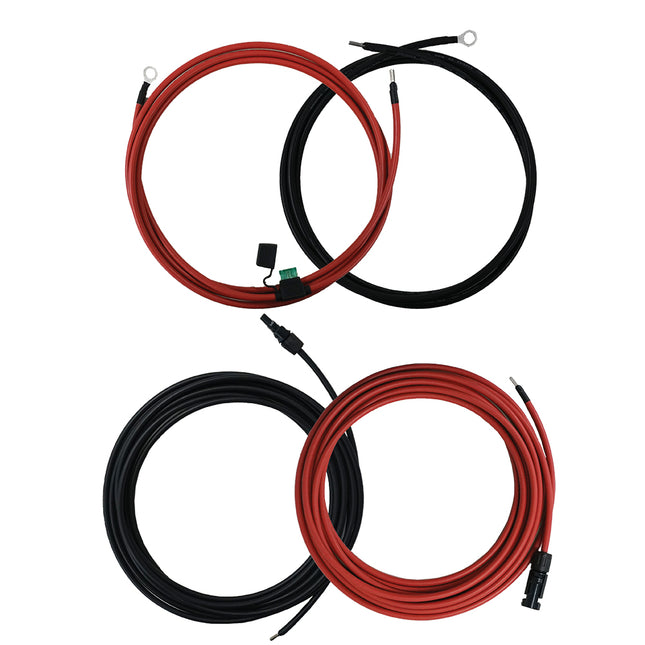

Solar Starter Cable KitXantrex's Solar Starter Cable Kit provides weather-resistant, certified cables for connecting a solar panel to a charge controller, and from the charge controller to the battery.Features: Designed to connect a PV array to a charge controller and battery Weather-resistant and certified cables PV and battery cables both have built-in ferrule terminations for quick connections to the charge controller Battery cables have built-in fuse and ring terminals In the Box: (1) Pair of (black/red) 20-foot MC4-type PV cables (1) Pair of (black/red) 10-foot MC4-type battery cablesBuilt-in 30A DC ATC fuse on the red cable

Read more less

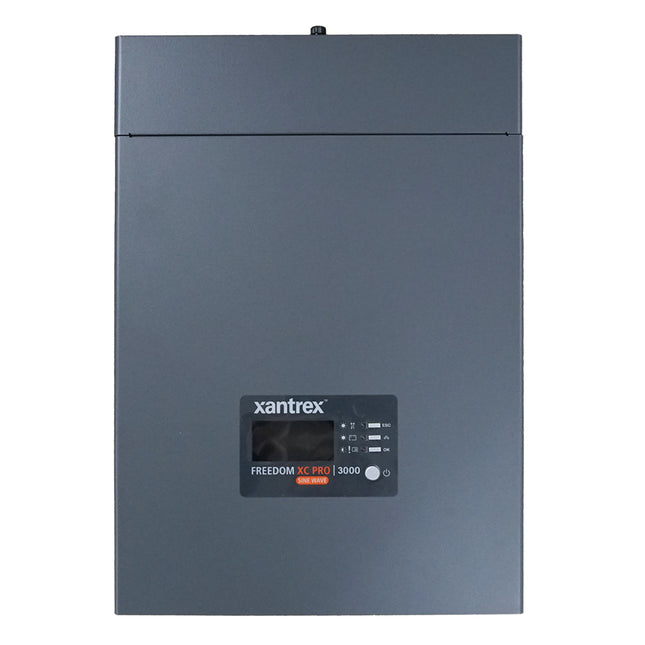

Freedom XC Pro 3000 Inverter/Charger - 3000W - 150A - 120V - 12VA true sine wave inverter with a built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02).The Freedom XC PRO inverter/charger, supporting RV-C and J1939 protocols, is the most versatile and flexible AC power solution in the market today. It also features a 100 amp (2000W model) / 150 amp (3000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4°F (-20°C) - 104°F (40°C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably. Features: Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads True Sine Wave AC Power: For operation of sensitive and motor loads Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input Built in 50A AC Transfer Relay (3KW model): Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power Built-In Charger Features: Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V Battery Equalization: Maximizes flooded battery life Dead Battery Charging Down to 0 Vdc Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting Easily configurable settings to charge any lithium ion battery

Read more less

Freedom XC Pro 2000 Inverter/Charger - 2000W - 100A - 120V - 12V2000 Watt pure sine wave inverter with 100 Amp built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panelThe Freedom XC PRO inverter/charger, supporting RV-C and J1939 protocols, is the most versatile and flexible AC power solution in the market today. It also features a 100 amp (2000W model) / 150 amp (3000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4°F (-20°C) - 104°F (40°C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.Features: Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads True Sine Wave AC Power: For operation of sensitive and motor loads Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis Built-in 50A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator) Power Factor corrected Multi-Stage: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V Specifications: Continuous Power: 2000 Watts Continuous Current: 16.7 Amps Surge Power: 4000 Watts Frequency: 60 (or 50) Hz (selectable) Output Voltage: 108, 110, 120 Volts AC (selectable) Input Voltage: 12 Volts DC nominal Safety: ETL listed to CSA 107.1, UL458 (UL458 Marine Supplement with optional drip shield, part number 808-1050) Dimensions: 15.4" x 10.8" x 4.9" Unit weight: 17.1 lbs 2 year warranty

Read more less

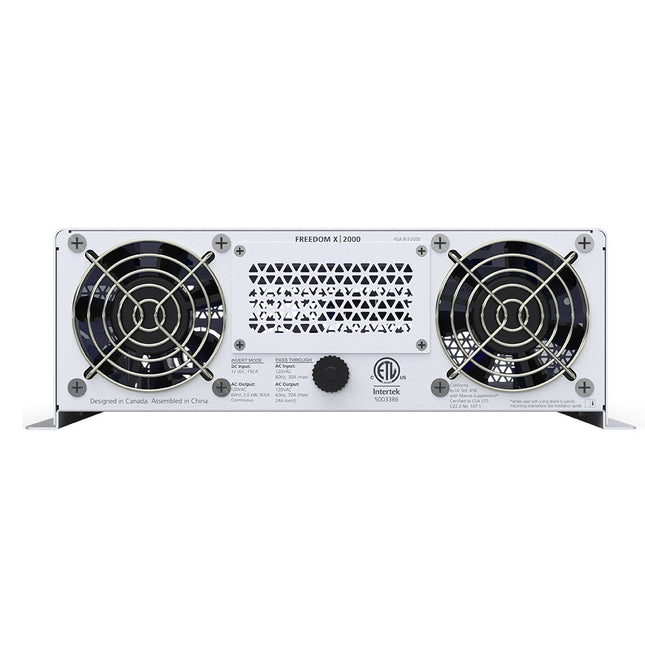

Freedom X 2000 True Sine Wave Power Inverter - 24VDC - 120VAC - 2000W True sine wave 120VAC inverter with built-in transfer switch. Designed for recreational and commercial applications.The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -4°F - 104°F for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.Features: Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads True Sine Wave AC Power: For operation of sensitive and motor loads Ignition Control: Feature to turn inverter on/off via a 24 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode Quick Installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast & easy wiring Specifications: AC Connection Type: Hardwire DC Connection Type: Hardwire GFCI: Yes Inverter Cont. Output Wattage: 2000w Inverter Input Voltage: 24v Inverter Output Voltage: 120v Inverter Surge Rating: 4000w Outlet Qty: 1 Duplex GFCI Waveform: True Sine Wave Box Dimensions: 9"H x 16"W x 20"L WT: 17.5 lbs UPC: 715535904807 Owner's Manual (pdf)Brochure (pdf)

Read more less

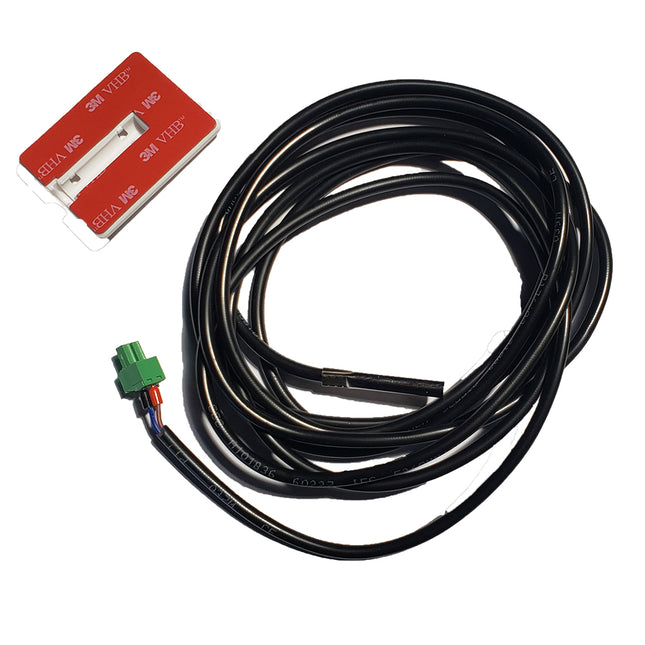

Remote Battery Temperature SensorSends precise information to the charger or charge controller, which automatically adjusts voltage to ensure full battery charge depending on the ambient temperature of your battery installation.

Read more less

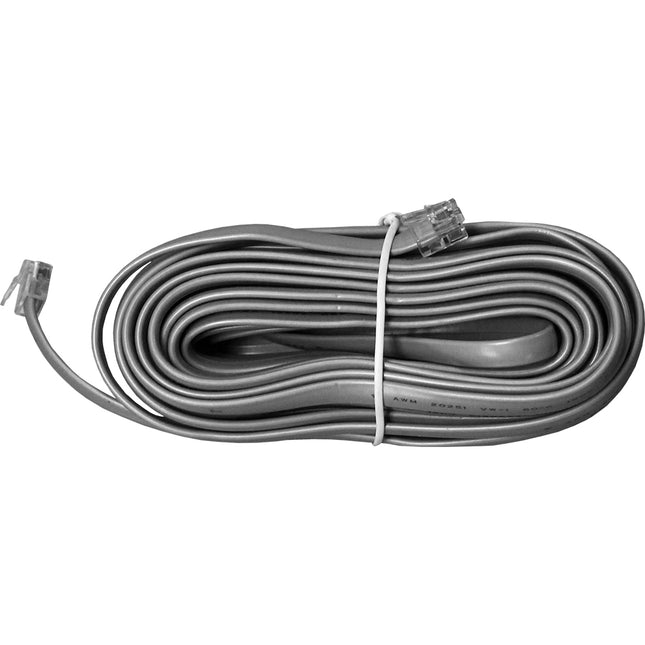

50' RJ12-6 Cable for Freedom Remote Panel OptionalXantrex 50' remote cable for Prowatt SW Remote Control For use with ProWatt Series 50' length, replaces 25' cable supplied with unit Includes connectors WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

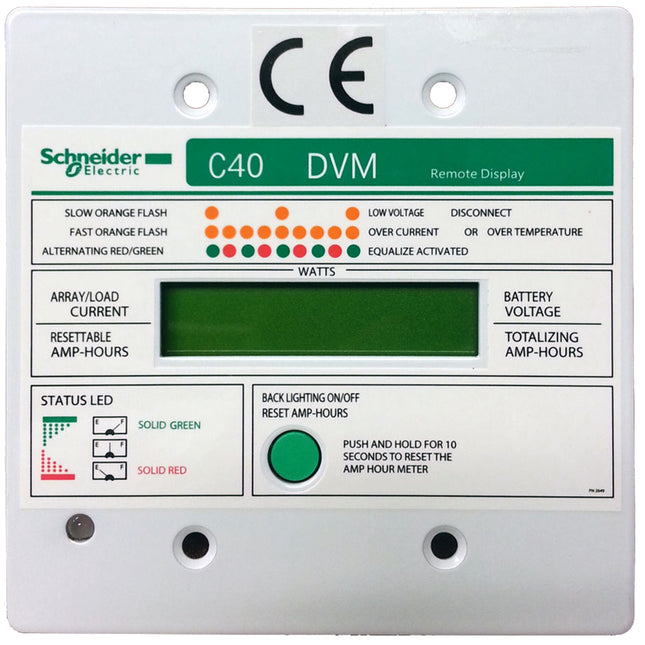

C-Series Digital Remote with 50' CableMeter, digital volt, C-Series remote with 50' cableUsed with C35/40/60 Charge ControllersWARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less
