Ble Sea Systems 285-Series Circuit Breaker - Panel Mount 25AModel: 7080-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage25A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 60 in-lb (6.78 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) "

Read more less

Blue Sea Systems 285-Series Circuit Breaker - Surface Mount 150AModel: 7189-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage150A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 50 in-lb (5.65 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) "

Read more less

Blue Sea Systems e-Series On-Off Battery Switch with AFDModel: 9004E-BSS 350 Amps continuous rating for inboard gasoline or diesel engines. Tin-plated copper studs for maximum conductivity and corrosion resistance Accepts up to 4/0 AWG battery cables Studs accepts 3/8 (M10) ring terminals 7/8 in (22mm) stud length accepts multiple cable terminals Blue Sea Systems one-piece terminal stud design never loosens over time Fits most Perko and Guest low amperage battery switch hole patterns Case design allows surface or rear panel mounting Tactile indicator conveys knob position by feel Waterproof - rated IP66 from water projected in powerful jets Ignition protected-safe for installation aboard gasoline powered boats Includes AFD (Alternator Field Disconnect) Switches a single battery to a single load groupSpecificationsSwitch TypeSingle Circuit ON-OFF Color Red Switch Positions 2 Battery Combine No Alternator Field Disconnect Yes Maximum Voltage 48V DC Terminal Stud Torque 140 in-lb (15.82 Nm) Continuous Rating 350A Intermittent Rating 600A (5 min) Cranking Rating 30 sec 1200A per circuit Battery Inputs 1 Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm) Cable Size to Meet Ratings 4/0 AWG (120mm2) Mounting Holes Accept 1/4 in (M6) Screw Stud Material Tinned Copper Terminal Stud Size 3/8 in - 16 (M10) "

Read more less

1046 48V Dual USB Charger Socket MountIntelligent device recognition maximizes charge rate for phones, tablets, or other mobile devices.Features: Ideal for golf carts and other 48V systems Spring-hinged lid keeps debris and moisture out Charges at the speed required by specific devices Internal filtering for reduced electronic interference Over temperature protection Conformal coated circuit board for the harsh marine environment Mounts in a common 1-1/8" hole Specifications: Max Output Current: 4A DC (total) Input Voltage: 48V DC Input Voltage Range: 32-64V DC Reverse Polarity: Yes Short Circuit Protection: Yes Thermal Overload Protection: Yes USB: 2.0, Type A

Read more less

1038 48V Dual USB Charger Contura Switch MountIntelligent device recognition maximizes charge rate for phones, tablets, or other mobile devices.Features: Ideal for golf carts and other 48V systems Spring-hinged lid keeps debris and moisture out Charges at the speed required by specific devices Internal filtering for reduced electronic interference Over temperature protection Conformal coated circuit board for the harsh marine environment Mounts in an existing contura switch aperture Specifications: Max Output Current: 4A DC (total) Input Voltage: 48V DC Input Voltage Range: 32-64V DC Reverse Polarity: Yes Short Circuit Protection: Yes Thermal Overload Protection: Yes USB: 2.0, Type A

Read more less

ST CLB Circuit Breaker Block - 6 PositionFeatures Quick connect clips allow circuit breakers to snap easily into place Tin-plated copper busses and screw terminals Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements Easy to open clip on cover Breakouts allow wire access in two directions Accepts ring terminals Optional push button waterproof boots or dress nuts can be installed over cover Specifications:Circuits: 6Maximum Amperage: 32A (per circuit) 40A (per jumped circuit group)Maximum Voltage: 32V DCMounting: #8 Screw (M4) or #8 NutSource: Independent SourceMinimum Operating Temperature: -10° CMaximum Operating Temperature: 60° CMounting Centers: 5.63"(143 mm)Screw Terminal Type: #8-32 Screws with Captive Star Lock WasherHeight: 6.69"(169.93 mm)Weight: 0.75lb (0.34 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 32/40a Box Dimensions: 3"H x 5"W x 11"L WT: 0.8 lbs UPC: 632085050504 Brochure (pdf)

Read more less

5511eDual Circuit Plus Battery Switch CE Marked Ignition protected - Safe for installation aboard gasoline powered boats Case design allows surface or rear panel mounting Meets American Boat and Yacht Council (ABYC) requirements for battery switches 3/8" - 16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals 7/8" stud length to accept multiple cable terminals Tactile textures indicate knob position by feel only WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Positions: 1 AFD: No Continuous Amperage: 600a Box Dimensions: 3"H x 6"W x 9"L WT: 1.2 lbs UPC: 632085551155 Owner's Manual (pdf)Brochure (pdf)

Read more less

A-Series Toggle Double PolePN: 7349Poles: 2Color: BlackAmperage: 32AFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 32a Box Dimensions: 1"H x 1"W x 3"L WT: 0.2 lbs UPC: 632085073497

Read more less

A-Series Toggle Double PolePN: 7348Poles: 2Color: BlackAmperage: 16AFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 16a Box Dimensions: 2"H x 2"W x 4"L WT: 0.3 lbs UPC: 632085073480

Read more less

A-Series Toggle Double PolePN: 7295Poles: 2Color: WhiteAmperage: 32AFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 32a Box Dimensions: 2"H x 3"W x 4"L WT: 0.2 lbs UPC: 632085072957

Read more less

A-Series Toggle Double PolePN: 7294Poles: 2Color: WhiteAmperage: 16AFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 16a Box Dimensions: 2"H x 3"W x 4"L WT: 0.33 lbs UPC: 632085072940

Read more less

A-Series Toggle Double PolePN: 7239Poles: 2Color: BlackAmperage: 40AFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 40a Box Dimensions: 2"H x 3"W x 4"L WT: 0.32 lbs UPC: 632085072391

Read more less

5034ST Blade Fuse Block w/out Cover - 12 Circuit w/out Negative Bus Tin-plated copper buses and fuse clips give 30 Amperes rating per circuit Accepts ATO and ATC fast acting blade fuses WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: ATO/ATC Type: Fuse Blocks Box Dimensions: 2"H x 4"W x 8"L WT: 0.47 lbs UPC: 632085050344 Owner's Manual (pdf)

Read more less

5026 ST Blade Fuse Block with Cover - 12 Circuit with Negative Bus Features: Clear insulating cover with label recesses accept Small Format Labels Cover Satisfies ABYC/USCG requirements for insulation Tin-plated copper buses and fuse clips give 30 Amperes rating per circuit Accepts ATO and ATC fast acting blade fuses 20 write-on circuit labels included WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

7234 A-Series Double Pole Toggle - 15A - Black Features: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 15a Box Dimensions: 2"H x 3"W x 4"L WT: 0.33 lbs UPC: 632085072346

Read more less

6008 M-Series Battery Switch 3 Position - RedSwitches a single battery to a single load group.Features: Ignition protected—safe for installation aboard gasoline powered boats Case design allows surface or rear panel mounting Specifications: Switch Type: Selector 3 Position Color: Red Battery Combine: No Switch Positions: 3 Maximum Voltage: 32V DC

Read more less

easyID Fuse KitATC® Fuses Illuminate When BlowneasyID™ illuminated ATC® blade fuses use Light Emitting Diode (LED) technology to show that a fuse has blown, making them easy to spot in fuse panels tucked up under dark dashboards.Features: Replaces non illuminating ATO® or ATC® fuses Fast acting Fuses Included: 3A 5A 7.5A 10A 15A 20A 25A 30A 40A WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: Assorted Fuse Type: ATO/ATC Type: Fuses Box Dimensions: 1"H x 5"W x 6"L WT: 0.16 lbs UPC: 632085052904 Quick Guide (pdf)

Read more less

m-Series Mini Dual Circuit Battery Switch - BlackSimultaneously switches two isolated battery banks.Switch Type: Dual CircuitColor: BlackSwitch Positions: 2Battery Combine: NoAlternator Field Disconnect: NoMaximum Voltage: 32V DCContinuous Rating : 300AIntermittent Rating : 450A (5 min)Cranking Rating 10 sec: 1000ACranking Rating 1 min: 650ABattery Inputs: 2Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)Cable Size to Meet Ratings: 4/0 AWG (120mm²)Mounting Holes: Accept #10 ScrewTerminal Stud Size: 3/8"-16 (M10)Terminal Stud Torque: 120 in-lb (13.56 Nm)Weight: 0.80lb (0.36 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AFD: No Continuous Amperage: 300a Box Dimensions: 3"H x 4"W x 7"L WT: 0.6 lbs UPC: 632085601027 Owner's Manual (pdf)

Read more less

A-Series Toggle Double PolePN: 7241Poles: 2Color: BlackAmperage: 50AFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 3"H x 3"W x 4"L WT: 0.3 lbs UPC: 632085072414

Read more less

A-Series Toggle Double PolePN: 7237Poles: 2Color: BlackAmperage: 30AFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 2"H x 3"W x 4"L WT: 0.34 lbs UPC: 632085072377

Read more less

A-Series Toggle Double PolePN: 7236Poles: 2Color: BlackAmperage: 20AFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 20a Box Dimensions: 3"H x 3"W x 4"L WT: 0.4 lbs UPC: 632085072360

Read more less

6010m-Series (Mini) Battery Switch Dual Circuit™ Switches both positive and negative lines simultaneously with one simple ON/OFF switch meeting European and metal boat requirements for a double pole switch Switches circuits of different voltages, such as 12 volt and 24 volt, simultaneously with one simple ON/OFF switch Features: Ignition protected - Safe for installation aboard gasoline powered boats Case design allows surface, front panel, or rear panel mounting Isolating cover with snap-on sections protects rear contacts 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals 7/8" (22.22mm) stud length to accept multiple cable terminals Ideal for marine or RV applications All non-corrosive marine grade metals Molded in durable reinforced polycarbonate Tactile textures indicate knob position by feel only Label with international ON/OFF legends Removable key or knob remains positively retained ICON label set included for circuit identification WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Positions: 1 Lockable: Yes Continuous Amperage: 600a Box Dimensions: 4"H x 4"W x 7"L WT: 1 lbs UPC: 632085060107

Read more less

7242 A-Series Double Pole Toggle - 50AMP - WhitePoles: 2Color: WhiteAmperage: 50AMPFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 2"H x 3"W x 4"L WT: 0.33 lbs UPC: 632085072421

Read more less

7240 A-Series Double Pole Toggle - 40AMP - WhitePoles: 2Color: WhiteAmperage: 40AMPFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot ben held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 40a Box Dimensions: 2"H x 3"W x 4"L WT: 0.32 lbs UPC: 632085072407

Read more less

7238 A-Series Double Pole Toggle - 30AMP - WhitePoles: 2Color: WhiteAmperage: 30AMPFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot ben held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 2"H x 3"W x 5"L WT: 0.33 lbs UPC: 632085072384

Read more less

7260 A-Series Double Pole Toggle - 20AMP - WhitePoles: 2Color: WhiteAmperage: 20AMPFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 20a Box Dimensions: 2"H x 3"W x 4"L WT: 0.34 lbs UPC: 632085072605

Read more less

7235 A-Series Double Pole Toggle - 15AMP - WhitePoles: 2Color: WhiteAmperage: 15AMPFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot ben held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 15a Box Dimensions: 2"H x 3"W x 4"L WT: 0.33 lbs UPC: 632085072353

Read more less

7233 A-Series Double Pole Toggle - 10AMP - WhitePoles: 2Color: WhiteAmperage: 10AFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 10a Box Dimensions: 2"H x 3"W x 5"L WT: 0.4 lbs UPC: 632085072339

Read more less

ST Blade Compact Fuse Blocks - 8 Circuits w/CoverProvides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space. Compact common source fuse block Accepts ATO® and ATC® fast acting blade fuses Single side entry wiring Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment Insulating cover meets ABYC/USCG insulation requirements Tin-plated copper buses and fuse clips Accepts ring or snap fork type terminals Small format standard and custom labels available Specifications Circuits:8 Maximum Amperage: 100A per block / 30A per circuit Maximum Voltage:32V DC Mounting: #8 Screw (M4) Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: ATO/ATC Type: Fuse Blocks Box Dimensions: 2"H x 3"W x 9"L WT: 0.5 lbs UPC: 632085050467

Read more less

Blue Sea Systems m-Series Mini Dual Circuit Battery Switch - BlackModel: 6010200-BSS Tin-plated copper studs for maximum conductivity and corrosion resistance Studs accept 3/8 (M10) ring terminals 7/8 in (22mm) stud length accepts multiple cable terminals Blue Sea Systems one-piece terminal stud design never loosens over time Isolating cover with snap-on sections protects rear contacts Case design allows surface or rear panel mounting Waterproof - rated IP66 from water projected in powerful jets One-piece stainless flange nuts ensure safe and secure connections Breakout tabs allow wire access in any direction Simultaneously switches two isolated battery banksSpecificationsSwitch TypeDual Circuit Color Black Switch Positions 2 Battery Combine No Alternator Field Disconnect No Maximum Voltage 32vDC Stud Size 3/8 in Terminal Stud Torque 120 in-lb (13.56 Nm) Continuous Rating 300A Intermittent Rating 450A (5 min) Cranking Rating 30 sec 675A Battery Inputs 2 Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm) Cable Size to Meet Ratings 4/0 AWG (120mm2) Mounting Holes Accept #10 Screw Stud Material Tinned Copper Stud Torque 120 in-lb (13.56 Nm) Terminal Stud Size 3/8 in - 16 (M10) "

Read more less

Blue Sea Systems m-Series Selector 3 Position Battery Switch - RedModel: 6008-BSS Tin-plated copper studs for maximum conductivity and corrosion resistance Studs accept 3/8 (M10) ring terminals 7/8 in (22mm) stud length accepts multiple cable terminals Blue Sea Systems one-piece terminal stud design never loosens over time Isolating cover with snap-on sections protects rear contacts Case design allows surface or rear panel mounting Waterproof - rated IP66 from water projected in powerful jets One-piece stainless flange nuts ensure safe and secure connections Breakout tabs allow wire access in any direction Ignition protected-safe for installation aboard gasoline powered boats Switches a single battery to a single load group.SpecificationsSwitch TypeSelector 3 Position Color Red Switch Positions 3 Battery Combine No Alternator Field Disconnect No Maximum Voltage 32vDC Stud Size 3/8 in Terminal Stud Torque 120 in-lb (13.56 Nm) Continuous Rating 300A Intermittent Rating 500A (5 min) Cranking Rating 30 sec 900A Battery Inputs 2 Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm) Cable Size to Meet Ratings 4/0 AWG (120mm2) Mounting Holes Accept #10 Screw Stud Material Tinned Copper Stud Torque 120 in-lb (13.56 Nm) Terminal Stud Size 3/8 in - 16 (M10) "

Read more less

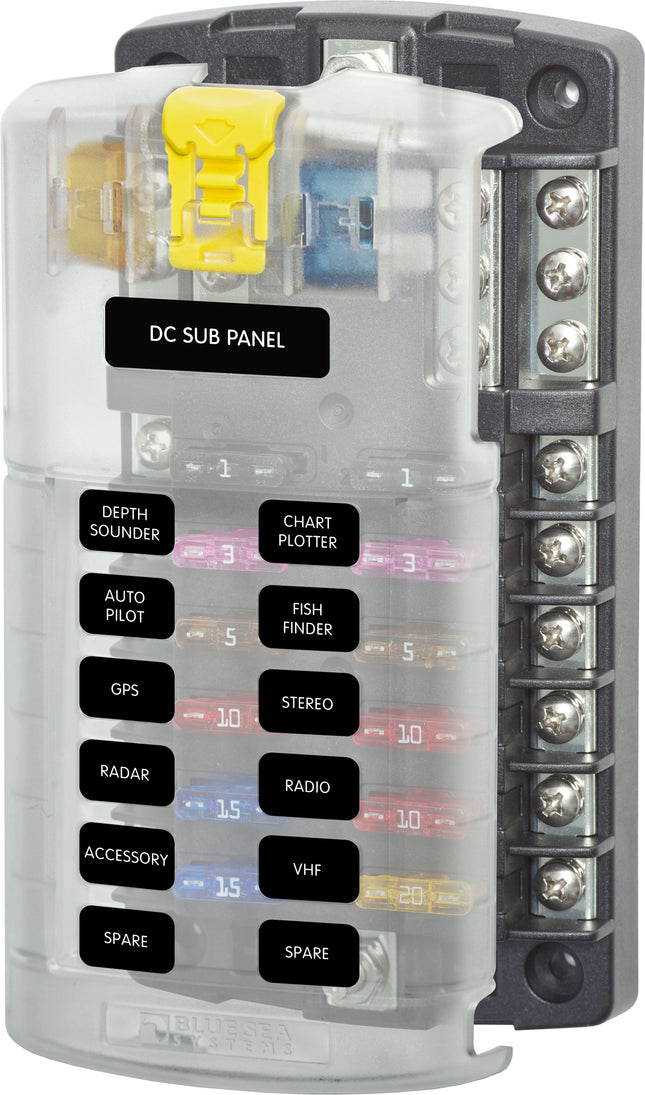

Blue Sea Systems ST Blade Fuse Block - 12 Circuits with Negative Bus and CoverModel: 5026 Positive distribution bus with #10-32 stud Can be used for 24-hour circuits Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems Small Format Labels for circuit identification Fuse blocks with covers include 20 write-on circuit labels Tin-plated copper buses and fuse clips Accepts ring or snap fork type terminals Accepts ATO(R) and ATC(R) fast acting blade fuses Fuses sold separately The ST Blade Fuse Block can offer a space saving and cost effective solution to adding circuit protection when there are limited available circuit breakers on the distribution panel. A single circuit breaker on a distribution panel can provide the circuit protection for the feed wire to the ST Blade Fuse Block. This is frequently done for electronics that each have their own ON-OFF switch and don't require the switching offered by a circuit breaker. The 6 or 12 position ST Blade Fuse Block then provides a consolidated location for fuses for each of the electronics.SpecificationsCircuits12 Maximum Amperage 100A per block

Read more less

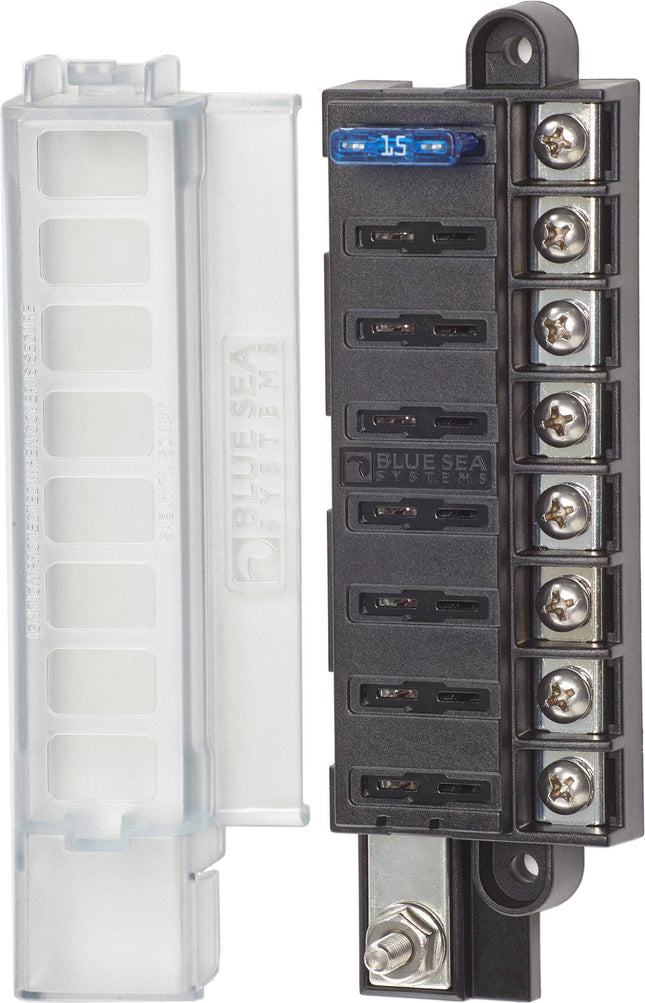

Blue Sea Systems ST Blade Compact Fuse Blocks - 8 CircuitsModel: 5046-BSS Ignition protected when cover is secure -meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment Single side design allows wire entry from one side to minimize footprint Insulating cover meets ABYC/USCG insulation requirements Tin-plated copper buses and fuse clips Accepts ring or snap fork type terminals Includes 8 write-on circuit labels Fuses sold separately SpecificationsCircuits8 Maximum Amperage 100A per block 30A per circuit Maximum Voltage 32V DC Mounting #8 Screw (M4) Terminal Stud Torque 24 in-lb (2.71 Nm) Screw Terminal Torque 18 in-lb (2.03 Nm) Screw Terminal Type #8-32 Scews with captive star lock washer Terminal Stud Size #10-32

Read more less

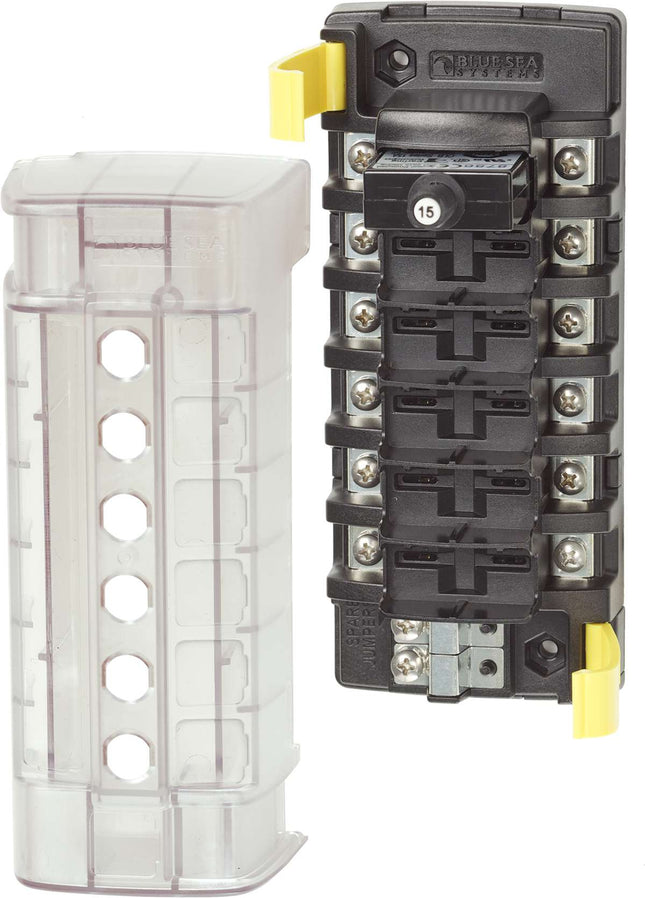

Blue Sea ST CLB Circuit Breaker Block - 6 Independent CircuitsModel: 5050-BSS Quick connect clips allow circuit breakers to snap easily into place Tin-plated copper busses and screw terminals Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements Easy to open clip on cover Breakouts allow wire access in two directions Accepts ring terminals Optional push button waterproof boots or dress nuts can be installed over cover Accepts square labels The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.The ST CLB Circuit Breaker Block offers flexible resettable circuit protection for 6 circuits in a surface mount block that is easy to mount in a dry and protected location. A natural companion for waterproof switching is the new WD Switch Only Panel, that will keep circuits protected from spray and offer integrated switch guards to reduce the risk of accidental switching.SpecificationsCircuits6 Maximum Amperage 32A (per circuit)40A (per jumped circuit group) Maximum Voltage 32V DC Source Independent Source Mounting Centers 5.63in (143 mm)

Read more less

Blue Sea A-Series Black Toggle Circuit Breaker - Double Pole 40AModel: 7239-BSS A-Series Black Toggle Circuit Breaker - Double Pole 40A The industry standard circuit breaker for Blue Sea Systems' electrical panels Combines switching and circuit protection into a single device Trip Free" design cannot be held "ON" during fault current condition SpecificationsAmperage40A AC

Read more less

5056 ST-Blade Water Resistant Fuse Block with CoverProvides water-resistant circuit protection for ATO/ATC fuses & circuit breakers in a compact footprint. The single side nesting design allows for wire entry from one side to maximize space.Features: Water-resistant design with standard ring or fork type terminals allows for simple wiring with standard tools Accepts a wide range of wire sizes Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required Accepts ATO and ATC fast-acting blade fuses Accepts ATO/ATC-Style Low Profile Circuit Breakers Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire Insulating cover meets ABYC/USCG insulation requirements Tin-plated copper busses and fuse clips Includes four write-on circuit labels Small format standard and custom labels available Spare fuse and fastener storage in cover Specifications: Amperage: 80A per block/25A per circuit Maximum Voltage: 32V DC Bus Material: Tin-Plated Copper C11000 Mounting Holes: Clearance for 1/4" (6mm) screws Screw Terminal Type: #8-32 Screws with captive star lock washer  Wire Size: (1) 8 AWG to 4 AWG - Input/(5) 16 AWG to 10 AWG - Load WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: ATO/ATC Type: Fuse Blocks Box Dimensions: 2"H x 8"W x 8"L WT: 0.65 lbs UPC: 632085050566

Read more less

C-Series Flat Rocker Circuit Breaker - Single Pole - 60AFeatures: Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching Color actuator indicates "OFF" position Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip Ignition protectedsafe for installation aboard gasoline powered boats Specifications: Amperage: 60A AC / 60A DC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 240V AC / 48V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Terminal Stud Torque: 35 in-lb (3.95 Nm) Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Switching Cycles: 10000 Terminal Stud: 1/4-20 Tin-Plated Brass Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 60a Box Dimensions: 2"H x 2"W x 4"L WT: 0.5 lbs UPC: 632085075477

Read more less

C-Series Flat Rocker Circuit Breaker - Single Pole - 50AFeatures: Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching Color actuator indicates "OFF" position Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip Ignition protectedsafe for installation aboard gasoline powered boats Specifications: Amperage: 50A AC / 50A DC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 240V AC / 48V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Terminal Stud Torque: 35 in-lb (3.95 Nm) Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Switching Cycles: 10000 Terminal Stud: 1/4-20 Tin-Plated Brass Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 2"H x 3"W x 4"L WT: 0.28 lbs UPC: 632085075460

Read more less

C-Series Flat Rocker Circuit Breaker - Single Pole - 30AFeatures: Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching Color actuator indicates "OFF" position Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip Ignition protectedsafe for installation aboard gasoline powered boats Specifications: Amperage: 30A AC / 30A DC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 240V AC / 48V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Terminal Stud Torque: 35 in-lb (3.95 Nm) Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Switching Cycles: 10000 Terminal Stud: 1/4-20 Tin-Plated Brass Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 2"H x 3"W x 5"L WT: 0.3 lbs UPC: 632085075453

Read more less

C-Series Flat Rocker Circuit Breaker - Single Pole - 20AFeatures: Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching Color actuator indicates "OFF" position Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip Ignition protectedsafe for installation aboard gasoline powered boats Specifications: Amperage: 20A AC / 20A DC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 240V AC / 48V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Terminal Stud Torque: 35 in-lb (3.95 Nm) Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Switching Cycles: 10000 Terminal Stud: 1/4-20 Tin-Plated Brass Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 20a Box Dimensions: 2"H x 3"W x 4"L WT: 0.4 lbs UPC: 632085075439

Read more less

C-Series Flat Rocker Circuit Breaker - Single Pole - 15AFeatures: Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching Color actuator indicates "OFF" position Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip Ignition protectedsafe for installation aboard gasoline powered boats Specifications: Amperage: 15A AC / 15A DC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 240V AC / 48V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Terminal Stud Torque: 35 in-lb (3.95 Nm) Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Switching Cycles: 10000 Terminal Stud: 1/4-20 Tin-Plated Brass Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 15a Box Dimensions: 2"H x 3"W x 4"L WT: 0.4 lbs UPC: 632085075422

Read more less

C-Series Flat Rocker Circuit Breaker - Single Pole - 10AFeatures: Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching Color actuator indicates "OFF" position Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip Ignition protectedsafe for installation aboard gasoline powered boats Specifications: Amperage: 10A AC / 10A DC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 240V AC / 48V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Terminal Stud Torque: 35 in-lb (3.95 Nm) Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Switching Cycles: 10000 Terminal Stud: 1/4-20 Tin-Plated Brass Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 10a Box Dimensions: 1"H x 1"W x 12"L WT: 1 lbs UPC: 632085075415

Read more less
