5112 110A Class T Fuse Features: Extremely fast short-circuit response 20,000 Ampere Interrupt Capacity (AIC) UL listed to standard 248-15 DC Tested to UL standard 198L WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Fuses Fuse Type: Class T Amperage: 110a Box Dimensions: 2"H x 4"W x 6"L WT: 0.2 lbs UPC: 632085051129

Read more less

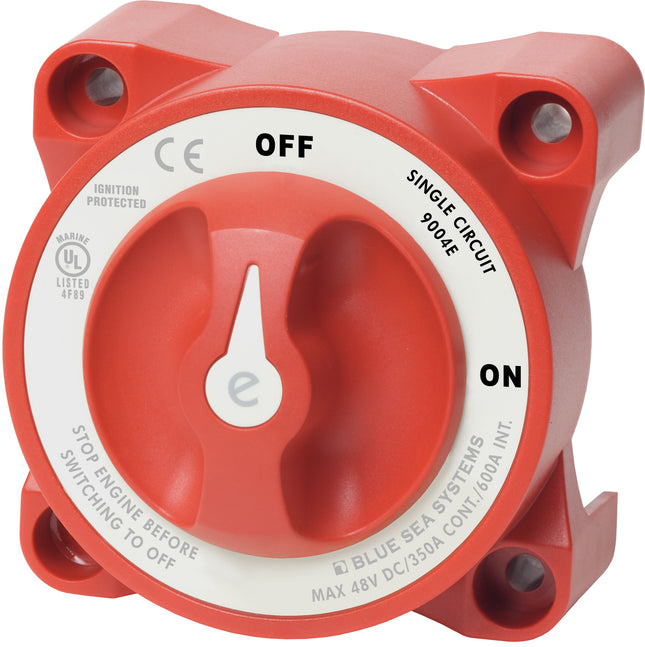

Blue Sea Systems e-Series On-Off Battery Switch with AFDModel: 9004E-BSS 350 Amps continuous rating for inboard gasoline or diesel engines. Tin-plated copper studs for maximum conductivity and corrosion resistance Accepts up to 4/0 AWG battery cables Studs accepts 3/8 (M10) ring terminals 7/8 in (22mm) stud length accepts multiple cable terminals Blue Sea Systems one-piece terminal stud design never loosens over time Fits most Perko and Guest low amperage battery switch hole patterns Case design allows surface or rear panel mounting Tactile indicator conveys knob position by feel Waterproof - rated IP66 from water projected in powerful jets Ignition protected-safe for installation aboard gasoline powered boats Includes AFD (Alternator Field Disconnect) Switches a single battery to a single load groupSpecificationsSwitch TypeSingle Circuit ON-OFF Color Red Switch Positions 2 Battery Combine No Alternator Field Disconnect Yes Maximum Voltage 48V DC Terminal Stud Torque 140 in-lb (15.82 Nm) Continuous Rating 350A Intermittent Rating 600A (5 min) Cranking Rating 30 sec 1200A per circuit Battery Inputs 1 Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm) Cable Size to Meet Ratings 4/0 AWG (120mm2) Mounting Holes Accept 1/4 in (M6) Screw Stud Material Tinned Copper Terminal Stud Size 3/8 in - 16 (M10) "

Read more less

5511eDual Circuit Plus Battery Switch CE Marked Ignition protected - Safe for installation aboard gasoline powered boats Case design allows surface or rear panel mounting Meets American Boat and Yacht Council (ABYC) requirements for battery switches 3/8" - 16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals 7/8" stud length to accept multiple cable terminals Tactile textures indicate knob position by feel only WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Positions: 1 AFD: No Continuous Amperage: 600a Box Dimensions: 3"H x 6"W x 9"L WT: 1.2 lbs UPC: 632085551155 Owner's Manual (pdf)Brochure (pdf)

Read more less

m-Series Mini Dual Circuit Battery Switch - BlackSimultaneously switches two isolated battery banks.Switch Type: Dual CircuitColor: BlackSwitch Positions: 2Battery Combine: NoAlternator Field Disconnect: NoMaximum Voltage: 32V DCContinuous Rating : 300AIntermittent Rating : 450A (5 min)Cranking Rating 10 sec: 1000ACranking Rating 1 min: 650ABattery Inputs: 2Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)Cable Size to Meet Ratings: 4/0 AWG (120mm²)Mounting Holes: Accept #10 ScrewTerminal Stud Size: 3/8"-16 (M10)Terminal Stud Torque: 120 in-lb (13.56 Nm)Weight: 0.80lb (0.36 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AFD: No Continuous Amperage: 300a Box Dimensions: 3"H x 4"W x 7"L WT: 0.6 lbs UPC: 632085601027 Owner's Manual (pdf)

Read more less

6010m-Series (Mini) Battery Switch Dual Circuit™ Switches both positive and negative lines simultaneously with one simple ON/OFF switch meeting European and metal boat requirements for a double pole switch Switches circuits of different voltages, such as 12 volt and 24 volt, simultaneously with one simple ON/OFF switch Features: Ignition protected - Safe for installation aboard gasoline powered boats Case design allows surface, front panel, or rear panel mounting Isolating cover with snap-on sections protects rear contacts 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals 7/8" (22.22mm) stud length to accept multiple cable terminals Ideal for marine or RV applications All non-corrosive marine grade metals Molded in durable reinforced polycarbonate Tactile textures indicate knob position by feel only Label with international ON/OFF legends Removable key or knob remains positively retained ICON label set included for circuit identification WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Positions: 1 Lockable: Yes Continuous Amperage: 600a Box Dimensions: 4"H x 4"W x 7"L WT: 1 lbs UPC: 632085060107

Read more less

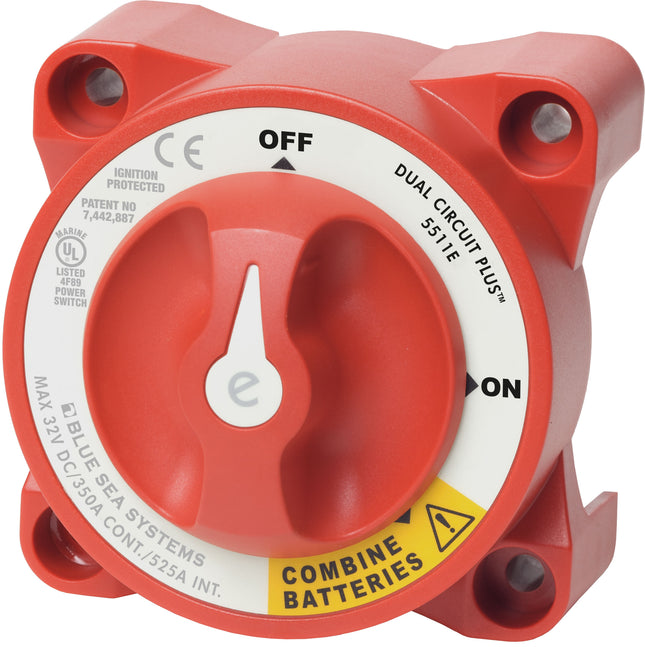

Blue Sea Systems e-Series Dual Circuit PlusTM Battery SwitchModel: 5511E-BSS 350 Amps continuous rating for inboard gasoline or diesel engines. Tin-plated copper studs for maximum conductivity and corrosion resistance Accepts up to 4/0 AWG battery cables Studs accepts 3/8 (M10) ring terminals 7/8 in (22mm) stud length accepts multiple cable terminals Blue Sea Systems one-piece terminal stud design never loosens over time Fits most Perko and Guest low amperage battery switch hole patterns Case design allows surface or rear panel mounting Tactile indicator conveys knob position by feel Waterproof - rated IP66 from water projected in powerful jets Ignition protected-safe for installation aboard gasoline powered boats Make-before-break contact design allows switching without power interruption Simultaneously switches two isolated battery banks or combines battery banks to all loadsSpecificationsSwitch TypeDual Circuit Plus Color Red Switch Positions 3 Battery Combine Yes Alternator Field Disconnect No Maximum Voltage 32V DC Terminal Stud Torque 140 in-lb (15.82 Nm) Continuous Rating 350A Intermittent Rating 525A (5 min) Cranking Rating 30 sec 700A per circuit Battery Inputs 2 Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm) Cable Size to Meet Ratings 4/0 AWG (120mm2) Mounting Holes Accept 1/4 in (M6) Screw Stud Material Tinned Copper Terminal Stud Size 3/8 in - 16 (M10) "

Read more less

4322 Circuit Breaker Switch Panel 6 Position - GrayDesigned for exposed mounting applications.Features: Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode Silicon breaker boots and gasket protects against water ingress Low profle makes it easy to install in tight spaces Fast-on circuit breaker connectors make it quick to wire Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems Specifications: Color: Gray Positions: 6 Nominal Voltage: 12 VDC Maximum Amperage: 45A Terminal Type: 1/4" Male Quick Connect Hardware: Stainless Steel #6 x 5/8" mounting screws  Ring Terminal Size: M5 (#10) Specifications: Voltage: 12v AC/DC: DC Max Breaker Quantity: 6 Waterproof: Resistant Box Dimensions: 1"H x 6"W x 10"L WT: 0.6 lbs UPC: 632085043223

Read more less

Surface Mount 3 Circuit Fuse Block - Independent Source Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection The independent source fuse block (5194) is ideal for 3 output battery chargers The common source fuse block (5196) provides 3 loads from a single source Clip-on cover insulates terminal connections Versatile wiring options allow all wires to come out a single side Label recesses for easy circuit identification One-piece stainless flange nuts ensure safe and secure connections Specifications Ignition Protected: Yes Maximum Amperage: 240 per circuit Maximum Voltage: 58v DC Maximum Torque: 100 in-lb Terminal Stud Size: M8 (5/16"-18) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: Terminal Type: Fuse Blocks Box Dimensions: 4"H x 7"W x 11"L WT: 1.4 lbs UPC: 632085051945

Read more less

8263 Contura Single Bilge Pump Control PanelBlue Sea Systems water resistant 12/24 Volt DC Bilge Pump control panel with Contura rocker switch and fuse holder for fuses up to 20ampFeatures: Designed for 12 or 24V DC systems  ON - OFF - AUTO Contura Switch Watertight mounting gasket Fuse holders accept commonly available AGC and MDL glass fuses "ON” LED embedded in switch indicates pump is running Completely wired and ready to install Specifications: Weatherproof - Water Resistant No. of Bilge Pumps - one (1) Nominal Voltage - 12/24V Panel Cumulative Rating - 45A Switch Rating: 20A @ 12V DC / 15A @ 24V DC Dimensions (H x W x D) - 3.75" x 2.25" x 3" Weight - .25lb In the Box: Panel Mount AGC/MDL Fuse Holder (P/N 5021) Contura III Switch SPDT - On - OFF - (ON) (P/N 7944) Black 60 Label Set (P/N 8214) *Sold as an Individual WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Action: ON-OFF-AUTO Color: Black/Grey Throw/Pole: SPDT Box Dimensions: 3"H x 4"W x 7"L WT: 0.25 lbs UPC: 632085082635 Owner's Manual (pdf)

Read more less

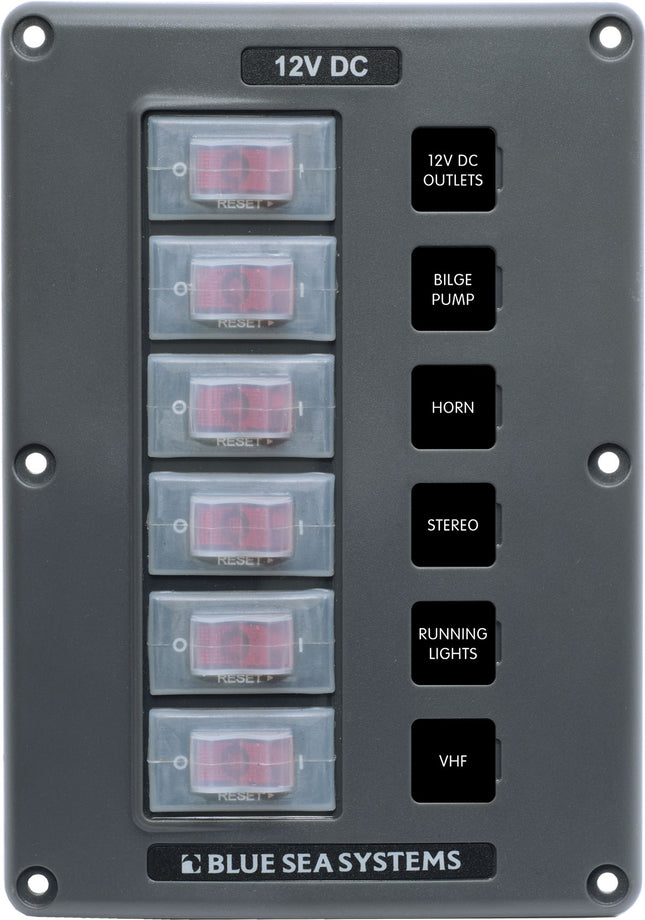

Blue Sea Systems Water-Resistant Circuit Breaker Switch Panel - Gray, 6 PositionsModel: 4322-BSS Illuminated 15A circuit breakers provide switching, "ON" indication and overcurrent protection Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application Polycarbonate/ABS panel surface is UV-stabilized, ?ame retardant, and will not corrode Silicon breaker boots and gasket protects against water ingress Low profle makes it easy to install in tight spaces Fast-on circuit breaker connectors make it quick to wire Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems SpecificationsColorGray Positions 6 Nominal Voltage 12V DC Circuit Protection Circuit Breaker Maximum Amperage 45A 9A @ 24V DC (per circuit) Terminal Type 1/4 Male quick connect Hardware Stainless Steel #6 x 5/8 in mounting screws Ring Terminal Size M5 (#10) Dimensions 6.625"H x 4.625"W x 1.75"D "

Read more less

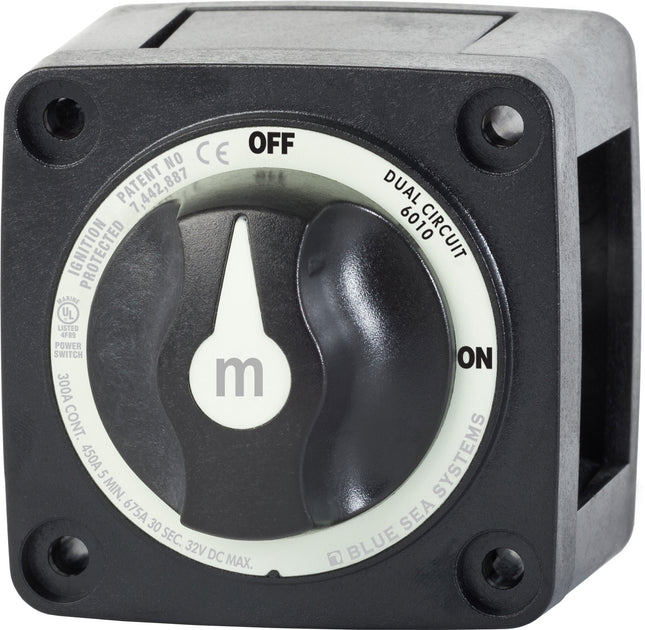

Blue Sea Systems m-Series Mini Dual Circuit Battery Switch - BlackModel: 6010200-BSS Tin-plated copper studs for maximum conductivity and corrosion resistance Studs accept 3/8 (M10) ring terminals 7/8 in (22mm) stud length accepts multiple cable terminals Blue Sea Systems one-piece terminal stud design never loosens over time Isolating cover with snap-on sections protects rear contacts Case design allows surface or rear panel mounting Waterproof - rated IP66 from water projected in powerful jets One-piece stainless flange nuts ensure safe and secure connections Breakout tabs allow wire access in any direction Simultaneously switches two isolated battery banksSpecificationsSwitch TypeDual Circuit Color Black Switch Positions 2 Battery Combine No Alternator Field Disconnect No Maximum Voltage 32vDC Stud Size 3/8 in Terminal Stud Torque 120 in-lb (13.56 Nm) Continuous Rating 300A Intermittent Rating 450A (5 min) Cranking Rating 30 sec 675A Battery Inputs 2 Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm) Cable Size to Meet Ratings 4/0 AWG (120mm2) Mounting Holes Accept #10 Screw Stud Material Tinned Copper Stud Torque 120 in-lb (13.56 Nm) Terminal Stud Size 3/8 in - 16 (M10) "

Read more less

Blue Sea Systems m-Series Mini Dual Circuit Battery Switch - RedModel: 6010-BSS Tin-plated copper studs for maximum conductivity and corrosion resistance Studs accept 3/8 (M10) ring terminals 7/8 in (22mm) stud length accepts multiple cable terminals Blue Sea Systems one-piece terminal stud design never loosens over time Isolating cover with snap-on sections protects rear contacts Case design allows surface or rear panel mounting Waterproof - rated IP66 from water projected in powerful jets One-piece stainless flange nuts ensure safe and secure connections Breakout tabs allow wire access in any direction Simultaneously switches two isolated battery banksSpecificationsSwitch TypeDual Circuit Color Red Switch Positions 2 Battery Combine No Alternator Field Disconnect No Maximum Voltage 32vDC Stud Size 3/8 in Terminal Stud Torque 120 in-lb (13.56 Nm) Continuous Rating 300A Intermittent Rating 450A (5 min) Cranking Rating 30 sec 675A Battery Inputs 2 Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm) Cable Size to Meet Ratings 4/0 AWG (120mm2) Mounting Holes Accept #10 Screw Stud Material Tinned Copper Stud Torque 120 in-lb (13.56 Nm) Terminal Stud Size 3/8 in - 16 (M10) "

Read more less

Blue Sea Systems m-Series Selector 3 Position Battery Switch - RedModel: 6008-BSS Tin-plated copper studs for maximum conductivity and corrosion resistance Studs accept 3/8 (M10) ring terminals 7/8 in (22mm) stud length accepts multiple cable terminals Blue Sea Systems one-piece terminal stud design never loosens over time Isolating cover with snap-on sections protects rear contacts Case design allows surface or rear panel mounting Waterproof - rated IP66 from water projected in powerful jets One-piece stainless flange nuts ensure safe and secure connections Breakout tabs allow wire access in any direction Ignition protected-safe for installation aboard gasoline powered boats Switches a single battery to a single load group.SpecificationsSwitch TypeSelector 3 Position Color Red Switch Positions 3 Battery Combine No Alternator Field Disconnect No Maximum Voltage 32vDC Stud Size 3/8 in Terminal Stud Torque 120 in-lb (13.56 Nm) Continuous Rating 300A Intermittent Rating 500A (5 min) Cranking Rating 30 sec 900A Battery Inputs 2 Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm) Cable Size to Meet Ratings 4/0 AWG (120mm2) Mounting Holes Accept #10 Screw Stud Material Tinned Copper Stud Torque 120 in-lb (13.56 Nm) Terminal Stud Size 3/8 in - 16 (M10) "

Read more less

Blue Sea Systems 285-Series Circuit Breaker - Surface Mount 120AModel: 7188-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage120A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 50 in-lb (5.65 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) "

Read more less

Blue Sea Systems 285-Series Circuit Breaker - Surface Mount 100AModel: 7187-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage100A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 50 in-lb (5.65 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) "

Read more less

Blue Sea Systems 285-Series Circuit Breaker - Surface Mount 80AModel: 7186-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage80A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 50 in-lb (5.65 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) "

Read more less

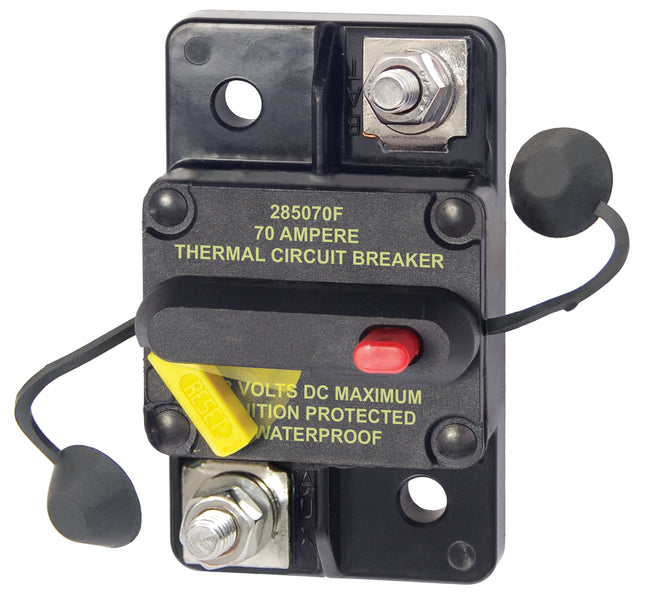

Blue Sea Systems 285-Series Circuit Breaker - Surface Mount 70AModel: 7185-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage70A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 50 in-lb (5.65 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) "

Read more less

Ble Sea Systems 285-Series Circuit Breaker - Surface Mount 60AModel: 7184-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage60A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 50 in-lb (5.65 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) "

Read more less

Ble Sea Systems 285-Series Circuit Breaker - Surface Mount 50AModel: 7183-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage50A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 50 in-lb (5.65 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) "

Read more less

Ble Sea Systems 285-Series Circuit Breaker - Surface Mount 40AModel: 7182-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage40A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 50 in-lb (5.65 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) </table"

Read more less

Ble Sea Systems 285-Series Circuit Breaker - Surface Mount 25AModel: 7180-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage25A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 60 in-lb (6.78 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) "

Read more less

Ble Sea Systems 285-Series Circuit Breaker - Surface Mount 30AModel: 7181-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage30A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 50 in-lb (5.65 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) "

Read more less

Blue Sea Systems 285-Series Circuit Breaker - Panel Mount 150AModel: 7089-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage150A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 60 in-lb (6.78 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) "

Read more less

Blue Sea Systems 285-Series Circuit Breaker - Panel Mount 120AModel: 7088-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage120A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 60 in-lb (6.78 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) "

Read more less

Ble Sea Systems 285-Series Circuit Breaker - Panel Mount 100AModel: 7087-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage100A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 60 in-lb (6.78 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) "

Read more less

Ble Sea Systems 285-Series Circuit Breaker - Panel Mount 80AModel: 7086-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage80A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 60 in-lb (6.78 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) "

Read more less

Ble Sea Systems 285-Series Circuit Breaker - Panel Mount 70AModel: 7085-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage70A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 60 in-lb (6.78 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) "

Read more less

Ble Sea Systems 285-Series Circuit Breaker - Panel Mount 60AModel: 7084-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage60A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 60 in-lb (6.78 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) c"

Read more less

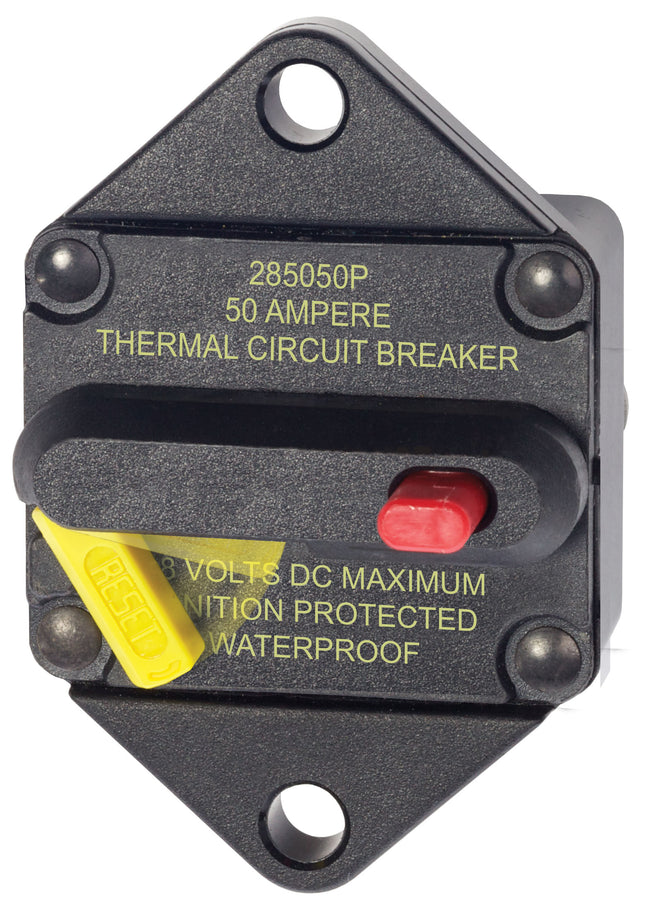

Ble Sea Systems 285-Series Circuit Breaker - Panel Mount 50AModel: 7083-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage50A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 60 in-lb (6.78 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) "

Read more less

Ble Sea Systems 285-Series Circuit Breaker - Panel Mount 40AModel: 7082-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage40A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 60 in-lb (6.78 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) "

Read more less

Ble Sea Systems 285-Series Circuit Breaker - Panel Mount 30AModel: 7081-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage30A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 60 in-lb (6.78 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) "

Read more less

Ble Sea Systems 285-Series Circuit Breaker - Panel Mount 25AModel: 7080-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage25A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 60 in-lb (6.78 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) "

Read more less

Blue Sea Systems 285-Series Circuit Breaker - Surface Mount 150AModel: 7189-BSS Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit* Trip Free" - cannot be held closed after trip * Do not use as a switch where high inrush currents are expectedSpecificationsAmperage150A Maximum Voltage 48V DC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 50 in-lb (5.65 Nm) Interrupt Capacity 3000A @ 48V Minimum Operating Temperature -40 deg C Maximum Operating Temperature 85 deg C Circuit Breaker Class Type III - switchable/manual reset - trip free Terminal Stud M6 (accepts 1/4 in Ring Terminal) "

Read more less

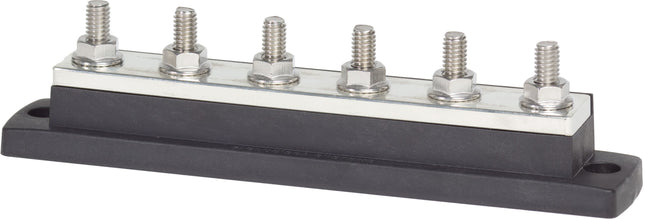

Blue Sea 2126 MaxiBus 250A BusBar - Six 5/16-18 StudsModel: 2126-BSS Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact Raised bus provides easy access to multiple wires on a single stud UL 94-V0 rated base material resists high heat Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces Busbars are used to consolidate multiple wires or feed multiple circuitsSpecificationsMaximum Voltage300V AC

Read more less

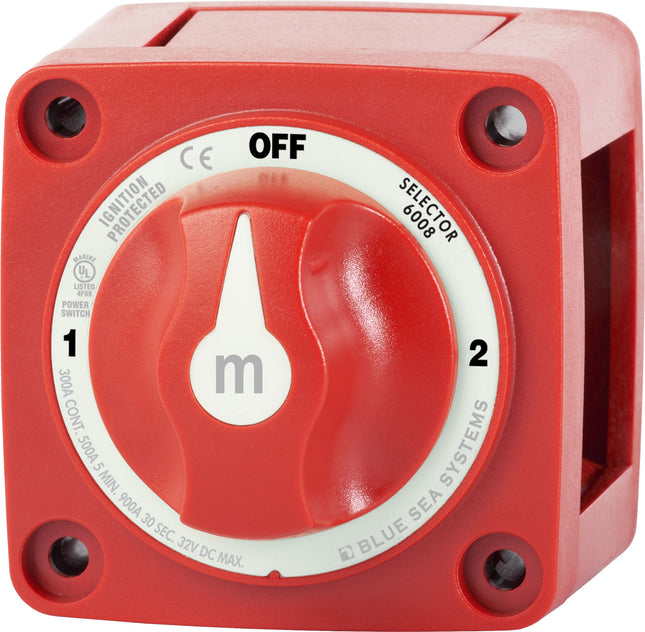

6008 M-Series Battery Switch 3 Position - RedSwitches a single battery to a single load group.Features: Ignition protected—safe for installation aboard gasoline powered boats Case design allows surface or rear panel mounting Specifications: Switch Type: Selector 3 Position Color: Red Battery Combine: No Switch Positions: 3 Maximum Voltage: 32V DC

Read more less

1046 48V Dual USB Charger Socket MountIntelligent device recognition maximizes charge rate for phones, tablets, or other mobile devices.Features: Ideal for golf carts and other 48V systems Spring-hinged lid keeps debris and moisture out Charges at the speed required by specific devices Internal filtering for reduced electronic interference Over temperature protection Conformal coated circuit board for the harsh marine environment Mounts in a common 1-1/8" hole Specifications: Max Output Current: 4A DC (total) Input Voltage: 48V DC Input Voltage Range: 32-64V DC Reverse Polarity: Yes Short Circuit Protection: Yes Thermal Overload Protection: Yes USB: 2.0, Type A

Read more less

1038 48V Dual USB Charger Contura Switch MountIntelligent device recognition maximizes charge rate for phones, tablets, or other mobile devices.Features: Ideal for golf carts and other 48V systems Spring-hinged lid keeps debris and moisture out Charges at the speed required by specific devices Internal filtering for reduced electronic interference Over temperature protection Conformal coated circuit board for the harsh marine environment Mounts in an existing contura switch aperture Specifications: Max Output Current: 4A DC (total) Input Voltage: 48V DC Input Voltage Range: 32-64V DC Reverse Polarity: Yes Short Circuit Protection: Yes Thermal Overload Protection: Yes USB: 2.0, Type A

Read more less

ST CLB Circuit Breaker Block - 6 PositionFeatures Quick connect clips allow circuit breakers to snap easily into place Tin-plated copper busses and screw terminals Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements Easy to open clip on cover Breakouts allow wire access in two directions Accepts ring terminals Optional push button waterproof boots or dress nuts can be installed over cover Specifications:Circuits: 6Maximum Amperage: 32A (per circuit) 40A (per jumped circuit group)Maximum Voltage: 32V DCMounting: #8 Screw (M4) or #8 NutSource: Independent SourceMinimum Operating Temperature: -10° CMaximum Operating Temperature: 60° CMounting Centers: 5.63"(143 mm)Screw Terminal Type: #8-32 Screws with Captive Star Lock WasherHeight: 6.69"(169.93 mm)Weight: 0.75lb (0.34 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 32/40a Box Dimensions: 3"H x 5"W x 11"L WT: 0.8 lbs UPC: 632085050504 Brochure (pdf)

Read more less

5034ST Blade Fuse Block w/out Cover - 12 Circuit w/out Negative Bus Tin-plated copper buses and fuse clips give 30 Amperes rating per circuit Accepts ATO and ATC fast acting blade fuses WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: ATO/ATC Type: Fuse Blocks Box Dimensions: 1"H x 2"W x 6"L WT: 1 lbs UPC: 632085050344 Owner's Manual (pdf)

Read more less

WeatherDeck™ Water Resistant Fuse PanelPN: 4302Color: GrayFeatures: Panel front rated IP67 when properly mounted with watertight mounting gasket IP67 – protected against immersion up to 1 meter for 30 minutes Designed for flybridge and open cockpit applications Independent label back lighting circuit for remote switching and dimming Each panel can be mounted in four different orientations Integrated ATO/ATC fuse based circuit protection Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel. Specifications: Weatherproof: Waterproof Positions: 2 Nominal Voltage: 12v DC Circuit Protection: Fuse Maximum Amperage: 15A @ 12v DC (per circuit) Panel Cumulative Rating: 30A Backlit Label: Bicolored LED Backlighting Amperage: 10mA/illuminated Circuit Backlighting Voltage: 12v DC Height: 2.6" Width: 3.88" Depth: 2.5" Included: (2) 4150 WeatherDeck® Toggle Switch SPST - ON-OFF (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1 (2) 5242 ATO/ATC Fuse - 15 Amp WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Waterproof: Waterproof AC/DC: DC Max Breaker Quantity: 2 Voltage: 12v Box Dimensions: 5"H x 6"W x 6"L WT: 0.5 lbs UPC: 632085043025 Quick Guide (pdf)

Read more less

5026 ST Blade Fuse Block with Cover - 12 Circuit with Negative Bus Features: Clear insulating cover with label recesses accept Small Format Labels Cover Satisfies ABYC/USCG requirements for insulation Tin-plated copper buses and fuse clips give 30 Amperes rating per circuit Accepts ATO and ATC fast acting blade fuses 20 write-on circuit labels included WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

1739200 Mini OLED Tank Meter - BlueMonitors essential electrical system parameters on a bright, waterproof, daylight readable OLED screen.Features: Compact size enables mounting in any convenient location Reverse polarity protected Mounts in a common 1-1/8 in hole Color: Blue Meter: Tank Meter Nominal Voltage: 12V DC/24V DC Resolution: 5% Input Voltage: 8V-36V DC Operating Current: 17mA Switching Cycles: 10,000 Weight: 0.30lb (0.14 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

2143Amperage: 60AFeatures: Weatherproof Can be used as Main, Branch, or 24 hour circuit protection Compact design enables high density circuit protection configurations Push-to-reset operation "Trip Free" design cannot be held "ON" during fault current condition Ignition protected - Safe for installation aboard gasoline powered boats Captive star lock washers meet requirements for anti-rotation and eliminate handling of small, easily dropped parts WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 60a Box Dimensions: 2"H x 3"W x 4"L WT: 0.3 lbs UPC: 632085021436

Read more less

2142Amperage: 50AFeatures: Weatherproof Can be used as Main, Branch, or 24 hour circuit protection Compact design enables high density circuit protection configurations Push-to-reset operation "Trip Free" design cannot be held "ON" during fault current condition Ignition protected - Safe for installation aboard gasoline powered boats Captive star lock washers meet requirements for anti-rotation and eliminate handling of small, easily dropped parts WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 2"H x 3"W x 7"L WT: 0.2 lbs UPC: 632085021429

Read more less

2141Amperage: 40AFeatures: Weatherproof Can be used as Main, Branch, or 24 hour circuit protection Compact design enables high density circuit protection configurations Push-to-reset operation "Trip Free" design cannot be held "ON" during fault current condition Ignition protected - Safe for installation aboard gasoline powered boats Captive star lock washers meet requirements for anti-rotation and eliminate handling of small, easily dropped parts WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 40a Box Dimensions: 2"H x 3"W x 7"L WT: 0.75 lbs UPC: 632085021412

Read more less

2140Amperage: 30AFeatures: Weatherproof Can be used as Main, Branch, or 24 hour circuit protection Compact design enables high density circuit protection configurations Push-to-reset operation "Trip Free" design cannot be held "ON" during fault current condition Ignition protected - Safe for installation aboard gasoline powered boats Captive star lock washers meet requirements for anti-rotation and eliminate handling of small, easily dropped parts WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 2"H x 3"W x 7"L WT: 0.15 lbs UPC: 632085021405

Read more less

2139Amperage: 20AFeatures: Weatherproof Can be used as Main, Branch, or 24 hour circuit protection Compact design enables high density circuit protection configurations Push-to-reset operation "Trip Free" design cannot be held "ON" during fault current condition Ignition protected - Safe for installation aboard gasoline powered boats Captive star lock washers meet requirements for anti-rotation and eliminate handling of small, easily dropped parts WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 20a Box Dimensions: 2"H x 3"W x 7"L WT: 0.2 lbs UPC: 632085021399

Read more less

2138Amperage: 15AFeatures: Weatherproof Can be used as Main, Branch, or 24 hour circuit protection Compact design enables high density circuit protection configurations Push-to-reset operation "Trip Free" design cannot be held "ON" during fault current condition Ignition protected - Safe for installation aboard gasoline powered boats Captive star lock washers meet requirements for anti-rotation and eliminate handling of small, easily dropped parts WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 15a Box Dimensions: 2"H x 3"W x 4"L WT: 0.2 lbs UPC: 632085021382

Read more less
