Freq. Khz Power Beam Width ( deg) LF//HF (-3dB) Max Depth (ft) Septh,Speed,Temp # of Pins Supported Deadrise / Transom Angles 40-60 1KW 16-25 3000 Depth,Temp 8 16-24 deg Deadrise

Read more less

Freq. Khz Power Beam Width ( deg) LF//HF (-3dB) Max Depth (ft) Septh,Speed,Temp # of Pins Supported Deadrise / Transom Angles 40-60 1KW 16-25 3000 Depth,Temp 8 8-15 deg Deadrise

Read more less

Airmar M265C-LH Low High CHIRP In-Hull Transducer with Garmin 12-PinModel: 010-12380-20 Depth only 1 kW of power for great deep-water performance Low frequency: 42 to 65 kHz, 25 deg to 16 deg beamwidth, Maximum depth of 914 m (3000 feet) High frequency: 130 to 210 kHz, 10 deg to 6 deg beamwidth, Maximum depth of 304 m (1000 feet) 103 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Plastic transducer housing and mounting tank Patented Xducer ID(R) technology We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna-60 kHz, squid-133 kHz, and cod-175 kHz. The M265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.Airmar's M265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10 deg to 6 deg, bandwidth-perfect for picking apart structure and pinpointing tight-holding fish in structure.The transducer is installed in the included tank which is cut to the boat's deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.SpecificationsCable-Length10 m (33 feet) Connector Garmin 12-Pin Deadrise Range 0 deg to 22 deg Frequency Band Low-High Housing Material Plastic Low Frequency 42-65 kHz Low Frequency Beamwidth 25 deg-16 deg Max Deadrise Accommodates a deadrise angle up to 30 deg with the longest side of the tank installed parallel to the centerline (keel) of the hull Max Depth Low frequency- 914 m (3000 feet), High frequency- 304 m (1000 feet) Mounting Style In-Hull Single or Dual Frequency CHIRP-Ready Dual-Band High Frequency 130-210 kHz High Frequency Beamwidth 10 deg-6 deg

Read more less

Garmin GMR xHD3 6 feet Antenna OnlyModel: 010-02780-10This is a 6 feet replacement xHD3 AntennaSpecificationsDIMENSION6 feet array: 1938 x 122 x 170 mm (76.5 x 4.8 in x 6.7 in) ANTENNA LENGTH 6 feet array: 72 in (183 cm) BEAM WIDTH 6 feet array: 1.1 deg horizontal

Read more less

Garmin PanoptixTM LVS32-TH Transducer Thru-hull MountModel: 010-12928-01This transducer is part of the Pantopix LiveScope system and requires the GLS 10 sonar black box to function. This thru-hull version transducer features LiveScope Forward to see detailed, easy-to-interpret live scanning sonar images of structure, bait and fish swimming up to 200 feet around your boat in real-time, even when your boat is stationary. Attitude Heading Reference System (AHRS) stabilization keeps your sonar view steady, even in rough conditions.SpecificationsTRANSDUCER FREQUENCY530 - 1,100 kHz TRANSDUCER POWER 500w TRANSDUCER BEAMWIDTH 20 deg x 135 deg TRANSDUCER MAXIMUM DEPTH Forward: 200 feet (61.0 m) TRANSDUCER CABLE LENGTH 20 ft. TRANSDUCER DEPTH/SPEED/TEMPERATURE Depth TRANSDUCER NUMBER OF PINS 21 What's in the Box: Panoptix LVS32-TH transducer Thru-hull mounting hardware Mounting hardware Documentation

Read more less

Garmin GPSMAP 943 Chartplotter with U.S. and Canada Garmin Navionics+Model: 010-02366-60 New higher-resolution in-plane switching touchscreen display offers improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9 in units Fast and responsive, with nearly twice the processing power of previous-generation GPSMAP(R) devices, this system references 10 Hz GNSS (GPS, GLONASS and Galileo) for accurate positioning and smooth speed as well as COG data Slimline display borders, edge-to-edge glass and reduced unit footprint make for easy retrofit in a wider range of dash configurations Preloaded Garmin Navionics+TM coastal charts and inland mapping feature Auto Guidance+TM technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) ; plus, there's support for optional Garmin Navionics Vision+TM premium map content. Built-in Garmin SailAssistTM features, including laylines, race features, set and drift, wind data and more. Requires compatible wind transducer (sold separately) J1939 engine connectivity for easy integration with engines and our exclusive OneHelmTM feature for connecting to your compatible third-party devices, such as EmpirBusTM digital switching Easily build your marine system - from compatible sonar and autopilots to compatible radar, cameras and multimedia - by using NMEA 2000(R) and NMEA 0183 networking and the Garmin Marine Network Use built-in Wi-Fi(R) networking to pair with the free ActiveCaptain(R) smartphone app for access to the OneChartTM feature, smart notifications, software updates and more. Integrated ANT(R) connectivity support for use with compatible quatix(R) smartwatches, the gWindTM Wireless 2 transducer, GNXTM Wind marine instrument and wireless remote controls With 50% more display pixels and nearly double the processing power of previous-generation 9 in GPSMAP devices

Read more less

Garmin GPSMAP 923 Chartplotter with Worldwide BasemapModel: 010-02366-00 Easily integrate with more engines. Connect to compatible third-party devices with OneHelmTM digital switching. Easily build your marine system using the best of network connectivity. Compatible with premium maps and charts for the best in Garmin navigation. Take the guesswork out of sailing with clear laylines and more - right on the screen. Manage your marine experience from nearly anywhere2. With 50% more display pixels and nearly double the processing power of previous-generation 9 in GPSMAP devices, this crisp touchscreen chartplotter with high-resolution IPS display integrates seamlessly into your Garmin marine system.With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it's easy to retrofit this 9 in plotter in a wider range of dash configurations.New higher-resolution 9 in displays offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9 in GPSMAP devices.View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more3.These optional charts offer the best of Garmin and Navionics(R) data, Auto Guidance4 technology and other premium navigation features.If you have multiple compatible Garmin devices on your boat, you can share information - such as maps, user data, radar and IP camera video - among them.Connect to compatible autopilots, digital switching, weather, Fusion-LinkTM audio system, media, VHF, AIS and more from one screen.Built-in Wi-Fi(R) connectivity pairs with the free all-in-one mobile app for access to the OneChartTM feature, smart notifications, software updates, Garmin HelmTM digital switching, Garmin QuickdrawTM Community data and more5.Connect with some of your favorite devices, such as quatix(R) marine watches, gWindTM Wireless 2 transducers, GNXTM Wind marine instruments and wireless remote controls.Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBusTM digital switching, on one screen.Pair with Panoptix PS51 (transducer sold separately) with FrontVü scanning sonar6 to help you see and avoid submerged obstacles in real time as you approach within a 300 feet range.SpecificationsPHYSICAL DIMENSIONS9.2 x 6.4 in x 3 in (23.3 x 16.2 x 7.6 cm) DISPLAY SIZE 7.8 in x 4.4 in; 9.0 in diagonal DISPLAY RESOLUTION 1280 x 720 pixels DISPLAY TYPE WXGA display WEIGHT 3.6 lbs (1.6 kg) WATER RATING IPX7 POLARIZED SUPPORT Yes POWER CONSUMPTION Max power usage at 10 Vdc: 22 W

Read more less

GT51M-THP - Stainless Steel Thru-Hull Pair DownVü/SideVü 500 W (CHIRP 260/455 kHz) Traditional 600 W (Mid-band CHIRP 80-160 kHz) Transducers with Temp (12-Pin)This thru-hull transducer pair provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. These traditional CHIRP sonar and CHIRP DownVü/SideVü transducers are optimized for depth performance and rough conditions.The CHIRP DownVü/ SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees.GT51M-THP includes a 12-pin port/starboard transducers with stainless steel stems, fairing blocks, Y-cable, bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.Compatible Devices: GPSMAP® 7607xsv GPSMAP® 7608xsv GPSMAP® 7610xsv GPSMAP® 7612xsv GSD™ 25 Premium Sonar Module WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Imaging: Standard/Down/Side Chirp: Medium/Non Traditional Cable Length (Feet): 5' + 30' y-extension Temperature: Yes Speed Included: No Pins: 12 Mounting Style: Thru-Hull Box Dimensions: 6"H x 13"W x 17"L WT: 15 lbs UPC: 753759152932 Owner's Manual (pdf)

Read more less

Garmin B175CHW 20Deg Tlilted Element Bronze Thru-Hull with 8-PinModel: 010-12181-22Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, high, and high wide versions provide maximum flexibility for the choice of frequencies.An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 600 feet; an operating frequency of 150-250 kHz; a beamwidth of 25 degrees; and a 16 to 24 degree deadrise.SpecificationsCable length39 ft Depth/Temperature Yes Power 1kW Frequency 150-250 kHz Supported deadrise/Transom angles 16 deg-24 deg degree deadrise Maximum depth 600 ft. Number of pins 8-pin Beamwidth 25 deg

Read more less

GT56UHD-THP Thru-Hull Mount Transducer - PairThis all-in-one transducer offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars, high wide CHIRP traditional sonar, and more, so you can spend more time catching fish.Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element. See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has a 20% greater range at 1,000 kHz, so you can see even farther than before.Features: See everything below and around your boat with Ultra High-Definition scanning sonar High wide CHIRP traditional sonar delivers target separation like no other Multiple sonar frequencies have you covered — no matter what depth you’re fishing See targets and structure in bright, vivid color Mount this transducer your way — transom, trolling motor or thru-hull Specifications: Cable Length (Feet): 25' Chirp: High Wide Imaging: Standard/Down/Side Mounting Style: Thru-Hull Pins: 12 Speed Included: No Temperature: Yes Box Dimensions: 4"H x 7"W x 18"L WT: 15 lbs UPC: 753759294236

Read more less

Garmin Cortex(R) M1 SOTDMA SmartAIS Transponder with Remote Vessel MonitoringModel: 010-02815-20 A high-speed smartAIS transponder transmits your boat's location and heading and proactively warns of certain collision threats. In addition to collision alerts, smartAIS will trigger alarms for anchor drag or man overboard situations. This hub comes VHF-ready. Simply add a Cortex handset (sold separately) for full VHF radio capability. Cortex apps let you monitor boat systems, receive alerts and remotely control devices from your compatible smartphone. A GPIO port and supplied cable allow you to monitor bilge pumps, security sensors, shore power and more. NMEA 2000(R) networking allows you to view Cortex data on your connected MFDs and chartplotters. Cortex M1 is a full Class B SOTDMA transceiver combining GPS, AIS and heading data with smart logic to proactively warn you of certain collision risks with alarms or voice-annunciated alerts that escalate until acknowledged. AIS vessel information (name, bearing and relative position) is continuously provided using AIS information broadcast from other boats.Using actual anchor position from the bow and the Cortex built-in heading sensor, smartAIS tracks boat movement and sounds an alarm if the anchor drags or if there is a change in wind speed, direction or water depth. While on your boat, get alerts on your compatible mobile device via the Cortex Onboard app - or via the Cortex Monitor app when you're ashore.Cortex smartAIS continuously watches for man overboard (MOB) activations, sounding an alarm when it detects one. MOB can be manually activated via the Cortex Onboard smart device app or automatically from an AIS MOB beacon - which launches a track-back mode for quicker retrieval.In the event of a collision alarm, Cortex will announce the direction of a collision threat, such as "collision alert, starboard bow." Instead of an ambiguous beep that other AIS systems provide, Cortex tells users what the alert is for and the direction of the threat.Check boat status, receive alerts and control devices with Cortex remote monitoring access using Cortex handsets (sold separately) or Cortex smartphone apps. Directly connect up to 5 external sensors to your system for added monitoring capability.Subscribe to a premium Cortex Monitor plan to receive alerts, see real-time information about your boat and remotely control devices such as air conditioning, lighting, refrigeration or ice makers using the Cortex Monitor app on your compatible smartphone.While you're on your boat, the Cortex Onboard app can serve as your primary interface with your Cortex M1 hub, allowing you to monitor boat stats, receive alerts, view instrument data and display AIS screens on your compatible smart device.Broadcast built-in heading via AIS transmissions to other vessels so they can more accurately track their closest point of approach and alter course to avoid you.Cortex can receive and broadcast information over NMEA 0183 and NMEA 2000 networks, making it compatible with the majority of modern chartplotters and multi-function displays.SpecificationsUNIT SIZE168 x 168 x 58.7 mm (6 5/8 in x 6 5/8 in x 2 5/16 in ) WEIGHT 770 g (1.7 lbs) WATER RATING IPX8 (water submersion rating to 10 feet) OPERATING VOLTAGE 9-33V CURRENT DRAW 12V: 6A max, 700mA nom ANT CONNECTOR SO239 SPLITTER Max input power 25 W Insertion loss RX 0dB, TX < 2dB SPLITTER CONNECTOR BNC VHF Voice DEDICATED RX VHF CHANNELS 3 VHF POWER OUTPUT 25 W, 1 W (high, low) REGION U.S., Canada, International Class D DSC CLASS Class D DEDICATED RX DSC CHANNELS 1 AIS CLASS SOTDMA Class B DEDICATED RX AIS CHANNELS 2 AIS POWER OUTPUT 5W Networking NMEA 2000(R) GATEWAY 1 isolated micro-C male port, AIS, GPS & MOB PGN output, gateway translations to/from NMEA 0183 NMEA 2000(R) LEN 2 NMEA 0183 DETAIL 1 isolated NMEA 0183 port, AIS & GPS sentences, gateway translations to/from NMEA 2000(R), 4800/38400 baud WIRELESS SECURITY WPA2 Personal CLOUD CONNECTIVITY LTE-Cat1 with 3G fallback (U.S., Canada), 3G (Europe, Asia), integrated SIM, integrated antenna, SMA-RP external antenna port CONTROL OUTPUTS 2; low side driven (max 150mA) Connections CONNECTIONS WIRELESS CONNECTIVITY access point for up to 5 handsets (max 10 devices total), simultaneous client mode, 2.4 GHz, 802.11b/g/n, integrated antenna, SMA-RP external antenna port (optional) What's in the Box: M1 Hub GPS antenna Power cable Audio cable External sensors cable External Wi-Fi(R) cable VHF patch cable

Read more less

Garmin GT51M-THP TransducerTHRU-HULL Pair 12-PinModel: 010-01966-11Perfect for the coastal and offshore fisherman who want CHIRP traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar with stainless steel stems, this pair of thru-hull mounted transducers consistently displays clear and crisp fish arches with superior target separation as well as clear pictures of objects, structure and fish that pass below and to each side of your boat and is optimized for rough sea conditions.The CHIRP ClearVü/ SideVü elements have a power rating of 500 W per element and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees.GT51M-THP includes a 12-pin port/starboard transducers with stainless steel stems, fairing blocks, Y-cable, bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.SpecificationsCHIRP Mid-band(80-160 kHz) ClearVü/SideVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz) Power CHIRP Traditional 600 W ClearVü/SideVü 500 W Beamwidth Traditional 24 deg-13 deg ClearVü/SideVü 2.0 degx51 deg @ 260 kHz and 1.4 degx29 deg @ 455 kHz Maximum depth Traditional 1,800 ft ClearVü 1,000 ft SideVü 750 ft. Depth/Speed/Temperature Depth and Temperature Number of pins 12-pin Cable length 5 ft. + 30 ft. y-extension cable Supported deadrise/Transom angles Up to 25 deg deadrise What's in the Box: Port Transducer Starboard transducer Fair Block x 2 Isolation plate and busing x 2 Mounting Hardware Documentation Y-Cable

Read more less

Garmin GT56UHD-THP Thru-Hull Transducer PairModel: 010-02732-11 See everything below and around your boat with Ultra High-Definition scanning sonar. High wide CHIRP traditional sonar delivers target separation like no other. Multiple sonar frequencies have you covered - no matter what depth you're fishing. See targets and structure in bright, vivid color. Mount this transducer your way - transom, trolling motor or thru-hull. This all-in-one transducer offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars, high wide CHIRP traditional sonar and more, so you can spend more time catching fish.Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element.See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has 20% greater range at 1,000 kHz, so you can see even farther than before.Experience remarkably clear target separation and definition up to 800 feet below your boat.Experience remarkably clear target separation and definition up to 800 feet below your boat.High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Everyone's setup is different. That's why we've included transom, trolling motor and thru-hull mounting hardware.SpecificationsTRANSDUCER CABLE LENGTH25 ft TRANSDUCER FREQUENCY Traditional High-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) TRANSDUCER POWER Traditional 350 W; ClearVü/SideVü 500 W TRANSDUCER BEAMWIDTH Traditional CHIRP: 24-16; ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz TRANSDUCER MAXIMUM DEPTH Traditional: 800 ft freshwater; ClearVü: 400 ft; SideVü: 500 ft TRANSDUCER DEPTH/SPEED/TEMPERATURE Depth and temperature TRANSDUCER NUMBER OF PINS 12 TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES 0 deg-70 deg degree transom (GT56UHD-TM) Dimensions (without mount): 218.5 mm x 51.8 mm x 27.7 mm Each What's in the Box: GT56UHD-TH transducer x 2 Stainless steel stem x 2 Fairing block x 2 Isolation plate and bushing x 2 Y-Cable Mounting hardware Documentation

Read more less

Garmin ECHOMAP UHD2 94sv, U.S. coastal with GT56 transducerModel: 010-02689-01 Easy-to-use 9 in chartplotter with a bright, sunlight-readable touchscreen display with improved detail, clarity and viewing angle Built-in Garmin Navionics+TM coastal charts with integrated Navionics(R) data Built-in Wi-Fi(R) connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter Wirelessly connects to your Force(R) trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more Included GT56-TM transducer for Garmin traditional

Read more less

Garmin GPSMAP(R) 1022 10-inch Chartplotter Is All-in-1 SolutionModel: 010-01740-00UPC: 753759168308 10-inch color display with keypad interface and multifunction control knob High-sensitivity internal 10 Hz GPS and GLONASS receiver Fully network capable for Garmin Marine Network and NMEA 2000(R) plus NMEA 0183 support Supports optional BlueChart(R) g3 Vision(R) premium charts GPSMAP 1022 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and PanoptixTM sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.Built in Wi-Fi gives you access to the free all-in-one ActiveCaptainTM app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you'll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin QuickdrawTM Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints - and finding your way back to them - quick and easy.Upgrade to optional premium BlueChart g3 Vision charts and LakeVü g3 Ultra maps. These add features such as high-resolution relief shading of bottom structure - which provides more 3-D relief than contours alone - satellite imagery and more.To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.If you have waypoints, tracks or frequently used routes stored on another manufacturer's GPS product - or on a Garmin handheld device - it's easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.SpecificationsDimensions12.5 x 7.3 in x 2.7 in (318 x 185 x 69 cm) Display size 8.8 in x 4.9 in (224 x 125 cm) Display resolution 1024 x 600 Display type WSVGA display Weight 4.1lbs Water rating IPX7 Power consumption Max power usage at 10 Vdc: 32.4 W Antenna Internal or external over NMEA 2000 Mounting options Bail or flush Receiver 10 Hz high-sensitivity Garmin Marine NetworkTM ports 2 Preloaded maps None Accepts data cards 2 SDTM cards Waypoints 5

Read more less

Airmar B175Hw/20° Tilt1kWFlush-mounted bronze housing protrudes less than 1/4" outside hull and can sit on trailer rollers/bunks without damage. Tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.Max Depth - 3,000'Suppoarted Deadrise/Transom Angles - 16-24° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Thru-Hull Imaging: Standard Chirp: High Cable Length (Feet): 39' Temperature: Yes Pins: 8 Speed Included: No Box Dimensions: 8"H x 10"W x 12"L WT: 11.2 lbs UPC: 753759995706 Owner's Manual (pdf)Brochure (pdf)

Read more less

Designed for racing sailboats 3.3 feet (1 meter) straight pole raises the wind transducer above the mast to remove turbulence errors from the sail wash Three-bladed propeller for more accurate True Wind Speed (TWS) in lighter air twin-fin design gives a more stable True Wind Angle (TWA) Optic reading technique provides superior performance at low wind speeds and excellent linearity GNDTM 10 black box bridges NMEA 2000(R) data to Nexus Network and enables Garmin compatible chartplotters integrate with Nexus sail equipment and vice versa Designed for racing sailboats, the gWind Race features a 3.3 feet (1 meter) straight pole to raise the transducer above the mast to remove turbulence errors. Features twin-fin technology with 3-bladed propeller for more accurate TWS in lighter air while the twin-fin design gives a more stable TWA. The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity. And it's all connected using our lightest cable. The included GND 10 black box bridge enables the Nexus Network and Garmin compatible chartplotters to share critical NMEA 2000 data. Easy plug-and-play installation between Nexus, Garmin chartplotters and NMEA 2000. Specifications Unit Dimension, H: 117.2 cm Weight: 320g Cable Length: 25m Waterproof: Yes (IPX7) Temp Range: From 5 degF to 158 degF (-15 degC to 70 degC) Voltage Range: 9-16V Power Usage: 0.33W Compass Safe Distance: N/A Accuracy Angle: Better than ±1.5 deg Speed: Better than ±3% NMEA 2000(R) Load Equivalency Number (LEN): N/A Wireless Connectivity: No In the Box gWind Race transducer GNDTM 10 USB Mini-B cable NMEA 2000(R) drop cable (2 m) NMEA 2000 T-connector Mast cable with female connector (25 m) Nexus network cable (5 m; straight connector) Nexus female field installable connector Mast bracket Mounting hardware Documentation

Read more less

B164 1kW Tilted Element 20° - 8-PinGarmin's bronze, thru-hull mount transducer with 20° tilt provides depth and temperature data. Garmin's transducer has an operating frequency of 50 or 200 kHz and mounts on a 16-24° deadrise angle.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imaging: Standard Cable Length (Feet): 39' Chirp: No Box Dimensions: 8"H x 10"W x 12"L WT: 11 lbs UPC: 753759971908 Owner's Manual (pdf)Brochure (pdf)

Read more less

Garmin ECHOMAP UHD2 94sv, U.S. coastal without transducerModel: 010-02689-00 Easy-to-use 9 in chartplotter with a bright, sunlight-readable touchscreen display with improved detail, clarity and viewing angle Built-in Garmin Navionics+TM coastal charts with integrated Navionics(R) data Built-in Wi-Fi(R) connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter Wirelessly connects to your Force(R) trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more The 9 in ECHOMAPTM UHD2 touchscreen with keyed-assist chartplotter knows the water better than a local. Its high-resolution display offers improved detail

Read more less

Garmin ECHOMAP UHD2 95sv, Canada inland and coastal with GT56 transducerModel: 010-02690-00 Easy-to-use 9 in chartplotter with a bright, sunlight-readable touchscreen display with improved detail, clarity and viewing angle Built-in Canada Garmin Navionics+TM inland and coastal maps with integrated Navionics(R) data cover more than 8,100 lakes with up to 1 feet contours Built-in Wi-Fi(R) connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter Wirelessly connects to your Force(R) trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more Included GT56-TM transducer for Garmin traditional

Read more less

Garmin ECHOMAP UHD2 93sv, U.S. inland with GT56 transducerModel: 010-02688-01 Easy-to-use 9 in chartplotter with a bright, sunlight-readable touchscreen display with improved detail, clarity and viewing angle Built-in Garmin Navionics+TM inland maps with integrated Navionics(R) data cover more than 18,000 lakes with up to 1 feet contours Built-in Wi-Fi(R) connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter Wirelessly connects to your Force(R) trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more Included GT56-TM transducer for Garmin traditional

Read more less

Garmin GPSMAP(R) 743xsv SideVü, ClearVü and Traditional CHIRP Sonar with MappingModel: 010-02365-61 Easily integrate with more engines. Connect to compatible third-party devices with OneHelmTM digital switching. Easily build your marine system using the best of network connectivity. Navigate any waters with preloaded Garmin Navionics+TM charts and mapping. See below your boat with built-in sonar capabilities. Manage your marine experience from nearly anywhere. Get built-in Ultra High-Definition SideVü and ClearVüTM scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP(R) X3 series also supports 1 kW CHIRP traditional sonar capabilities.Pair with Panoptix or LiveScopeTM easy-to-interpret live sonar (transducer required, sold separately) to see all around your boat in real time.With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it's easy to retrofit this plotter in a wider range of dash configurations.New higher-resolution IPS displays for 9 in and 12 in plotters offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9 in GPSMAP devices.Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping that includes Auto Guidance+TM technology3 and a 1-year subscription for downloadable daily updates and more on select chartplotters.Bring a fresh new look and feel to your chartplotter with optional upgrade to Garmin Navionics Vision+TM premium chart subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery and more.View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more3.Use the polar table to see key data, including how fast you should go at a certain wind angle and speed - so you know whether you need to adjust sail trim.If you have multiple compatible Garmin devices on your boat, you can share information - such as maps, user data, radar and IP camera video - among them.Connect to compatible autopilots, digital switching, weather, Fusion-LinkTM audio system, media, VHF, AIS and more from one screen.Built-in Wi-Fi(R) connectivity pairs with the free all-in-one mobile app for access to the OneChartTM feature, smart notifications, software updates, Helm, Garmin QuickdrawTM Community data and more4.Connect with some of your favorite devices, such as quatix(R) marine watches, gWindTM Wireless 2 transducers, GNXTM Wind marine instruments and wireless remote controls.Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.This feature brings together all the operations and capabilities of select third-party devices, such as EmpirBusTM digital switching, on one screen.SpecificationsDIMENSION7.6 x 5.5 in x 2.9 in (19.2 x 14.0 x 7.4 cm) DISPLAY SIZE 6.1 in x 3.5 in; 7.0 in diagonal (15.4 x 9.1 cm; 17.8 cm diagonal) DISPLAY RESOLUTION 1024 x 600 pixels DISPLAY TYPE WSVGA WEIGHT 2.8 lbs (1.3 kg) WATER RATING IPX7 Maps & Memory ACCEPTS DATA CARDS 2 microSD cards (back of unit) WAYPOINTS 5000 TRACK POINTS 50

Read more less

Garmin GPSMAP 723xsv SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide BasemapModel: 010-02365-02 Easily integrate with more engines. Connect to compatible third-party devices with OneHelmTM digital switching. Easily build your marine system using the best of network connectivity. Compatible with premium maps and charts1 for the best in Garmin navigation. See below your boat with built-in sonar capabilities. Manage your marine experience from nearly anywhere1. With 60% more display pixels and nearly double the processing power of previous-generation 7 in GPSMAP devices, this crisp high-resolution chartplotter/sonar combo integrates seamlessly into your Garmin marine system.Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 723xsv also supports 1 kW CHIRP traditional sonar capabilities.Pair with Panoptix or Panoptix LiveScopeTM easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it's easy to retrofit this 7 in plotter in a wider range of dash configurations.New higher-resolution 7 in displays offer improved sunlight readability with 60% more pixels than previous-generation 7 in GPSMAP devices.These optional charts offer the best of Garmin and Navionics(R) data, Auto Guidance3 technology and other premium navigation features.If you have multiple compatible Garmin devices on your boat, you can share information - such as maps, user data, radar and IP camera video - among them.Connect to compatible autopilots, digital switching, weather, Fusion-LinkTM audio system, media, VHF, AIS and more from one screen.Built-in Wi-Fi(R) connectivity pairs with the free all-in-one mobile app for access to the OneChartTM feature, smart notifications, software updates, Garmin HelmTM digital switching, Garmin QuickdrawTM Community data and more4.Connect with some of your favorite devices, such as quatix(R) marine watches, gWindTM Wireless 2 transducers, GNXTM Wind marine instruments and wireless remote controls.Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBusTM digital switching, on one screen.SpecificationsPHYSICAL DIMENSIONS7.6 x 5.5 in x 2.9 in (19.2 x 14.0 x 7.4 cm) DISPLAY SIZE 6.1 in x 3.5 in; 7.0 in diagonal

Read more less

GT34UHD-THP Ultra HD Thru-Hull Transducer - PairUltra High-Definition Sonar System Thru-hull TransducerAdd stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCV™ 20 sonar module. It includes 3 arrays, including a downward-facing element element — with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) — and it’s recommended for hulls with up to a 5-degree deadrise angle.Ultra High-Definition ClearVü ScanningThis mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.Ultra High-Definition SideVü ScanningThis mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.Specifications:Frequency: Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz Power: 500W Beamwidth: Ultra High-Defintion ClearVü: 0.74° x 46° Ultra High-Defintion SideVü: 0.44° x 55° Maximum depth: Ultra High-Defintion ClearVü: 200' down Ultra High-Defintion SideVü: 125' sides, 250' total Depth/Speed/Temperature: Depth and Temperature Number of pins: 12-pin Cable length: 20' Supported deadrise/Transom angles: Up to 25° deadrise WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Chirp: Non Traditional Cable Length (Feet): 20' Imaging: Down/Side Speed Included: No Pins: 12 Mounting Style: Thru-Hull Temperature: Yes Box Dimensions: 5"H x 13"W x 14"L WT: 9.45 lbs UPC: 753759206369

Read more less

Airmar's 8-pin B260 bronze, thru-hull mount transducer with fairing provides depth and temperature data. This transducer has an operating frequency of 50 or 200 kHz and mounts on a 0-22 deg deadrise angle.

Read more less

Garmin PanoptixTM PS22-IF Portable Ice Fishing KitModel: 010-12676-60 PANOPTIX SONAR LIVEVüTM FORWARD AND LIVEVü DOWN MODES POLE MOUNT-FREE DESIGN REMOVABLE TRANSDUCER LENS GLOVE-FRIENDLY PORTABLE BAG The ultraportable Panoptix PS22-IF ice fishing kit provides two live sonar modes and a pole mount-free design, so you can move faster between holes to find more fish.LiveVü Forward scan mode shows up to 100 feet all around you, so you can locate schools of fish and know where to drill. LiveVü Down mode homes in on targets, so you can watch fish respond to your jig.The Panoptix PS22-IF transducer has an all-new bracket and rotator - which eliminates the need for a pole mount and increases portability.The bracket attaches directly to the transducer for Forward and Down mode adjustments.The transducer rotator attaches directly to the transducer cable, allowing for quick depth and direction adjustments with easy-to-read directional indicators.Easily change between wide and narrow beams to focus on areas of interest with the removable transducer lens.The rugged, glove-friendly carrying case lets you easily transport your entire bundle from hole to hole.What's in the Box: Panoptix PS22-IF transducer Transducer bracket Transducer rotator Removable lens Power cable Documentation Small bag, base and handle Rechargeable battery Battery charger

Read more less

Freq. Khz Power Beam Width ( deg) LF//HF (-3dB) Max Depth (ft) Septh,Speed,Temp # of Pins Supported Deadrise / Transom Angles 85-135 1KW 11-16 3000 Depth,Temp 8 8-15 deg Deadrise

Read more less

Garmin Garmin GT34UHD-THPModel: 010-12776-11Garmin GT34UHD-THPSpecificationsFrequencyUltra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz Power 500 W Beamwidth Ultra High-Defintion ClearVü: 0.74 deg x 46 deg Ultra High-Defintion SideVü: 0.44 deg x 55 deg Maximum depth 200 feet Ultra High-Definition ClearVü 125 feet to each side Ultra High-Definition SideVü, 250 feet total, at a maximum depth of 30 feet Depth/Speed/Temperature Depth and Temperature Number of pins 12-pin Cable length 20 ft. Supported deadrise/Transom angles Up to 25 deg deadrise

Read more less

Garmin GNXTM Wired Sail Pack 52 GNXTM Wind, GNXTM 20, gWindTM Wired and DST810 transducersModel: 010-01248-70 Includes GNX Wind, gWindTM Wired, GNXTM 20 and Airmar DST810 transducer GNX Wind and GNX 20 instruments have highly visible monochrome LCD displays gWind Wired transducer features 3-bladed propeller and twin-fin design DST810 thru-hull smart transducer provides water depth, water speed and water temperature data - plus attitude sensing for heel/trim and pitch/roll inputs Wireless connectivity to devices with BLUETOOTH(R) technology enables DST810 calibration directly through Airmar's Cast app Easy plug-and-play installation between Nexus(R), Garmin chartplotters, NMEA 2000(R) and USB With a GNX Wind Wired Sail Pack, you will have all the equipment you need to know what's going on with the wind and the water.GNX Wind gives you the wind data necessary to make confident decisions. Features high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors. It also interfaces through the NMEA 2000 network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, steering guidance, boat speed and more. Low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats. Fully customizable user profiles allow you to configure the screen layout to your preferred setting. Display configurations include more than 15 important marine parameters for wind, speed and navigation. It can even wirelessly connect to a quatix(R) 3 GPS marine smartwatch via ANT technology to stream wind data directly to your wrist.gWind transducer features twin-fin technology with 3-bladed propeller for more accurate True Wind Speed (TWS) in lighter air while the twin-fin design gives a more stable True Wind Angle (TWA). The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity.The easy-to-read GNX 20 marine instrument display with black digits on a white or color background clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm.DST810 combines precise depth, speed and temperature data with altitude sensing for heel/trim and pitch/roll inputs - which it provides to the NMEA 2000(R) network and GNX 20 instrument. This multisensor transducer can read depths to 330 feet, offers fast 5 Hz water speed signal output and has an operating frequency of 235 kHz with a fan-shaped beamwidth of 10x44 degrees. Additionally, wireless connectivity to devices with BLUETOOTH(R) technology enables DST810 calibration directly through Airmar's Cast app. Advanced speed calibration allows for calibration at multiple heel angles and speeds.What's in the Box: gWindTM transducer GNXTM 20 marine instrument GNXTM Wind marine instrument GND 10 black box bridge Airmar DST810 thru-hull smart transducer NMEA 2000(R) drop cable (2 meters) x 3 NMEA 2000 T-connectors x 5 NMEA 2000 terminators Mast cable with female connector (25 meters) Nexus female field installable connector Mast bracket Mounting hardware Documentation

Read more less

LiveScope™ with LVS34 Transducer OnlyTHE BEST OF THE BEST JUST GOT BETTERThe latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images, and better target separation.Features: See images clearly with improved screen clarity, transducer sensitivity, and target separation.  Scan surroundings with sharper images, reduced noise, and fewer sonar artifacts. Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.   Get maximum contrast and clarity in your images with vivid color palettes.  Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount. Real-Time ImagesReal-time sonar ensures that your live images are as accurate as possible. Clear VisionSee exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure. Image StabilizationA built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions. Vivid Color PalettesChoose from seven vivid color options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity. Forward ModeScout ahead of your boat to see what’s happening in real time. Down ModeExplore live views of the activity directly beneath your boat. Perspective ModeSee under the water with a view from your perspective above the water.In The Box: Panoptix LVS34 transducer Perspective mount Trolling motor barrel mount Shaft mount Documentation

Read more less

LiveScope™ Plus LVS34-IF Ice Fishing TransducerThe best of the best just broke new ice with the LiveScope Plus LVS34-IF ice fishing transducer. Pair it with your compatible Garmin chartplotter via your GLS™ 10 sonar black box to get improved resolution, reduced noise, clearer images, and better target separation in LiveScope™ Forward and LiveScope™ Down modes. With a durable, flexible cold-weather transducer cable, you’re set for a day on the ice.In the Box: LiveScope Plus LVS34-IF 0-degree LiveScope pole mount Documentation Specifications:Sonar Type: LiveScope™ Plus

Read more less

Garmin ECHOMAP UHD2 95sv, Canada inland and coastal without transducerModel: 010-02690-01 Easy-to-use 9" chartplotter with a bright, sunlight-readable touchscreen display with improved detail, clarity and viewing angle Built-in Canada Garmin Navionics+™ inland and coastal maps with integrated Navionics® data cover more than 8,100 lakes with up to 1’ contours Built-in Wi-Fi® connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter Wirelessly connects to your Force® trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more" The 9" ECHOMAP™ UHD2 touchscreen with keyed-assist chartplotter knows the water better than a local. Its high-resolution display offers improved detail, clarity and viewing angle. See clear, sharp fish arches with Garmin traditional sonar. ClearVü™ and SideVü™ scanning sonars feature vivid color palettes for clear, high-contrast views all around your boat. ECHOMAP UDH2 also supports LiveScope™ sonar systems. Navigate the waters with built-in Garmin Navionics+™ cartography. Built-in Wi-Fi® connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter. Wherever you drop your line, get improved position accuracy, particularly in areas where signals are reflected or weak, with multi-band GPS. You can also pair with the free all-in-one ActiveCaptain® app on your compatible smartphone for access to the OneChart™ feature, software updates and more. The chartplotter supports NMEA 2000® networks to connect your compatible autopilots, digital switching, music, and more to view all on one screen.What's in the Box: ECHOMAP UHD2 95sv 12-pin sounder to 8-pin transducer cable Power/data cable tilt mount flush mount hardware documentation

Read more less

Garmin ECHOMAP UHD2 93sv, U.S. inland without transducerModel: 010-02688-00 Easy-to-use 9 in chartplotter with a bright, sunlight-readable touchscreen display with improved detail, clarity and viewing angle Built-in Garmin Navionics+TM inland maps with integrated Navionics(R) data cover more than 18,000 lakes with up to 1 feet contours Built-in Wi-Fi(R) connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter Wirelessly connects to your Force(R) trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more The 9 in ECHOMAPTM UHD2 touchscreen with keyed-assist chartplotter knows the water better than a local. Its high-resolution display offers improved detail

Read more less

Garmin ECHOMAP UHD2 92sv, basemap without transducerModel: 010-02687-00 Easy-to-use 9 in chartplotter with a bright, sunlight-readable touchscreen display with improved detail, clarity and viewing angle Built-in worldwide basemaps with support for Garmin Navionics+TM and Garmin Navionics Vision+TM cartography, BlueChart(R) g3 coastal charts and LakeVüTM g3 inland maps Built-in Wi-Fi(R) connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter The 9 in ECHOMAPTM UHD2 touchscreen with keyed-assist chartplotter knows the water better than a local. Its high-resolution display offers improved detail

Read more less

Garmin GPSMAP 743 Chartplotter with US and Canada Garmin Navionics PlusModel: 010-02365-00 New higher-resolution touchscreen display offers improved sunlight readability with 60% more pixels than previous-generation 7 in units Fast and responsive, with nearly twice the processing power of previous-generation GPSMAP(R) devices, this system references 10 Hz GNSS (GPS, GLONASS and Galileo) for accurate positioning and smooth speed as well as COG data Slimline display borders, edge-to-edge glass and reduced unit footprint make for easy retrofit in a wider range of dash configurations Preloaded Garmin Navionics+TM coastal charts and inland mapping feature Auto Guidance+TM technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) ; plus, there's support for optional Garmin Navionics Vision+TM premium map content. Built-in Garmin SailAssistTM features, including laylines, race features, set and drift, wind data and more. Requires compatible wind transducer (sold separately) J1939 engine connectivity for easy integration with engines and our exclusive OneHelmTM feature for connecting to compatible third-party devices, such as EmpirBusTM digital switching Easily build your marine system - from compatible sonar and autopilots to compatible radar, cameras and multimedia - by using NMEA 2000(R) and NMEA 0183 networking and the Garmin Marine Network Use built-in Wi-Fi(R) networking to pair with the free ActiveCaptain(R)smartphone app for access to the OneChartTM feature, smart notifications, software updates and more. Integrated ANT(R) connectivity support for use with compatible quatix(R) smartwatches, the gWindTM Wireless 2 transducer, GNXTM Wind marine instrument and wireless remote controls (sold separately) Get a sharper view from your connected helm with the GPSMAP(R) 743 chartplotter. Its higher-resolution 7 in display has 60% more pixels than previous-generation chartplotters. The ultrasleek design with nearly double the processing power of previous-generation GPSMAP devices offers seamless integration into your Garmin marine system. Preloaded Garmin Navionics+TM coastal charts and inland mapping feature Auto Guidance+TM technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations. ) for confidence in helping you get where you need to go. Plus

Read more less

Garmin GPSMAP 723 Chartplotter with Worldwide BasemapModel: 010-02365-00 Easily integrate with more engines. Connect to compatible third-party devices with OneHelmTM digital switching. Easily build your marine system using the best of network connectivity. Compatible with premium maps and charts1 for the best in Garmin navigation. Take the guesswork out of sailing with clear laylines and more - right on the screen. Manage your marine experience from nearly anywhere1. With 60% more display pixels and nearly double the processing power of previous-generation 7 in GPSMAP devices, this crisp high-resolution chartplotter integrates seamlessly into your Garmin marine system.With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it's easy to retrofit this 7 in plotter in a wider range of dash configurations.New higher-resolution 7 in displays offer improved sunlight readability with 60% more pixels than previous-generation 7 in GPSMAP devices.View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more3.These optional charts offer the best of Garmin and Navionics(R) data, Auto Guidance4 technology and other premium navigation features.Connect to compatible autopilots, digital switching, weather, Fusion-LinkTM audio system, media, VHF, AIS and more from one screen.If you have multiple compatible Garmin devices on your boat, you can share information - such as maps, user data, radar and IP camera video - among them.Built-in Wi-Fi(R) connectivity pairs with the free all-in-one mobile app for access to the OneChartTM feature, smart notifications, software updates, Garmin HelmTM digital switching, Garmin QuickdrawTM Community data and more5.Connect with some of your favorite devices, such as quatix(R) marine watches, gWindTM Wireless 2 transducers, GNXTM Wind marine instruments and wireless remote controls.Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBusTM digital switching, on one screen.SpecificationsPHYSICAL DIMENSIONS7.6 x 5.5 in x 2.9 in (19.2 x 14.0 x 7.4 cm) DISPLAY SIZE 6.1 in x 3.5 in; 7.0 in diagonal

Read more less

Garmin 4 feet Fantom Antenna - BlackModel: 010-01365-104 feet Array only for Fantom open array radars.

Read more less

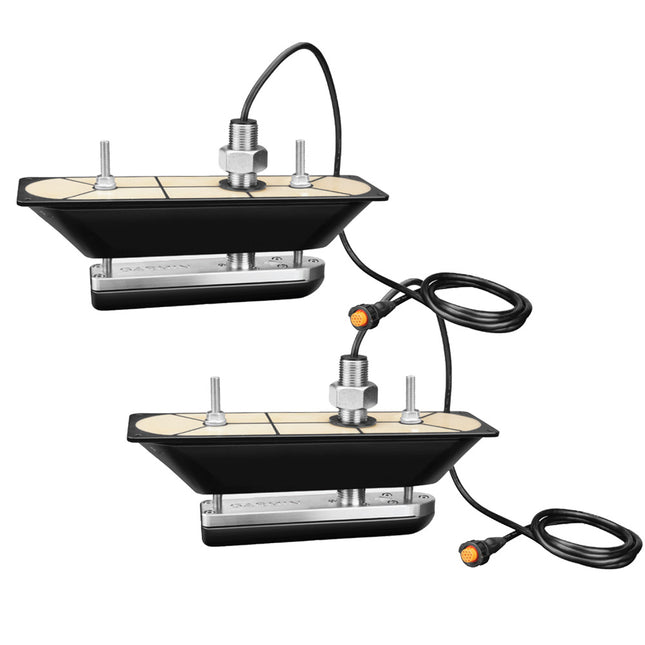

Garmin GT30-THP Thru Hull PairScanning TransducerModel: 010-01961-11Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar with stainless steel stems, this pair of 12-pin thru-hull transducers consistently displays clear definition of objects, structure and fish below and to each side of the boat.These transducers with built-in fast response temperature sensors have a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of CHIRP 455/800 kHz1; for hull deadrises from 5 degrees to 25 degrees. Pair them with your GCVTM 10 scanning sonar module.Includes 12-pin port and starboard transducers with stainless steel stems, isolation bushings, fairing blocks, Y-cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.SpecificationsClearVü/SideVü CHIRP455 kHz (425-485 kHz) & 800 kHz (790-850 kHz) Power ClearVü/SideVü 500 W Beamwidth ClearVü 1.4 degx53 deg @ 455 kHz and 0.8 degx30 deg @ 800 kHz SideVü 1.1 degx53 deg @ 455 kHZ and 0.7 degx30 deg @ 800 kHz Maximum depth ClearVü 750 ft SideVü 500 ft. Depth/Speed/Temperature Depth and Temperature Number of pins 12-pin Cable length 5 ft. + 30 ft. y-extension cable Supported deadrise/Transom angles Up to 25 deg deadrise
