TM165HW Chirp High Wide 600W Transom Mount Transducer - Requires Adapter CableReplacing a non-Chirp or single frequency transducer with the AIRMAR TM165HW (High Wide) 600W Chirp-ready transom mount transducer provides anglers with an inexpensive and easy performance upgrade to their current sonar systems. The TM165HW is legendary for producing the finest detail and largest coverage area of any transom mounted model in its class. The TM165HW is perfect for fishing boats up to 25 feet (8 meters) and recommended for planing hulls made from fiberglass, metal or wood - both outboard and IO.TM165HW delivers large, crisp return images on the display with a noise-free, clear picture of the action below. Better coverage from top to bottom with stronger, well-defined fish targets.Super Wide 30° Average Beamwidth Achieves 3x the Coverage Under the Boat as Compared to Standard High Frequency Chirp-ready Transducers (eg, the popular B75H)The TM165HW is compatible with the following sonar brands and models:  Lowrance: All models compatible except Hook series Humminbird: SM300; Helix and Solix can be set manually Garmin: GPSMAP 7600, 8600, 7X2/9X2/10x2/12x2, GSD26 Raymarine: compatible with all models Simrad: compatible with all models Features: Depth and fast-response water-temperature sensor Requires Mix and Match cable 600 W with a maximum depth of 152 m (500')  High Frequency: 150 kHz to 250 kHz for superior shallow water performance, bottom detail and fish target separation High-wide beamwidth provides more coverage under the boat for detecting fish in the upper water column Super wide 30° average beamwidth for superior coverage under the boat and maximum detection area High-performance, low-profile design provides excellent resolution at speed when installed properly  Exclusive Xducer ID® technology The TM165HW is an AIRMAR Mix and Match transducer. 600W Mix and Match transducers are made as a common base transducer with a short (9m) cable attached, plus an interchangeable longer 1m) brand-specific adapter cable.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: Yes Speed Included: No Pins: 12 Mounting Style: Transom Imaging: Standard Chirp: High Wide Cable Length (Feet): 30' Box Dimensions: 4"H x 8"W x 10"L WT: 2.55 lbs UPC: 801769002775 Brochure (pdf)

Read more less

Fishing Applications Inshore or coastal fishing in shallow to medium depths Slow trolling, structure fishing and drifting Deep-water lake fishing Features Depth, speed, and temperature in one housing Greatly improved high-speed performance at Both 50 kHz and 200 kHz when installed with a high-performance fairing Patented self-closing sea valve reduces water flow into the hull when paddlewheel insert is removed Speed Operating Range: 1 knot to 45 knots (1 MPH to 52 MPH) Fins on sides of paddlewheel cavity provide improved accuracy in cross flow conditions With Lowrance Blue connector

Read more less

Airmar P155C Medium CHIRP In-Hull Puck Requires Mix and Match CableModel: P155C-M-MMNew "puck" style in-hull, wideband transducer for bass and walleye boats. Whether you are fishing in freshwater or saltwater, this transducer is designed to transmit through solid fiberglass boat hulls. The P155M operates at 95-155 kHz and is Chirp-ready! The in-hull is the solution to common issues experienced with transom and trolling motor mount transducers. No more concerns with broken parts or damaging the transducer from sandbars or rocks!SpecificationsPower300 watts Frequency Medium 95-155kHz Beam width 26 and 17 deg Hull type Solid fiberglass Housing Plastic Hull deadrise 0 deg - 10 deg What's in the Box:P155C-m-MM with Mix and Match Connector

Read more less

Airmar P155C Medium CHIRP In-Hull Puck with Humminbird 9-Pin Mix-n-Match CableModel: P155C-M-HBNew "puck" style in-hull, wideband transducer for bass and walleye boats. Whether you are fishing in freshwater or saltwater, this transducer is designed to transmit through solid fiberglass boat hulls. The P155M operates at 95-155 kHz and is Chirp-ready! The in-hull is the solution to common issues experienced with transom and trolling motor mount transducers. No more concerns with broken parts or damaging the transducer from sandbars or rocks!SpecificationsPower300 watts Frequency Medium 95-155kHz Beam width 26 and 17 deg Hull type Solid fiberglass Housing Plastic Hull deadrise 0 deg - 10 deg What's in the Box: P155C-M-MM with Mix and Match Connector MMC-BL 9-Pin Humminbird cable

Read more less

Airmar P155C Medium CHIRP In-Hull Puck with Navico 7-Pin Mix-n-Match CableModel: P155C-M-BLNew "puck" style in-hull, wideband transducer for bass and walleye boats. Whether you are fishing in freshwater or saltwater, this transducer is designed to transmit through solid fiberglass boat hulls. The P155M operates at 95-155 kHz and is Chirp-ready! The in-hull is the solution to common issues experienced with transom and trolling motor mount transducers. No more concerns with broken parts or damaging the transducer from sandbars or rocks!SpecificationsPower300 watts Frequency Medium 95-155kHz Beam width 26 and 17 deg Hull type Solid fiberglass Housing Plastic Hull deadrise 0 deg - 10 deg What's in the Box: P155C-M-MM with Mix and Match Connector MMC-BL 7-Pin Navico cable

Read more less

Airmar P155C Medium CHIRP In-Hull Puck with Si-tex 8-Pin Mix-n-Match CableModel: P155C-M-BBNew "puck" style in-hull, wideband transducer for bass and walleye boats. Whether you are fishing in freshwater or saltwater, this transducer is designed to transmit through solid fiberglass boat hulls. The P155M operates at 95-155 kHz and is Chirp-ready! The in-hull is the solution to common issues experienced with transom and trolling motor mount transducers. No more concerns with broken parts or damaging the transducer from sandbars or rocks!SpecificationsPower300 watts Frequency Medium 95-155kHz Beam width 26 and 17 deg Hull type Solid fiberglass Housing Plastic Hull deadrise 0 deg - 10 deg What's in the Box: P155C-M-MM with Mix and Match Connector MMC-BB 8-Pin Si-tex cable

Read more less

Airmar P155C Medium CHIRP In-Hull Puck with Navico 9-Pin Mix-n-Match CableModel: P155C-M-9NNew "puck" style in-hull, wideband transducer for bass and walleye boats. Whether you are fishing in freshwater or saltwater, this transducer is designed to transmit through solid fiberglass boat hulls. The P155M operates at 95-155 kHz and is Chirp-ready! The in-hull is the solution to common issues experienced with transom and trolling motor mount transducers. No more concerns with broken parts or damaging the transducer from sandbars or rocks!SpecificationsPower300 watts Frequency Medium 95-155kHz Beam width 26 and 17 deg Hull type Solid fiberglass Housing Plastic Hull deadrise 0 deg - 10 deg What's in the Box: P155C-M-MM with Mix and Match Connector MMC-9N 9-Pin Navico cable

Read more less

Airmar P155C Medium CHIRP In-Hull Puck with Garmin 8-Pin Mix-n-Match CableModel: P155C-M-8GNew "puck" style in-hull, wideband transducer for bass and walleye boats. Whether you are fishing in freshwater or saltwater, this transducer is designed to transmit through solid fiberglass boat hulls. The P155M operates at 95-155 kHz and is Chirp-ready! The in-hull is the solution to common issues experienced with transom and trolling motor mount transducers. No more concerns with broken parts or damaging the transducer from sandbars or rocks!SpecificationsPower300 watts Frequency Medium 95-155kHz Beam width 26 and 17 deg Hull type Solid fiberglass Housing Plastic Hull deadrise 0 deg - 10 deg What's in the Box: P155C-M-MM with Mix and Match Connector MMC-8G 8-Pin Garmin cable

Read more less

Airmar P155C Medium CHIRP In-Hull Puck with Humminbird 14-Pin Mix-n-Match CableModel: P155C-M-14HBNew "puck" style in-hull, wideband transducer for bass and walleye boats. Whether you are fishing in freshwater or saltwater, this transducer is designed to transmit through solid fiberglass boat hulls. The P155M operates at 95-155 kHz and is Chirp-ready! The in-hull is the solution to common issues experienced with transom and trolling motor mount transducers. No more concerns with broken parts or damaging the transducer from sandbars or rocks!SpecificationsPower300 watts Frequency Medium 95-155kHz Beam width 26 and 17 deg Hull type Solid fiberglass Housing Plastic Hull deadrise 0 deg - 10 deg What's in the Box: P155C-m-MM with Mix and Match Connector MMC-14HB 14-Pin Humminbird cable

Read more less

Airmar P155C Medium CHIRP In-Hull Puck with Garmin 12-Pin Mix-n-Match CableModel: P155C-M-12GNew "puck" style in-hull, wideband transducer for bass and walleye boats. Whether you are fishing in freshwater or saltwater, this transducer is designed to transmit through solid fiberglass boat hulls. The P155M operates at 95-155 kHz and is Chirp-ready! The in-hull is the solution to common issues experienced with transom and trolling motor mount transducers. No more concerns with broken parts or damaging the transducer from sandbars or rocks!SpecificationsPower300 watts Frequency Medium 95-155kHz Beam width 26 and 17 deg Hull type Solid fiberglass Housing Plastic Hull deadrise 0 deg - 10 deg What's in the Box: P155C-m-MM with Mix and Match Connector MMC-12G 12-Pin Garmin cable

Read more less

Airmar P155C Medium CHIRP In-Hull Puck with Raymarine 11-Pin Mix-n-Match CableModel: P155C-M-11RNew "puck" style in-hull, wideband transducer for bass and walleye boats. Whether you are fishing in freshwater or saltwater, this transducer is designed to transmit through solid fiberglass boat hulls. The P155M operates at 95-155 kHz and is Chirp-ready! The in-hull is the solution to common issues experienced with transom and trolling motor mount transducers. No more concerns with broken parts or damaging the transducer from sandbars or rocks!SpecificationsPower300 watts Frequency Medium 95-155kHz Beam width 26 and 17 deg Hull type Solid fiberglass Housing Plastic Hull deadrise 0 deg - 10 deg What's in the Box: P155C-m-MM with Mix and Match Connector MMC-11R-HM 11-Pin Raymarine cable

Read more less

Airmar P155C Medium CHIRP In-Hull PuckwITH BARE WIRE Mix-N-Match CableModel: P155C-M-0New "puck" style in-hull, wideband transducer for bass and walleye boats. Whether you are fishing in freshwater or saltwater, this transducer is designed to transmit through solid fiberglass boat hulls. The P155M operates at 95-155 kHz and is Chirp-ready! The in-hull is the solution to common issues experienced with transom and trolling motor mount transducers. No more concerns with broken parts or damaging the transducer from sandbars or rocks!SpecificationsPower300 watts Frequency Medium 95-155kHz Beam width 26 and 17 deg Hull type Solid fiberglass Housing Plastic Hull deadrise 0 deg - 10 deg What's in the Box: P155C-m-MM with Mix and Match Connector MMC-0 Bare Wire Cable

Read more less

Airmar P95C-M In-HullMedium CHIRPModel: 31-785-1-01 Depth Only Chirp Ready Medium frequency (80-130kHz) for great offshore and inshore performance 26 deg - 17 deg beamwidth 300W output Depth range: to 500 feet (152 meters) Perfect for trailered or lifted boats Urethane Housing- liquid filled Exclusive Xducer ID(R) technology A perfect solution to solid fiberglass hulled boat owners that are looking for great performance at a great price. The P75M is a 600 watt, single frequency Chirp in-hull transducer working on the medium frequency band (80-130kHz). This frequency is great for both inshore saltwater as well as lakes and provides amazing target definition out to 700 feet.The transducer includes a plastic housing which is secured inside the hull of the boat and is filled with Eco-friendly anti-freeze. The transducer is inserted into the housing and adjusted for the proper dead rise offset, insuring the beam is shooting straight down. The liquid provides the best medium to transmit through the fiberglass and into the surrounding water. The benefits to the in-hull transducer are that there are no protruding features on the exterior of the hull making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25 feet with solid core, fiberglass hulls.SpecificationsWeight9.17 lb (4.16 kg) Hull Deadrise adjustable 2 deg to 22 deg Acoustic Window Urethane For use on solid fiberglass hulls only

Read more less

P79 NMEA 2000 In-Hull 235 kHzThe P79 in-hull transducer easily adjusts to hull deadrise angles up to 22 °. This ensures that the beam is vertically oriented to receive echos, resulting in accurate depth readings. Unlike traditional "puck" type transducers, our P79 consists of a base that is bonded to the hull and filled with liquid. The separate transducer then attaches to the base with a twist lock. The sound waves travel more efficiently though the liquid, giving the best possible performance. The unique adjustable-angle design ensures the beam is vertically oriented for maximum echo returns and the best possible performance. Because the transducer is mounted inside the hull, it is the perfect solution for rigid inflatable boats (RIBS) and racing sailboats. Features: Adjusts to hull deadrise angles up to 22° No holes to drill Depth Only Frequency: 235 kHz Cone: 11° Recommended for solid fiberglass hulls Epoxies to aluminum hulls under 0.38 mm (0.150”) thick Recommended for planing-hull power boats, trailered boats, rigid inflatable boats No hull protrusions 6M (20’) NMEA 2000® cable & connector This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: In-Hull Box Dimensions: 4"H x 8"W x 10"L WT: 2 lbs UPC: 801769002515

Read more less

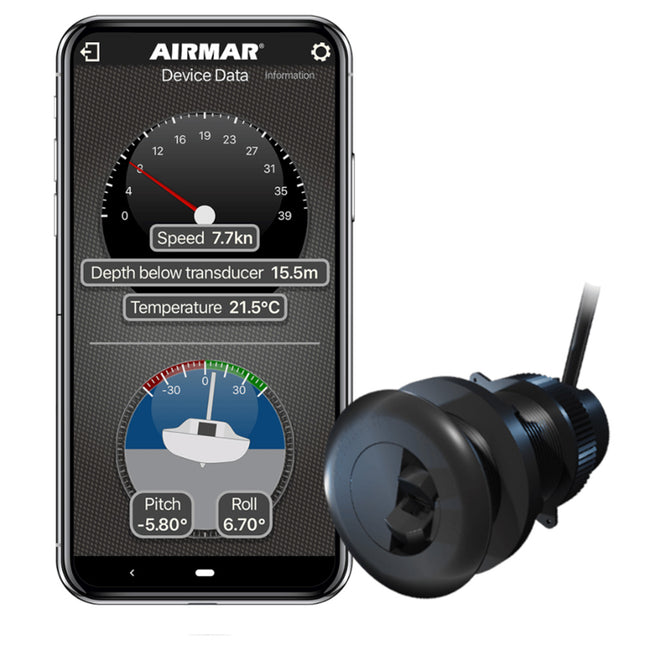

DST820-PV-N2 PSTI Plastic Thru-Hull with Bluetooth 235kHzThe DST820 Smart Multisensor is the next evolution of Airmar’s industry-leading technology, replacing the DST810 and introducing PSTI compliance for enhanced onboard network security.With its secure QR-code setup, connecting your DST820 has never been easier—or safer. Simply scan the QR code and enter a one-time security password on your mobile device to protect your sensor on the network.Featuring Airmar’s high-performance Gen2 paddlewheel, the DST820 delivers unmatched speed-through-water accuracy— providing precise start-up data below 0.3 knots, linear accuracy from 0.6 knots, and stable, reliable readings all the way up to 45 knots.Whether you’re a day sailor, weekend cruiser, or tactical racer, accurate speed-through-water (STW) data helps you fine-tune sail trim and rig balance for maximum performance. For racers, precise STW readings enable accurate velocity made good (VMG) and target speed calculations, ensuring every tactical decision is data-driven.Together, the DST820 and Airmar’s CAST™ app make speed calibration simpler than ever. The free CAST app provides powerful calibration tools—once only available through costly PC-based software—now instantly accessible from your smartphone or tablet. Choose from basic or advanced calibration options to suit your needs.Beyond speed, the DST820 measures depth and water temperature, and provides a 5.7 Hz (5× per second) speed output with improved resolution. Its integrated attitude sensor delivers heel and trim data, enabling heel-compensated speed calibration across multiple heel angles and speed ranges—fast, intuitive, and completely independent of onboard instruments.With depth tracking from 0.5 m (1.6 ft) to 100 m (328 ft), the DST820 also provides reliable depth data to help ensure you never run aground.The result: industry-leading speed accuracy, wireless calibration convenience, and next-generation security—all in one powerful, compact sensor.Features: The DST820 is fully compliant with UK PSTI security standards, ensuring that the connection between DST820 and a mobile device is secure. The industry’s best speed paddlewheel – DST820 features the Gen2 paddlewheel for industry-leading speed performance from 0.3 knots to 45 knots. Smoother Speed – 5.7 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making when every second counts. Integrated Attitude Sensor – For heel and trim, and used in advanced speed calibration. DST820 secure Bluetooth® connectivity to Airmar’s CAST app provides the ability to: Calibrate the DST820 in a simple, intuitive way from your mobile device. Conduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs across the speed range. Advanced speed calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

DST810 Plastic Smart Sensor 235kHz - NMEA 2000 - BluetoothDepth, Speed-Through-Water, Water Temperature, Boat AttitudeFor a product to be considered a “breakthrough,” it has to vastly change conventional behavior and enhance abilities. The  DST810 Smart Multisensor, featuring the new Gen2 paddlewheel together with Airmar's CAST™ App, is the convergence of advanced hull data, matched with a simple and reliable way to calibrate accurate speed via a wireless device. This changes how boaters receive and deliver information to get greater performance from their hull. It is a simple, consistent way to calibrate speed-through-water regardless of what display system is on board. The DST810 and Airmar CAST App deliver capabilities that until now, were only available through expensive PC-based software.Besides water temperature, depth, and upgraded 5 Hz (5X per second) speed-through-water output, the DST810 features an integrated attitude sensor for heel and trim data. This information, combined with Airmar’s powerful and simple CAST App, makes heel-compensated speed calibration across multiple heel angles and speed ranges both fast and intuitive and is independent of the onboard instruments.All speed calibrations and NMEA configurations are stored in the DST810 sensor—not in the displays.Features 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making Integrated attitude sensor for heel and trim benefits sailing and powerboats. Simple attitude calibration to correct for off-center mounting Hull Deadrise: Up to 22° Depth Frequency: 235 kHz Minimum Depth Range: 0.5 m (1.6') Maximum Depth Range: Up to 100 m (330')—NMEA 2000® Speed Range: Up to 45 knots Wireless Protocol: Bluetooth Low Energy (BLE) Wireless Range: Up to 30 feet depending on mount location Standard Cable Length: 6 m (20') DeviceNet—NMEA 2000® Temperature Sensor Accuracy: ±0.5°C (±1.8°F) Temperature Sensor Range: -10°C to 40°C (14°F to 104°F) Supply Voltage: 9 VDC to 16 VDC—per NMEA 2000 Wireless connectivity to Airmar's CAST App has user-friendly benefits: Calibrate the DST810 is a simple, intuitive way regardless of the instrument brand or model that is on board Conduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs across the speed range Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software Enable and disable PGN’s and set offset and output rates The Perfect Sensor for Every UseSAILING 5 Hz speed output for visibly smoother speed data. Incredibly easy calibration via Airmar's CAST App. Wirelessly connect, calibrate speed, and configure data. DST810 stores configurations and delivers data to the NMEA 2000® network. Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor. POWERBOATS 5 Hz speed, depth, pitch and roll, and water temperature from one installed instrument. Simple depth offsets and corrected speed-through-water via Airmar's CAST™ App. Popular depth sensor for shallow-water performance. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 20' Chirp: No Mounting Style: Thru-Hull Pins: 5 Speed Included: Yes Temperature: Yes Box Dimensions: 4"H x 8"W x 10"L WT: 2.1 lbs UPC: 801769018677

Read more less

DT812PV-235-N2 - 235kHz - Plastic Thru Hull Smart Sensor - 12° Tilt - NMEA 2000 - 6M CableAirmar has taken its proven Tilted Element™ and broadband technologies and applied them to its leading line of Smart™ Sensors. The DT800 is a low-profile, retractable, thru-hull sensor that computes accurate depth and temperature data and sends it to any NMEA 0183 or NMEA 2000® display. The DT800 operates at a frequency of 235 kHz and can run simultaneously with other Airmar 50/200 kHz transducers on-board with no interference. The broadband ceramic delivers depth readings to 183 m (600'), as well as accurate shallow-water readings in as little as 500 mm (1.6'). Available in fixed 0°, 12°, or 20° tilt, the DT800 is perfect for power and sailboat applications. It is sold with a choice of rugged housings— plastic, bronze, or stainless steel—to accommodate any vessel type or hull material. These low-profile housings do not affect hull performance and will provide accurate readings at high speeds.Airmar's Smart™ Sensors have embedded microelectronics—the transducer element and signal processor are only millimeters apart. The signal from the depth transducer is processed right inside the sensor itself. All that is needed to receive depth and temperature data is a single cable into a compatible device or display. Because the ceramic is tilted inside the housing, the transducer beam is oriented straight down, resulting in strong bottom echo returns and accurate depth readings. The retractable housing with a self-closing valve reduces water flow into the vessel when the transducer is removed for cleaning.Smart™ Sensor Features Broadband ceramic available with 0°, 12° and 20° tilt options Enhanced depth performance Maximum Depth Range: 180M (594’) Minimum range 0.5M (1.6’) Urethane face provides better sensitivity Excellent high-speed performance Fixed 12° tilt for 8° to 15° deadrise NMEA 2000 output 100 W RMS power Frequency: 235 kHz Cone: 12° All models have depth and temperature 235 kHz eliminates interference with fishfinders Retractable insert provides ease of serviceability Usable Shaft Length: 57mm (2.25”) 6M(19.8”) NMEA 2000® devicenet cable and connector 51mm (2”) housing Blanking plug included Accommodates maximum hull thicknesses 54 mm (2 1/8”) Accommodates minimum hull thicknesses 6.3 mm (0.25”) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Features: Depth/Temp 50/200 kHz 600 W RMS Mid-performance Bronze The bronze B60-12 deg and B60-20 deg provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16 in) extending outside of the hull. With Garmin 8 pin connector.

Read more less

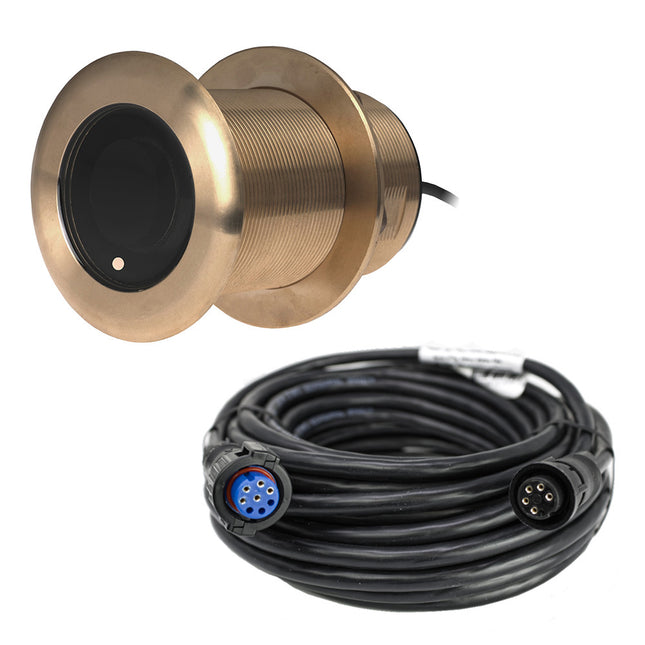

Airmar B60 50/200kHz 600 Watt 12 Degree Tilted Element Depth and Temperature with a Garmin 8-PinModel: B60-12-8G Depth and fast-response water temperature sensing 600 W of power 50 kHz with a wide 45 deg beamwidth for depth performance to 353 m (1200 feet) 200 kHz with a 12 deg beamwidth for depth performance to 206 m (700 feet) Perfect for center-console or trailered boats Low-profile bronze housing extends only 5 mm (3/16) outside the hull No effect on your boat's running performance Bronze housing for fiberglass or wood hull SpecificationsAcoustic WindowUrethane Cable-Length 10 m (33 feet) Connector Garmin 8-Pin Conventional Beam 45 deg/12 deg Deadrise Range 8 deg to 15 deg Frequency Band 50/200 kHz Material Bronze Max Depth Low frequency- 366 m (1200 feet)

Read more less

B60 12 Degree Tilt Thru Hull Req Mix & Match CableThe B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth readings.Features: Depth and fast-response water temperature sensing 600W of power Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') 200 kHz with a 12° beamwidth for depth performance to 206 m (700') Perfect for center-console or trailered boats Low-profile bronze housing extends only 5 mm (3/16") outside the hull No effect on your boat’s running performance Bronze housing for fiberglass or wood hull Also available in a stainless steel housing (SS60) for use with all hull materials Specifications: Power Rating: 600W Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 8 m (26') Hole Size: 60 mm (2-3/8") Usable Shaft Length: 68.5 mm (2.70") Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing Conventional Beam: 45°/12° Max Deadrise: Up to 24° Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700') Mounting Style: Tilted Element Thru-Hull Retractable housing: No Single or Dual Frequency: Conventional Dual Frequency Tilted Element: Yes Weight: 1.4 kg (3 lbs.) Specifications: Cable Length (Feet): 7' Imaging: Standard Mounting Style: Thru-Hull Speed Included: No Temperature: Yes Box Dimensions: 4"H x 6"W x 8"L WT: 3 lbs UPC: 801769000375

Read more less

B60 20 Degree Bronze Tilted Element 600W 8-Pin for GarminThe B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull's deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more accurate depth readings.Features: Fixed 20° tilted version for 16 to 24° hull deadrise angles Depth and fast-response water temperature sensing 600 W of power Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') 200 kHz with a 12° beamwidth for depth performance to 206 m (700') Perfect for center-console or trailered boats Low-profile bronze housing extends only 5 mm (3/16") outside the hull No effect on your boat’s running performance Bronze housing for fiberglass or wood hull Also available in a stainless steel housing (SS60) for use with all hull materials Specifications: Power Rating: 600 W Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 8 m (26') Hole Size: 60 mm (2-3/8") Usable Shaft Length: 68.5 mm (2.70") Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing Conventional Beam: 45°/12° Max Deadrise: Up to 24° Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700') Mounting Style: Tilted Element Thru-Hull Retractable housing: No Single or Dual Frequency: Conventional Dual Frequency Tilted Element: Yes Weight: 1.4 kg (3 lbs.) Specifications: Cable Length (Feet): 26' Chirp: No Imaging: Standard Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 2"H x 6"W x 7"L WT: 5.5 lbs

Read more less

B60 Thru-Hull Transducer 20° Tilt 9-Pin for Navico xSonicThe B60 is a 600W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at a 20° angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. Orienting the beam directly down ensures maximum echo returns to the transducer for more accurate depth readings.Features: Depth and fast-response water temperature sensing 600 W of power Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') 200 kHz with a 12° beamwidth for depth performance to 206 m (700') Perfect for center-console or trailered boats Low-profile bronze housing extends only 5 mm (3/16") outside the hull No effect on your boat’s running performance Bronze housing for fiberglass or wood hull Also available in a stainless steel housing (SS60) for use with all hull materials Specifications: Power Rating: 600 W Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 8 m (26') Hole Size: 60 mm (2-3/8") Usable Shaft Length: 68.5 mm (2.70") Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing Conventional Beam: 45°/12° Max Deadrise: Up to 24° Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700') Mounting Style: Tilted Element Thru-Hull Retractable housing: No Single or Dual Frequency: Conventional Dual Frequency Tilted Element: Yes Weight: 1.4 kg (3 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Pins: 9-Pin Box Dimensions: 2"H x 8"W x 8"L WT: 5.8 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

B60 20° Bronze Thru-Hull Mix & Match Cable NeededThe B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. Orienting the beam directly down ensures maximum echo returns to the transducer for more accurate depth readings.Features: Depth and fast-response water temperature sensing 600 W of power Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') 200 kHz with a 12° beamwidth for depth performance to 206 m (700') Perfect for center-console or trailered boats Low-profile bronze housing extends only 5 mm (3/16") outside the hull No effect on your boat’s running performance Bronze housing for fiberglass or wood hull Also available in a stainless steel housing (SS60) for use with all hull materials Specifications: Power Rating: 600 W Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 8 m (26') Hole Size: 60 mm (2-3/8") Usable Shaft Length: 68.5 mm (2.70") Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing Conventional Beam: 45°/12° Max Deadrise: Up to 24° Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700') Mounting Style: Tilted Element Thru-Hull Retractable housing: No Single or Dual Frequency: Conventional Dual Frequency Tilted Element: Yes Weight: 1.4 kg (3 lbs) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chirp: No Imaging: Standard Mounting Style: Thru-Hull Speed Included: No Temperature: Yes Box Dimensions: 4"H x 8"W x 10"L WT: 4.5 lbs UPC: 801769000399 Brochure (pdf)

Read more less

B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 20ºThe bronze B60-20º provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.Features: Engineered for center-console and trailered boats Low-profile protrusion below the hull No affect on your boats running performance Arrow on cap points toward keel when installed Built-in temperature sensor Boat Size: Up to 8 m (25') Bronze transducer housing Specifications: Weight: 1.4 kg (3 lb) Hull Deadrise: Up to 24° Acoustic Window: Urethane This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: Yes Mounting Style: Thru-Hull Pins: 7 Box Dimensions: 1"H x 5"W x 8"L WT: 4.9 lbs Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 12ºThe bronze B60-12º provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5mm (3/16") extending outside of the hull.Features: Engineered for center-console and trailered boats Low-profile protrusion below the hull No affect on your boats running performance Arrow on cap points toward keel when installed Built-in temperature sensor Boat Size: Up to 8M (25') Bronze transducer housing Specifications: Weight: 1.4 kg (3 lb) Hull Deadrise: Up to 24° Acoustic Window: Urethane This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: Yes Mounting Style: Thru-Hull Pins: 7 Box Dimensions: 1"H x 5"W x 8"L WT: 3.4 lbs Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Features: Depth/Temp 50/200 kHz 600 W RMS Mid-performance Bronze The bronze B60-12 deg and B60-20 deg provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16 in) extending outside of the hull. With Lowrance Blue connector.

Read more less

Features: Depth/Temp 50/200 kHz 600 W RMS Mid-performance Bronze The bronze B60-12 deg and B60-20 deg provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16 in) extending outside of the hull. With Lowrance Blue connector.

Read more less

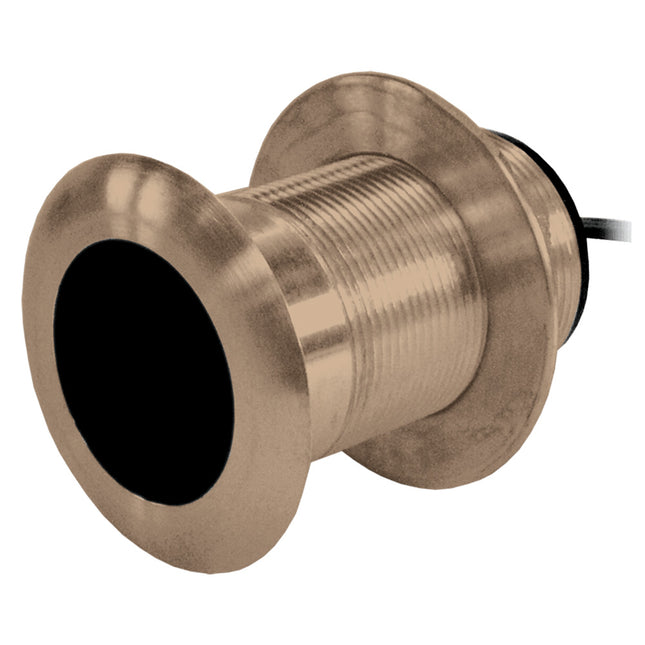

Airmar B117DT 50/200kHz Low Profile Bronze Thru hull Depth and Temp with Garmin 8-PinModel: B117DT-8G Depth and temperature 600 W Right-angle cable exit saves space and protects transducer if stepped on Right-angle cable exit saves space and protects transducer if stepped on Low-profile, bronze housing has minimal drag The B117 features a 50/200 kHz, dual-frequency, single, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16) extending outside of the hulll.SpecificationsWeight0.9 kg (2.0 lb.) Recommended Boat Length Up to 8 m (25 feet) Hull Material Fiberglass or wood Hull Deadrise Best performance through 7 deg. Can accommodate up to a 12 deg. Acoustic Window Urethane Hole Diameter 51 mm (2 in) "

Read more less
