Garmin fantom 50 watt Pedestal and Cable only - WhiteModel: 010-01364-10 Know what’s coming. MotionScope™ technology shows targets in color as they move toward you or away. GMR Fantom brings the power. 50 watts of it, actually. Get high resolution without wasting energy, thanks to pulse compression. Add even more detail to your maps with radar overlay — even in a split-screen view. This 50-watt radar has a range from 20’ to 72 nautical miles, even in fog or rain. It offers rotation speeds of 24 RPM for reduced power consumption and 48 RPM for fast screen updates.MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so you can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.This radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.Specifications General DIMENSION Pedestal: 16.6" x 14.3" x 10.7" WEIGHT 34.7 lb (15.7 kg) WATERPROOF IPX6 ROTATION SPEED (RPM) 24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower) MAXIMUM RANGE 72 nm MINIMUM RANGE 6 meters Electrical Features POWER INPUT 10-32 V DC TRANSMIT POWER 50 W Radar Features DUAL RANGE Yes OVERLAY Yes DUAL RADAR SUPPORT Yes AUTO BIRD GAIN Yes AUTO GAIN Dynamic MARPA TARGET TRACKING yes (requires heading sensor, sold separately) ECHO TRAILS Yes MOTIONSCOPE Yes PROGRAMMABLE ANTENNA PARKING Yes TARGET SIZE Yes SCAN AVERAGING Yes Antenna Sold Separately What's in the Box: GMR Fantom 50 watt Pedestal - White Mounting hardware kit and template Right angle power cable (15 meters) Right angle network cable (15 meters) Documentation

Read more less

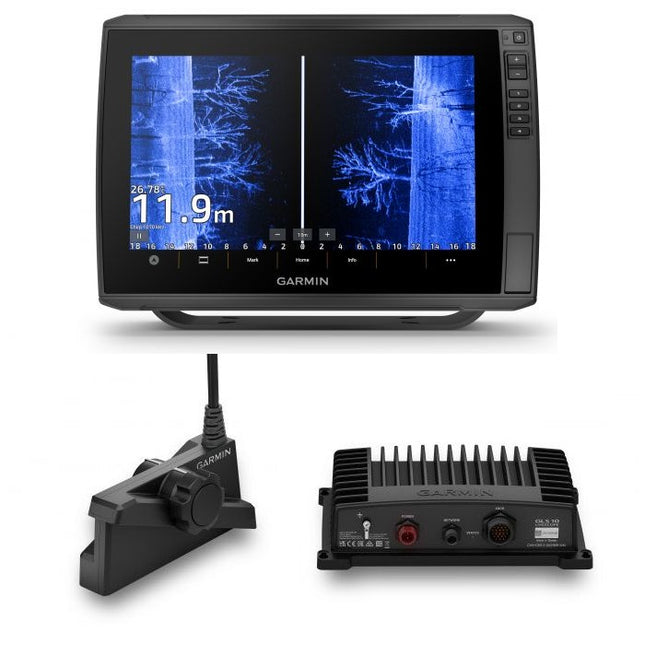

Garmin ECHOMAP™ Ultra 2 122sv 12" Chartplotter LIVESCOPE Plus Bundle with GT56UHD-TM TransducerModel: 010-02881-01/LIVESCOP Plus SUPPORTS LIVESCOPE™ SONAR1 AND MORE WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES2 CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar3, waypoints and routes — with them.1LiveScope™ System sonar transducer sold separately 2Via one-to-one unit wireless connection only 3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters 4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotterSpecifications General DIMENSION 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm) WEIGHT 5.5 lbs (2.5 kg) WATERPROOF IPX7 TOUCHSCREEN Yes DISPLAY TYPE WXGA, IPS DISPLAY SIZE 10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal) DISPLAY RESOLUTION 1280 x 800 pixels MOUNTING OPTIONS Bail or flush INPUT Touchscreen with Keyed Assist Maps & Memory ACCEPTS DATA CARDS 2 microSD cards WAYPOINTS 5000 TRACK POINTS 50,000 TRACKS 50 saved tracks NAVIGATION ROUTES 100 Sensors GPS Yes GLONASS Yes GALILEO Yes BEIDOU Yes HAS BUILT-IN RECEIVER Yes RECEIVER 10 Hz NMEA 2000 COMPATIBLE Yes NMEA 0183 COMPATIBLE Yes SUPPORTS WAAS Yes SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS Yes Built-in Maps BUILT-IN AUTO GUIDANCE+ Yes GARMIN NAVIONICS+ INLAND & COASTAL No TIDE TABLES No Optional Map Support BLUECHART G3 Yes BLUECHART G3 VISION Yes LAKEVü G3 Yes LAKEVü G3 ULTRA Yes GARMIN NAVIONICS+™ Yes GARMIN NAVIONICS VISION+™ Yes TOPO 100K Yes STANDARD MAPPING Yes GARMIN QUICKDRAW CONTOURS Yes Electrical Features POWER INPUT 9 to 18 Vdc TYPICAL CURRENT DRAW AT 12 VDC 2.5 A MAXIMUM CURRENT DRAW AT 12 VDC 5.0 A MAXIMUM POWER USAGE AT 10 VDC 36 W Connections NMEA 2000® PORTS 1 GARMIN MARINE NETWORK PORTS 2 (large connector) 12-PIN TRANSDUCER PORTS 12-pin scanning sonar ANT+ (CONNECTIVITY) Yes GARMIN WI-FI NETWORK (LOCAL CONNECTION) Yes Sonar Features DISPLAYS SONAR Yes POWER OUTPUT 600 watt TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) CLEARVü built-in 260/455/800/1000/1200 kHz SIDEVü built-in 260/455/800/1000/1200 kHz PANOPTIX™ SONAR Yes LIVESCOPE Yes What's in the Box: ECHOMAP Ultra 122sv Power/data cable Bail mount with quick release cradle Protective sun cover GT56UHD-TM ransducer Hardware Documentation LIVESCOPE Plus

Read more less

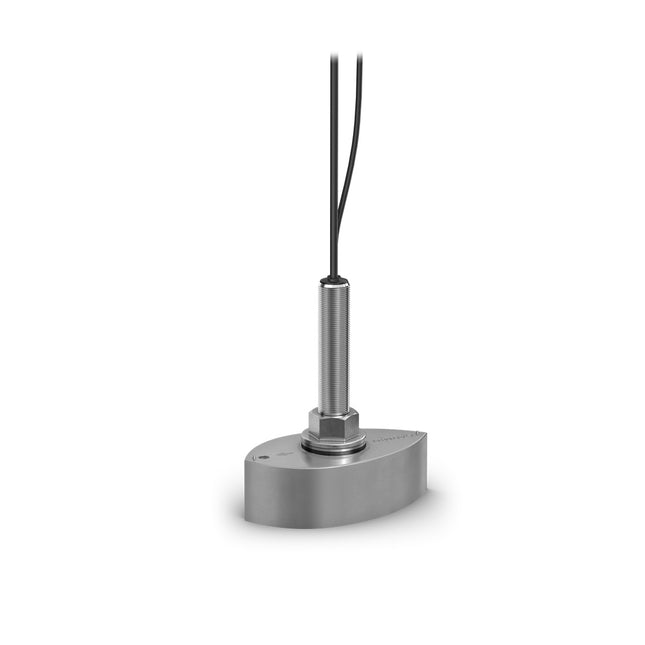

Garmin Panoptix PS70 TransducerModel: 010-02768-10 Garmin RapidReturn™ sonar provides real-time images up to 1,000’ below the surface, updating at a minimum of 10 frames per second Locate bait and fish quickly with wide 120-degree by 8-degree sonar beam Choose the sonar mode that works for your circumstance: LiveVü™ down mode, traditional sonar, triple-beam sonar or RealVü™ 3D historical scanning technology See a clear view — even in rough waters — with image stabilization Thru-hull transducer and fairing block provide 0- to 20-degree deadrise angles or flush pocket mounting 800-watt power output gives you stronger sonar penetration through the water LiveVü™ down mode provides real-time live sonar images up to 1000'; see small baitfish and large target fish swimming under your boat RealVü™ 3D historical scanning technology helps you see ocean floor structure while your boat is moving; it shows the entire water column you have passed over in 3D, from the bottom to the surface and all fish in between The New True Motion 3D sonar returns feature now follows the vessel’s course over ground Traditional sonar offers crisp clear fish arches and excellent separation of targets under the boat Triple-beam traditional sonar produces a three-way traditional sonar split, giving you sonar returns from the port and starboard directions — as well as targets directly under the boat — in an easy-to-understand traditional sonar view Survey the ocean floor in great detail; new QuickDraw Contours feature improvements allow you to survey wide areas at depths up to 1,000'" See fish live. Catch fish deep. The Panoptix™ PS70 thru-hull transducer is powered by Garmin RapidReturn™ sonar, which gives you live sonar views up to 1,000’ below the surface. As the fastest live sonar at 1,000’, images update at a minimum of 10 frames per second. Locate bait and fish quickly with a wide 120-degree by 8-degree sonar beam. Four easy-to-understand sonar modes — LiveVü™ down mode, traditional sonar, triple-beam traditional sonar or RealVü™ 3D historical scanning technology — allow you to select the view that works for your circumstance. And new QuickDraw Contours feature improvements allow you to survey wide areas of the sea floor at depths up to 1,000’.What's in the Box: PS70 thru-hull transducer Stainless steel thru-hull mounting hardware Power cable Network cable 40 ft (12 meters) with network adapter Documentation

Read more less

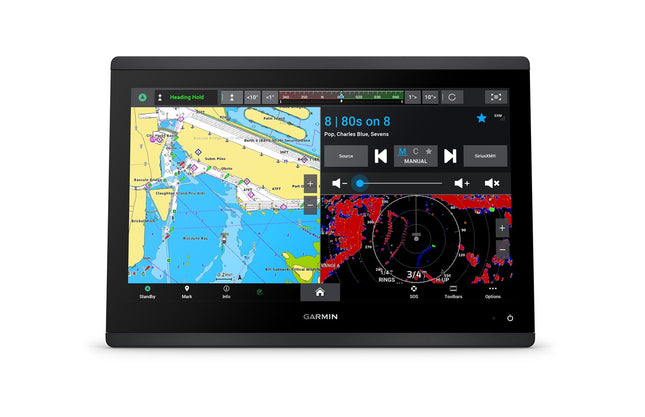

Garmin GPSMAP1643 Chartplotter with US+Canada Garmin Navionics+™Model: 010-02919-01 High-resolution 16" touchscreen, IPS display offers sunlight readability and visibility from any angle, even with polarized glasses Experience fast and responsive high-speed processing power of the GPSMAP® x3 series chartplotters Slim display borders and edge-to-edge glass make it easy to fit a wide range of helm configurations Preloaded mapping includes Garmin Navionics+™ charts with built-in Auto Guidance+™ technology with support for premium Garmin Navionics Vision+™ cartography with high-resolution relief shading (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) Get support and integration for your Force® trolling motor (sold separately) to gain complete control while you fish See engine information such as RPMs, fuel flow and more for compatible engine manufacturers Connect and control compatible third-party devices through EmpirBus™ digital switching and other OneHelm™ integrated digital switching-compatible products Easily build your marine system — from compatible sonar, autopilot, radars or cameras — by using NMEA 2000® and NMEA 0183 network connectivity and the Garmin Marine Network Use built-in Wi-Fi® technology to pair with the free ActiveCaptain® app for access to OneChart™, smart notifications, software updates and more (requires app on your compatible smartphone) Integrated ANT® technology supports connecting to your compatible quatix® marine smartwatch, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls Built-in J1939 integration Embrace connectivity, clarity and control at the helm with the GPSMAP® 16x3 chartplotter. This advanced MFD supports the same easy-to-use features from our GPSMAP x3 series but with a bigger 16" HD IPS touchscreen display. Anglers can enjoy options such as built-in support for the full line of LiveScope™ and Panoptix™ sonars, ClearVü™ and SideVü™ scanning sonars, and Garmin CHIRP traditional sonar (transducer required; sold separately). Once you find the fish, stay on them with Force® trolling motor support and integration. Enjoy simple navigation with support for Garmin Navionics+™ charts with Auto Guidance+™ technology, or upgrade to premium charts from Garmin Navionics Vision+™ cartography for high-resolution relief shading and more (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations). Connect multiple chartplotters, radars, cameras and more with seamless vessel integration on the Garmin Marine Network. Sailors at the helm can enjoy premium sailing features, such as sailing polars, and see laylines, race start line guidance and more with Garmin SailAssist™ features.Wi-Fi is a registered trademark of the Wi-Fi AllianceWhat's in the Box: GPSMAP1643 Display Power cable NMEA 2000® T-connector NMEA 2000 drop cable Flush mount kit with gasket Protective cover Trim piece snap covers Documentation

Read more less

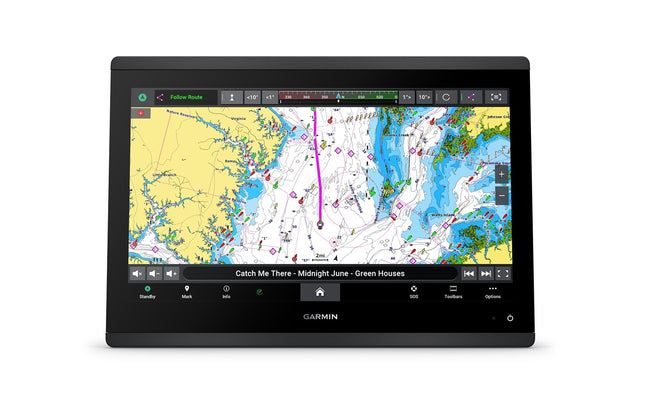

Garmin GPSMAP1623 Chartplotter with Worldwide BasemapModel: 010-02919-00 High-resolution 16" touchscreen, IPS display offers sunlight readability and visibility from any angle, even with polarized glasses Experience fast and responsive high-speed processing power of the GPSMAP® x3 series chartplotters Slim display borders and edge-to-edge glass make it easy to fit a wide range of helm configurations Support for mapping includes Garmin Navionics+™ charts with built-in Auto Guidance+™ technology and Garmin Navionics Vision+™ cartography with premium features, such as high-resolution relief shading (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) Get support and integration for your Force® trolling motor (sold separately) to gain complete control while you fish See engine information such as RPMs, fuel flow and more for compatible engine manufacturers Connect and control compatible third-party devices through EmpirBus™ digital switching and other OneHelm™ integrated digital switching-compatible products Easily build your marine system — from compatible sonar, autopilot, radars or cameras — by using NMEA 2000® and NMEA 0183 network connectivity and the Garmin Marine Network Use built-in Wi-Fi® technology to pair with the free ActiveCaptain® app for access to OneChart™, smart notifications, software updates and more (requires app on your compatible smartphone) Integrated ANT® technology supports connecting to your compatible quatix® marine smartwatch, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls Built-in J1939 integration Embrace connectivity, clarity and control at the helm with the GPSMAP® 16x3 chartplotter. This advanced MFD supports the same easy-to-use features from our GPSMAP x3 series but with a bigger 16" HD IPS touchscreen display. Anglers can enjoy options such as built-in support for the full line of LiveScope™ and Panoptix™ sonars, ClearVü™ and SideVü™ scanning sonars, and Garmin CHIRP traditional sonar (transducer required; sold separately). Once you find the fish, stay on them with Force® trolling motor support and integration. Enjoy simple navigation with support for Garmin Navionics+™ charts with Auto Guidance+™ technology, or upgrade to premium charts from Garmin Navionics Vision+™ cartography for high-resolution relief shading and more (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations). Connect multiple chartplotters, radars, cameras and more with seamless vessel integration on the Garmin Marine Network. Sailors at the helm can enjoy premium sailing features, such as sailing polars, and see laylines, race start line guidance and more with Garmin SailAssist™ features.Wi-Fi is a registered trademark of the Wi-Fi AllianceWhat's in the Box: GPSMAP1623 Display Power cable NMEA 2000® T-connector NMEA 2000 drop cable Flush mount kit with gasket Protective cover Trim piece snap covers Documentation

Read more less

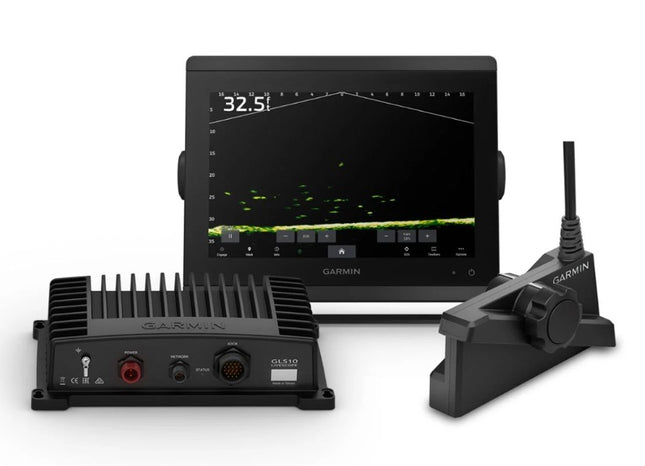

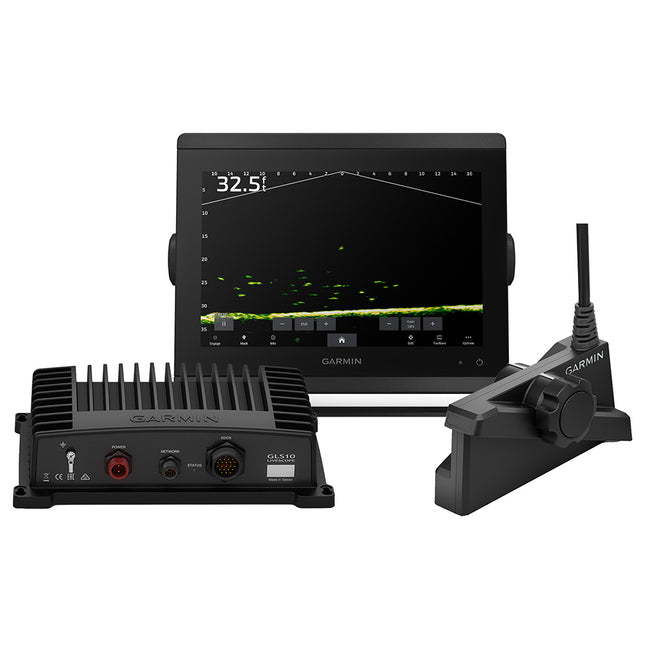

Garmin GPSMAP8610xsv Ice House Livescope Plus System GN+ US InlandModel: 020-00332-00 10" FULL HD IPS TOUCHSCREEN DISPLAY SHARE TO YOUR TV OR EXTERNAL DISPLAY VIA HDMI OUTPUT (HDMI CABLE NOT INCLUDED) LIVESCOPE™ FORWARD AND LIVESCOPE™ DOWN MODES PRELOADED WITH GARMIN NAVIONICS+™ MAPPING OF 25,000+ INLAND AND COASTAL LAKES Upgrade your on-ice experience with the GPSMAP® 8610xsv chartplotter, LiveScope Plus System and everything else you’ll need to catch more fish.This chartplotter features a 10" full HD IPS display with touchscreen and HDMI output, so you can display sonar on your TV or external display.Get a GLS™ 10 sonar black box with swivel pole mount and an LVS34-IF transducer, which features a transducer cable that stays flexible — even in freezing conditions.With an included 0-degree pole mount, the transducer can quickly switch between LiveScope Forward and LiveScope Down modes to adapt to your fishing technique.Get coverage for more than 25,000 lakes with preloaded coastal and inland mapping.Create custom pages that combine sonar and maps on your display.See below and around your boat with built-in sonar capabilities, whether you’re on the ice or the open water.Specifications General TOUCHSCREEN Yes INPUT Touchscreen DISPLAY SIZE 8.6" x 5.4"; 10.1" diagonal (21.8 cm x 13.7 cm; 25.7 cm diagonal) DISPLAY RESOLUTION 1920 x 1200 pixels DISPLAY TYPE WUXGA, IPS WEIGHT 15.4 lbs (7.0 kg) WATERPROOF IPX7 Maps & Memory ACCEPTS DATA CARDS 2 microSD™ cards WAYPOINTS 5000 TRACK POINTS 50,000 TRACKS 50 saved tracks NAVIGATION ROUTES 100 Ice Fishing Details BAG SIZE None INCLUDED TRANSDUCER LiveScope™ Plus System with LVS34-IF TRANSDUCER HOLDING FEATURE Pole mount Sensors HAS BUILT-IN RECEIVER Yes RECEIVER 10 Hz NMEA 2000 COMPATIBLE Yes GPS Yes GLONASS Yes GALILEO Yes SUPPORTS WAAS Yes Sonar Features & Specifications DISPLAYS SONAR Yes POWER OUTPUT 1 kW TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) CLEARVU built-in 260/455/800/1000/1200 kHz SIDEVU built-in 260/455/800/1000/1200 kHz PANOPTIX™ SONAR Yes LIVESCOPE Yes Connections NMEA 2000® PORTS 1 VIDEO INPUT PORTS 1 (BNC composite); 1 HDMI (HDCP compliant) VIDEO OUTPUT PORTS 1 HDMI GARMIN MARINE NETWORK PORTS 2 8-PIN TRANSDUCER PORTS Yes 12-PIN TRANSDUCER PORTS Yes BLUETOOTH® PAIRING Yes ANT+ (CONNECTIVITY) Yes GARMIN WI-FI NETWORK (LOCAL CONNECTION) Yes Input Voltage 10 to 32 Vdc Dimensions 10.25" x 8.0625" x 2.95" (25.9 cm x 20.5 cm x 7.5 cm) What's in the Box: GPSMAP 8610xsv with preloaded Garmin Navionics+™ Coastal Charts and Inland Mapping for U.S. LiveScope Plus LVS34-IF transducer GLS™ 10 black box sonar module with power and network cables Ice fishing pole mount Documentation

Read more less

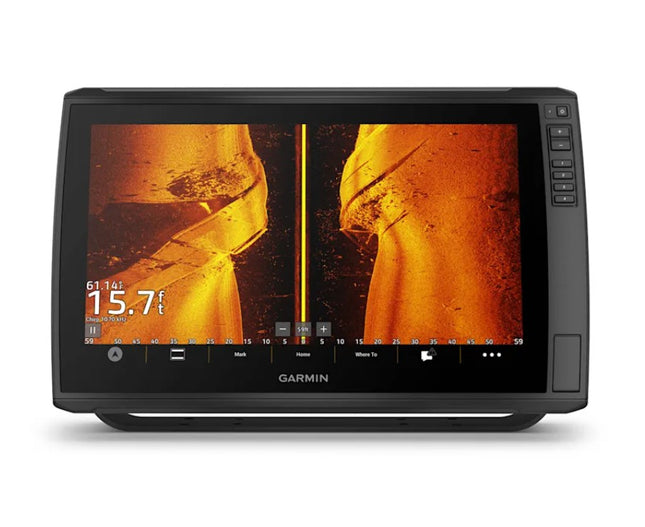

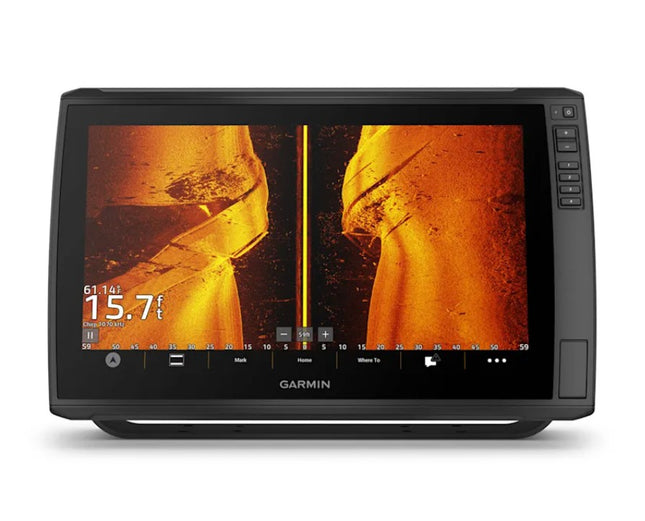

Garmin ECHOMAP Ultra 2 166sv US and Coastal Canada GN+ with GT56UHD-TM TransducerModel: 010-03386-01 16-INCH TOUCHSCREEN WITH KEYED ASSIST HDMI OUTPUT CONNECTORS FOR SCREEN SHARING BLUETOOTH® TECHNOLOGY ENABLES VOICE CONTROL FEATURES SUPPORTS LIVESCOPE SONAR AND MORE WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES MULTI-BAND GPS FOR SUPERIOR POSITION ACCURACY Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+™ mapping. Plus, there’s support for the full line of LiveScope™ sonars1 as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.LIVESCOPE SONAR SUPPORT: The ECHOMAP Ultra 2 chartplotter series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).BUILT-IN UHD SONAR: Select models are bundled with a GT56 transducer that provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.PRELOADED CHARTS: Select units come with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading and more. For added features, Garmin Navionics Vision+™ premium mapping is optionally available (sold separately).HDMI OUTPUT: Use the chartplotter’s HDMI output connector to share your sonar screen with a TV or other external display.VOICE CONTROL FEATURES: Built-in BLUETOOTH technology enables you to give voice commands to your chartplotter for hands-free control of such features as Force® trolling motor modes, favorite keys and sonar inputs.VIVID COLOR PALETTES: High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Specifications General Dimension 16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm) Weight 9.5 lbs (4.31 kg) Water rating IPX7 Touchscreen Yes Display Type FHD, IPS Display Size 13.6" x 7.7"; 15.6" diagonal (34.5 x 19.5 cm; 39.7 cm diagonal) Display resolution 1920 x 1080 pixels Mounting Options Bail or flush Input Touchscreen with Keyed Assist Maps & Memory Accepts Data Cards 2 microSD™ cards Waypoints 5000 Track points 50,000 Tracks 50 saved tracks Navigation Routes 100 Sensors GPS Yes GLONASS Yes Galileo Yes BeiDou Yes Has built-in receiver Yes Receiver 10 Hz NMEA 2000 Compatible Yes NMEA 0183 Compatible Yes Supports WAAS Yes Supports multi-band, multi-constellation GPS Yes Optional Map Support BlueChart g3 Yes BlueChart g3 Vision Yes LakeVü g3 Yes LakeVü g3 Ultra Yes Garmin Navionics Vision+™ Yes TOPO 100K Yes Standard Mapping Yes Garmin Quickdraw Contours Yes Chartplotter Features AIS Yes DSC Yes Supports Fusion-Link™ compatible radios Yes ActiveCaptain® compatible Yes Supports voice commands Yes Sailing Features Yes Electrical Features Power Input 9 to 18 Vdc Typical current draw at 12 Vdc 3.9 A Maximum current draw at 12 Vdc 6.6 A Maximum power usage at 10 Vdc 48 W Sonar Features Displays sonar Yes Power output 600 W Traditional sonar (dual frequency/beam) Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) ClearVü Built-in 260/455/800/1000/1200 kHz SideVü Built-in 260/455/800/1000/1200 kHz Panoptix™ sonar Yes Panoptix™ sonar Yes Connections NMEA 2000® ports 1 Video output ports 1 HDMI Garmin Marine Network Ports 2 (large connector) 12-pin transducer ports 12-pin scanning sonar BLUETOOTH® pairing Yes What's in the Box: ECHOMAP Ultra 166sv with Garmin Navionics+ GT56UHD-TM transducer Power cable Bail mount with knobs Protective sun cover Trim caps Hardware Documentation

Read more less

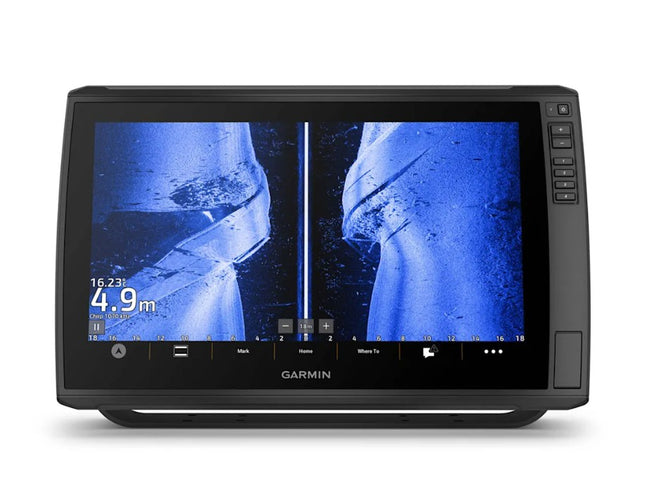

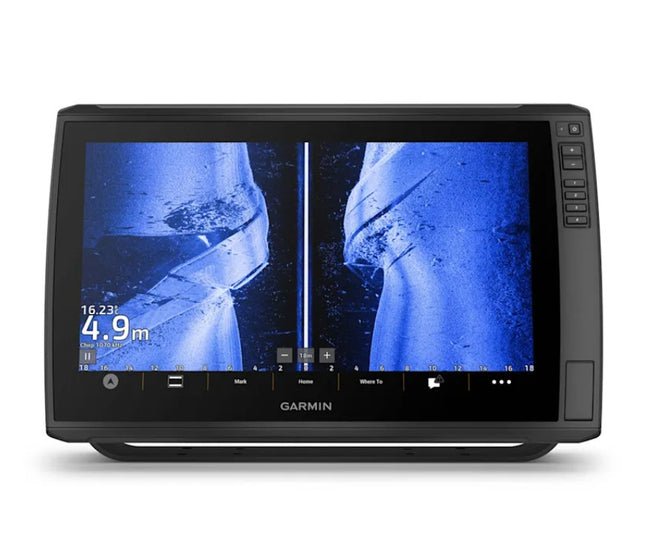

Garmin ECHOMAP Ultra 2 162sv Worldwide Basemap with GT56UHD-TM TransducerModel: 010-03385-01 16-INCH TOUCHSCREEN WITH KEYED ASSIST HDMI OUTPUT CONNECTORS FOR SCREEN SHARING BLUETOOTH® TECHNOLOGY ENABLES VOICE CONTROL FEATURES SUPPORTS LIVESCOPE SONAR AND MORE WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES MULTI-BAND GPS FOR SUPERIOR POSITION ACCURACY Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+™ mapping. Plus, there’s support for the full line of LiveScope™ sonars1 as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.LIVESCOPE SONAR SUPPORT: The ECHOMAP Ultra 2 chartplotter series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).BUILT-IN UHD SONAR: Select models are bundled with a GT56 transducer that provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.HDMI OUTPUT: Use the chartplotter’s HDMI output connector to share your sonar screen with a TV or other external display.VOICE CONTROL FEATURES: Built-in BLUETOOTH technology enables you to give voice commands to your chartplotter for hands-free control of such features as Force® trolling motor modes, favorite keys and sonar inputs.VIVID COLOR PALETTES: High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Specifications General Dimension 16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm) Weight 9.5 lbs (4.31 kg) Water rating IPX7 Touchscreen Yes Display Type FHD, IPS Display Size 13.6" x 7.7"; 15.6" diagonal (34.5 x 19.5 cm; 39.7 cm diagonal) Display resolution 1920 x 1080 pixels Mounting Options Bail or flush Input Touchscreen with Keyed Assist Maps & Memory Accepts Data Cards 2 microSD™ cards Waypoints 5000 Track points 50,000 Tracks 50 saved tracks Navigation Routes 100 Sensors GPS Yes GLONASS Yes Galileo Yes BeiDou Yes Has built-in receiver Yes Receiver 10 Hz NMEA 2000 Compatible Yes NMEA 0183 Compatible Yes Supports WAAS Yes Supports multi-band, multi-constellation GPS Yes Optional Map Support BlueChart g3 Yes BlueChart g3 Vision Yes LakeVü g3 Yes LakeVü g3 Ultra Yes Garmin Navionics+™ Yes Garmin Navionics Vision+™ Yes TOPO 100K Yes Standard Mapping Yes Garmin Quickdraw Contours Yes Chartplotter Features AIS Yes DSC Yes Supports Fusion-Link™ compatible radios Yes ActiveCaptain® compatible Yes Supports voice commands Yes Sailing Features Yes Electrical Features Power Input 9 to 18 Vdc Typical current draw at 12 Vdc 3.9 A Maximum current draw at 12 Vdc 6.6 A Maximum power usage at 10 Vdc 48 W Sonar Features Displays sonar Yes Power output 600 W Traditional sonar (dual frequency/beam) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) ClearVü Built-in 260/455/800/1000/1200 kHz SideVü Built-in 260/455/800/1000/1200 kHz Panoptix™ sonar Yes LiveScope Yes Connections NMEA 2000® ports 1 Video output ports 1 HDMI Garmin Marine Network Ports 2 (large connector) 12-pin transducer ports 12-pin scanning sonar What's in the Box: ECHOMAP Ultra 162sv GT56UHD-TM transducer Power cable Bail mount with knobs Protective sun cover Trim caps Hardware Documentation

Read more less

Garmin GPSMAP® 1243xsv SideVü, ClearVü and Traditional CHIRP Sonar with Garmin Navionics+™ and GMR18HD3 radar DomeModel: 010-02367-53 Easily integrate with more engines. Connect to compatible third-party devices with OneHelm™ digital switching. Easily build your marine system using the best of network connectivity. Navigate any waters with preloaded mapping and coastal charts. See below your boat with built-in sonar capabilities. Manage your marine experience from nearly anywhere. With its sleek design, powerful processing and upgraded IPS display, this advanced 12" chartplotter/sonar combo integrates seamlessly into your Garmin marine system.Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 923xsv also supports 1 kW CHIRP traditional sonar capabilities.Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.With its ultrasleek design, vivid sonar color palette and high-resolution 12" in-plane switching display, this large format chartplotter/sonar combo offers improved sunlight readability and wide-angle visibility.If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more.Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.Navigate any waters with preloaded Garmin Navionics+™ charts and mappingSpecifications General PHYSICAL DIMENSIONS 12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm) DISPLAY SIZE 10.3" x 6.4"; 12.1" diagonal DISPLAY RESOLUTION 1280 x 800 pixels DISPLAY TYPE WXGA display WEIGHT 6.6 lbs. (3.0 kg) WATER RATING IPX7 POLARIZED SUPPORT Yes POWER CONSUMPTION Max power usage at 10 Vdc: 26.5 W Typical current draw at 12 Vdc: 1.7 A Max current draw at 12 Vdc: 2.2 A ANTENNA Internal or external over NMEA 2000 MOUNTING OPTIONS Bail, flush or flat RECEIVER 10 Hz high-sensitivity GARMIN MARINE NETWORK™ PORTS 2 TRANSMIT POWER 1 kW traditional; 1 kW CHIRP Maps & Memory PRELOADED MAPS Garmin Navionics+™ ACCEPTS DATA CARDS 2 microSD™ cards (back of unit) WAYPOINTS 5,000 TRACK LOG 50,000 points; 50 saved tracks ROUTES 100 Outdoor Recreation TIDE TABLES Yes Chartplotter Features GARMIN RADAR COMPATIBLE Yes GARMIN SONAR COMPATIBLE Yes (built-in) GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) Yes SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) Yes SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) Yes SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS Yes GSD™ BLACK BOX SONAR SUPPORT Yes GCV™ BLACK BOX SONAR SUPPORT Yes ACTIVECAPTAIN COMPATIBLE Yes GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE Yes WIRELESS REMOTE COMPATIBLE Yes SAILING FEATURES Yes Sonar Features & Specifications DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE Yes DUAL-BEAM (77/200 KHZ) SONAR CAPABLE Yes FREQUENCIES SUPPORTED Traditional: 50/77/83/200 kHz CHIRP (low, medium, high) ClearVü (260/455/800 kHz) (dependent on transducer) CHIRP SONAR TECHNOLOGY Yes (Built-in) CLEARVü Yes with CHIRP (built-in) SIDEVü Yes with CHIRP (built-in) MAXIMUM DEPTH 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) Yes WATER TEMPERATURE LOG AND GRAPH Yes SONAR RECORDING Yes SONAR HISTORY REWIND Yes Connections NMEA 2000® COMPATIBLE Yes TRANSDUCER PIN NUMBERS 12-pin (orange) NMEA 0183 INPUT PORTS 1 NMEA 0183 OUTPUT PORTS 1 VIDEO INPUT PORTS 1 BNC VIDEO OUTPUT PORTS 1 HDMI WIRELESS CONNECTIVITY Yes J1939 COMPATIBLE Yes What's in the Box: GPSMAP 1243xsv chartplotter microSD™ card preinstalled Power cable NMEA 2000® T-connector NMEA 2000 drop cable (2 meters) Bail mount kit with knobs Flush mount kit with gasket Protective cover Trim piece snap covers Documentation 8-pin transducer to 12-pin sounder adapter cable GMR 18 HD3 radome Mounting hardware kit Power cable (15 m) Network cable (15 m) Installation instructions

Read more less

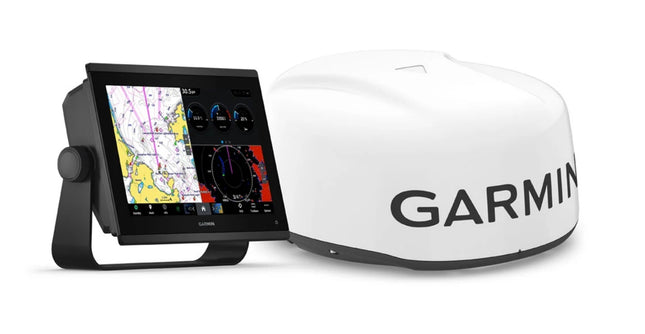

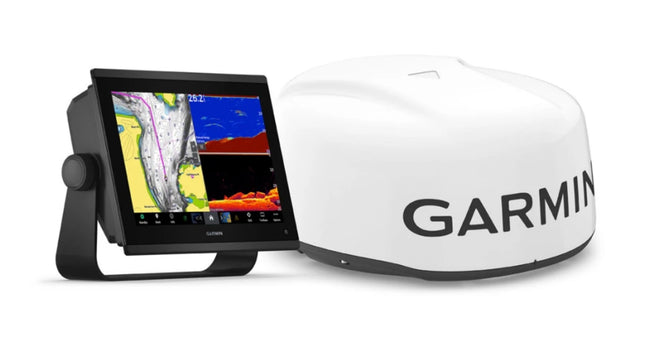

Garmin GPSMAP® 1223xsv SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap and GMR18HD3 radar DomeModel: 010-02367-52 Easily integrate with more engines. Connect to compatible third-party devices with OneHelm™ digital switching. Easily build your marine system using the best of network connectivity. Navigate any waters with preloaded mapping and coastal charts. See below your boat with built-in sonar capabilities. Manage your marine experience from nearly anywhere. With its sleek design, powerful processing and upgraded IPS display, this advanced 12" chartplotter/sonar combo integrates seamlessly into your Garmin marine system.Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 923xsv also supports 1 kW CHIRP traditional sonar capabilities.Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.With its ultrasleek design, vivid sonar color palette and high-resolution 12" in-plane switching display, this large format chartplotter/sonar combo offers improved sunlight readability and wide-angle visibility.If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more.Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.Specifications General PHYSICAL DIMENSIONS 12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm) DISPLAY SIZE 10.3" x 6.4"; 12.1" diagonal DISPLAY RESOLUTION 1280 x 800 pixels DISPLAY TYPE WXGA display WEIGHT 6.6 lbs. (3.0 kg) WATER RATING IPX7 POLARIZED SUPPORT Yes POWER CONSUMPTION Max power usage at 10 Vdc: 26.5 W Typical current draw at 12 Vdc: 1.7 A Max current draw at 12 Vdc: 2.2 A ANTENNA Internal or external over NMEA 2000 MOUNTING OPTIONS Bail, flush or flat RECEIVER 10 Hz high-sensitivity GARMIN MARINE NETWORK™ PORTS 2 TRANSMIT POWER 1 kW traditional; 1 kW CHIRP Maps & Memory PRELOADED MAPS worldwide basemap ACCEPTS DATA CARDS 2 microSD™ cards (back of unit) WAYPOINTS 5,000 TRACK LOG 50,000 points; 50 saved tracks ROUTES 100 Outdoor Recreation TIDE TABLES Yes Chartplotter Features GARMIN RADAR COMPATIBLE Yes GARMIN SONAR COMPATIBLE Yes (built-in) GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) Yes SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) Yes SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) Yes SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS Yes GSD™ BLACK BOX SONAR SUPPORT Yes GCV™ BLACK BOX SONAR SUPPORT Yes ACTIVECAPTAIN COMPATIBLE Yes GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE Yes WIRELESS REMOTE COMPATIBLE Yes SAILING FEATURES Yes Sonar Features & Specifications DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE Yes DUAL-BEAM (77/200 KHZ) SONAR CAPABLE Yes FREQUENCIES SUPPORTED Traditional: 50/77/83/200 kHz CHIRP (low, medium, high) ClearVü (260/455/800 kHz) (dependent on transducer) CHIRP SONAR TECHNOLOGY Yes (Built-in) CLEARVü Yes with CHIRP (built-in) SIDEVü Yes with CHIRP (built-in) MAXIMUM DEPTH 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) Yes WATER TEMPERATURE LOG AND GRAPH Yes SONAR RECORDING Yes SONAR HISTORY REWIND Yes Connections NMEA 2000® COMPATIBLE Yes TRANSDUCER PIN NUMBERS 12-pin (orange) NMEA 0183 INPUT PORTS 1 NMEA 0183 OUTPUT PORTS 1 VIDEO INPUT PORTS 1 BNC VIDEO OUTPUT PORTS 1 HDMI WIRELESS CONNECTIVITY Yes J1939 COMPATIBLE Yes What's in the Box: GPSMAP 1223xsv chartplotter microSD™ card preinstalled Power cable NMEA 2000® T-connector NMEA 2000 drop cable (2 meters) Bail mount kit with knobs Flush mount kit with gasket Protective cover Trim piece snap covers Documentation 8-pin transducer to 12-pin sounder adapter cable GMR 18 HD3 radome Mounting hardware kit Power cable (15 m) Network cable (15 m) Installation instructions

Read more less

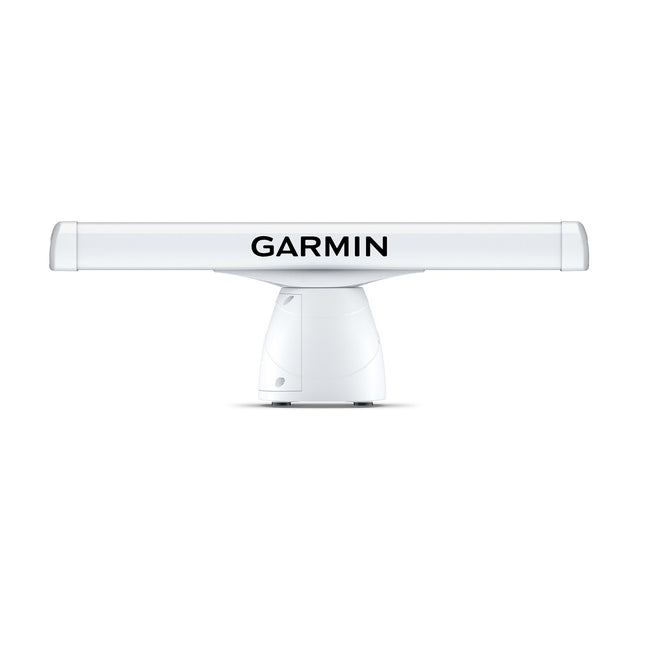

Garmin GMR™ 434 xHD3 4kw 4' Open Array Radar and PedestalModel: K10-00012-24 SCAN AVERAGING TECHNOLOGY IMPROVED TARGET-SIZE PROCESSING SPLIT-SCREEN DUAL-RANGE DISPLAY 100-KNOT COMMERCIAL GRADE WIND RATING1 QUIET OPEN-ARRAY DRIVE MOTOR A first for Garmin magnetron radar, scan averaging helps filter out sea clutter and interference to enhance the detection and display of consistent targets.Pulse expansion and angular target-size processing techniques optimize on-screen object shapes for better interpretation at all range scales.The 100-knot wind-rated open-array antennas1 have rotation speeds of 24 and 48 RPM for fast redraw rates, with max range up to 96 nautical miles on the 25-kW versions (up to 72 nautical miles on the 4- and 12-kW versions).A historical "trail" of boats on the water is displayed on the screen, removing relative motion influence to help you quickly identify moving targets and potential collision threats.A single radar antenna is capable of providing split-screen, side-by-side images on your compatible chartplotter, with independent range setting and controls for both close and long range. Overlay either or both ranges on a chart.Gain automatically adjusts levels to optimum settings for harbors, near shore and offshore in open waters.See overlaid images on your chartplotter’s map screen (with appropriate sensors, sold separately).Pick out targets at a distance, thanks to narrow horizontal beamwidth and high antenna gain.Dual-radar support provides redundancy and allows each display unit to pull data from different sources.Radar gain automatically adjusts sea clutter for calm, medium and rough sea conditions.Dynamic sea filter radar gain automatically adjusts sea clutter for calm, medium and rough sea conditions.Locate flocks of birds at the water’s surface where baitfish are also likely to be found.Track up to 30 targets to help avoid collisions (with appropriate sensors, sold separately).Specifications General DIMENSION 4' array: 1325 x 122 x 170 mm (52.2" x 4.8" x 6.7") WEIGHT 4' array and pedestal: 27.6 kg WATERPROOF IPX6 MAX WIND LOAD 80kt (100kt with optional voltage converter upgrade) ANTENNA LENGTH 4' array: 48" (122 cm) ROTATION SPEED (RPM) 24 and 48 rpm BEAM WIDTH 4' array: 1.8° horizontal, 23° vertical MAXIMUM RANGE 72 nm MINIMUM RANGE 20 meters RADAR TYPE Open-array Electrical Features POWER INPUT 11-32 V DC POWER CONSUMPTION (STANDBY) 18 W TYPICAL POWER CONSUMPTION, TRANSMITTING (NORMAL MODE) 55 W TRANSMIT POWER 4 kW Radar Features DUAL RANGE Yes OVERLAY Yes DUAL RADAR SUPPORT Yes AUTO BIRD GAIN Yes AUTO GAIN Dynamic MARPA TARGET TRACKING yes (requires heading sensor, sold separately) ECHO TRAILS True PROGRAMMABLE ANTENNA PARKING Yes TARGET SIZE Yes SCAN AVERAGING Yes What's in the Box: GMR xHD3 4 kW pedestal GMR xHD3 4' Antenna Power cable (15 m/49.21 ft) Network cable (15 m/49.21 ft) Mounting hardware kit and template Installation instructions

Read more less

Garmin ECHOMAP™ Ultra 2 122sv 12" Chartplotter LIVESCOPE Plus Bundle without TransducerModel: 010-02881-00/LIVESCOPE SUPPORTS LIVESCOPE™ SONAR1 AND MORE WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES2 CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar3, waypoints and routes — with them.1LiveScope™ System sonar transducer sold separately 2Via one-to-one unit wireless connection only 3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters 4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotterSpecifications General DIMENSION 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm) WEIGHT 5.5 lbs (2.5 kg) WATERPROOF IPX7 TOUCHSCREEN Yes DISPLAY TYPE WXGA, IPS DISPLAY SIZE 10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal) DISPLAY RESOLUTION 1280 x 800 pixels MOUNTING OPTIONS Bail or flush INPUT Touchscreen with Keyed Assist Maps & Memory ACCEPTS DATA CARDS 2 microSD cards WAYPOINTS 5000 TRACK POINTS 50,000 TRACKS 50 saved tracks NAVIGATION ROUTES 100 Sensors GPS Yes GLONASS Yes GALILEO Yes BEIDOU Yes HAS BUILT-IN RECEIVER Yes RECEIVER 10 Hz NMEA 2000 COMPATIBLE Yes NMEA 0183 COMPATIBLE Yes SUPPORTS WAAS Yes SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS Yes Built-in Maps BUILT-IN AUTO GUIDANCE+ Yes GARMIN NAVIONICS+ INLAND & COASTAL No TIDE TABLES No Optional Map Support BLUECHART G3 Yes BLUECHART G3 VISION Yes LAKEVü G3 Yes LAKEVü G3 ULTRA Yes GARMIN NAVIONICS+™ Yes GARMIN NAVIONICS VISION+™ Yes TOPO 100K Yes STANDARD MAPPING Yes GARMIN QUICKDRAW CONTOURS Yes Electrical Features POWER INPUT 9 to 18 Vdc TYPICAL CURRENT DRAW AT 12 VDC 2.5 A MAXIMUM CURRENT DRAW AT 12 VDC 5.0 A MAXIMUM POWER USAGE AT 10 VDC 36 W Connections NMEA 2000® PORTS 1 GARMIN MARINE NETWORK PORTS 2 (large connector) 12-PIN TRANSDUCER PORTS 12-pin scanning sonar ANT+ (CONNECTIVITY) Yes GARMIN WI-FI NETWORK (LOCAL CONNECTION) Yes Sonar Features DISPLAYS SONAR Yes POWER OUTPUT 600 watt TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) CLEARVü built-in 260/455/800/1000/1200 kHz SIDEVü built-in 260/455/800/1000/1200 kHz PANOPTIX™ SONAR Yes LIVESCOPE Yes What's in the Box: ECHOMAP Ultra 122sv Power/data cable Bail mount with quick release cradle Protective sun cover 8-pin transducer to 12-pin sounder adapter cable Hardware Documentation LIVESCOPE Plus

Read more less

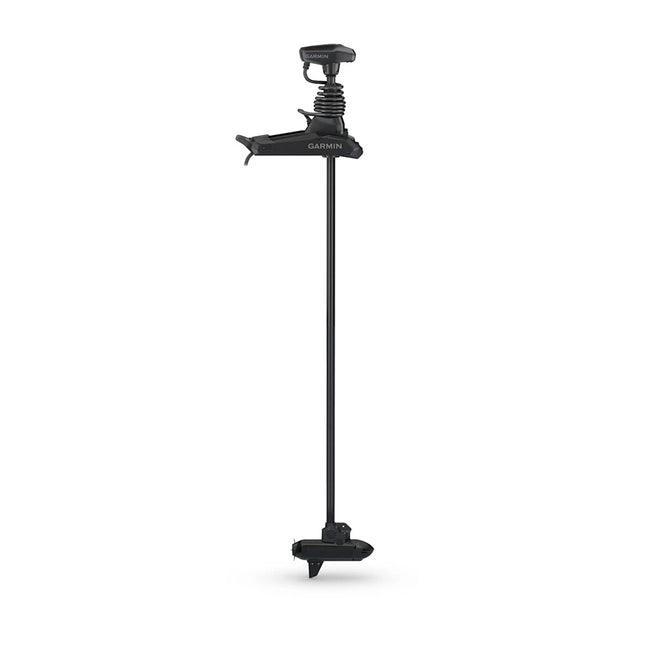

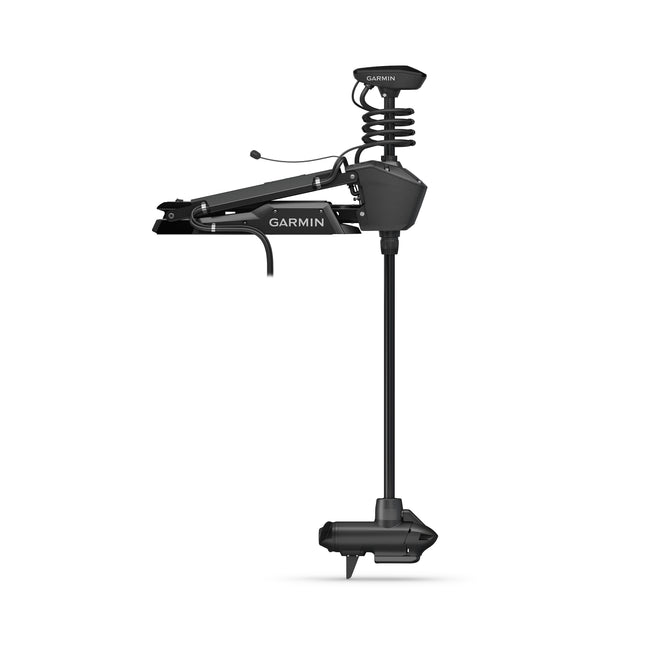

Garmin Force Kraken 90" Shaft Black Trolling Motor No TransducerModel: 010-02573-20 Most powerful trolling motor on the market with 100 lbs of thrust (in compliance with ISO standard 13342) Anchor lock provides our most precise boat positioning, thanks to multi-band GPS and integrated AHRS for heading hold Wireless integration with Garmin chartplotters allows you to create routes, patterns and tracks for the trolling motor to follow Easy installation where space is limited, thanks to the pivot-style mount Longer shaft length accommodates many different boat sizes and deck layouts Sturdy composite shaft is built to endure harsh marine environments LiveScope™ live sonar (sold separately) is easy to add; keeps the deck free of clutter and the cable protected by running the transducer cable through the trolling motor shaft Brushless motor is optimized to operate in rough open-water conditions at either 24 or 36 volts, thanks to the powerful and efficient design Clear sonar returns with extremely low levels of unwanted noise Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing and not running out of battery Don’t spook the fish; motor is extremely quiet above and below the water Included remote allows you to use point and go (using AHRS) and gesture steering to help you steer the boat without setting the rod down Designed for saltwater with advanced corrosion protection There’s a new legend to behold. Harness the power of the Force® Kraken trolling motor, the most powerful trolling motor on the market (in compliance with ISO standard 13342). It’s designed for deep V hulls and saltwater boats where bow space is limited. Once you’ve found the fish, keep the boat where it belongs with our most precise anchor lock technology. LiveScope™ live sonar (sold separately) is easy to add, thanks to the ability to run the cable through the trolling motor shaft. The sturdy pivot-style mount frees up space on the deck. Draw a route with wireless chartplotter integration, and let the trolling motor automatically navigate the route while you fish. The included remote makes speed and heading adjustments easy from anywhere on the boat. And with advanced corrosion protection, it’s built for oceans and brackish water.Specifications General COLOR white FOR USE IN freshwater, brackish water and saltwater WATER RATING IPX7 MOUNTING LOCATION bow MOUNT STYLE pivot-style mount MAX THRUST 100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 Vdc BUILT-IN HEADING SENSOR Yes BUILT-IN GPS Yes (dual frequency GPS) WARRANTY 3-year, limited lifetime on shaft WIRELESS REMOTE Yes (included) FOOT PEDAL COMPATIBLE Yes BATTERY INDICATOR Yes VARIABLE SPEED CONTROL Yes (20 steps) LIGHTED DIRECTION INDICATOR Yes DECK STABILIZER Yes Sonar Features & Specifications NUMBER OF PINS 12-pin (orange connector) LIVESCOPE CABLE INTEGRATION Yes (LiveScope transducer and Kraken Mounting Bracket purchases required) QUATIX REMOTE CONTROL SUPPORTED Yes Input Voltage 24 V or 36 V What's in the Box: 90" Black Shaft Force Kraken Motor Remote Control High-efficiency Propeller Assembly and Mounting Hardware Documentation

Read more less

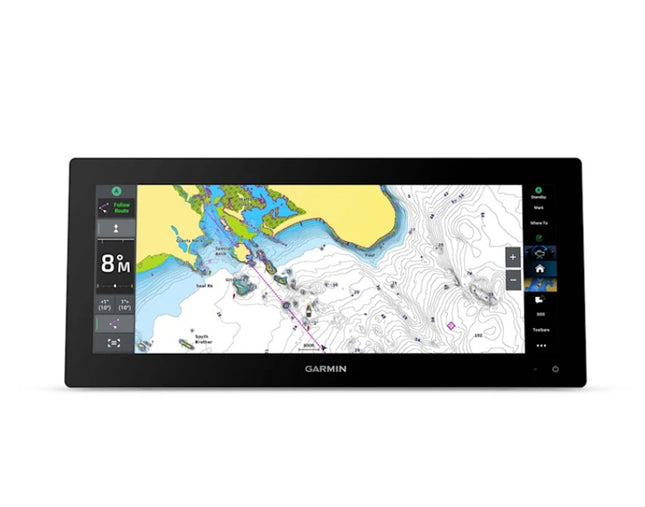

Garmin GPSMAP1543XSV 15in Ultrawide Combo No Transducer With US and Canada, GN+Model: 010-03855-01 ULTRAWIDE IN-PLANE SWITCHING (IPS) 15-INCH DISPLAY FITS A VARIETY OF HELM LAYOUTS, INCLUDING "FLOATING DISPLAY" CONFIGURATIONS CONNECT TO COMPATIBLE THIRD-PARTY DEVICES WITH DIGITAL SWITCHING AND ONEHELM™ INTEGRATIONS EASILY BUILD YOUR MARINE SYSTEM BY USING OUR ADVANCED NETWORK CONNECTIVITY NAVIGATE WATERS CONFIDENTLY WITH PRELOADED GARMIN NAVIONICS+ CHARTS ON SELECT MODELS SEE BELOW YOUR BOAT WITH BUILT-IN SONAR CAPABILITIES MANAGE YOUR MARINE EXPERIENCE FROM NEARLY ANYWHERE Offering a sleek aesthetic in an ultrawide edge-to-edge glass format, this advanced 15-inch chartplotter clearly expands your perspective at the helm. It is 74% wider and boasts more pixels than a standard 9-inch chartplotter, providing enhanced viewing clarity.Stunning display, with minimal trim borders and edge-to-edge glass, the GPSMAP 15x3 chartplotter features an ultrawide, high-resolution touchscreen interface with the familiar, easy-to-use functionality of our existing GPSMAP x3 series chartplottersThis versatile chartplotter’s ultrawide IPS display provides wider viewing angles, accurate colors, superior clarity and sunlight readability — even with polarized sunglasses.Experience the benefits of dual screens with the convenience of seamless control. Split-screen functionality lets you size and organize your display configuration to put the data you need right where you want it.Specifications General Weight 15.3" x 7.02" x 3.3" (388.9 x 178.5 x 82.9 mm) Water rating IPX7 Touchscreen Yes Display Type Ultrawide display, IPS Display Size 13.6" x 5.1"; 14.5" diagonal (34.6 x 12.9 cm; 36.8 cm diagonal) Display resolution 1920 x 720 pixels Mounting Options Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) Polarized lens viewability Yes Maps & Memory Accepts Data Cards 2 microSD cards (back of device) Compatible with Garmin SD card reader Yes (USB card reader) Waypoints 5000 Track points 50,000 Tracks 50 saved tracks Navigation Routes 100 Sensors GPS Yes GLONASS Yes Galileo Yes Has built-in receiver Yes Receiver 10 Hz NMEA 2000 Compatible Yes NMEA 0183 Compatible Yes Supports WAAS Yes Supports multi-band, multi-constellation GPS Yes (with external GPS antenna) Built-in Maps Built-in Auto Guidance+ Yes Garmin Navionics+ Inland & Coastal Yes Tide tables Yes Electrical Features Power Input 10 to 32 Vdc Typical current draw at 12 Vdc 2.44 A Maximum current draw at 12 Vdc 4.21 A Maximum power usage at 10 Vdc 56.93 W Sonar Features Displays sonar Yes Power output 1 kW Traditional sonar (dual frequency/beam) Yes ClearVü Yes SideVü Yes Panoptix sonar Yes LiveScope Yes Connections NMEA 2000 ports 1 NMEA 0183 Input (Rx) Ports 1 NMEA 0183 output (Tx) ports 1 Video input ports 1 (BNC composite) J1939 ports 1 Garmin Marine Network Ports 2 12-pin transducer ports 1 USB ports Yes BLUETOOTH pairing Yes (BLE) ANT (Connectivity) Yes Garmin Wi-Fi network (local connection) Yes Input Voltage 10 to 32 Vdc Dimensions 15.3" x 7.02" x 3.3" (388.9 x 178.5 x 82.9 mm) What's in the Box: GPSMAP 1543xsv ultrawide chartplotter microSD card preinstalled Power cable Thin flush mount kit with gasket Protective cover 8-pin transducer to 12-pin sounder adapter cable 2 m backbone/drop cable and T-connector for NMEA 2000 Network Documentation

Read more less

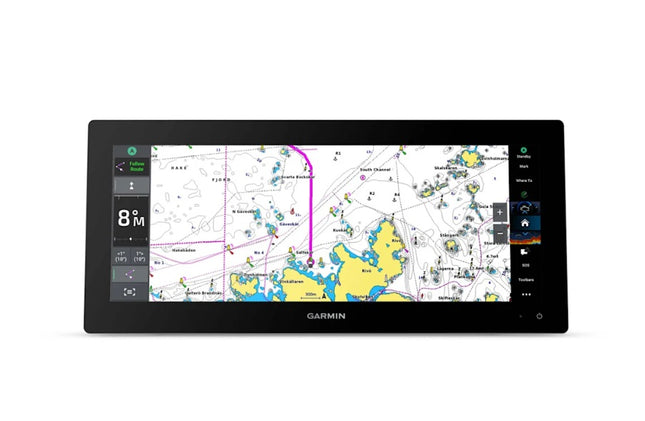

Garmin GPSMAP1523XSV 15in Ultrawide Combo No Transducer Worldwide BasemapModel: 010-03855-00 ULTRAWIDE IN-PLANE SWITCHING (IPS) 15-INCH DISPLAY FITS A VARIETY OF HELM LAYOUTS, INCLUDING "FLOATING DISPLAY" CONFIGURATIONS CONNECT TO COMPATIBLE THIRD-PARTY DEVICES WITH DIGITAL SWITCHING AND ONEHELM™ INTEGRATIONS EASILY BUILD YOUR MARINE SYSTEM BY USING OUR ADVANCED NETWORK CONNECTIVITY NAVIGATE WATERS CONFIDENTLY WITH PRELOADED GARMIN NAVIONICS+™ CHARTS ON SELECT MODELS SEE BELOW YOUR BOAT WITH BUILT-IN SONAR CAPABILITIES MANAGE YOUR MARINE EXPERIENCE FROM NEARLY ANYWHERE Offering a sleek aesthetic in an ultrawide edge-to-edge glass format, this advanced 15-inch chartplotter clearly expands your perspective at the helm. It is 74% wider and boasts more pixels than a standard 9-inch chartplotter, providing enhanced viewing clarity.Stunning display, with minimal trim borders and edge-to-edge glass, the GPSMAP 15x3 chartplotter features an ultrawide, high-resolution touchscreen interface with the familiar, easy-to-use functionality of our existing GPSMAP x3 series chartplotters.This versatile chartplotter’s ultrawide IPS display provides wider viewing angles, accurate colors, superior clarity and sunlight readability — even with polarized sunglasses.Experience the benefits of dual screens with the convenience of seamless control. Split-screen functionality lets you size and organize your display configuration to put the data you need right where you want it.Specifications General Weight 7.2 lbs (3.26kg) Water rating IPX7 Touchscreen Yes Display Type Ultrawide display, IPS Display Size 13.6" x 5.1"; 14.5" diagonal (34.6 x 12.9 cm; 36.8 cm diagonal) Display resolution 1920 x 720 pixels Mounting Options Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) Polarized lens viewability Yes Maps & Memory Accepts Data Cards 2 microSD cards (back of device) Compatible with Garmin SD card reader Yes (USB card reader) Waypoints 5000 Track points 50,000 Tracks 50 saved tracks Navigation Routes 100 Sensors GPS Yes GLONASS Yes Galileo Yes Has built-in receiver Yes Receiver 10 Hz NMEA 2000 Compatible Yes NMEA 0183 Compatible Yes Supports WAAS Yes Supports multi-band, multi-constellation GPS Yes (with external GPS antenna) Electrical Features Power Input 10 to 32 Vdc Typical current draw at 12 Vdc 2.44 A Maximum current draw at 12 Vdc 4.21 A Maximum power usage at 10 Vdc 56.93 W Sonar Features Displays sonar Yes Power output 1 kW Traditional sonar (dual frequency/beam) Yes ClearVü Yes SideVü Yes Panoptix sonar Yes LiveScope Yes Connections NMEA 2000 ports 1 NMEA 0183 Input (Rx) Ports 1 NMEA 0183 output (Tx) ports 1 Video input ports 1 (BNC composite) J1939 ports 1 Garmin Marine Network Ports 2 12-pin transducer ports 1 USB ports Yes BLUETOOTH pairing Yes (BLE) Garmin Wi-Fi network (local connection) Yes Input Voltage 10 to 32 Vdc Dimensions 15.3" x 7.02" x 3.3" (388.9 x 178.5 x 82.9 mm) What's in the Box: GPSMAP 1523xsv ultrawide chartplotter microSD card preinstalled Power cable Thin flush mount kit with gasket Protective cover 8-pin transducer to 12-pin sounder adapter cable 2 m backbone/drop cable and T-connector for NMEA 2000 Network Documentation

Read more less

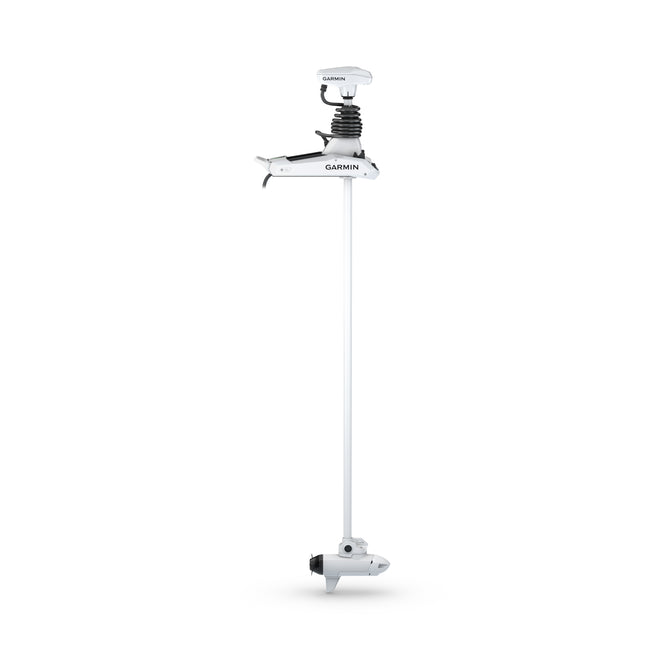

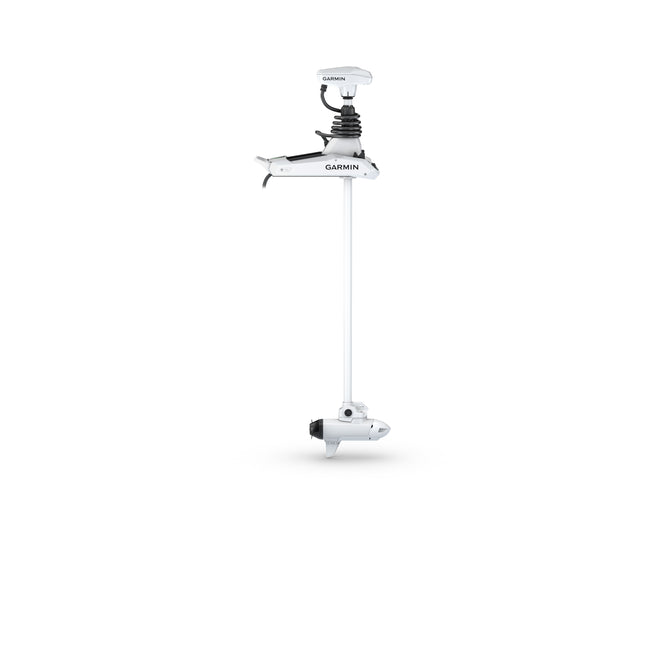

Garmin Force Kraken 90" Shaft White Trolling Motor No TransducerModel: 010-02574-20 Most powerful trolling motor on the market with 100 lbs of thrust (in compliance with ISO standard 13342) Anchor lock provides our most precise boat positioning, thanks to multi-band GPS and integrated AHRS for heading hold Wireless integration with Garmin chartplotters allows you to create routes, patterns and tracks for the trolling motor to follow Easy installation where space is limited, thanks to the pivot-style mount Longer shaft length accommodates many different boat sizes and deck layouts Sturdy composite shaft is built to endure harsh marine environments LiveScope™ live sonar (sold separately) is easy to add; keeps the deck free of clutter and the cable protected by running the transducer cable through the trolling motor shaft Brushless motor is optimized to operate in rough open-water conditions at either 24 or 36 volts, thanks to the powerful and efficient design Clear sonar returns with extremely low levels of unwanted noise Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing and not running out of battery Don’t spook the fish; motor is extremely quiet above and below the water Included remote allows you to use point and go (using AHRS) and gesture steering to help you steer the boat without setting the rod down Designed for saltwater with advanced corrosion protection There’s a new legend to behold. Harness the power of the Force® Kraken trolling motor, the most powerful trolling motor on the market (in compliance with ISO standard 13342). It’s designed for deep V hulls and saltwater boats where bow space is limited. Once you’ve found the fish, keep the boat where it belongs with our most precise anchor lock technology. LiveScope™ live sonar (sold separately) is easy to add, thanks to the ability to run the cable through the trolling motor shaft. The sturdy pivot-style mount frees up space on the deck. Draw a route with wireless chartplotter integration, and let the trolling motor automatically navigate the route while you fish. The included remote makes speed and heading adjustments easy from anywhere on the boat. And with advanced corrosion protection, it’s built for oceans and brackish water.Specifications General COLOR white FOR USE IN freshwater, brackish water and saltwater WATER RATING IPX7 MOUNTING LOCATION bow MOUNT STYLE pivot-style mount MAX THRUST 100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 Vdc BUILT-IN HEADING SENSOR Yes BUILT-IN GPS Yes (dual frequency GPS) WARRANTY 3-year, limited lifetime on shaft WIRELESS REMOTE Yes (included) FOOT PEDAL COMPATIBLE Yes BATTERY INDICATOR Yes VARIABLE SPEED CONTROL Yes (20 steps) LIGHTED DIRECTION INDICATOR Yes DECK STABILIZER Yes Sonar Features & Specifications NUMBER OF PINS 12-pin (orange connector) LIVESCOPE CABLE INTEGRATION Yes (LiveScope transducer and Kraken Mounting Bracket purchases required) QUATIX REMOTE CONTROL SUPPORTED Yes Input Voltage 24 V or 36 V What's in the Box: 90" White Shaft Force Kraken Motor Remote Control High-efficiency Propeller Assembly and Mounting Hardware Documentation

Read more less

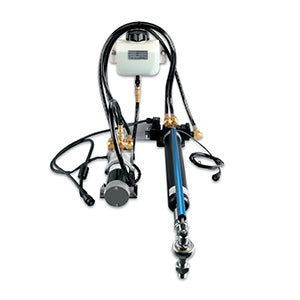

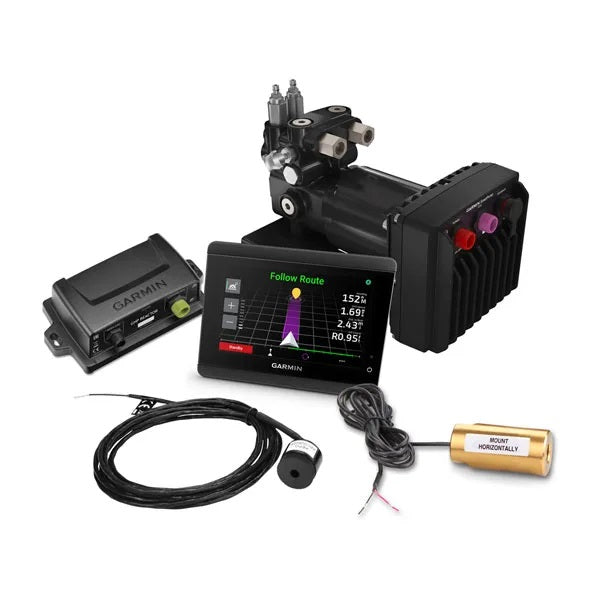

Garmin Reactor™ 40 Hydraulic Corepack with SmartPump v2 With GHC™ 50 Autopilot InstrumentModel: 010-02794-01 This Reactor 40 corepack is the perfect companion for your hydraulically steered system. Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere. Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course. You just want to get on the water, so we made calibration fast and easy. That’s the power of simple. Combine with your compatible Garmin chartplotter, and control your autopilot — from anywhere on your boat. Want more? The optional GHC™ 50 autopilot instrument enhances your autopilot experience. Designed for powerboats, this Reactor 40 hydraulic corepack with SmartPump gives you the extra hand you need, so you can explore paradise worry-free.This corepack’s compact, brushless SmartPump fits most sailboats and powerboats with a hydraulically steered boating system. It requires a compatible Garmin chartplotter or GHC autopilot instrument.The SmartPump v2 is a one-size-fits-most solution that provides optimal control and confidence on the water. Plus, gain better thermal performance, higher reliability and lower power consumption.With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimizes heading error and more.Hold your course on the sea — this autopilot reacts to conditions, so you can remain confident even when you’re pitching or rolling.All autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.Gain more freedom when maneuvering your boat. This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel.Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).Combine the Reactor 40 corepack with the GHC 50 autopilot instrument to add a dedicated, touchscreen autopilot display to your helm. Plus, GHC 50 allows you to share data and settings with Garmin MFDs and other installed Garmin devices.When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately). You can even gain additional benefits such as the follow route and Auto Guidance+™ features1.1 Auto Guidance is for planning purposes only and does not replace safe navigation operationsSpecifications General Dimensions (H x W x D) 7 3/4" x 7 1/2" x 9 5/8" (197 mm x 190 mm x 244 mm) Weight 16.5 lbs (7.5 kg) Temperature range From 5°F to 131°F (from -15°C to 55°C) Material Electronics Control Unit (ECU) - fully gasketed, aluminum alloy; bracket - carbon steel; manifold - aluminum alloy; motor - aluminum alloy Power cable length 9 ft (2.7 m) Power input 11.5-30 Vdc Fuse 40 A, blade-type Main power usage standby - less than 1 A; engaged - 5-10 A; peak - 34 A Flow rate Configurable from 0 to 2.4 L per minute Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in CCU Specifications Dimensions 3 19/32" diameter (91.4 mm) Weight 5.6 oz (159 g) Temperature range From 5°F to 131°F (from -15°C to 55°C) Case material Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards CCU cable length 9.5 ft (3 m) NMEA 2000 power input 9-16 V NMEA 2000 LEN 3 (150 mA) Buzzer/Alarm Specifications Dimensions (L Diameter) 29/32" 1.0" (23 mm 25 mm) Weight 2.4 oz (68 g) Temperature range from 5°F to 131°F (from -15°C to 55°C) Cable length 10 ft (3.0 m) What's in the Box: GHC™ 50 SmartPump v2 Reactor 40 CCU (Course Computer Unit) ECU (Electronic Control Unit) power cable Interconnect cable Shadow Drive Buzzer NMEA 2000® drop cables (2 meters) NMEA 2000 power cable NMEA 2000 T-connectors Male and female terminators Documentation

Read more less

Airmar R109LHW 2kW 38-75kHz & 150-250kHz Thru-Hull TransducerThis plastic thru-hull mount transducer uses the low frequencies for deep water performance and high wide frequencies for shallow water performance.A 2 kW in a slightly smaller package, this bare wire transducer has a depth of 8,000 feet; an operating frequency of 38 to 75 kHz and 150 to 250 kHz; a beamwidth of 9x23 degrees or a constant 25 degrees; and a 0 to 25 degree deadrise.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Chirp: Low/High Wide Cable Length (Feet): 49' Temperature: Yes Speed Included: No Mounting Style: Thru-Hull Imagining: Standard Pins: Bare Wires Box Dimensions: 14"H x 17"W x 28"L WT: 35 lbs UPC: 753759123567 Owner's Manual (pdf)Brochure (pdf)

Read more less

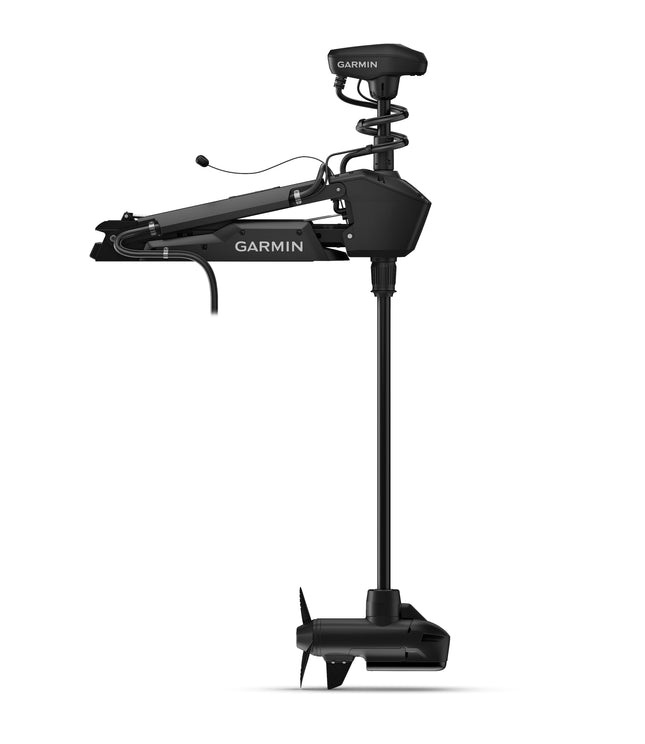

Garmin Force® Pro Trolling Motor Black 57in Trolling Motor with Built-In GT56UHD-TR TransducerModel: 010-03011-10 Trolling motor with legendary power and performance Multiband GPS provides superior positioning accuracy when in anchor lock, heading hold or while following a route Includes two props: high efficiency and weedless Wireless integration with your Garmin chartplotters allows you to create routes and control steering, thrust level, anchor lock positioning and more Easy installation with the scissor-style mount, which includes a durable pull cable and dual gas springs for easy deployment and stowing Get brilliant UHD scanning sonar with the included GT56UHD transducer Clear sonar returns with extremely low levels of noise Don’t spook the fish; motor is extremely quiet above and below the water Auto forward feature pre-aligns the motor so it’s forward facing upon deployment Lighted indicator on the shaft cap lets you see motor direction in low light Manual reverse prop spin lets you easily blow off weeds when necessary Saltwater durable with advanced corrosion protection Fish with force with Force® Pro, the trolling motor with legendary power and performance. With its scissor-style mount and choice of 50" or 57" shaft lengths, it’s designed specifically for bass boats. See everything around your boat with brilliant high-definition scanning sonar with the included all-in-one GT56UHD transducer. And once you’ve found the spot, stay put with our most precise anchor lock technology, now featuring reverse prop spin and calm-water cable unwrap to reduce motor activity. Make speed and steering adjustments wirelessly from anywhere on the boat with the included foot pedal or included remote with gesture control. You can also use your integrated chartplotter to draw a route, and the trolling motor will automatically navigate while you fish. The lighted indicator on the trolling motor shaft cap means you can fish in low light and always know what direction you’re headed.Specifications General Color Black For use in freshwater, brackish water and saltwater Mount style scissor-style mount Max thrust 100 lbs per ISO 13342 using high efficiency propeller at 36 / 80 lbs per ISO 13342 using high efficiency propeller at 24 V Voltage 24 V or 36 V Electric steering Yes Lift-assist dual gas springs Built-in heading sensor Yes Built-in GPS Yes (dual frequency GPS) Warranty 3-year, limited lifetime on shaft Water rating IPX7 Mounting location Bow Wireless remote Yes (included) Foot pedal compatible Yes (included) Battery indicator Yes Variable speed control Yes (20 steps) Lighted direction indicator Yes Deck stabilizer Yes (included) Quatix remote control supported Yes Manual reverse control Yes Sonar Features Frequencies supported Traditional: High-wide CHIRP (150-240 kHz) ClearVu/SideVu: 455 kHz, 800 kHz, 1000 kHz Transmit power Traditional: 350 W ClearVu/SideVu: 500 W Maximum depth CHIRP sonar: 800' freshwater ClearVu: 400' SideVu: 500' Depth/speed/temperature depth and temperature Number of pins 12-pin (orange connector) Autopilot Features Route following Yes Anchor lock Yes Smart Anchor Lock features Yes Anchor lock jog Yes Heading hold Yes Cruise control Yes Gesture features Yes (manual+, heading hold+, jog+) Foot Pedal Features Dimensions 12" L x 9" W x 4 1/2" H Wireless communication Yes Power installation 12 V/24 V/36 V wired or battery powered (2 AA) AA battery life 1 full season Water rating IPX7 Adjustable pedal resistance Yes Remote Features Display size 1.2" (30.2 mm) diameter Display resolution 240 x 240 pixels Display type color, sunlight-visible, transflective memory-in-pixel (MIP) Chartplotter user-programmable keys Yes Autopilot feature control Yes Water rating IPX7 Battery life Typical use with backlight at low, 43 weeks Floats Yes What's in the Box: Force® Pro Trolling Motor High efficiency propeller Weedless propeller Foot pedal Remote Stabilizer Assembly and mounting hardware Documentation

Read more less

Garmin Force Kraken 75" Shaft White Trolling Motor No TransducerModel: 010-02574-10 Most powerful trolling motor on the market with 100 lbs of thrust (in compliance with ISO standard 13342) Anchor lock provides our most precise boat positioning, thanks to multi-band GPS and integrated AHRS for heading hold Wireless integration with Garmin chartplotters allows you to create routes, patterns and tracks for the trolling motor to follow Easy installation where space is limited, thanks to the pivot-style mount Longer shaft length accommodates many different boat sizes and deck layouts Sturdy composite shaft is built to endure harsh marine environments LiveScope™ live sonar (sold separately) is easy to add; keeps the deck free of clutter and the cable protected by running the transducer cable through the trolling motor shaft Brushless motor is optimized to operate in rough open-water conditions at either 24 or 36 volts, thanks to the powerful and efficient design Clear sonar returns with extremely low levels of unwanted noise Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing and not running out of battery Don’t spook the fish; motor is extremely quiet above and below the water Included remote allows you to use point and go (using AHRS) and gesture steering to help you steer the boat without setting the rod down Designed for saltwater with advanced corrosion protection" There’s a new legend to behold. Harness the power of the Force® Kraken trolling motor, the most powerful trolling motor on the market (in compliance with ISO standard 13342). It’s designed for deep V hulls and saltwater boats where bow space is limited. Once you’ve found the fish, keep the boat where it belongs with our most precise anchor lock technology. LiveScope™ live sonar (sold separately) is easy to add, thanks to the ability to run the cable through the trolling motor shaft. The sturdy pivot-style mount frees up space on the deck, and the 63", 75" and 90" shaft lengths accommodate most boats. Draw a route with wireless chartplotter integration, and let the trolling motor automatically navigate the route while you fish. The included remote makes speed and heading adjustments easy from anywhere on the boat. And with advanced corrosion protection, it’s built for oceans and brackish water.Specifications General COLOR white FOR USE IN freshwater, brackish water and saltwater WATER RATING IPX7 MOUNTING LOCATION bow MOUNT STYLE pivot-style mount MAX THRUST 100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 Vdc BUILT-IN HEADING SENSOR Yes BUILT-IN GPS Yes (dual frequency GPS) WARRANTY 3-year, limited lifetime on shaft WIRELESS REMOTE Yes (included) FOOT PEDAL COMPATIBLE Yes BATTERY INDICATOR Yes VARIABLE SPEED CONTROL Yes (20 steps) LIGHTED DIRECTION INDICATOR Yes Sonar Features & Specifications NUMBER OF PINS 12-pin (orange connector) LIVESCOPE CABLE INTEGRATION Yes (LiveScope transducer and Kraken Mounting Bracket purchases required) QUATIX REMOTE CONTROL SUPPORTED Yes What's in the Box: 75" White Shaft Force Kraken Motor Remote Control High-efficiency Propeller Assembly and Mounting Hardware Documentation

Read more less

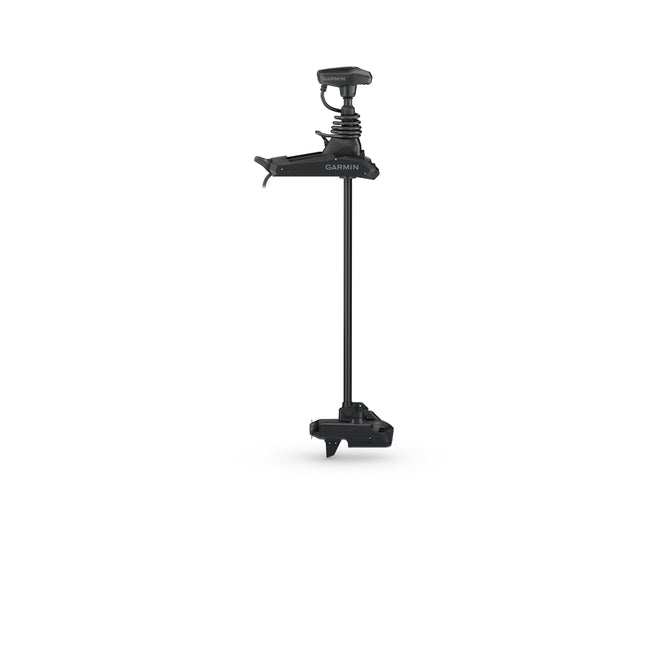

Garmin Force Kraken Black trolling Motor 75" Shaft with GT56UHD-TR TransducerModel: 010-02573-10 Most powerful trolling motor on the market with 100 lbs of thrust (in compliance with ISO standard 13342) Anchor lock provides our most precise boat positioning, thanks to multi-band GPS and integrated AHRS for heading hold Wireless integration with your Garmin chartplotters allows you to create routes, patterns and tracks for the trolling motor to follow while you fish Easy installation where bow space is limited, thanks to the pivot-style mount Sturdy composite shaft is built to endure harsh marine environments LiveScope™ live sonar (sold separately) is easy to add; keeps the deck free of clutter and the cable protected by running the transducer cable through the trolling motor shaft Get brilliant UHD sonar with our leading clarity with the included GT56 transducer Brushless motor is optimized to operate in rough open-water conditions at either 24 or 36 volts, thanks to the powerful and efficient design Clear sonar returns with extremely low levels of unwanted noise Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing and not running out of battery Don’t spook the fish; motor is extremely quiet above and below the water Included remote allows you to use point and go (using AHRS) and gesture steering to help you steer the boat without setting the rod down Built with advanced corrosion protection There’s a new legend to behold. Harness the power of the Force® Kraken trolling motor, the most powerful trolling motor on the market (in compliance with ISO standard 13342). It’s designed for deep V hulls where bow space is limited. Get a clear view of what’s below your boat with the included GT56 transducer. Once you’ve found the spot, stay put with our most precise anchor lock technology. LiveScope™ live sonar (sold separately) is easy to add, thanks to the ability to run the cable through the trolling motor shaft. The sturdy pivot-style mount frees up space on the deck. Draw a route with wireless chartplotter integration, and let the trolling motor automatically navigate the route while you fish. The included remote makes speed and heading adjustments easy from anywhere on the boat.Specifications General COLOR black FOR USE IN freshwater, brackish water and saltwater WATER RATING IPX7 MOUNTING LOCATION bow MOUNT STYLE pivot-style mount MAX THRUST 100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 Vdc BUILT-IN HEADING SENSOR Yes BUILT-IN GPS Yes (dual frequency GPS) WARRANTY 3-year, limited lifetime on shaft WIRELESS REMOTE Yes (included) FOOT PEDAL COMPATIBLE Yes BATTERY INDICATOR Yes VARIABLE SPEED CONTROL Yes (20 steps) LIGHTED DIRECTION INDICATOR Yes Sonar Features & Specifications FREQUENCIES SUPPORTED CHIRP sonar: High-wide CHIRP (150-240 kHz) ClearVü: 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) SideVü:455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) MAXIMUM DEPTH CHIRP sonar: 800 ft freshwater ClearVü: 400 ft; SideVü: 500 ft NUMBER OF PINS 12-pin (orange connector) LIVESCOPE CABLE INTEGRATION Yes (LiveScope transducer and Kraken Mounting Bracket purchases required) QUATIX REMOTE CONTROL SUPPORTED Yes What's in the Box: 75" Shaft Black Force Kraken GT56UHD-TR transducer Remote Control High-efficiency Propeller Assembly and mounting Hardware Documentation

Read more less

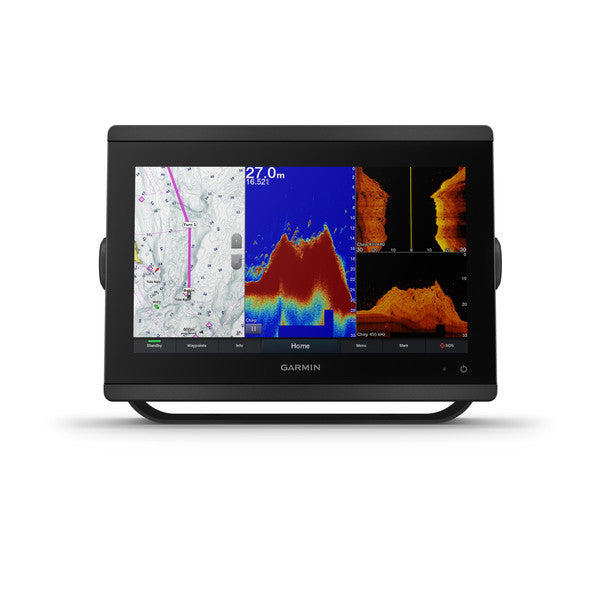

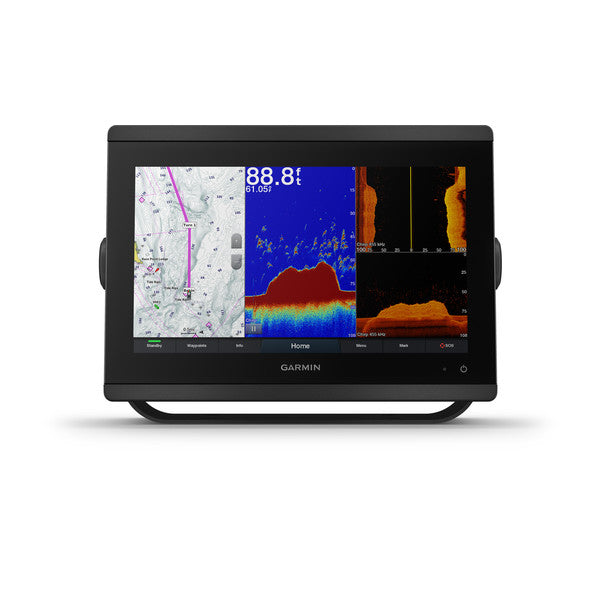

Garmin GPSMAP8612xsv 12" Chartplotter/Sonar Combo with Full HD In-plane Switching (IPS) Touchscreen and Garmin Navionics+ coastal and inland water charts for the U.S. and CanadaModel: 010-02092-51 Features a 12" full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses Built-in support for the full suite of Garmin sonar capabilities, including CHIRP traditional, ClearVü™ and SideVü™ scanning sonars, Ultra High-Definition scanning sonar (no black box required), and the full line of live sonar products (transducers sold separately) Adds a stunning appearance with ability to install multiple displays either flat mounted edge- to-edge to create a sleek glass helm look or mounted flush Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system — from sonar, radar and autopilots to instruments, cameras and multimedia Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system — from sonar, radar and autopilots to instruments, cameras and multimedia See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many compatible third-party devices Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there’s support for optional Garmin Navionics Vision+™ premium map content. SmartMode™ station controls enable presets for one-touch access to docking, cruising, fishing, anchoring and more Built-in Garmin SailAssist™ features provide data, displays and prerace guidance needed to gain a competitive edge Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data and more. Dual microSD™ card slots on back of unit for use with the ActiveCaptain® app and mapping cards The GPSMAP® 8612xsv chartplotter features a 12" full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. It offers built-in support for our industry-leading sonar, including dual-channel 1 kW traditional CHIRP, CHIRP ClearVü™ and CHIRP SideVü™ scanning sonars plus built-in support for Ultra High-Definition scanning sonar (no black box required). There’s also built-in support for LiveScope™ sonar and the full line of live sonar products (transducers sold separately). The device is preloaded with Garmin Navionics+™ coastal charts and inland mapping that feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) for helping you get where you need to go. Plus, there’s support for optional Garmin Navionics Vision+™ premium map content. Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The chartplotter includes a premium-performance processor for our fastest map drawing, superior networking, video distribution and more. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000® networking and the Garmin Marine Network allow you to build your full marine electronics suite — from radar and autopilots to cameras and instruments — controlled from your chartplotter and shared across multiple screens. With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use OneHelm™ to connect to many compatible third-party devices. Built-in Garmin SailAssist™ features provide data, displays and prerace guidance needed to gain a competitive edge. Download the ActiveCaptain® app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to purchasing, downloading and updating maps. See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway.Specifications General Physical dimensions 11.9" x 8.5" x 3" (30.3 cm x 21.6 cm x 7.6 cm) Weight 6.0 lbs. Water rating IPX6 and IPX7 Display type touchscreen IPS display (anti-glare finish) Display size 10.1" x 5.7" (25.7 cm x 14.5 cm) Display resolution FHD; 1920 x 1200 pixels Power consumption 3.1 A Antenna Internal or external over NMEA 2000 Mounting options Bail, flat or flush (Garmin do not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) Receiver 10 Hz GPS/GLONASS/Galileo Garmin Marine Network™ ports 2 Maps & Memory Accepts data cards 2 microSD cards (on back) Waypoints 5,000 Routes 100 (250 waypoints each) Track log 50,000 points; 50 saved tracks pre-loaded maps Garmin Navionics+ coastal and inland water charts for the U.S. and Canada Outdoor Recreation Features Tide tables Yes Chartplotter Features Garmin Radar compatible Yes Garmin Sonar compatible Yes Garmin SmartMode compatible (customizable monitor presets) Yes Supports AIS (tracks target ships position) Yes Supports DSC (displays position data from DSC-capable VHF radio) Yes Supports FUSION-Link™ compatible radios Yes GSD™ Black Box sonar support Yes GCV™ Black Box sonar support Yes ActiveCaptain compatible Yes Garmin Helm compatible Yes GRID™ (Garmin Remote Input Device) compatible Yes Wireless remote compatible Yes Sonar Features & Specifications Dual-frequency (50/200 kHz) sonar capable Yes Dual-beam (77/200 kHz) sonar capable Yes Frequencies supported Regular Traditional: 50/200, 77/200, 83/200 Single Channel CHIRP: 40-250 Dual Channel CHIRP: 40-250 SideVü/ClearVü: CHIRP 260/455/800(dependent on transducer) Frequencies supported Ultra High Definition Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHzUltra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz(dependent on transducer) Transmit power 1 kW traditional; 1 kW CHIRP CHIRP sonar technology Yes (Built-in) ClearVü Yes SideVü Yes Maximum depth 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) Connections NMEA 2000® compatible Yes Transducer pin numbers 1 — LVS sonar, 1 — 12 pin scanning sonar, 1- 8 pin sonar NMEA 0183 input ports 1 differential NMEA 0183 output ports 1 differential Video input ports 1 - BNC composite1 - HDMI (HDCP compliant) Video output ports 1 HDMI Wireless connectivity Yes What's in the Box: GPSMAP 8612xsv Garmin Navionics+ coastal and inland water charts for the U.S. and Canada Power cable NMEA 2000® drop cable NMEA 2000 T-connector Bail mount with knobs Flush mount kit Sun cover Trim piece snap covers Documentation

Read more less

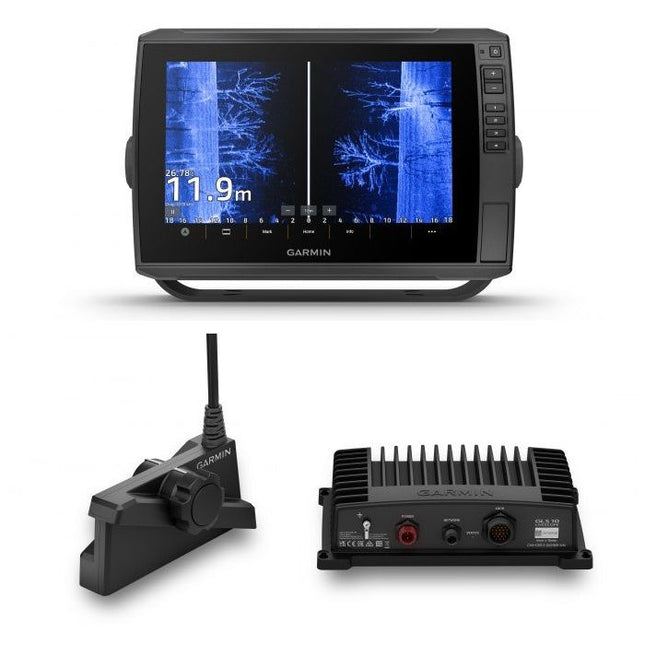

Garmin ECHOMAP™ Ultra 2 102sv 10" Chartplotters with GT56UHD-TM Transducer LiveScope Plus bundleModel: 010-02879-01/LIVESCOPE Plus SUPPORTS LIVESCOPE™ SONAR1 AND MORE WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES2 CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar3, waypoints and routes — with them.1LiveScope™ System sonar transducer sold separately 2Via one-to-one unit wireless connection only 3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters 4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotterSpecifications General DIMENSION 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm) WEIGHT 4.0 lbs (1.8 kg) WATERPROOF IPX7 TOUCHSCREEN Yes DISPLAY TYPE WXGA, IPS DISPLAY SIZE 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal) DISPLAY RESOLUTION 1280 x 800 pixels MOUNTING OPTIONS Bail or flush INPUT Touchscreen with Keyed Assist Maps & Memory ACCEPTS DATA CARDS 2 microSD cards WAYPOINTS 5000 TRACK POINTS 50,000 TRACKS 50 saved tracks NAVIGATION ROUTES 100 Sensors GPS Yes GLONASS Yes GALILEO Yes BEIDOU Yes HAS BUILT-IN RECEIVER Yes RECEIVER 10 Hz NMEA 2000 COMPATIBLE Yes NMEA 0183 COMPATIBLE Yes SUPPORTS WAAS Yes SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS Yes Built-in Maps BUILT-IN AUTO GUIDANCE+ Yes GARMIN NAVIONICS+ INLAND & COASTAL No TIDE TABLES No Optional Map Support BLUECHART G3 Yes BLUECHART G3 VISION Yes LAKEVü G3 Yes LAKEVü G3 ULTRA Yes GARMIN NAVIONICS+™ Yes GARMIN NAVIONICS VISION+™ Yes TOPO 100K Yes STANDARD MAPPING Yes GARMIN QUICKDRAW CONTOURS Yes Electrical Features POWER INPUT 9 to 18 Vdc TYPICAL CURRENT DRAW AT 12 VDC 2.3 A MAXIMUM CURRENT DRAW AT 12 VDC 5.0 A MAXIMUM POWER USAGE AT 10 VDC 34 W Connections NMEA 2000® PORTS 1 GARMIN MARINE NETWORK PORTS 2 (large connector) 12-PIN TRANSDUCER PORTS 12-pin scanning sonar ANT+ (CONNECTIVITY) Yes GARMIN WI-FI NETWORK (LOCAL CONNECTION) Yes Sonar Features DISPLAYS SONAR Yes POWER OUTPUT 600 watt TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) CLEARVü built-in 260/455/800/1000/1200 kHz SIDEVü built-in 260/455/800/1000/1200 kHz PANOPTIX™ SONAR Yes LIVESCOPE Yes What's in the Box: ECHOMAP Ultra 102sv Power/data cable Bail mount with quick release cradle Protective sun cover GT56UHD-TM transducer Hardware Documentation Livescope Plus

Read more less

Garmin Force® Pro Trolling Motor Black 50in Trolling Motor with Built-In GT56UHD-TR TransducerModel: 010-03011-00 Trolling motor with legendary power and performance Multiband GPS provides superior positioning accuracy when in anchor lock, heading hold or while following a route Includes two props: high efficiency and weedless Wireless integration with your Garmin chartplotters allows you to create routes and control steering, thrust level, anchor lock positioning and more Easy installation with the scissor-style mount, which includes a durable pull cable and dual gas springs for easy deployment and stowing Get brilliant UHD scanning sonar with the included GT56UHD transducer Clear sonar returns with extremely low levels of noise Don’t spook the fish; motor is extremely quiet above and below the water Auto forward feature pre-aligns the motor so it’s forward facing upon deployment Lighted indicator on the shaft cap lets you see motor direction in low light Manual reverse prop spin lets you easily blow off weeds when necessary Saltwater durable with advanced corrosion protection Fish with force with Force® Pro, the trolling motor with legendary power and performance. With its scissor-style mount and choice of 50" or 57" shaft lengths, it’s designed specifically for bass boats. See everything around your boat with brilliant high-definition scanning sonar with the included all-in-one GT56UHD transducer. And once you’ve found the spot, stay put with our most precise anchor lock technology, now featuring reverse prop spin and calm-water cable unwrap to reduce motor activity. Make speed and steering adjustments wirelessly from anywhere on the boat with the included foot pedal or included remote with gesture control. You can also use your integrated chartplotter to draw a route, and the trolling motor will automatically navigate while you fish. The lighted indicator on the trolling motor shaft cap means you can fish in low light and always know what direction you’re headed.Specifications General Color Black For use in freshwater, brackish water and saltwater Mount style scissor-style mount Max thrust 100 lbs per ISO 13342 using high efficiency propeller at 36 / 80 lbs per ISO 13342 using high efficiency propeller at 24 V Voltage 24 V or 36 V Electric steering Yes Lift-assist dual gas springs Built-in heading sensor Yes Built-in GPS Yes (dual frequency GPS) Warranty 3-year, limited lifetime on shaft Water rating IPX7 Mounting location Bow Wireless remote Yes (included) Foot pedal compatible Yes (included) Battery indicator Yes Variable speed control Yes (20 steps) Lighted direction indicator Yes Deck stabilizer Yes (included) Quatix remote control supported Yes Manual reverse control Yes Sonar Features Frequencies supported Traditional: High-wide CHIRP (150-240 kHz) ClearVu/SideVu: 455 kHz, 800 kHz, 1000 kHz Transmit power Traditional: 350 W ClearVu/SideVu: 500 W Maximum depth CHIRP sonar: 800' freshwater - ClearVu: 400' - SideVu: 500' Depth/speed/temperature depth and temperature Number of pins 12-pin (orange connector) Autopilot Features Route following Yes Anchor lock Yes Smart Anchor Lock features Yes Anchor lock jog Yes Heading hold Yes Cruise control Yes Gesture features Yes (manual+, heading hold+, jog+) Foot Pedal Features Dimensions 12" L x 9" W x 4 1/2" H Wireless communication Yes Power installation 12 V/24 V/36 V wired or battery powered (2 AA) AA battery life 1 full season Water rating IPX7 Adjustable pedal resistance Yes Remote Features Display size 1.2" (30.2 mm) diameter Display resolution 240 x 240 pixels Display type color, sunlight-visible, transflective memory-in-pixel (MIP) Chartplotter user-programmable keys Yes Autopilot feature control Yes Water rating IPX7 Battery life typical use with backlight at low, 43 weeks Floats Yes What's in the Box: Force® Pro Trolling Motor High efficiency propeller Weedless propeller Foot pedal Remote Stabilizer Assembly and mounting hardware Documentation

Read more less

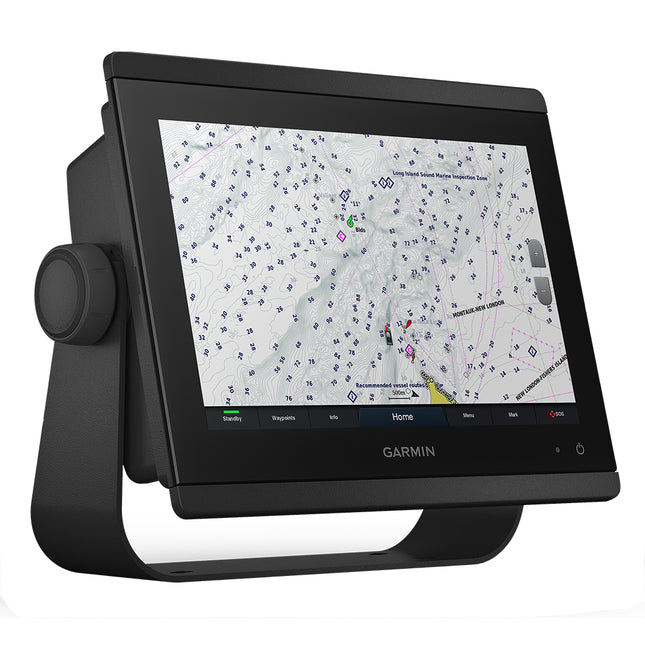

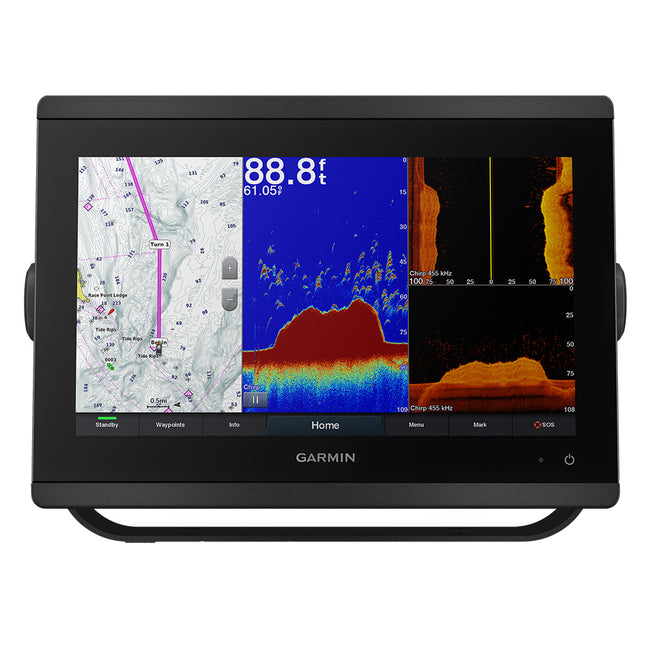

Garmin GPSMAP8412xsv 12" Chartplotter/Sonar Combo with Full HD In-plane Switching (IPS) TouchscreenModel: 010-02092-02 Features a 12" full HD IPS touchscreen display Built-in support for the full suite of Garmin sonar capabilities Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network Includes Bluetooth® connectivity, ANT® technology and Wi-Fi® networking SmartMode™ station controls enable quick, one-touch access to the information you need Serious sport fishermen, cruisers, sailors and sail racers demand serious equipment. The easy-to-use, easy-to-install GPSMAP 8412xsv chartplotter/sonar combo delivers MFD performance in a combo-size package. It features a 12" full HD IPS touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or can be mounted flush.The GPSMAP 8412xsv chartplotter/sonar combo offers built-in support for our industry-leading sonar, including dual-channel 1 kW traditional CHIRP, CHIRP ClearVü and CHIRP SideVü scanning sonars plus built-in support for Ultra High-Definition scanning sonar (no black box required). It also supports the entire Panoptix™ all-seeing sonar line (transducers sold separately).NMEA 2000 networking and the Garmin Marine Network allow you to easily build your full marine electronics suite — from radar and autopilots to cameras, instruments and forward-looking sonar — controlled from your chartplotter and shared across multiple screens. In addition, our exclusive OneHelm™ system coordinates many third-party manufactured onboard marine products to bring full control of systems — such as digital switching, lighting, stabilization and more — conveniently to your chartplotter screen.The GPSMAP 8412xsv chartplotter has a premium-performance processor that enables fast map drawing, superior networking, video distribution and more. Built-in Wi-Fi technology lets you pair with the free ActiveCaptain® app for access to OneChart™, smart notifications , Garmin Quickdraw™ community data and more. You can also control video streaming from our GC™ 100 wireless camera and VIRB® action cameras. In addition, built-in ANT wireless technology connects you directly to our quatix® marine watch, gWind™ Wireless 2 transducer and wireless remote controls.Networked sonar, radar, cameras, media and digital switching can be independent or incorporated into SmartMode station controls. With SmartMode, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking.The Garmin SailAssist™ feature provides data, displays and prerace guidance to help you gain a competitive edge. Other sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider. Gauge displays provide need-to-know information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs and a data bar with customizable fields.Download the ActiveCaptain app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to updating software and purchasing maps.Specifications General Physical dimensions 11.9" x 8.5" x 3" (30.3 cm x 21.6 cm x 7.6 cm) Weight 6.2 lbs (2.8 kg) Water rating IPX6 and IPX7 Display type touchscreen IPS display (anti-glare finish) Display size 10.1" x 5.7" (25.7 cm x 14.5 cm) Display resolution FHD; 1920 x 1080 pixels Power consumption 3.1 A Antenna Internal or external over NMEA 2000 Mounting options Bail, flat or flush (Garmin do not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) Receiver 10 Hz GPS/GLONASS/Galileo Garmin Marine Network™ ports 2 Maps & Memory Accepts data cards 2 microSD cards (on back) Waypoints 5,000 Routes 100 (250 waypoints each) Track log 50,000 points; 50 saved tracks pre-loaded maps Worldwide Basemap Outdoor Recreation Features Tide tables Yes Chartplotter Features Garmin Radar compatible Yes Garmin Sonar compatible Yes Garmin SmartMode compatible (customizable monitor presets) Yes Supports AIS (tracks target ships position) Yes Supports DSC (displays position data from DSC-capable VHF radio) Yes Supports FUSION-Link™ compatible radios Yes GSD™ Black Box sonar support Yes GCV™ Black Box sonar support Yes ActiveCaptain compatible Yes Garmin Helm compatible Yes GRID™ (Garmin Remote Input Device) compatible Yes Wireless remote compatible Yes Sonar Features & Specifications Dual-frequency (50/200 kHz) sonar capable Yes Dual-beam (77/200 kHz) sonar capable Yes Frequencies supported Regular Traditional: 50/200, 77/200, 83/200 Single Channel CHIRP: 40-250 Dual Channel CHIRP: 40-250 SideVü/ClearVü: CHIRP 260/455/800(dependent on transducer) Frequencies supported Ultra High Definition Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHzUltra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz(dependent on transducer) Transmit power 1 kW traditional; 1 kW CHIRP CHIRP sonar technology Yes (Built-in) ClearVü Yes SideVü Yes Maximum depth 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) Connections NMEA 2000® compatible Yes Transducer pin numbers 1 — LVS sonar, 1 — 12 pin scanning sonar, 1- 8 pin sonar NMEA 0183 input ports 1 differential NMEA 0183 output ports 1 differential Video input ports 1 - BNC composite1 - HDMI (HDCP compliant) Video output ports 1 HDMI Wireless connectivity Yes What's in the Box: GPSMAP 8412xsv Power cable NMEA 2000® drop cable NMEA 2000 T-connector Bail mount with knobs Flush mount kit Sun cover Trim piece snap covers Documentation

Read more less

Garmin Force Kraken 63" Shaft White Trolling Motor No TransducerModel: 010-02574-00 Most powerful trolling motor on the market with 100 lbs of thrust (in compliance with ISO standard 13342) Anchor lock provides our most precise boat positioning, thanks to multi-band GPS and integrated AHRS for heading hold Wireless integration with Garmin chartplotters allows you to create routes, patterns and tracks for the trolling motor to follow Easy installation where space is limited, thanks to the pivot-style mount Longer shaft length accommodates many different boat sizes and deck layouts Sturdy composite shaft is built to endure harsh marine environments LiveScope™ live sonar (sold separately) is easy to add; keeps the deck free of clutter and the cable protected by running the transducer cable through the trolling motor shaft Brushless motor is optimized to operate in rough open-water conditions at either 24 or 36 volts, thanks to the powerful and efficient design Clear sonar returns with extremely low levels of unwanted noise Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing and not running out of battery Don’t spook the fish; motor is extremely quiet above and below the water Included remote allows you to use point and go (using AHRS) and gesture steering to help you steer the boat without setting the rod down Designed for saltwater with advanced corrosion protection There’s a new legend to behold. Harness the power of the Force® Kraken trolling motor, the most powerful trolling motor on the market (in compliance with ISO standard 13342). It’s designed for deep V hulls and saltwater boats where bow space is limited. Once you’ve found the fish, keep the boat where it belongs with our most precise anchor lock technology. LiveScope™ live sonar (sold separately) is easy to add, thanks to the ability to run the cable through the trolling motor shaft. The sturdy pivot-style mount frees up space on the deck. Draw a route with wireless chartplotter integration, and let the trolling motor automatically navigate the route while you fish. The included remote makes speed and heading adjustments easy from anywhere on the boat. And with advanced corrosion protection, it’s built for oceans and brackish water.Specifications General COLOR white FOR USE IN freshwater, brackish water and saltwater WATER RATING IPX7 MOUNTING LOCATION bow MOUNT STYLE pivot-style mount MAX THRUST 100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 Vdc BUILT-IN HEADING SENSOR Yes BUILT-IN GPS Yes (dual frequency GPS) WARRANTY 3-year, limited lifetime on shaft WIRELESS REMOTE Yes (included) FOOT PEDAL COMPATIBLE Yes BATTERY INDICATOR Yes VARIABLE SPEED CONTROL Yes (20 steps) LIGHTED DIRECTION INDICATOR Yes Sonar Features & Specifications NUMBER OF PINS 12-pin (orange connector) LIVESCOPE CABLE INTEGRATION Yes (LiveScope transducer and Kraken Mounting Bracket purchases required) QUATIX REMOTE CONTROL SUPPORTED Yes What's in the Box: 63" White Shaft Force Kraken Motor Remote Control High-efficiency Propeller Assembly and Mounting Hardware Documentation

Read more less

Garmin Force Kraken Black trolling Motor 63" Shaft with GT56UHD-TR TransducerModel: 010-02573-00 Most powerful trolling motor on the market with 100 lbs of thrust (in compliance with ISO standard 13342) Anchor lock provides our most precise boat positioning, thanks to multi-band GPS and integrated AHRS for heading hold Wireless integration with your Garmin chartplotters allows you to create routes, patterns and tracks for the trolling motor to follow while you fish Easy installation where bow space is limited, thanks to the pivot-style mount Sturdy composite shaft is built to endure harsh marine environments LiveScope™ live sonar (sold separately) is easy to add; keeps the deck free of clutter and the cable protected by running the transducer cable through the trolling motor shaft Get brilliant UHD sonar with our leading clarity with the included GT56 transducer Brushless motor is optimized to operate in rough open-water conditions at either 24 or 36 volts, thanks to the powerful and efficient design Clear sonar returns with extremely low levels of unwanted noise Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing and not running out of battery Don’t spook the fish; motor is extremely quiet above and below the water Included remote allows you to use point and go (using AHRS) and gesture steering to help you steer the boat without setting the rod down Built with advanced corrosion protection There’s a new legend to behold. Harness the power of the Force® Kraken trolling motor, the most powerful trolling motor on the market (in compliance with ISO standard 13342). It’s designed for deep V hulls where bow space is limited. Get a clear view of what’s below your boat with the included GT56 transducer. Once you’ve found the spot, stay put with our most precise anchor lock technology. LiveScope™ live sonar (sold separately) is easy to add, thanks to the ability to run the cable through the trolling motor shaft. The sturdy pivot-style mount frees up space on the deck. Draw a route with wireless chartplotter integration, and let the trolling motor automatically navigate the route while you fish. The included remote makes speed and heading adjustments easy from anywhere on the boat.Specifications General COLOR black FOR USE IN freshwater, brackish water and saltwater WATER RATING IPX7 MOUNTING LOCATION bow MOUNT STYLE pivot-style mount MAX THRUST 100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 Vdc BUILT-IN HEADING SENSOR Yes BUILT-IN GPS Yes (dual frequency GPS) WARRANTY 3-year, limited lifetime on shaft WIRELESS REMOTE Yes (included) FOOT PEDAL COMPATIBLE Yes BATTERY INDICATOR Yes VARIABLE SPEED CONTROL Yes (20 steps) LIGHTED DIRECTION INDICATOR Yes Sonar Features & Specifications FREQUENCIES SUPPORTED CHIRP sonar: High-wide CHIRP (150-240 kHz) ClearVü: 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) SideVü:455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) MAXIMUM DEPTH CHIRP sonar: 800 ft freshwater ClearVü: 400 ft; SideVü: 500 ft NUMBER OF PINS 12-pin (orange connector) LIVESCOPE CABLE INTEGRATION Yes (LiveScope transducer and Kraken Mounting Bracket purchases required) QUATIX REMOTE CONTROL SUPPORTED Yes What's in the Box: 63" Shaft Black Force Kraken GT56UHD-TR transducer Remote Control High-efficiency Propeller Assembly and mounting Hardware Documentation

Read more less

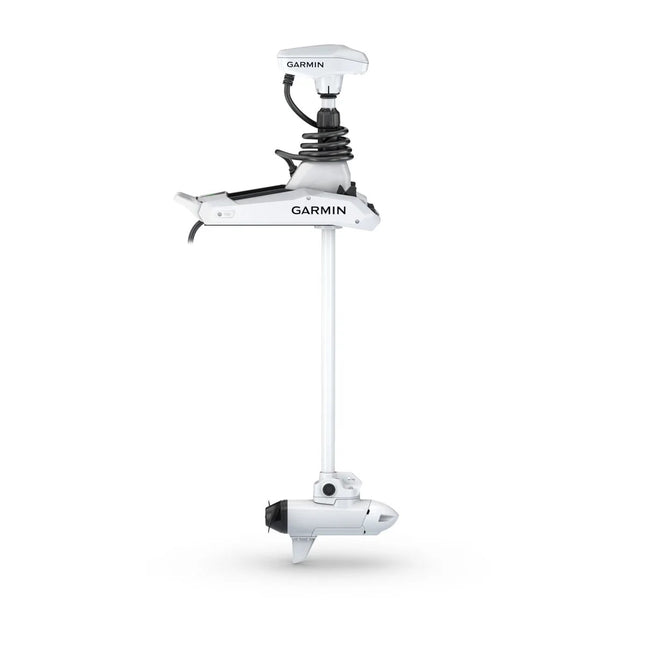

Garmin Force Kraken 48" Shaft White Trolling Motor No TransducerModel: 010-02574-30 Most powerful trolling motor on the market with 100 lbs of thrust (in compliance with ISO standard 13342) Anchor lock provides our most precise boat positioning, thanks to multi-band GPS and integrated AHRS for heading hold Wireless integration with Garmin chartplotters allows you to create routes, patterns and tracks for the trolling motor to follow Easy installation where space is limited, thanks to the pivot-style mount Included remote allows you to use point and go (using AHRS) and gesture steering to help you steer the boat without setting the rod down Sturdy composite shaft is built to endure harsh marine environments LiveScope™ live sonar (sold separately) is easy to add; keeps the deck free of clutter and the cable protected by running the transducer cable through the trolling motor shaft Brushless motor is optimized to operate in rough open-water conditions at either 24 or 36 volts, thanks to the powerful and efficient design Clear sonar returns with extremely low levels of unwanted noise Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing and not running out of battery Don’t spook the fish; motor is extremely quiet above and below the water Designed for saltwater with advanced corrosion protection There’s a new legend to behold. Harness the power of the Force® Kraken trolling motor, the most powerful trolling motor on the market (in compliance with ISO standard 13342). It’s designed for deep V hulls and saltwater boats where bow space is limited. Once you’ve found the fish, keep the boat where it belongs with our most precise anchor lock technology. LiveScope™ live sonar (sold separately) is easy to add, thanks to the ability to run the cable through the trolling motor shaft. The sturdy pivot-style mount frees up space on the deck. Draw a route with wireless chartplotter integration, and let the trolling motor automatically navigate the route while you fish. The included remote makes speed and heading adjustments easy from anywhere on the boat. And with advanced corrosion protection, it’s built for oceans and brackish water.Specifications General COLOR white FOR USE IN freshwater, brackish water and saltwater MOUNT STYLE pivot-style mount MAX THRUST 100 lbs per ISO 13342 using high efficiency propeller at 36 V80 lbs per ISO 13342 using high efficiency propeller at 24 Vdc VOLTAGE 24V_36V ELECTRIC STEERING Yes BUILT-IN HEADING SENSOR Yes BUILT-IN GPS yes (dual frequency GPS) WARRANTY 3-year, limited lifetime on shaft WATER RATING IPX7 MOUNTING LOCATION bow WIRELESS REMOTE yes (included) FOOT PEDAL COMPATIBLE yes BATTERY INDICATOR Yes VARIABLE SPEED CONTROL yes (20 steps) LIGHTED DIRECTION INDICATOR Yes DECK STABILIZER No QUATIX REMOTE CONTROL SUPPORTED Yes Sonar Features LIVESCOPE CABLE INTEGRATION yes (LiveScope transducer and Kraken Mounting Bracket purchases required) Autopilot Features ROUTE FOLLOWING Yes ANCHOR LOCK Yes ANCHOR LOCK JOG Yes HEADING HOLD Yes CRUISE CONTROL Yes GESTURE FEATURES yes (manual+, heading hold+, jog+) Foot Pedal Features DIMENSIONS 12" L x 9" W x 4 1/2" H WIRELESS COMMUNICATION Yes POWER INSTALLATION 12V/24V/36V wired or battery powered (2 AA) AA BATTERY LIFE 1 full season WATER RATING IPX7 ADJUSTABLE PEDAL RESISTANCE Yes Remote Features DISPLAY SIZE 1.2" (30.4 mm) diameter DISPLAY RESOLUTION 240 x 240 pixels DISPLAY TYPE color, sunlight-visible, transflective memory-in-pixel (MIP) CHARTPLOTTER USER-PROGRAMMABLE KEYS Yes AUTOPILOT FEATURE CONTROL Yes WATER RATING IPX7 BATTERY LIFE typical use with backlight at low, 43 weeks FLOATS Yes What's in the Box: 48" White Shaft Force Kraken Motor Remote Control High-efficiency Propeller Assembly and Mounting Hardware Documentation

Read more less

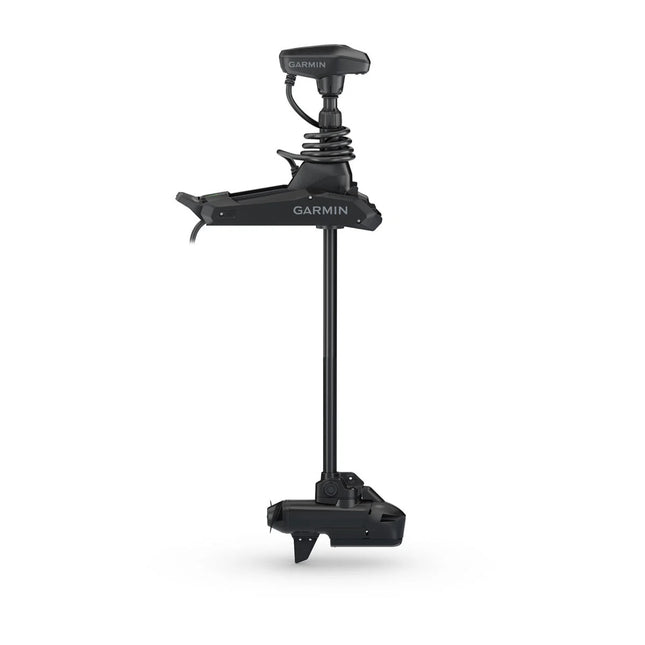

Garmin Force Kraken Black trolling Motor 48" Shaft with GT56UHD-TR TransducerModel: 010-02573-30 Most powerful trolling motor on the market with 100 lbs of thrust (in compliance with ISO standard 13342) Anchor lock provides our most precise boat positioning, thanks to multi-band GPS and integrated AHRS for heading hold Wireless integration with your Garmin chartplotters allows you to create routes, patterns and tracks for the trolling motor to follow while you fish Easy installation where bow space is limited, thanks to the pivot-style mount Sturdy composite shaft is built to endure harsh marine environments LiveScope™ live sonar (sold separately) is easy to add; keeps the deck free of clutter and the cable protected by running the transducer cable through the trolling motor shaft Get brilliant UHD sonar with our leading clarity with the included GT56 transducer Brushless motor is optimized to operate in rough open-water conditions at either 24 or 36 volts, thanks to the powerful and efficient design Clear sonar returns with extremely low levels of unwanted noise Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing and not running out of battery Don’t spook the fish; motor is extremely quiet above and below the water Included remote allows you to use point and go (using AHRS) and gesture steering to help you steer the boat without setting the rod down Built with advanced corrosion protection There’s a new legend to behold. Harness the power of the Force® Kraken trolling motor, the most powerful trolling motor on the market (in compliance with ISO standard 13342). It’s designed for deep V hulls where bow space is limited. Get a clear view of what’s below your boat with the included GT56 transducer. Once you’ve found the spot, stay put with our most precise anchor lock technology. LiveScope™ live sonar (sold separately) is easy to add, thanks to the ability to run the cable through the trolling motor shaft. The sturdy pivot-style mount frees up space on the deck. Draw a route with wireless chartplotter integration, and let the trolling motor automatically navigate the route while you fish. The included remote makes speed and heading adjustments easy from anywhere on the boat.Specifications General COLOR black FOR USE IN freshwater, brackish water and saltwater WATER RATING IPX7 MOUNTING LOCATION bow MOUNT STYLE pivot-style mount MAX THRUST 100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 Vdc BUILT-IN HEADING SENSOR Yes BUILT-IN GPS Yes (dual frequency GPS) WARRANTY 3-year, limited lifetime on shaft WIRELESS REMOTE Yes (included) FOOT PEDAL COMPATIBLE Yes BATTERY INDICATOR Yes VARIABLE SPEED CONTROL Yes (20 steps) LIGHTED DIRECTION INDICATOR Yes Sonar Features & Specifications FREQUENCIES SUPPORTED CHIRP sonar: High-wide CHIRP (150-240 kHz) ClearVü: 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) SideVü:455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) MAXIMUM DEPTH CHIRP sonar: 800 ft freshwater ClearVü: 400 ft; SideVü: 500 ft NUMBER OF PINS 12-pin (orange connector) LIVESCOPE CABLE INTEGRATION Yes (LiveScope transducer and Kraken Mounting Bracket purchases required) QUATIX REMOTE CONTROL SUPPORTED Yes What's in the Box: 48" Shaft Black Force Kraken GT56UHD-TR transducer Remote Control High-efficiency Propeller Assembly and mounting Hardware Documentation

Read more less

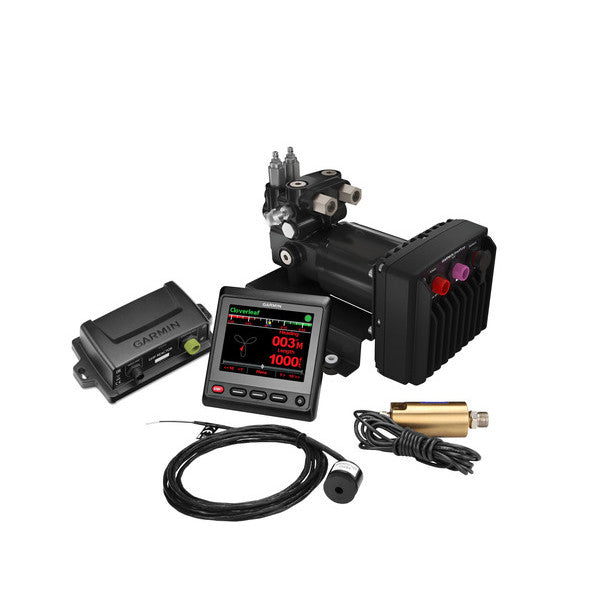

Garmin Reactor™ 40 Hydraulic Corepack with SmartPump v2 With GHC™ 20Model: 010-00705-79 Solid-state 9-axis Attitude Heading Reference System (AHRS) mounts in any orientation Minimal heading error, course deviation, rudder movement and power consumption with a more comfortable ride Minimal commissioning and calibration One compact, brushless SmartPump v2 fits most hydraulically steered boating applications Patented Shadow Drive™ technology keeps you in control, even when autopilot is engaged Requires a compatible Garmin chartplotter Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in With a complete package designed for powerboats and sailboats, Garmin brings an advanced marine technology to the boating public that was once only available for commercial boats. The Reactor 40 autopilot series is simply the most responsive autopilot system we have ever offered. Experience the ultimate hydraulic autopilot performance when paired with the one-size-fits-most, high-reliability, brushless SmartPump v2 .With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. In addition, this new system greatly minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride for all on board.This amazing autopilot actually reacts to the sea to hold your course. Even when the boat is pitching and rolling, you can remain confident that the Reactor 40 autopilot will keep you on your desired course.All autopilots require commissioning and calibration — all of them. We know you just want to get on the water, so we made this process as fast and easy as possible. That’s the power of simple.You have full control of Reactor 40 from the chartplotter display. Combined with a compatible Garmin networked chartplotter and BlueChart® g2 Vision® charts, you can enjoy optional features such as Auto Guidance2, which automatically steers GPS paths.The Reactor 40 autopilot with SmartPump v2 puts an end to guessing which pump size will work with your particular boat. One SmartPump v2 works for most boats; for optimum control and confidence, you’ll know you have the right pump for your boat. Plus, you get complete control in a smaller size with better thermal performance, higher reliability and lower power consumption. It also includes color-coded connectors to make it very easy to install. Pretty smart.Reactor 40 with SmartPump v2 automatically adjusts the maximum flow rate for a particular boat from 0 to 2.4 L per minute. It also uses a brushless motor, which provides increased reliability, longer pump life, reduced power consumption, quiet operation, a smaller package, improved thermal performance and higher efficiency.The Reactor 40 autopilot with SmartPump v2 is a complete autopilot package. SmartPump v2 is a single integrated unit comprised of a motor drive circuit with the pump in a single assembly. Equipped with Intelligent Rudder Rate Technology (IRRT), it slows the rudder rate when the vessel is at high speeds and speeds up rudder rate when the vessel is at lower speeds to provide optimal performance and safety in all conditions. The brushless motor drive eliminates the risk of rudder "hard over" due to hardware or software failures.Boating environments are harsh, especially on saltwater. So, our SmartPump v2 is protected from the elements. SmartPump v2 is engineered from corrosion-resistant components, including anodized aluminum and nickel-plated steel parts.When you have a Reactor 40 with SmartPump v2 aboard your boat, you have control wherever you are on the boat. In addition to holding its course in virtually all weather and wind conditions, the system can smoothly perform a variety of preprogrammed trolling and search procedures. Plus, with a compatible Garmin networked chartplotter and BlueChart g2 Vision charts (sold separately), you gain optional features such as Auto Guidance2, which automatically steers GPS paths.The Reactor 40 with SmartPump v2 features patented Shadow Drive technology. This gives you the security of knowing you maintain control, even when the autopilot is engaged. The Shadow Drive system automatically disengages the autopilot if the helm is turned, giving you the freedom to maneuver the boat. The autopilot automatically re-engages when you hold a steady course.Add an optional GRF™ 10 rudder feedback sensor, and you can further enhance the performance of your Reactor 40 autopilot with SmartPump v2. Compatible Garmin chartplotter required, Auto Guidance is for planning purposes only and does not replace safe navigation operationsSpecifications Temperature range From 5°F to 131°F (from -15°C to 55°C) Power cable length 9 ft (2.7 m) Power input 11.5-30 Vdc Fuse 40 A, blade-type Main power usage standby - less than 1 A; engaged - 5-10 A; peak - 34 A Flow rate Configurable from 0 to 2.4 L per minute CCU Specifications Dimensions 3 19/32" diameter (91.4 mm) Weight 5.6 oz (159 g) Temperature range From 5°F to 131°F (from -15°C to 55°C) Case material Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards CCU cable length 9.5 ft (3 m) NMEA 2000 power input 9-16 V NMEA 2000 LEN 3 (150 mA) Buzzer/Alarm Specifications Dimensions (L Diameter) 29/32" 1.0" (23 mm 25 mm) Weight 2.4 oz (68 g) Temperature range from 5°F to 131°F (from -15°C to 55°C) Cable length 10 ft (3.0 m) GHC 20 Specs Unit dimensions, WxHxD 4.3 " x 4.4 " x 1.9 " (10.9 x 11.2 x 4.8 cm) Display resolution, WxH 320 x 240 pixels Display type QVGA color LCD display NMEA output NMEA 0183, NMEA 2000® Supply voltage Powered by NMEA 2000 bus, 9-16 VDC, units operate up to 32 VDC Operating temperature -15° C to 70 C° (5° F to 158° F) Max power consumption 3W Viewing angle 170° Brightness 1200 cd/m2 (NIT) Water rating IPX7 NMEA 2000 LEN (Load Equivalency Number) 7 (350 mA at 9VDC) What's in the Box: SmartPump v2 Reactor 40 CCU (Course Computer Unit) ECU (Electronic Control Unit) power cable Interconnect cable Shadow Drive Buzzer NMEA 2000® drop cables (2 meters) NMEA 2000 power cable NMEA 2000 T-connectors Male and female terminators Documentation GHC™ 20

Read more less

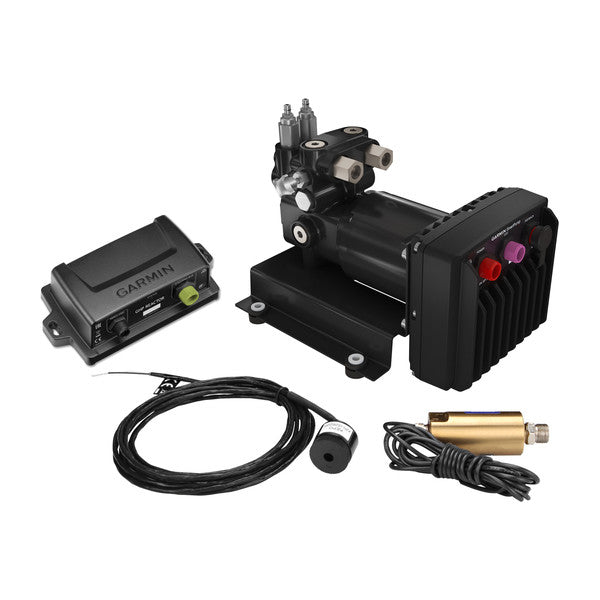

Garmin Reactor™ 40 Hydraulic Corepack with SmartPump v2 Without GHC™ 20Model: 010-00705-78 Solid-state 9-axis Attitude Heading Reference System (AHRS) mounts in any orientation Minimal heading error, course deviation, rudder movement and power consumption with a more comfortable ride Minimal commissioning and calibration One compact, brushless SmartPump v2 fits most hydraulically steered boating applications Patented Shadow Drive™ technology keeps you in control, even when autopilot is engaged Requires a compatible Garmin chartplotter Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in With a complete package designed for powerboats and sailboats, Garmin brings an advanced marine technology to the boating public that was once only available for commercial boats. The Reactor 40 autopilot series is simply the most responsive autopilot system we have ever offered. Experience the ultimate hydraulic autopilot performance when paired with the one-size-fits-most, high-reliability, brushless SmartPump v2 .With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. In addition, this new system greatly minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride for all on board.This amazing autopilot actually reacts to the sea to hold your course. Even when the boat is pitching and rolling, you can remain confident that the Reactor 40 autopilot will keep you on your desired course.All autopilots require commissioning and calibration — all of them. We know you just want to get on the water, so we made this process as fast and easy as possible. That’s the power of simple.You have full control of Reactor 40 from the chartplotter display. Combined with a compatible Garmin networked chartplotter and BlueChart® g2 Vision® charts, you can enjoy optional features such as Auto Guidance2, which automatically steers GPS paths.The Reactor 40 autopilot with SmartPump v2 puts an end to guessing which pump size will work with your particular boat. One SmartPump v2 works for most boats; for optimum control and confidence, you’ll know you have the right pump for your boat. Plus, you get complete control in a smaller size with better thermal performance, higher reliability and lower power consumption. It also includes color-coded connectors to make it very easy to install. Pretty smart.Reactor 40 with SmartPump v2 automatically adjusts the maximum flow rate for a particular boat from 0 to 2.4 L per minute. It also uses a brushless motor, which provides increased reliability, longer pump life, reduced power consumption, quiet operation, a smaller package, improved thermal performance and higher efficiency.The Reactor 40 autopilot with SmartPump v2 is a complete autopilot package. SmartPump v2 is a single integrated unit comprised of a motor drive circuit with the pump in a single assembly. Equipped with Intelligent Rudder Rate Technology (IRRT), it slows the rudder rate when the vessel is at high speeds and speeds up rudder rate when the vessel is at lower speeds to provide optimal performance and safety in all conditions. The brushless motor drive eliminates the risk of rudder "hard over" due to hardware or software failures.Boating environments are harsh, especially on saltwater. So, our SmartPump v2 is protected from the elements. SmartPump v2 is engineered from corrosion-resistant components, including anodized aluminum and nickel-plated steel parts.When you have a Reactor 40 with SmartPump v2 aboard your boat, you have control wherever you are on the boat. In addition to holding its course in virtually all weather and wind conditions, the system can smoothly perform a variety of preprogrammed trolling and search procedures. Plus, with a compatible Garmin networked chartplotter and BlueChart g2 Vision charts (sold separately), you gain optional features such as Auto Guidance2, which automatically steers GPS paths.The Reactor 40 with SmartPump v2 features patented Shadow Drive technology. This gives you the security of knowing you maintain control, even when the autopilot is engaged. The Shadow Drive system automatically disengages the autopilot if the helm is turned, giving you the freedom to maneuver the boat. The autopilot automatically re-engages when you hold a steady course.Add an optional GRF™ 10 rudder feedback sensor, and you can further enhance the performance of your Reactor 40 autopilot with SmartPump v2. Compatible Garmin chartplotter required, Auto Guidance is for planning purposes only and does not replace safe navigation operationsSpecifications Temperature range From 5°F to 131°F (from -15°C to 55°C) Power cable length 9 ft (2.7 m) Power input 11.5-30 Vdc Fuse 40 A, blade-type Main power usage standby - less than 1 A; engaged - 5-10 A; peak - 34 A Flow rate Configurable from 0 to 2.4 L per minute CCU Specifications Dimensions 3 19/32" diameter (91.4 mm) Weight 5.6 oz (159 g) Temperature range From 5°F to 131°F (from -15°C to 55°C) Case material Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards CCU cable length 9.5 ft (3 m) NMEA 2000 power input 9-16 V NMEA 2000 LEN 3 (150 mA) Buzzer/Alarm Specifications Dimensions (L Diameter) 29/32" 1.0" (23 mm 25 mm) Weight 2.4 oz (68 g) Temperature range from 5°F to 131°F (from -15°C to 55°C) Cable length 10 ft (3.0 m) What's in the Box: SmartPump v2 Reactor 40 CCU (Course Computer Unit) ECU (Electronic Control Unit) power cable Interconnect cable Shadow Drive Buzzer NMEA 2000® drop cables (2 meters) NMEA 2000 power cable NMEA 2000 T-connectors Male and female terminators Documentation

Read more less

Garmin ECHOMAP™ Ultra 2 102sv 10" Chartplotters LiveScope Plus Bundle without TransducerModel: 010-02879-00/LIVESCOPE SUPPORTS LIVESCOPE™ SONAR1 AND MORE WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES2 CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar3, waypoints and routes — with them.1LiveScope™ System sonar transducer sold separately 2Via one-to-one unit wireless connection only 3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters 4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotterSpecifications General DIMENSION 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm) WEIGHT 4.0 lbs (1.8 kg) WATERPROOF IPX7 TOUCHSCREEN Yes DISPLAY TYPE WXGA, IPS DISPLAY SIZE 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal) DISPLAY RESOLUTION 1280 x 800 pixels MOUNTING OPTIONS Bail or flush INPUT Touchscreen with Keyed Assist Maps & Memory ACCEPTS DATA CARDS 2 microSD cards WAYPOINTS 5000 TRACK POINTS 50,000 TRACKS 50 saved tracks NAVIGATION ROUTES 100 Sensors GPS Yes GLONASS Yes GALILEO Yes BEIDOU Yes HAS BUILT-IN RECEIVER Yes RECEIVER 10 Hz NMEA 2000 COMPATIBLE Yes NMEA 0183 COMPATIBLE Yes SUPPORTS WAAS Yes SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS Yes Built-in Maps BUILT-IN AUTO GUIDANCE+ Yes GARMIN NAVIONICS+ INLAND & COASTAL No TIDE TABLES No Optional Map Support BLUECHART G3 Yes BLUECHART G3 VISION Yes LAKEVü G3 Yes LAKEVü G3 ULTRA Yes GARMIN NAVIONICS+™ Yes GARMIN NAVIONICS VISION+™ Yes TOPO 100K Yes STANDARD MAPPING Yes GARMIN QUICKDRAW CONTOURS Yes Electrical Features POWER INPUT 9 to 18 Vdc TYPICAL CURRENT DRAW AT 12 VDC 2.3 A MAXIMUM CURRENT DRAW AT 12 VDC 5.0 A MAXIMUM POWER USAGE AT 10 VDC 34 W Connections NMEA 2000® PORTS 1 GARMIN MARINE NETWORK PORTS 2 (large connector) 12-PIN TRANSDUCER PORTS 12-pin scanning sonar ANT+ (CONNECTIVITY) Yes GARMIN WI-FI NETWORK (LOCAL CONNECTION) Yes Sonar Features DISPLAYS SONAR Yes POWER OUTPUT 600 watt TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) CLEARVü built-in 260/455/800/1000/1200 kHz SIDEVü built-in 260/455/800/1000/1200 kHz PANOPTIX™ SONAR Yes LIVESCOPE Yes What's in the Box: ECHOMAP Ultra 102sv Power/data cable Bail mount with quick release cradle Protective sun cover 8-pin transducer to 12-pin sounder adapter cable Hardware Documentation LIVESCOPE Plus

Read more less

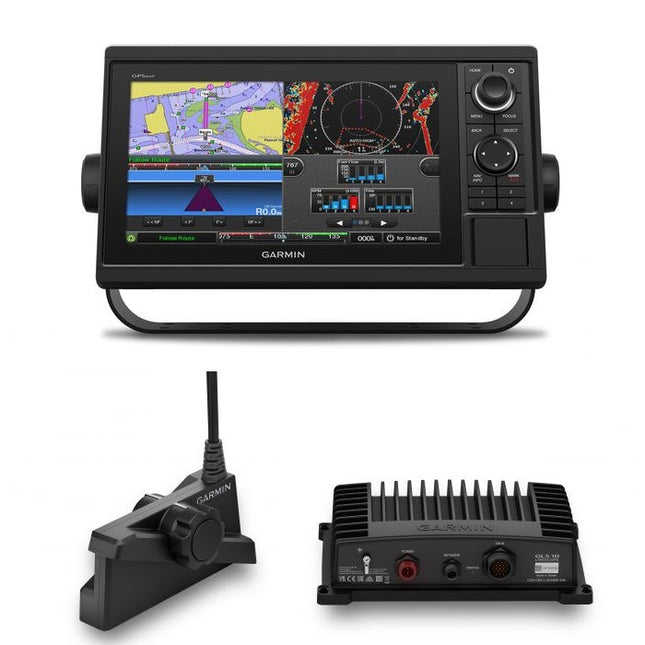

Garmin GPSMAP® 1222 12-inch Chartplotter LIVESCOPE Plus Bundle with Worldwide BasemapModel: 010-01741-00/LVS34UPC: 753759168339 12-inch color display with keypad interface and multifunction control knob High-sensitivity internal 10 Hz GPS and GLONASS receiver Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support Supports optional BlueChart® g2 Vision® HD charts for Auto Guidance and other premium navigation features GPSMAP 1222 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.Enjoy built-in Wi-Fi connectivity for BlueChart Mobile 2.0 and Garmin Helm apps. Garmin Helm allows you to view and control your compatible chartplotter from a compatible smartphone or tablet while providing enhanced situational awareness for the mariner. With BlueChart Mobile, a free app downloaded from the App Store™, you can get reliable weather information while you plan marine routes on your iPad® or iPhone® then wirelessly transfer them to your boat’s compatible networked Garmin chartplotter. You can even stream and control a VIRB action camera from the chartplotter.Enjoy built-in ANT wireless connectivity directly to quatix® marine watch, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls.Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.Two SD™ card slots provide expandable memory for accessory map purchases, such as LakeVü HD, LakeVü HD Ultra, BlueChart® g2 HD or BlueChart® g2 Vision® HD, which adds Garmin patented Auto Guidance and other great features.To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.1Auto Guidance is for planning purposes only and does not replace safe navigation operations.Specifications Performance and Physical Dimensions 14.1" x 8.9" x 2.7" (35.8 x 22.6 x 6.9 cm) Display size 10.3" x 6.4" (26.2 x 16.3 cm) Display resolution 1280 x 800 Display type WXGA display Weight 5.2 lbs Water rating IPX7 Antenna Internal or external over NMEA 2000 NMEA 2000® compatible Yes NMEA 0183 compatible Yes SiriusXM™ Weather & Radio compatible Yes Power consumption Max power usage at 10 Vdc: 34.8 W Typical current draw at 12 Vdc: 2.2 A Max current draw at 12 Vdc: 2.9 A Mounting options Bail or flush Maps and Memory Preloaded maps None Accepts data card 2 SD™ cards Waypoints 5,000 Routes 100 Track log 50,000 points; 50 saved tracks Outdoor Recreation Features Tide tables Yes Chartplotter Features Garmin Radar compatible Yes Garmin Sonar compatible Yes (with external black box, sold separately) Garmin SmartMode compatible (customizable monitor presets) Yes Supports AIS (tracks target ships position) Yes Supports DSC (displays position data from DSC-capable VHF radio) Yes Garmin Meteor™ Audio System compatible Yes Supports FUSION-Link™ compatible radios Yes GSD™ Black Box sonar support Yes GCV™ Black Box sonar support Yes ActiveCaptain compatible Yes Garmin Helm compatible Yes GRID™ (Garmin Remote Input Device) compatible Yes Wireless remote compatible Yes Sonar Features & Specifications CHIRP sonar technology Yes (with external black box, sold separately) ClearVü Yes (with external black box, sold separately) SideVü Yes (with external black box, sold separately) Connections NMEA 2000® compatible Yes NMEA 0183 input ports 1 NMEA 0183 output ports 1 Video input ports 1 BNC Video output ports None Wireless connectivity Yes What's in the Box: GPSMAP 1222 chartplotter Power/data cable NMEA 2000 T-connector NMEA 2000 drop cable (2 m) Bail mount kit with knobs Flush mount kit with gasket Protective cover Trim piece snap covers Documentation LIVESCOPE Plus

Read more less

Garmin ECHOMAP™ Ultra 2 126sv 12" Chartplotter LIVESCOPE Bundle without Transducer; Includes Garmin Navionics+™ U.S. Inland & Coastal MappingModel: 010-02882-10 SUPPORTS LIVESCOPE™ SONAR1 AND MORE WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES2 CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar3, waypoints and routes — with them.1LiveScope™ System sonar transducer sold separately 2Via one-to-one unit wireless connection only 3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters 4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotterSpecifications General DIMENSION 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm) WEIGHT 5.5 lbs (2.5 kg) WATERPROOF IPX7 TOUCHSCREEN Yes DISPLAY TYPE WXGA, IPS DISPLAY SIZE 10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal) DISPLAY RESOLUTION 1280 x 800 pixels MOUNTING OPTIONS Bail or flush INPUT Touchscreen with Keyed Assist Maps & Memory ACCEPTS DATA CARDS 2 microSD cards WAYPOINTS 5000 TRACK POINTS 50,000 TRACKS 50 saved tracks NAVIGATION ROUTES 100 Sensors GPS Yes GLONASS Yes GALILEO Yes BEIDOU Yes HAS BUILT-IN RECEIVER Yes RECEIVER 10 Hz NMEA 2000 COMPATIBLE Yes NMEA 0183 COMPATIBLE Yes SUPPORTS WAAS Yes SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS Yes Built-in Maps BUILT-IN AUTO GUIDANCE+ Yes GARMIN NAVIONICS+ INLAND & COASTAL Includes Garmin Navionics+™ U.S. Inland & Coastal Mapping TIDE TABLES Yes Optional Map Support BLUECHART G3 Yes BLUECHART G3 VISION Yes LAKEVü G3 Yes LAKEVü G3 ULTRA Yes GARMIN NAVIONICS+™ Yes GARMIN NAVIONICS VISION+™ Yes TOPO 100K Yes STANDARD MAPPING Yes GARMIN QUICKDRAW CONTOURS Yes Electrical Features POWER INPUT 9 to 18 Vdc TYPICAL CURRENT DRAW AT 12 VDC 2.5 A MAXIMUM CURRENT DRAW AT 12 VDC 5.0 A MAXIMUM POWER USAGE AT 10 VDC 36 W Connections NMEA 2000® PORTS 1 GARMIN MARINE NETWORK PORTS 2 (large connector) 12-PIN TRANSDUCER PORTS 12-pin scanning sonar ANT+ (CONNECTIVITY) Yes GARMIN WI-FI NETWORK (LOCAL CONNECTION) Yes Sonar Features DISPLAYS SONAR Yes POWER OUTPUT 600 watt TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) CLEARVü built-in 260/455/800/1000/1200 kHz SIDEVü built-in 260/455/800/1000/1200 kHz PANOPTIX™ SONAR Yes LIVESCOPE Yes What's in the Box: ECHOMAP Ultra 126sv includes Includes Garmin Navionics+™ U.S. Inland & Coastal Mapping Power/data cable Bail mount with quick release cradle Protective sun cover 8-pin transducer to 12-pin sounder adapter cable Hardware Documentation GLS 10 Black Box LVS34 Transducer Perspective mount Trolling motor barrell mount

Read more less

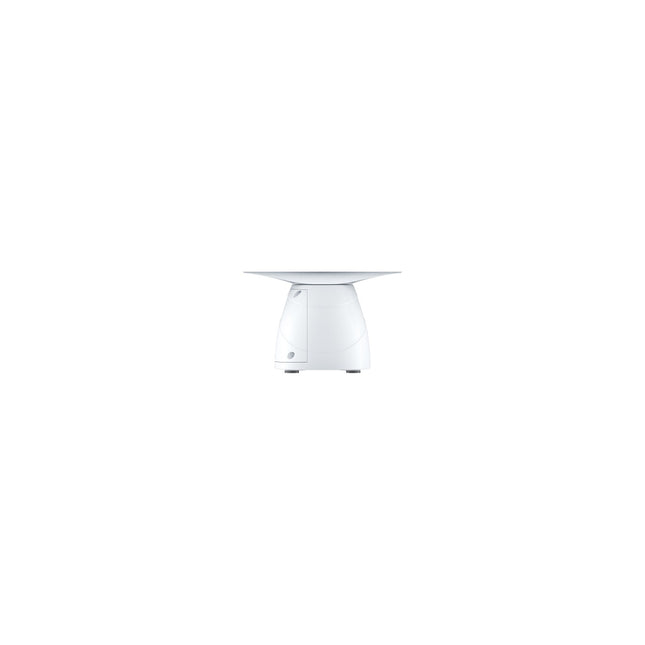

Garmin GMR xHD3 4kW PedestalModel: 010-02779-00This is a 4kw radar pedestal, antenna sold seperately.Specifications DIMENSION Pedestal: 520 x 328 x 314 mm (20.5" x 12.9" x 12.4") POWER INPUT 10-32 V DC POWER CONSUMPTION (STANDBY) 18 W TYPICAL POWER CONSUMPTION, TRANSMITTING (NORMAL MODE) 55 W TRANSMIT POWER 4 kW What's in the Box: GMR xHD3 4 kW Pedestal Power cable (15 m/49.21 ft) Network cable (15 m/49.21 ft) Mounting hardware kit and template Installation instructions

Read more less

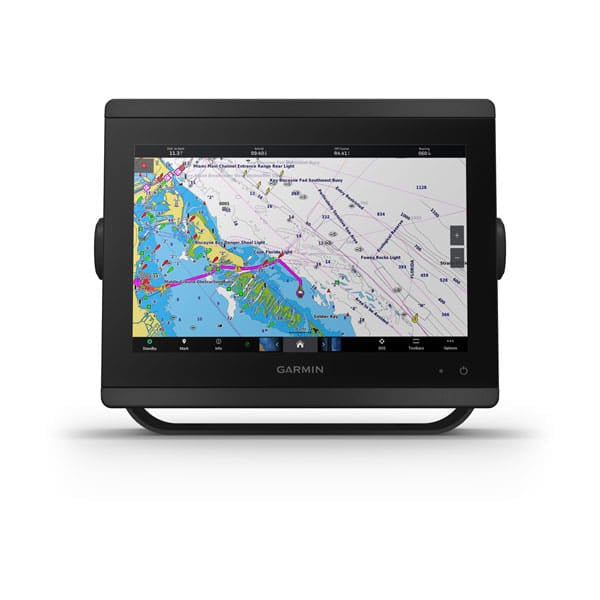

Garmin GPSMAP8612 12" Plotter with Garmin Navionics+ coastal and inland water charts for the U.S. and CanadaModel: 010-02092-50 Features a 12" full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses Adds a stunning appearance with ability to install multiple displays either flat mounted edge- to-edge to create a sleek glass helm look or mounted flush Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system — from sonar, radar and autopilots to instruments, cameras and multimedia ANT® connectivity and Wi-Fi® networking let you connect with your compatible quatix® smartwatches, gWind™ Wireless 2 wind sensor and more For full control of your boat on your chartplotter screen, use the exclusive OneHelm™ feature to connect to many third-party devices Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there’s support for optional Garmin Navionics Vision+™ premium map content. See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway Compatible with your Panoptix™ PS51 transducer with FrontVü™ forward-looking sonar, which helps you avoid running aground SmartMode™ station controls enable presets for one-touch access to docking, cruising, fishing, anchoring and more Built-in Garmin SailAssist™ features provide data, displays and prerace guidance needed to gain a competitive edge Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data and more. Dual microSD™ card slots on back of unit for use with the ActiveCaptain® app and cartography accessory cards" The GPSMAP® 8612 chartplotter features a 12" full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The device is preloaded with Garmin Navionics+™ coastal charts and inland mapping that feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) for helping you get where you need to go. Plus, there’s support for optional Garmin Navionics Vision+™ premium map content. The chartplotter includes a premium-performance processor for our fastest map drawing, superior networking, video distribution and more. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000® networking and the Garmin Marine Network allow you to build your full marine electronics suite — from radar and autopilots to cameras and instruments — controlled from your chartplotter and shared across multiple screens. With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many compatible third-party devices. Built-in Garmin SailAssist™ features provide data, displays and prerace guidance needed to gain a competitive edge. Download the ActiveCaptain® smartphone app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to purchasing, downloading and updating maps. See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway.Specifications General Physical dimensions 11.9" x 8.5" x 3" (30.3 cm x 21.6 cm x 7.6 cm) Weight 6.0 lbs. Water rating IPX6 and IPX7 Display type touchscreen IPS display (anti-glare finish) Display size 10.1" x 5.7" (25.7 cm x 14.5 cm) Display resolution FHD; 1920 x 1200 pixels Power consumption 2.4 A Antenna Internal or external over NMEA 2000 Mounting options Bail, flat or flush (Garmin do not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) Receiver 10 Hz GPS/GLONASS/Galileo Garmin Marine Network™ ports 2 Maps & Memory Accepts data cards 2 microSD cards (on back) Waypoints 5,000 Routes 100 (250 waypoints each) Track log 50,000 points; 50 saved tracks pre-loaded maps Garmin Navionics+ coastal and inland water charts for the U.S. and Canada Outdoor Recreation Features Tide tables Yes Chartplotter Features Garmin Radar compatible Yes Garmin Sonar compatible Yes Garmin SmartMode compatible (customizable monitor presets) Yes Supports AIS (tracks target ships position) Yes Supports DSC (displays position data from DSC-capable VHF radio) Yes Supports FUSION-Link™ compatible radios Yes GSD™ Black Box sonar support Yes GCV™ Black Box sonar support Yes ActiveCaptain compatible Yes Garmin Helm compatible Yes GRID™ (Garmin Remote Input Device) compatible Yes Wireless remote compatible Yes Sonar Features & Specifications Dual-frequency (50/200 kHz) sonar capable Yes (with external black box, sold separately) Dual-beam (77/200 kHz) sonar capable Yes (with external black box, sold separately) Frequencies supported NA Transmit power NA CHIRP sonar technology Yes_(when_connected_to_another_compatible_sonar_device) ClearVü yes (with GCV™ black box, sold separately) SideVü yes (with GCV™ black box, sold separately) Maximum depth NA Connections NMEA 2000® compatible Yes Transducer pin numbers na NMEA 0183 input ports 1 differential NMEA 0183 output ports 1 differential Video input ports 1 - BNC composite1 - HDMI (HDCP compliant) Video output ports 1 HDMI Wireless connectivity Yes What's in the Box: GPSMAP 8612 Garmin Navionics+ coastal and inland water charts for the U.S. and Canada Power cable NMEA 2000® drop cable NMEA 2000 T-connector Bail mount with knobs Flush mount kit Sun cover Trim piece snap covers Documentation

Read more less

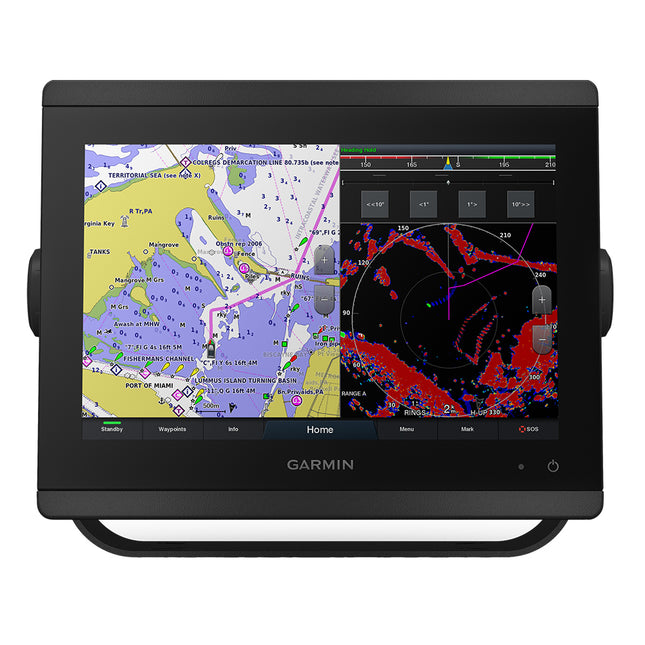

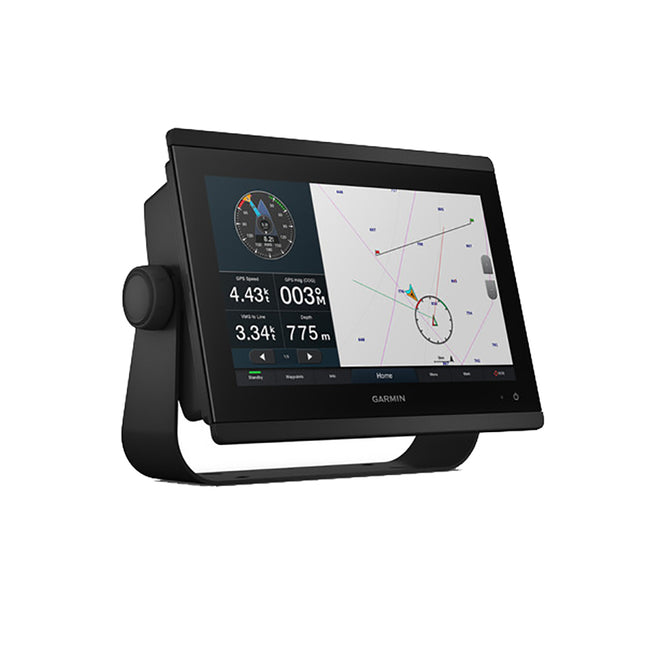

Garmin GPSMAP8412 12" PlotterModel: 010-02092-00 Features a 12" full HD IPS touchscreen display Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network Includes Bluetooth® connectivity, ANT® technology and Wi-Fi® networking Garmin SailAssist™ feature provides critical sailing data and displays prerace guidance for racers SmartMode™ station controls enable quick, one-touch access to the information you need Serious cruisers, sailors and sail racers demand serious equipment. The easy-to-use, easy-to-install GPSMAP 8412 chartplotter delivers MFD performance in a combo-size package. It features a 12" full HD IPS touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or can be mounted flush. It also provides standard USB touch output for use as a touchscreen monitor for Windows® and Mac® operating systems.NMEA 2000 networking and the Garmin Marine Network allow you to easily build your full marine electronics suite — from radar and autopilots to cameras, instruments and forward-looking sonar — controlled from your chartplotter and shared across multiple screens. In addition, our exclusive OneHelm™ system coordinates many third-party manufactured onboard marine products to bring full control of systems — such as digital switching, lighting, stabilization and more — conveniently to your chartplotter screen.The GPSMAP 8412 chartplotter has a premium-performance processor that enables fast map drawing, superior networking, video distribution and more. Built-in Wi-Fi technology lets you pair with the free ActiveCaptain® app for access to OneChart™, smart notifications , Garmin Quickdraw™ community data and more. You can also control video streaming from our GC™ 100 wireless camera and VIRB® action cameras. In addition, built-in ANT wireless technology connects you directly to our quatix® marine watch, gWind™ Wireless 2 transducer and wireless remote controls.Networked sonar, radar, cameras, media and digital switching can be independent or incorporated into SmartMode station controls. With SmartMode, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking.For the most detailed, clear and concise charts and maps, GPSMAP 8412 includes expandable memory for accessory map purchases such as BlueChart® g3 and BlueChart® g3 Vision featuring Navionics data. The charts and maps also include our Auto Guidance technology, which shows a suggested route to a destination , based on your boat’s specifications.You don’t have to stand for hours at the helm. The optional easy-to-use GRID™ 20 remote input device provides intuitive remote access and control of your entire Garmin marine system. It features a 360-degree joystick with a rotary knob and push-to-select button for easy chartplotter menu/setting navigation and fine control, even in the worst conditions.To help you make informed decisions, the Garmin SailAssist feature provides critical data displays and prerace guidance to help you gain a competitive edge. Other sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider. Gauge displays provide need-to-know information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs and a data bar with customizable fields.Download the ActiveCaptain app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to updating software and purchasing maps.Specifications General Physical dimensions 11.9" x 8.5" x 3" (30.3 cm x 21.6 cm x 7.6 cm) Weight 6.0 lbs. Water rating IPX6 and IPX7 Display type touchscreen IPS display (anti-glare finish) Display size 10.1" x 5.7" (25.7 cm x 14.5 cm) Display resolution FHD; 1920 x 1200 pixels Power consumption 2.4 A Antenna Internal or external over NMEA 2000 Mounting options Bail, flat or flush (Garmin do not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) Receiver 10 Hz GPS/GLONASS/Galileo Garmin Marine Network™ ports 2 Maps & Memory Accepts data cards 2 microSD cards (on back) Waypoints 5,000 Routes 100 (250 waypoints each) Track log 50,000 points; 50 saved tracks pre-loaded maps Worldwide Basemap Outdoor Recreation Features Tide tables Yes Chartplotter Features Garmin Radar compatible Yes Garmin Sonar compatible Yes Garmin SmartMode compatible (customizable monitor presets) Yes Supports AIS (tracks target ships position) Yes Supports DSC (displays position data from DSC-capable VHF radio) Yes Supports FUSION-Link™ compatible radios Yes GSD™ Black Box sonar support Yes GCV™ Black Box sonar support Yes ActiveCaptain compatible Yes Garmin Helm compatible Yes GRID™ (Garmin Remote Input Device) compatible Yes Wireless remote compatible Yes Sonar Features & Specifications Dual-frequency (50/200 kHz) sonar capable Yes (with external black box, sold separately) Dual-beam (77/200 kHz) sonar capable Yes (with external black box, sold separately) Frequencies supported NA Transmit power NA CHIRP sonar technology Yes_(when_connected_to_another_compatible_sonar_device) ClearVü yes (with GCV™ black box, sold separately) SideVü yes (with GCV™ black box, sold separately) Maximum depth NA Connections NMEA 2000® compatible Yes Transducer pin numbers NA NMEA 0183 input ports 1 differential NMEA 0183 output ports 1 differential Video input ports 1 - BNC composite1 - HDMI (HDCP compliant) Video output ports 1 HDMI Wireless connectivity Yes What's in the Box: GPSMAP 8412 Power cable NMEA 2000® drop cable NMEA 2000 T-connector Bail mount with knobs Flush mount kit Sun cover Trim piece snap covers Documentation

Read more less

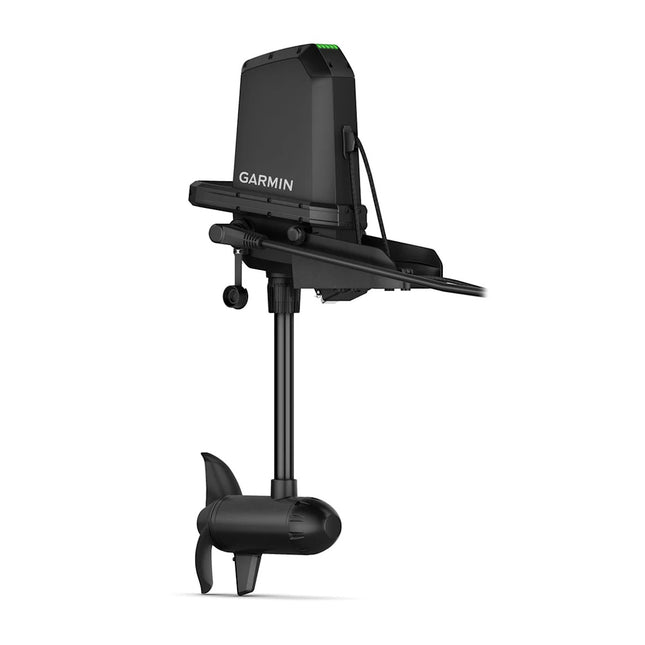

Garmin Force® Current Trolling Motor for Kayaks with Power Steer Foot PedalsModel: 010-02864-00 LEGENDARY FORCE PERFORMANCE AND RELIABILITY HANDS-FREE WIRELESS THROTTLE AND STEERING CONTROL WITH POWER STEER PEDALS STAY ON THE FISH WITH ANCHOR LOCK AND MULTI-BAND GPS SIMPLE AND INTUITIVE INSTALLATION WIRELESS INTEGRATION WITH GARMIN CHARTPLOTTERS WIRELESS MAN OVERBOARD TAG Power steer pedals connect wirelessly to the motor to reduce clutter on the deck. This all-in-one steering and throttle solution allows you to fish, troll, cast and fight without ever setting the rod down. Programmable pedal buttons give you quick access to key features such as anchor lock, heading hold and more.Turn your boat quickly with full forward and reverse thrust in any direction. Weave through tight timber, turn in a tight circle, sneak along shorelines, and creep through weed beds while you fish. Use the included wireless handheld remote for point-and-go gesture steering.Wireless integration with your Garmin chartplotters allows you to create routes and tracks for the trolling motor to follow while you fish. You can also adjust throttle and steering on the chartplotter control bar, adjust motor settings and more.The anchor lock technology with multi-band GPS provides our most precise boat positioning technology to help keep the boat in one place, even in windy conditions or strong current.When wearing the included wireless man overboard tag, the motor cuts off if it detects you fall overboard.An efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing — and not running out of battery.Use the included remote to help you navigate with our simple point-and-go technology.Quickly stow or deploy the prop with one hand when you need to glide over shallow areas with the included stow rope and cleat kit.Connect your compatible Garmin smartwatch to control steering, anchor lock and more from your wrist.Engage anchor lock, heading hold and more with programmable foot pedal buttons.Use the high-efficiency prop to maximize battery life, or the weedless prop to cut through aquatic vegetation.The 4-hole mounting pattern makes installation easy on many different types of kayaks. The wireless foot pedals and rail system are also designed to accommodate a wide variety of installation methods.Get on and off the water fast with simple motor and pedal installation and removal.Don’t spook the fish; the motor is extremely quiet above and below the water.The sturdy alloy shaft and components are built to endure harsh saltwater and freshwater environments with advanced corrosion protection.Specifications General Color black For use in freshwater, brackish water and saltwater Mount style 4-hole tilt mount Max thrust 50 lbs (ISO13342) using high efficiency propeller at 24 V30 lbs (ISO13342) using high efficiency propeller at 12 V Voltage 12 V or 24 V Electric steering Yes Built-in heading sensor Yes Built-in GPS yes (dual frequency GPS) Warranty 3-year, limited lifetime on shaft Water rating IPX7 Mounting location stern Wireless remote yes (included) Shaft length (from mount to top of drive motor) 16.6" (max); 11.4" (min) Power steer foot pedals (kayak) compatible yes (included) Battery indicator Yes Variable speed control yes (20 steps) quatix remote control supported Yes Manual reverse control Yes Autopilot Features Route following Yes Anchor lock Yes Smart Anchor Lock features Yes Anchor lock jog Yes Heading hold Yes Cruise control Yes Gesture features yes (manual+, heading hold+, jog+) Power Steer Foot Pedals (Kayak) Dimensions 5.63" x 9.75" x 3.63" (max, single pedal when mounted) Wireless communication Yes Power installation batteries (2 AA) AA battery life 1 full season Water rating IPX7 Remote Features Display size 1.2" (30.2 mm) diameter Display resolution 240 x 240 pixels Display type color, sunlight-visible, transflective memory-in-pixel (MIP) Chartplotter user-programmable keys Yes Autopilot feature control Yes Water rating IPX7 Battery life typical use with backlight at low, 43 weeks Floats Yes What's in the Box: Force® Kayak Propulsion System Left and right foot controls (with rail mounts and kickstands) Force trolling motor remote with lanyard Black MOB tag Power cable Pull rope and cleat Skeg Performance propeller Weedless propeller Mounting hardware Documentation

Read more less

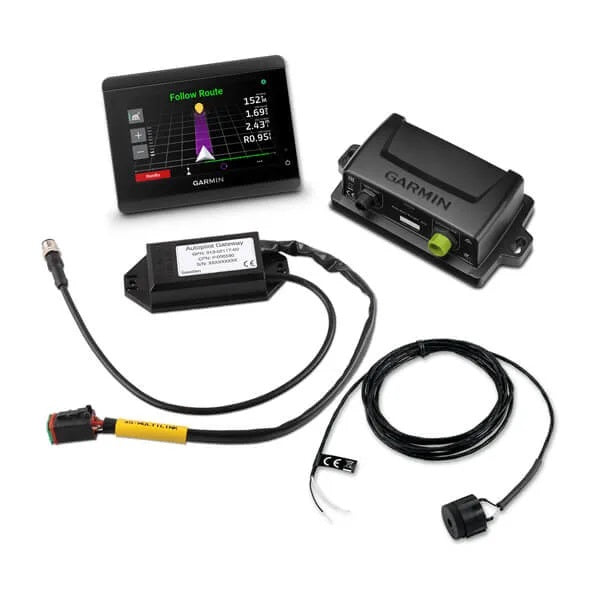

Garmin Reactor™ 40 Steer-by-wire Corepack for Yamaha® Helm Master® With GHC™ 50 Autopilot InstrumentModel: 010-02794-04 This Reactor 40 steer-by-wire corepack is the perfect companion for your Yamaha Helm Master system. Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere. Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course. You just want to get on the water, so we made calibration fast and easy. That’s the power of simple. Combine with your compatible Garmin chartplotter, and control your autopilot — from anywhere on your boat. The GHC™ 50 autopilot instrument enhances your autopilot experien Designed for Yamaha Helm Master systems, this Reactor 40 autopilot steer-by-wire corepack gives you the extra hand you need, so you can explore paradise worry-free.This corepack works with yachts that have a Yamaha Helm Master system, and it requires a compatible Garmin chartplotter.With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimizes heading error and more.Hold your course on the sea — this autopilot reacts to conditions, so you can remain confident even when you’re pitching or rolling.All autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately). You can even gain additional benefits such as the follow route and Auto Guidance+™ features1.1 Auto Guidance is for planning purposes only and does not replace safe navigation operationsSpecifications CCU Specifications Dimensions 3 19/32" diameter (91.4 mm) Weight 5.6 oz (159 g) Temperature range From 5°F to 131°F (from -15°C to 55°C) Case material Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards CCU cable length 9.5 ft (3 m) NMEA 2000 power input 9-16V NMEA 2000 LEN 3 (150 Ma) Buzzer/Alarm Specifications Dimensions (L Diameter) 29/32" 1" (23 mm 25 mm) Weight 2.4 oz (68 g) Temperature range from 5°F to 131°F (from -15°C to 55°C) Cable length 10 ft (3.0 m) Autopilot Gateway Specifications Dimensions (L Diameter) 5 1/8" 2 3/8" x 1" (130 mm 60 mm x 25 mm) Weight Less than 1 oz (28 g) What's in the Box: Reactor 40 CCU (Course Computer Unit) GHC™ 50 helm control display Yamaha Gateway CCU cable Buzzer NMEA 2000® drop cables (2 meters) NMEA 2000 power cable NMEA 2000 T-connectors Male and female terminators Documentation

Read more less

Garmin ECHOMAP™ Ultra 2 126sv 12" Chartplotters with GT56UHD-TM Transducer; Includes Garmin Navionics+™ U.S. Inland & Coastal MappingModel: 010-02882-01 SUPPORTS LIVESCOPE™ SONAR1 AND MORE WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES2 CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar, waypoints and routes — with them.LiveScope™ System sonar transducer sold separately Via one-to-one unit wireless connection only LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotterSpecifications General DIMENSION 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm) WEIGHT 5.5 lbs (2.5 kg) WATERPROOF IPX7 TOUCHSCREEN Yes DISPLAY TYPE WXGA, IPS DISPLAY SIZE 10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal) DISPLAY RESOLUTION 1280 x 800 pixels MOUNTING OPTIONS Bail or flush INPUT Touchscreen with Keyed Assist Maps & Memory ACCEPTS DATA CARDS 2 microSD cards WAYPOINTS 5000 TRACK POINTS 50,000 TRACKS 50 saved tracks NAVIGATION ROUTES 100 Sensors GPS Yes GLONASS Yes GALILEO Yes BEIDOU Yes HAS BUILT-IN RECEIVER Yes RECEIVER 10 Hz NMEA 2000 COMPATIBLE Yes NMEA 0183 COMPATIBLE Yes SUPPORTS WAAS Yes SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS Yes Built-in Maps BUILT-IN AUTO GUIDANCE+ Yes GARMIN NAVIONICS+ INLAND & COASTAL Includes Garmin Navionics+™ U.S. Inland & Coastal Mapping TIDE TABLES Yes Optional Map Support BLUECHART G3 Yes BLUECHART G3 VISION Yes LAKEVü G3 Yes LAKEVü G3 ULTRA Yes GARMIN NAVIONICS+™ Yes GARMIN NAVIONICS VISION+™ Yes TOPO 100K Yes STANDARD MAPPING Yes GARMIN QUICKDRAW CONTOURS Yes Electrical Features POWER INPUT 9 to 18 Vdc TYPICAL CURRENT DRAW AT 12 VDC 2.5 A MAXIMUM CURRENT DRAW AT 12 VDC 5.0 A MAXIMUM POWER USAGE AT 10 VDC 36 W Connections NMEA 2000® PORTS 1 GARMIN MARINE NETWORK PORTS 2 (large connector) 12-PIN TRANSDUCER PORTS 12-pin scanning sonar ANT+ (CONNECTIVITY) Yes GARMIN WI-FI NETWORK (LOCAL CONNECTION) Yes Sonar Features DISPLAYS SONAR Yes POWER OUTPUT 600 watt TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) CLEARVü built-in 260/455/800/1000/1200 kHz SIDEVü built-in 260/455/800/1000/1200 kHz PANOPTIX™ SONAR Yes LIVESCOPE Yes What's in the Box: ECHOMAP Ultra 126sv includes Includes Garmin Navionics+™ U.S. Inland & Coastal Mapping Power/data cable Bail mount with quick release cradle Protective sun cover GT56UHD-TM transducer Hardware Documentation

Read more less

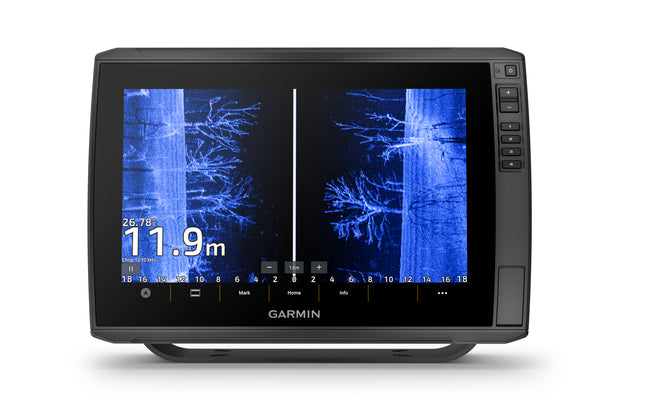

Garmin ECHOMAP™ Ultra 2 122sv 12" Chartplotters with GT56UHD-TM TransducerModel: 010-02881-01 SUPPORTS LIVESCOPE™ SONAR1 AND MORE WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES2 CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar, waypoints and routes — with them.LiveScope™ System sonar transducer sold separately Via one-to-one unit wireless connection only LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotterSpecifications General DIMENSION 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm) WEIGHT 5.5 lbs (2.5 kg) WATERPROOF IPX7 TOUCHSCREEN Yes DISPLAY TYPE WXGA, IPS DISPLAY SIZE 10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal) DISPLAY RESOLUTION 1280 x 800 pixels MOUNTING OPTIONS Bail or flush INPUT Touchscreen with Keyed Assist Maps & Memory ACCEPTS DATA CARDS 2 microSD cards WAYPOINTS 5000 TRACK POINTS 50,000 TRACKS 50 saved tracks NAVIGATION ROUTES 100 Sensors GPS Yes GLONASS Yes GALILEO Yes BEIDOU Yes HAS BUILT-IN RECEIVER Yes RECEIVER 10 Hz NMEA 2000 COMPATIBLE Yes NMEA 0183 COMPATIBLE Yes SUPPORTS WAAS Yes SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS Yes Built-in Maps BUILT-IN AUTO GUIDANCE+ Yes GARMIN NAVIONICS+ INLAND & COASTAL No TIDE TABLES No Optional Map Support BLUECHART G3 Yes BLUECHART G3 VISION Yes LAKEVü G3 Yes LAKEVü G3 ULTRA Yes GARMIN NAVIONICS+™ Yes GARMIN NAVIONICS VISION+™ Yes TOPO 100K Yes STANDARD MAPPING Yes GARMIN QUICKDRAW CONTOURS Yes Electrical Features POWER INPUT 9 to 18 Vdc TYPICAL CURRENT DRAW AT 12 VDC 2.5 A MAXIMUM CURRENT DRAW AT 12 VDC 5.0 A MAXIMUM POWER USAGE AT 10 VDC 36 W Connections NMEA 2000® PORTS 1 GARMIN MARINE NETWORK PORTS 2 (large connector) 12-PIN TRANSDUCER PORTS 12-pin scanning sonar ANT+ (CONNECTIVITY) Yes GARMIN WI-FI NETWORK (LOCAL CONNECTION) Yes Sonar Features DISPLAYS SONAR Yes POWER OUTPUT 600 watt TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) CLEARVü built-in 260/455/800/1000/1200 kHz SIDEVü built-in 260/455/800/1000/1200 kHz PANOPTIX™ SONAR Yes LIVESCOPE Yes What's in the Box: ECHOMAP Ultra 122sv Power/data cable Bail mount with quick release cradle Protective sun cover GT56UHD-TM ransducer Hardware Documentation

Read more less

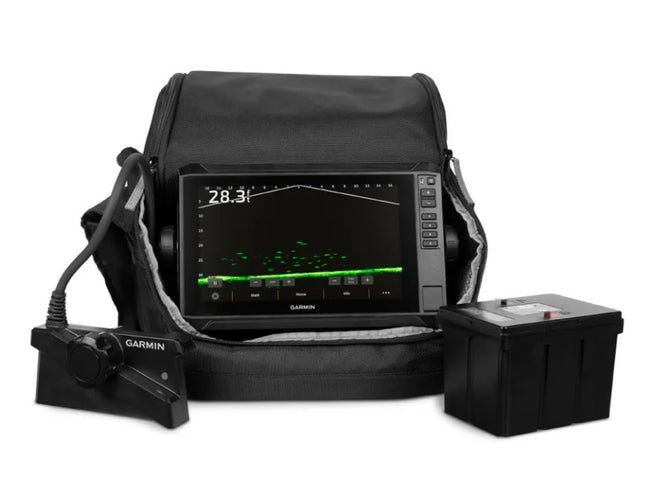

Garmin ECHOMAP UHD2 93sv Panoptix Livescope PLUS Ice Bundle GN+ US InalndModel: 010-02688-35 GET IMPROVED CLARITY, SENSITIVITY AND TARGET SEPARATION SCAN SURROUNDINGS WITH REDUCED NOISE AND FEWER SONAR ARTIFACTS USE LIVESCOPE™ FORWARD MODE SO YOU KNOW WHERE TO DRILL USE LIVESCOPE™ DOWN MODE SO YOU CAN KEEP AN EYE ON YOUR JIG AND THE FISH FISH LONGER WITH A 16.5AH LIGHTWEIGHT LITHIUM-ION BATTERY INCLUDES A RUGGED, PORTABLE CARRYING CASE Get improved resolution, reduced noise, clearer images and better target separation with the LiveScope™ Plus Ice Fishing Bundle LI. It includes a 9-inch ECHOMAP™ UHD2 combo, the complete LiveScope Plus System with LVS34-IF transducer, swivel pole mount and a lightweight lithium battery.Revolutionary real-time sonar pairs with a large 9-inch ECHOMAP UHD2 combo touchscreen display with keyed assist, allowing you to see up to 200’ in any direction.The LiveScope System offers two live-scanning sonar modes — Down and Forward. It features a transducer cable that stays fleGet preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.You can create custom pages that combine sonar, flasher and map on your display.Fish even longer with a lightweight 16.5Ah lithium battery that won’t weigh you down on the ice.Specifications General TOUCHSCREEN Yes INPUT Touchscreen with Keyed Assist DISPLAY SIZE 7.8" x 4.5", 9.0" (19.8 x 11.5, 22.9 cm) DISPLAY RESOLUTION 1024 x 600 pixels DISPLAY TYPE DISPLAY TYPE WEIGHT 22.5 lbs (10.2 kg) WATERPROOF IPX7 Maps & Memory ACCEPTS DATA CARDS 1 microSD™ card; 32 GB maximum size WAYPOINTS 5000 TRACK POINTS 50,000 TRACKS 50 saved tracks NAVIGATION ROUTES 100 Ice Fishing Details BATTERY TYPE, SIZE Lithium-ion, 16.5Ah BAG SIZE Extra Large (XL) INCLUDED TRANSDUCER LiveScope™ Plus System with LVS34-IF TRANSDUCER HOLDING FEATURE Pole mount Sensors HAS BUILT-IN RECEIVER Yes RECEIVER 10 Hz NMEA 2000 COMPATIBLE Yes GPS Yes GLONASS Yes GALILEO Yes BEIDOU Yes SUPPORTS WAAS Yes SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS Yes Sonar Features & Specifications DISPLAYS SONAR Yes POWER OUTPUT 500 W TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) CLEARVU built-in 260/455/800/1000/1200 kHz SIDEVU built-in 260/455/800/1000/1200 kHz PANOPTIX™ SONAR Yes LIVESCOPE Yes Connections NMEA 2000® PORTS Yes GARMIN MARINE NETWORK PORTS 1 12-PIN TRANSDUCER PORTS 1 BLUETOOTH® PAIRING Yes ANT+ (CONNECTIVITY) Yes GARMIN WI-FI NETWORK (LOCAL CONNECTION) Yes Input Voltage 9 to 18 Vdc Dimensions 13.8" 12.2" 13.0" (35 31 33 cm) What's in the Box: ECHOMAP™ UHD2 chartplotter LVS34-IF transducer GLS™ 10 sonar module Ice fishing pole mount Tilt mount Power cable Portable fishing bag with handle Lithium-ion battery Battery charger Documentation

Read more less

Linear drive unit for GHP-12 corepack. For sailboats with up to 79,000 lbs of displacement The Class B Drive Unit works with the GHP 12 Marine Autopilot System to control your sailboat's steering system. This device is designed for use with larger sailboats with up to 79,000 lbs of displacement. Drive Unit Type: Hydraulic linearStroke Length: 12" (303 mm) Maximum Thrust: 2380 lb (1080 kg) Dimensions, WxHxD: Motor: 8.8" x 3" x 3.5" (223 x 76 x 88 mm) Cylinder (centered): 32.7" x 4.1" x 6.3" (830 x 105 x 160mm) Reservoir: 7.9" x 6.1" x 3.3" (200 x 155 x 85 mm) Supply Voltage: 10V to 30V Average Clutch Current at 12V: 1 Amp Average Motor Current at 12V: 3-4 Amps Operating Temperature: -15 C to 60 C(5 F to 140 F)

Read more less

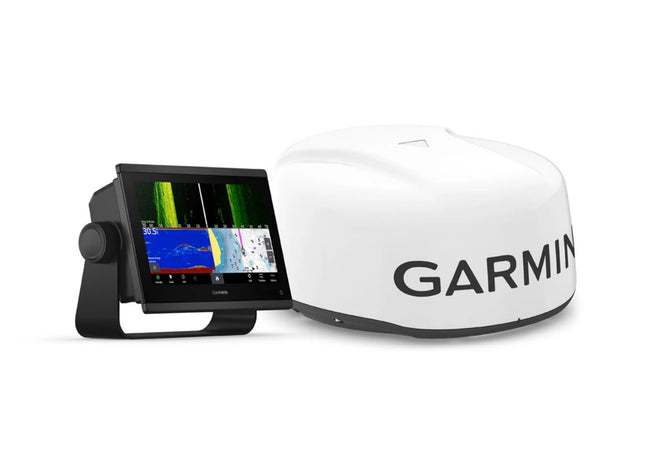

Garmin GPSMAP® 943xsv SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap with GMR18 HD3 Radar DomeModel: 010-02366-53 Easily integrate with more engines. Connect to compatible third-party devices with OneHelm™ digital switching. Easily build your marine system using the best of network connectivity. Compatible with premium maps and charts for the best in Garmin navigation. See below your boat with built-in sonar capabilities. Manage your marine experience from nearly anywhere2. With 50% more touchscreen pixels and nearly double the processing power of previous-generation 9" GPSMAP devices, this crisp chartplotter/sonar combo with high-resolution IPS display integrates seamlessly into your Garmin marine system.Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 923xsv also supports 1 kW CHIRP traditional sonar capabilities.Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this 9" plotter in a wider range of dash configurations.New higher-resolution 9" IPS displays offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9" GPSMAP devices.Navigate any waters with preloaded Garmin Navionics+™ charts and mappingTo help you avoid weather and traffic on the water, the compact 4 kW GMR™ 18 HD+ dome radar is available as a bundled option with your GPSMAP chartplotter/sonar package.If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more4.Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.Specifications General PHYSICAL DIMENSIONS 9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm) DISPLAY SIZE 7.8" x 4.4"; 9.0" diagonal DISPLAY RESOLUTION 1280 x 720 pixels DISPLAY TYPE WXGA display WEIGHT 3.6 lbs (1.6 kg) WATER RATING IPX7 POLARIZED SUPPORT Yes POWER CONSUMPTION Max power usage at 10 Vdc: 22 W Typical current draw at 12 Vdc: 1.3 A Max current draw at 12 Vdc: 1.8 A ANTENNA Internal or external over NMEA 2000 MOUNTING OPTIONS Bail, flush or flat RECEIVER 10 Hz high-sensitivity GARMIN MARINE NETWORK™ PORTS 1 TRANSMIT POWER 1 kW traditional; 1 kW CHIRP Maps & Memory PRELOADED MAPS Garmin Navionics+™ ACCEPTS DATA CARDS 2 microSD™ cards (back of unit) WAYPOINTS 5,000 TRACK LOG 50,000 points; 50 saved tracks ROUTES 100 Outdoor Recreation TIDE TABLES Yes Chartplotter Features GARMIN RADAR COMPATIBLE Yes GARMIN SONAR COMPATIBLE Yes (built-in) GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) Yes SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) Yes SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) Yes SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS Yes GSD™ BLACK BOX SONAR SUPPORT Yes GCV™ BLACK BOX SONAR SUPPORT Yes ACTIVECAPTAIN COMPATIBLE Yes GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE Yes WIRELESS REMOTE COMPATIBLE Yes SAILING FEATURES Yes Sonar Features & Specifications DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE Yes DUAL-BEAM (77/200 KHZ) SONAR CAPABLE Yes FREQUENCIES SUPPORTED Traditional: 50/77/83/200 kHz CHIRP (low, medium, high) ClearVü (260/455/800 kHz) (dependent on transducer) CHIRP SONAR TECHNOLOGY Yes (Built-in) CLEARVü Yes with CHIRP (built-in) SIDEVü Yes with CHIRP (built-in) MAXIMUM DEPTH 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) Yes WATER TEMPERATURE LOG AND GRAPH Yes SONAR RECORDING Yes SONAR HISTORY REWIND Yes Connections NMEA 2000® COMPATIBLE Yes TRANSDUCER PIN NUMBERS 12-pin (orange) NMEA 0183 INPUT PORTS 1 (Differential) NMEA 0183 OUTPUT PORTS 1 (Differential) VIDEO INPUT PORTS 1 BNC WIRELESS CONNECTIVITY Yes J1939 COMPATIBLE Yes What's in the Box: GPSMAP 943xsv chartplotter microSD™ card preinstalled Power cable NMEA 2000® T-connector NMEA 2000 drop cable (2 meters) Bail mount kit with knobs Flush mount kit with gasket Protective cover Trim piece snap covers Documentation 8-pin transducer to 12-pin sounder adapter cable GMR 18 HD3 radome Mounting hardware kit Power cable (15 m) Network cable (15 m) Installation instructions

Read more less
